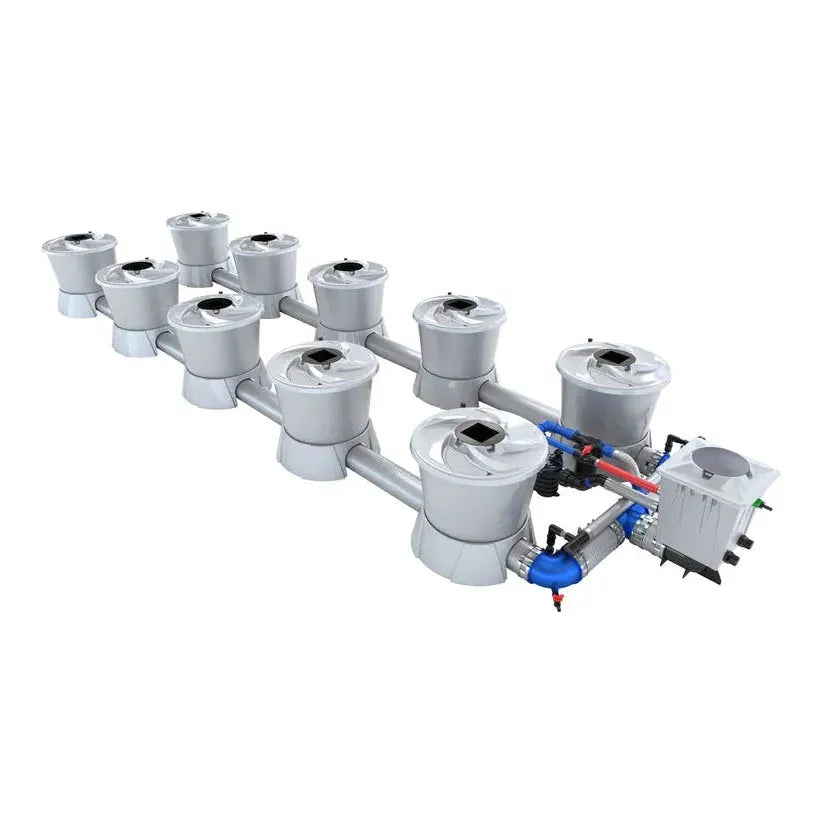

Alien Hydroponics V-System 10-Pot DWC Kit

Alien Hydroponics V-System DWC - 10 Pot 2 Row

Struggling to achieve consistent, explosive growth in your indoor garden? The Alien Hydroponics V-System is the ultimate solution, a revolutionary deep water culture system engineered to maximize yields and simplify your growing process. This 10-pot configuration provides ample space for large, healthy plants, setting a new standard for home and commercial hydroponics.

At the core of the V-System is the groundbreaking Venturi Valve Technology. This innovative feature eliminates the need for noisy air pumps and failure-prone airstones by creating a powerful vortex that hyper-oxygenates the nutrient solution. The result is a thriving root zone with unparalleled access to oxygen and nutrients, leading to faster growth and bigger harvests. The entire system is powered by the reliable 370W Jet-Stream Vortex pump, ensuring consistent circulation and nutrient delivery across all ten 15-gallon pots. Its modular design offers incredible flexibility; if your space requires a different layout, you can easily adapt it or consider other models in the Alien V-System lineup, such as the 8-pot version.

Features

💨

Venturi Valve Technology

Delivers maximum oxygen to the root zone without air pumps or airstones for explosive growth.

🌡️

Temperature Control

Helps maintain cooler water temperatures, significantly reducing the risk of root rot and disease.

🧩

Modular & Expandable

Customize the layout to fit your space. Easily expand with more pots as your garden grows.

⚖️

Uniform Nutrient Flow

The powerful vortex pump ensures every plant receives an equal and constant supply of nutrients.

What's Included

1x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h
10x V-Pot 58L
10x V-Pot Base & Lid
10x Lid Inspection Cover
10x Square Net Pot
10x V-Pot Clip
10x Air Filter for V-SYSTEM Venturi, 6mm
10x Silencer for Venturi
10x Venturi Fitting & Air Inlet Pipe
10x Venturi Inlet Fitting for 22mm Pipe
11x Nut 5" & Green Silicone Washer
26x 5" Stainless Steel Clamp
1x Distribution Tee 40mm
10x DM Push-Fit Elbows & Tees
1x Drain Cap & Drain Tap
2x Elbow 5" Barbed with Drain Point
3x Elbow 5" Threaded Dual-Flow
1x Filter Manifold, Complete 40mm
1x Float Valve
1x V-SYSTEM Header Pot 20L
1x Silver Lid & Header Pot Blank
1x Hosetail 16mm-3/4" Female Green
All required rigid and spiral pipes
8x Tee Threaded 5" Dual-Flow
2x Threaded Tank Connector 1"
1x Vortex Pump Inlet Manifold
Terminal Manifolds (Left & Right)
All required clamps, inserts, and tools for assembly (wrenches, pipe cutter, screwdriver)
3x Food-Grade Silicone Grease

Specifications

Specification	Value
Number of Pots	10
Number of Rows	2
Pot Size	15 gallons (58 L)
Total Fluid Volume	161.9 gallons (613 L)

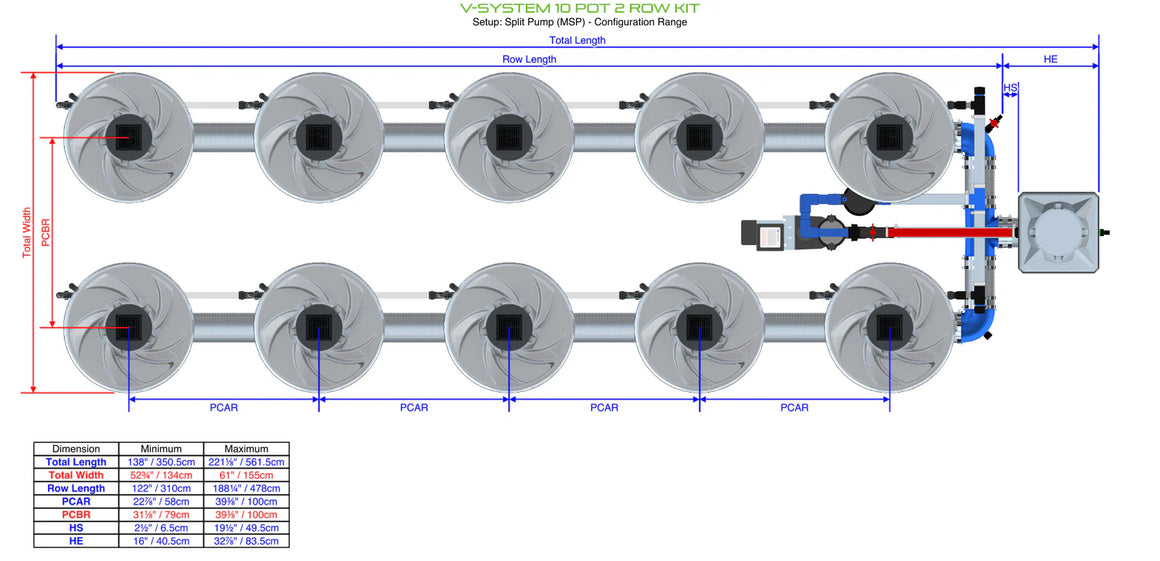

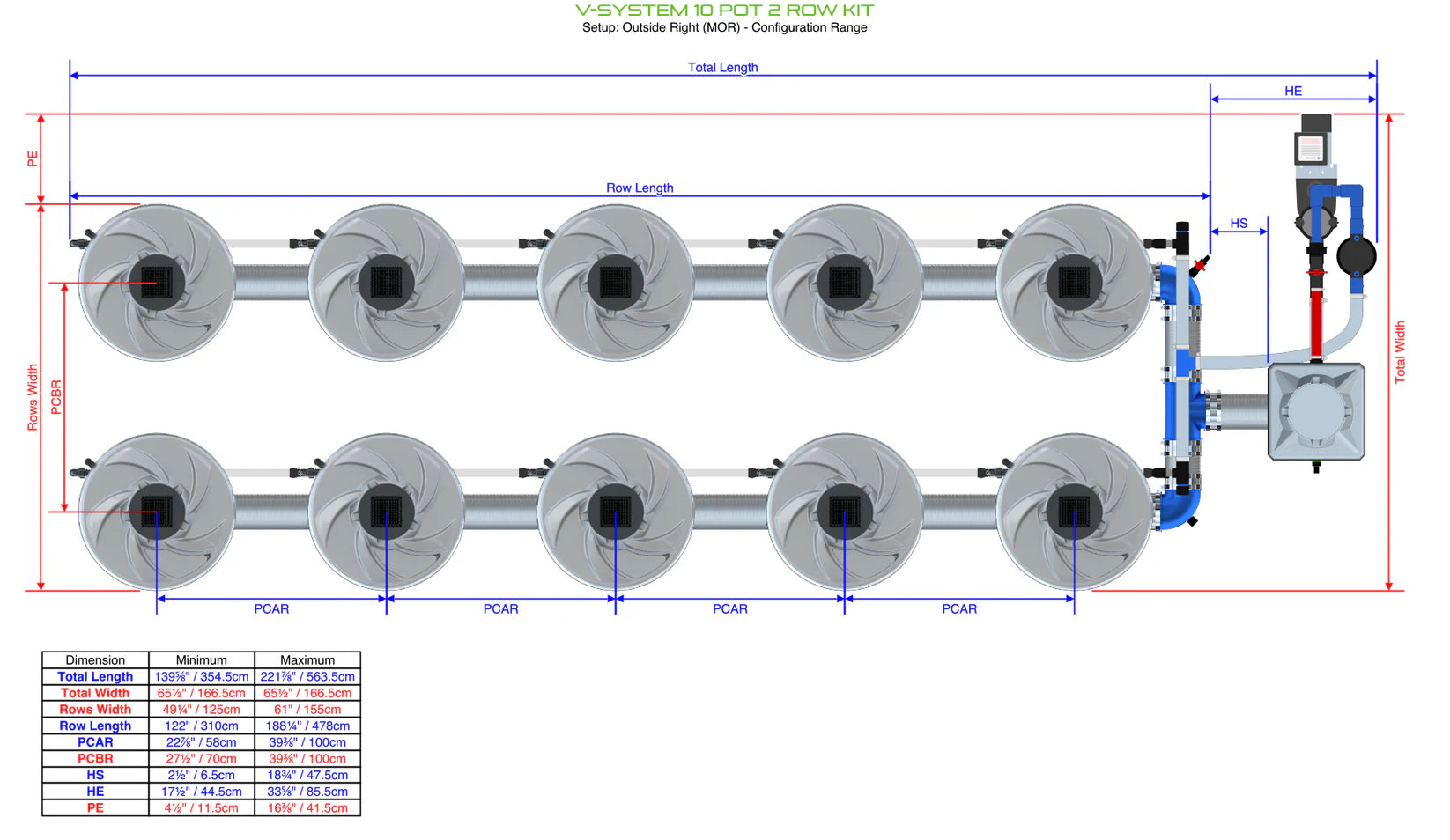

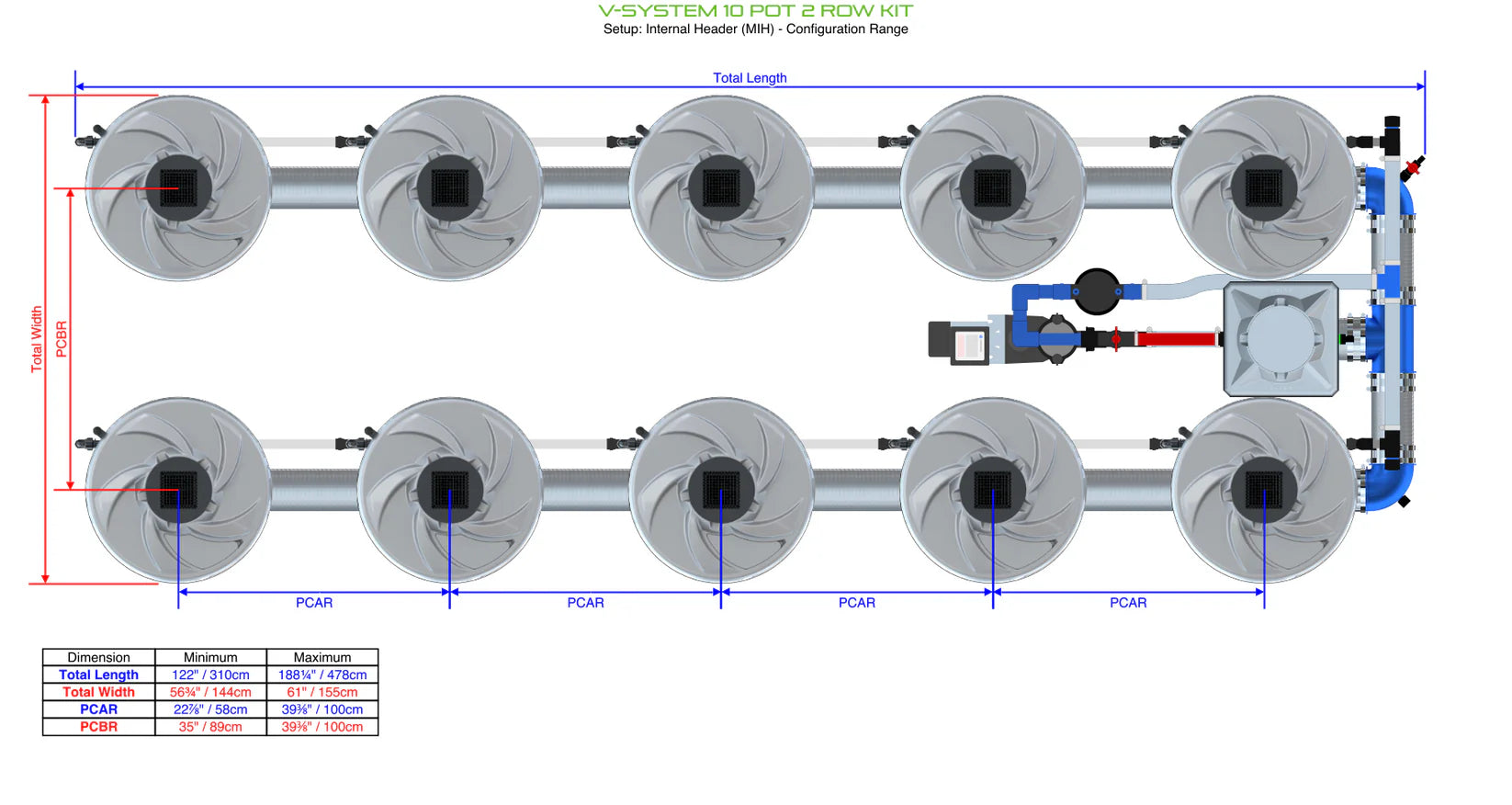

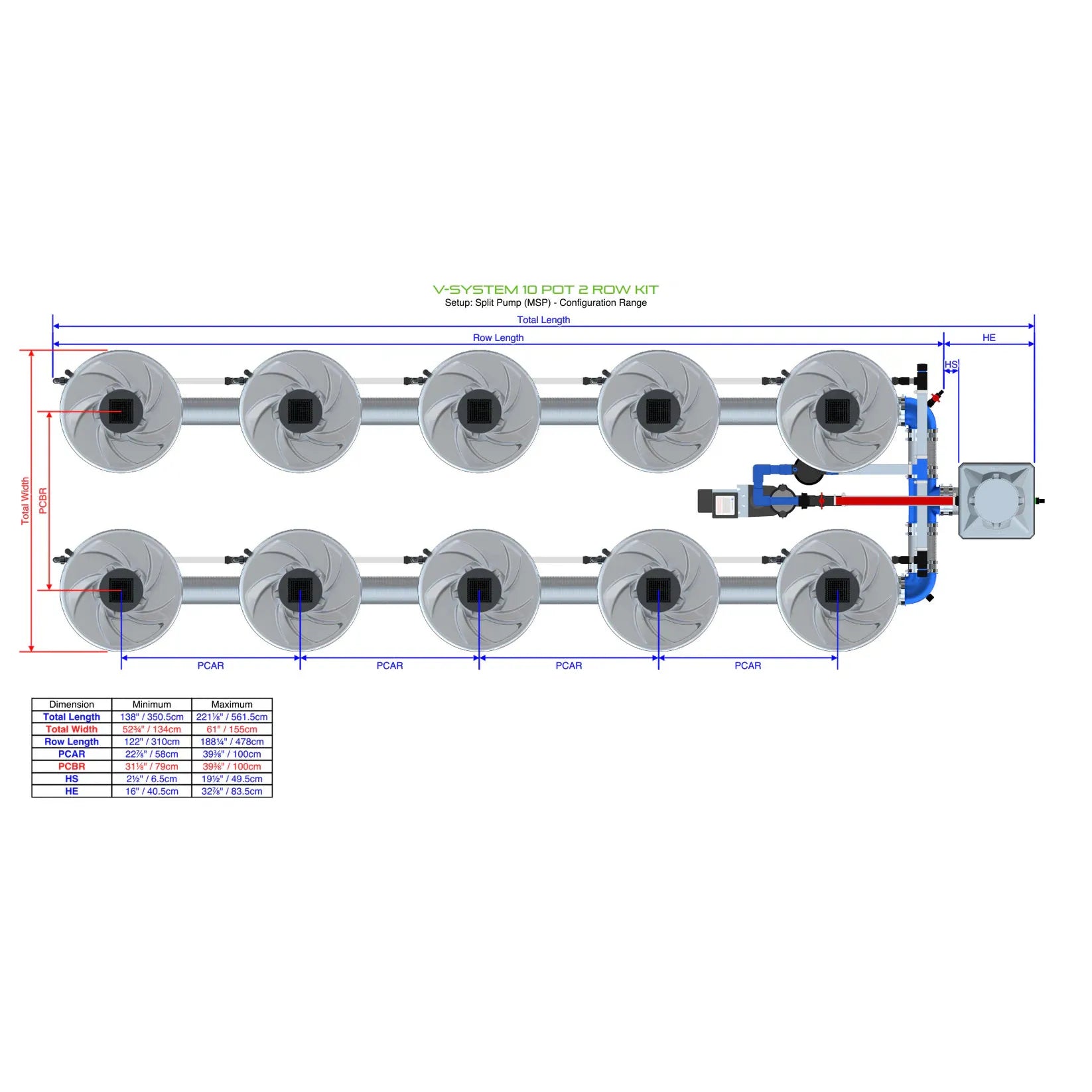

Minimum Assembled Length	10' 2.4" (3110 mm)
Minimum Assembled Width	3' 11.2" (1200 mm)
Water Pump Model	V-SYSTEM Vortex Water Pump 370W
Pump Wattage	370 watts
Pump Flow Rate	3487 gal/hr (13200 L/hr)
Recommended Chiller Capacity	264 gallons (1000 L)

Support & Manuals

📄Instruction Manual 📄Technical Drawing

Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.

FAQs

What makes the V-System different from other DWC systems?+

The key difference is its innovative Venturi Valve Technology. Unlike traditional DWC setups that rely on separate air pumps and airstones (which can clog and fail), the V-System uses the water pump's flow to create a vortex that draws in and dissolves massive amounts of oxygen directly into the nutrient solution. This results in a more reliable, lower-maintenance system with superior root zone oxygenation.

Is this system difficult to set up?+

The V-System is designed for straightforward assembly. It comes with all the necessary parts, including tools like a pipe cutter and wrenches. The included instruction manual provides clear, step-by-step guidance. Its modular, push-fit design makes connecting the components simpler than many other large-scale hydroponic systems.

Can I expand this system later?+

Absolutely. The modular design is a core feature of the V-System. You can add more pots or even entire rows to your setup as your cultivation needs grow, making it a scalable investment. You can start with this 10-pot kit and expand up to a 40-pot system.

What size grow space do I need for this 10-pot system?+

The minimum footprint for this system is approximately 10.2 feet long by 3.9 feet wide. However, you can space the pots further apart for larger plants, which would require more space. Always measure your area to ensure a proper fit. For growers with more limited space, Alien Hydroponics also offers smaller configurations like the 6-pot V-System.

What maintenance is required?+

Routine maintenance includes monitoring and adjusting pH and nutrient levels, and performing complete nutrient solution changes every 1-2 weeks. You should also periodically check and clean the pump and inline filter to ensure optimal flow. Because there are no airstones to clean or replace, the V-System simplifies maintenance compared to traditional DWC kits.

Does the system come with a water pump?+

Yes, this kit includes the powerful and efficient 370W V-SYSTEM Vortex water pump. It is specifically designed to drive the Venturi injectors and provide consistent, powerful circulation throughout the entire system.
