- 1x V-SYSTEM Vortex Water Pump 180W 120V 10800 l/h
- 4x V-Pot 58L
- 4x V-Pot Base
- 4x V-Pot Lid
- 4x V-Pot Lid Inspection Cover
- 4x Square Net Pot
- 4x V-Pot Clip
- 4x Air Filter for V-SYSTEM Venturi, 6mm
- 4x Silencer for Venturi
- 4x Venturi Fitting
- 4x Venturi Air Inlet Pipe 6mm Blue (2X 4")
- 4x Venturi Inlet Fitting for 22mm Pipe
- 5x Nut 5"
- 5x Washer 5" Green Silicone
- 15x 5" Stainless Steel Clamp
- 1x Distribution Tee 40mm
- 2x DM Push-Fit Elbow 22-15mm V-SYSTEM
- 2x DM Push-Fit Elbow 22mm V-SYSTEM
- 2x DM Push-Fit Tee 22-15mm V-SYSTEM
- 1x Drain Cap 1/2"
- 1x Drain Tap 1/2"-16mm Barb
- 2x Elbow 5" Barbed with Drain Point
- 3x Elbow 5" Threaded Dual-Flow
- 1x Filter Manifold, Complete 40mm
- 1x Float Valve
- 1x V-SYSTEM Header Pot 20L 40mm
- 1x Silver Lid
- 1x Header Pot Blank
- 1x Hosetail 16mm-3/4" Female Green
- 4x Pipe 22mm Rigid 1 Meter - Venturi Feed
- 1x Pipe 32mm Red 1 Meter Spiral
- 3x Pipe 40mm Silver 1 Meter Spiral
- 5x Pipe 5" Spiral 80cm
- 1x Tee 5" Barbed
- 2x Tee Threaded 5" Dual-Flow
- 2x Threaded Tank Connector 1"
- 1x Vortex Pump Inlet Manifold40mm long
- 2x 1" Cap for Chiller Connections
- 1x T/Connector Straight 32mm
- 1x T/Connector Straight 40mm
- 1x Terminal Manifold Left
- 1x Terminal Manifold Right
- 12x 22mm Insert for 22mm Barrier Pipe
- 2x Clamp Size 2
- 8x Clamp Size 3
- 1x 8mm Screwdriver for 5" Clamp
- 1x Wrench 5"
- 1x Wrench for Float Valve
- 1x 8mm Socket for 5" Clamp
- 1x Pipe Cutter 50mm
- 1x Silicone Grease - Food Grade
Alien Hydroponics V-System DWC - 4 Pot 2 Row
starting from 0% interest financing from
/mo.
- Vortex water pump delivers 10800 liters per hour for rapid nutrient circulation
- Venturi technology creates an oxygen rich whirlpool without using any air stones
- Powered by a 180W pump that fits standard 120V outlets for easy integration
- 3-year warranty on all parts, 1-year warranty on pumps
- View More Details
Shipping Calculated at Checkout
Earn 2,001 points for shopping and get $20.01 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1938+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are switching to venturi valves because you want to stop replacing failed air pumps and clogged airstones.
- You are expanding your garden because you need a modular setup that adds pots without redesigning everything.
What We Found
- The vortex movement is powerful enough to keep nutrients perfectly mixed without any sediment settling at the bottom.
- The massive 5 inch return pipes prevent the clogging issues that usually plague systems using smaller plumbing.
What Users Say
- Buyers who switched from standard DWC say they stopped worrying about pump failure since the Venturi handles oxygen.
- Users who moved to this 4 pot layout saw faster plant development because the vortex delivers higher oxygen levels.

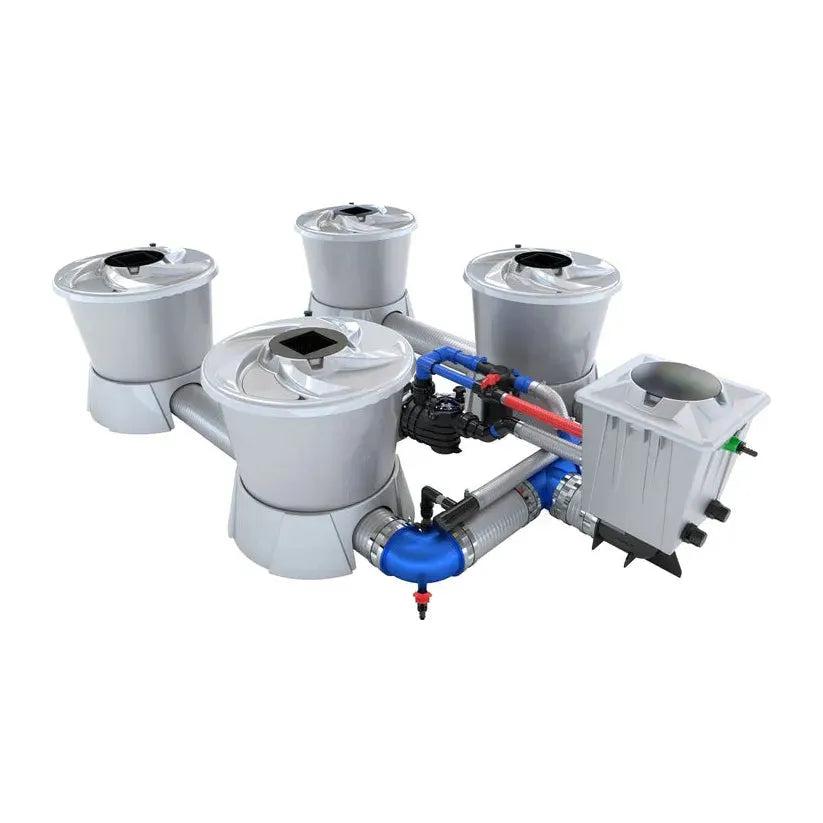

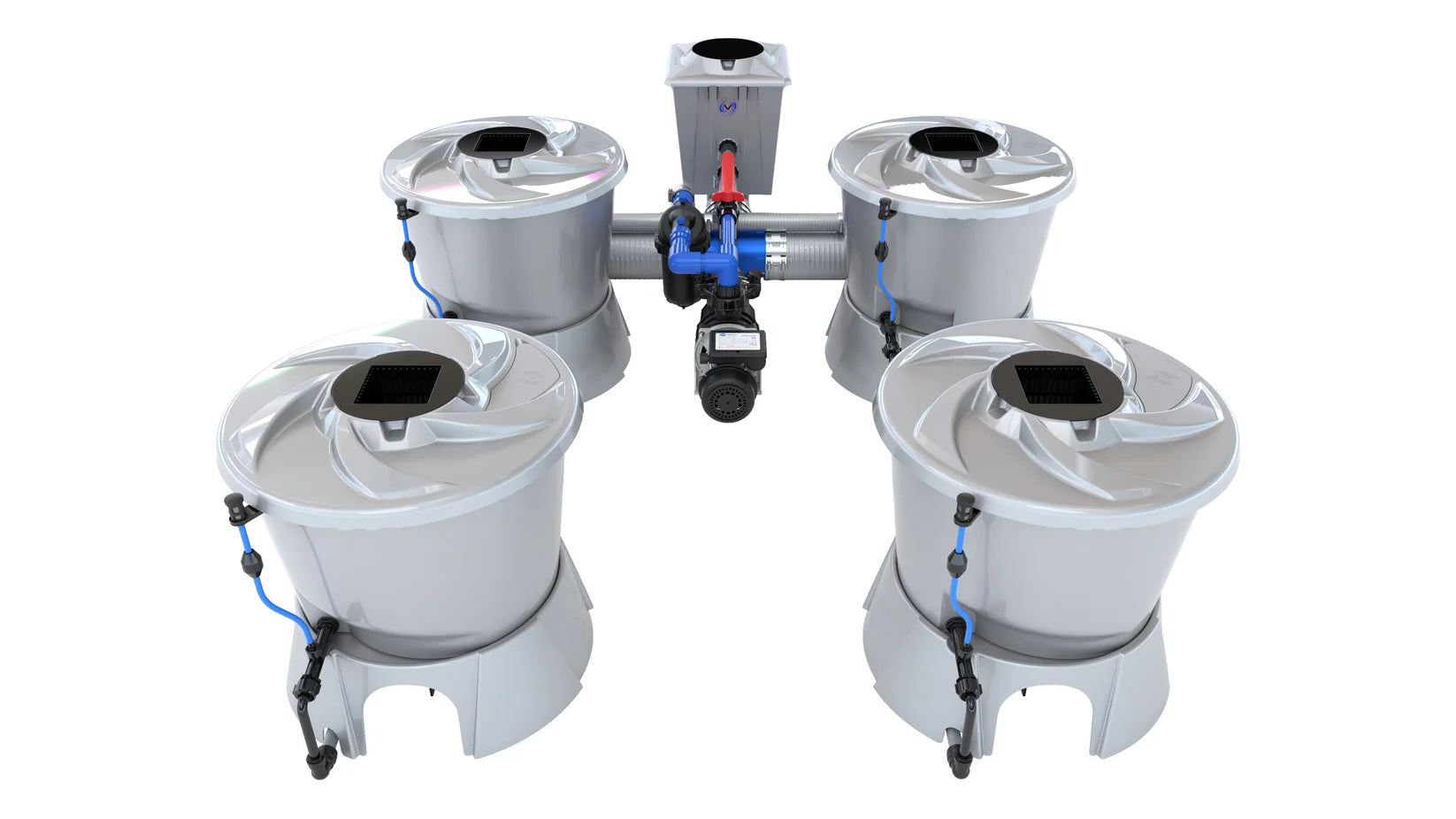

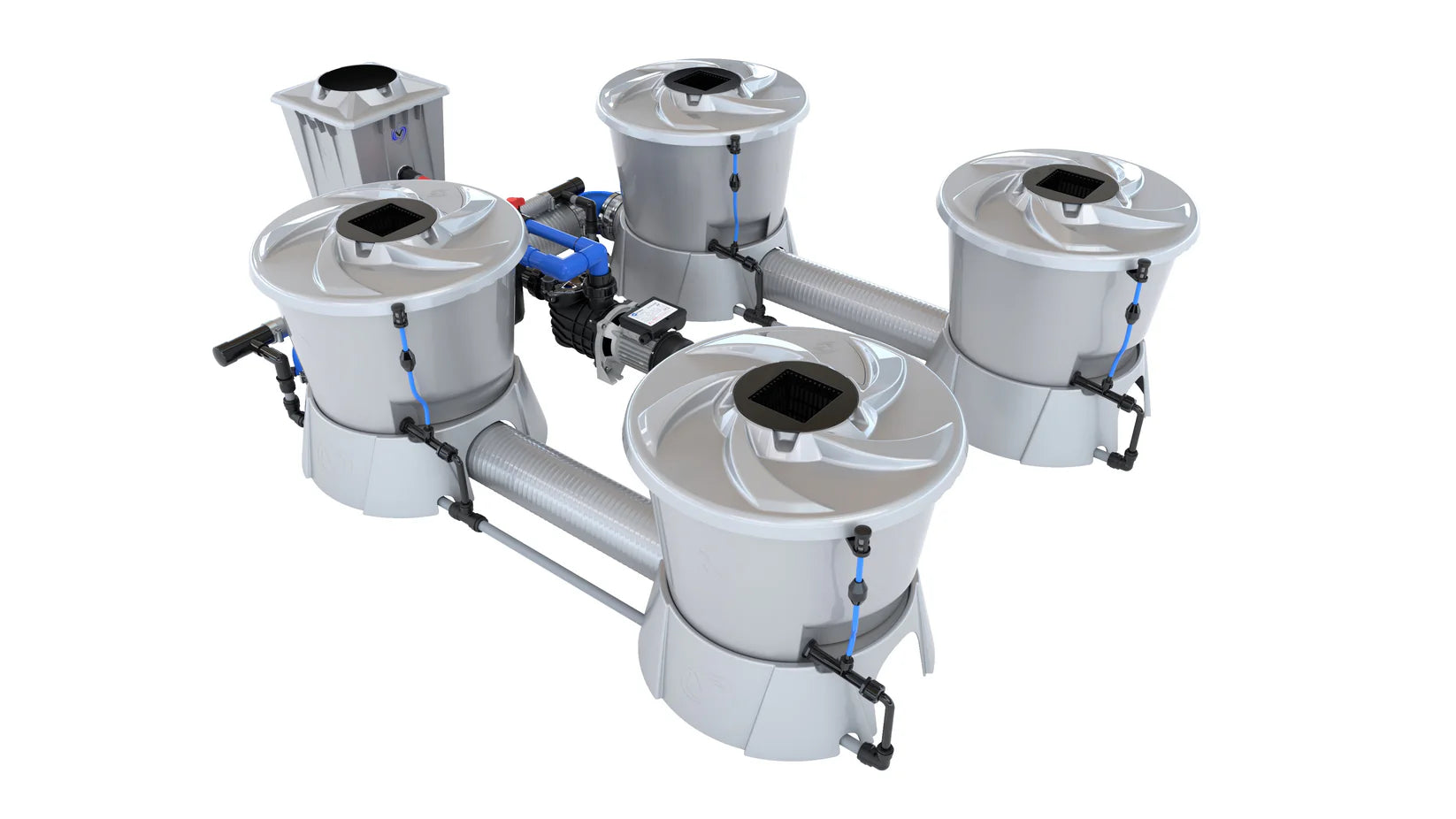

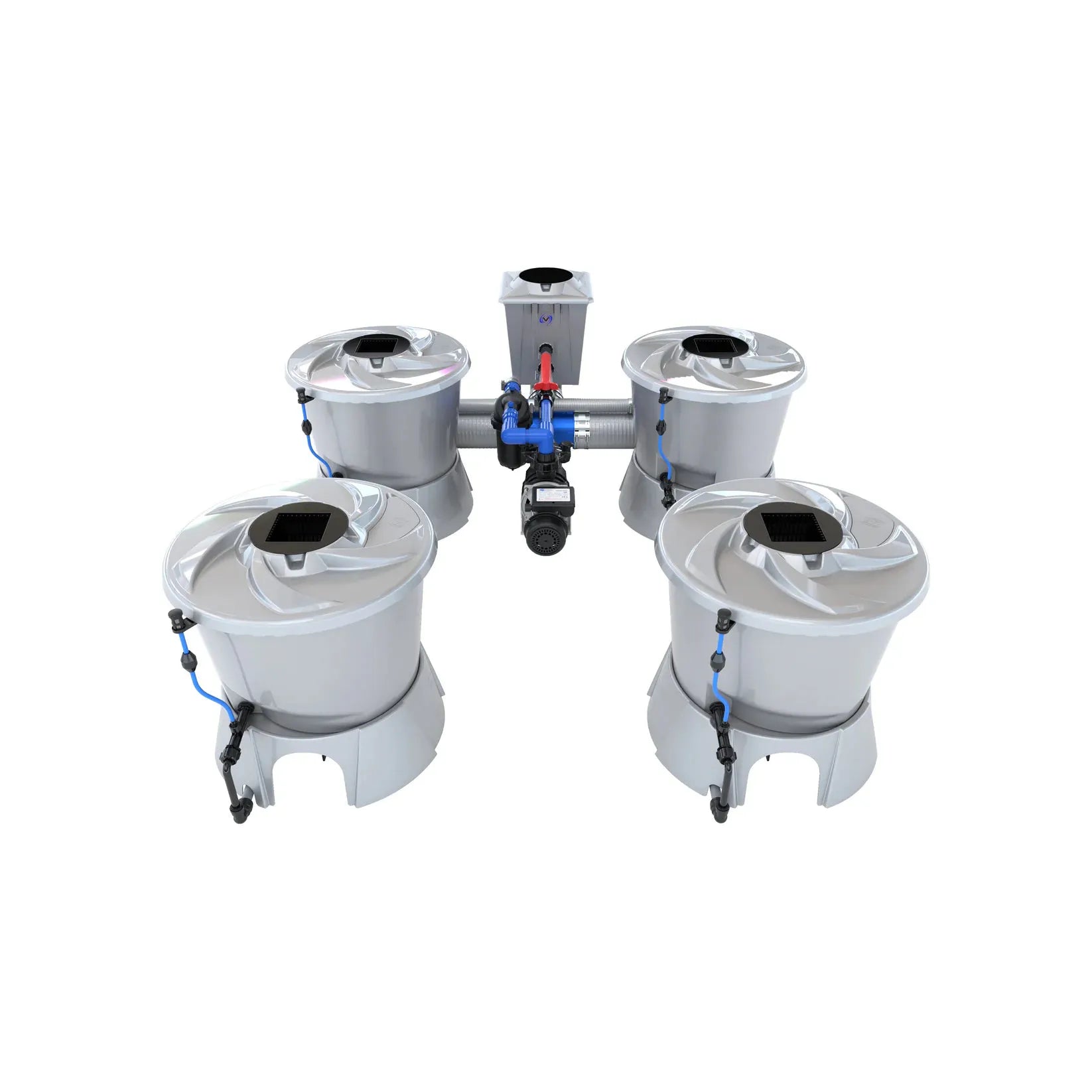

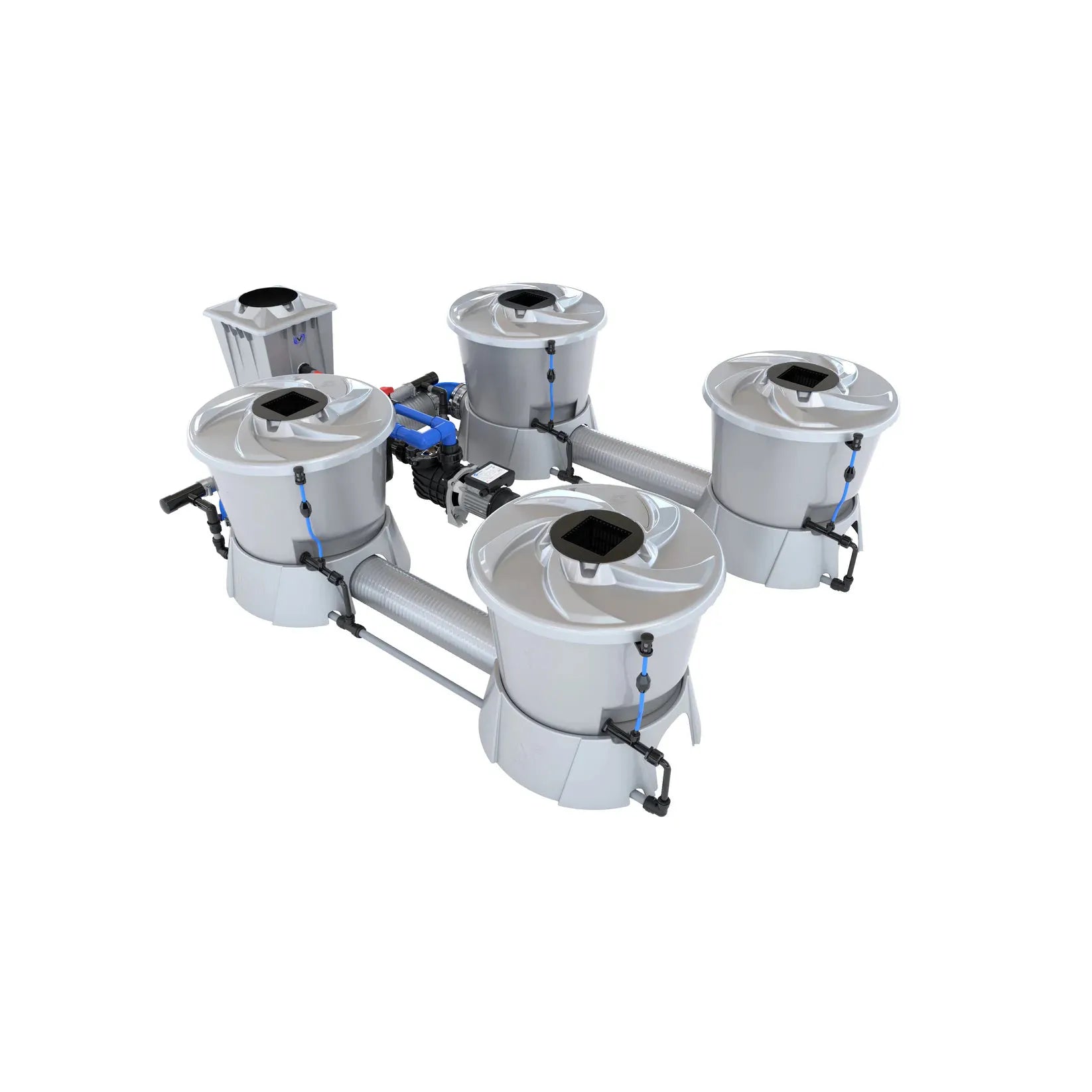

Alien Hydroponics V-System DWC - 4 Pot 2 Row
Tired of complicated and underperforming deep water culture setups? The Alien Hydroponics V-System DWC Kit is engineered to transform your indoor garden, delivering explosive growth with unparalleled efficiency and ease of use.
At the heart of this innovative DWC hydroponic system is the revolutionary Venturi Valve Technology. This eliminates the need for noisy air pumps and unreliable airstones, instead creating a powerful whirlpool vortex in each pot. This vortex super-oxygenates the nutrient solution and distributes it evenly, ensuring every plant receives precisely what it needs for vigorous development.
The V-System is built for growth. Its modular design allows you to customize the layout to fit your space perfectly. As your garden expands, so can your system. This 4-pot configuration is a great starting point, but the V-System can be expanded to larger setups like the 6-pot V-System or even larger configurations. The entire Alien Hydroponics lineup is designed with scalability in mind.
What's Included
Features
🌀
Venturi Valve Technology
Eliminates air pumps and airstones, creating a super-oxygenated vortex for healthier roots.
❄️
Temperature Stability
Large-diameter fittings maintain cooler, more stable water temperatures to prevent root rot.
🧩
Modular & Expandable
Easily customize your layout and expand your system up to 40 pots as your garden grows.
🌿
Uniform Nutrient Delivery
Ensures every plant receives an equal and consistent supply of nutrients for uniform growth.

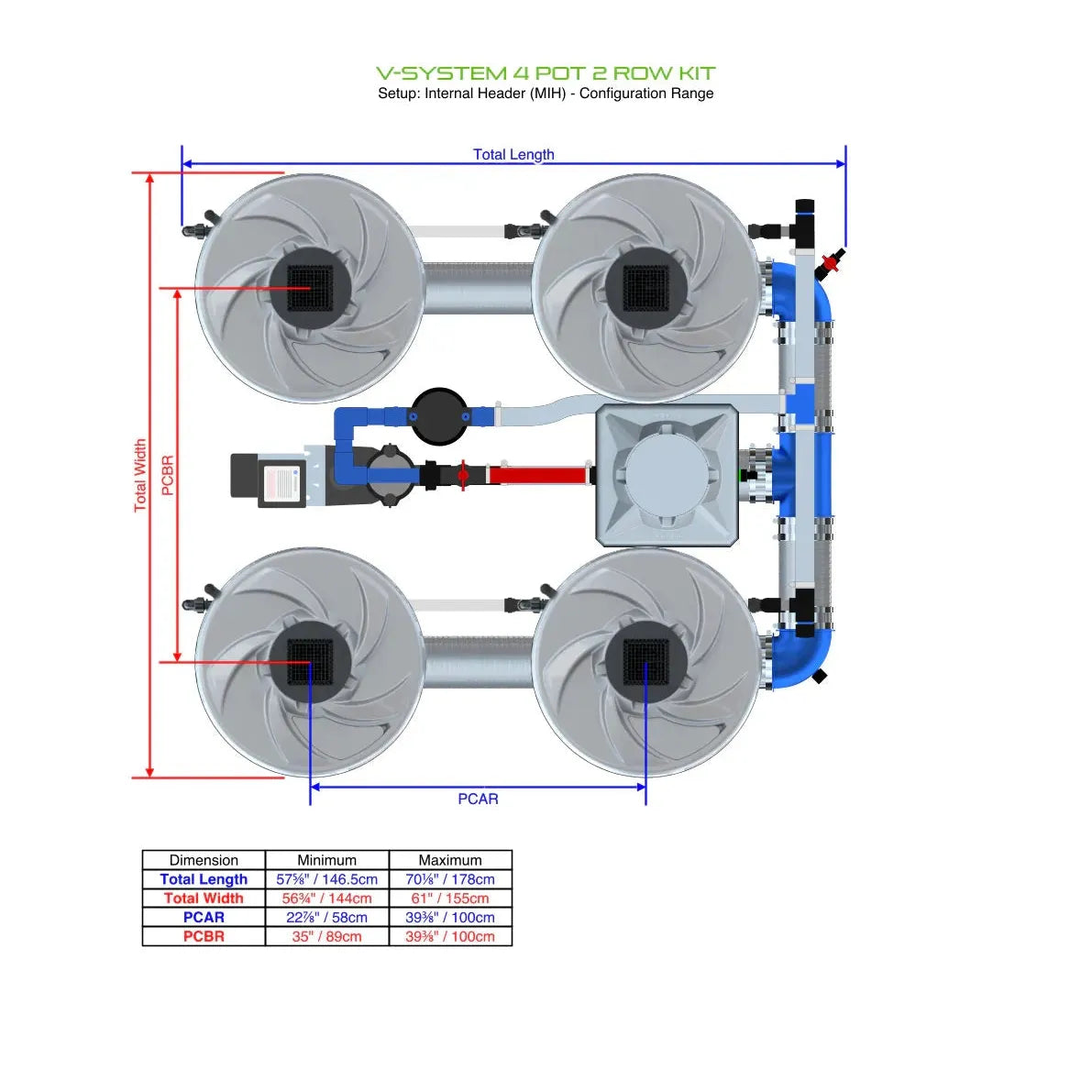

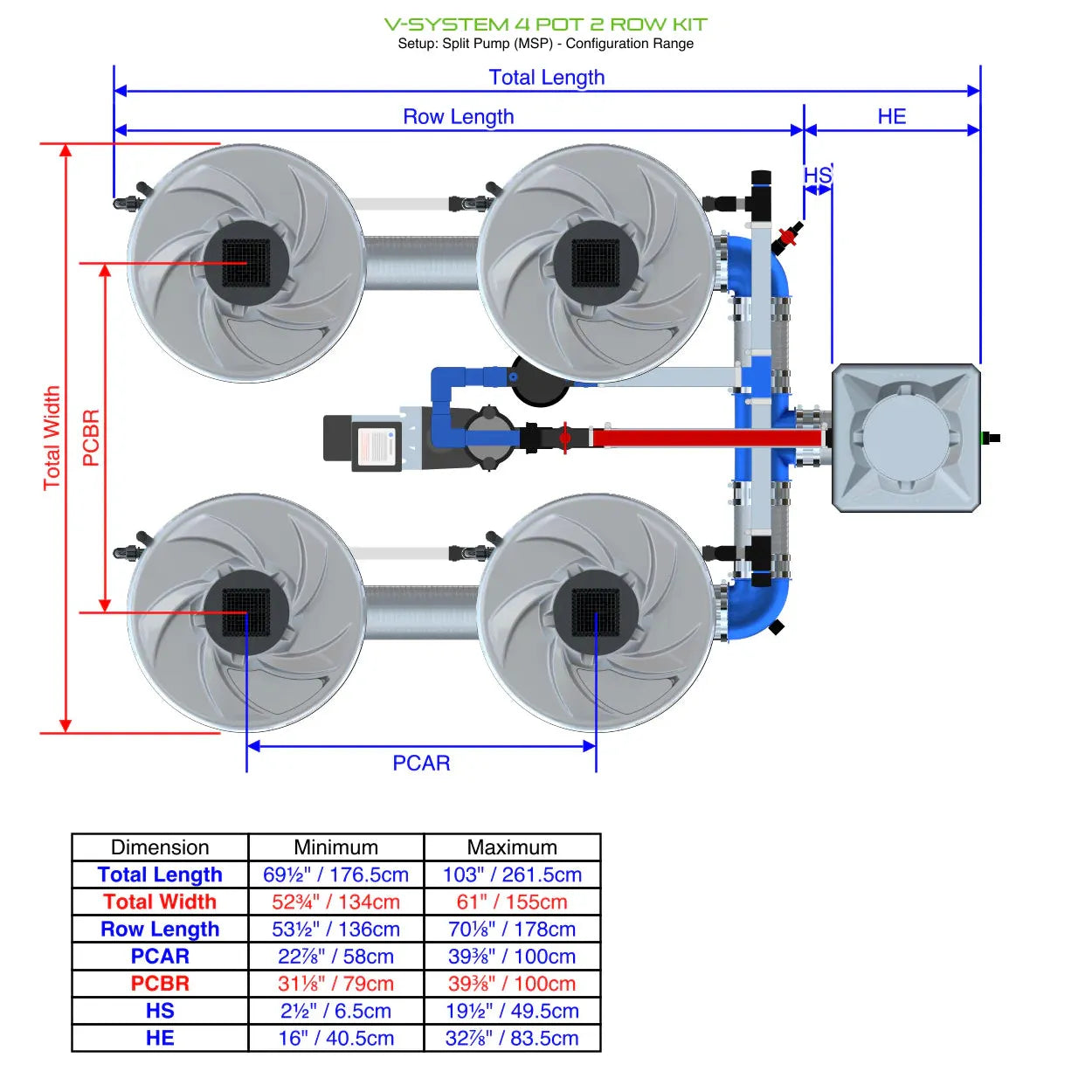

Alien Hydroponics V-System 4 Pot Specifications
| Specification | Value |
|---|---|
| Number of pots | 4 |
| Number of rows | 2 |
| Kit total fluid volume | 63.4 gallons (240 L) |

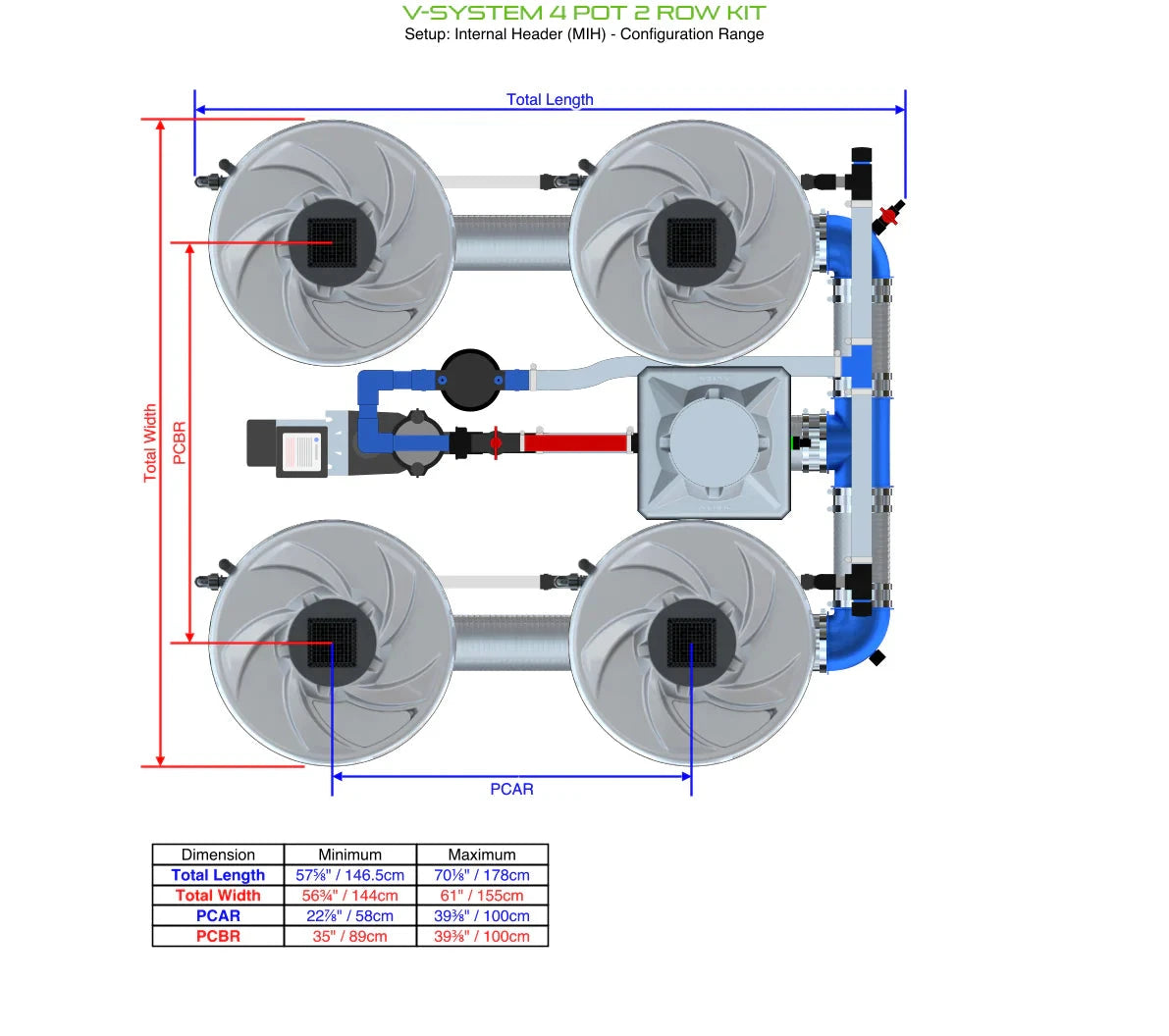

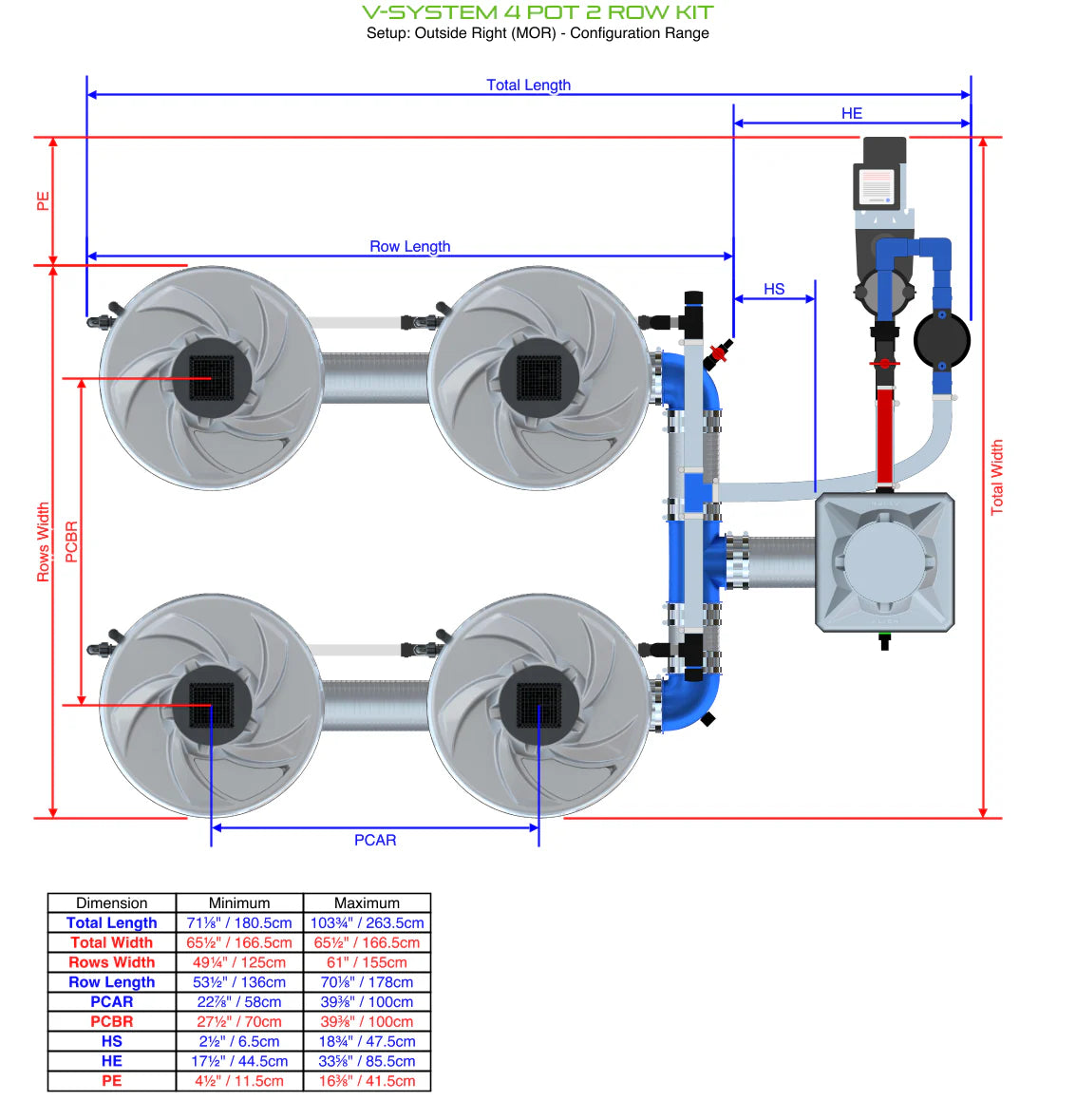

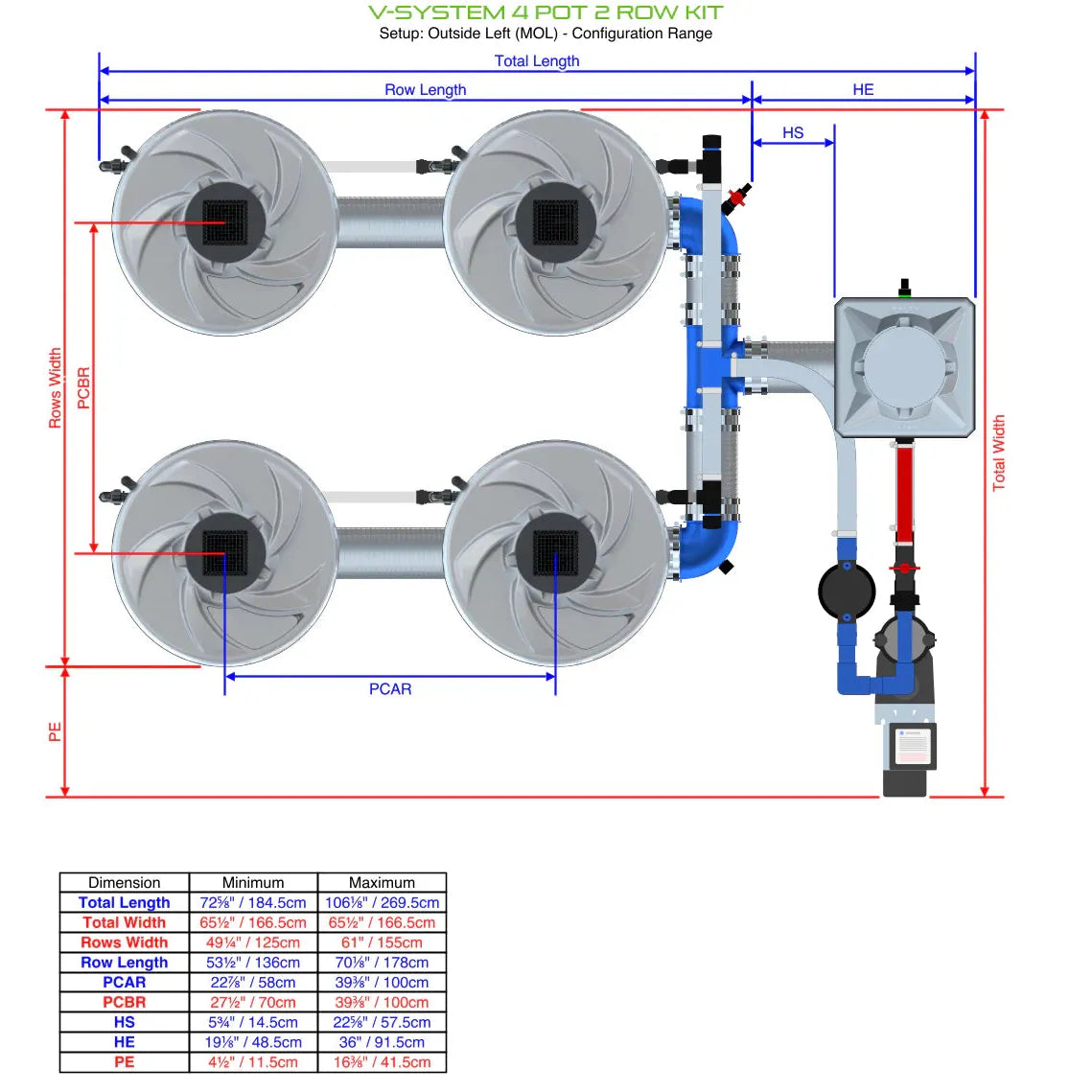

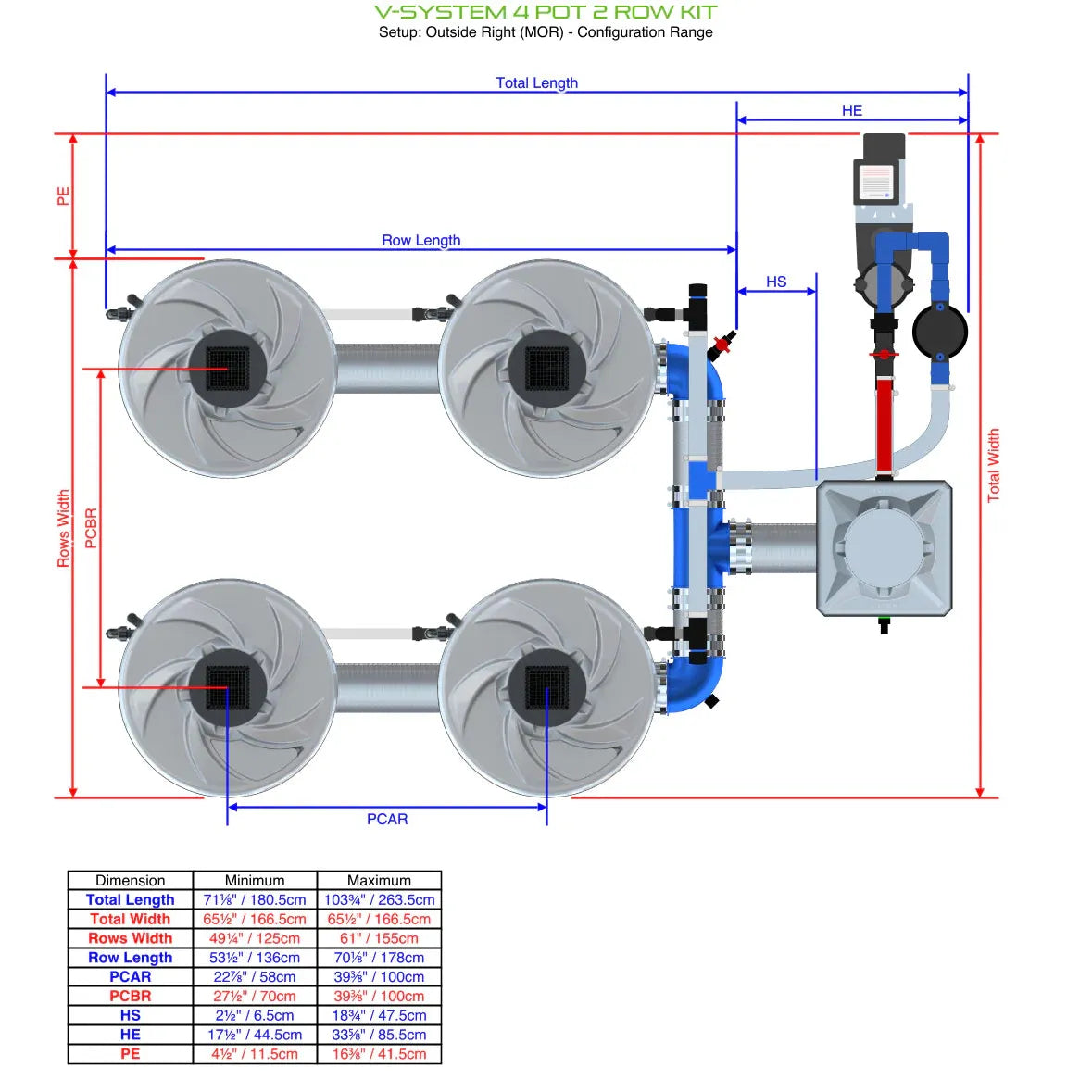

| Minimum Assembled Length | 4' 7.1" (55.1 inches / 1400 mm) |
| Minimum Assembled Width | 3' 11.2" (47.2 inches / 1200 mm) |
| Pump Model | V-SYSTEM Vortex Water Pump 180W |
| Pump Wattage | 180 watts |
| Pump Flow Rate | 2853 gal/hr (10800 L/hr) |
| Recommended Chiller Capacity | 132 gallons (500 L) |
Support & Manuals
Warranty
Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.
FAQs
What makes the V-System different from other DWC systems?
The key difference is its innovative Venturi Valve Technology. Unlike traditional DWC setups that rely on air pumps and airstones, the V-System uses the flow of water to create a vortex that draws in oxygen. This results in higher dissolved oxygen levels, quieter operation, and eliminates the common issue of clogged airstones.
Is this system difficult to set up?
The V-System is designed for straightforward assembly. The kit includes all necessary parts, push-fit connections, and detailed instructions to guide you through the process. You can find the instruction manual and technical drawings in the Support & Manuals section on this page.
Can I expand this 4-pot system later?
Absolutely. The modular design is a core feature of the V-System. You can easily add more pots and rows to expand your garden as your needs grow. This 4-pot kit is a perfect starting point, and you can scale up to a larger configuration like the 8-pot V-System when you're ready.
How does the system keep the water cool?
The V-System promotes stable water temperatures through its efficient design and large 5-inch tubing, which helps prevent heat buildup. While it does not include a chiller, it features dedicated connection points for easily integrating an external water chiller, which is recommended for optimal root health, especially in warmer environments.
What pump is included with this kit?
This 4-pot kit comes with the powerful and reliable Alien Hydroponics V-SYSTEM Vortex 180W pump. It's specifically designed to drive the Venturi system effectively, ensuring consistent nutrient and oxygen circulation throughout all the pots.
