- 1x V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
- 28x V-Pot 58L
- 28x V-Pot Base
- 28x V-Pot Lid
- 28x V-Pot Lid Inspection Cover
- 28x Square Net Pot
- 28x V-Pot Clip
- 28x Air Filter for V-SYSTEM Venturi, 6mm
- 28x Silencer for Venturi
- 28x Venturi Fitting
- 28x Venturi Air Inlet Pipe 6mm Blue (2X 4")
- 29x Nut 5"
- 29x Washer 5" Green Silicone
- 66x 5" Stainless Steel Clamp
- 1x Distribution Tee 50mm
- 4x DM Push-Fit Elbow 28mm V-SYSTEM
- 28x DM Push-Fit Tee 28-15mm V-SYSTEM
- 1x 1/2" Drain Cap Fitting
- 1x Drain Tap 1/2"-16mm Barb
- 2x Elbow 5" Barbed with Drain Point
- 5x Elbow 5" Threaded Dual-Flow
- 1x Filter Manifold Complete 50mm-2"
- 1x Float Valve
- 1x V-SYSTEM Header Pot 20L 50mm
- 1x Silver Lid
- 1x Header Pot Blank
- 1x Hosetail 16mm-3/4" Female Green
- 28x Venturi Inlet Fitting for 28mm Pipe
- 28x Pipe 28mm White Rigid 1 Meter - Venturi Feed
- 6x Pipe 50mm Silver 1 Meter
- 31x Pipe 5" Silver Spiral 80cm
- 3x Tee 5" Barbed
- 24x Tee Threaded 5" Dual-Flow
- 2x Threaded Tank Connector 1"
- 1x Vortex Pump Inlet Manifold 50mm
- 2x 1" Cap for Chiller Connections
- 1x 50mm Straight Dual Flow Fitting
- 1x Elbow 50mm Barbed
- 1x Terminal Manifold Left 50mm
- 2x Terminal Manifold Center 50mm
- 1x Terminal Manifold Right 50mm
- 72x 28mm Insert for 28mm Rigid Pipe
- 4x 28mm Push-Fit Stop End
- 14x Clamp Size 4
- 1x 8mm Screwdriver for 5" Clamp
- 1x Wrench 5"
- 1x Wrench for Float Valve
- 1x 8mm Socket for 5" Clamp
- 1x Pipe Cutter 50mm
- 7x Silicone Grease - Food Grade

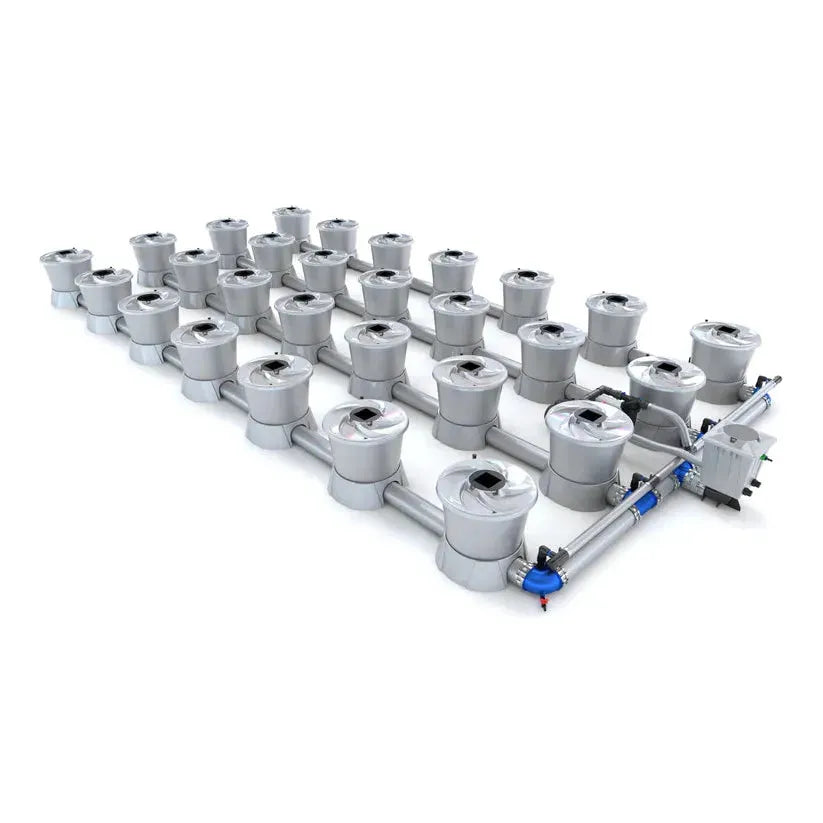

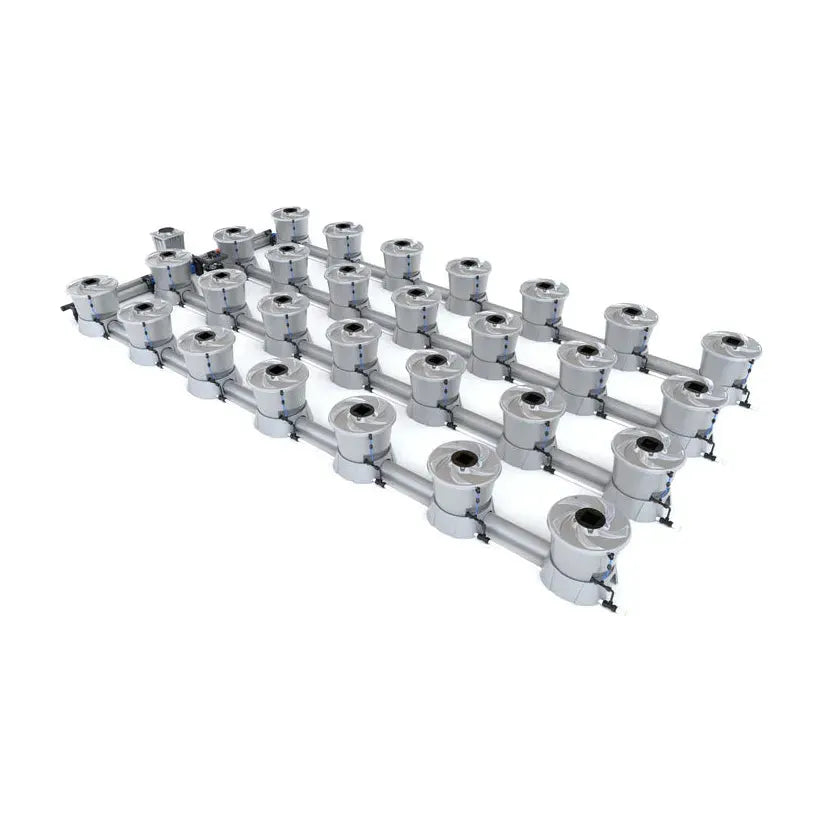

Alien Hydroponics V-System DWC - 28 Pot 4 Row
starting from 0% interest financing from
/mo.
- High-flow 22500 l/h vortex pump moves the entire reservoir volume multiple times per hour
- Venturi technology creates a whirlpool effect to oxygenate the root zone without air stones
- Heavy-duty 5 inch spiral tubing supports massive root masses without restricting water flow
- 3-year warranty for all parts, 1-year warranty for pumps
- View More Details
Earn 9,210 points for shopping and get $92.10 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1938+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are scaling to a 28-pot layout because your current air pump setup is too loud and prone to frequent clogging.
- You are switching to Venturi oxygenation because cleaning salt buildup off airstones is wasting too much labor time.
- You are moving to 5-inch drainage pipes because smaller lines cannot handle the flow needed for rapid plant growth.
What We Found
- The 5 inch piping prevents the common root clogs that typically cause floods in smaller diameter systems
- The vortex pump is actually quieter than a bank of commercial air pumps required for a 28 pot setup
- Setup takes time but the push fit fittings make the initial plumbing much less of a headache than glued PVC
What Users Say
- Commercial growers who switched to this say they stopped replacing air stones and saved significantly on labor costs
- Facilities using the V-System report that the hyper oxygenated water led to shorter veg cycles and earlier harvests
Alien Hydroponics V-System DWC - 28 Pot 4 Row
Struggling to scale your hydroponic operation without compromising plant health or efficiency? The Alien Hydroponics V-System DWC 28-Pot Kit is the definitive solution for commercial growers seeking explosive growth and streamlined management. This advanced system eliminates the common hassles of traditional setups, allowing you to focus on achieving maximum yields.
At the heart of this powerful kit is the innovative Venturi Valve Technology, which draws in oxygen and creates a powerful whirlpool vortex in each pot. This process ensures your nutrient solution is perfectly mixed and super-oxygenated without the need for noisy air pumps or clog-prone airstones. The result is a thriving root zone, leading to healthier plants and more substantial harvests. Built for serious cultivation, this complete V-System is part of a larger family of high-performance Alien Hydroponics equipment, offering solutions for every scale, from smaller setups like the 8-pot V-System to large commercial arrays.
What's Included
Features
💨
Venturi Valve Technology
Delivers hyper-oxygenated nutrient solution to root zones without air pumps or stones, promoting explosive growth.
🌡️
Integrated Temperature Control
Maintains optimal water temperatures to significantly reduce the risk of root rot and other diseases.
🧩
Fully Modular Design
Easily customize the layout with up to four rows, allowing the system to adapt to your evolving garden space.
🌪️
Consistent Nutrient Vortex
The powerful whirlpool action ensures an equal and constant distribution of nutrients to every plant in the system.
Specifications
| Specification | Value |
|---|---|
| Number of pots | 28 |
| Number of rows | 4 |
| Kit total fluid volume | 458.1 gallons (1734 L) |
| Minimum Assembled Length | 14' 0.1" (4270 mm) |
| Minimum Assembled Width | 7' 6.6" (2300 mm) |
| Water Pump Model | V-SYSTEM Vortex Water Pump 1500W |
| Wattage | 1500 watts |
| Flow Rate | 5944 gal/hr (22500 L/hr) |
| Recommended Chiller Capacity | 660 gallons (2000 L) |
Support & Manuals
Warranty
Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps, ensuring your investment is protected.
FAQs
What makes the V-System different from other DWC systems?
The key differentiator is its Venturi Valve Technology. Unlike traditional DWC hydroponics that rely on separate air pumps and airstones which can fail or clog, the V-System uses the water pump's flow to create a powerful vortex that pulls oxygen directly into the nutrient solution. This results in superior aeration, less maintenance, and reduced noise.
Is the 28-pot system suitable for a beginner?
This 28-pot system is designed for large-scale, commercial, or serious hobbyist growers. While its automated features make it user-friendly, a beginner might find a smaller setup more manageable. We recommend starting with a more compact kit, such as the Alien Hydroponics 4-Pot V-System, to get familiar with the technology.
Can I expand this system in the future?
Yes, the V-System is fully modular. The design allows you to customize the layout and potentially add more pots, provided you have the space and your header pot/pump can support the expansion. This flexibility allows the system to grow with your operation.
Do I need to purchase a separate water chiller?
Yes, a water chiller is highly recommended for a system of this size to maintain optimal root zone temperatures (ideally 65-68°F or 18-20°C). This prevents root rot and ensures healthy plant development. The recommended minimum chiller capacity for this 28-pot kit is 660 gallons (2000 L).
What kind of maintenance does the V-System require?
Maintenance is minimal compared to other systems. Regular tasks include monitoring and adjusting pH and EC levels, topping off the reservoir, and performing a full nutrient solution change every 1-2 weeks. The system should be thoroughly cleaned between growth cycles. Because there are no airstones, you avoid the common task of cleaning or replacing them.
