Alien Hydroponics V-System 15-Pot DWC

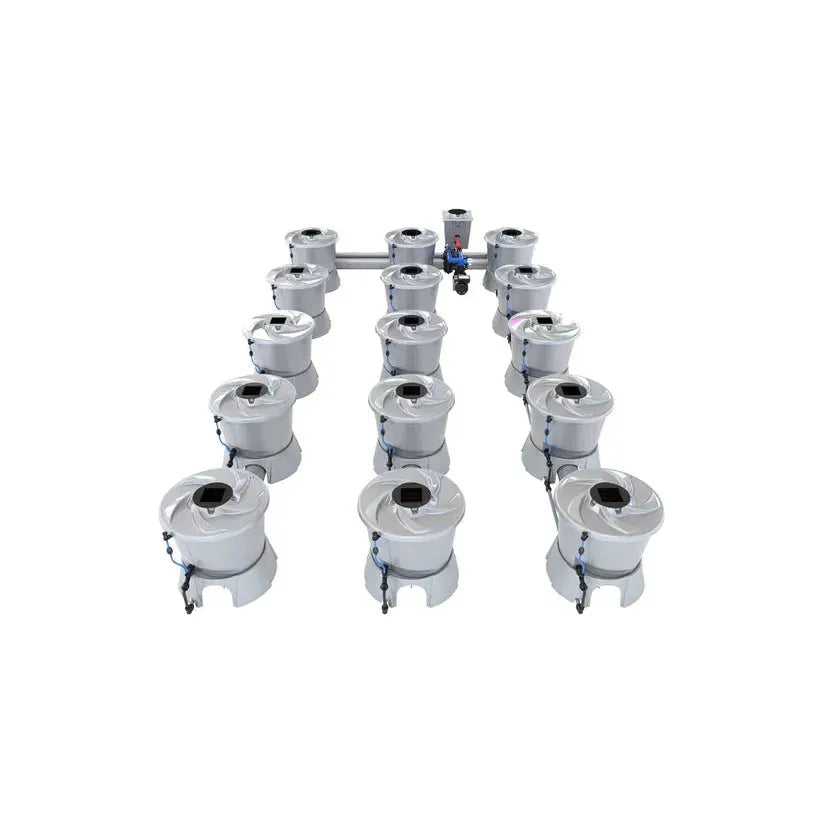

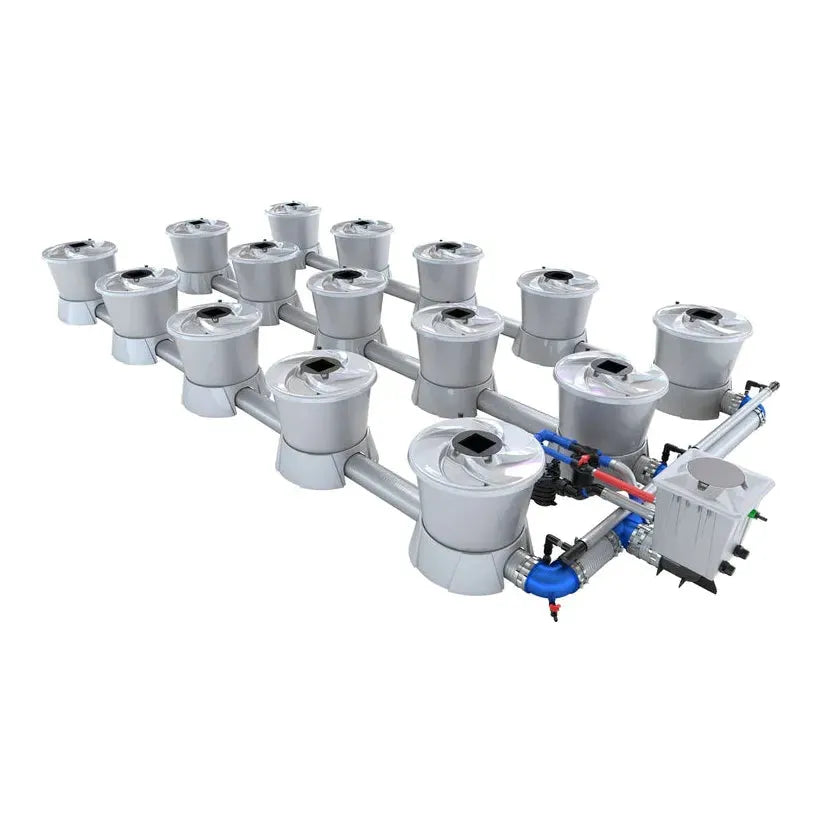

Alien Hydroponics V-System DWC - 15 Pot 3 Row

Tired of inconsistent results and the high maintenance of traditional hydroponic setups? The Alien Hydroponics V-System is engineered to eliminate the guesswork and deliver explosive growth. This 15-pot Deep Water Culture system automates oxygenation and nutrient delivery, creating the perfect environment for your plants to thrive with minimal intervention.

At the heart of the V-System is its revolutionary Venturi Valve Technology. This innovative design eliminates the need for noisy, unreliable air pumps and clog-prone airstones. Instead, it uses the water flow from the powerful pump to create a whirlpool vortex in each pot, drawing in massive amounts of oxygen and mixing nutrients perfectly. This ensures every plant in your DWC hydroponics setup receives a consistent, super-oxygenated solution for accelerated growth and healthier, stronger root systems.

Built for serious growers, the V-System is fully modular. This 15-pot configuration is perfect for large spaces, but the design allows for easy expansion or reconfiguration as your needs change. If you're starting smaller, consider the 9-Pot V-System. The system's robust construction, 5-inch tubing, and integrated filtration ensure smooth, uninterrupted operation, while built-in temperature control helps protect your plants from root rot. It's a complete solution from the trusted Alien Hydroponics brand.

Features

💨

Venturi Valve Technology

Eliminates the need for air pumps and airstones by using water flow to super-oxygenate the nutrient solution.

🌀

Vortex Nutrient Circulation

Creates a powerful whirlpool in each pot, ensuring nutrients are evenly mixed and distributed to all plants.

🌡️

Temperature Control

Maintains optimal water temperatures to promote healthy root development and reduce the risk of root rot.

🧩

Modular & Expandable

Easily customize the layout or expand your system up to four rows with ten pots each as your garden grows.

💧

Total Drainage Bases

Specially designed pot bases ensure complete drainage, preventing stagnant water and promoting root health.

🚀

High-Power Vortex Pump

Includes a powerful 750W Jet-Stream Vortex pump designed for reliable, high-flow circulation.

🔧

Heavy-Duty Construction

Features oversized 5-inch tubing and robust components for a reliable, leak-free, long-lasting setup.

What's Included

1x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h
15x V-Pot (15 Gallon / 58L) with Base, Lid, and Inspection Cover
15x Square Net Pot
15x V-Pot Clip
15x Air Filter for Venturi
15x Silencer for Venturi
15x Venturi Fitting & Air Inlet Pipe
Complete 5" Tubing & Fittings (Nuts, Washers, Clamps, Elbows, Tees)
Complete 22mm/32mm/40mm Pipe & Fittings (Push-Fit Elbows, Tees)
1x V-SYSTEM Header Pot (20L) with Lid & Float Valve
1x Filter Manifold, Complete 40mm
1x Drain Tap & Cap
All required connectors, clamps, and installation tools (wrenches, pipe cutter, socket)
4x Food-Grade Silicone Grease

Specifications

Specification	Value
Number of Pots	15
Number of Rows	3
Total Fluid Volume	244.6 gallons (926 L)
Minimum Assembled Length	10' 2.4" (3110 mm)
Minimum Assembled Width	5' 9.3" (1760 mm)
Included Water Pump	V-SYSTEM Vortex Water Pump 750W
Pump Wattage	750W
Pump Flow Rate	3963 gal/hr (15000 L/hr)
Recommended Chiller Capacity	396 gallons (1500 L) minimum

Support & Manuals

📄Instruction Manual 📄Technical Drawing

Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.

FAQs

What makes the V-System different from other DWC systems?+

The key difference is the Venturi Valve Technology. Unlike standard DWC systems that rely on separate air pumps and airstones, the V-System uses the main water pump to create a powerful vortex that naturally draws in oxygen. This results in higher dissolved oxygen levels, more consistent nutrient mixing, and eliminates the common failure points of clogged airstones and noisy air pumps.

Can I expand this system later on?+

Absolutely. The V-System is designed to be fully modular and expandable. You can add more pots or rows as your operation grows, up to a maximum of four rows with ten pots per row. This allows you to start with a system like this 15-pot kit and scale up to a larger setup such as the 21-pot system without needing to replace your core components.

What size grow space is recommended for this 15-pot kit?+

The minimum footprint for the 15-pot, 3-row configuration is approximately 10.2 feet by 5.8 feet. However, we recommend allowing extra space around the system for easy access, maintenance, and to accommodate plant growth. The pots can be spaced further apart if your plants require more room.

What is included with the kit?+

This kit is comprehensive and includes the 15 V-Pots, all required tubing and push-fit connections, the header pot, and the powerful 750W Vortex water pump. You will still need to supply your own water chiller, nutrients, grow medium (like clay pebbles), and a main reservoir. We recommend pairing it with an Alien Hydroponics GardenTank for best results.

Is a water chiller necessary for this system?+

Yes, a water chiller is highly recommended for any DWC or RDWC system to maintain the nutrient solution temperature between 65-68°F (18-20°C). This optimal temperature range maximizes dissolved oxygen, prevents root diseases like Pythium, and ensures healthy, rapid growth. The recommended minimum chiller capacity for this system is 396 gallons.
