Alien Hydroponics V-System 9 Pot DWC Kit

Alien Hydroponics V-System DWC - 9 Pot 3 Row

Tired of dealing with clogged air stones and noisy air pumps in your DWC setup? The Alien Hydroponics V-System DWC - 9 Pot 3 Row is the solution, engineered to deliver explosive growth with unparalleled efficiency and ease. This advanced deep water culture system utilizes innovative Venturi Valve technology to create a powerful vortex, super-oxygenating the nutrient solution without the need for a separate air pump. Your plants get consistent, perfectly mixed nutrients for healthier roots and maximum yields.

The V-System's intelligent, modular design offers incredible flexibility for your grow space. This 9-pot configuration is ideal for medium-sized operations, but it can be easily adapted. If your needs change, you can explore smaller setups like the 8 Pot V-System or expand to a much larger configuration like the 12 Pot V-System. Built-in temperature control and total-drainage bases simplify maintenance and protect your plants from root rot, making it a robust choice for both seasoned and novice growers.

What's Included

1x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h
9x V-Pot 58L
9x V-Pot Base
9x V-Pot Lid
9x V-Pot Lid Inspection Cover
9x Square Net Pot
9x V-Pot Clip
9x Air Filter for V-SYSTEM Venturi, 6mm
9x Silencer for Venturi
9x Venturi Fitting
9x Venturi Air Inlet Pipe 6mm Blue (2X 4")
9x Venturi Inlet Fitting for 22mm Pipe
10x Nut 5"
10x Washer 5" Green Silicone
26x 5" Stainless Steel Clamp
1x Distribution Tee 40mm
3x DM Push-Fit Elbow 22-15mm V-SYSTEM
3x DM Push-Fit Elbow 22mm V-SYSTEM
6x DM Push-Fit Tee 22-15mm V-SYSTEM
1x Drain Cap 1/2"
1x Drain Tap 1/2"-16mm Barb
2x Elbow 5" Barbed with Drain Point
4x Elbow 5" Threaded Dual-Flow
1x Filter Manifold, Complete 40mm
1x Float Valve
1x V-SYSTEM Header Pot 20L 40mm
1x Silver Lid
1x Header Pot Blank
1x Hosetail 16mm-3/4" Female Green
9x Pipe 22mm Rigid 1 Meter - Venturi Feed
1x Pipe 32mm Red 1 Meter Spiral
4x Pipe 40mm Silver 1 Meter Spiral
10x Pipe 5" Spiral 80cm
1x Tee 5" Barbed
6x Tee Threaded 5" Dual-Flow
2x Threaded Tank Connector 1"
1x Vortex Pump Inlet Manifold40mm long
2x 1" Cap for Chiller Connections
1x T/Connector Straight 32mm
1x T/Connector Straight 40mm
1x Terminal Manifold Left
1x Terminal Manifold Right
24x 22mm Insert for 22mm Rigid Pipe
2x Clamp Size 2
10x Clamp Size 3
1x 8mm Screwdriver for 5" Clamp
1x Wrench 5"
1x Wrench for Float Valve
1x 8mm Socket for 5" Clamp
1x Pipe Cutter 50mm
3x Silicone Grease - Food Grade

Features

💨

Venturi Valve Technology

Delivers super-oxygenated water to the root zone without the need for noisy air pumps or clogged air stones.

🌀

Powerful Vortex Pump

The included 370W pump creates a powerful whirlpool, ensuring nutrients are perfectly mixed and evenly distributed.

🧩

Modular & Expandable

Customize the layout to fit your space. Easily expand with more pots as your garden grows.

❄️

Cooler Root Zone

Designed for optimal temperature control to reduce the risk of root rot and other common issues.

🧼

Effortless Maintenance

Features total-drainage bases, integrated filtration, and easy-to-clean components to simplify your workflow.

🔩

Durable Construction

Built with high-quality components, including 5-inch spiral tubing and T304 stainless steel clamps, for long-lasting reliability.

Alien Hydroponics V-System 9 Pot Specifications

Specification	Value
Number of Pots	9
Number of Rows	3
Kit Total Fluid Volume	146.4 gallons (554 L)

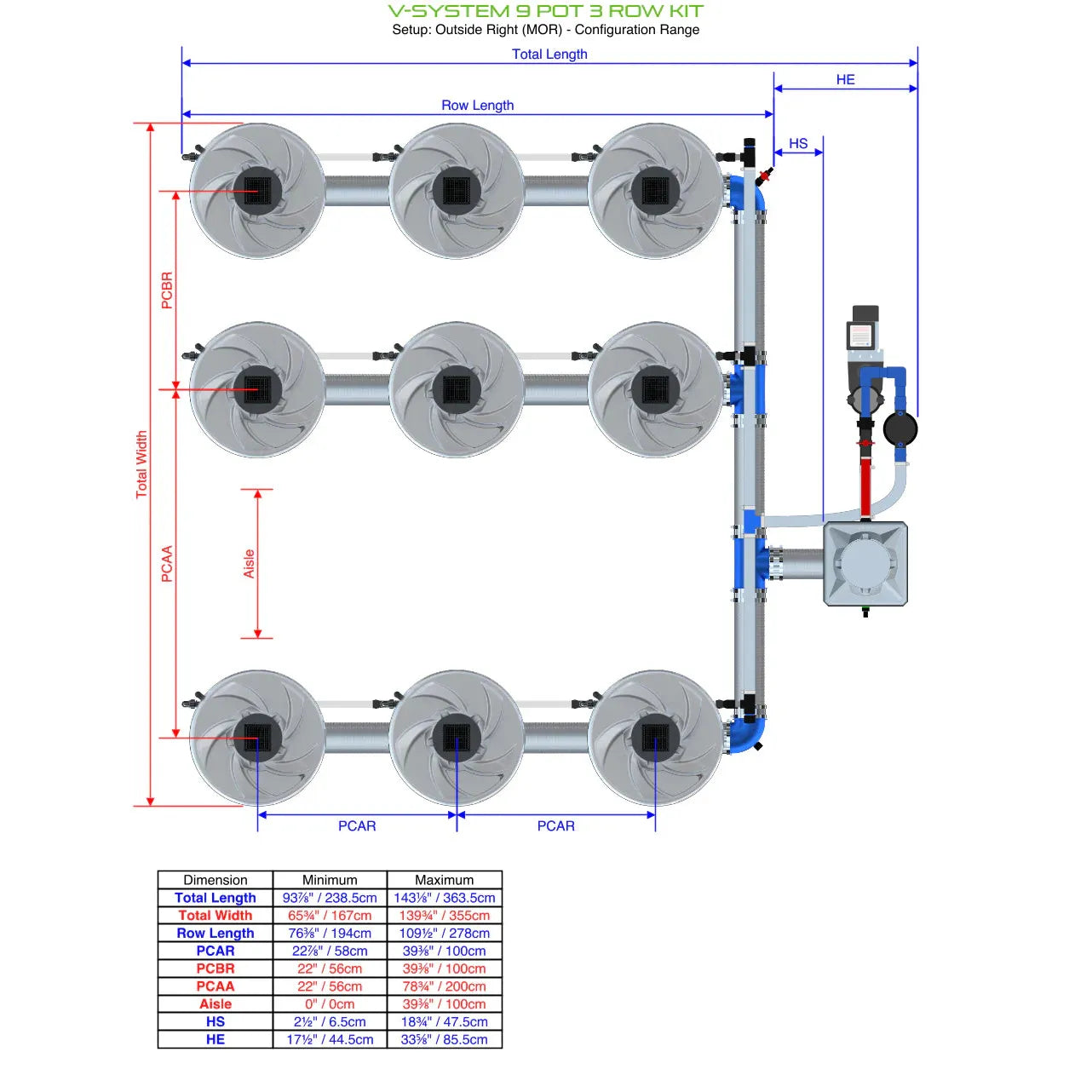

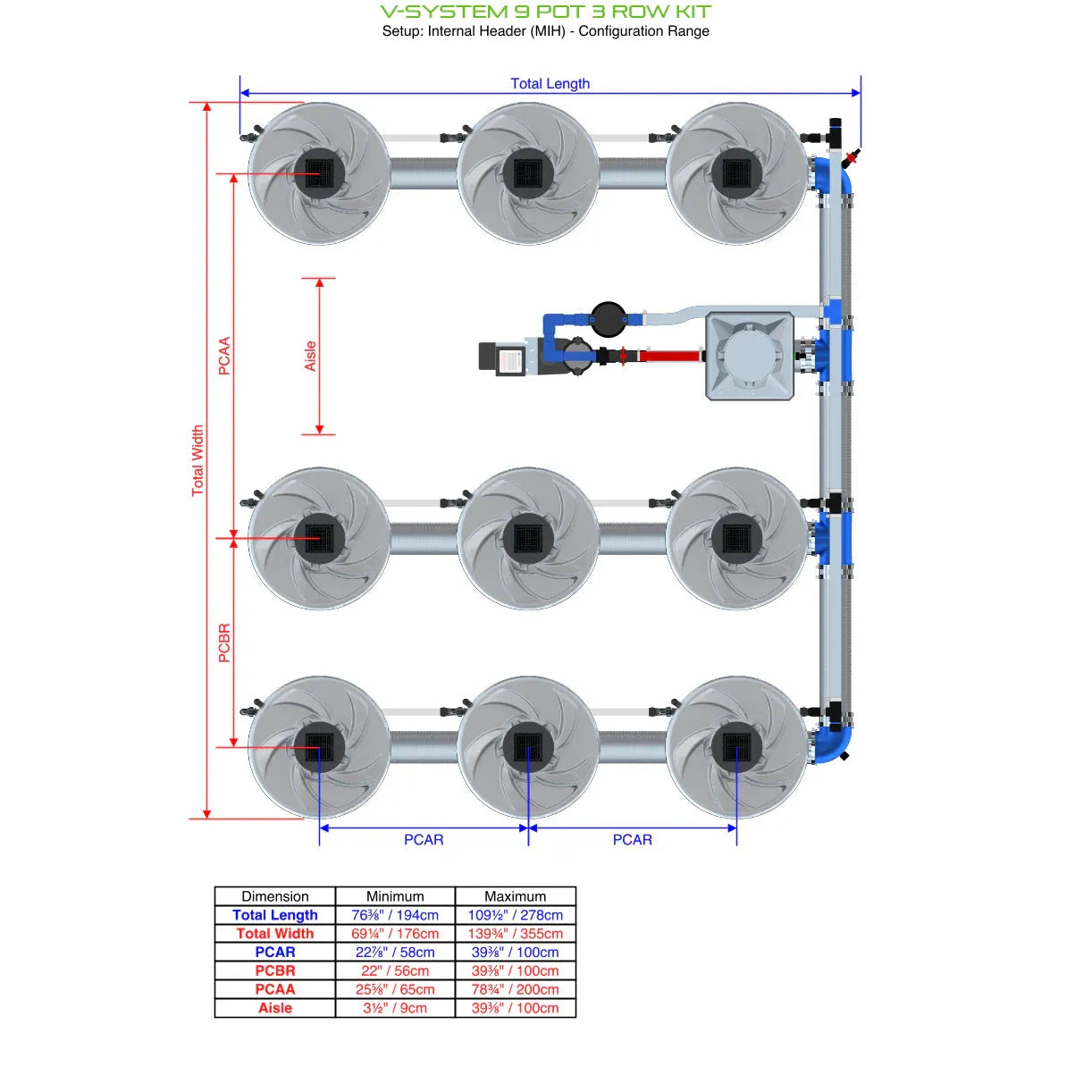

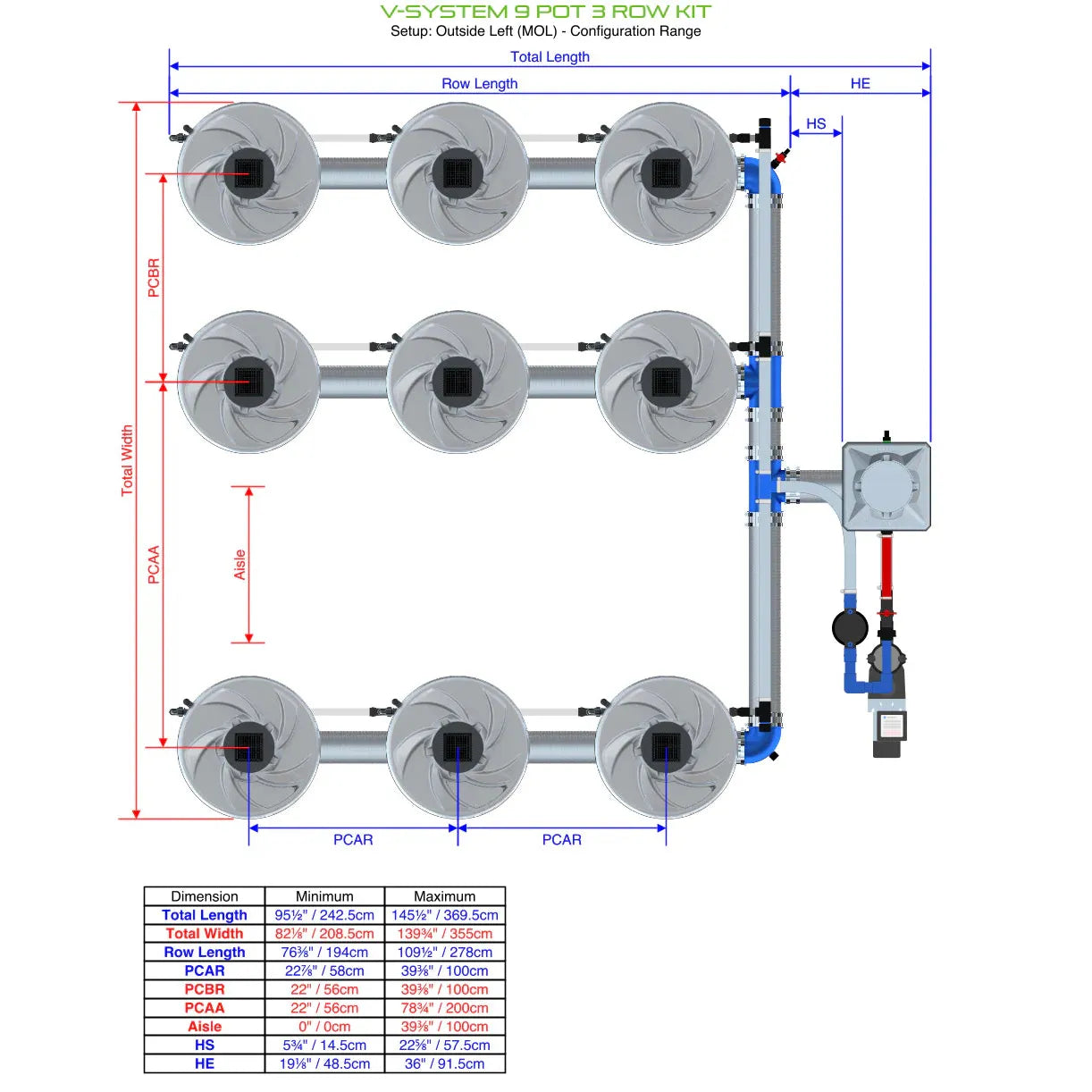

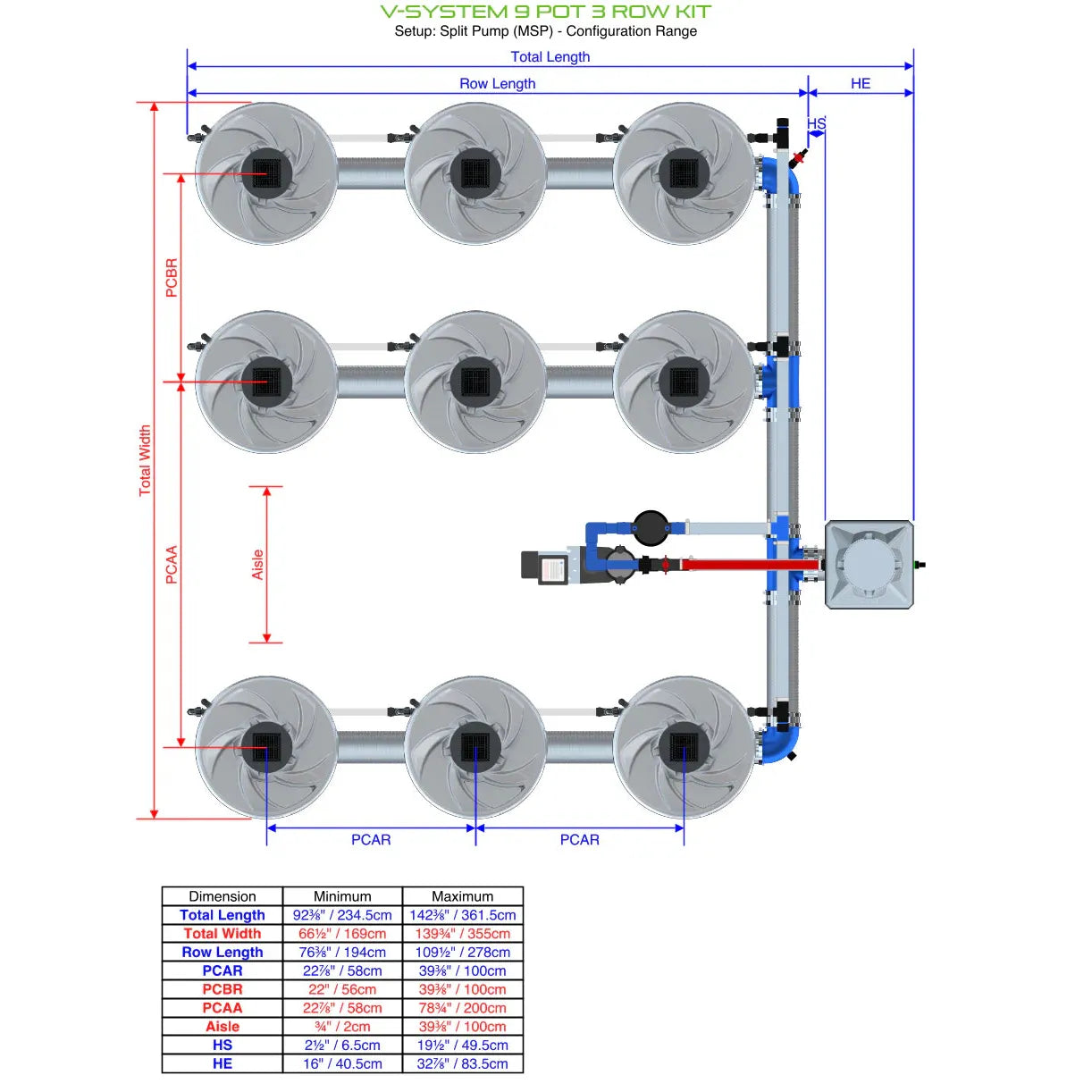

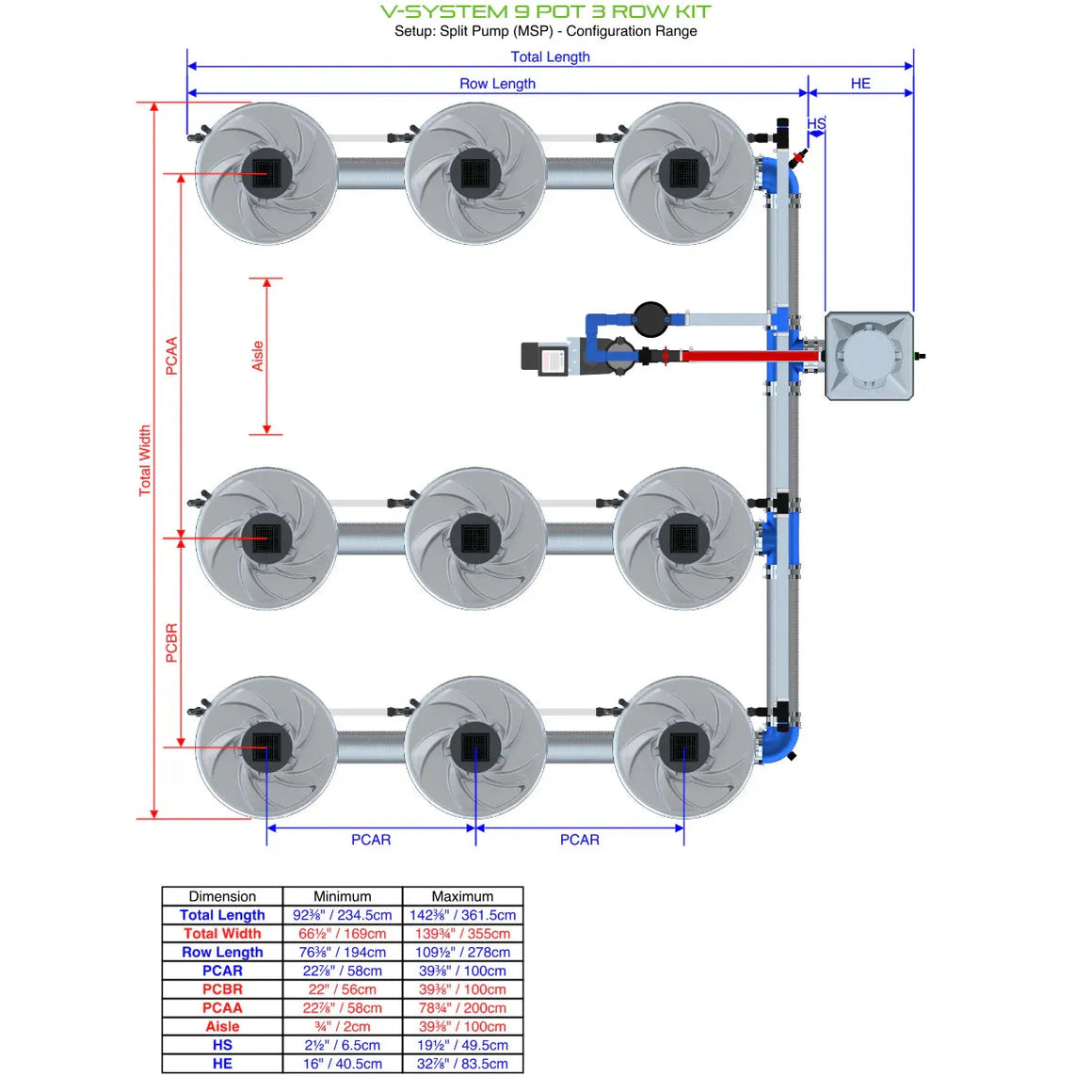

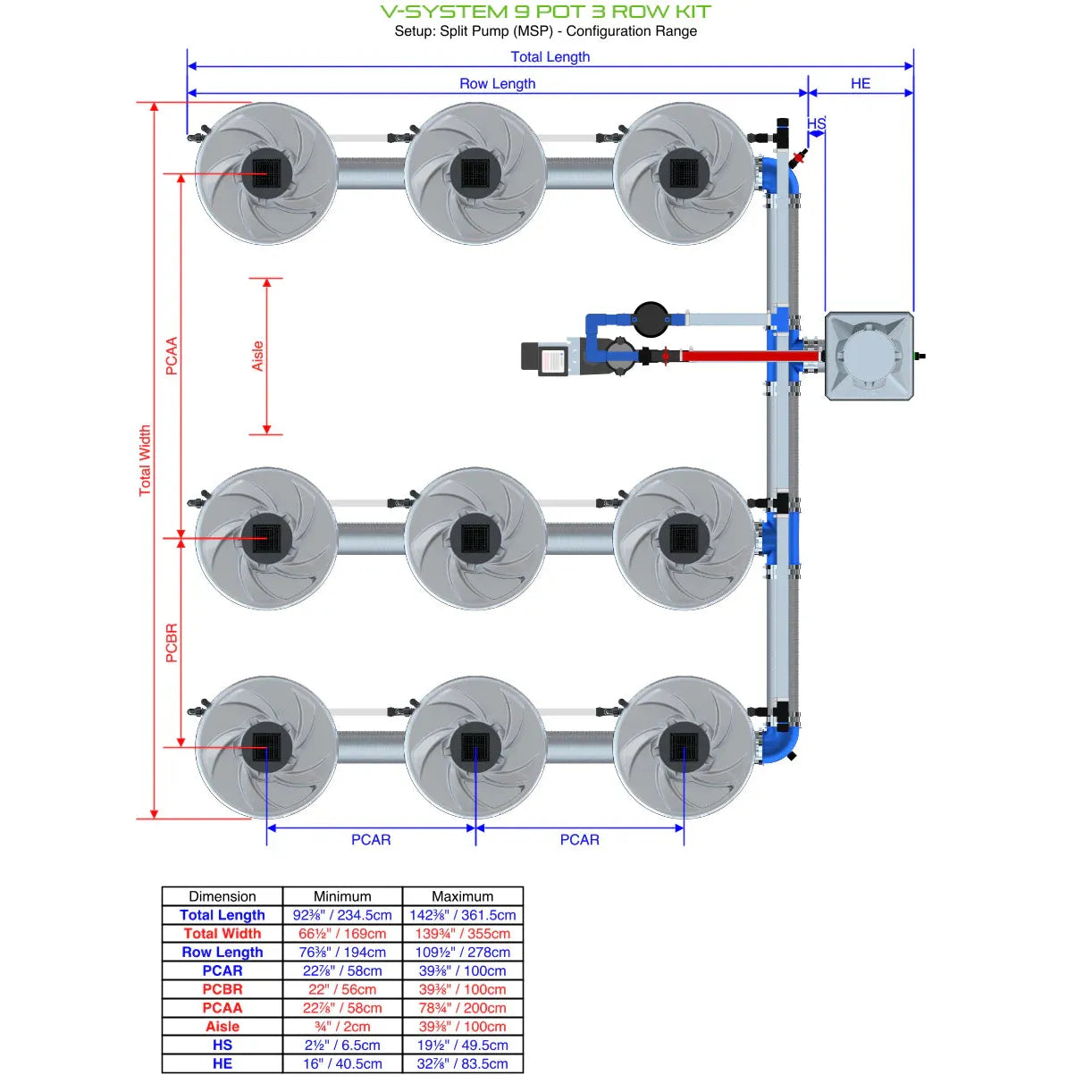

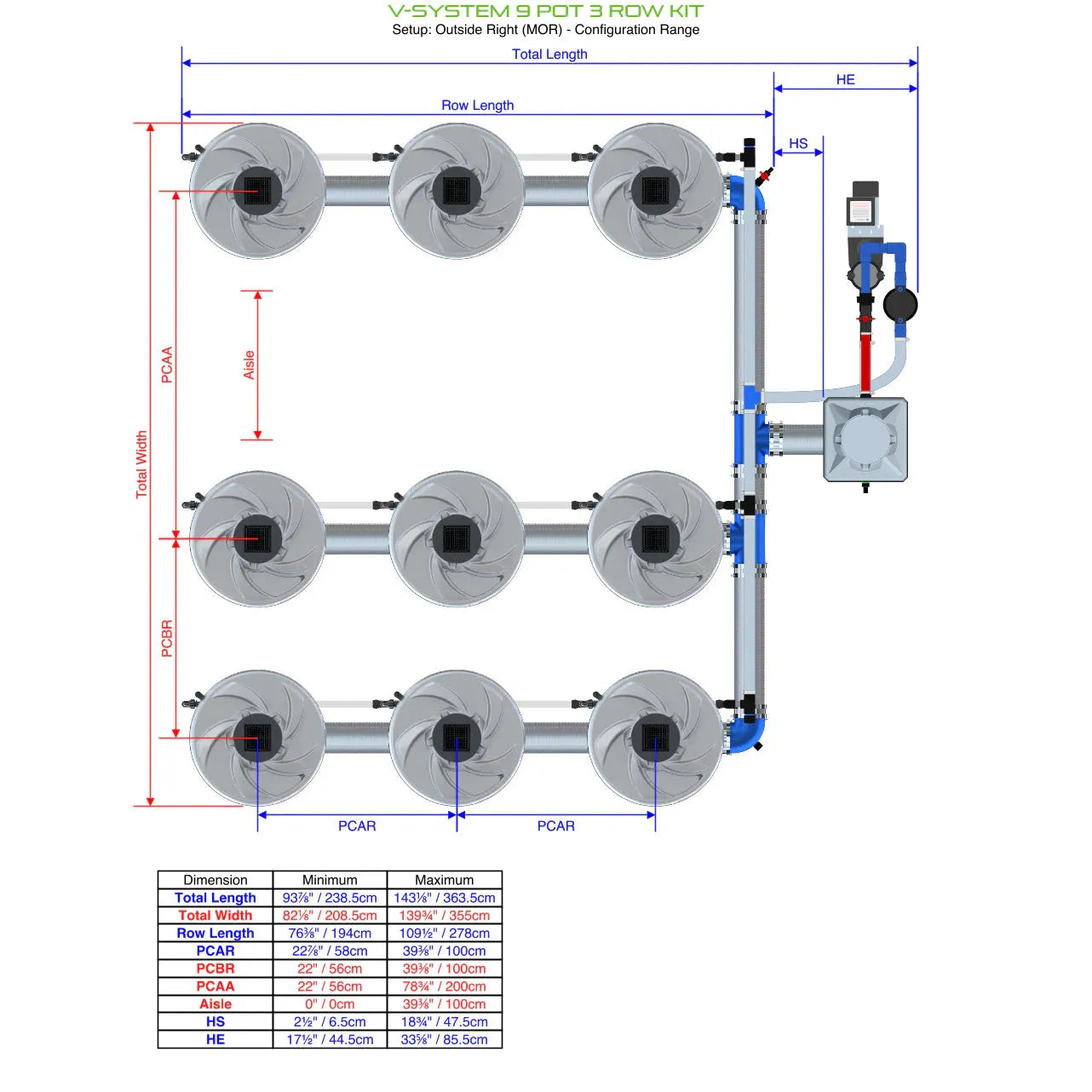

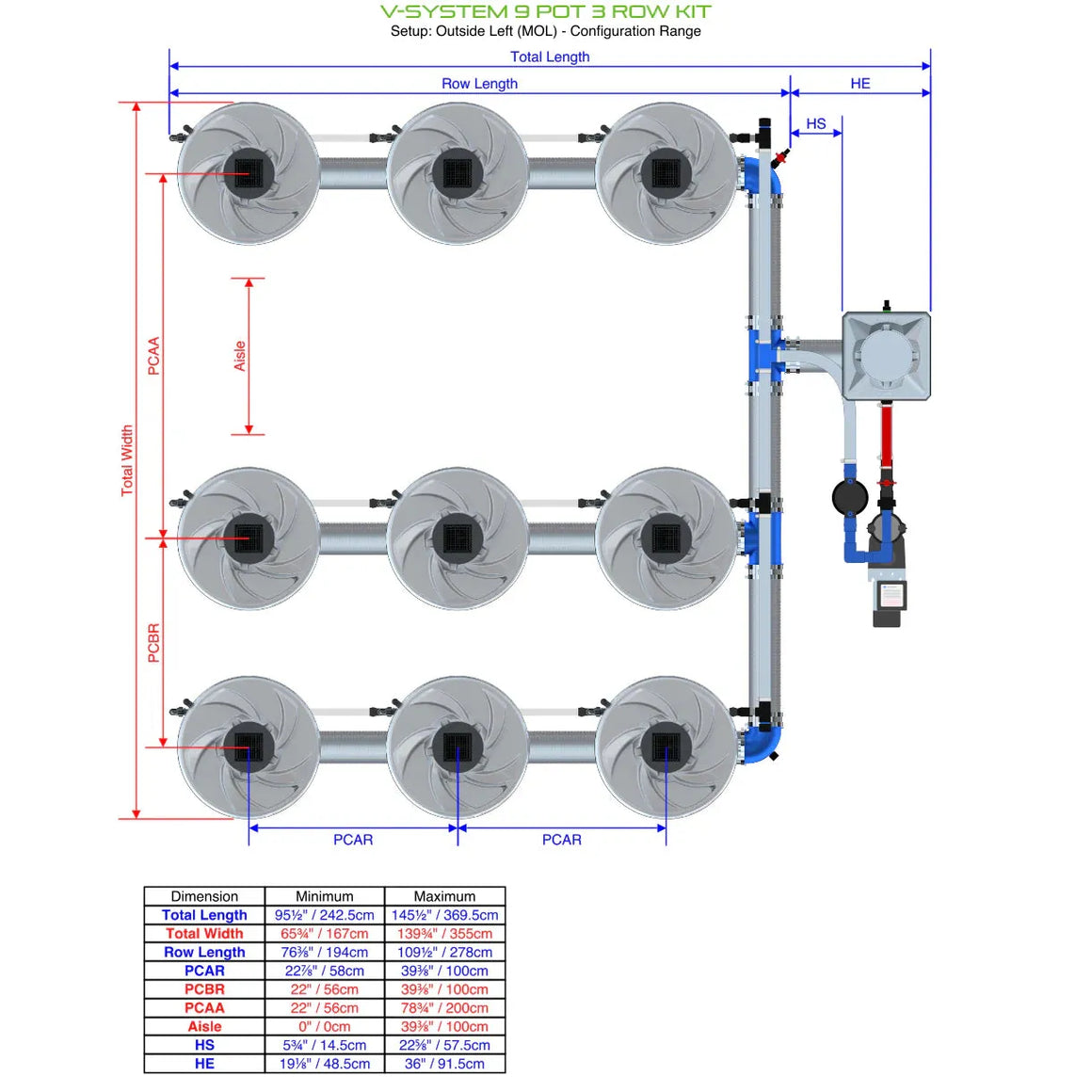

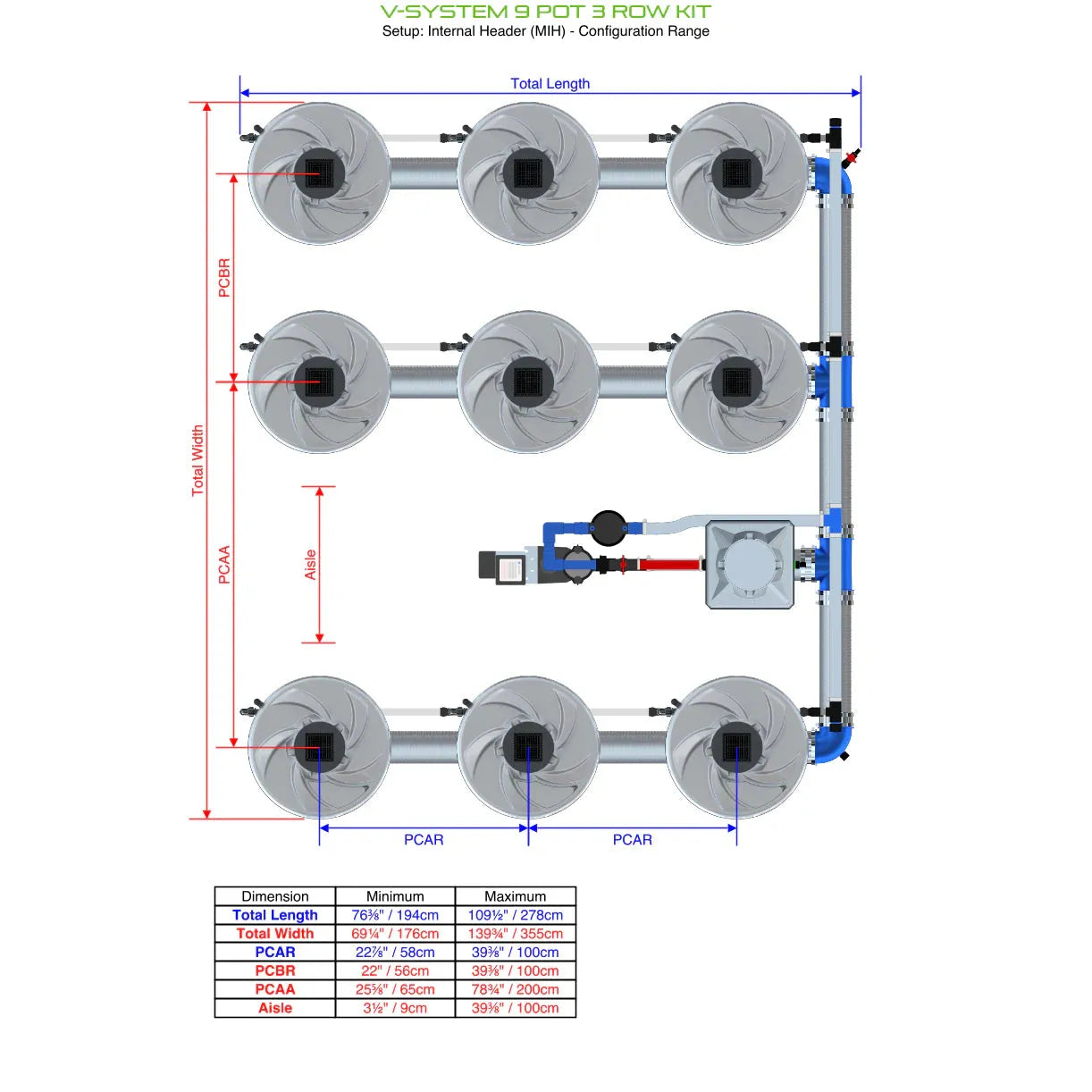

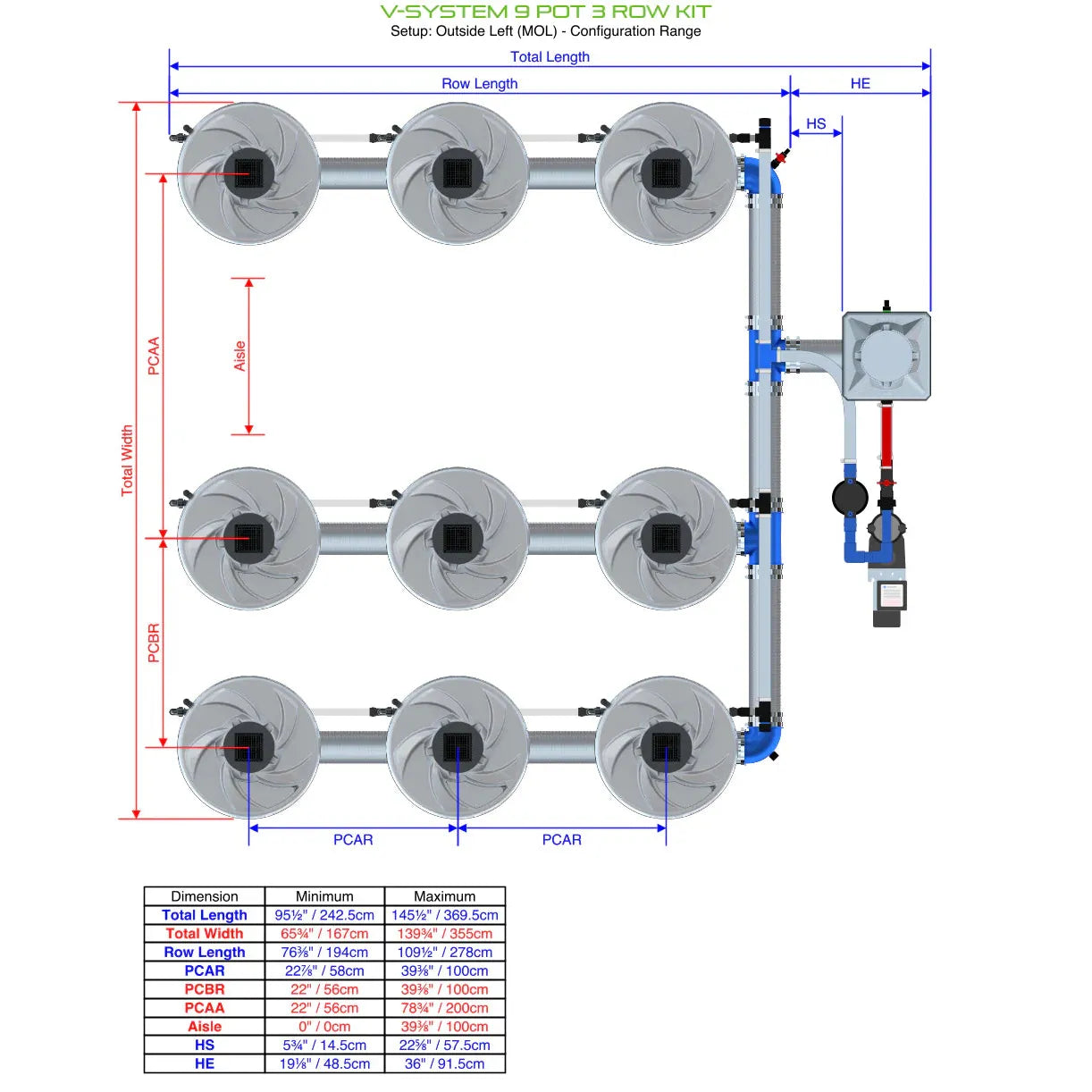

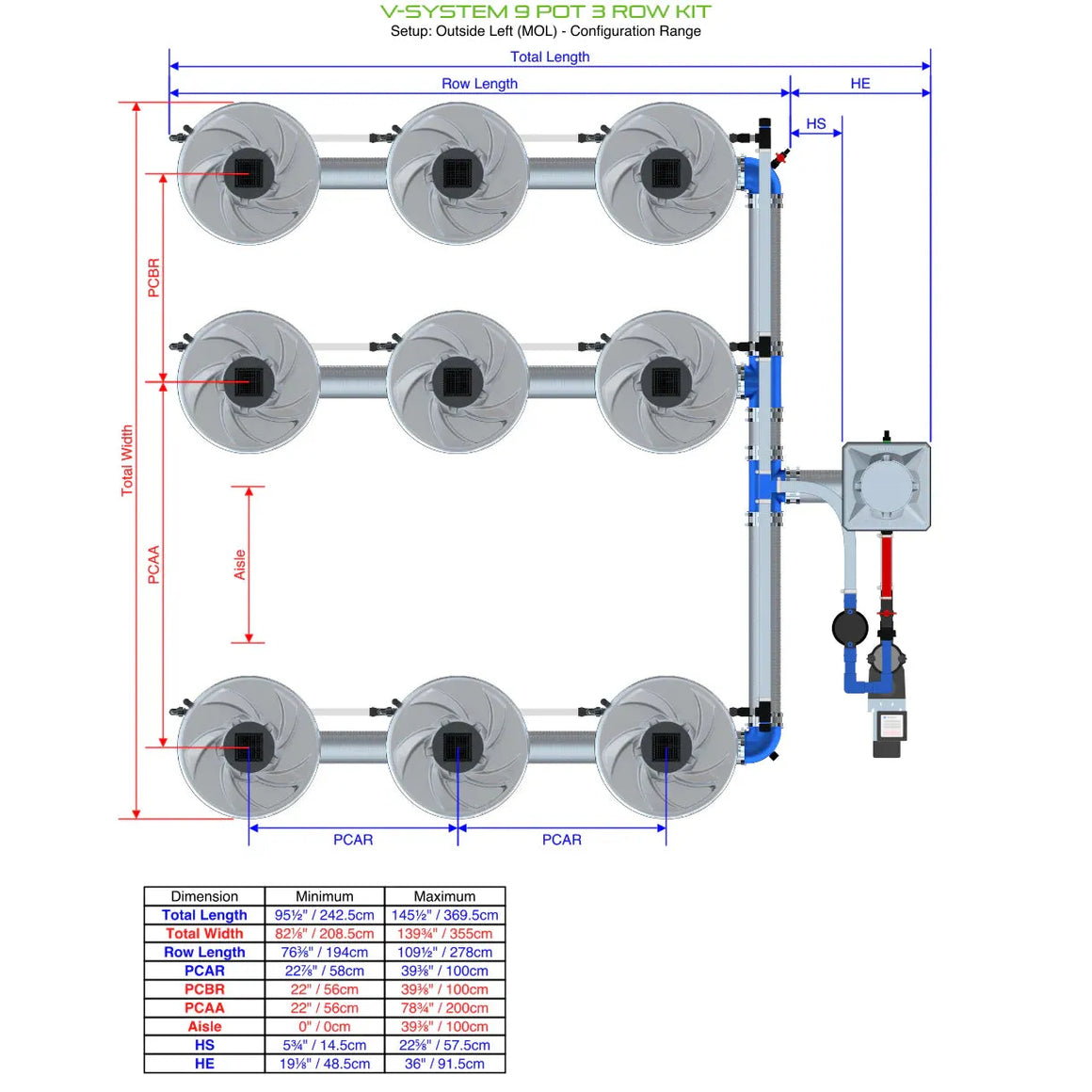

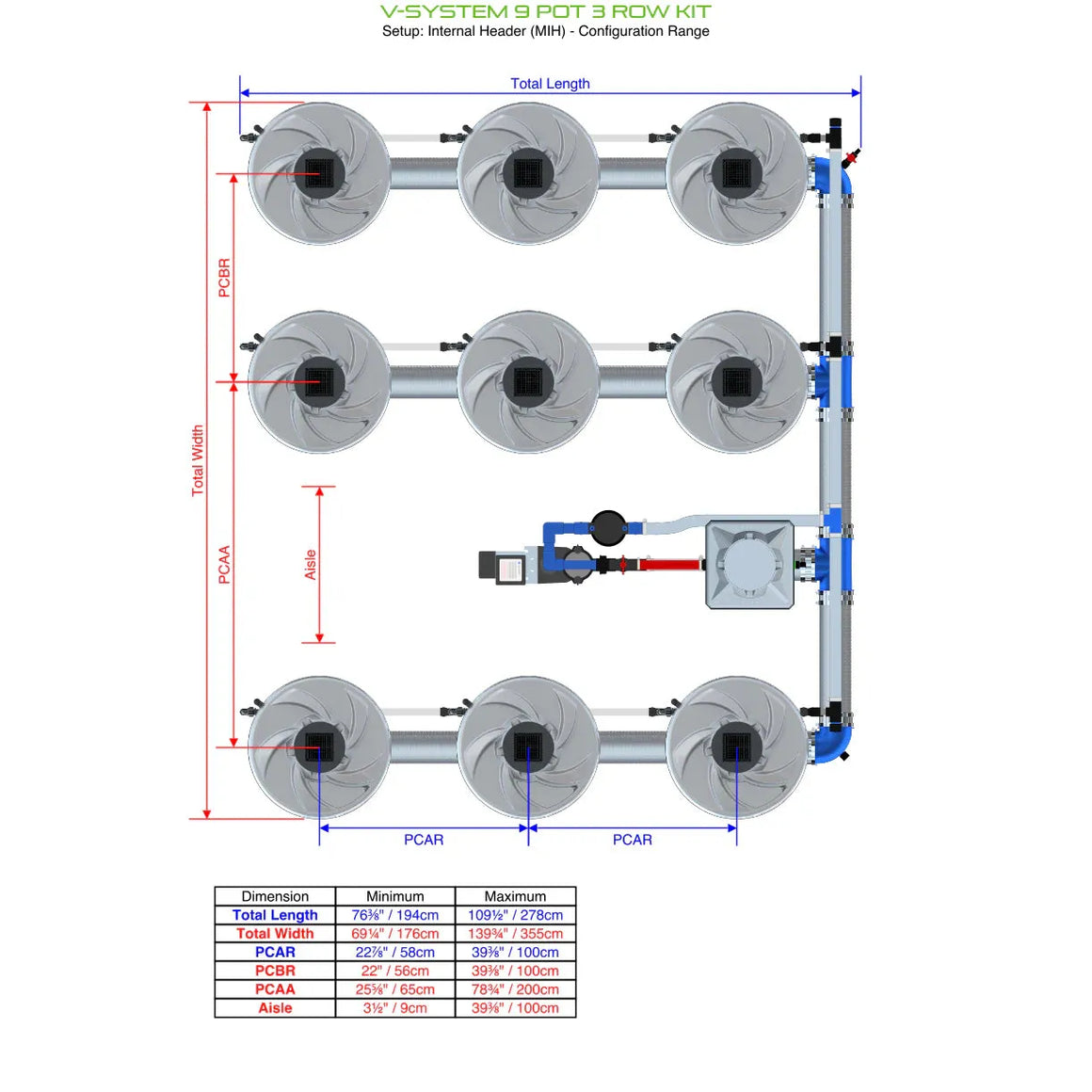

Minimum Assembled Length	6' 4.8" (1950 mm)
Minimum Assembled Width	5' 9.3" (1760 mm)
Included Water Pump	V-SYSTEM Vortex Pump 370W 120V
Pump Wattage	370 watts
Pump Flow Rate	3487 gal/hr (13200 L/hr)
Recommended Water Chiller	198 gallons (750 L) minimum capacity

Support & Manuals

📄Instruction Manual 📄Technical Drawing

Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.

FAQs

What is Venturi Valve Technology?+

It's an innovative system that uses the flow of water from the pump to draw air into the nutrient solution, creating a powerful vortex. This process infuses the water with high levels of dissolved oxygen without needing a separate air pump, which means less noise, less heat, lower energy costs, and no air stones to clean or replace.

Is this DWC system difficult to set up?+

No, the V-System is designed for straightforward assembly. It includes push-fit connections and all the tools required for setup. We recommend reviewing the included instruction manual before you begin. The modular design also makes it easy to arrange in a way that best suits your grow space.

Can I expand this system later?+

Absolutely. The modular design is a key feature of the Alien Hydroponics V-System. You can add more pots and rows to your system as your cultivation needs grow, making it a scalable, long-term investment.

What size grow tent or room do I need for the 9-pot system?+

The minimum footprint for the 9-pot system is approximately 6.4 ft x 5.8 ft (1.95m x 1.76m). We recommend using a grow space of at least 8 ft x 8 ft to allow for adequate room for the system, other equipment, and easy access to your plants.

Do I need to buy a water chiller for this system?+

While the V-System is designed to run cooler than traditional DWC systems, a water chiller is highly recommended for maintaining optimal root health, especially in warmer environments. Alien Hydroponics recommends a chiller with a minimum capacity of 198 gallons (750 L) for this 9-pot system to ensure your nutrient solution stays within the ideal temperature range.
