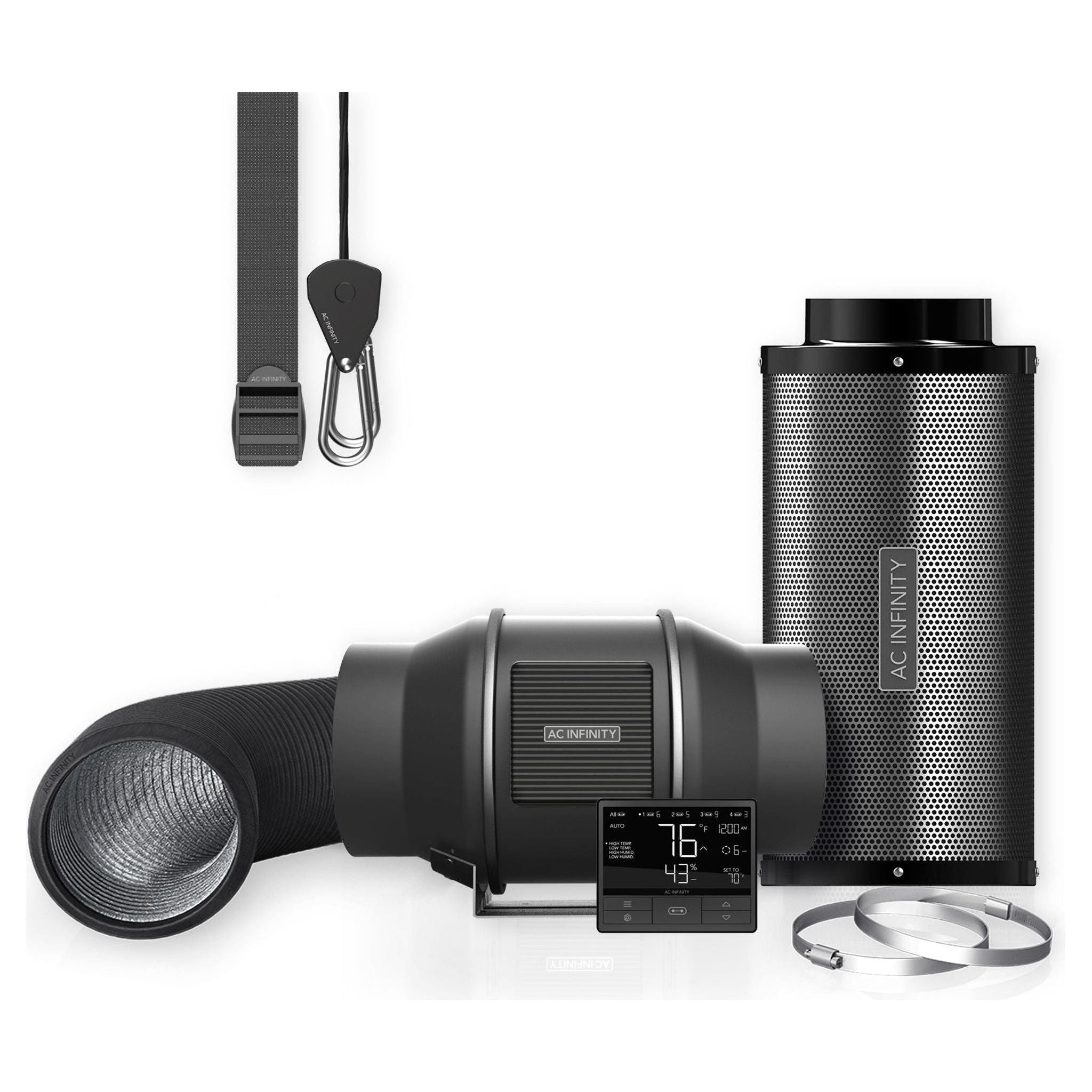

- CLOUDLINE 6” Inline Duct Fan
- Controller 69 with Temperature & Humidity Probe
- 6” Australian Carbon Filter
- 25 ft. Four-Layer Flexible Ducting
- Two (2) Steel Duct Clamps
- Two (2) Hanger Straps
- Mounting Screws & Hardware
AC Infinity 6" Pro Air Filtration Kit System
starting from 0% interest financing from
/mo.
Earn 319 points for shopping and get $3.19 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1935+ verified reviews
Secure Checkout
SSL encrypted payments
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
AC Infinity 6" Pro Air Filtration Kit System

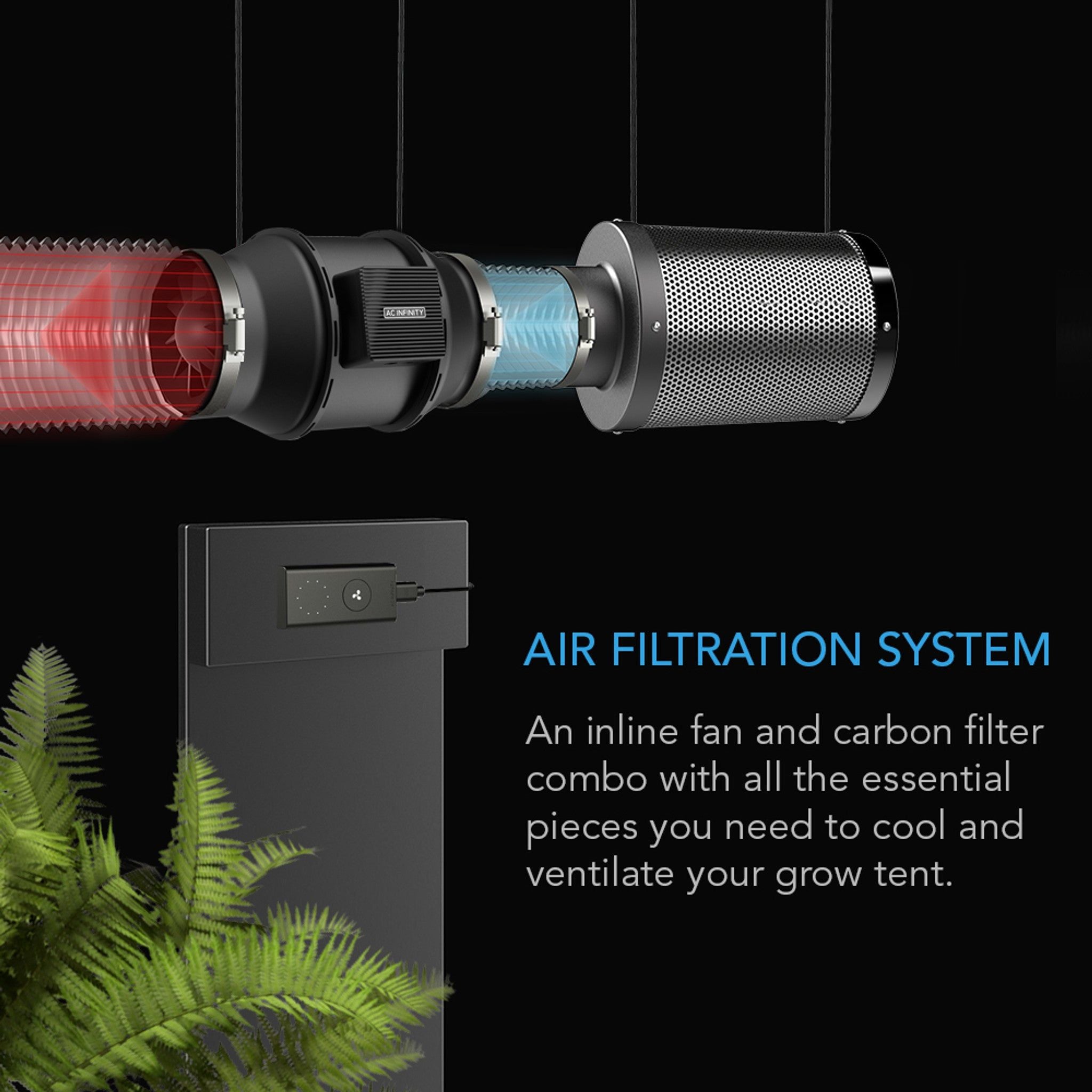

Struggling to control odors and maintain a stable climate in your grow tent? The AC Infinity 6" Pro Air Filtration Kit is your all-in-one solution, engineered to deliver complete, automated control over your growing environment. This comprehensive system combines a powerful inline fan, a high-grade carbon filter, and an advanced smart controller to ensure your plants thrive in perfectly purified and conditioned air.
At the heart of the kit is the whisper-quiet CLOUDLINE fan, delivering 402 CFM of airflow to effectively manage temperature and humidity. It pairs seamlessly with the included Controller 69, allowing you to automate fan speeds based on real-time environmental data. Unwanted odors are completely neutralized by the premium Australian charcoal filter, while the rugged, four-layer ducting ensures an efficient, leak-proof setup. This kit is the professional choice for growers seeking total environmental control and is designed to integrate perfectly into any AC Infinity grow tent.
What's Included
Features
🧠

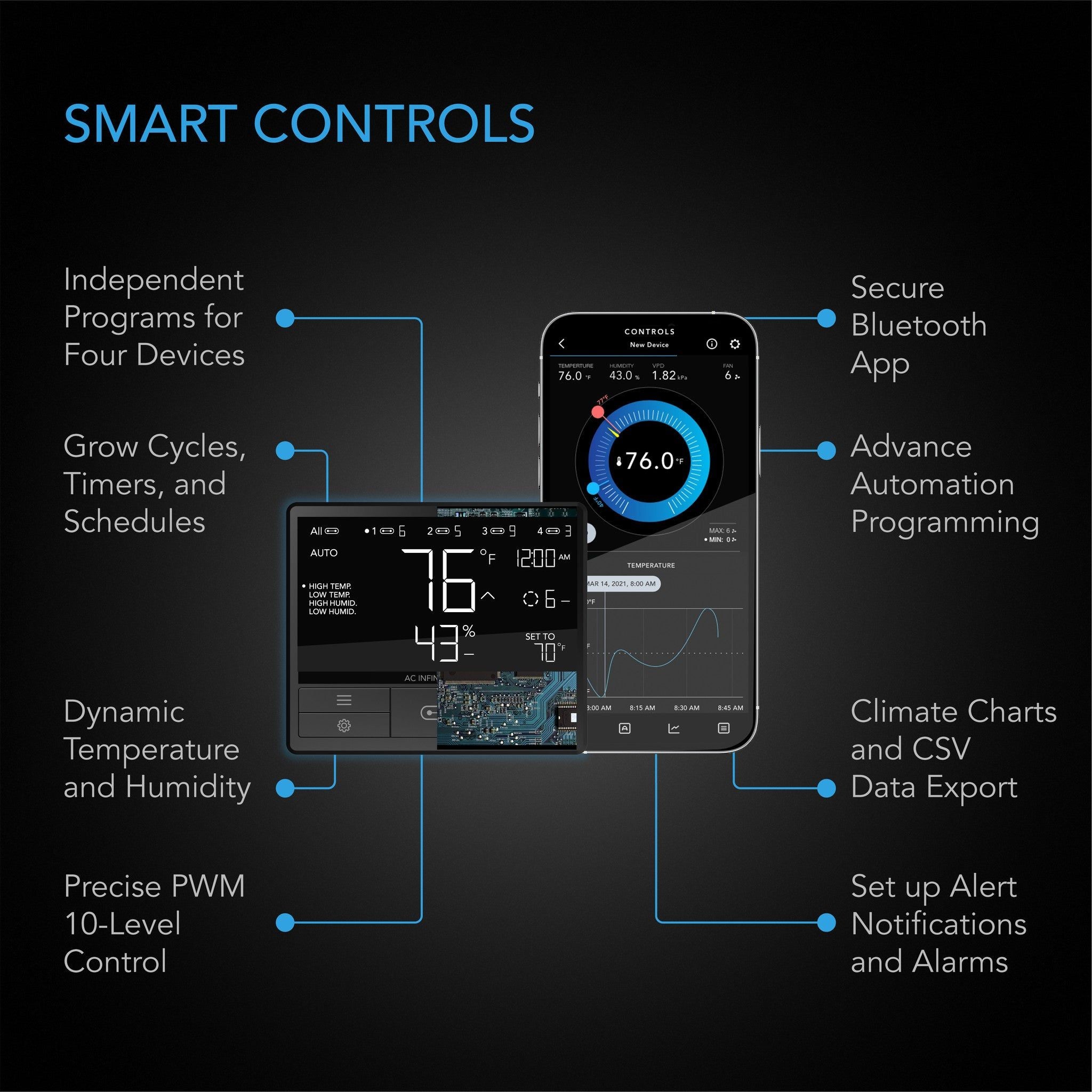

Smart Climate Control
Controller 69 automates fan speed based on temperature and humidity for precise environmental management.
🌬️

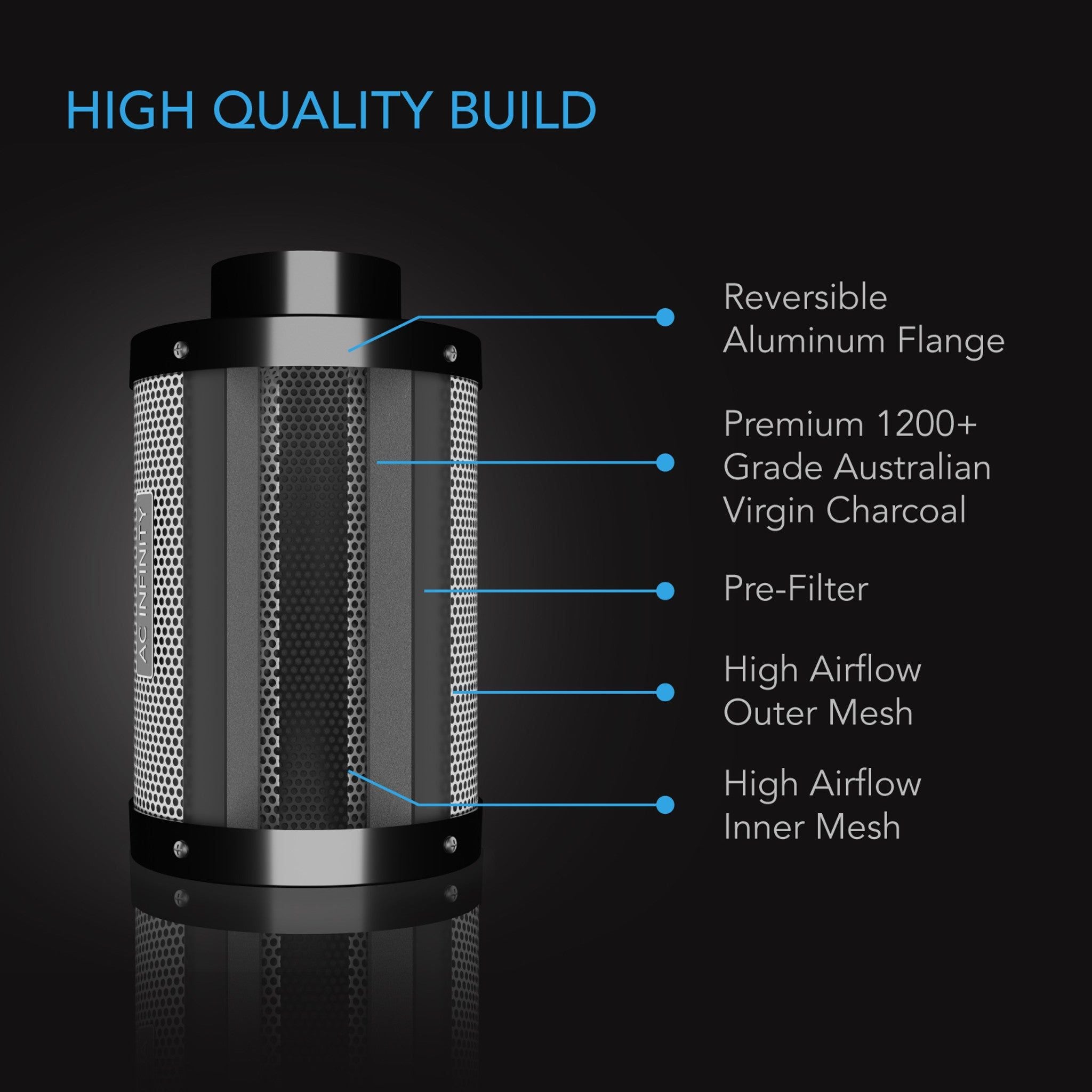

Superior Odor Elimination
Features a premium 1200+ IAV Australian charcoal filter to completely neutralize the strongest odors.
🤫

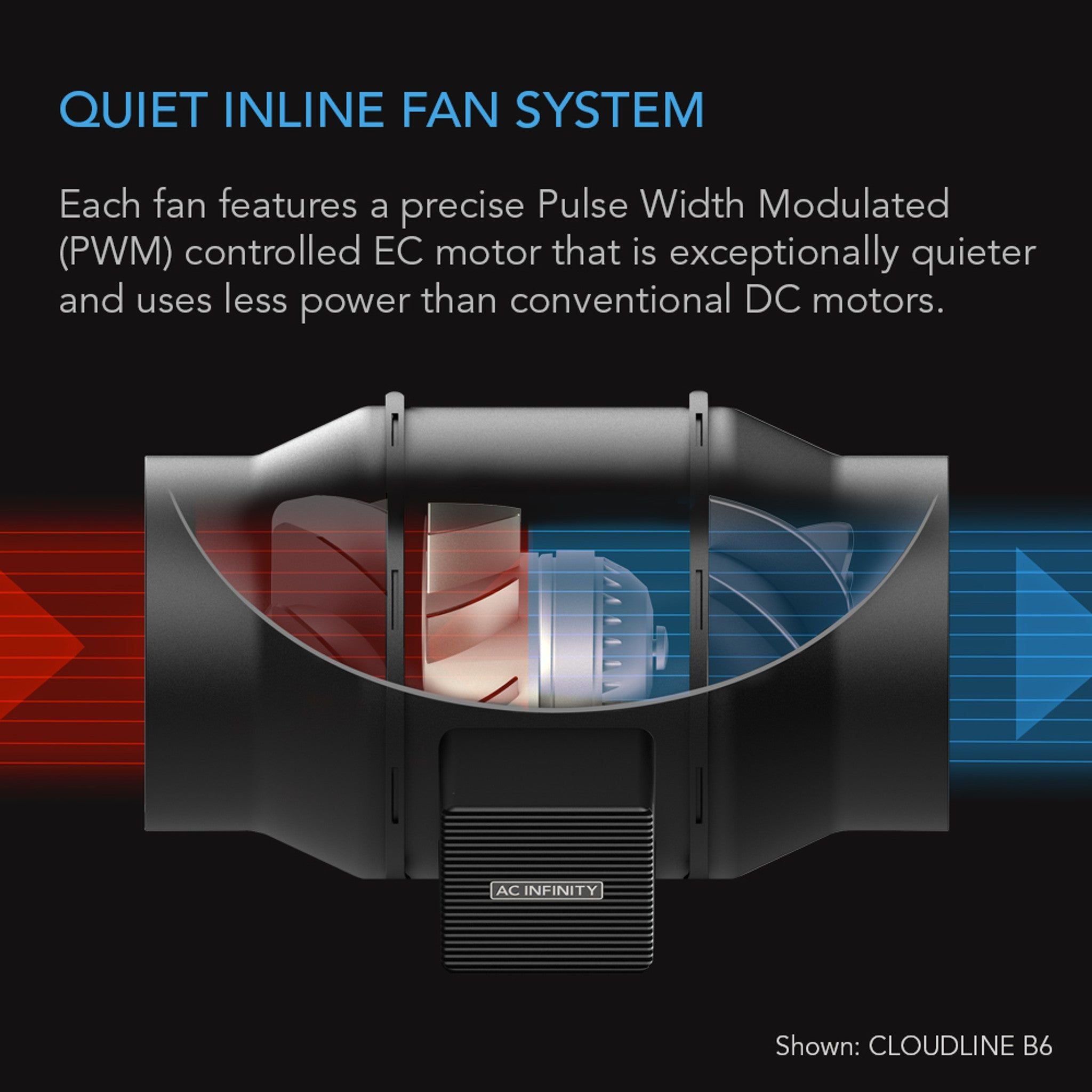

Whisper-Quiet Performance
The mixed-flow EC motor design delivers powerful airflow at a low noise level of only 32 dBA.
💪
Reinforced 4-Layer Ducting
Highly durable ducting with steel-wire reinforcement prevents leaks and tears for long-term reliability.
💨
High-Efficiency Airflow
Moves up to 402 cubic feet of air per minute (CFM) to effectively ventilate your grow space.
✅
All-In-One Solution
Includes everything you need for a complete installation, from fan and filter to ducting and clamps.

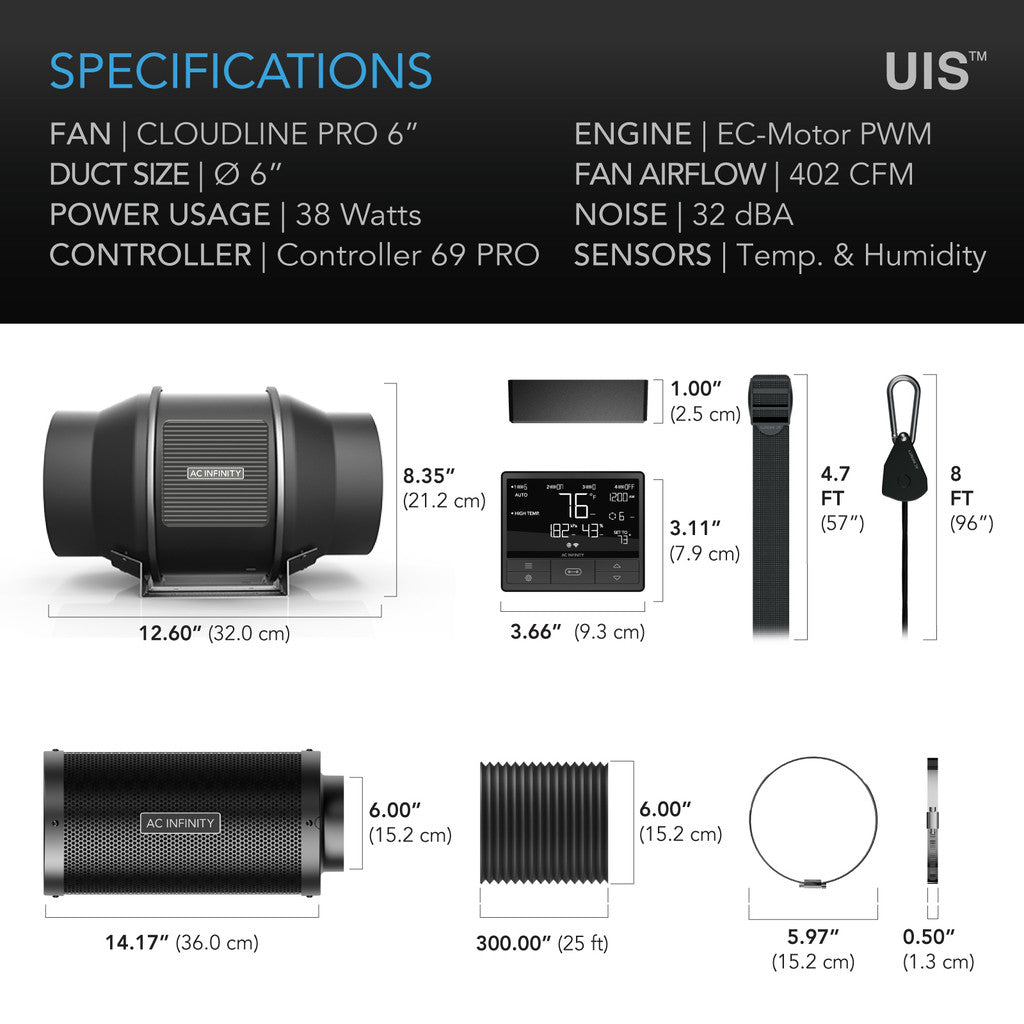

Specifications
| Specification | Value |
|---|---|
| Duct Size | 6" |
| Fan Dimensions | 7.87 x 12.60 x 8.35 in. |
| Controller Dimensions | 5.19 x 2.91 x 1.06 in. |
| Carbon Filter Dimensions | 15.94 x 8.93 in. |
| Ducting Length | 25 ft (300 in.) |
| Total Airflow (Fan Only) | 402 CFM |
| Total Noise | 32 dBA |
| Static Pressure | 394 Pa |
| Max Power Draw | 61 W |
| Average Power Usage | 35 W |
| Voltage | 100-240V AC |
| Fan Bearings | Dual Ball |
| L10 Life Expectancy | 67,000 Hours |
| Ingress Protection | IP 44 |
| Carbon Type | Australian Virgin RC412 |
| Carbon Grade | 1200+ IAV |
| Carbon Thickness | 38mm |
| Maximum Airflow (Filter) | 410 CFM |
| Ducting Material | PVC Thermoplastic, Aluminum Foil, Steel-Wire |
Support & Manuals
Warranty
This AC Infinity product comes with a two-year warranty. Please note this does not cover non-durable goods or consumables designed to be recurrently used. All sales are final.
FAQs
What is included in the 6" Pro Air Filtration Kit?
The kit includes everything you need for a complete ventilation setup: the CLOUDLINE 6" inline fan, the advanced Controller 69, a high-grade Australian carbon filter, 25 feet of flexible ducting, and all necessary clamps and hangers.
How does the smart controller work?
The included Controller 69 allows you to set dynamic programs that adjust fan speed based on temperature and humidity. It also features timers, scheduling, and can be connected to the AC Infinity app for remote control.
Is this system difficult to install?
Not at all. The kit is designed for easy, tool-free installation in most grow tents. It can be configured for either intake or exhaust depending on your needs. For a detailed walkthrough, check out this in-depth guide on AC Infinity kits.
How effective is the carbon filter at removing odors?
The filter uses 1200+ IAV Australian virgin charcoal, one of the highest grades available. It's exceptionally effective at absorbing and neutralizing even the strongest odors from your grow space.
How noisy is the inline fan?
The CLOUDLINE fan is engineered for quiet operation, producing only 32 dBA at its highest setting. The mixed-flow design delivers powerful airflow without the noise of traditional fans.
Can I use this kit with a grow tent from another brand?
Yes, the 6-inch ducting is a standard size and compatible with most grow tents on the market. However, it's designed to pair perfectly with AC Infinity CLOUDLAB grow tents for a seamless fit.
