AC Infinity Cloudline S4 Inline Fan System w/ Speed Controller - 4" Duct

$129.00
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
  • 226 CFM airflow through 4 inch ducting at 26 dBA
  • Dual ball bearings rated for 67,000 hours of continuous operation
  • 2-year limited manufacturer warranty from the original date of purchase
  • View More Details

Earn 119 points for shopping and get $1.19 off your next order. Join Harvest Club for free.

Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Free Shipping On Most Items*To the lower 48
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Highlights

  • You are venting a small tent because heat, odor, and humidity build up quickly in enclosed spaces.
  • You are running a quiet ventilation setup because a loud fan in a bedroom or closet quickly becomes a problem.

  • The 10-speed controller uses a single button with a circular readout and remembers its last setting after a power outage.
  • Dual ball bearings rated for 67,000 hours let you mount the unit horizontally or vertically.

  • Growers who connect their fan to a smart controller say they stopped worrying about fluctuating humidity levels during late flowering stages
  • Users who mounted the fan in tight spaces report that the quiet motor lets them run high speeds without disturbing the household

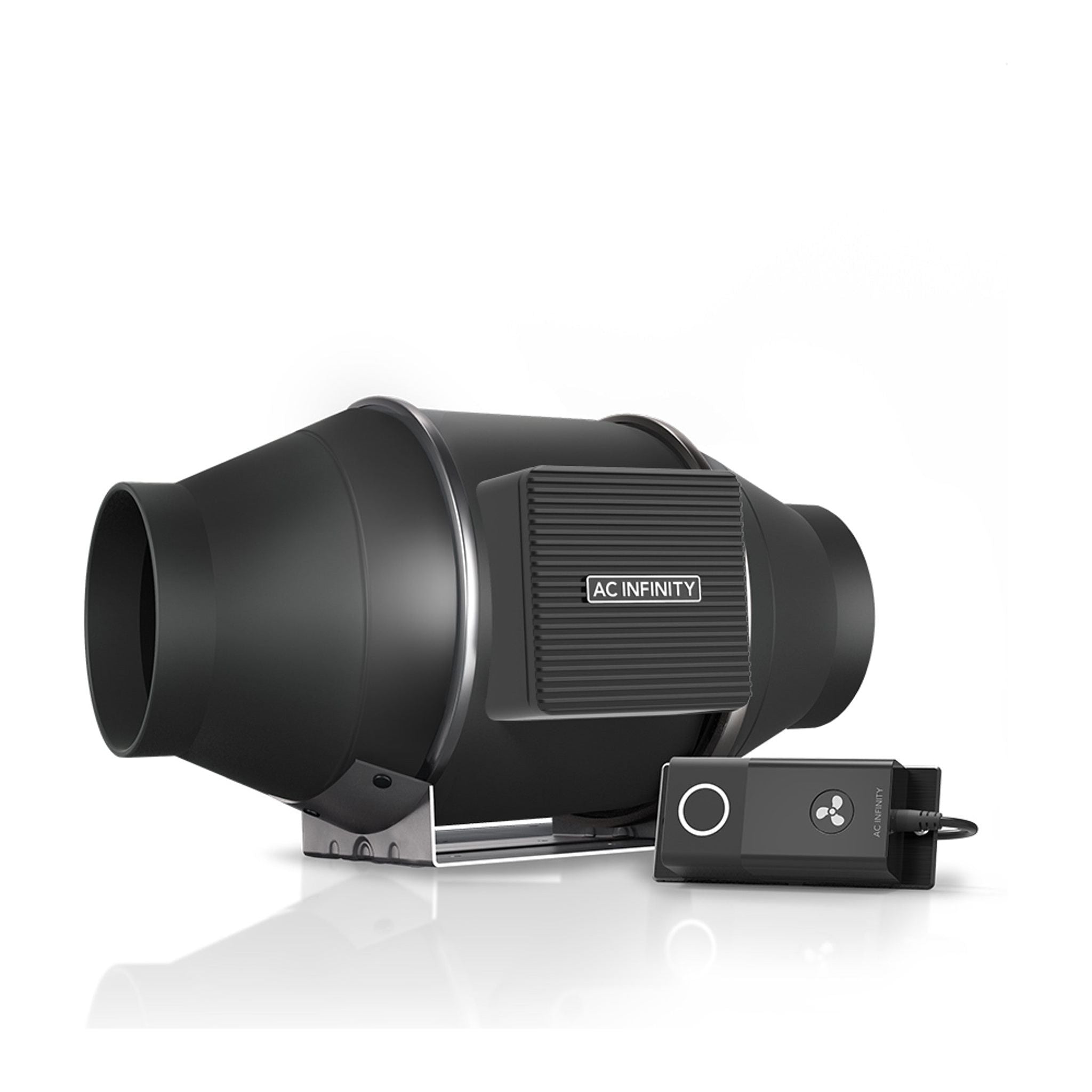

AC Infinity Cloudline S4 Inline Fan System w/ Speed Controller - 4" Duct

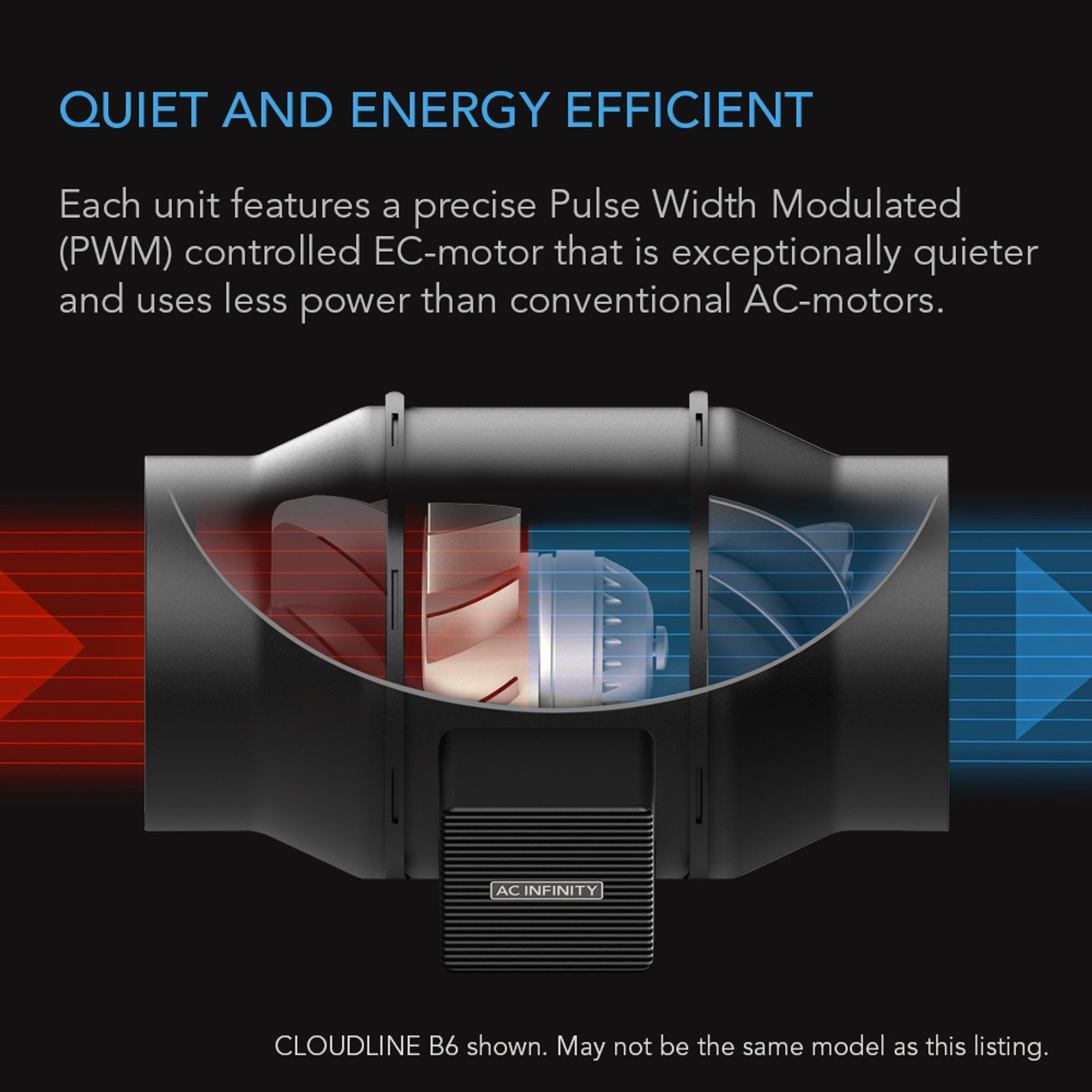

Small tents heat up fast and hold odor and humidity, but a loud fan in a bedroom or closet quickly becomes its own problem. The AC Infinity Cloudline S4 moves 226 CFM through 4" ducting at just 26 dBA. A PWM-controlled EC motor runs smoothly even at very low speeds, without the hum of cheaper AC fans.

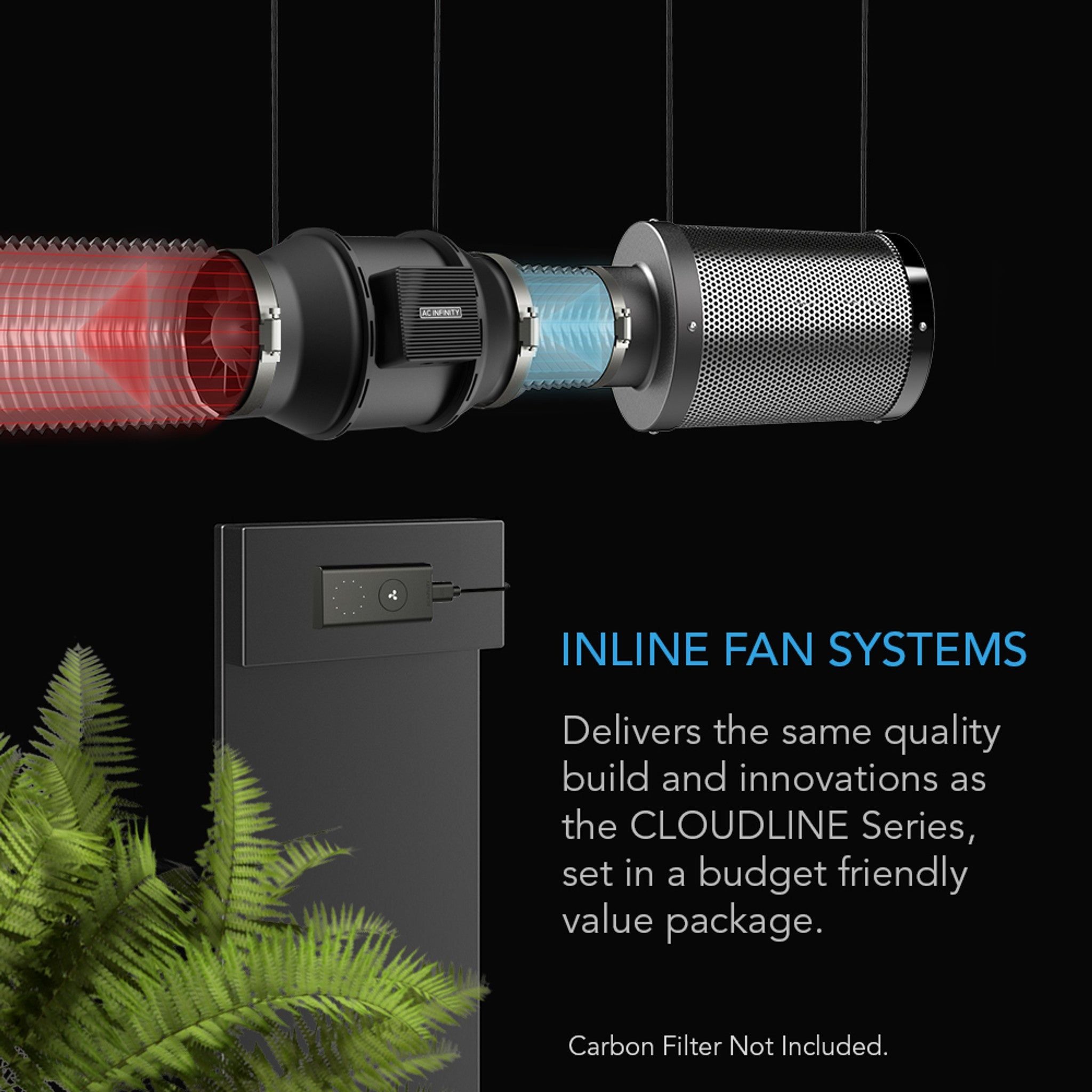

The Cloudline S4's mixed-flow design pairs hydro-mechanical stator blades with dual wind circles to keep air moving under high static pressure, up to 223 Pa. That means it holds its airflow when pushing through a 4" carbon filter and long duct runs. Dual ball bearings rated for 67,000 hours let you mount it horizontally or vertically. The IP44-rated housing resists dust and moisture, and the motor box detaches from the mounting frame for cleaning.

The included speed controller sets fan speed from 1 to 10 with a single button and remembers its last setting after a power outage. It's powered by the fan itself through the included 10 ft UIS cord. For climate- and schedule-based automation, connect the S4 to any UIS controller, such as the AC Infinity Smart Controller 69 Pro (sold separately), and run it alongside the rest of your AC Infinity equipment.

Features

🤫
Quiet PWM EC Motor

Runs at 26 dBA with smooth, efficient speed control down to very low RPM.

💨
226 CFM Mixed-Flow

Stator blades hold airflow under high static pressure from filters and long duct runs.

🎛️
10-Speed Controller

Single-button speed control with a circular readout and last-setting memory.

📱
UIS™ Compatible

Connect to any UIS controller for temperature, humidity, and schedule automation.

⚙️
Dual Ball Bearings

Rated for 67,000 hours and mountable horizontally or vertically.

🛠️
IP44 & Easy Cleaning

Dust- and moisture-resistant housing with a motor box that detaches for cleaning.

What's Included

  • 1x Cloudline S4 Inline Duct Fan
  • 1x Speed Controller
  • 1x UIS M-M Cord, 10 ft.
  • 2x Duct Clamps
  • 2x Hanging Straps
  • 4x Duct Fan Screw Sets
  • 4x Wall Anchors
  • 1x Wood Screw (Wall Mount)
  • 2x Controller Plate Bolts
  • 6x Wire Mounts
  • 1x Adhesive Wire Mount
  • 4x Hook and Loop Ties

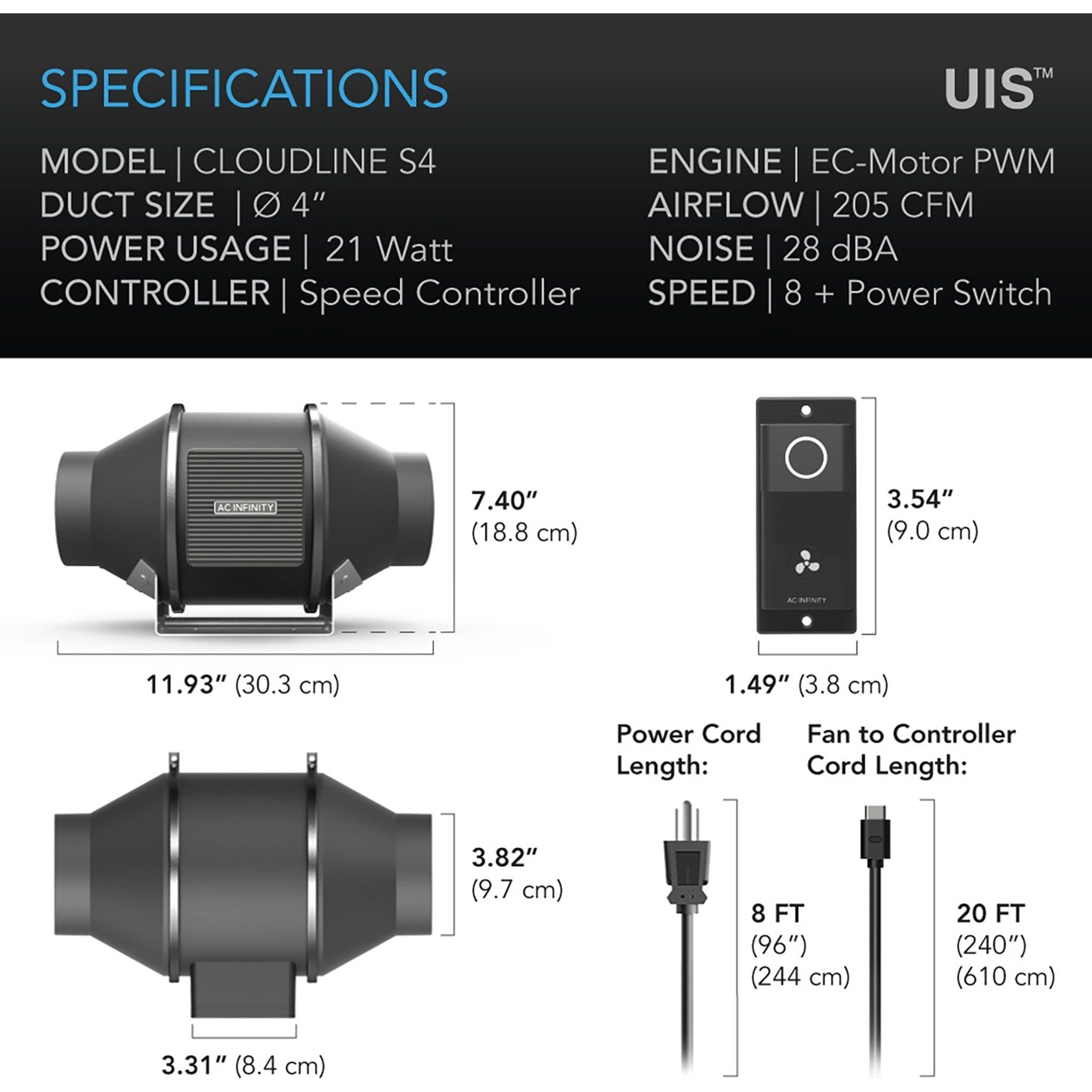

Specifications

Specification Value
Duct Size 4"
Fan Dimensions 7.40 × 11.93 × 6.93 in. (18.8 × 30.3 × 17.6 cm)
Mounting Hole-to-Hole Distance 3.15 × 2.36 in. (8.0 × 6.0 cm)
Screw Hole Diameter 0.197 in. (0.5 cm)
Controller Dimensions 2.70 × 1.37 × 0.55 in. (6.9 × 3.5 × 1.4 cm)
Cord Length to Controller 120 in. (10 ft.)
Power Cord Length 96 in. (8 ft.)
Airflow 226 CFM
Noise 26 dBA
Max Speed 2800 RPM
Static Pressure 223 Pa
Speed Settings 10
Max Power Draw 28 W
Average Power Usage 21 W
Voltage 100–240V AC
Frequency 50/60 Hz
Current 0.4 A
Power Connector Type US Plug (NEMA 5-15 Type B)
Ingress Protection IP44
Fan Bearings Dual Ball
Mounting Positions Horizontal or Vertical
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
L10 Life Expectancy 67,000 Hours

Warranty

The AC Infinity Cloudline S4 is covered by a 2-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

What's the difference between the S-Series and T-Series fans? +

The fan unit is the same; the controller is the difference. The Cloudline S4 includes a 10-speed controller for manual speed setting, while the Cloudline T4 ships with a smart controller and sensor probe that automate the fan by temperature, humidity, timers and schedules.

How loud is the Cloudline S4? +

The Cloudline S4 is rated at 26 dBA. Its PWM-controlled EC motor runs smoothly at low speeds without motor hum, so you can keep it on a lower setting in living spaces and raise it only when the tent needs more airflow.

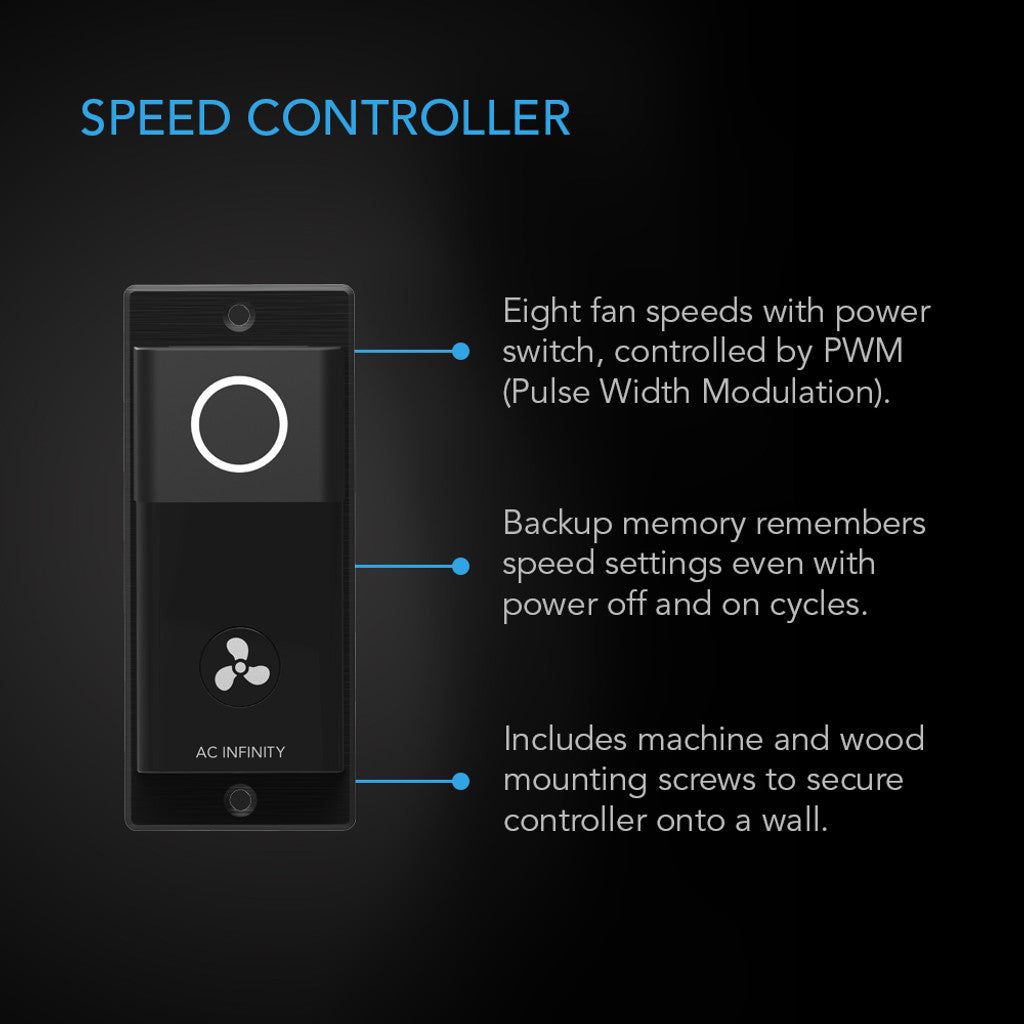

How does the speed controller work? +

Each press of the single button raises the speed one level from 0 to 10, and pressing it at 10 cycles back to 0. Hold the button for 4 seconds to turn the fan off; press it again to resume at the last speed. The controller draws power from the fan through the included UIS cord.

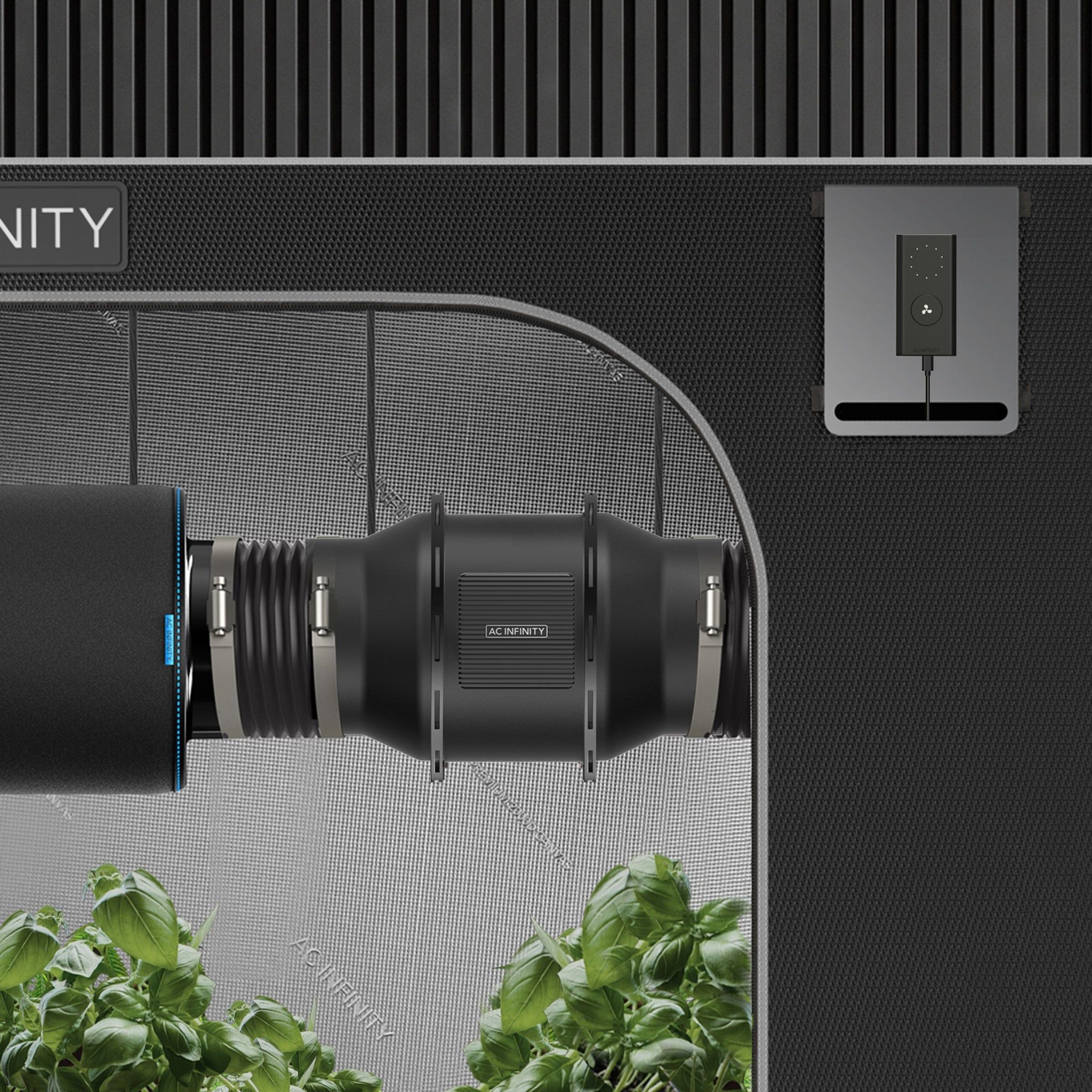

Can I use this fan for both intake and exhaust? +

Yes. Mount it with the airflow arrow pointing toward your grow space to bring fresh air in, or pointing away to exhaust hot, stale air. The mixed-flow design keeps airflow strong in either role, even with a carbon filter attached.

What else do I need to install this fan? +

The kit includes the fan, speed controller, duct clamps, hanging straps and mounting hardware. You'll need 4" ducting, such as AC Infinity Flexible Ducting, plus a 4" carbon filter if you need odor control.

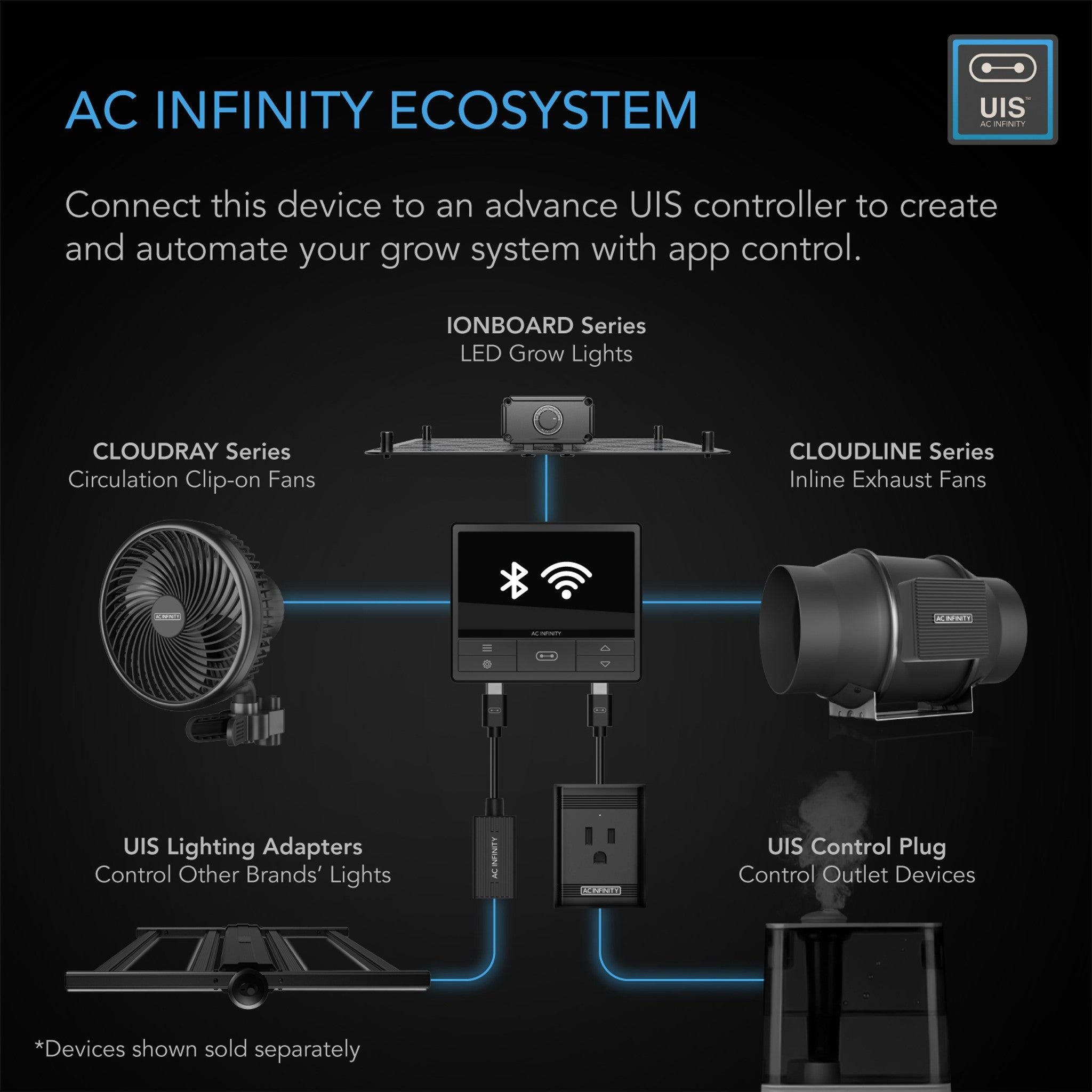

Can I automate the Cloudline S4 with a smart controller? +

Yes. The S4 works with all AC Infinity UIS controllers. Connect it to one such as the Smart Controller 69 Pro to trigger the fan by temperature, humidity or VPD, set schedules, and control it from the AC Infinity app. Note that EC-motor fans like the S4 cannot be daisy-chained with DC-motor models.

How do I get the best results with my ventilation system? +

Keep duct runs short with as few bends as possible, and match the fan's airflow to your tent's volume. The motor box detaches from the mounting frame, so cleaning the impeller periodically keeps performance up. For a full setup walkthrough, see our in-depth guide on AC Infinity kits.
