Vivosun LumaRay 8-Bar Full Spectrum LED Grow Light

Official VIVOSUN Dealer Model: WEB-VSL-LRSF50-8
$199.99 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
  • Improves yields by up to 25 percent with targeted supplemental lighting
  • Emits sun-like full spectrum light with 60 percent red wavelengths
  • Connects to VIVOSUN SGS systems for app-based control and dimming
  • 3-year warranty
  • View More Details

Earn 159 points for shopping and get $1.59 off your next order. Join Harvest Club for free.

Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Free Shipping On Most Items*To the lower 48
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Product Evaluation

  • You are supplementing your overhead lights because your lower canopy leaves are starving for light and limiting your yields
  • You are integrating side lighting into your setup because you want to cover shadowed side foliage that overhead fixtures miss

  • The 60 percent red spectrum drives photosynthesis and supports robust flowering during critical phases
  • The prism optical lens covers maximize light transmittance while keeping glare low for routine maintenance
  • Independent testing shows these side lights improve yields by up to 25 percent by ensuring every leaf gets light

  • Growers who added side lighting say their shadowed lower foliage finally started filling out and producing uniform yields
  • Users tracking their harvest results say filling the light gaps boosted their overall output by up to 25 percent

Vivosun LumaRay 8-Bar Full Spectrum LED Grow Light | Red-Enhanced SGS Compatible

Are your lower canopy leaves struggling to get enough light, limiting your overall yield potential? The LumaRay Side Lights (8-Bar) deliver targeted supplemental lighting exactly where your plants need it most—reaching the shadowed lower and side foliage that overhead fixtures miss. Independent testing shows these side lights can improve yields by up to 25% by ensuring every leaf receives optimal light exposure.

The LumaRay Side Lights emit a sun-like, red-enhanced full-spectrum light specifically formulated with 60% red wavelengths (600–700 nm) to drive photosynthesis and support robust flowering and fruiting. This scientifically optimized spectrum mimics natural sunlight while emphasizing the wavelengths your plants crave during critical growth phases.

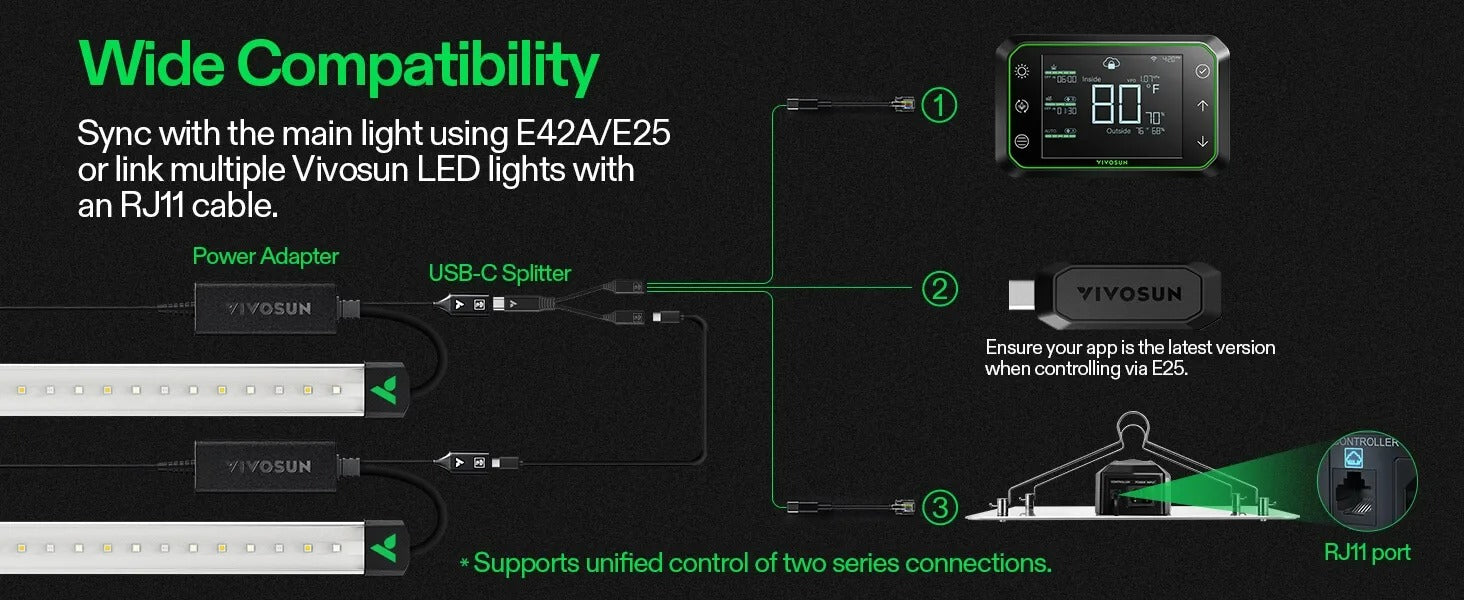

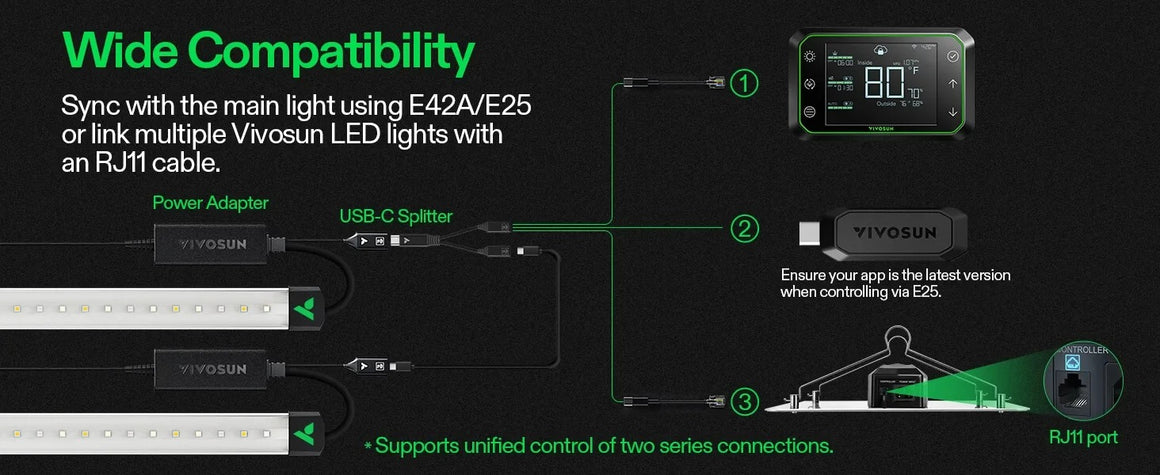

Designed for seamless integration with your existing setup, these 8-bar lights mount effortlessly on tent support poles or attach directly to tent walls using the included magnetic clamps. When connected to VIVOSUN's SGS system via the E42A or E25 controller (sold separately), you gain complete app-based control—remotely manage on/off functions, adjust dimming from 0% to 100%, and synchronize with other SGS devices using pre-programmed grow recipes.

Built with a compact gallium nitride power supply, the LumaRay Side Lights combine durability with exceptional energy efficiency. The prism-designed optical lens covers maximize light transmittance while reducing glare and making routine maintenance simple. Daisy chain connectivity with other VIVOSUN LED grow lights featuring RJ11 ports allows for expanded coverage and streamlined cable management.

For growers aiming for truly uniform canopy illumination, pair your side lighting system with the VIVOSUN LumaRay Under Canopy Lights. These compact bars deliver focused lighting beneath the canopy, working in harmony with the LumaRay Side Lights to eliminate shadow zones, stimulate lower leaf growth, and create full 360° light coverage for maximized yields.

Features

📈
25% Yield Increase

Targets lower canopy and side foliage where overhead lights can't reach for maximum productivity.

🌞
Red-Enhanced Spectrum

Full-spectrum output with 60% red light (600-700nm) drives photosynthesis and supports flowering.

📱

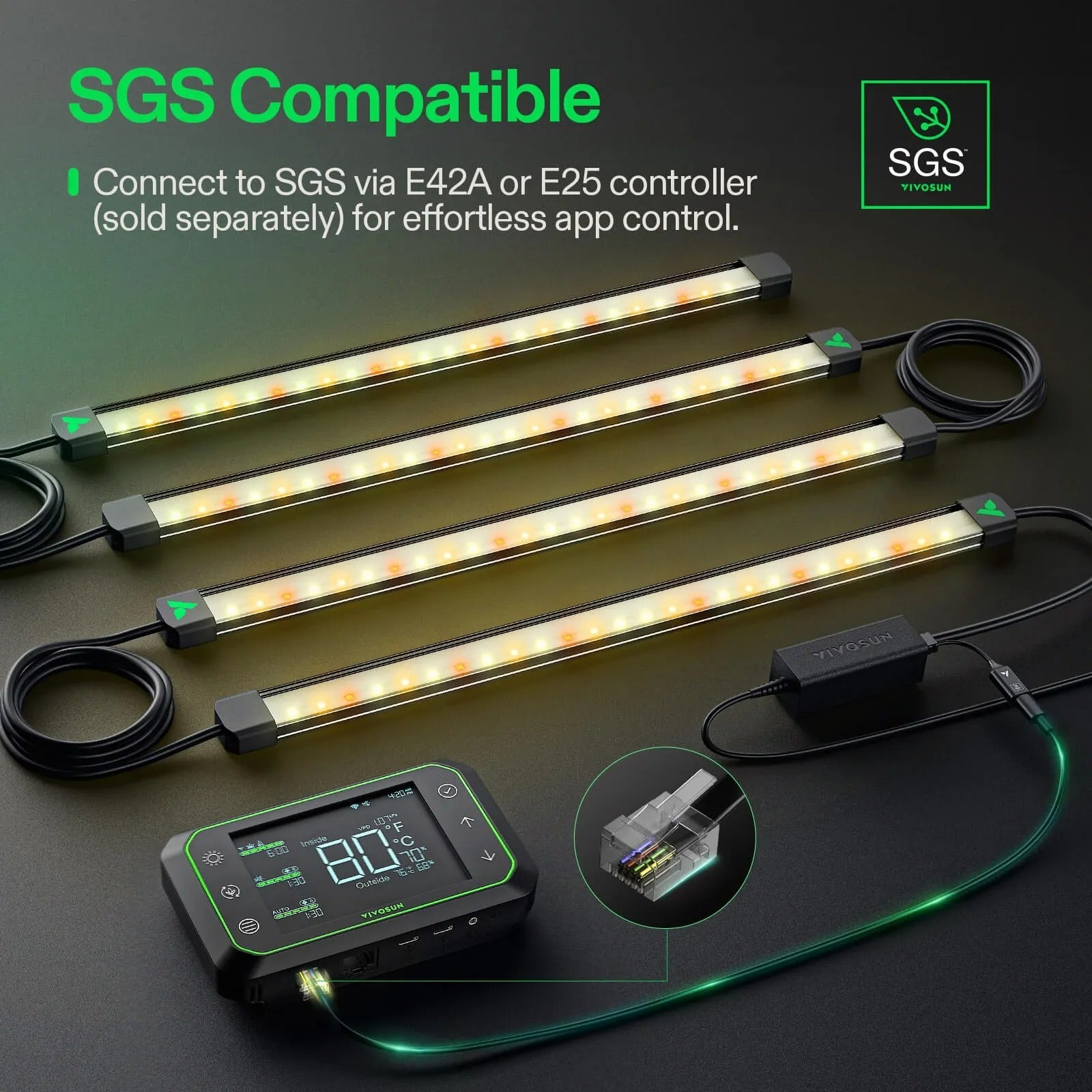

SGS App Control

Connect via E42A or E25 controller for remote dimming, scheduling, and grow recipe integration.

🔧
Quick Installation

Mount on tent poles or walls with magnetic clamps; includes all hardware for setup.

🔗
Daisy Chain Ready

Connect with other VIVOSUN LED lights via RJ11 port for expanded coverage and cable management.

⚡
Efficient Power Supply

Gallium nitride technology delivers compact size, exceptional durability, and superior energy efficiency.

What's Included

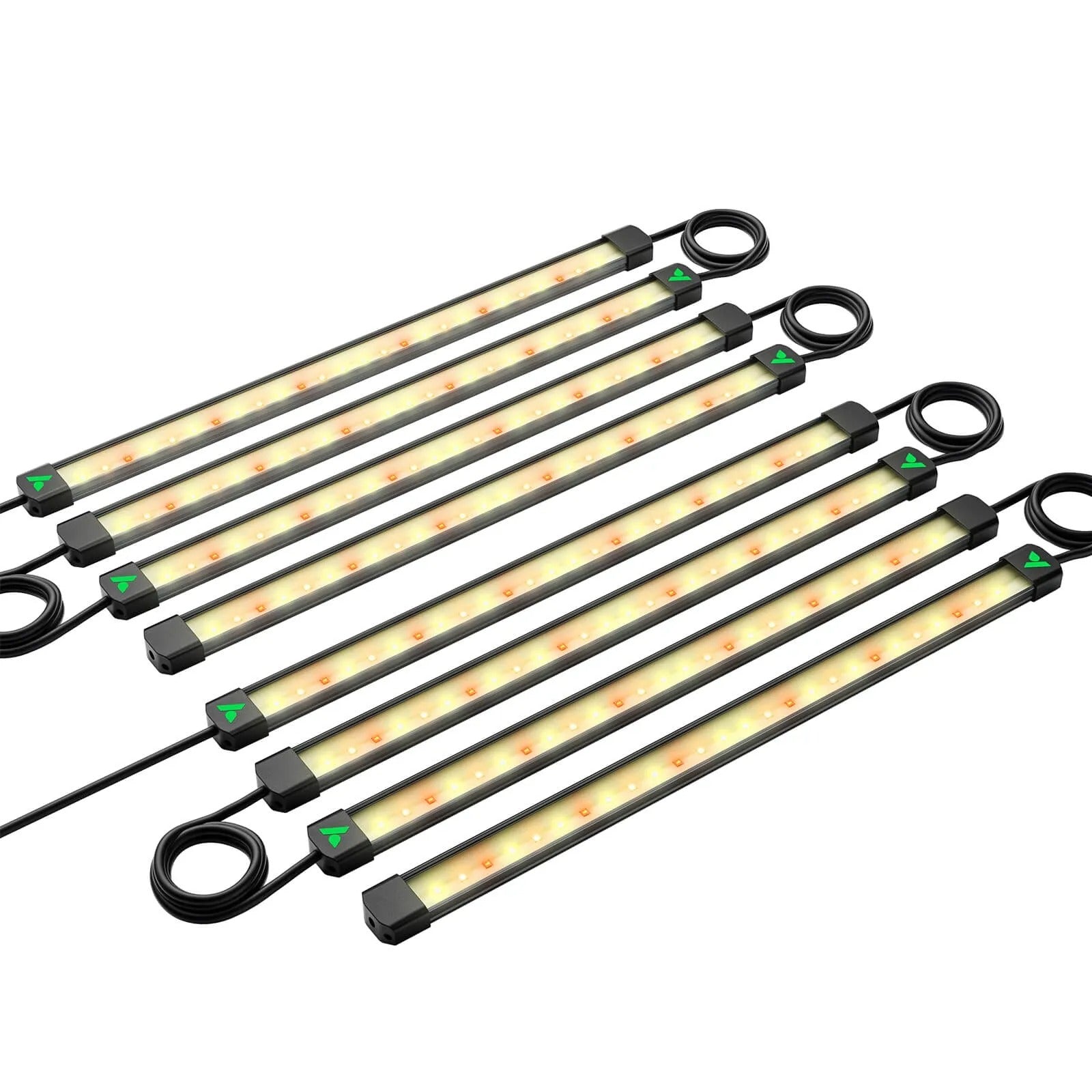

  • 8 LED Light Bars (16 inches / 40cm each)
  • 2 Power Adapters with gallium nitride technology
  • 8 Magnetic Clamps for secure mounting
  • 8 Metal Plates for wall attachment
  • 6 Wire Mounts for cable management
  • 8 Pole Clamps for support pole installation
  • 2 Connecting Cables (Type 1) for daisy chaining
  • 1 Connecting Cable (Type 2) for extended connections
  • 1 USB-C Splitter for dual power adapter setup
  • Installation hardware and fasteners
  • User manual with multilingual instructions

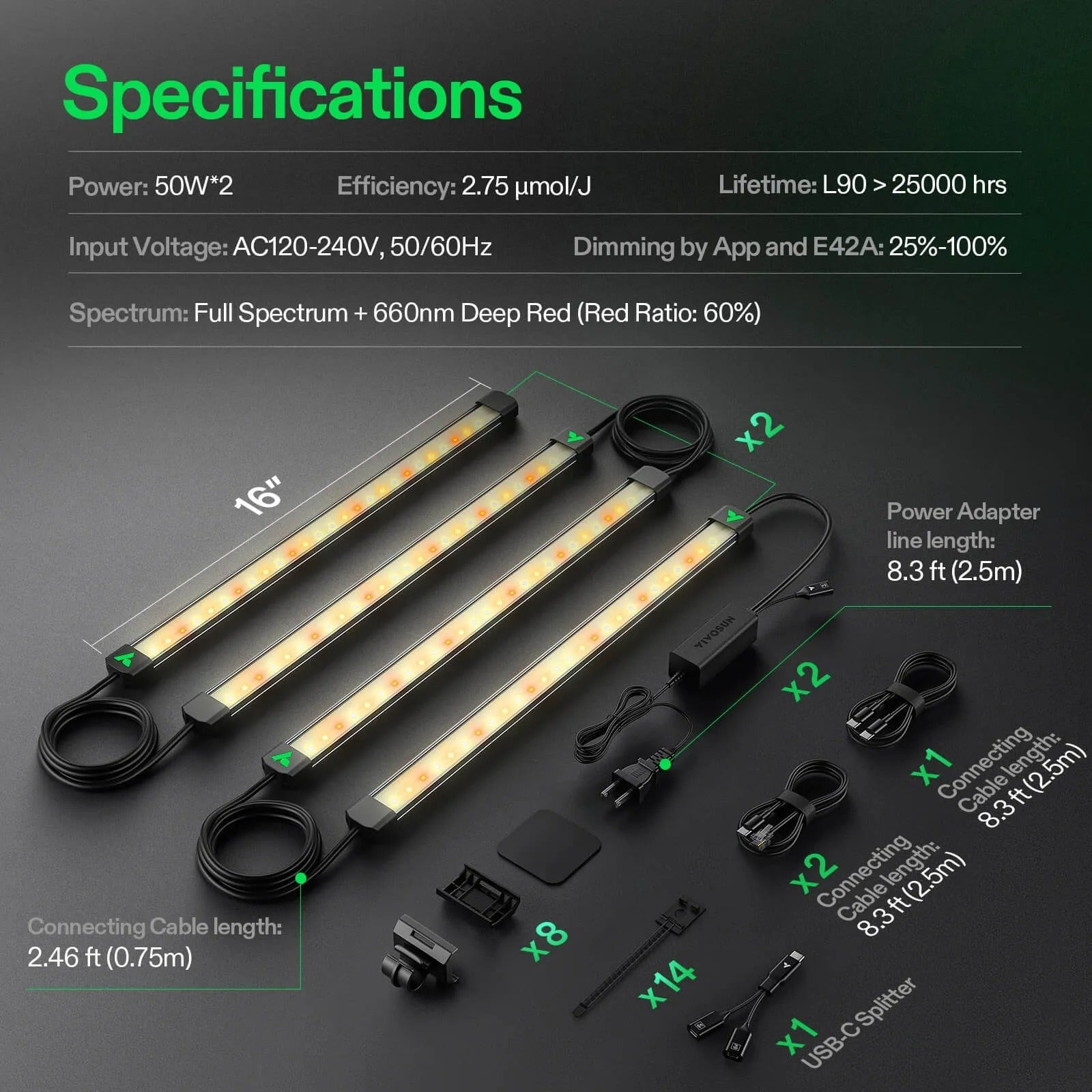

Specifications

Specification Value
Model / SKU VSL-LRSF50-8
Light Configuration 8-Bar Side Supplemental LED
Spectrum Type Full Spectrum + 660nm Deep Red (60% Red Ratio)
Red Light Wavelength 600-700nm (60% concentration)
Power Input (Per Bar) 50W
Input Voltage 120-240V AC
Frequency 50-60Hz
Light Bar Length 16 inches / 40cm
Light Coverage Angle 120° wide-angle distribution
Reflective Film Efficiency 99% reflective lamp board surface
Dimming Range 0-100% (via E42A or GrowHub app)
Control Compatibility SGS System (E42A or E25 controller required - sold separately)
Connection Type Daisy Chain Compatible (RJ11-style connectors)
Mounting Options Tent poles (with pole clamps) or wall mounting (with magnetic clamps + metal plates)
Power Supply Technology Gallium Nitride (GaN) - High efficiency, low heat output
Lens Design Prism optical lens covers (glare-free, easy to clean)
Operating Temperature Range -20°C to 40°C (-4°F to 104°F)
Warranty 3 Years

Manual

Access the complete LumaRay Side Lighting User Manual featuring detailed installation guides, wiring diagrams, recommended placement distances, SGS controller integration instructions, and troubleshooting support:

📄 View Official Installation Guide

Manual Contents Include:
✓ Step-by-step mounting instructions for tent poles and wall installation
✓ Wired and wireless connection methods (E42A and E25 controllers)
✓ Daisy chain configuration diagrams for multiple light bars
✓ Recommended installation distances and dimming levels by plant proximity
✓ Optimal placement layouts for 2x2, 4x2, and 4x4 grow tents
✓ SGS app pairing and control setup
✓ Safety warnings and electrical specifications in multiple languages

Warranty

This product is covered by a 3-year after-sale service warranty.

FAQ

How do the LumaRay Side Lights increase yield? +

They provide supplemental light to the lower and side foliage that is typically shaded by the upper canopy. This improves light penetration, promotes even growth throughout the entire plant, and maximizes your yield potential by up to 25%.

What kind of light spectrum do these produce? +

The LumaRay Side Lights emit a sun-like, full-spectrum light that is enhanced with 60% red light (600-700 nm). This specific spectrum is optimized to stimulate photosynthesis and effectively support the critical flowering and fruiting stages of plant growth.

Can I control these lights with my phone? +

Yes, absolutely. When you connect the LumaRay lights to a VIVOSUN E42A or E25 controller (which are sold separately), you can seamlessly integrate them into the VIVOSUN Smart Grow System (SGS). This allows you to control on/off functions, dimming from 0-100%, and apply grow recipes from the app.

How are these lights installed in a grow tent? +

Installation is designed to be simple and flexible. You can mount them vertically on your tent's support poles or attach them to the tent walls using the included magnetic clamps. All necessary accessories for a customized setup are included.

Can I connect these to my existing VIVOSUN LED grow light? +

Yes, the LumaRay Side Lights can be daisy-chained with other VIVOSUN LED grow lights that feature an RJ11 port, allowing for expanded and synchronized lighting control.
