TrolMaster SCC-1 25-Inch Controller Cabinet

$1,048.95 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
  • 47 internal RJ12 ports provide a centralized hub for massive control systems
  • IP56 waterproof rating protects sensitive gear from high humidity and dust
  • Requires 120V and 15A power to support the internal power cables
  • View More Details

Earn 996 points for shopping and get $9.96 off your next order. Join Harvest Club for free.

Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 Rating 1939+ verified reviews
Secure Checkout SSL encrypted payments

Send Us a Message

VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

Who This Is For

  • You are consolidating your control hub because a tangled nest of RJ12 cables makes facility maintenance a headache.
  • You are using a sealed cabinet because high humidity and wash-downs in the room corrode your controller ports.
  • You are installing a modular enclosure because your facility is expanding and you need room to scale device stations.

What We Found

  • The internal splitter boards are the real prize here as they allow for much cleaner cable runs than standard hubs.
  • We noticed the IP56 seal is thick and reliable, which is a relief when you are doing full room wash-downs.

What Users Say

  • Operators who moved to this cabinet say they stopped accidentally unplugging sensors while reaching for other gear.
  • Facilities that centralized their hubs report that electrical inspections go much faster with organized wiring.

TrolMaster SCC-1 25-Inch Controller Cabinet

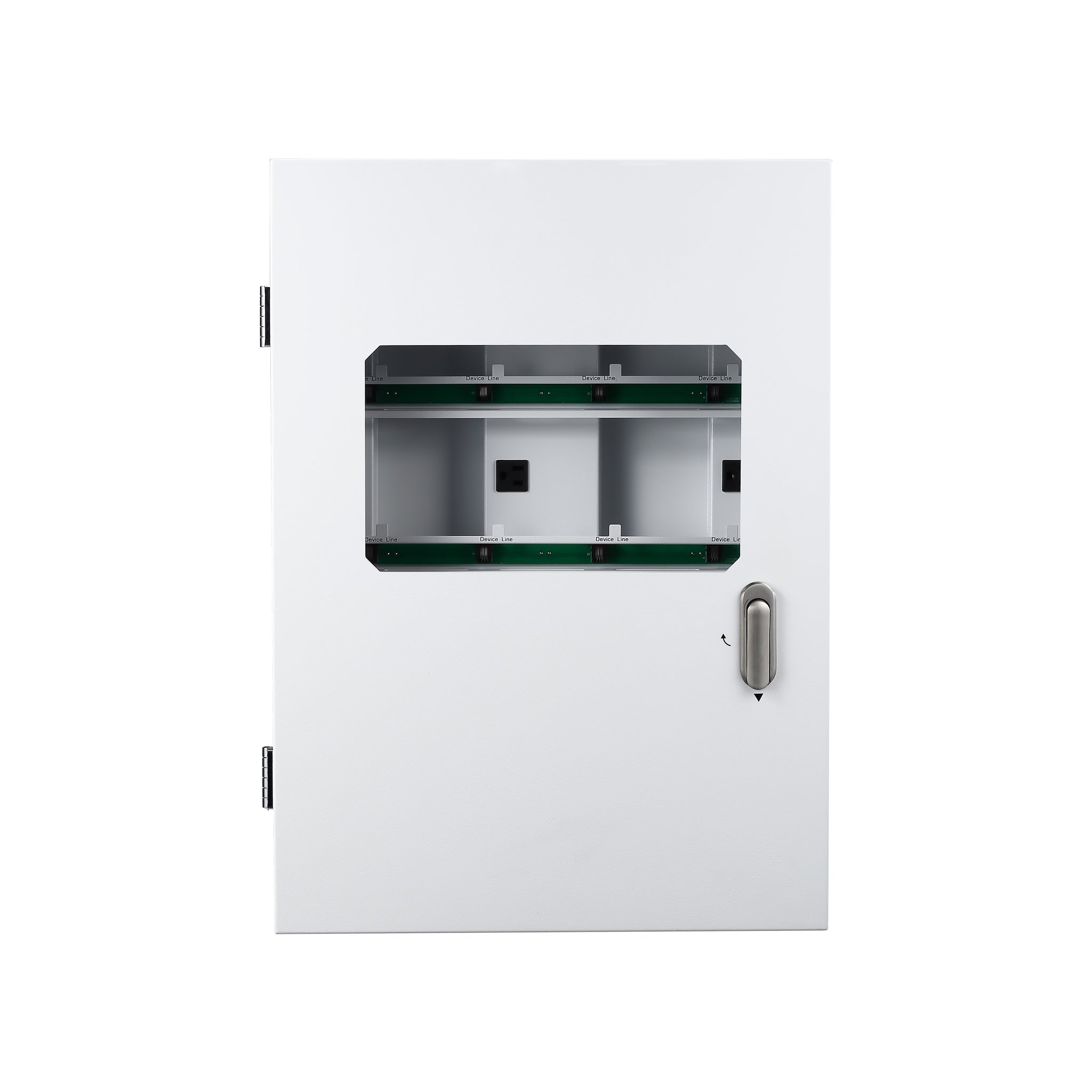

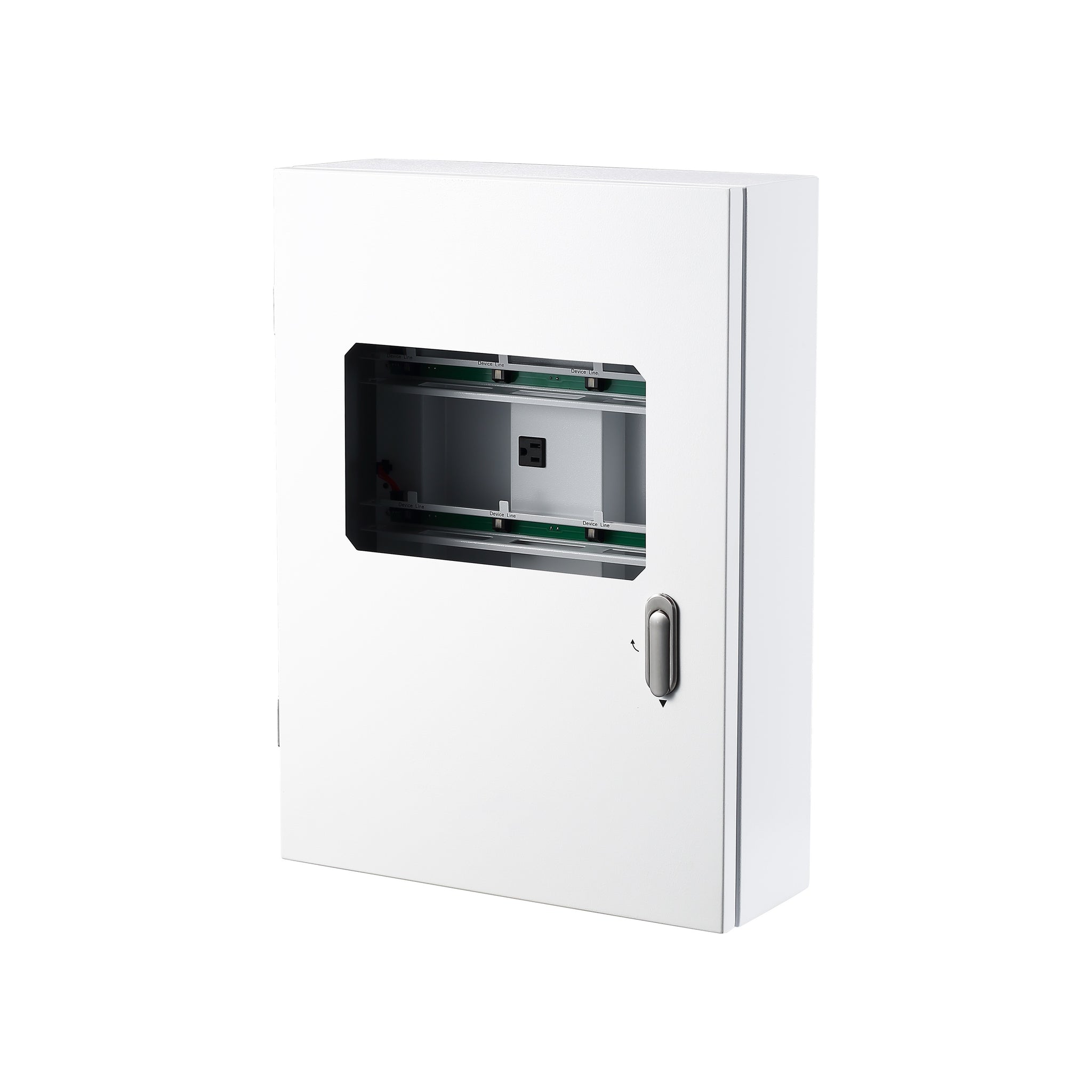

Professional cultivation requires professional organization. The TrolMaster SCC-1 is a 25-inch modular electrical enclosure and wire management system designed to house your entire TrolMaster ecosystem. Whether you are running the Hydro-X Pro or the TrolMaster Aqua-X NFS-1, the SCC-1 provides a centralized, industrial-rated hub to keep your controllers, device stations, and power supplies clean, dry, and perfectly organized. For larger facilities requiring more space, the TrolMaster SCC-2 offers a 36-inch alternative.

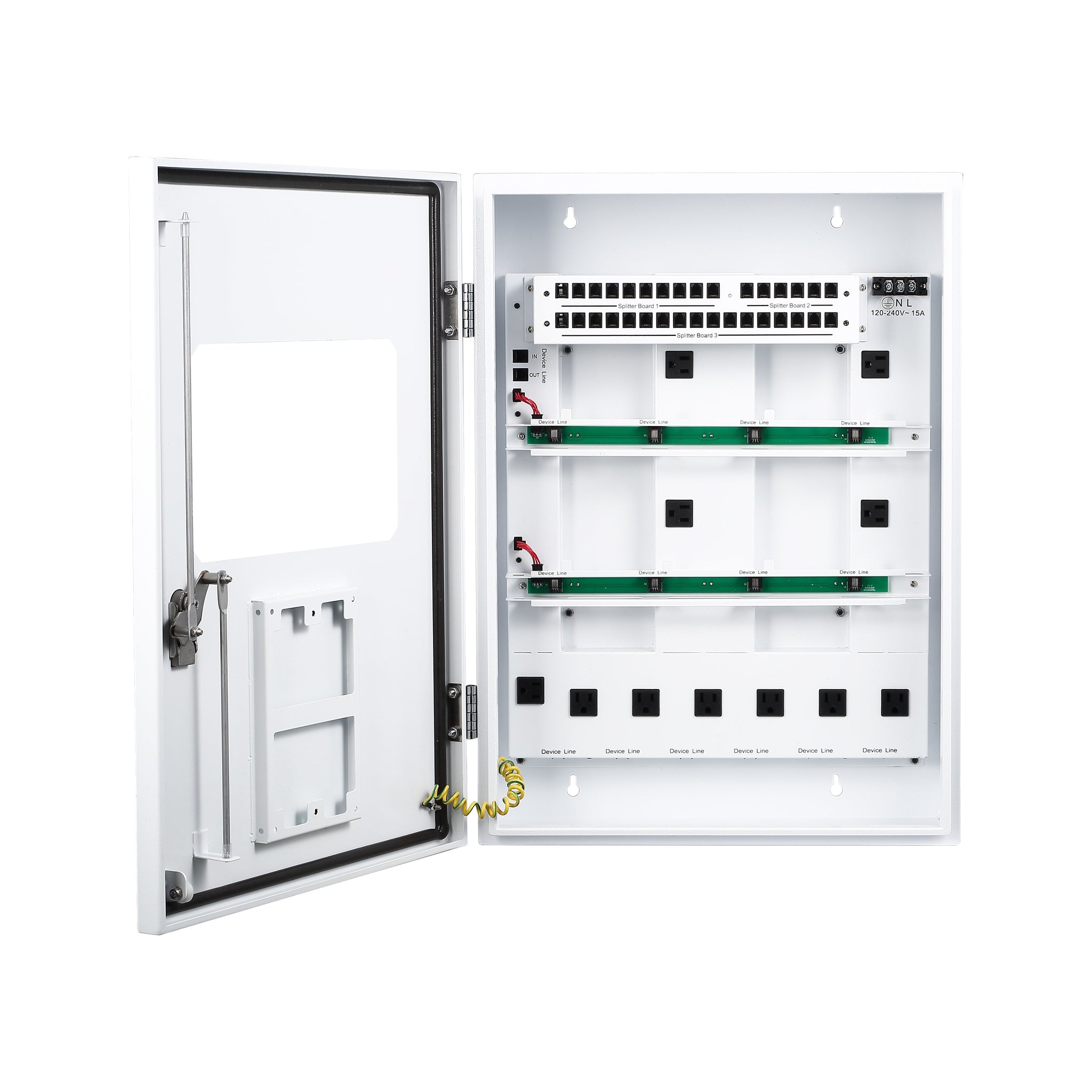

The SCC-1 features an IP56-rated waterproof design (equivalent to NEMA 4X), ensuring your sensitive electronics are protected from the high-humidity and wash-down environments typical of modern grow rooms. With its detachable, modular layout and integrated splitter boards, you can custom-design your internal configuration for modules such as the TrolMaster DSP-1 using the included bi-directional RJ12 cables. This cabinet eliminates the "nest" of wires often found in large facilities, providing a superior safety system that prioritizes both equipment longevity and ease of maintenance.

Compatibility: Universally compatible with all TrolMaster Hydro-X and Aqua-X systems, including Pro and Plus models.

Features

🛡️
Industrial IP56 Rating

Waterproof and dustproof enclosure equivalent to NEMA 4X, protecting electronics from harsh facility conditions.

🗄️
Modular Housing

All-in-one housing for controllers and device modules, keeping your workspace clean and organized.

🔌
Integrated Splitters

Equipped with multiple internal splitter boards (47 total ports) for comprehensive RJ12 wire management.

🏗️
Detachable Design

Engineered for easy installation and modification, allowing you to scale your control system with ease.

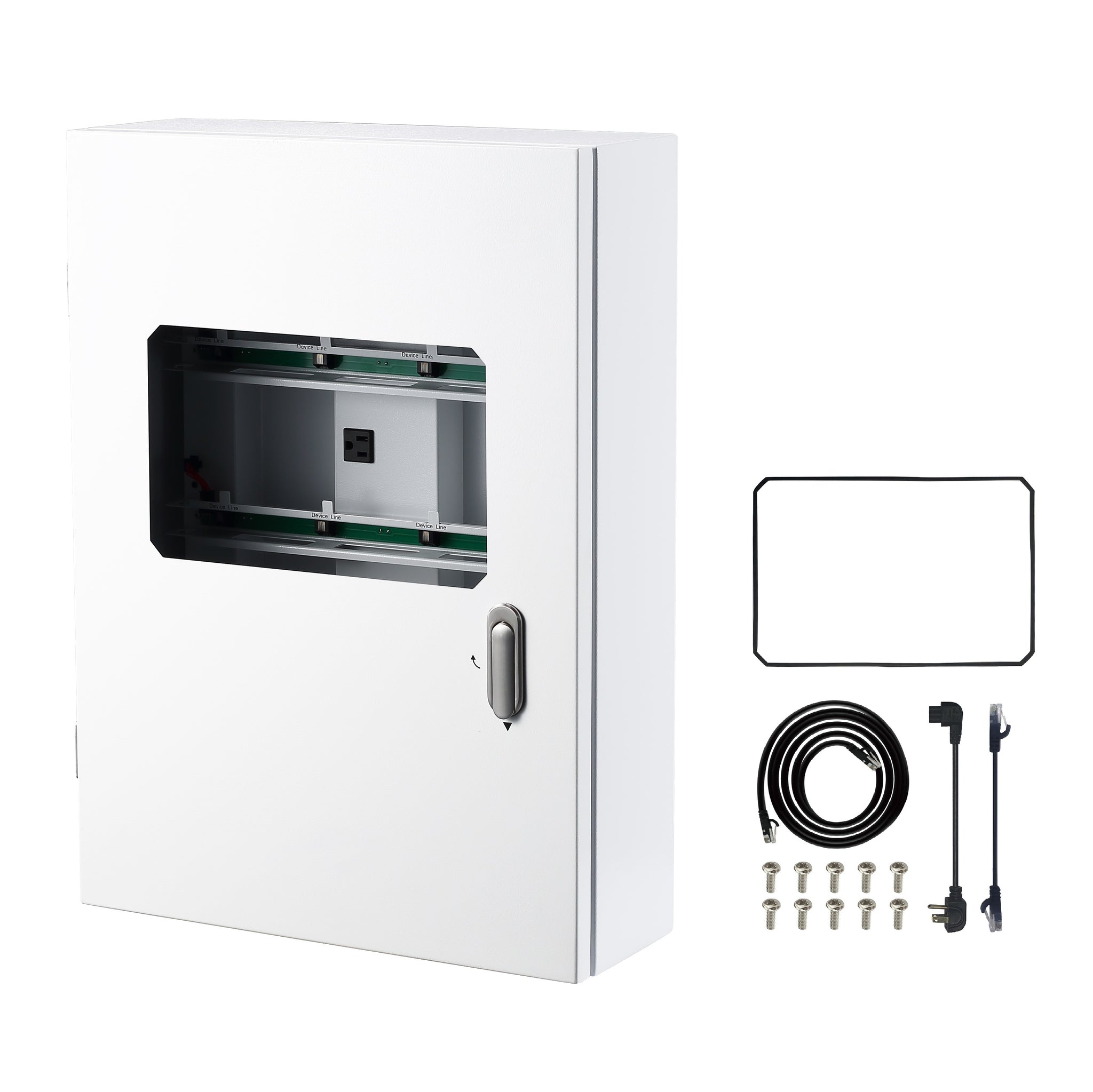

What's Included

  • 1x SCC-1 Controller Cabinet
  • 4x Long RJ12 Cables
  • 16x Short RJ12 Cables
  • 4x Power Cables (for OA6-24 / OA6-110)
  • 1x OA6-24/OA6-110 Screw Set (10-piece)
  • 1x Installation Manual

Specifications

Specification Value
Dimensions 25" (L) x 18" (W) x 6.26" (H)
Enclosure Rating IP56 (NEMA 4X equivalent)
Input Voltage / Amps 120V / 15A Max
Splitter Port Capacity 47 Ports (Total across 5 Boards)
Power Outlets 4 + 1 + 6 Configuration
Operating Temp 32° - 104°F

Support & Manuals

FAQs

Is the SCC-1 cabinet waterproof?+

Yes, the SCC-1 features an IP56 enclosure rating, which is equivalent to NEMA 4X. It is designed to protect against dust and high-pressure water jets, making it ideal for wet grow room environments.

Which controllers can I mount inside?+

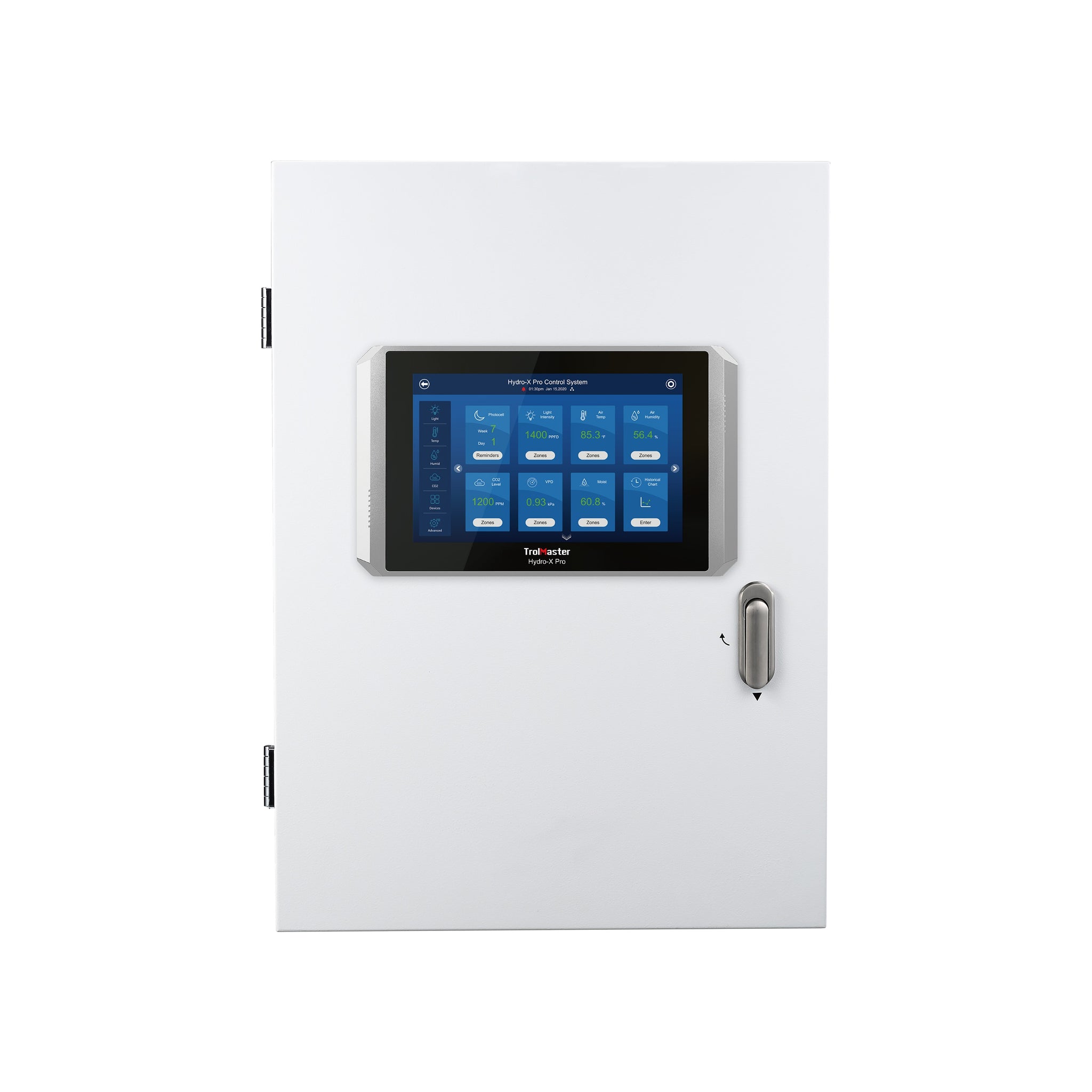

The cabinet is designed to house any TrolMaster controller, including the TrolMaster Hydro-X HCS-2, Hydro-X Pro, Aqua-X NFS-2, and Aqua-X Pro, along with their associated device modules.

How many RJ12 ports are available inside?+

The SCC-1 contains five separate splitter boards providing a total of 47 internal RJ12 ports across the top, middle, and bottom sections for extensive device networking.

Does it include cables?+

Yes, the cabinet comes as a complete kit including 4 long RJ12 cables, 16 short RJ12 cables, and specialized power cables for OA6 modules.

What is the maximum amperage for the cabinet?+

The SCC-1 is rated for a maximum input of 120V and 15A, providing ample power for your controllers and modules.
