Mobius Tumbler & Brush Washer Automatic Cleaning System

Struggling with time-consuming manual cleaning that creates bottlenecks in your trimming operation? The Mobius Tumbler and Brush Washer significantly cuts downtime by automating the cleaning of your M108S trimmer's AirThread Tension Tumbler and brush bar.

You invested in the best trimmer—now get the best cleaner for it. Instead of spending 30 minutes soaking and scrubbing between batches, this automated system cleans your components thoroughly in just five minutes, getting you back to production faster and keeping your entire automated line, including the infeed conveyor system, running at peak capacity.

What's difficult and time-intensive when done manually becomes effortless with the Tumbler and Brush Washer, powered by an IP67-rated 1/8 HP motor specifically designed for washdown applications. The motor handles the tough scrubbing automatically while protecting against water ingress.

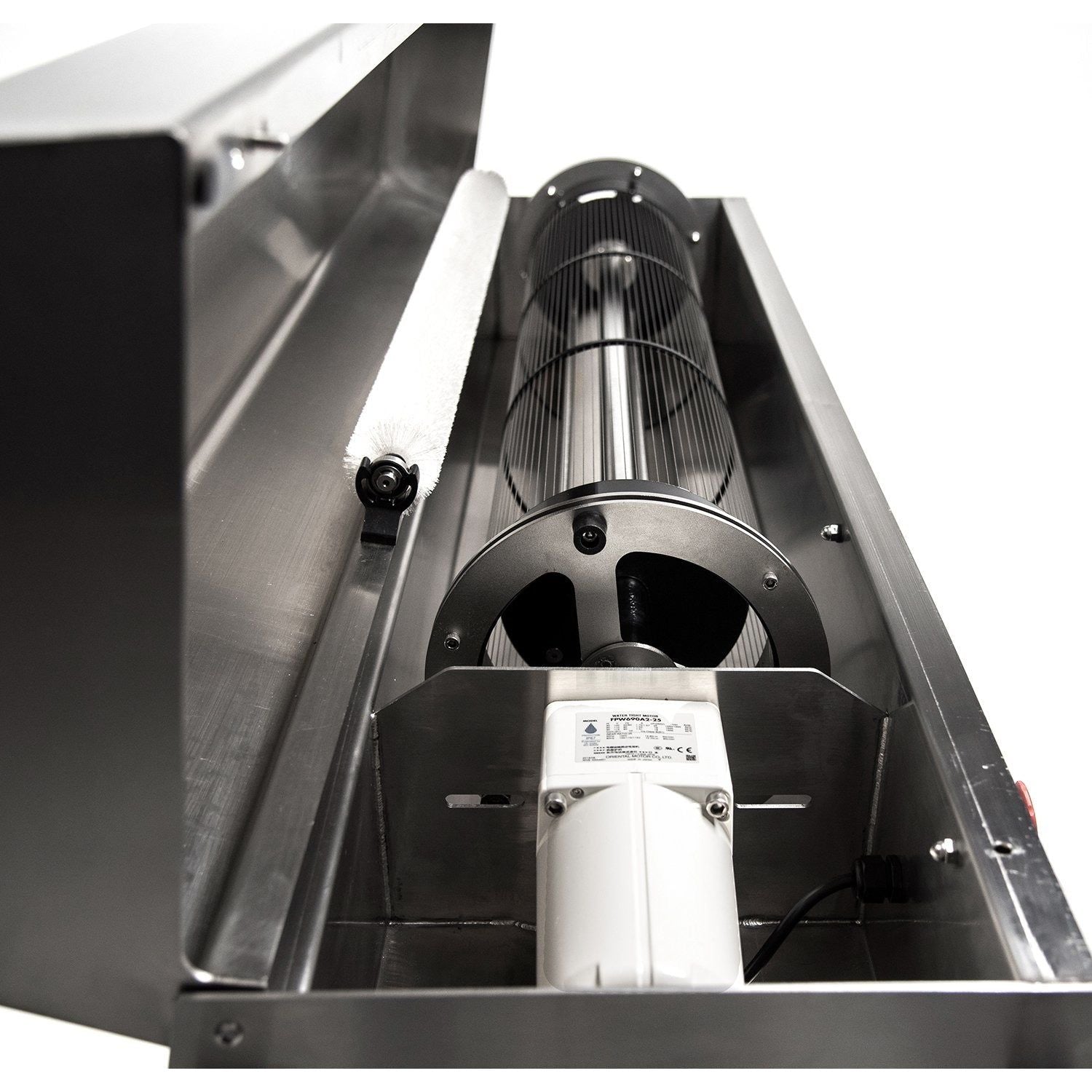

Operation is straightforward: attach your AirThread Tumbler and brush bar to the mounting points, add your preferred cleaning solution mixed with warm water into the 9-gallon basin, and let the machine do the rest. The automated rotation ensures thorough cleaning of every surface, including hard-to-reach areas.

When cleaning is complete, the 1.5-inch brass drain spout with hose connection makes it easy to dispose of used cleaning solution. The rugged stainless steel construction provides durability and a premium feel that reflects Mobius quality standards.

Safety features include automatic shutoff when the lid is opened, protecting operators during use. The compact design fits through standard 32-inch doorways despite its 9-gallon capacity.

All sales final.

What's Included

Mobius Tumbler & Brush Washer
User Manual

Features

Automated Cleaning Process

What is a challenge in manual cleaning is now a piece of cake as the Tumbler and Brush Cleaner helps you clean the challenging spots with its automated cleaning process.

Fast Cleaning

Stop spending half an hour soaking and scrubbing, as the Tumbler and Brush Washer cleans in just five (5) minutes.

Easy-to-use

Just attach your AirThread Tumbler and brush into the mounting points and pour your cleaning mixture. Let the machine do the rest. Drain the used mixture through the 1.5-inch brass spout.

IP67-rated

The Mobius Tumbler and Brush Washer feature a 1/8 Hp IP67-rated motor that is safe for washing applications.

⚡

5-Minute Cleaning

Complete cleaning cycle in just 5 minutes versus 30 minutes manual scrubbing.

🔄

Automated Rotation

72 RPM motor rotation ensures thorough cleaning of all surfaces automatically.

💧

9-Gallon Capacity

Large basin holds ample cleaning solution for complete component immersion.

🛡️

IP67-Rated Motor

Washdown-rated 1/8 HP motor designed specifically for wet environments.

🔒

Safety Shutoff

Automatic shutoff when lid is opened for operator protection during use.

🚰

Easy Drainage

1.5-inch brass drain spout with hose connection for quick solution disposal.

Specifications

Specification	Value
Tumbler Motor	IP67 Washdown Rated
Construction	Stainless Steel
Tumbler Motor HP	1/8 HP
Power Requirements	Single Phase 115V, 1.5A
Speed	72 RPM
Motor Safety Standards	UL, CSA, CCC, EN, CE
Fits Through 32" Door	Yes
Width	32"
Length	64"
Height	44"
Weight	270 lbs
Warranty	1 Year
Safety Features	Automatic Shutoff When Lid is Open, Built Using Safety Compliant Components
Basin Capacity	9 US Gallons / 34 Litres

Support & Manuals

📄 Cut Sheet

Warranty

No warranty on consumable parts, including blades/blade bars, tumbler, fan housing filter bag, brush-bar, filters, trim tote gasket, die plates, rolls, and screens. Warranty coverage for one (1) year or 1,000 operating hours, whichever occurs first, on motors, electrical components, and remainder of machine components. The warranty period begins on the date the equipment is received by the customer. Any damage that occurs during shipping will be the responsibility of Eteros Technologies. The above terms are valid if Mobius equipment is used and maintained as directed. If the equipment is modified in any way, all terms of this warranty are void. This warranty does not apply to cosmetic damage, such as scratches or general wear and tear. All sales final.

FAQs

How does the automated cleaning process work? +

Simply attach your AirThread Tension Tumbler and brush bar to the dedicated mounting points inside the washer. Fill the 9-gallon basin with your preferred cleaning solution and warm water. The IP67-rated motor rotates the components at 72 RPM, ensuring thorough cleaning of all surfaces including hard-to-reach areas. The automated process completes in just 5 minutes.

Which Mobius trimmer components can this washer clean? +

The washer is specifically designed for cleaning the M108S trimmer's AirThread Tension Tumbler and brush bar. These are the most time-consuming components to clean manually due to their intricate design. The mounting points are custom-fitted for these components to ensure proper positioning during the automated cleaning cycle.

What cleaning solutions can I use? +

You can use any cleaning solution recommended for cannabis processing equipment that's compatible with stainless steel. Common options include food-grade degreasers, isopropyl alcohol solutions, or specialized cannabis equipment cleaners. Always mix with warm water according to the solution manufacturer's recommendations. The stainless steel construction and IP67-rated motor are designed to handle various cleaning agents.

How much time does this save compared to manual cleaning? +

Manual cleaning of the AirThread Tumbler and brush bar typically takes 30 minutes of soaking and scrubbing. The automated washer completes the same job in just 5 minutes—a time savings of 83%. This means less downtime between batches and the ability to run more trimming cycles per day, significantly improving your operational efficiency, from trimming to final sorting with complementary machines like the M9 bud sorter.

What safety features does the washer include? +

The washer features automatic shutoff when the lid is opened, preventing the motor from running during loading or unloading. All components are built using safety-compliant materials meeting UL, CSA, CCC, EN, and CE standards. The IP67-rated motor is specifically designed for washdown applications and is protected against water ingress.

How do I drain the used cleaning solution? +

The washer includes a 1.5-inch brass drain spout located at the bottom of the basin. You can attach a standard hose to the spout for easy disposal of used cleaning solution into a sink, drain, or collection container. The brass construction resists corrosion from cleaning chemicals, ensuring long-lasting performance.

What are the power requirements? +

The Tumbler and Brush Washer operates on standard single-phase 115V power at 1.5 amps, making it compatible with most facility electrical systems. The 1/8 HP motor provides sufficient power for effective cleaning while maintaining relatively low energy consumption.

How durable is the washer construction? +

The washer features rugged stainless steel construction throughout, providing excellent durability and resistance to corrosion from cleaning chemicals. At 270 pounds, the unit is solidly built for commercial use. Despite its size, it still fits through standard 32-inch doorways for facility placement flexibility. The construction quality reflects Mobius's commitment to premium commercial equipment.
