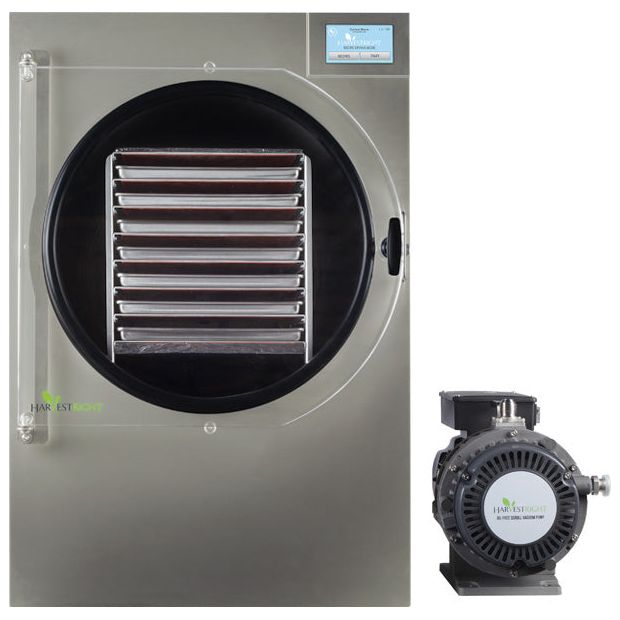

- X-Large Scientific Freeze Dryer
- Premier Pump (Or Oil-Free Upgrade)
- Stainless Steel Trays (set of 7)
- Owner's Manual
- Power Cord (110V)
Harvest Right X-Large Commercial Scientific Freeze Dryer
starting from 0% interest financing from
/mo.
- Processes 7 to 9 gallons per batch across 7 stainless steel trays
- Stores up to 120 custom presets for repeatable, precision-controlled cycles
- Plugs into 110V outlets and fits on a heavy-duty countertop
- 1-year warranty on freeze dryer and pump, 3-year limited warranty on sealed refrigeration system
- View More Details
Order today, ships between June 11 - June 25, 2026
Earn 5,895 points for shopping and get $58.95 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1938+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are moving to a scientific model because your standard unit lacks the granular recipe control you need.
- You are scaling up output because your smaller units cannot keep pace with the volume of your weekly harvest.
- You are prioritizing this scientific line because you need repeatable results across different technicians.
What We Found
- We suggest the oil-free pump upgrade if you want to skip the messy oil changes and weekly maintenance cycles.
- The touchscreen interface is actually responsive enough to use with gloves, which is rare for these units.
What Users Say
- Lab managers say they can hand off operations to new staff without risking batch quality because of the saved recipes.
- Commercial users report that moving to the XL model cut their weekly processing time by nearly thirty percent.

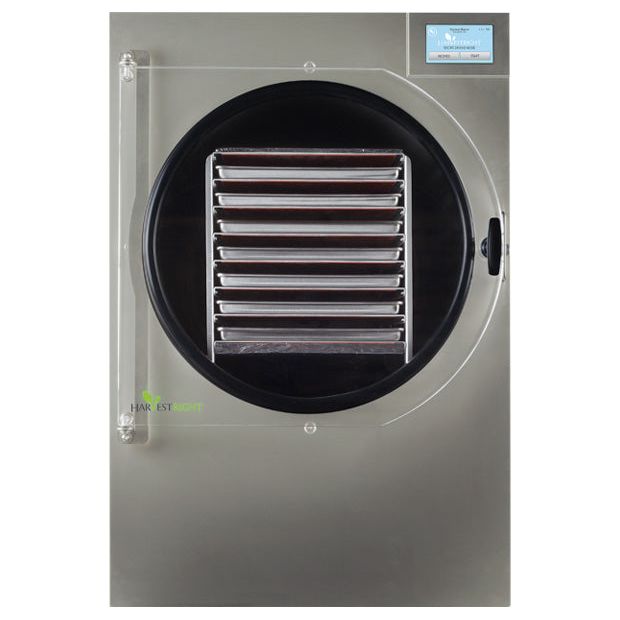

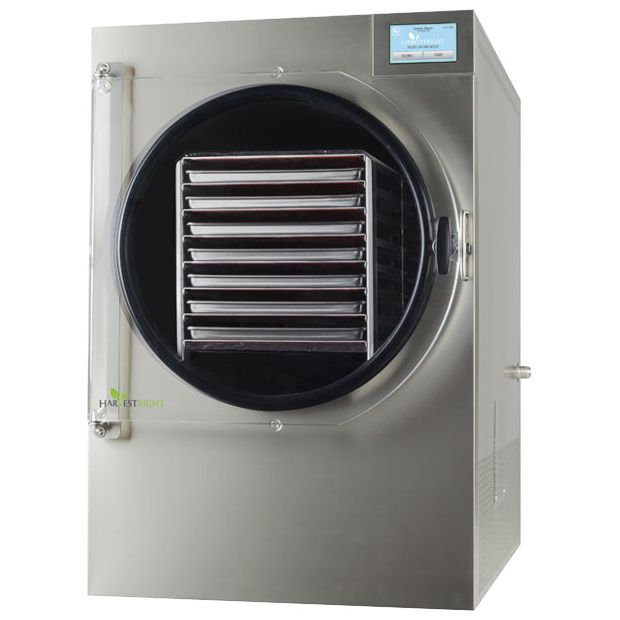

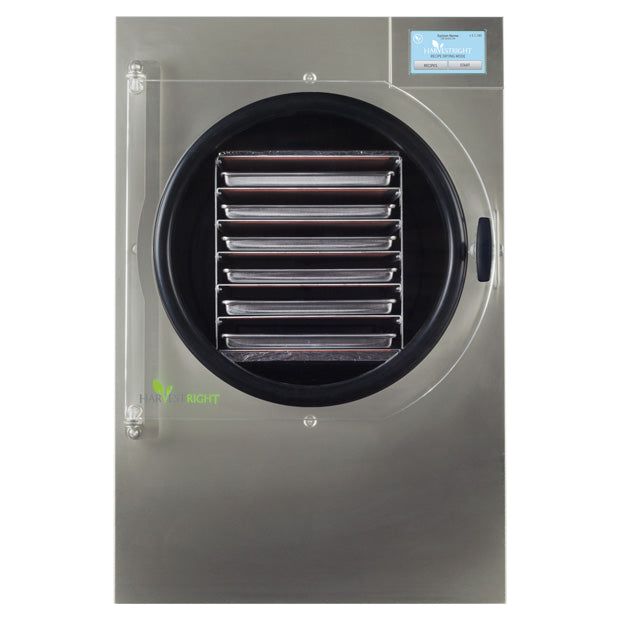

Harvest Right X-Large Commercial Scientific Freeze Dryer
When laboratory-grade precision needs to meet high-volume output, most freeze dryers force you to choose one or the other. The Harvest Right X-Large Commercial Scientific Freeze Dryer doesn't make you compromise. With seven stainless steel trays, a 7–9 gallon processing capacity, and a full-color touchscreen interface that supports up to 120 saved presets, it delivers the control and throughput that serious researchers and commercial operations demand — in a unit that still fits on a countertop.

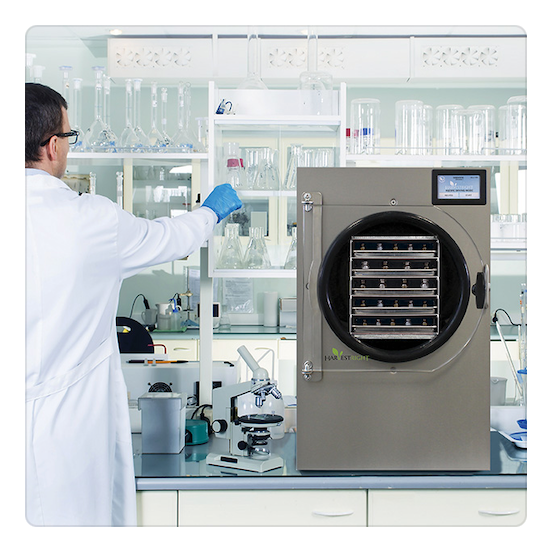

Whether you're running a university lab, a pharmaceutical development facility, or a high-volume commercial operation, the X-Large gives you maximum capacity without sacrificing the precision of the full Commercial Scientific line. Need a smaller footprint? The Harvest Right Large Commercial Scientific Freeze Dryer offers 6-tray capacity, and the Medium is available for lower-volume needs.
What's Included
Features
📦
Maximum Capacity
Process 7–9 gallons per batch across 7 stainless steel trays — the highest output in the Scientific line.
🧠
120 Preset Memory
Save and recall up to 120 custom recipes for repeatable, precision-controlled results.
📱

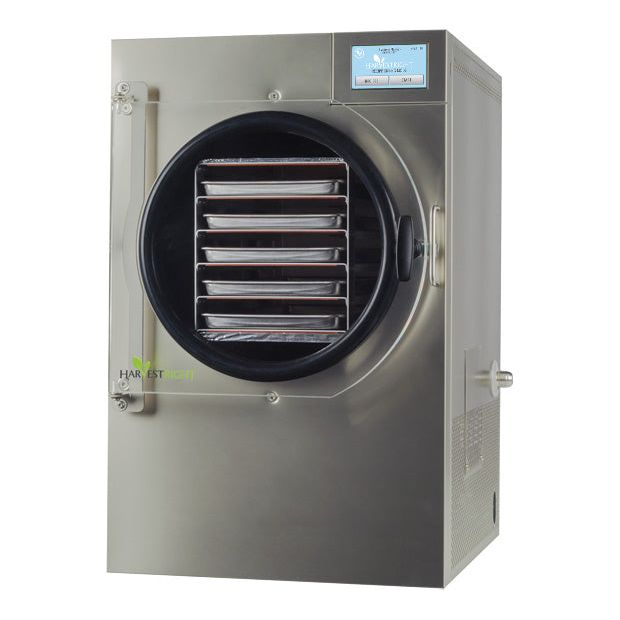

Touchscreen Control
A 4.3" full-color display shows real-time temperature and pressure readings throughout every cycle.
🔧
Premier Pump Included
The premier vacuum pump ships standard
Specifications
| Specification | Value |
|---|---|
| Dimensions | 35.6" Tall × 24.3" Wide × 37.4" Deep |
| Capacity | 7–9 gallons per batch |
| Trays | Seven (7) Stainless Steel |
| Min. Temp. Rating | Collector cools to -40°F |
| Collector Material | Stainless Steel |
| Drying Chamber | Stainless Steel (included) |
| Display | 4.3" Full-Color Touchscreen |
| Operation | Manual / Automated |
| Vacuum Pump | Premier Pump |
| Exterior | Stainless Steel |
| Power Requirements | 115V (NEMA 5-20) — dedicated 20A circuit required |
Support & Manuals
Compare Harvest Right Commercial Scientific Freeze Dryer Models
 Medium |
 Large |
X-Large |
|
| Trays | 5 | 6 | 7 |
| Capacity | 1–2 gal | 3.5–6.5 gal | 7–9 gal |
| Dimensions (H × W × D) | 29" × 19" × 25" | 31.3" × 21.3" × 27.5" | 35.6" × 24.3" × 37.4" |
| Min. Temp. Rating | -46°F | -46°F | -40°F |
| Electrical Requirements | Standard 115V | Standard 115V | NEMA 5-20, dedicated 20A circuit required |
| Who It's For | Those needing to freeze dry larger quantities of materials | Dedicated researchers or professionals requiring scientific precision | Laboratories or operations requiring maximum capacity |
Warranty
The Harvest Right X-Large Commercial Scientific Freeze Dryer comes with a full one-year warranty from the original ship date covering the freeze dryer and oil-free vacuum pump against defects in workmanship or materials. Years two and three include a limited warranty on the sealed refrigeration system — compressor, condenser, evaporator, and tubing. After the first year, consumers are responsible for diagnostic charges and transportation costs.
FAQs
What makes the X-Large the top model in the Commercial Scientific line?
The X-Large is the flagship of the Scientific series with 7 trays and 7–9 gallons of processing capacity — the highest available. It includes a more powerful 10 CFM oil-free vacuum pump to handle the larger chamber volume, and retains all the advanced control features of the full Scientific line including 120 preset memory slots and automated cycle management.
Does the X-Large require a special electrical setup?
Yes. The X-Large requires a dedicated 20-amp circuit with a NEMA 5-20 outlet at standard 115V. Most modern laboratory and commercial facilities either have these circuits in place or can have one installed by a licensed electrician. Extension cords are not recommended.
Is the oil-free pump included or an upgrade?

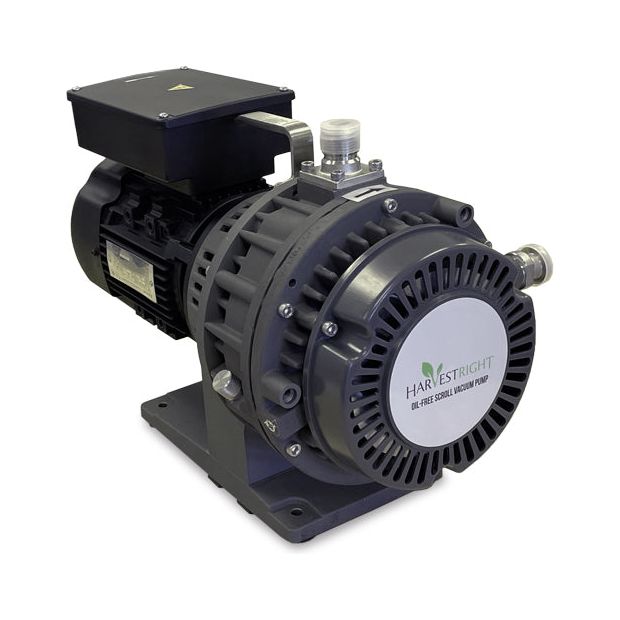

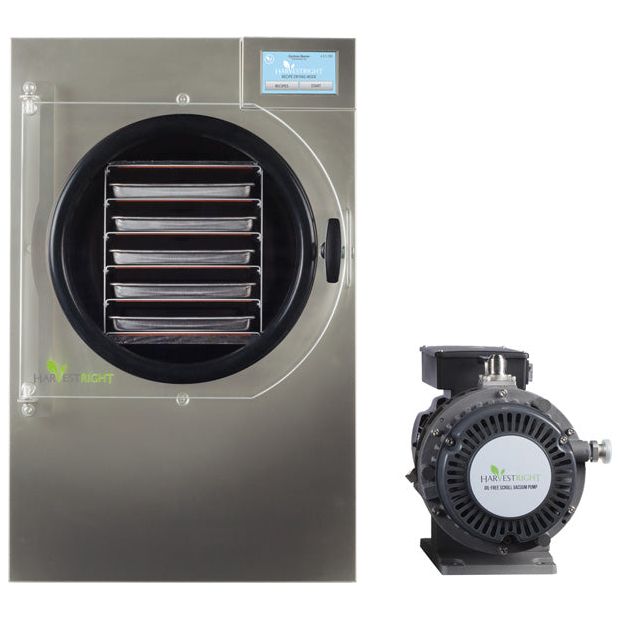

The 10 CFM low-profile oil-free vacuum pump ships standard with every X-Large unit — no upgrade required. It requires no oil changes or filter maintenance, making it well suited for high-frequency laboratory and commercial use where downtime for pump maintenance isn't practical.
How does the preset memory system work?

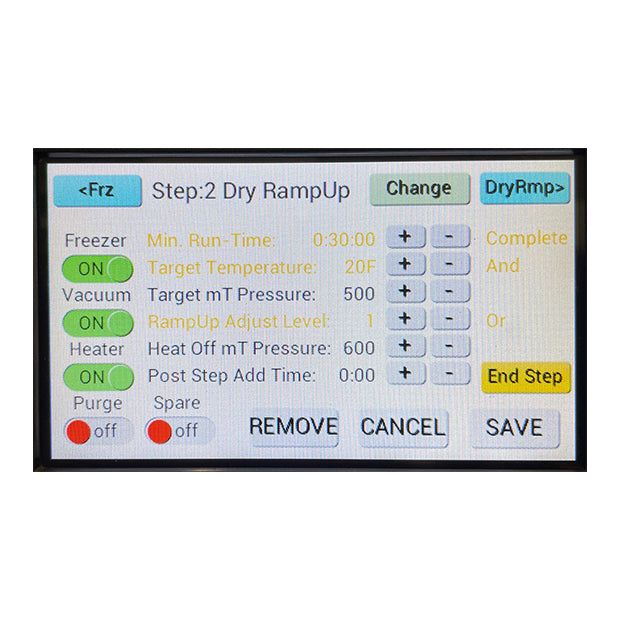

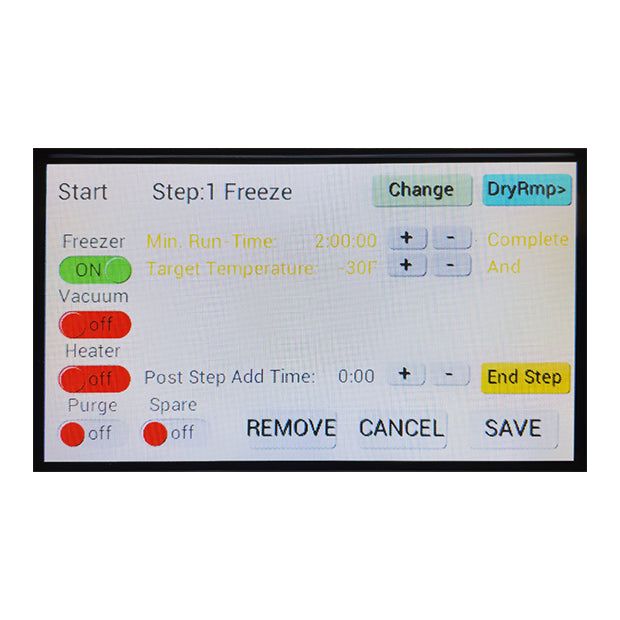

The X-Large lets you create fully customized freeze-dry recipes — setting shelf temperature, freeze temperature, and how each changes during the cycle — and save up to 120 of them for instant recall. This makes it easy to run repeatable, consistent batches across different materials without
