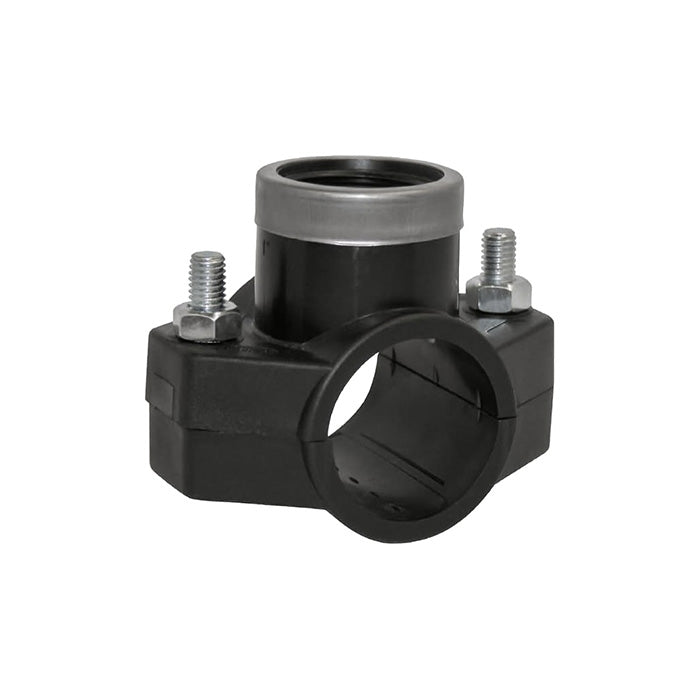

Cutting into an existing PVC line just to add a sensor or dosing point is disruptive and time-consuming. This tapping saddle solves that by mounting directly onto a 40mm PVC pipe, giving you a 1/2" female thread for quick, secure inline integration of an electrode holder or injection valve without modifying or cutting the pipe itself.
The 1/2" female BSP thread is compatible with standard 12mm probe holders and 1/2" injection valves, making it a straightforward way to add inline measurement or dosing for systems using the Aqua Master Tools C800 Pro pH/EC Inline Controller. Built from durable PE (polyethylene), it's designed to hold up to long-term use in irrigation, hydroponics, or water treatment setups.
Installation is simple: position the saddle around the pipe and fasten it with the included bolts, drill through the opening inside the threaded port to access the pipe interior, then screw in the electrode holder or injection valve. If you require a larger fit, we also carry the tapping saddle for 50mm pipes. Always install with appropriate sealing, such as PTFE tape or a gasket, to ensure leak-free operation.
Mounts directly onto a 40mm PVC pipe without modifying or cutting the line.
Built from polyethylene for long-term use in irrigation, hydroponics, or water treatment.
Fastens with included bolts for quick, minimal-effort inline installation.
| Specification | Value |
|---|---|
| Compatibility | 40mm PVC Pipe |
| Thread Type | 1/2" Female BSP |
| Material | PE (Polyethylene) |
| Size | 40mm x 1/2" |
This tapping saddle is designed for use only on 40mm PVC pipe.
The 1/2" female BSP thread is compatible with standard 12mm electrode holders and 1/2" injection valves.
No, the saddle mounts around the existing pipe. You'll drill through the threaded port opening to access the pipe interior, but the pipe itself doesn't need to be cut.
Yes, always install with appropriate sealing, such as PTFE tape or a gasket, to ensure leak-free operation.
It's built for long-term use in irrigation, hydroponics, or water treatment systems where inline measurement or dosing is needed.
