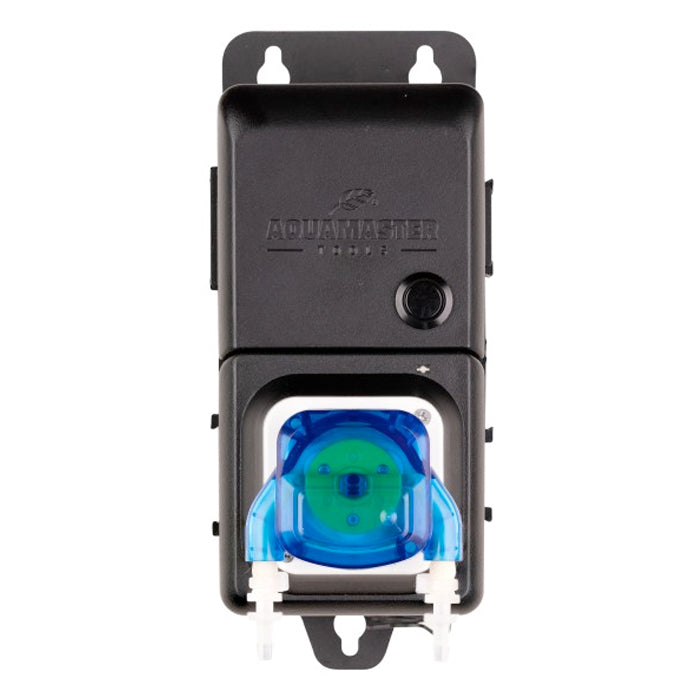

Adding dosing capacity to an Aqua Master Tools C800 Pro setup shouldn't mean overhauling the whole system. The Aqua Master Tools C10 is a compact, single-channel peristaltic pump built for precise pH adjustment or single-nutrient EC dosing, delivering a standard rate of 1.5 ml per second. For growers scaling their operations, this unit can be used in conjunction with the C20 Double Pump or C30 units.
Its role depends entirely on where you connect it: plug into the controller's left UTP port for pH dosing (minus or plus, selectable in the controller menu), the right UTP port for EC dosing as Pump 1, or onto an Aqua Master Tools C30 right UTP output to extend a setup to 4 total nutrient lines as Pump 4. A side slide rail allows mechanical connection to other units, and a controller supports up to 5 EC pumps plus 1 pH pump.
A manual priming button makes filling or emptying the tubing simple during installation or maintenance.
Works as a pH pump, single EC pump, or C30 extension pump depending on connection.
Connects directly to a controller's UTP port, automatically recognized based on placement.
A side slide rail allows mechanical connection to other pump units.
Fill or empty tubing on demand during installation or maintenance.
| Specification | Value |
|---|---|
| Dosing Channels | 1 (Peristaltic) |
| Standard Dosing Rate | 1.5 ml per second |
| Individual Flow Rate | 90 ml per 60 seconds (varies with temperature and liquid viscosity) |
| Operating Temperature | 5°C – 50°C (41°F – 122°F) |
| Noise Level | < 60 dB |
| Power Supply | AC 85 – 260V, 50 – 60Hz, with UK/EU/AU/US plugs |
| Power | 6 W |
| Rated Voltage | 12V |
| Peristaltic Tube Lifetime | Peristaltic Tube Lifetime (1,000 Hours) |
| Motor Lifetime | 800 Hours |
| Dimensions | 63 × 159 × 100 mm |
| Weight | 236 g |
Yes, depending on connection: plug into the left UTP port for pH dosing (minus or plus), or the right UTP port for single-nutrient EC dosing as Pump 1.
Connect the C10 to the right UTP output on the C30 Triple Pump to extend the system to 4 total nutrient lines, where it's recognized as Pump 4.
A single controller supports a maximum of 5 EC pumps and 1 pH pump.
The priming button lets you manually fill or empty the tubing, which is useful during installation or routine maintenance.
The standard dosing rate is 1.5 ml per second, with an individual flow rate of about 90 ml per 60 seconds depending on temperature and liquid viscosity.
Yes, the side slide rail allows mechanical connection between pump units for a cleaner, more organized setup.
