Alien Hydroponics V-System DWC - 16 Pot

Tired of managing complex hydroponic setups that deliver inconsistent results? The Alien Hydroponics V-System DWC - 16 Pot is engineered to solve these challenges, providing a professional-grade deep water culture system that maximizes growth with unparalleled efficiency. This advanced DWC hydroponics setup eliminates the need for noisy air pumps and unreliable airstones by using innovative Venturi Valve technology. This creates a powerful, silent vortex in each pot, delivering a perfectly balanced, oxygen-rich nutrient solution directly to the root zone of all 16 plants for explosive growth.

Designed for serious growers, the V-System is built for reliability and scalability. Its fully modular design allows you to configure the layout to perfectly fit your space and expand it as your garden grows. The entire Alien Hydroponics lineup is known for robust engineering, and this system is no exception, featuring integrated temperature control to keep the nutrient solution cool, preventing root rot and ensuring optimal plant health. For growers with different space requirements, smaller kits like the 8-pot V-System are also available, offering the same cutting-edge technology in a more compact footprint.

Features

💨

Hyper-Oxygenated Roots

Venturi Valve technology creates a nutrient vortex, eliminating the need for air pumps and ensuring maximum oxygen uptake.

❄️

Cool & Healthy Roots

Maintains cooler water temperatures throughout the system, significantly reducing the risk of root rot and other diseases.

🧩

Fully Customizable Layout

The modular design is expandable up to four rows with ten pots each, allowing the system to grow with your operation.

⚖️

Consistent Nutrient Flow

The powerful Jet-Stream Vortex pump ensures every plant receives an equal and constant supply of nutrients for uniform growth.

What's Included

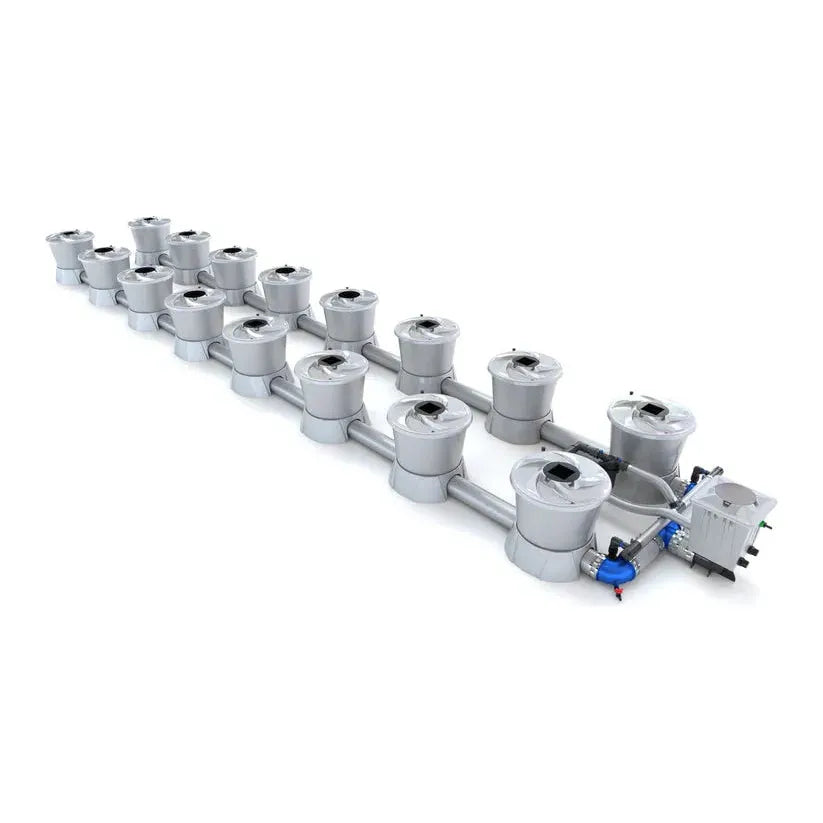

2 Row Configuration

1x V-SYSTEM Vortex Water Pump 1100W
16x V-Pot 58L with Base, Lid, and Cover
16x Square Net Pot & V-Pot Clip
16x Venturi Assembly (Fitting, Silencer, Air Filter, Inlet Pipe & Fitting)
17x 5" Nut & Green Silicone Washer
38x 5" Stainless Steel Clamps
Piping: 5" Spiral, 28mm Rigid, 32mm Red Spiral, 40mm Silver Spiral
Fittings: Distribution Tee, DM Push-Fit Elbows & Tees, Drain Cap & Tap, Barbed & Threaded Elbows, Barbed & Threaded Tees
1x Filter Manifold, 1x Float Valve, 1x V-SYSTEM Header Pot 20L
Connectors, Clamps, Tools (Wrench, Screwdriver, Socket, Pipe Cutter), and Food-Grade Silicone Grease

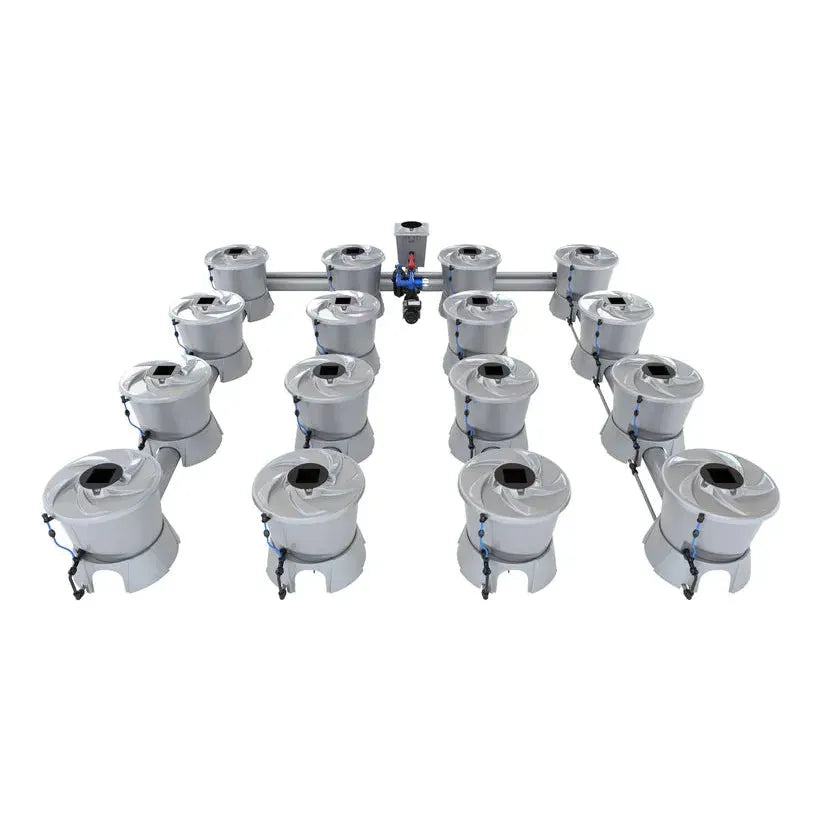

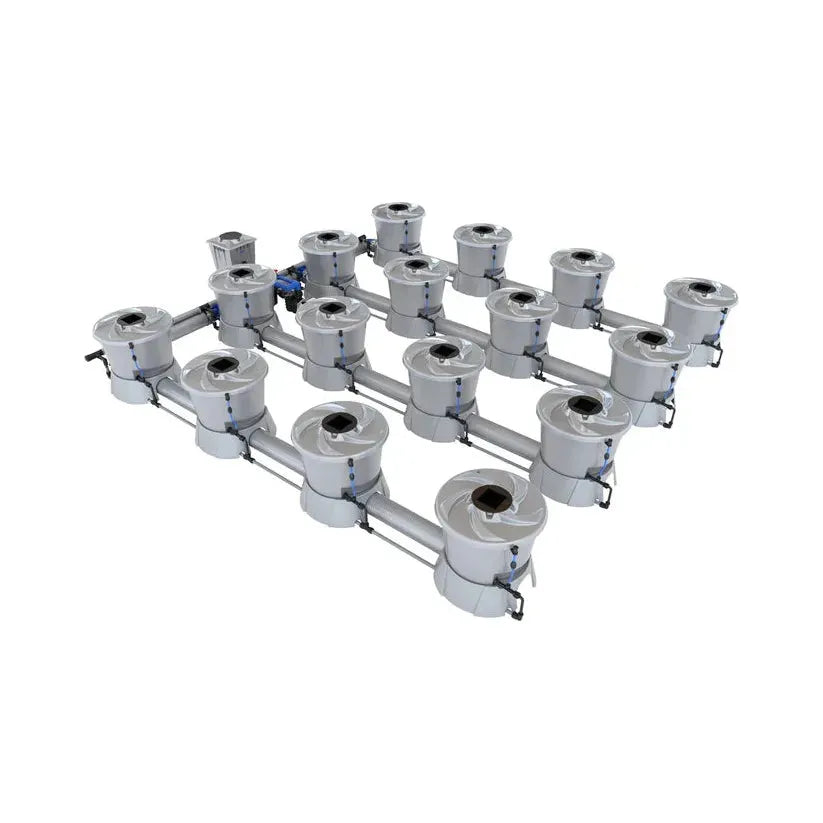

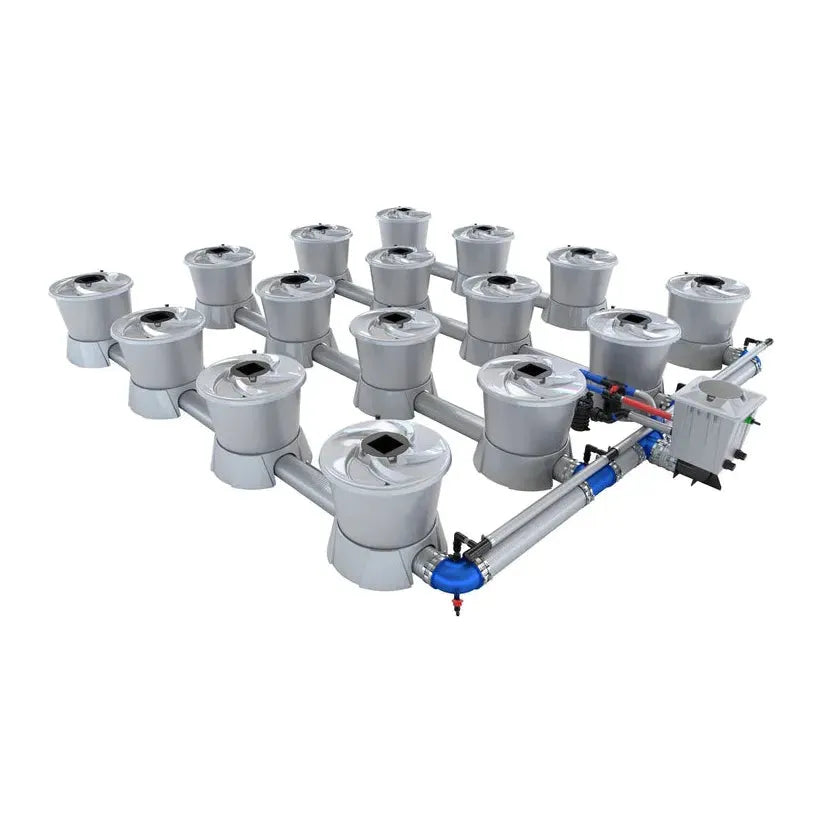

4 Row Configuration

1x V-SYSTEM Vortex Water Pump 550W
16x V-Pot 58L with Base, Lid, and Cover
16x Square Net Pot & V-Pot Clip
16x Venturi Assembly (Fitting, Silencer, Air Filter, Inlet Pipe & Fitting)
17x 5" Nut & Green Silicone Washer
42x 5" Stainless Steel Clamps
Piping: 5" Spiral, 22mm Rigid, 32mm Red Spiral, 40mm Silver Spiral
Fittings: Distribution Tee, DM Push-Fit Elbows & Tees, Drain Cap & Tap, Barbed & Threaded Elbows, Barbed & Threaded Tees
1x Filter Manifold, 1x Float Valve, 1x V-SYSTEM Header Pot 20L
Connectors, Clamps, Tools (Wrench, Screwdriver, Socket, Pipe Cutter), and Food-Grade Silicone Grease

Specifications

2 Row Configuration

Specification	Value
Number of Pots	16
Number of Rows	2
Total Fluid Volume	262.6 gallons (994 L)
Minimum Assembled Length	15' 10.9" (4850 mm)
Minimum Assembled Width	3' 11.2" (1200 mm)
Included Water Pump	V-SYSTEM Vortex 1100W
Pump Wattage	1100 watts
Pump Flow Rate	4676 gal/hr (17700 L/hr)
Recommended Chiller	396 gal (1500 L) minimum capacity

4 Row Configuration

Specification	Value
Number of Pots	16
Number of Rows	4
Total Fluid Volume	261.5 gallons (990 L)
Minimum Assembled Length	8' 3.6" (2530 mm)
Minimum Assembled Width	7' 7.3" (2320 mm)
Included Water Pump	V-SYSTEM Vortex 550W
Pump Wattage	550 watts
Pump Flow Rate	3646 gal/hr (13800 L/hr)
Recommended Chiller	396 gal (1500 L) minimum capacity

Support & Manuals

📄Instruction Manual 📄Technical Drawing

Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for the included water pump.

FAQs

What makes the V-System different from other DWC systems?+

The key difference is the Venturi Valve technology. Unlike traditional RDWC and DWC systems that rely on air pumps and air stones to oxygenate the water, the V-System uses the flow of water itself to draw in air, creating a silent, powerful vortex of highly oxygenated nutrient solution. This means no clogged air stones, no noisy pumps, and superior root health.

Do I need to buy a separate air pump or air stones for this system?+

No. The V-System is a complete, all-in-one solution. The included Jet-Stream Vortex water pump and Venturi injectors handle all the oxygenation, eliminating the extra cost, noise, and maintenance associated with traditional air pumps and stones.

Is this system difficult to set up?+

The system is designed for straightforward assembly. It includes detailed instructions and uses push-fit connections for ease of setup. While it is a large, professional-grade system, the components are engineered for a secure and leak-proof fit without requiring specialized tools.

What size grow space do I need for the 16-pot system?+

The minimum footprint depends on the configuration. The 2-row setup requires a space of at least 15' 11" x 3' 11", while the more compact 4-row setup needs about 8' 4" x 7' 8". Please refer to the specifications table for exact dimensions to ensure it fits your grow room.

Can I expand this system later?+

Yes, expandability is a core feature. The modular design allows you to add more pots and rows, up to a maximum of 40 pots (four rows of ten). You can easily scale up your operation as needed, and larger kits like the 24-pot V-System are also available for bigger projects.

What kind of maintenance does the V-System require?+

Routine maintenance includes monitoring pH and nutrient levels, performing reservoir changes as needed, and periodically cleaning the integrated filter to ensure optimal performance of the water pump. The system's design simplifies these tasks compared to many other large-scale hydroponic setups.
