Alien Hydroponics V-System DWC | 3-Pot Hydroponic System

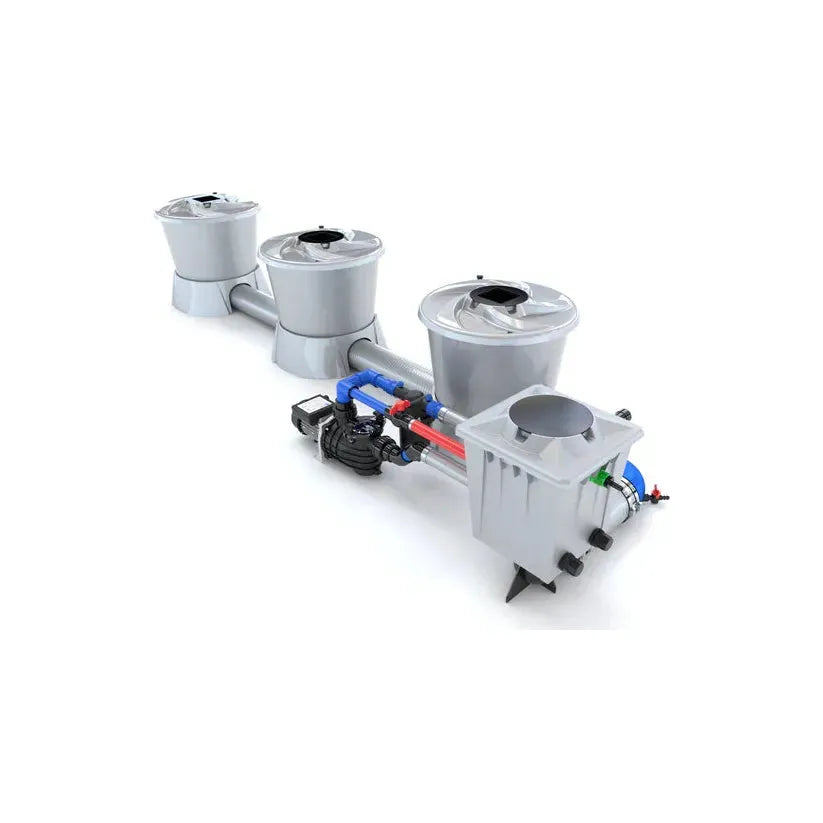

Alien Hydroponics V-System DWC - 3 Pot 1 Row Header

Tired of managing noisy air pumps and clogged air stones in your hydroponic setup? The Alien Hydroponics V-System DWC revolutionizes deep water culture by delivering maximum oxygenation and nutrient circulation without the extra hardware. This 3-pot system is engineered for growers who demand explosive growth, healthier roots, and simplified maintenance.

At the core of the V-System is its innovative Venturi Valve Technology, which creates a powerful vortex to draw oxygen directly into the nutrient solution, ensuring your plants' roots receive the super-oxygenated water they need to thrive. This advanced design promotes rapid growth while actively reducing the risk of root rot. Built with heavy-duty, modular components, this Deep Water Culture (DWC) system allows for future expansion. If you need a larger setup from the start, consider the 4-pot V-System or explore the full range of Alien Hydroponics solutions to find the perfect fit for your space.

What's Included

1x V-SYSTEM Vortex Water Pump 180W 120V 10800 l/h
3x V-Pot 58L
3x V-Pot Base
3x V-Pot Lid
3x V-Pot Lid Inspection Cover
3x Square Net Pot
3x V-Pot Clip
3x Air Filter for V-SYSTEM Venturi, 6mm
3x Silencer for Venturi
3x Venturi Fitting
3x Venturi Air Inlet Pipe 6mm Blue (2X 4")
3x Venturi Inlet Fitting for 22mm Pipe
4x Nut 5"
4x Washer 5" Green Silicone
8x 5" Stainless Steel Clamp
1x Distribution Tee 40mm
1x DM Push-Fit Elbow 22-15mm V-SYSTEM
1x DM Push-Fit Elbow 22mm V-SYSTEM
2x DM Push-Fit Tee 22-15mm V-SYSTEM
1x Drain Cap 1/2"
1x Drain Tap 1/2"-16mm Barb
1x Elbow 5" Barbed with Drain Point
2x Elbow 5" Threaded Dual-Flow
1x Filter Manifold, Complete 40mm
1x Float Valve
1x V-SYSTEM Header Pot 20L 40mm
1x Silver Lid
1x Header Pot Blank
1x Hosetail 16mm-3/4" Female Green
3x Pipe 22mm Rigid 1 Meter - Venturi Feed
1x Pipe 32mm Red 1 Meter Spiral
2x Pipe 40mm Silver 1 Meter Spiral
3x Pipe 5" Spiral 80cm
1x Tee 5" Barbed
2x Tee Threaded 5" Dual-Flow
2x Threaded Tank Connector 1"
1x Vortex Pump Inlet Manifold 40mm long
2x 1" Cap for Chiller Connections
1x T/Connector Straight 32mm
1x T/Connector Straight 40mm
1x Terminal Manifold Left
1x Terminal Manifold Right
8x 22mm Insert for 22mm Rigid Pipe
2x Clamp Size 2
4x Clamp Size 3
1x 8mm Screwdriver for 5" Clamp
1x Wrench 5"
1x Wrench for Float Valve
1x 8mm Socket for 5" Clamp
1x Pipe Cutter 50mm
1x Silicone Grease - Food Grade

Features

💨

Venturi Valve Technology

Eliminates the need for air pumps by using negative pressure to oxygenate the nutrient solution for healthier roots.

🌡️

Temperature Control

Maintains cooler water temperatures to significantly reduce the risk of root rot and other pathogens.

🧩

Modular Design

Easily customize and expand your system's layout as your garden grows, ensuring long-term scalability.

⚖️

Equal Nutrient Distribution

Ensures every plant receives a consistent supply of nutrients for uniform growth and maximum yields.

🌀

Powerful Vortex Pump

The included JET-STREAM® pump creates a powerful vortex, circulating water and nutrients efficiently.

💧

Total-Drainage Bases

Specially designed pot bases allow for complete drainage, preventing stagnant water and root issues.

🛡️

Integrated Filtration

Keeps the system clean and free of debris, ensuring pumps and fittings operate flawlessly.

🔩

Heavy-Duty Components

Constructed with high-quality materials, including T304 stainless clamps, for durability and reliability.

Specifications

Specification	Value
Number of pots	3
Number of rows	1
Kit total fluid volume	50.7 gallons (192 L)
Minimum assembled length	7' 4.2" (88.2 inches / 2240 mm)
Minimum assembled width	3' 1.0" (37.0 inches / 940 mm)
Water Pump Model	V-SYSTEM Vortex Water Pump 180W 120V 10800 l/h
Wattage	180 watts
Flow Rate	2853 gal/hr (10800 L/hr)
Recommended water chiller capacity	132 gallons (500 L) minimum

Support & Manuals

📄Instruction Manual 📄Technical Drawing

Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.

FAQs

What is the main advantage of the V-System over traditional DWC systems?+

The key advantage is the Venturi Valve Technology. Unlike standard RDWC systems that rely on separate air pumps and air stones to oxygenate the water, the V-System's integrated Venturi injectors use the water flow itself to create a vortex that pulls in vast amounts of oxygen. This results in a simpler, quieter, and more efficient system with fewer points of failure.

Can I expand this 3-pot system later?+

Absolutely. The V-System is designed to be fully modular. You can easily add more pots and rows as your cultivation needs grow. We offer various configurations, including the larger 6-pot V-System, allowing for seamless expansion.

What kind of pump is included with the kit?+

This kit includes the powerful and reliable JET-STREAM® V-SYSTEM Vortex Water Pump. Specifically, it's the 180W model, which is perfectly matched to provide optimal circulation and oxygenation for a 3-pot setup.

How does the system help prevent root rot?+

The V-System combats root rot in two main ways. First, its superior oxygenation from the Venturi injectors creates an aerobic environment where harmful anaerobic bacteria cannot survive. Second, the constant circulation helps maintain cooler, more stable water temperatures, further inhibiting the growth of root pathogens.

What is the total water capacity of this 3-pot system?+

The total fluid volume for the 3-pot V-System is approximately 50.7 gallons (192 liters). This includes the volume of the three 15-gallon V-POTs and the connecting pipework.

Is this system suitable for beginners?+

Yes, the V-System is an excellent choice for both beginners and experienced growers. By eliminating the need for separate air pumps, air stones, and complex tubing, it simplifies the setup and reduces maintenance. This allows new growers to achieve professional-level results more easily.
