- 1x RDWC Circulation Water Pump 20
- 1x RDWC Header Pot Complete
- 12x RDWC Pot 20L
- 13x Silver Lid
- 1x Header Pot Blank
- 12x Square Net Pot
- 12x Air Injection Ring
- 6x Elbow 50mm Dual Flow
- 16x 50mm Straight Dual Flow
- 25x Washer 50 X 64mm
- 25x Nut 50mm Dual Flow
- 2x RDWC Tee, Ball Valve and Filter
- 3x Tee 16mm Barbed
- 4x Plug - 16m
- 2x Elbow 16mm Barbed
- 12x Tee 16mm - 6mm Blue
- 12x Pot Clip 16mm
- 9x Pipe 6mm Blue Bulk by Meter
- 12x Pipe 16mm Silver Bulk by Meter
- 6x Pipe 19mm Blue Bulk by Meter
- 2x Pipe 50mm Silver 100cm Piece
- 9x Pipe 50mm Silver 66cm Piece
- 1x Wrench 50mm
- 1x Pipe Cutter 50mm
- 1x RDWC Instructions
Ask Sage about this product
Alien Hydroponics RDWC - 12 Pot 4 Row
starting from 0% interest financing from
/mo.
- 12 pots and a header pot deliver super-oxygenated solution to every root zone
- Oversized 2 inch Dual-Flow fittings minimize root blockages and flow issues
- Modular layouts accommodate 5 gallon or 9.5 gallon pots in tight or open spaces
- View More Details
Shipping Calculated at Checkout
Earn 1,637 points for shopping and get $16.37 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are scaling up to a 12-pot layout because your current 8-pot system cannot keep up with your production goals.
- You are switching to an RDWC setup because top-down feeding is creating uneven growth and root health issues.
- You are moving to heat-reflective silver pots because your reservoir temperatures are climbing too high in the summer.
What We Found
- The silver polymer finish really does help keep nutrient temps down when your grow lights are running at full power.
- We found the 2 inch fittings are the real hero here since they let the solution move fast enough to stay oxygenated.
What Users Say
- Users who switched to this RDWC say their vegetative stage finished a week early due to the constant oxygen flow.
- Buyers report that the modular design let them fit a high-capacity system into oddly shaped rooms with zero leaks.
Alien Hydroponics RDWC - 12 Pot 4 Row
Tired of hydroponic systems that promise big but underdeliver? The Alien Hydroponics RDWC 12 Pot 4 Row kit is engineered for serious growers seeking commercial-grade performance and explosive yields without the complexity. This system is a perfect solution for experienced home growers or boutique commercial operations ready to scale up production.
This professional recirculating deep water culture (RDWC) system creates the ultimate environment for plant growth by delivering a super-oxygenated nutrient solution directly to the root zone. This process accelerates development, shortens vegetative cycles, and produces significantly larger harvests. The intelligent design prevents common issues like root clogging and nutrient imbalance, ensuring your plants thrive. It's an ideal step up from smaller setups like the 8-pot RDWC system, offering greater capacity for larger projects.
Available with either 5-gallon or 9.5-gallon pots, the system offers flexible configurations to fit any grow space. Its tool-free, no-glue assembly means you can set it up quickly and focus on what matters most—cultivating healthy, high-yielding plants.
What's Included
Features
🚀
Accelerated Growth
Reduces vegetative time and boosts flowering for faster, larger harvests.
🌊
Clog-Free Dual-Flow™
Oversized 2" fittings minimize root blockage for consistent nutrient delivery.
🧩
Modular & Scalable
Easily adapts to various grow sizes and allows for future expansion.
💰
Efficient Operation
Requires minimal medium and recirculates solution, reducing operational costs.
💨
Superior Oxygenation
JET-STREAM A.I.R.™ rings provide high-pressure oxygen for healthy root development.
🔧
Easy Setup & Maintenance
Threaded fittings and snap-on pipes for a quick, glue-free assembly.
❄️
Heat-Reflective Design
Silver polymer construction helps maintain cooler nutrient solution temperatures.
⚙️
Customizable Layouts
Offers numerous configurations to perfectly match your available growing space.
Compare Alien Hydroponics Systems
| Feature | V-System | RDWC | Other RDWC Systems |
| Oxygenation method | Venturi | JET-STREAM A.I.R.™ rings | air stones (prone to clogging) |
| Set up without gluing | ✔ | ✔ | ✘ |
| Pot shape | round | square | rectangular |
| Customizable pot / plant spacing | ✔ | ✔ | ✘ |
| Header can be placed up to 39" / 100cm away | ✔ | ✔ | ✘ |
| Does not require an air pump | ✔ | ✘ | ✘ |
| Patent-pending Dual-Flow™ fittings | ✔ | ✔ | ✘ |
| Silver reflective polymer pots and pipe | ✔ | ✔ | ✘ |
| Easily-cleanable nutrient solution filters | ✔ | ✔ | ✘ |
| Float valve for automatic top-off | ✔ | ✔ | ✘ |
| Vortex maximizing nutrient and O2 distribution | ✔ | ✘ | ✘ |
| Fresh nutrient distribution direct to every pot | ✔ | ✘ | ✘ |
| Complete drainage possible | ✔ | almost | ✘ |
| External pump to minimize heat | ✔ | ✘ | ✘ |
| Plants can be rotated in their pots | 1°-360° | 90°, 180°, 270° | 180° only |
| Pot sizes available | 15.3 gallon (58L) | 5 gallon (20L) & 9.5 gallon (36L) | 13 gallon or smaller |
| Recirculation line diameter | 5" | 2" | 2-3" or much smaller |
| Kit configurations available | 54 | 183 | 1 - 16 |
Setup and Maintenance
System Setup Steps:
1. Prepare Pots
Attach the necessary fittings to the pots.
2. Connect the System
Use piping to connect the pots and the header pot to establish the recirculating network.
3. Install Air System
Set up the air pump and connect it to the air stones in the pots.
4. Integrate Pumps
Install the water pump(s) for recirculation and chilling (if applicable).
5. Set Up Nutrient Tank
Connect the nutrient tank to the system.
6. Fill the System
Add water to the system.
Maintenance Tips:
- Maintain water temperature between 18-20°C (64-68°F).
- Add nutrients to the system and allow for recirculation before testing and adjusting.
- When planting, use a substrate layer in the net pot, water the cutting, and fill the remaining space with substrate.
- Fill the system using a hose, ensuring the correct level before turning on the pump.
- Drain the system as needed by connecting a pipe to the designated fitting.
- Use preventative solutions to maintain root health and system cleanliness.
Alien Hydroponics RDWC - 12 Pot 4 Row Specifications
| Specification | Value |
|---|---|
| Number of pots | 12 |
| Number of rows | 4 |
| Kit total fluid volume (20L Pots) | 54.9 gallons / 208 liters |
| Kit total fluid volume (36L Pots) | 95.5 gallons / 361.6 liters |

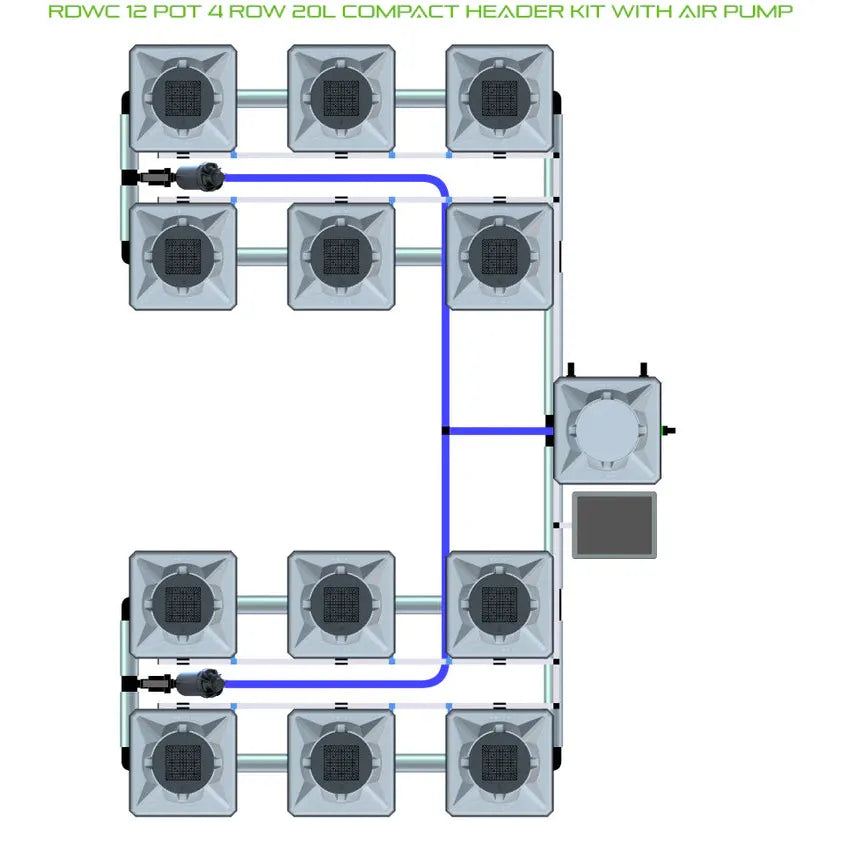

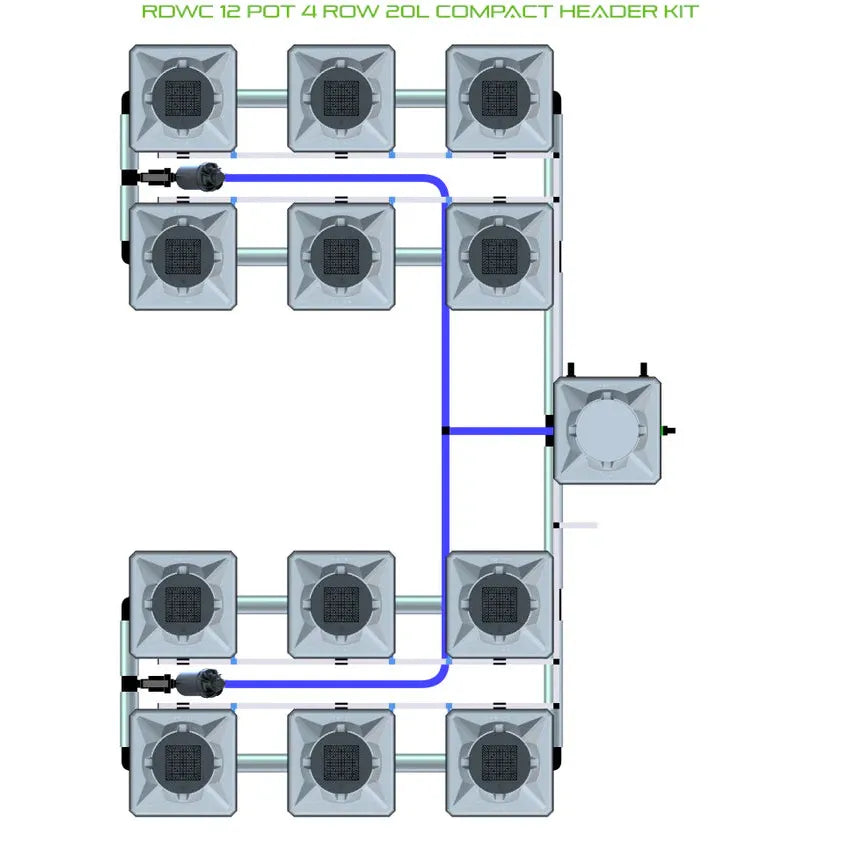

| Min. Assembled Size (20L, Compact Header) | 56¼" L x 66½" W |
| Max. Assembled Size (20L, Compact Header) | 75¼" L x 123⅝" W |

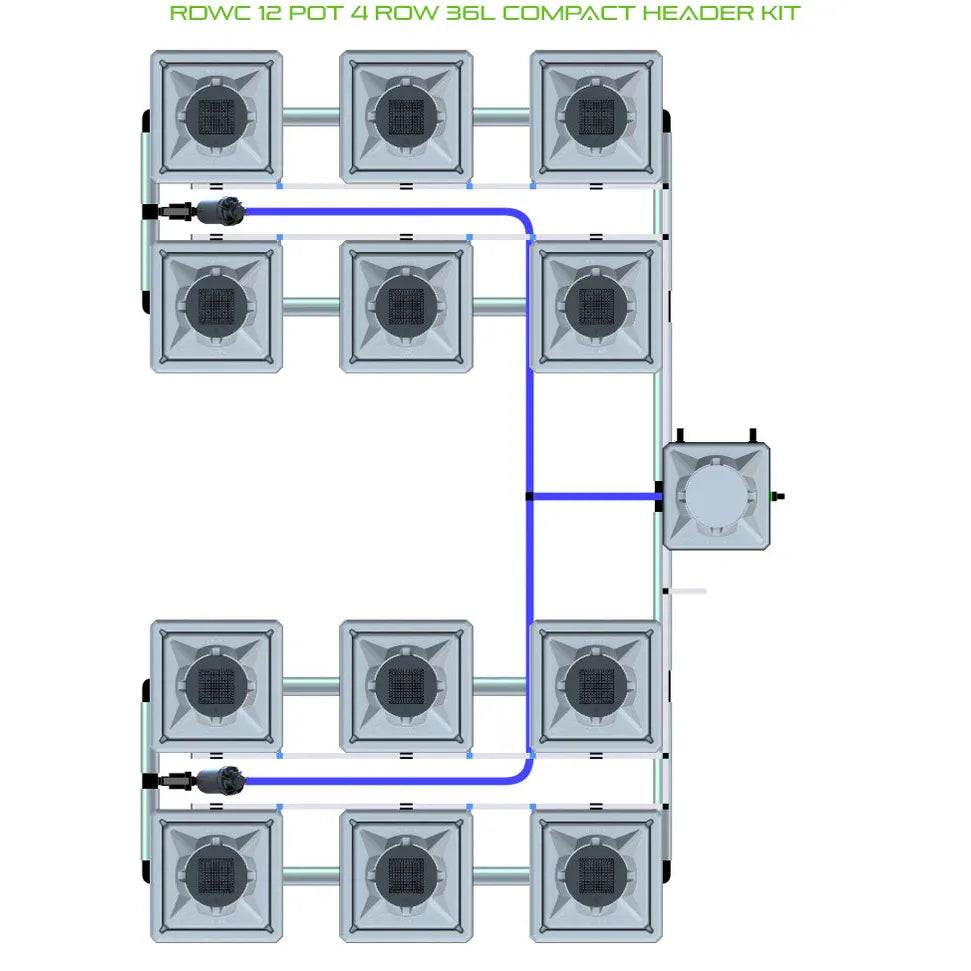

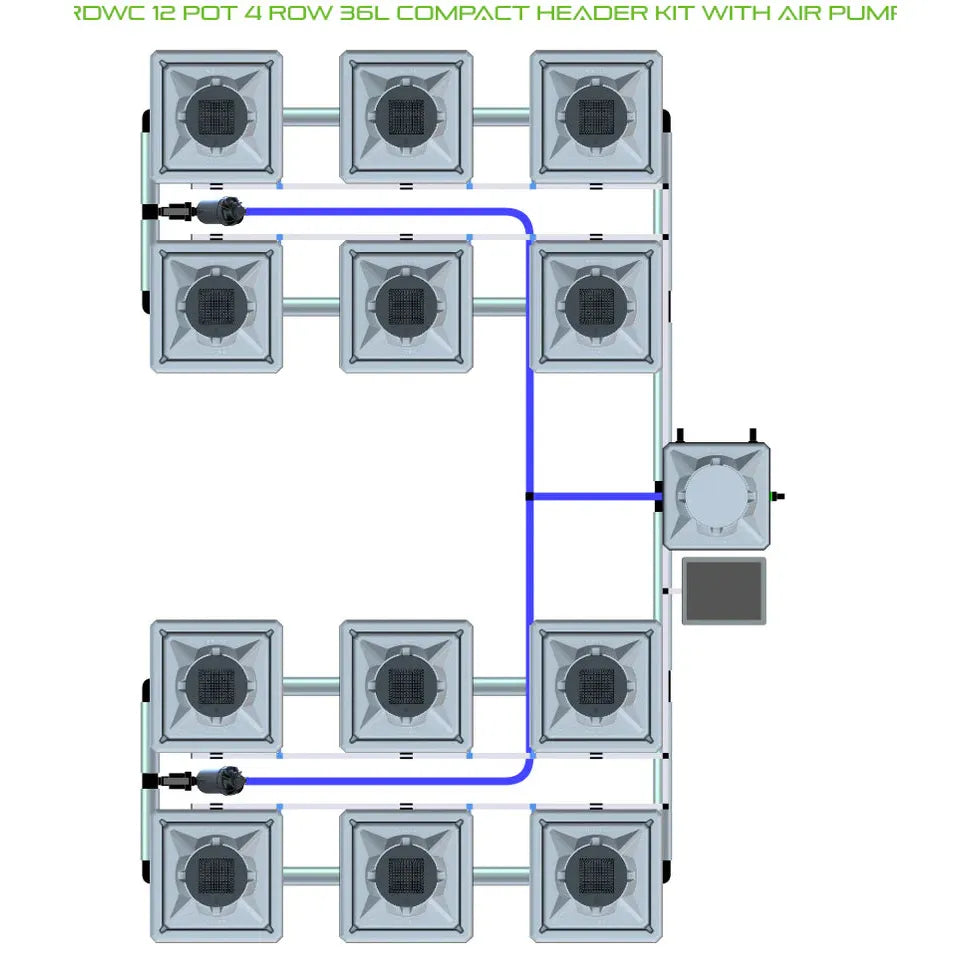

| Min. Assembled Size (36L, Compact Header) | 66½" L x 79⅛" W |
| Max. Assembled Size (36L, Compact Header) | 90⅛" L x 144½" W |

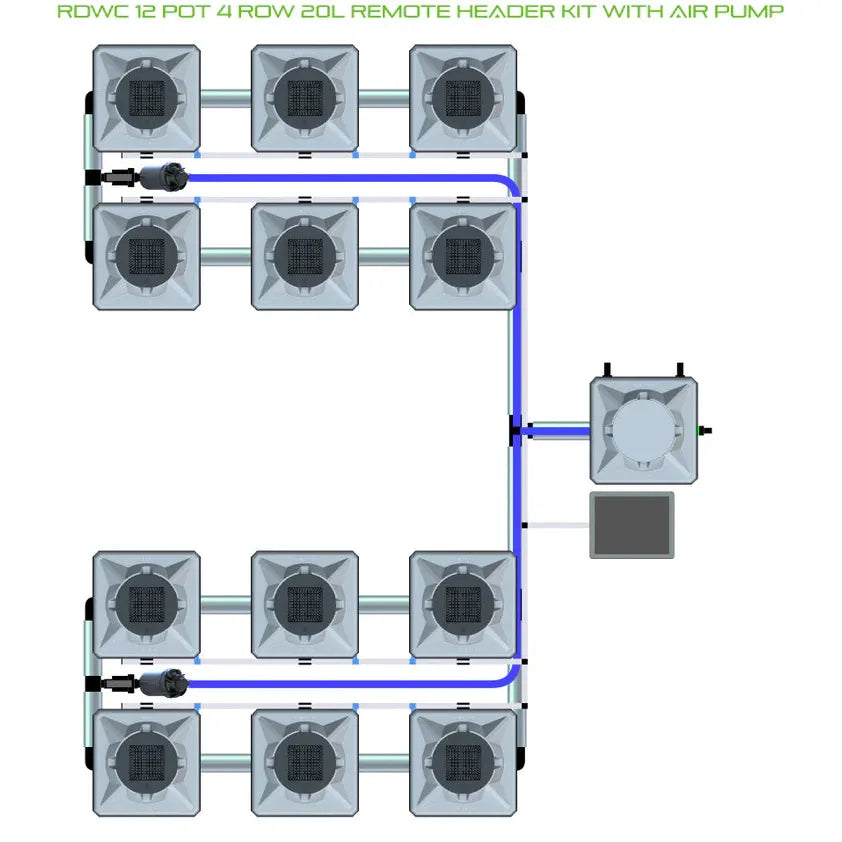

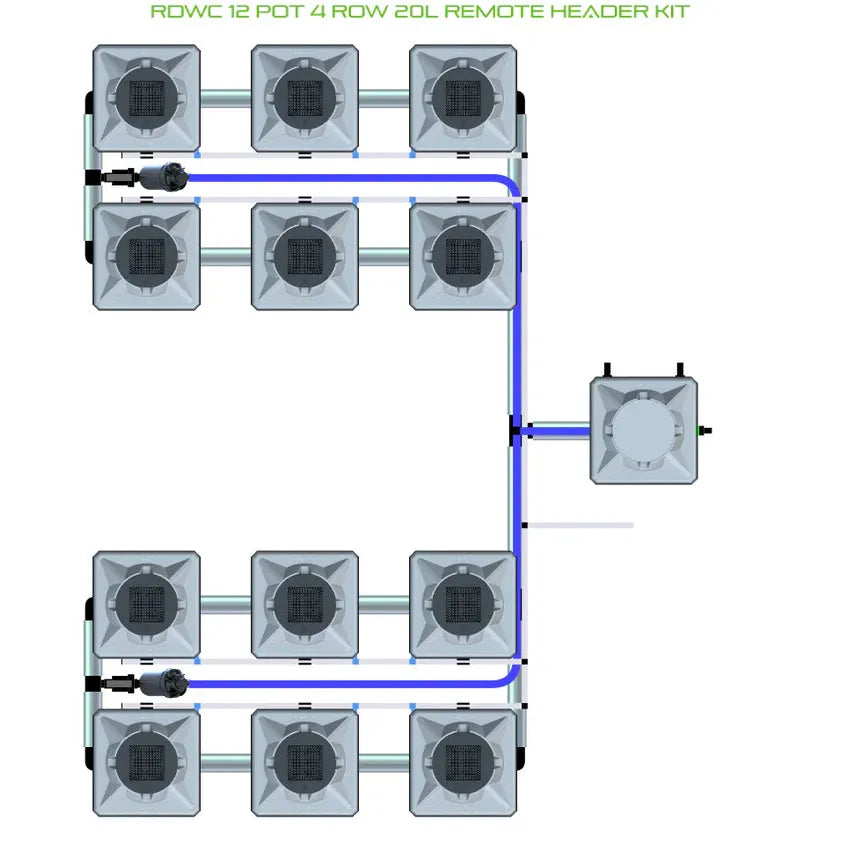

| Min. Assembled Size (20L, Remote Header) | 60¼" L x 66½" W |
| Max. Assembled Size (20L, Remote Header) | 114⅝" L x 123⅝" W |

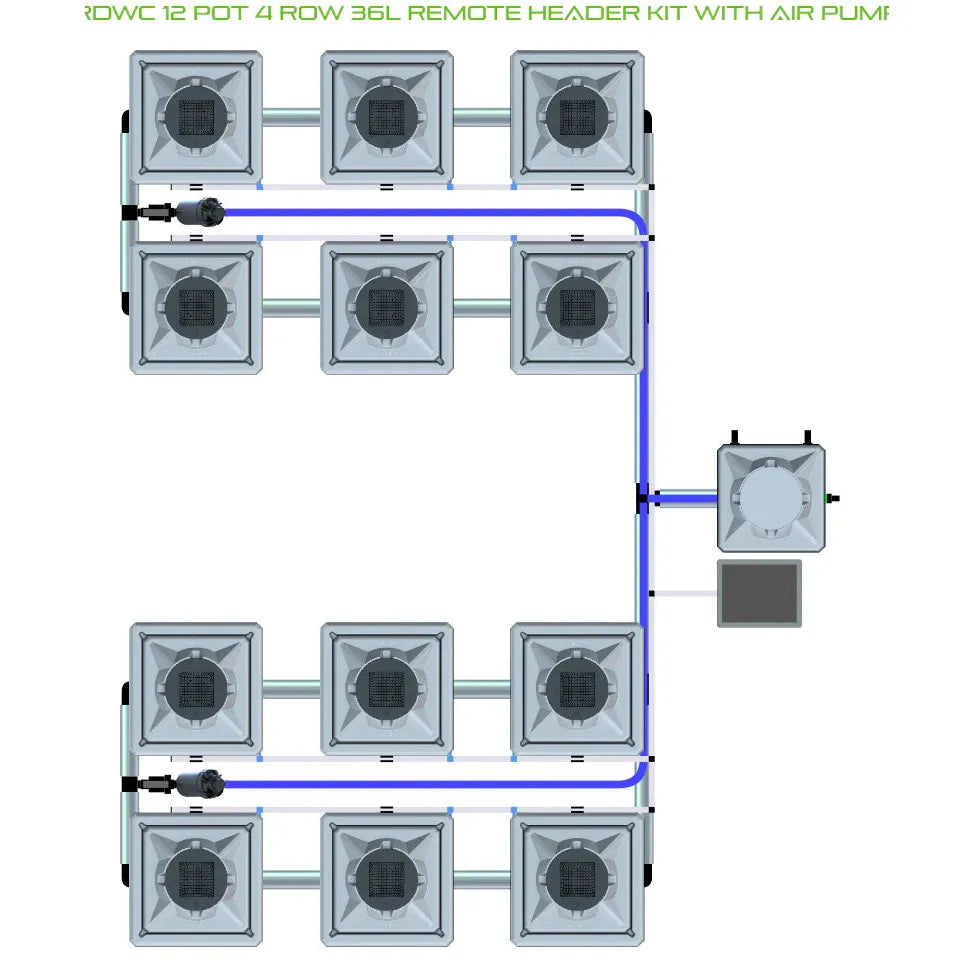

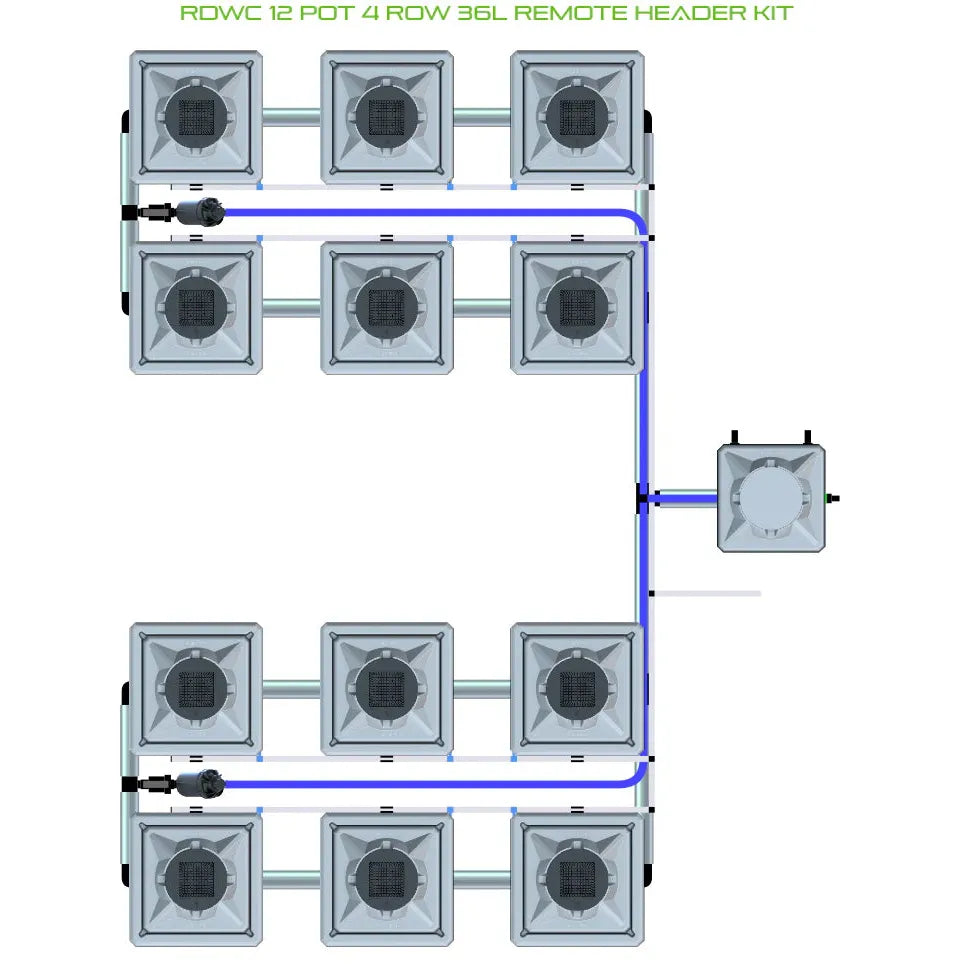

| Min. Assembled Size (36L, Remote Header) | 70½" L x 79⅛" W |
| Max. Assembled Size (36L, Remote Header) | 129½" L x 144½" W |
| Water Pump (20L Kit) | 350 GPH, 35 Watts |
| Water Pump (36L Kit) | 500 GPH, 45 Watts |
| Air Pump (Optional) | 120 L/min, 120 watts |
| Required Air Pump (Not Included) | Must supply a pump capable of delivering 120 L/min (7200 L/hr) |
Support & Manuals
Warranty
Alien Hydroponics RDWC comes with a one-year warranty for your peace of mind.
FAQs
What is the main benefit of an RDWC system?
The primary benefit is explosive growth rates. By constantly circulating highly oxygenated water, Recirculating Deep Water Culture (RDWC) provides plant roots with an ideal environment to absorb nutrients, leading to faster development and significantly larger yields compared to other methods.
Is this 12-pot system difficult to set up?
No, the Alien Hydroponics RDWC system is designed for easy assembly. It features threaded fittings and snap-on pipes, requiring no glue or complex tools. This allows for a quick, straightforward setup and makes future adjustments or expansions simple.
Do I need to buy a separate air pump?
You have the option to purchase the kit with a compatible air pump or use your own. If you choose the latter, ensure your pump can deliver at least 120 liters of air per minute to provide adequate oxygenation for all 12 pots.
How does the system help keep the nutrient solution cool?
The pots and piping are made from a heat-reflective silver polymer. This material reflects radiant heat away from the system, helping to maintain a cooler and more stable nutrient solution temperature, which is crucial for preventing root diseases and ensuring optimal nutrient uptake.
Can I expand this system in the future?
Absolutely. The modular design is a key feature of the Alien RDWC lineup. You can easily add more pots or reconfigure the layout to fit a new space or scale your operation. For even larger grows, you might consider the 16-pot 4-row system.
