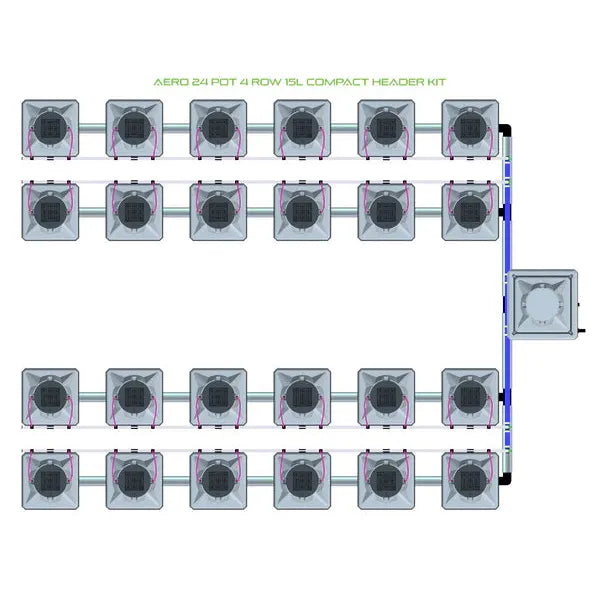

AERO 24 Pot 4 Row 15L Compact Header Kit, overhead view of 24 square grow pots in a 4x6 grid connected to a reservoir.

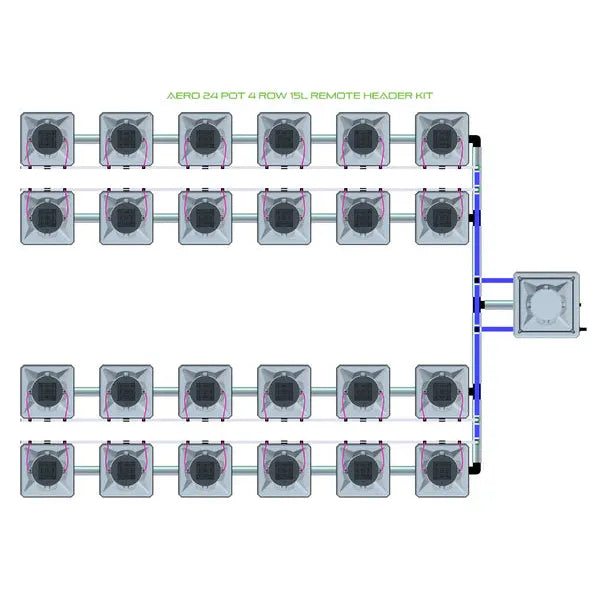

AERO 24 Pot 4 Row 15L Remote Header Kit diagram: 24 square pots in 4 rows connected to a central reservoir.

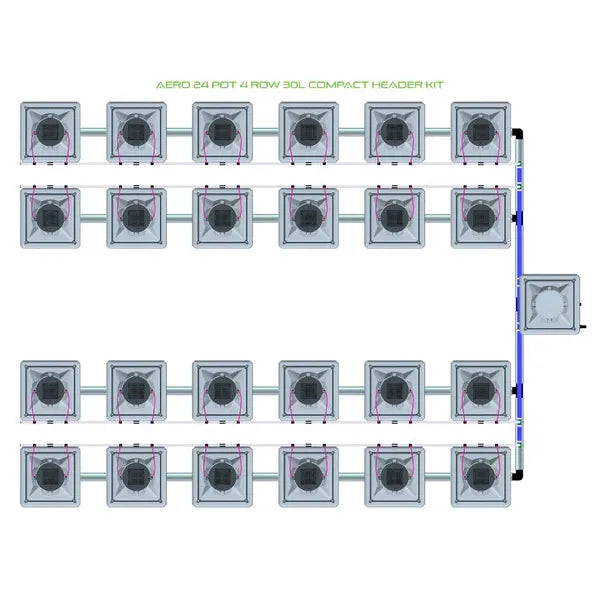

AERO 24 Pot 4 Row 30L Compact Header Kit diagram. Top-down view of interconnected hydroponic pots and piping.

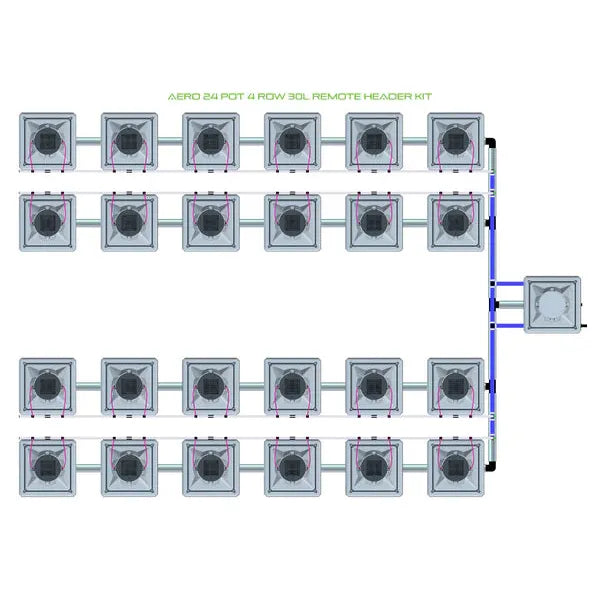

Overhead diagram of AERO 24 Pot 4 Row 30L Remote Header Kit with 24 square pots in 4 rows, piped to a header.
AERO 24 Pot 4 Row 15L Compact Header Kit, overhead view of 24 square grow pots in a 4x6 grid connected to a reservoir.
AERO 24 Pot 4 Row 15L Remote Header Kit diagram: 24 square pots in 4 rows connected to a central reservoir.
AERO 24 Pot 4 Row 30L Compact Header Kit diagram. Top-down view of interconnected hydroponic pots and piping.
Overhead diagram of AERO 24 Pot 4 Row 30L Remote Header Kit with 24 square pots in 4 rows, piped to a header.

Alien Hydroponics AERO System - 24 Pot 4 Row

Reduced Price:
Translation missing: en.product.price.range_html Translation missing: en.product.price.range_htmlTranslation missing: en.product.price.range_html
Or
Pay as little as
$342007/mo
for a term that suits you, up to 36 months. Learn More
Standard shipping rates apply to this item

🍃 Earn 3,421 points for shopping and get $34.20 off your next order. Join Harvest Club for free

To calculate 10 percent of a number, simply divide it by 10 or move the decimal point one place to the left. For example, 10 percent of 230 is 230 divided by 10, or 23.
pricePoints: 3420.07
3,421
2
percentage: $34.20
rt:

🍃 Earn # points for shopping and get $34.20 off your next order. Join Harvest Club for free

MODEL: BD100-3424C
Need help deciding?

Expert (human) help, just a click away!

Call an Expert Live Chat

Alien Hydroponics AERO System - 24 Pot 4 Row

Struggling to achieve consistent, high-yield results in your large-scale grow operation? The Alien Hydroponics AERO System is the solution, engineered for professional growers demanding peak efficiency and explosive growth. This advanced 24-pot aeroponic system uses high-pressure misters to deliver a super-oxygenated nutrient solution directly to the root zone, promoting faster growth cycles and significantly larger yields while using up to 95% less water than traditional methods.

Designed for scalability and ease of use, the AERO system features a modular, no-glue design that simplifies setup and maintenance. It's an ideal choice for serious growers looking to maximize their space and efficiency. For a complete setup, pair this system with a suitable reservoir like the 70 Gallon GardenTank. Please note that a nutrient reservoir is required but not included with the kit.

What's Included

  • 1x DRAIN Pump Pipe Adapter
  • 1x Pressure Water Pump 30
  • 1x Cycle Timer
  • 1x AERO/RAIN Header Pot Complete 36L
  • 24x AERO/RAIN Pot 15L
  • 1x Large Pot Lid Adapter
  • 1x Silver Lid
  • 24x AERO Lid
  • 1x Header Pot Blank
  • 48x Pot Stand for 15L Pot
  • 24x Drain Cover - Copper
  • 24x Square Net Pot
  • 48x Grommet - 4mm
  • 48x Black Sprinkler
  • 2x Elbow 50mm Barbed
  • 2x Tee 50mm Barbed
  • 4x Elbow 50mm Dual Flow
  • 21x Tee 50mm Dual Flow
  • 25x Washer 50 X 64mm
  • 25x Nut 50mm Dual Flow
  • 14x Clamp Size 2
  • 8x Clamp Size 3
  • 4x Valve 16mm Green
  • 4x Plug - 16mm
  • 48x Tee 16mm - 4mm
  • 24x Pot Clip 16mm
  • 2x Tee 25mm Barbed - 3/4" Male
  • 2x Tee 25mm Barbed
  • 2x Elbow 25mm Barbed - 3/4" Male
  • 2x Elbow 19mm Barbed
  • 2x Elbow 40mm Barbed
  • 1x Siphon Tee 19mm Fitting
  • 1x Siphon Tee 40mm Complete
  • 16x Pipe 16mm Silver Bulk by Meter
  • 4x Pipe 19mm Black Bulk by Meter
  • 4x Pipe 25mm Blue Bulk by Meter
  • 4x Pipe 40mm Silver Spiral Bulk by Meter
  • 16x Pipe 4mm Pink Bulk by Meter
  • 14x Pipe 50mm Silver 100cm Piece
  • 1x Wrench 50mm
  • 1x Pipe Cutter 50mm
  • 1x AERO Instructions
  • 1x JET-STREAM DRAIN Water Pump 1100GPH
  • 1x JET-STREAM DRAIN Water Pump Power Adapter

Features

Alien Hydroponics AERO System - 24 Pot 4 Row Kit in a grow room setting
⚙️
Dual-Flow™ Fittings

Patent-pending fittings ensure a free-flowing system and prevent root clogging with unique side slots.

🛡️
Copper-Plated Drain Cover

Prevents roots from entering and blocking the pipe network, ensuring uninterrupted operation.

🌡️
Heat-Resistant Pipes

Heat-reflective silver piping minimizes heat absorption to keep your nutrient solution cool.

💧
Raised Drainage Grid

The sloped base and raised grid design allows for rapid and efficient water drainage.

🧠
Rain Brain Controller

Ensures precise and consistent nutrient delivery, keeping your feeding schedules on time, every time.

🛠️
Easy Setup & Maintenance

Designed with threaded fittings and snap-on pipes for a completely glue-free setup and easy reconfiguration.

💪
Durable Construction

Utilizes high-quality, non-reactive materials to ensure system longevity and plant safety.

🌿
Customizable Configurations

Offers numerous configurations to maximize your growing space with multiple pot sizes and layouts.

Specifications

Specification Value
Number of pots 24 (Available in 15L and 30L sizes)
Number of rows 4
Min. Assembled Size (15L Pot) 98" L x 58.25" W (Compact Header) / 102" L x 58.25" W (Remote Header)
Max. Assembled Size (15L Pot) 155.125" L x 123.625" W (Compact Header) / 194.5" L x 123.625" W (Remote Header)
Min. Assembled Size (30L Pot) 116" L x 70.875" W (Compact Header) / 119.875" L x 70.875" W (Remote Header)
Max. Assembled Size (30L Pot) 189.375" L x 144.5" W (Compact Header) / 228.75" L x 144.5" W (Remote Header)
Water Pumps Included JET-STREAM DRAIN Water Pump 1100GPH, Pressure Water Pump 30
Recommended Reservoir (Not Included) 70 Gallons (280 Liters) minimum capacity

Setup and Maintenance

System Setup Steps:

1. Prepare Pots

Attach the necessary fittings to the pots.

2. Connect the System

Use piping to connect the pots and the header pot to establish the recirculating network.

3. Install Air System

Set up the air pump and connect it to the air stones in the pots.

4. Integrate Pumps

Install the water pump(s) for recirculation and chilling (if applicable).

5. Set Up Nutrient Tank

Connect the nutrient tank to the system.

6. Fill the System

Add water to the system.

Maintenance Tips:

  • Maintain a 50-75cm center distance between each pot.
  • Alien Hydroponics recommends a watering frequency of one minute every hour.
  • Regularly check the filter for debris.
  • Minimal cleaning is required when using mineral-based nutrients.
  • Flush the system between crop cycles with clean water and disinfectant.
  • Inspect sprinklers to ensure proper misting and water distribution.

Support & Manuals

Warranty

The Alien Hydroponics AERO System - 24 Pot 4 Row Kit comes with a one-year manufacturer's warranty for your peace of mind.

FAQs

What are the main benefits of an aeroponic system like this?+

Aeroponics delivers an oxygen-rich nutrient mist directly to the roots, which leads to faster growth rates, higher yields, and exceptional plant health. It's also highly efficient, using up to 95% less water and nutrients compared to soil-based growing.

Is this system difficult to set up?+

No, the Alien AERO system is designed for straightforward assembly. It uses threaded fittings and snap-on pipes, requiring no glue or special tools. This makes setup, reconfiguration, and maintenance much simpler than other systems.

What size reservoir tank do I need?+

For the 24-pot system, a minimum capacity of 70 gallons (280 liters) is recommended to ensure a stable nutrient solution. We suggest the compatible Alien Hydroponics 70 Gallon GardenTank, though you can supply your own.

Can I expand this system later on?+

Yes, the modular design of the AERO system allows for easy expansion. You can scale your operation up to 36 pots to accommodate future growth, making it a flexible, long-term investment.

What's the difference between the AERO and RDWC systems?+

The primary difference is the method of nutrient delivery. The AERO system uses a fine mist to spray the roots, maximizing oxygen exposure. In contrast, an RDWC system submerges the roots in a highly-oxygenated, recirculating water culture. Both are effective, but aeroponics can offer faster growth due to the unparalleled oxygen levels at the root zone.

How often should the misting pump run?+

Alien Hydroponics generally recommends a watering frequency of one minute every hour. However, this can be adjusted with the included cycle timer to best suit your specific plant type, growth stage, and environmental conditions for optimal results.
