- 1x RDWC Header Pot Complete
- 24x RDWC Pot 20L
- 25x Silver Lid
- 1x Header Pot Blank
- 24x Square Net Pot
- 24x Air Injection Ring
- 6x Elbow 50mm Dual Flow
- 40x 50mm Straight Dual Flow
- 3x Tee 50mm Dual Flow
- 49x Washer 50 X 64mm
- 49x Nut 50mm Dual Flow
- 2x RDWC Tee, Ball Valve and Filter
- 3x Tee 16mm Barbed
- 4x Plug - 16mm
- 2x Elbow 16mm Barbed
- 24x Tee 16mm - 6mm Blue
- 24x Pot Clip 16mm
- 17x Pipe 6mm Blue Bulk by Meter
- 19x Pipe 16mm Silver Bulk by Meter
- 9x Pipe 19mm Blue Bulk by Meter
- 2x Pipe 50mm Silver 100cm Piece
- 15x Pipe 50mm Silver 66cm Piece
- 1x Wrench 50mm
- 1x Pipe Cutter 50mm
- 1x RDWC Instructions
Alien Hydroponics RDWC - 24 Pot 4 Row
starting from 0% interest financing from
/mo.
- The system super-oxygenates 24 root zones simultaneously to shorten vegetative cycles.
- Oversized 2-inch Dual-Flow fittings prevent root blockage to maintain even pressure.
- The modular 4-row layout fits various room sizes with 20L or 36L pot options.
- 1-year manufacturer's warranty
- View More Details
Shipping Calculated at Checkout
Earn 2,502 points for shopping and get $25.02 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1938+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are moving to a 24 pot RDWC because your current drain to waste setup creates too much nutrient runoff waste.
- You are upgrading to this 4 row layout because your floor space requires a wide footprint to match your lighting.
- You are switching to oxygenated deep water culture because your root zones are currently prone to stagnation.
What We Found
- We found the 2-inch Dual-Flow fittings actually prevent the damming effect that kills plants in large RDWC runs.
- The silver lids really do work, keeping water temps several degrees lower than the standard black plastic buckets.
- Even though it says tool-free, keep the included 50mm wrench handy to get those bulkhead nuts perfectly seated.
What Users Say
- Growers who swapped to this kit say they cut their room assembly time by a full day compared to custom PVC builds.
- Operators running these 24-pot systems report they shaved a week off their veg cycle due to the higher oxygenation.
Alien Hydroponics RDWC - 24 Pot 4 Row
Struggling to scale your hydroponic operation without sacrificing quality or efficiency? The Alien Hydroponics RDWC 24 Pot system is engineered for serious growers who demand professional results. This large-scale setup eliminates common growth bottlenecks, delivering explosive yields with surprising simplicity.
This commercial-grade Recirculating Deep Water Culture (RDWC) system provides a continuous flow of super-oxygenated nutrient solution directly to the root zone, creating the perfect environment for rapid, vigorous growth. Designed for serious growers, this setup is a significant step up from smaller kits like the 12-pot RDWC, providing the scale needed for commercial cultivation. The intelligent design prevents oxygen deficiency and root clogging, common issues that can hinder development in other systems. Available with 5-gallon or 9.5-gallon pots and flexible header configurations, the RDWC 24 Pot 4 Row kit adapts to your space. Thanks to a tool-free, no-glue assembly, you can set up your professional-grade DWC hydroponics system quickly and get back to focusing on your plants.
What's Included
Features
🚀
Accelerated Growth & Higher Yields
Delivers oxygenated nutrients directly to roots, reducing vegetative time for faster, larger harvests.
🌊
Enhanced Flow & Reduced Clogging
Features oversized 2" Dual-Flow™ fittings that minimize root blockage for consistent nutrient delivery.
🧩
Flexible & Scalable Modular Design
The modular system easily adapts to various grow sizes, allowing for simple customization and expansion.
💰
Efficient Nutrient Management
Requires minimal medium and uses a recirculating solution, reducing setup and operational costs.
💨
Superior Oxygenation with JET-STREAM A.I.R.™
Provides constant, high-pressure oxygen flow to promote explosive and healthy root development.
🔧
Easy Setup & Maintenance
Designed with threaded fittings and snap-on pipes for a glue-free setup and easy reconfiguration.
🛡️
Heat-Reflective & Durable Construction
Heat-reflective silver polymer helps maintain cooler solution temperatures for optimal root health.
⚙️
Customizable Configurations
Offers numerous preconfigured kits and custom options to maximize your growing space.
Specifications
| Specification | Value |
|---|---|
| Number of pots | 24 |
| Number of rows | 4 |
| Kit total fluid volume (20L) | 105.7 gallons / 400 liters |
| Kit total fluid volume (36L) | 186.8 gallons / 707.2 liters |

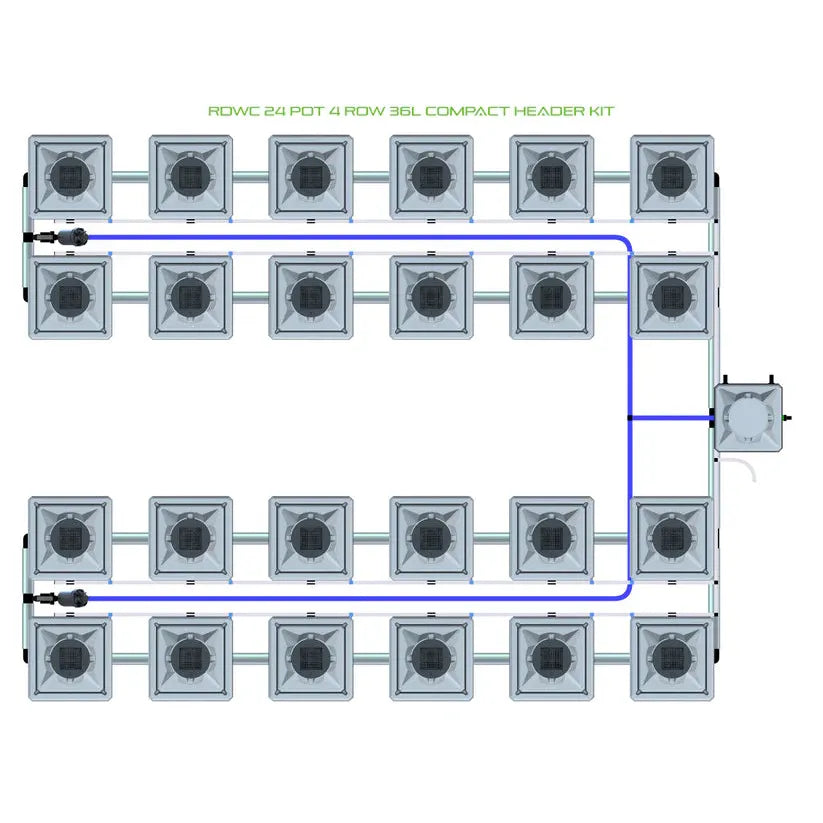

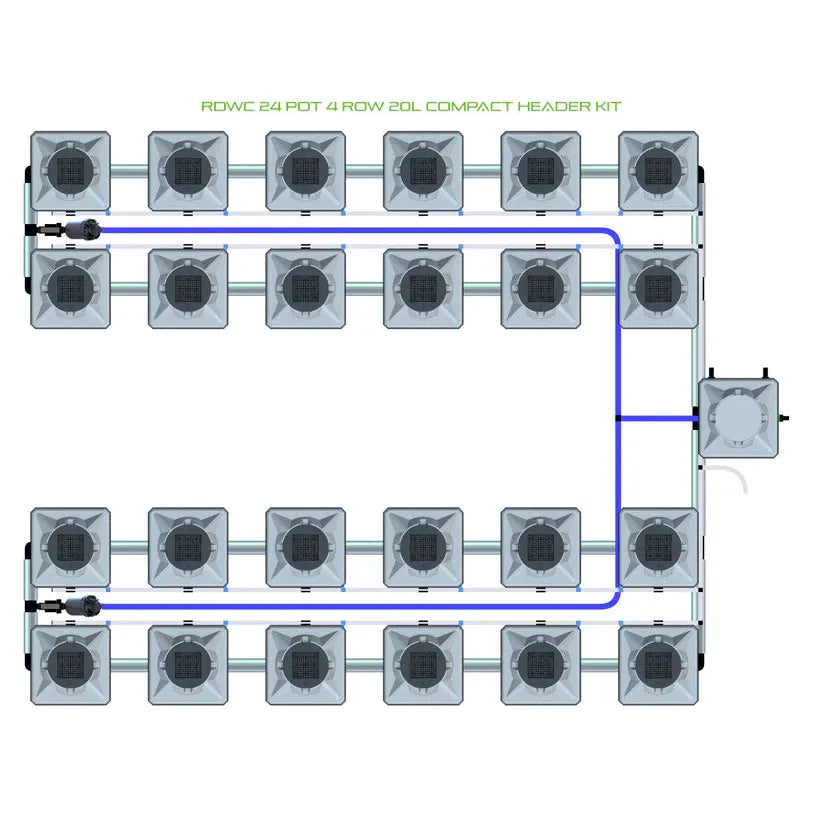

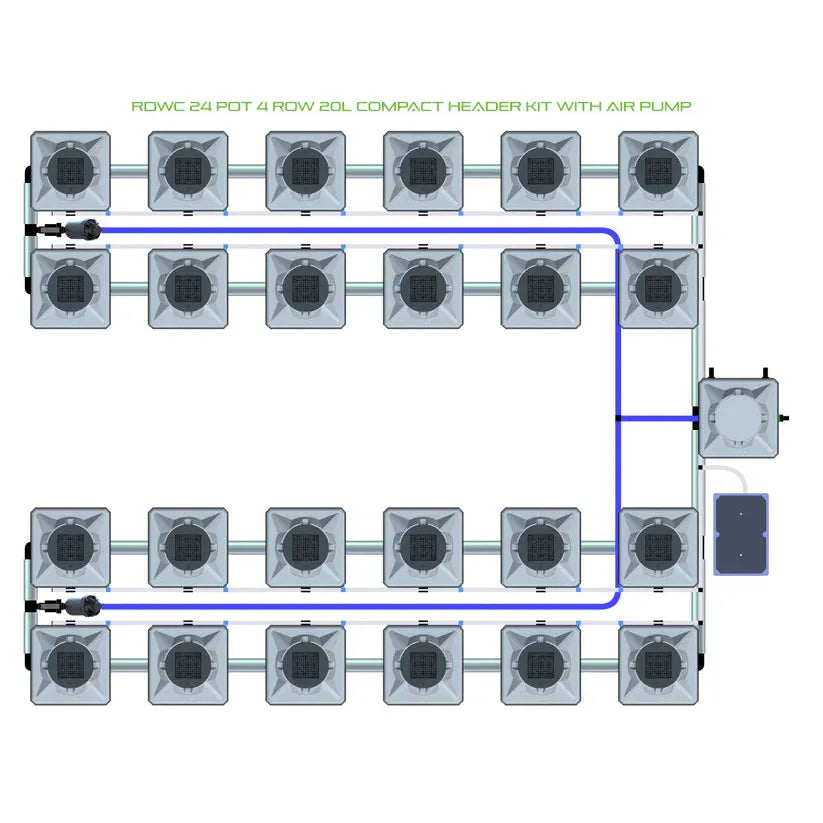

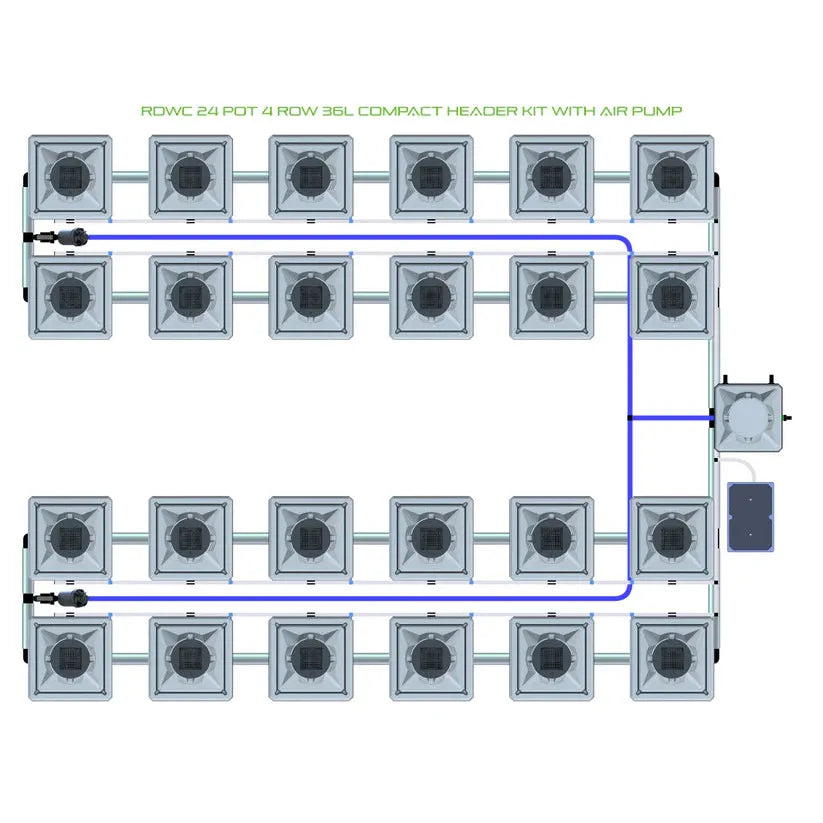

| Min. assembled size (Compact Header) | 20L: 98⅞" L x 66½" W 36L: 119⅝" L x 79⅛" W |
| Max. assembled size (Compact Header) | 20L: 146⅛" L x 123⅝" W 36L: 178¾" L x 144½" W |

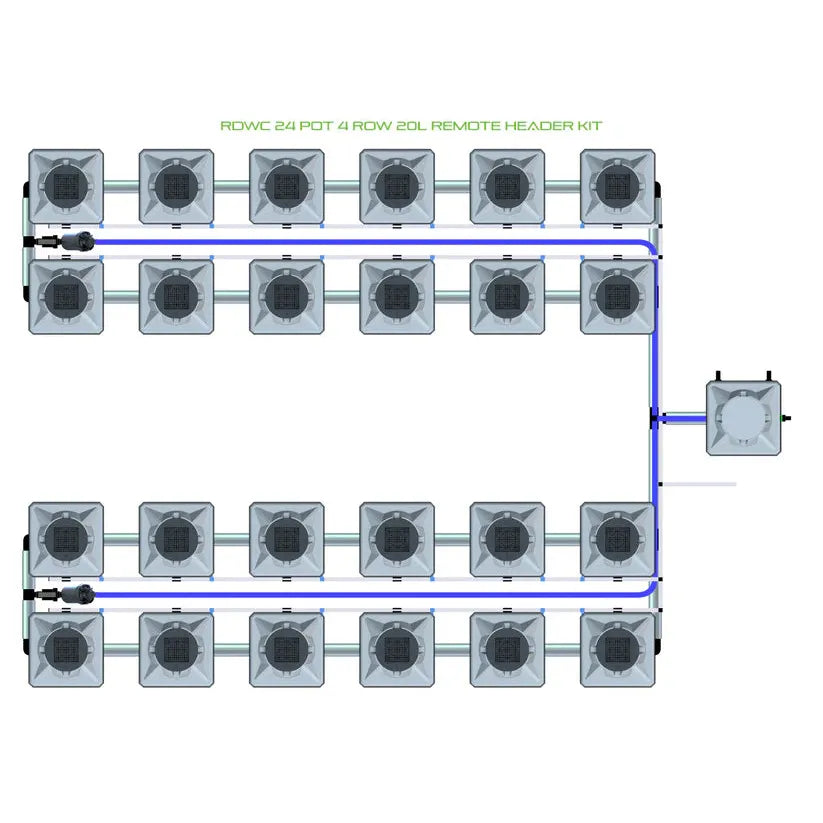

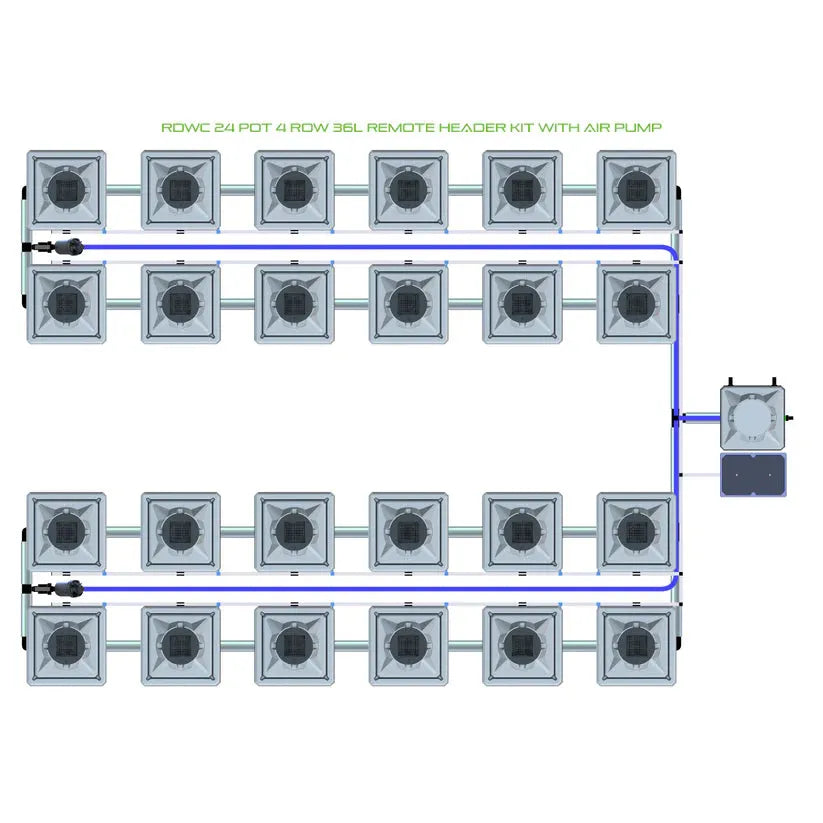

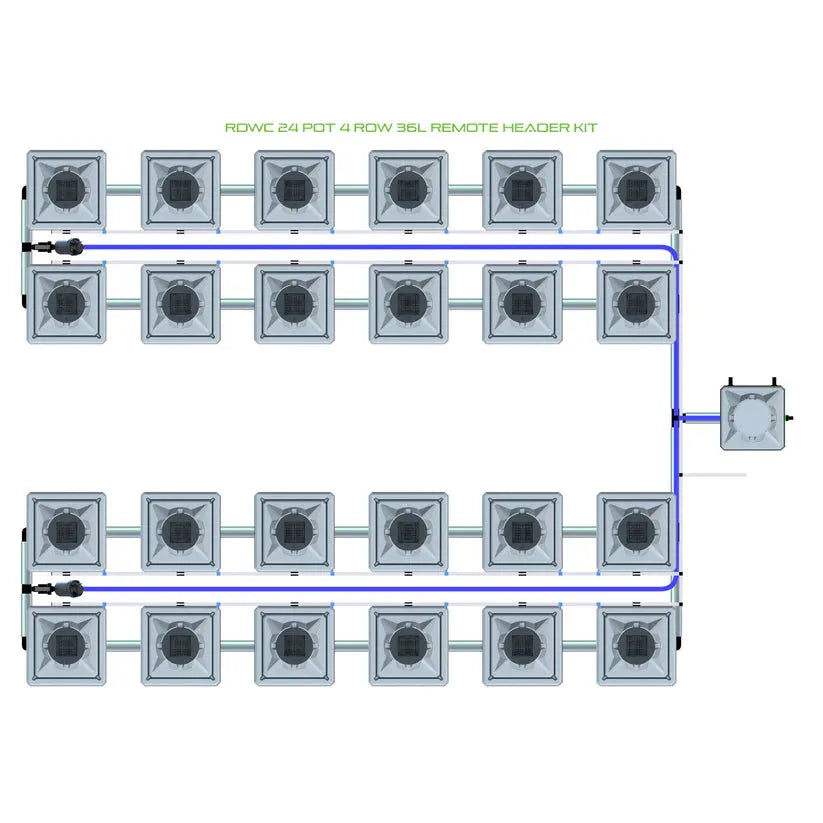

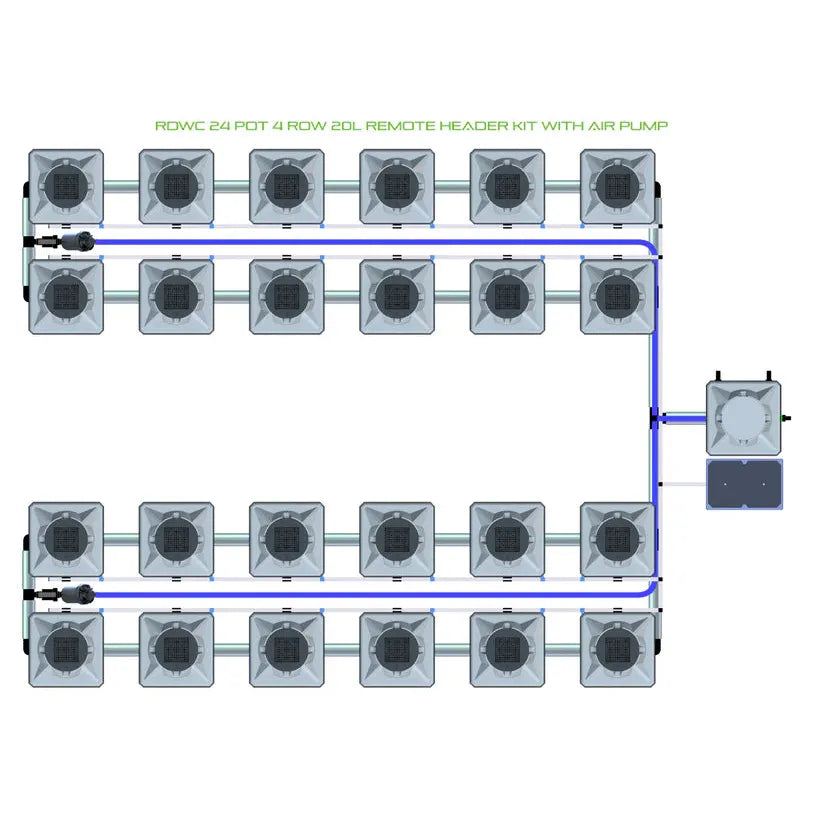

| Min. assembled size (Remote Header) | 20L: 102¾" L x 66½" W 36L: 123⅝" L x 79⅛" W |
| Max. assembled size (Remote Header) | 20L: 185⅜" L x 123⅝" W 36L: 218⅛" L x 144½" W |
| Water Pump Included (20L) | RDWC Circulation Water Pump 30: 500 GPH, 45 Watts |
| Water Pump Included (36L) | RDWC Circulation Water Pump 40: 700 GPH, 70 Watts |
| Air Pump (With Air Pump Option) | Air Pump 30: 79.3 gal/min (300 L/min), 275 watts |
| Air Pump (Without Air Pump Option) | Requires pump capable of 63.4 gal/min (240 L/min) |
Setup and Maintenance
System Setup Steps:
- Prepare Pots: Attach the necessary fittings to the pots.
- Connect the System: Use piping to connect the pots and the header pot to establish the recirculating network.
- Install Air System: Set up the air pump and connect it to the air rings in the pots.
- Integrate Pumps: Install the water pump for recirculation.
- Fill the System: Add water and your nutrient solution.
Maintenance Tips:
- Maintain water temperature between 64-68°F (18-20°C).
- Always add nutrients and allow the system to fully circulate before testing and adjusting pH/EC.
- When planting, use a substrate layer in the net pot, water the cutting, and fill the remaining space with your chosen medium.
- Use preventative solutions to maintain optimal root health and system cleanliness.
Support & Manuals
Warranty
The Alien Hydroponics RDWC system comes with a one-year manufacturer's warranty for your peace of mind.
FAQs
What is the main advantage of an RDWC system over a standard DWC?
An RDWC (Recirculating Deep Water Culture) system constantly circulates the nutrient solution throughout all the pots. This ensures stable pH, EC, and temperature levels across the entire system, while providing significantly more oxygen to the roots compared to a non-recirculating DWC setup. This leads to healthier plants and explosive growth. This is a great system for those looking to upgrade their RDWC hydroponic systems.
Is this system difficult to assemble?
Not at all. The entire Alien Hydroponics RDWC system is designed for a tool-free, no-glue setup. The threaded fittings and snap-on pipes make assembly quick and straightforward, allowing you to reconfigure or expand your system easily.
What size air pump do I need if I don't buy the kit with one?
For the 24-pot system, you'll need to supply an air pump capable of delivering at least 63.4 gallons (240 liters) of air per minute. This ensures the JET-STREAM A.I.R.™ rings can provide optimal oxygen levels to every plant.
How does this system help prevent common hydroponic issues?
The system's design directly addresses common problems. The patent-pending 2-inch Dual-Flow™ fittings are oversized and slotted to prevent root clogging, and the constant circulation maintains high oxygen levels, preventing root rot and nutrient lockout.
Can I expand this system later on?
Yes, the modular design of the Alien RDWC systems makes them fully scalable. You can add more pots and rows as your operation grows, allowing the system to evolve with your needs. We offer various configurations, from smaller 4-pot systems to massive 48-pot setups.
What's the difference between the Alien RDWC and the V-System?
The main difference is the oxygenation method. The RDWC system uses JET-STREAM A.I.R.™ rings and an air pump for oxygenation. The Alien V-System uses a venturi effect created by the water pump to draw air into the solution, eliminating the need for a separate air pump. Both are excellent high-performance systems.
