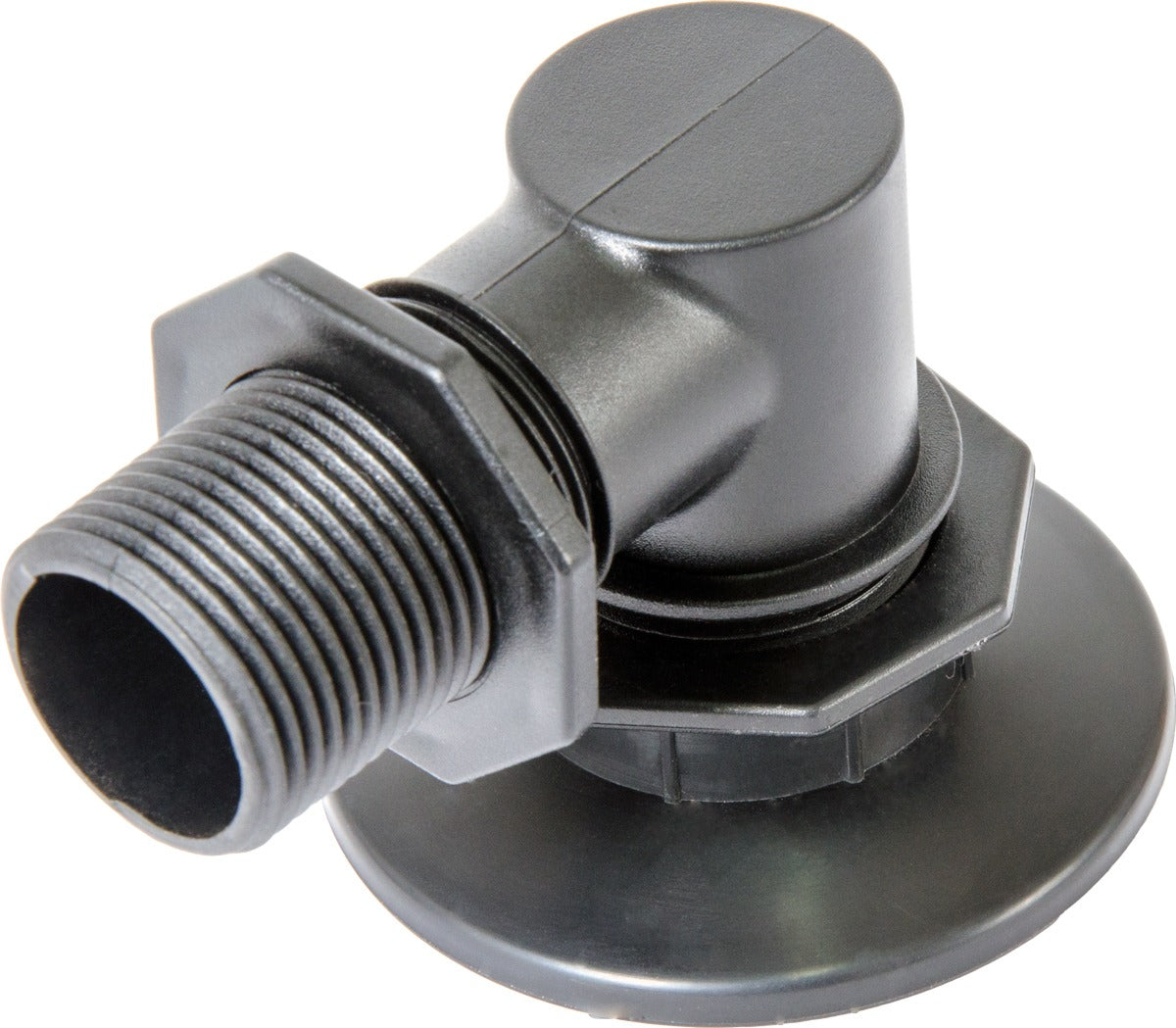

Black plastic pump adapter with threaded male connector and a wide, flat base.

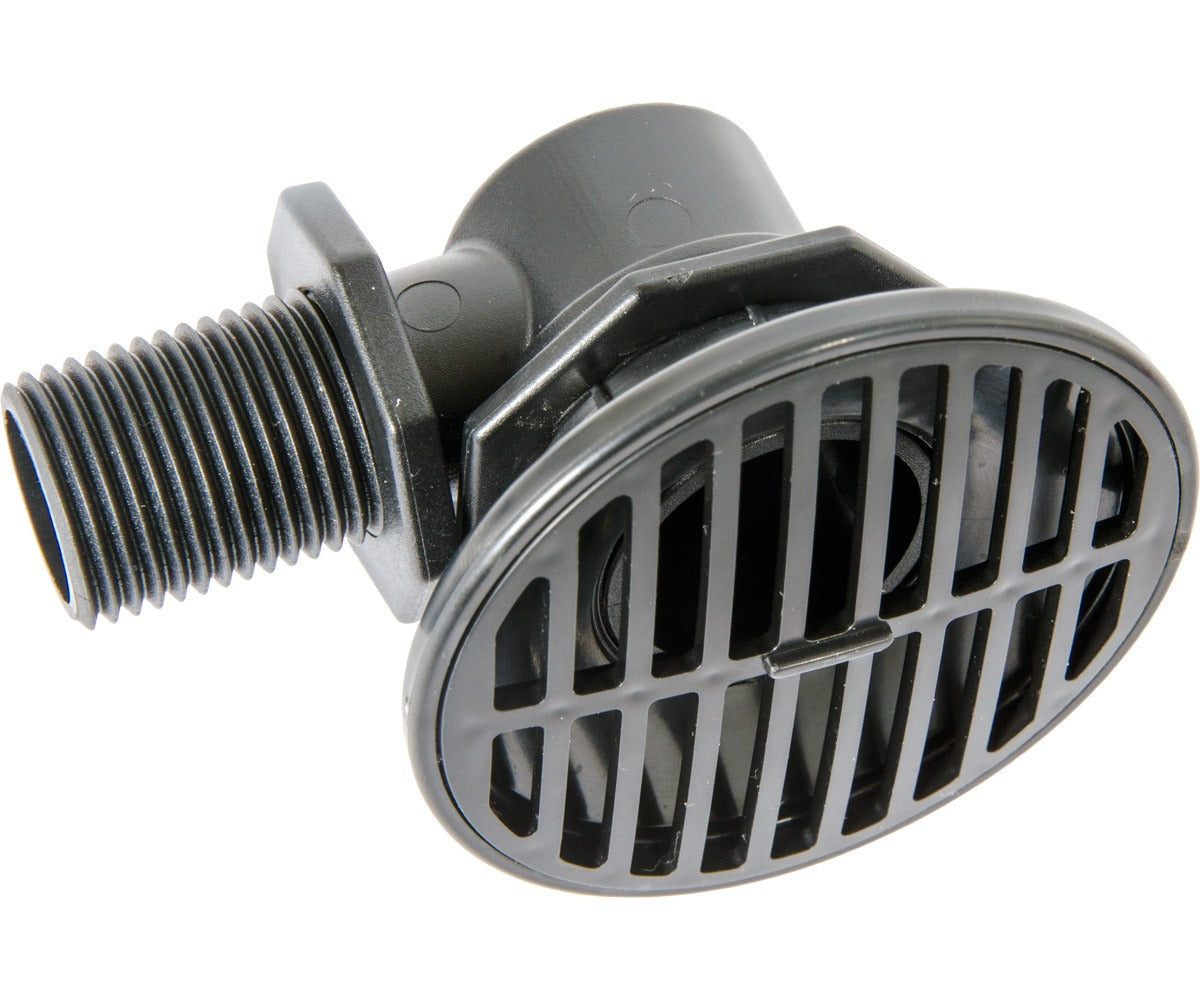

Black plastic pump adapter with threaded inlet and grill outlet.
Black plastic pump adapter with threaded male connector and a wide, flat base.
Black plastic pump adapter with threaded inlet and grill outlet.

Active Aqua Bottom Draw Pump Adapter - 1/2" Inlet Thread

Official Active Aqua Dealer Model: AAPBD075
$4.29 USD$3.97 USD$4.29 USD
 $4.29 USD
  • Drains reservoir fluid down to a 3/16 inch depth
  • Fits 1/2 inch threaded inline ports on 250 GPH and 400 GPH pump models
  • Adjustable lock height for custom drainage levels
  • View More Details

Earn 3 points for shopping and get $0.03 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 Rating 1935+ verified reviews
Secure Checkout SSL encrypted payments

Send Us a Message
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

Who This Is For

  • You are switching to a bottom draw setup because manually tipping heavy 100 gallon tanks to empty them is a recurring strain on your back
  • You are integrating this into your recirculating system because you need to fully drain your reservoirs without reaching for a separate sump pump

What We Found

  • The adjustable height lock is the real deal here because it lets you dial in the clearance for your specific tank bottom
  • We have found the leak-free seal holds up consistently even after multiple breakdown and cleaning cycles

What Users Say

  • Growers who stopped tilting their reservoirs by hand report that they save significant time during their weekly nutrient changes
  • Users who added this to their existing pumps say they stopped wasting time mopping up the last inch of liquid left in the tank

Active Aqua Bottom Draw Pump Adapter - 1/2" Inlet Thread

Draining a 100 Gallon Active Aqua 2.0 Black Reservoir never fully finishes with a standard submersible pump — there's always that last inch or two of water left sitting at the bottom, meaning you're either tipping heavy tanks or reaching for a separate sump pump just to complete the job. The Active Aqua Bottom Draw Pump Adapter eliminates that extra step by converting your existing 250 GPH or 400 GPH Active Aqua submersible pump into a bottom draw pump. If your 400 GPH model needs maintenance, it is also compatible with the Active Aqua Replacement Impeller; the adapter connects directly to the 1/2" threaded inline port on these compatible pumps — no additional hardware or sump pump required.

The adapter draws water from as low as 3/16" depth, so reservoirs and tanks drain down to virtually nothing in a single pass. An adjustable lock height lets you set the draw level precisely for your container, and the leak-free connection maintains a steady flow rate throughout the drain cycle. For growers managing multiple reservoirs, recirculating systems using the Active Aqua Grow Flow Expansion Outer Bucket, or large-capacity tanks, the Bottom Draw Adapter keeps maintenance fast and physically manageable without adding equipment to the setup.

Features

🔧
Converts Your Existing Pump

Attaches directly to the 1/2" threaded inline port of compatible Active Aqua submersible pumps — no sump pump purchase needed to fully drain your reservoir.

📏
3/16" Minimum Draw Depth

Draws water from as low as 3/16" depth, clearing reservoirs and tanks down to nearly dry without tilting or lifting heavy containers.

🔒
Adjustable Lock Height

Locking height adjustment lets you set the precise draw level for your specific container depth, giving you control over how far down the pump drains.

💧
Steady, Leak-Free Flow

Maintains a consistent flow rate throughout the drain cycle with a secure, leak-free connection to the pump's threaded port.

✅
250 & 400 GPH Compatible

Designed specifically for Active Aqua's 250 GPH and 400 GPH submersible pumps, with a 1/2" inlet thread for a secure, purpose-fit connection, compatible with the Active Aqua 1/2 inch Fill/Drain Fitting.

🏋️
No Heavy Lifting Required

Eliminate the need to tip, carry, or manually empty heavy reservoirs — the adapter handles complete drainage in place, reducing physical strain during nutrient changes.

Specifications

Specification Value
Compatible Pumps AAPW250 (250 GPH), AAPW400 (400 GPH)
Inlet Thread Size 1/2"
Minimum Draw Depth 3/16"
Unit Dimensions 7.0" L × 3.5" W × 1.1" H
Shipping Weight 0.63 lbs.

Frequently Asked Questions

Which Active Aqua pumps is this adapter compatible with? +

The Bottom Draw Pump Adapter is compatible with Active Aqua's 250 GPH and 400 GPH submersible pumps. It connects to the 1/2" threaded inline port found on both models. If you prefer a pump with this feature already integrated, consider the Active Aqua Grow Flow Bottom-Draw Pump.

How low can this adapter drain my reservoir? +

The adapter draws water from as low as 3/16" depth — effectively clearing reservoirs and tanks down to nearly empty without tilting or manually removing the remaining water. The adjustable lock height lets you fine-tune the draw level to suit your specific container geometry.

Do I need any additional tools or fittings to install the adapter? +

No additional tools or fittings are required. The adapter threads directly onto the 1/2" inline port of the compatible pump — installation is hand-tight and straightforward. No sealants or additional adapters are needed for a leak-free connection on supported Active Aqua models.

Can I use this adapter with non-Active Aqua pumps? +

The adapter is designed and rated specifically for Active Aqua's 250 GPH and 400 GPH submersible pumps. Compatibility with third-party pumps depends on whether the pump features a matching 1/2" threaded inline port — if your pump has that port, the adapter may physically fit, but performance and leak-free operation are only guaranteed on the supported Active Aqua models.

Will using the bottom draw adapter affect my pump's flow rate? +

The adapter is designed to maintain a steady flow rate throughout the drain cycle. Some minor reduction in peak flow is normal when drawing from very shallow water depths, as the pump has less water column to work with — but the adapter sustains consistent drainage performance down to the 3/16" minimum draw depth under normal operating conditions.

Is this adapter reusable across multiple reservoir changes? +

Yes — the Bottom Draw Pump Adapter is a durable fitting designed for repeated use. Simply unthread it from the pump after draining, rinse it clean, and reinstall it for the next reservoir change. Keeping it clean between uses helps maintain the leak-free seal and extends its service life.
