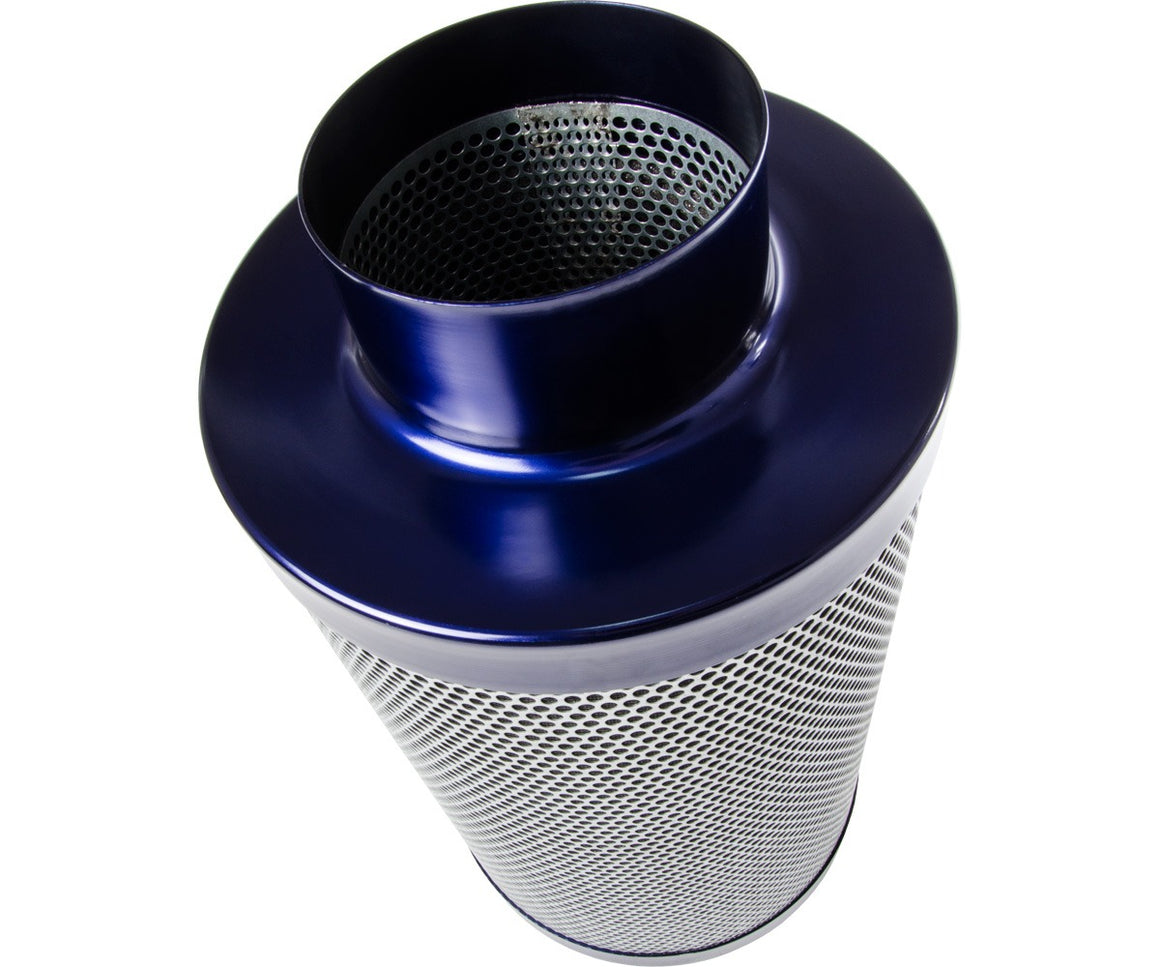

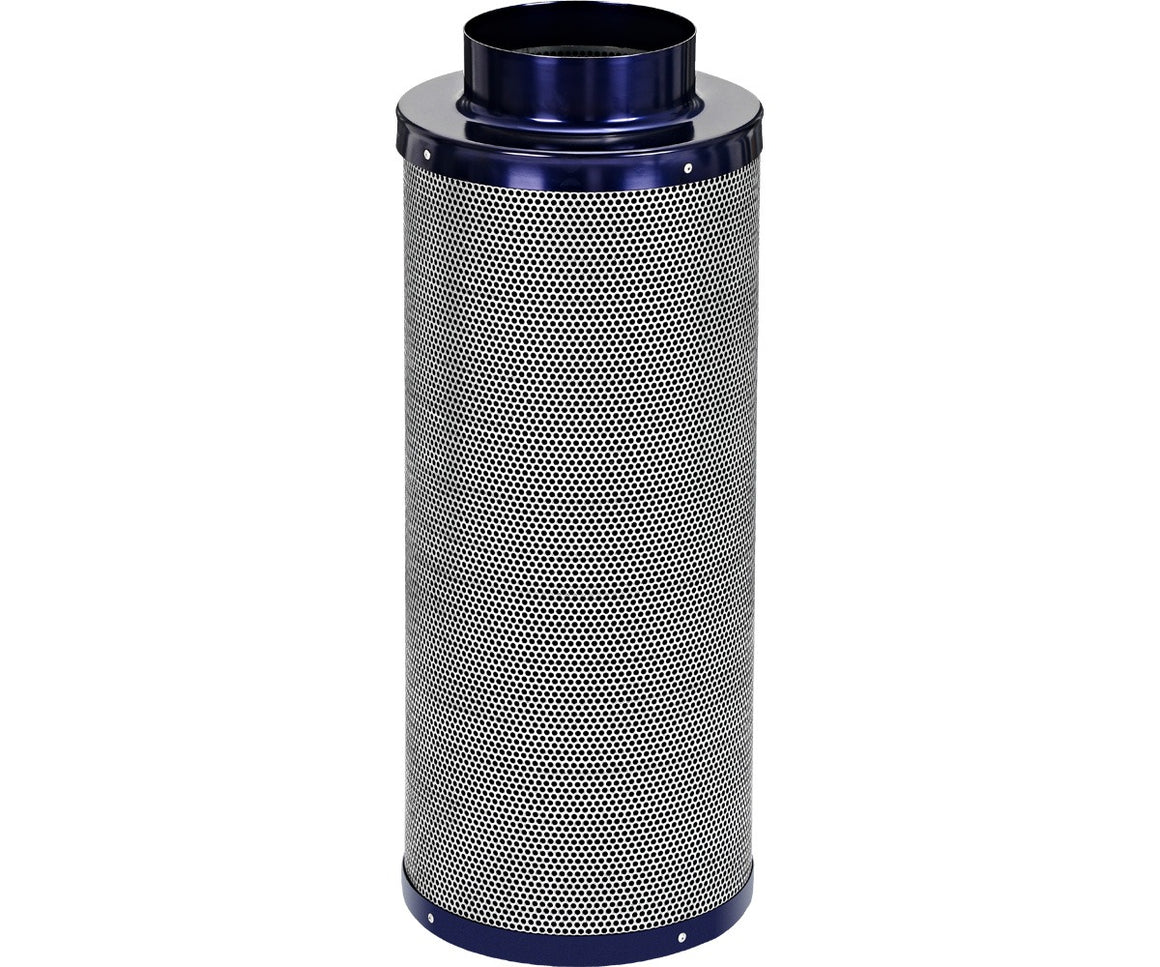

Active Air 6" x 24" Carbon Filter - 500 CFM

Both filters use the same virgin Australian granular carbon and 1.8" bed depth, but the 6" x 24" model is rated for 500 CFM versus 400 CFM for the 6" x 16" model. The additional body length increases carbon volume, which raises both the maximum airflow rating and the total odor adsorption capacity before breakthrough. If your inline fan is rated above 400 CFM or you want extended filter life between replacements, the 6" x 24" is the stronger choice.

Pair this filter with a 6" inline fan rated at or below 500 CFM for reliable odor control. Running a fan that exceeds the filter's CFM rating reduces air-to-carbon contact time and allows odor molecules to pass through before being fully adsorbed. A variable-speed fan gives you the flexibility to dial back airflow during peak odor periods — such as late flower — for more thorough filtration when it matters most.

Carbon filters are designed to work on the intake side of an inline fan — air is pulled through the carbon bed before passing through the fan and out of the space. This pull configuration is more efficient and better protects the fan motor from exposure to grow room particulates. Pushing air through the filter (placing the filter on the exhaust side) is possible but generally less effective and can reduce filter life by stressing the carbon bed under positive pressure.

The most reliable indicator is odor breakthrough — when you begin detecting grow room smells outside your exhaust despite the filter being in place, the carbon bed is saturated and the filter needs replacement. Under typical conditions this occurs within one to two years. High humidity levels, heavy odor loads, or running the fan at maximum speed continuously will shorten that window — maintaining proper room humidity and keeping the pre-filter clean are the best ways to extend carbon filter life.

The pre-filter sleeve can be removed, rinsed under running water, and reinstalled once fully dry — extending its life before replacement is needed. Inspect it every two to four weeks depending on your grow room's particulate load. A visibly discolored or clogged pre-filter restricts airflow and forces the carbon bed to work harder; keeping it clean is one of the lowest-effort ways to protect your investment in the carbon filter itself.

Yes — sustained high humidity (above 70% RH) is one of the primary factors that shortens carbon filter life. Water molecules compete with odor molecules for adsorption sites on the carbon surface, progressively reducing the filter's effectiveness. Keeping your grow room within the recommended humidity range for your crop's current stage not only benefits plant health but also helps you get the full rated two-year lifespan from this filter.
