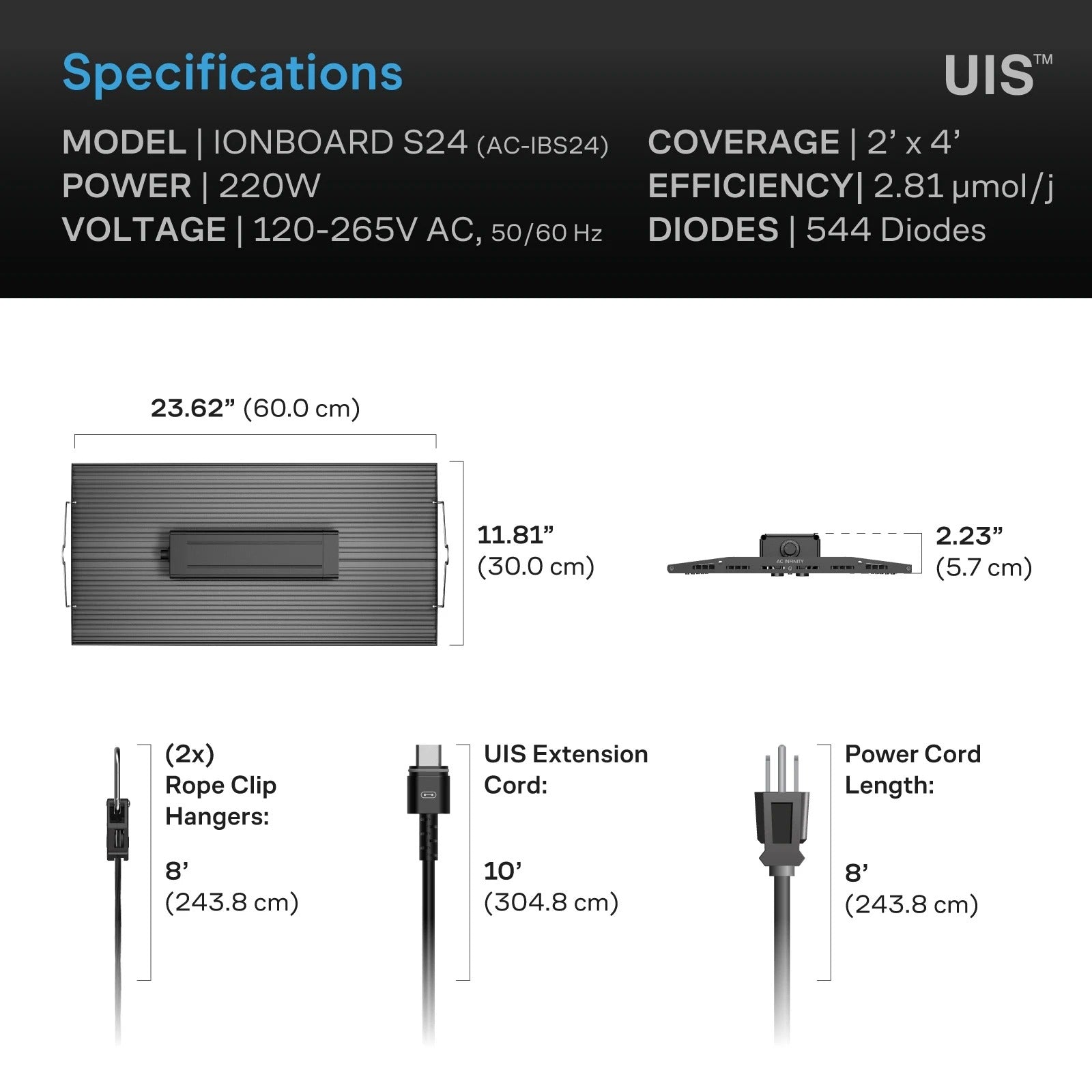

AC Infinity IonBoard S24 LED grow light with dimensions, coverage, and accessory details.
AC Infinity dimmable controller with precise digital dimming, aluminum body, and ETL certification.
AC Infinity Ecosystem diagram: CLOUDRAY fan, CLOUDLINE fan, IONBOARD grow light, UIS controller, UIS plug.
AC Infinity IONBOARD S24 200W LED grow light suspended in a grow tent.

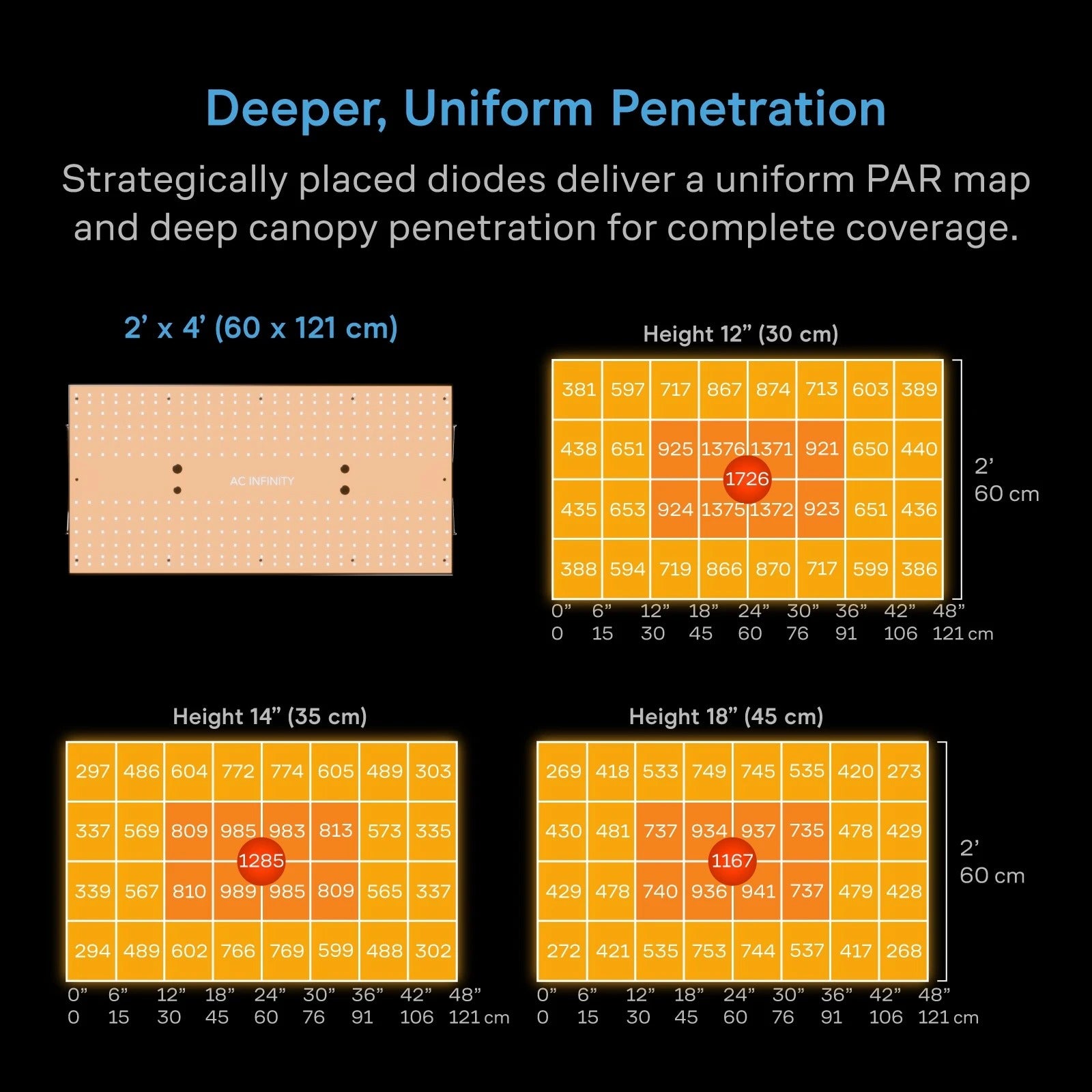

AC Infinity Ionboard S24 LED grow light PAR map showing uniform canopy penetration at different heights.

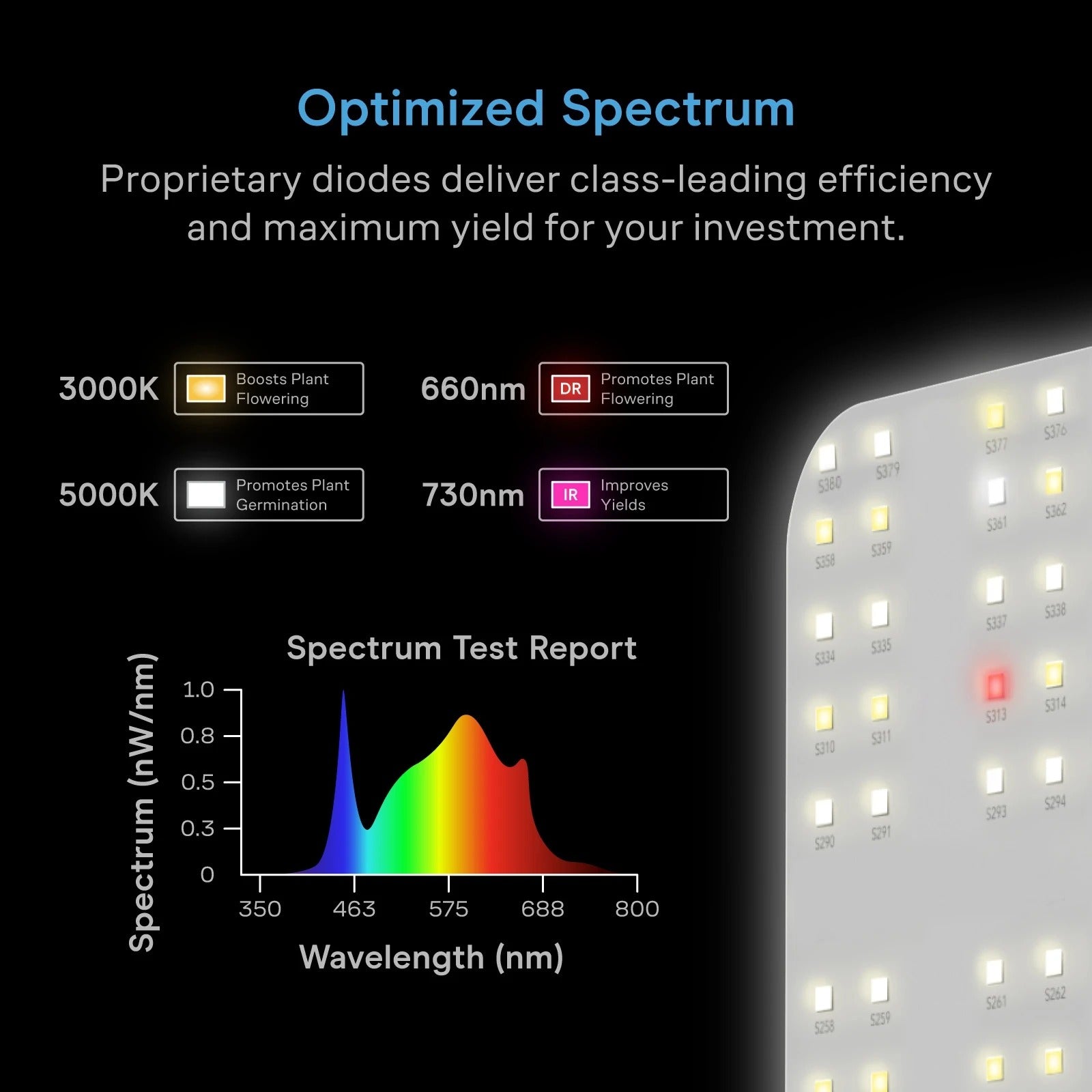

AC Infinity Ionboard S24 LED grow light: optimized spectrum with 3000K, 5000K, 660nm, 730nm, and spectrum test report.
Graph showing Photosynthetically Active Radiation (PAR) spectrum of a grow light, with peaks in blue and red wavelengths.
AC Infinity Ionboard S24 200W LED grow light on a black textured mat.
AC Infinity IonBoard S24 LED grow light with dimensions, coverage, and accessory details.
AC Infinity dimmable controller with precise digital dimming, aluminum body, and ETL certification.
AC Infinity Ecosystem diagram: CLOUDRAY fan, CLOUDLINE fan, IONBOARD grow light, UIS controller, UIS plug.
AC Infinity IONBOARD S24 200W LED grow light suspended in a grow tent.
AC Infinity Ionboard S24 LED grow light PAR map showing uniform canopy penetration at different heights.
AC Infinity Ionboard S24 LED grow light: optimized spectrum with 3000K, 5000K, 660nm, 730nm, and spectrum test report.
Graph showing Photosynthetically Active Radiation (PAR) spectrum of a grow light, with peaks in blue and red wavelengths.

AC Infinity Ionboard S24 220W Full Spectrum LED Grow Light

Official AC Infinity Dealer Model: AC-IBS24
$269.00 USD$249.00 USD$269.00 USD
 $269.00 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • 220W power draw delivers 1726 PPFD across a 2 by 4 ft.
  • 544 algorithmic diodes combine warm white, cool white, red, and far-red
  • IP65 waterproof rating with black anodized aluminum passive cooling
  • 2-year limited manufacturer warranty from the original date of purchase
  • View More Details
Shipping calculated at checkout

Earn 249 points for shopping and get $2.49 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Over 50,000 Customers Trust Trimleaf
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Over 50,000 CustomersTrust Trimleaf
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Highlights

  • You are lighting a 2 by 4 ft.
  • You are adjusting light intensity by stage because the dimmer steps from 20% to 100% to match growth.

  • The warm 3000K and cool 6500K white diodes form a broad photosynthetic base for every stage of growth.

  • Growers running this light in humid tents say the IP65 seal keeps out moisture and dust over time.
  • Users pairing the board with a smart controller say they easily set up scheduling and Wi-Fi app control.

AC Infinity Ionboard S24 220W Full Spectrum LED Grow Light

Square lights leave the ends of a 2×4 ft. tent underlit, so plants at either end finish behind the ones in the middle. The AC Infinity Ionboard S24 is shaped for that footprint: an 11.81 × 23.62 in. board with 544 algorithmically spaced diodes delivers 1726 PPFD at 220W, evenly from end to end of a 2×4 grow tent.

Warm 3000K and cool 6500K white diodes, plus 660 nm red and 730 nm far-red, give the S24 a full spectrum for germination, veg and flower at 2.65 µmol/J efficiency. The black anodized aluminum unibody board cools passively with no fans or noise, and its IP65 seal keeps out moisture and dust in humid tents. The separate IB-200 driver has a dimmer knob that sets intensity from 20% to 100% in 20% steps.

Turn the knob to UIS and the S24 hands control to an AC Infinity smart controller (sold separately). That adds scheduling, automation and Wi-Fi app control across the AC Infinity ecosystem.

Features

AC Infinity Ionboard S24 part of a complete grow tent ecosystem
AC Infinity Ionboard S24 connected to a smart controller
💡
544 Full-Spectrum Diodes

3000K and 6500K white plus 660 nm red and 730 nm far-red at 2.65 µmol/J.

📏
Even 2×4 Coverage

Rectangular board delivers 1726 PPFD end to end without hotspots.

🎚️
Dimmer Knob Driver

Set intensity from 20% to 100% in 20% steps to match each growth stage.

📱
UIS™ Compatible

Pair with a UIS smart controller for schedules, automation, and Wi-Fi app control.

❄️
Silent Passive Cooling

Black anodized aluminum board dissipates heat with no fans or noise.

💧
IP65 Unibody Build

Sealed against moisture and dust for humid tents, rated for 50,000 hours.

What's Included

  • 1x Ionboard S24 LED Grow Light
  • 1x LED Driver
  • 2x Rope Clip Hangers
  • 2x Stainless Steel Hanging Hooks
  • 1x UIS M-M Cord
  • 4x Hook and Loop Ties
  • 1x Wire Tie Set

Specifications

Specification Value
Light Dimensions 11.81 × 23.62 in. (30.0 × 60.0 cm)
LED Board Thickness 0.43 in. (1.1 cm)
Driver Dimensions 8.62 × 1.57 in. (21.9 × 4.0 cm)
Coverage 2 × 4 ft.
Diodes AC Infinity Proprietary Diodes
Chip Count 544
Spectrum 660 nm, 730 nm, 3000K, 6500K
Efficiency 2.65 µmol/J
PPFD 1726 µmol/m²/s
Wattage 220 W
LED Driver AC Infinity IB-200
Controller Dimmer Knob (20–100%, 20% Steps)
Voltage 100–277V AC
Frequency 50/60 Hz
Amps 1.84 A @ 120V | 0.92 A @ 240V | 0.80 A @ 277V
Power Connector Type US Plug (NEMA 1-15 Type-A)
Waterproof Rating IP65
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
Life Expectancy 50,000 Hours

Spectrum

AC Infinity Ionboard S24 full spectrum LED grow light spectrum chart

The Ionboard S24 builds its spectrum from 544 full-spectrum diodes. Warm 3000K and cool 6500K white channels form a broad photosynthetic base for every growth stage. 660 nm deep red diodes support flowering and fruiting, and 730 nm far-red works with that red to round out the spectrum, delivering consistent coverage across the full 2 × 4 ft. footprint.

Warranty

The AC Infinity Ionboard S24 is covered by a 2-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

What size grow tent is the Ionboard S24 for? +

The Ionboard S24 is shaped for a 2 × 4 ft. footprint, a direct match for the AC Infinity CLOUDLAB 642. For a square 3 × 3 ft. space with more intensity, step up to the Ionboard S33.

How do I hang the Ionboard S24? +

Hang the included steel hooks over your tent's support beams, then, while supporting the light, bend the hook ends into the slotted holes on each end cap. You can also attach the hooks to the included rope clip hangers for adjustable height.

How high should I hang the Ionboard S24 above my plants? +

AC Infinity's starter guide recommends about 1.5 ft. above the canopy, with intensity at 40% for seedlings, 80% for veg and 100% for flower. If you prefer a fixed position, hang it at peak height and run it at 100% throughout. Watch your plants' response and adjust as needed.

How does the dimmer knob work? +

The knob on the LED driver sets brightness from 20% to 100% in 20% steps. Turning it to the UIS position switches the light off, or passes control to a connected AC Infinity smart controller for scheduling and automation.

What does the IP65 rating mean for a grow light? +

IP65 means the board is dust-tight and protected against low-pressure water jets from any direction. That makes the Ionboard S24 well suited to high-humidity grow tents and cultivation rooms.

What's the actual power draw of this light? +

The Ionboard S24 draws 220W at full brightness: 1.84 A at 120V, 0.92 A at 240V and 0.80 A at 277V. Dimming with the knob or a smart controller reduces power use for seedlings and veg.

How does this light integrate with other AC Infinity gear? +

The S24 is part of the UIS™ platform, so a UIS smart controller can program it alongside inline fans, humidifiers and other devices. To learn more about building a complete environment, check out our in-depth guide to the AC Infinity ecosystem.
