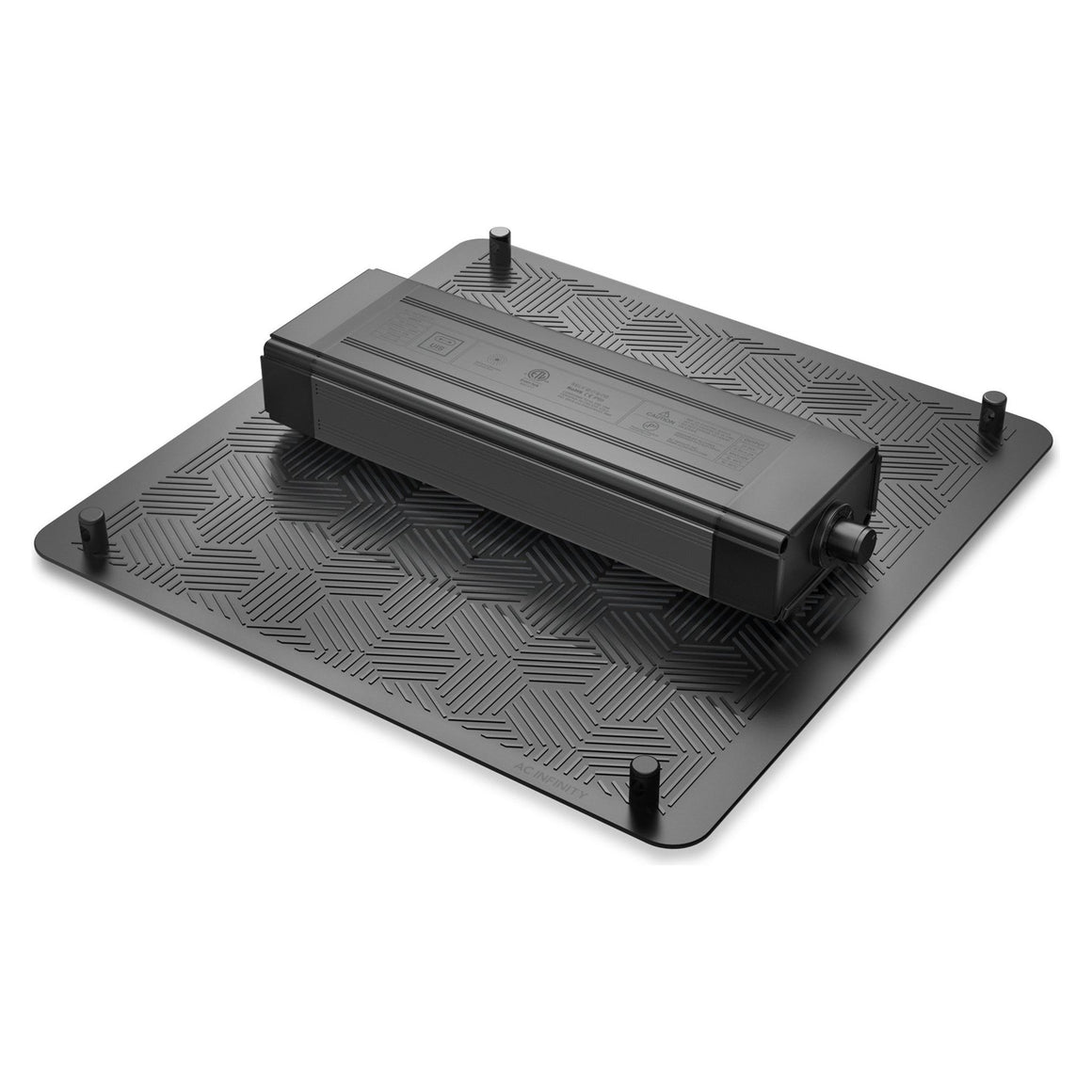

AC Infinity IonBoard S22 LED grow light on a black patterned base with white background.
UIS Infinity Ionboard S22 LED Grow Light, 115W, 2x2ft coverage, dimmable, 272 diodes.

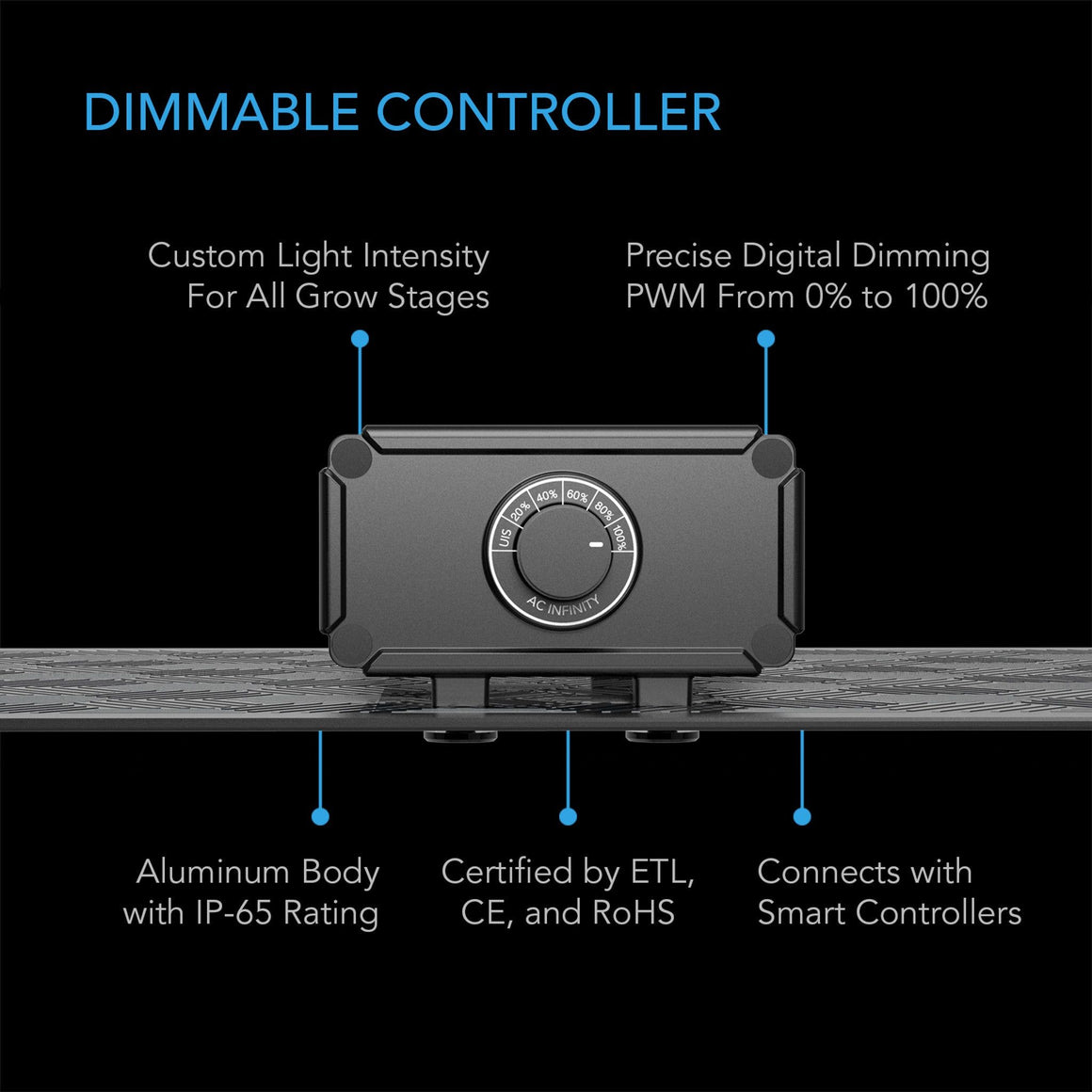

AC Infinity dimmable LED grow light controller with digital dimming, aluminum body, and ETL certification.

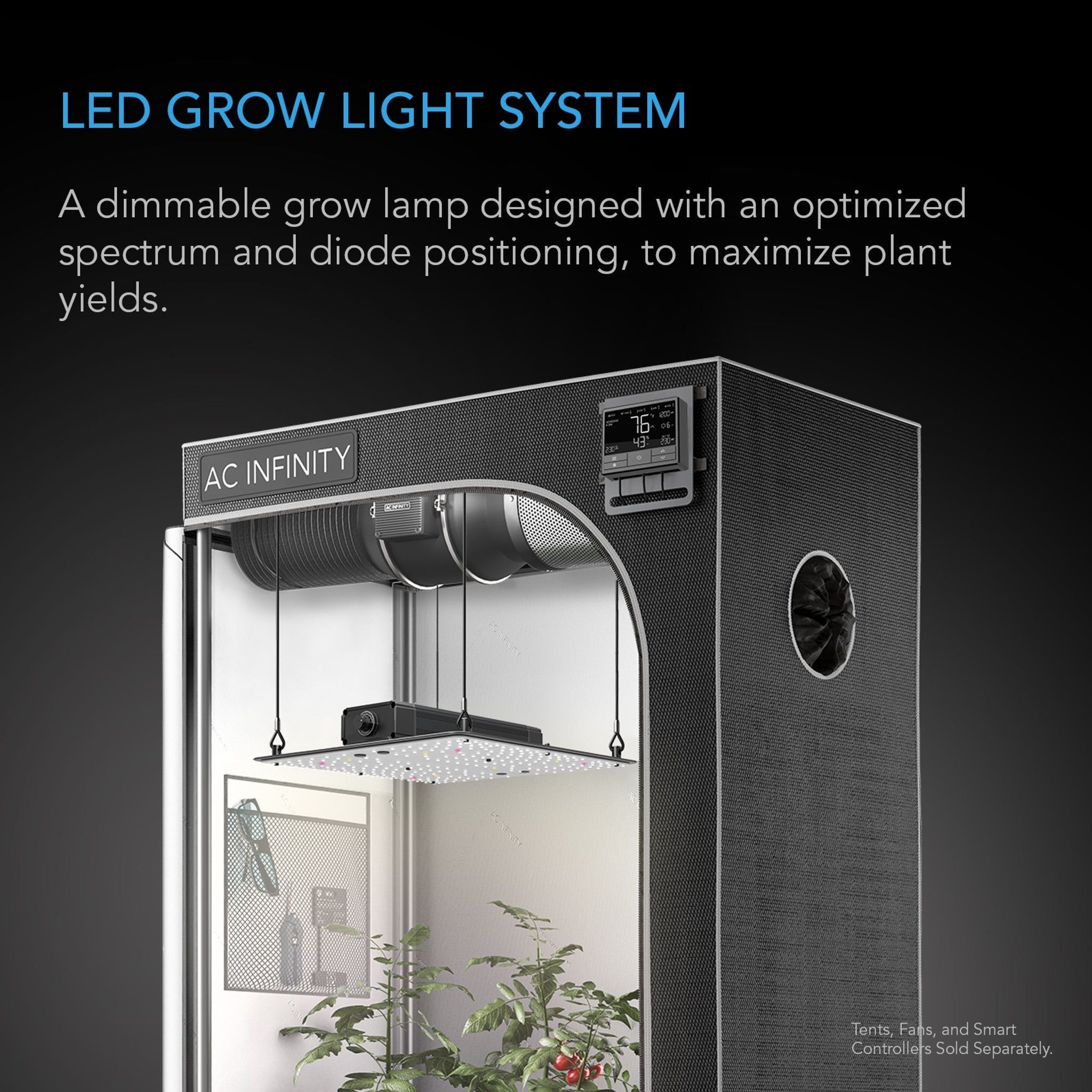

AC Infinity Ionboard S22 LED grow light inside a tent, with plants and a controller.

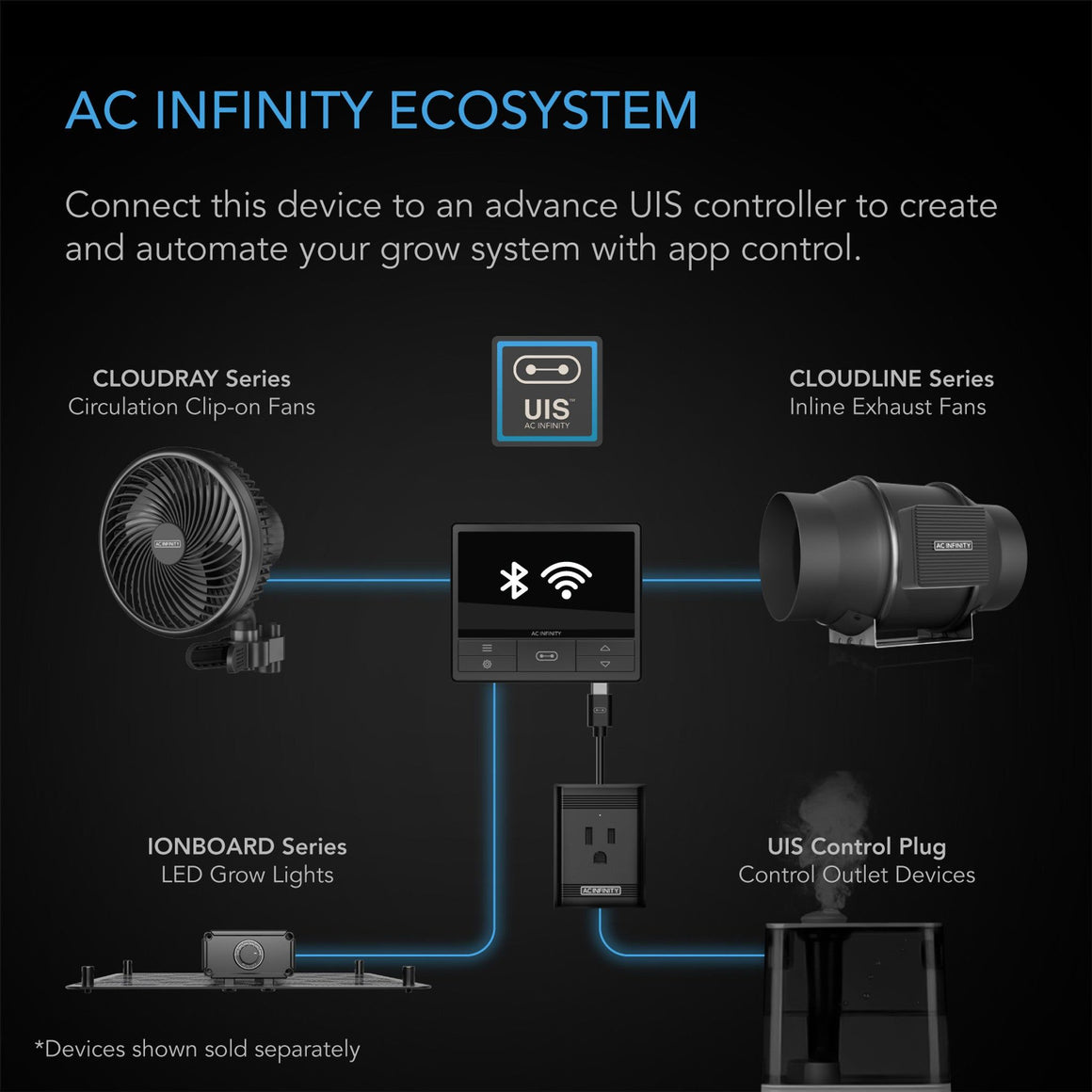

AC Infinity ecosystem diagram with controller, fan, exhaust, grow light, and control plug.

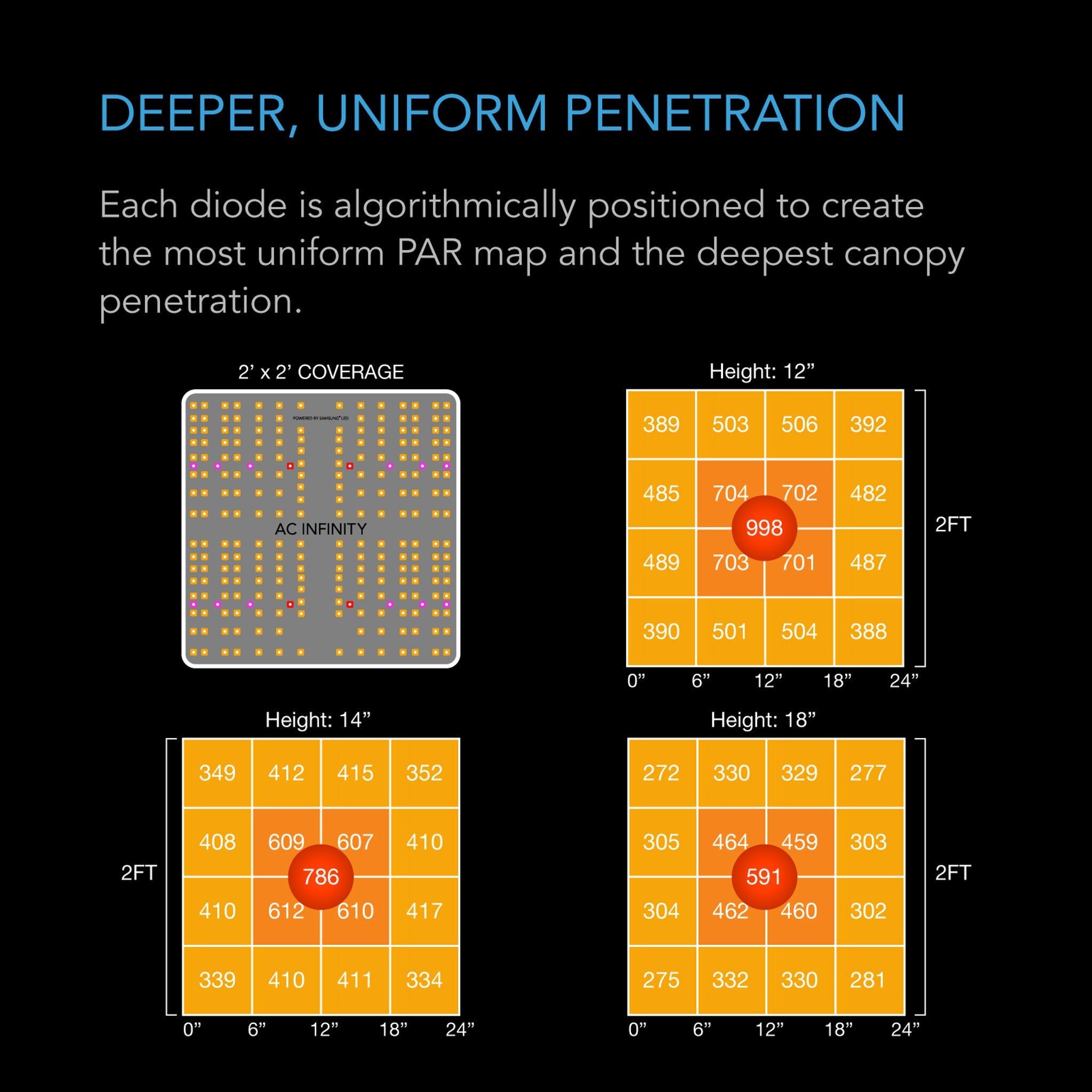

AC Infinity S22 LED grow light PAR map at 12", 14", and 18" heights.

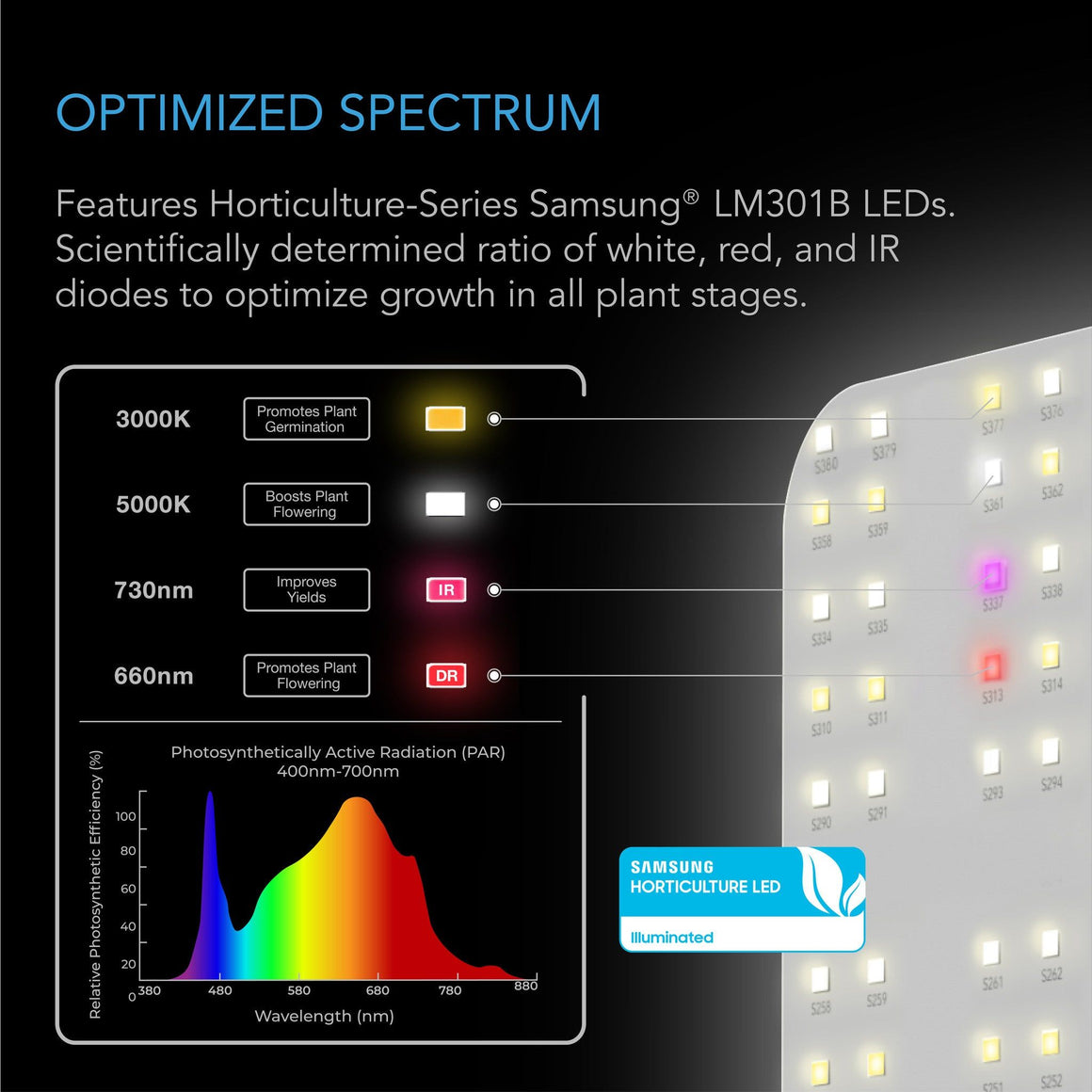

Samsung LM301H horticultural LEDs: optimized spectrum for plant growth, showing PAR graph.
PAR spectrum of AC Infinity Ionboard S22 grow light showing peak efficiency at blue and red wavelengths.
AC Infinity IonBoard S22 LED grow light on a black patterned base with white background.
UIS Infinity Ionboard S22 LED Grow Light, 115W, 2x2ft coverage, dimmable, 272 diodes.
AC Infinity dimmable LED grow light controller with digital dimming, aluminum body, and ETL certification.
AC Infinity Ionboard S22 LED grow light inside a tent, with plants and a controller.
AC Infinity ecosystem diagram with controller, fan, exhaust, grow light, and control plug.
AC Infinity S22 LED grow light PAR map at 12
Samsung LM301H horticultural LEDs: optimized spectrum for plant growth, showing PAR graph.
PAR spectrum of AC Infinity Ionboard S22 grow light showing peak efficiency at blue and red wavelengths.

AC Infinity Ionboard S22 115W Full Spectrum LED Grow Light

Official AC Infinity Dealer Model: AC-IBS22
$169.00$159.00$169.00
 $169.00
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • 115W full spectrum LED delivers 1098 PPFD across a 2 by 2 foot coverage area.
  • 272 Samsung LM301H diodes operate at 2.7 micromols per joule efficiency.
  • IP65 waterproof unibody build protects against moisture and dust in humid tents.
  • 2-year limited manufacturer warranty from the original date of purchase.
  • View More Details
Shipping calculated at checkout

Earn 159 points for shopping and get $1.59 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Over 50,000 Customers Trust Trimleaf
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Questions? Talk to a specialist.

Mon to Fri, 9am to 5pm PST

Call (360) 800-5535
  • Over 50,000 CustomersTrust Trimleaf
  • Transparent PricingBacked w/ price match guarantee
  • 4.8/5 Top Quality Store on Google
  • Secure CheckoutSSL encrypted payments

Send Us a Message

Are you looking for a quote?
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Highlights

  • You are lighting a compact 2 by 2 foot tent because cheap panels leave the corners dim and the center scorched.
  • You are automating your daily lighting schedules because you want your setup connected to a smart controller.

  • The dimmer knob sets intensity from 20% to 100% in 20% steps to match each growth stage.
  • The black anodized aluminum unibody board dissipates heat silently with no fans.
  • Algorithmically spaced diodes deliver 1098 PPFD across the canopy without hotspots.

  • Growers using the dimmer knob report matching light intensity to delicate seedlings without burning new growth.
  • Users pairing the board with a smart controller say they appreciate the automated Wi-Fi app scheduling.

AC Infinity Ionboard S22 115W Full Spectrum LED Grow Light

Compact 2×2 ft. tents leave no room for a hot, oversized light, but cheap panels often leave the corners dim and the center scorched. The AC Infinity Ionboard S22 fits the space exactly: an 11.81 × 11.81 in. board with 272 algorithmically spaced Samsung LM301H diodes delivers 1098 PPFD at 115W. Light spreads evenly across the canopy without hotspots.

A blend of 3000K and 6500K white diodes with 660 nm red and 730 nm far-red gives the S22 a full spectrum for germination, veg and flower, at 2.7 µmol/J efficiency. The black anodized aluminum unibody board dissipates heat silently with no fans, and its IP65 seal protects against moisture and dust in humid tents. The separate IB-150 driver has a dimmer knob that sets intensity from 20% to 100% in 20% steps.

Turn the knob to UIS and the S22 hands control to an AC Infinity smart controller such as the Smart Controller 69 Pro (sold separately). That adds scheduling, automation and Wi-Fi app control alongside the rest of your AC Infinity equipment. It's one of the most compact options in our LED grow lights lineup for small tents.

Features

AC Infinity Ionboard S22 LED grow light UIS ecosystem integration
AC Infinity Ionboard S22 115W LED grow light detail
AC Infinity Ionboard S22 LED grow light connected to a smart controller
AC Infinity Ionboard S22 115W full spectrum LED grow light
💡
272 Samsung LM301H Diodes

Full-spectrum white, 660 nm red, and 730 nm far-red at 2.7 µmol/J efficiency.

📏
Even 2×2 Coverage

Algorithmically spaced diodes deliver 1098 PPFD across the canopy without hotspots.

🎚️
Dimmer Knob Driver

Set intensity from 20% to 100% in 20% steps to match each growth stage.

📱
UIS™ Compatible

Pair with a UIS smart controller for schedules, automation, and Wi-Fi app control.

❄️
Silent Passive Cooling

Black anodized aluminum board dissipates heat with no fans or noise.

💧
IP65 Unibody Build

Sealed against moisture and dust for humid tents, rated for 50,000 hours.

What's Included

  • 1x Ionboard S22 LED Grow Light
  • 1x LED Driver
  • 2x Rope Clip Hangers
  • 2x Stainless Steel Hanging Hooks
  • 1x UIS M-M Cord
  • 4x Hook and Loop Ties
  • 1x Wire Tie Set

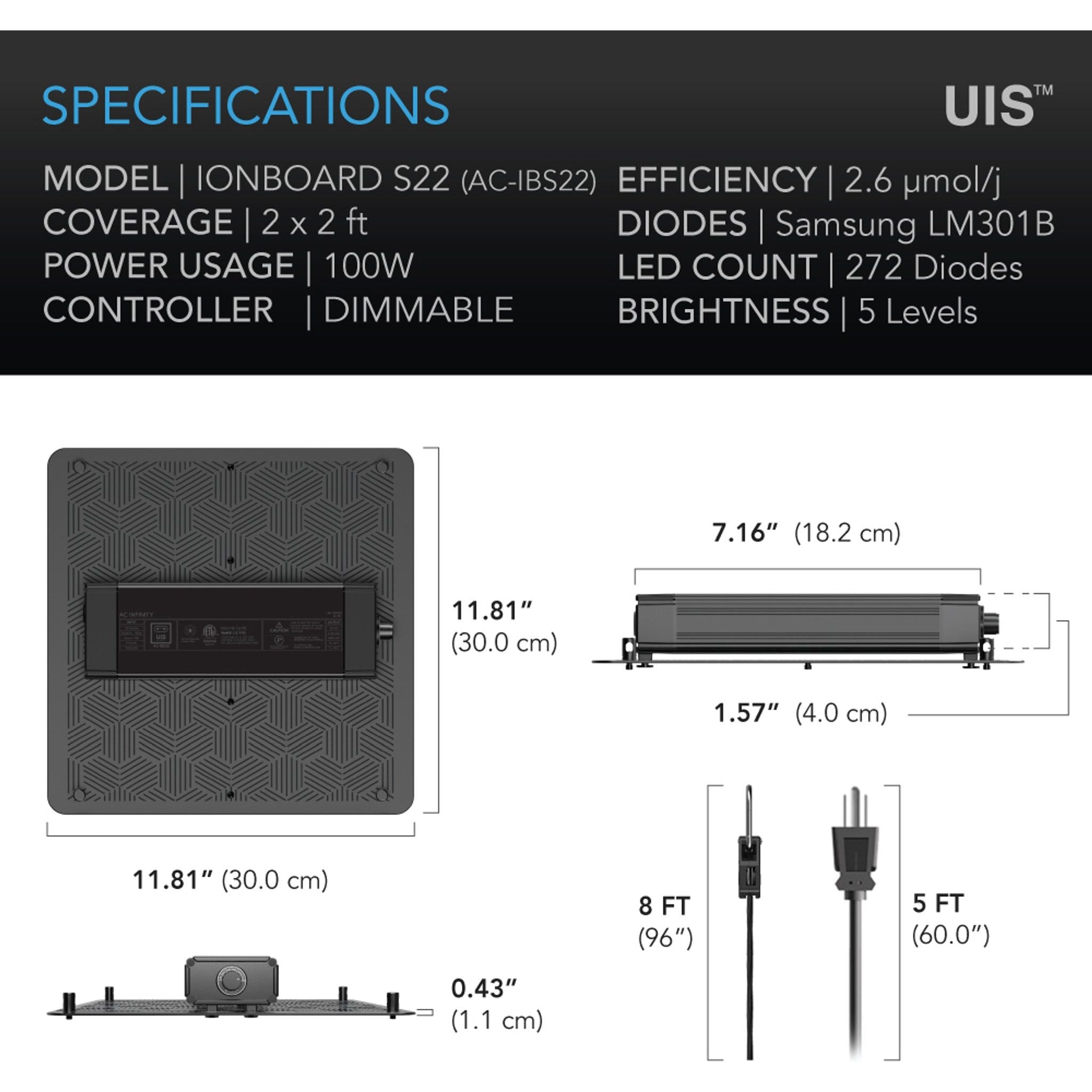

Specifications

Specification Value
Light Dimensions 11.81 × 11.81 in. (30.0 × 30.0 cm)
LED Board Thickness 0.43 in. (1.1 cm)
Driver Dimensions 7.16 × 1.57 in. (18.2 × 4.0 cm)
Coverage 2 × 2 ft.
Diodes Samsung LM301H
Chip Count 272
Spectrum 660 nm, 730 nm, 3000K, 6500K
Efficiency 2.7 µmol/J
PPFD 1098 µmol/m²/s
Wattage 115 W
LED Driver AC Infinity IB-150
Controller Dimmer Knob (20–100%, 20% Steps)
Voltage 100–277V AC
Frequency 50/60 Hz
Amps 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V
Power Connector Type US Plug (NEMA 1-15 Type-A)
Waterproof Rating IP65
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
Life Expectancy 50,000 Hours

Spectrum

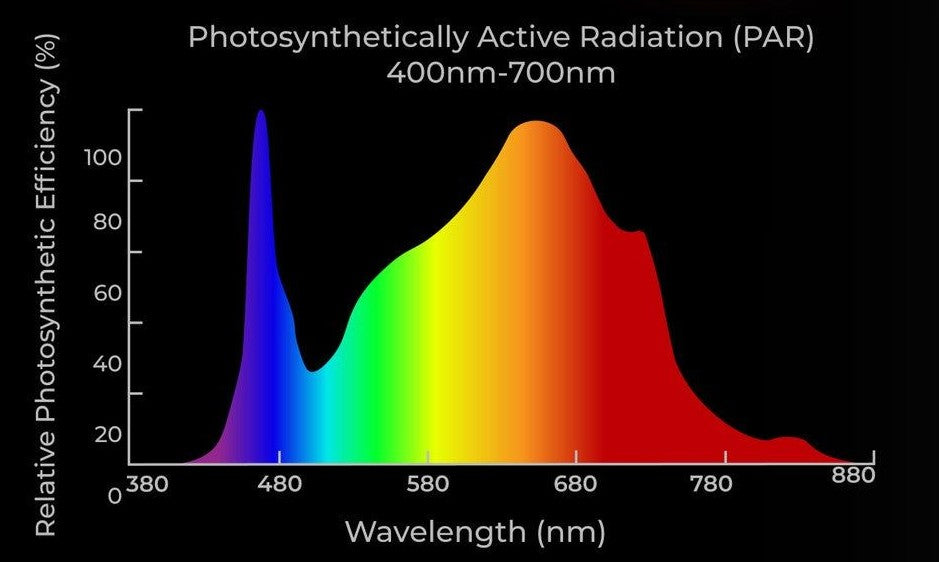

AC Infinity Ionboard S22 full spectrum LED grow light spectrum chart

The Ionboard S22 builds its spectrum from 272 Samsung LM301H diodes. Warm 3000K and cool 6500K white channels form a broad photosynthetic base for every growth stage. 660 nm deep red diodes support flowering and fruiting, and 730 nm far-red works with that red to round out the spectrum, all from a compact board sized for a 2 × 2 ft. footprint.

Warranty

The AC Infinity Ionboard S22 is covered by a 2-year limited manufacturer warranty from the original date of purchase.

Frequently Asked Questions

What size grow tent is the Ionboard S22 for? +

The Ionboard S22 is designed for a 2 × 2 ft. footprint. That makes it a fit for compact tents such as the CLOUDLAB 422 or 722, as well as small cabinets and propagation spaces.

How high should I hang the Ionboard S22? +

AC Infinity's starter guide recommends about 1.5 ft. above the canopy, with intensity at 40% for seedlings, 80% for veg and 100% for flower. If you prefer a fixed position, hang it at peak height and run it at 100% throughout. Watch your plants' response and adjust as needed.

How does the dimmer knob work? +

The knob on the LED driver sets brightness from 20% to 100% in 20% steps, so you can lower intensity for seedlings and raise it for flower. Turning it to the UIS position switches the light off, or passes control to a connected AC Infinity smart controller.

Can I automate lighting schedules with the Ionboard S22? +

Yes, with a UIS smart controller (sold separately). Connect the included UIS cord from the driver to a controller from our AC Infinity controller collection, such as the Smart Controller 69 Pro. That adds timed schedules, intensity programming and coordination with fans and humidifiers. For setup tips, see our in-depth guide on AC Infinity systems.

Can I connect more than one Ionboard light? +

Yes. AC Infinity smart controllers have multiple ports, so additional grow lights can share the same programming. To go beyond the controller's available ports, add a UIS expansion splitter (sold separately).

What does the IP65 rating mean for a grow light? +

IP65 means the board is sealed against dust and protected from low-pressure water jets from any direction. That makes the Ionboard S22 well suited to humid grow tents where condensation and misting are common.

What is the actual power draw of the Ionboard S22? +

The S22 draws 115W at full brightness: 0.94 A at 120V, 0.47 A at 240V and 0.40 A at 277V. Dimming with the knob or a smart controller reduces power use proportionally.
