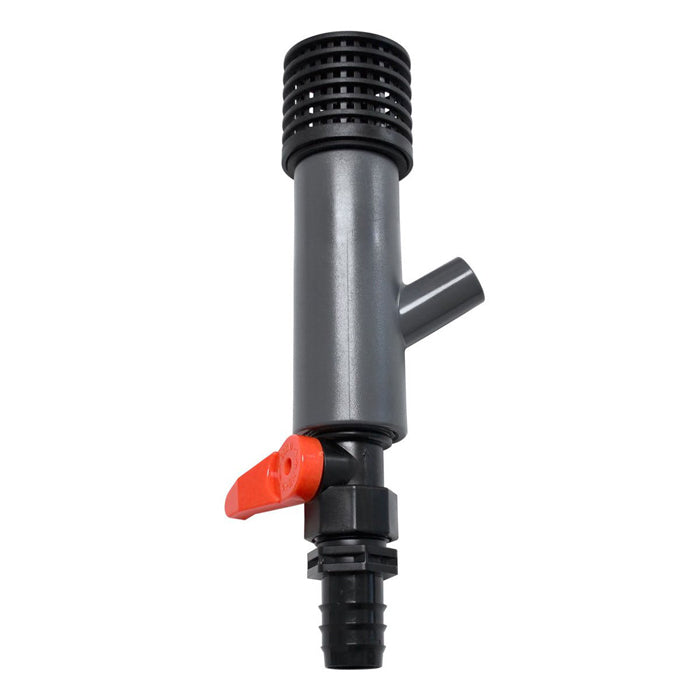

Wachsen Flood Valve w/ Fast Drain Port

The key difference is the fast drain port, which accelerates the drainage phase of the flood cycle significantly compared to traditional ebb-and-flow valves. Faster drainage means shorter flood durations, more precise wet-dry cycling, and better oxygen availability at the root zone between irrigation events.

The valve also introduces automatic aeration during the fill phase — a feature not present on standard ebb-and-flow valves — which oxygenates the nutrient solution as it enters the table without requiring a separate air pump or diffuser.

Yes — the Wachsen Flood Valve is designed as a direct substitute for standard ebb-and-flow valves across all traditional table systems. Your existing fill lines and fittings remain in use, and no replumbing or infrastructure changes are required. The valve accepts PE pipe connections from 8mm to 12.5mm, covering the most common irrigation line sizes in commercial and hobbyist ebb-and-flow setups.

Fill rate is controlled by varying the inner hole size of the valve. A smaller hole restricts flow for a slower, longer fill; a larger hole increases flow for a faster fill. This allows you to fine-tune flood duration to match your specific table volume, plant stage, and irrigation timing requirements without changing any external plumbing.

Yes — the Wachsen Flood Valve is a natural complement to a high-performance Wachsen professional rolling bench and ABS tray system. When paired with Wachsen rolling bench trays, the valve manages flood and drain cycles directly at the tray drain outlet, completing a fully integrated ebb-and-flow growing system. Ensure your tray's end section drain outlet is compatible with 8–12.5mm PE pipe fittings before installation.

The automatic oxidation feature aerates the nutrient solution as it flows through the valve during the fill phase, which introduces dissolved oxygen directly into the table at the point of entry. This is a supplemental benefit rather than a full replacement for reservoir aeration — for best results in high-density production environments, maintaining a separate reservoir air pump in addition to using the flood valve is still recommended.
