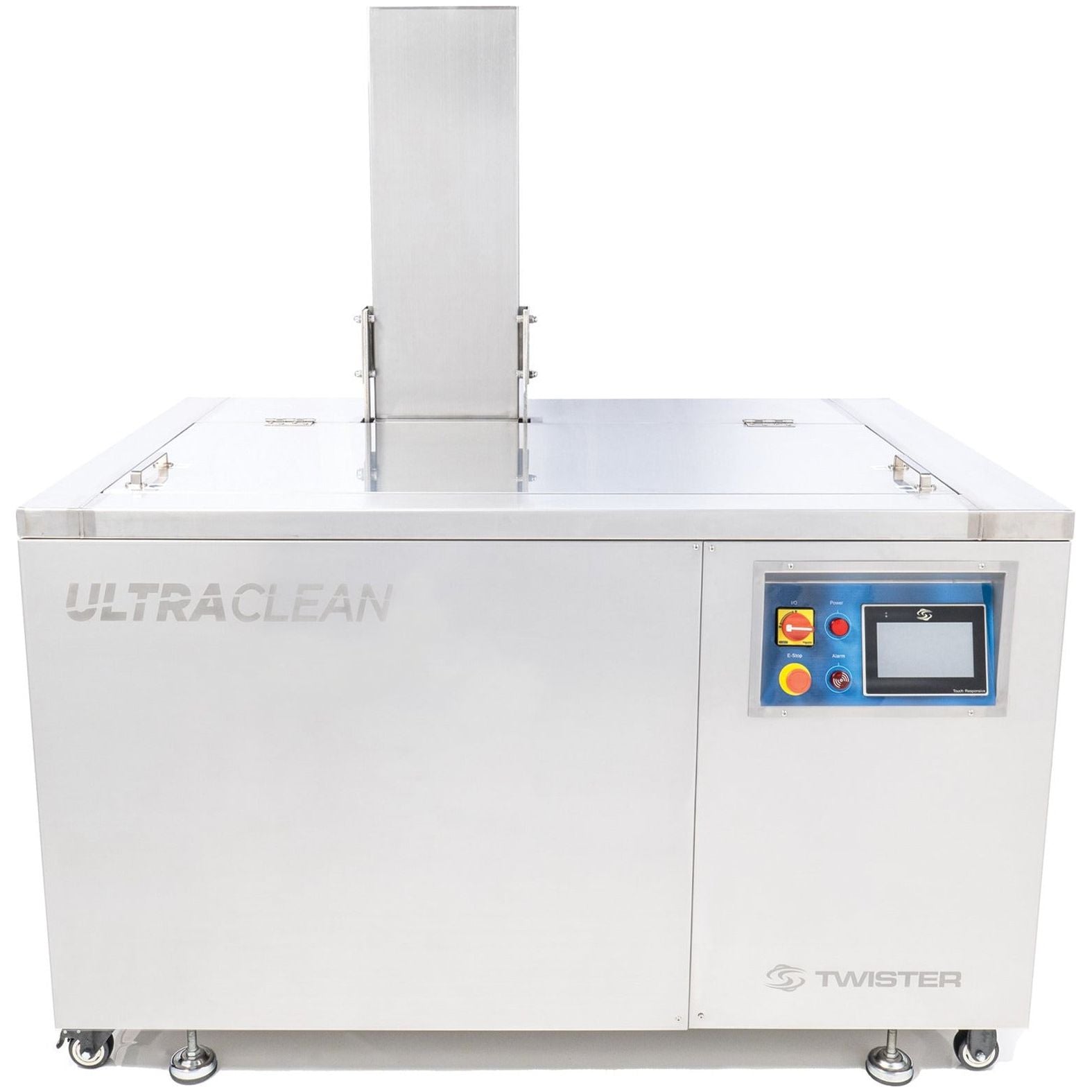

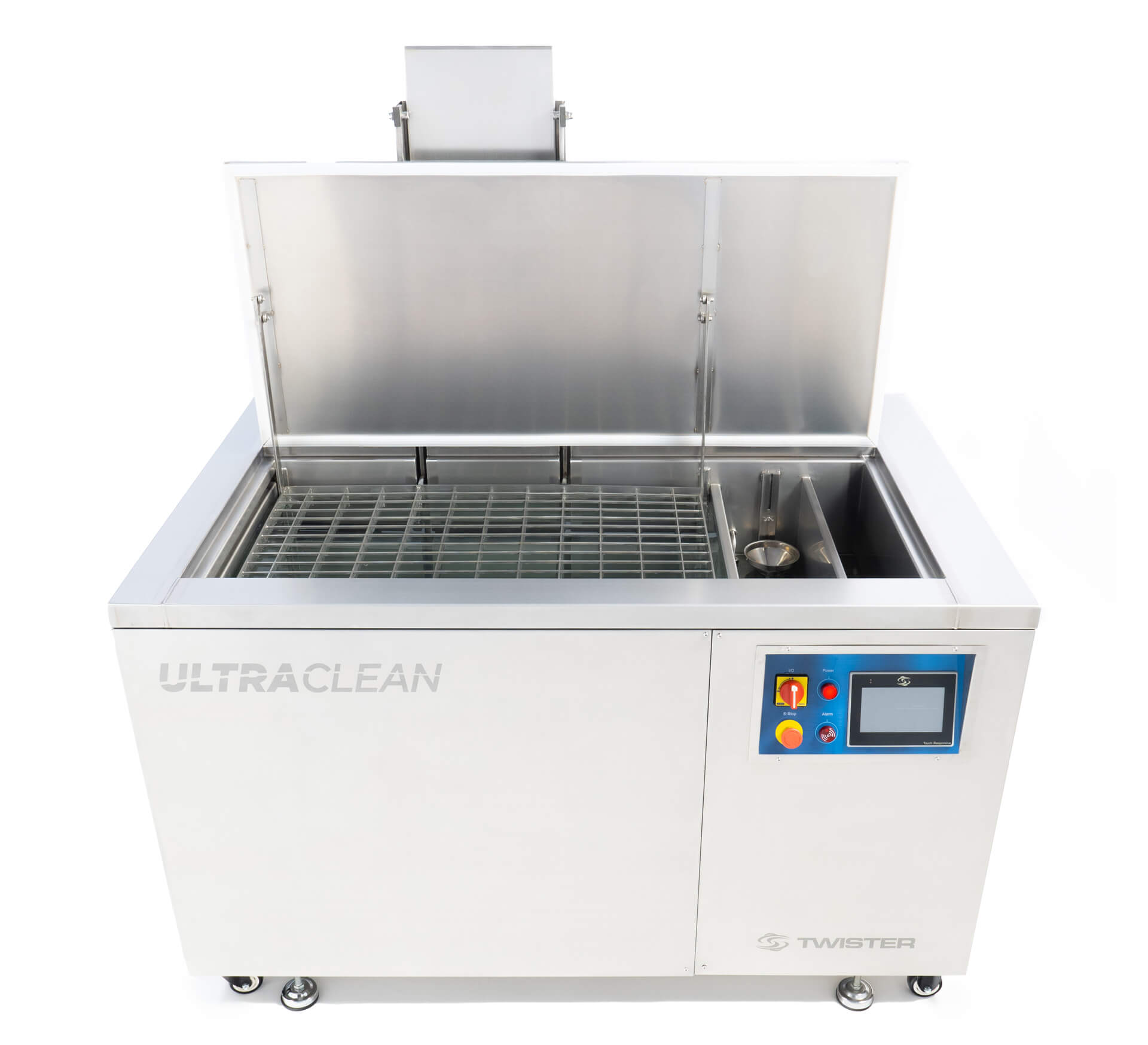

Twister UltraClean Automated Cleaning Machine

Trimming machines have enabled producers to trim faster with fewer people required. But cleaning has always been a time-consuming process.

It takes physical effort to do a quality cleaning job that meets the QA department’s standards and requirements.

Not anymore!

The UltraClean allows producers to increase efficiency by a One-Touch Deep Clean. With only one personnel required, the fully automated Siemens touch screen panel does the work for you, including an Automated Lift to help lower and raise the equipment safely out of the tank and self-filtering the organic residue during cycles.

Features

125G / 470L tank capacity
4KW Ultrasonic Power @ 28KHz
Powered lift, 100kg capacity
7” Siemens touch screen panel
Full circulation and filtration system, with oil skimmer
304 Stainless Steel interior and exterior shell
2x 304 Stainless Steel cleaning baskets
Locking casters for easy mobility
50 micron filter
Automated filter change warning

The UltraClean is built to fit Twister T2 & T4 products but can also be used for additional products*

Metals
Plastics
Glass

We do not recommend for use with products manufactured with mild steel as there is opportunity for corrosion. In the event of use with mild steel, the product should be removed and dried immediately to prevent corrosion.

Only one operator required

Lift mechanism to lower and raise equipment from the tank

Full circulation and filtration system with oil skimmer to rid of residue

Commercial Clean in One-Touch

Cleaning to a commercial standard can take hours and, in many cases, in professional facilities, can easily end up taking up half of the day. The amount you are harvesting, in addition to the number of cultivar changes, will drastically increase the time spent cleaning, which means less time processing.

The Twister UltraClean cleans one trimmer in 15 minutes* versus 120 mins by hand! Even better, that fifteen minutes is a fully automated self-clean with the Siemens one touch panel. Now you can set the timer and go tackle another task in between cycles.

Clean 1 Trimmer in 15 minutes

Fully automated Siemens touch screen panel

Built-in timer for bath cycle countdown

QA Approved

Consumer health and safety is a top priority in any commercial facility and the equipment used for processing the equipment is quality assured to meet the standards. This level of sanitation and cleaning is not only difficult for a person but often inconsistent between employees. The ultrasonic technology gets the toughest buildup in hard-to-reach places by creating microscopic bubbles that dislodge buildup from the surface of the equipment. The added up and down agitation feature increases turbulence and improves the cleaning efficiency: the high heat and Twister UltraClean Solution aids in breaking down stubborn buildup. The UltraClean uses a physical technique, so you don’t have to use harsh, corrosive chemicals that may erode your equipment or cause a health concern.

Ultrasonic technology

Programmable Agitation

Temperature control up to 65°C

Non-caustic UltraClean Solution by Twister

EASY AS 1, 2, 3

Step 1

Place equipment on the automatic lift

Step 2

Enter Preferred Settings

Step 3

Ready in 15 mins

EVEN CAKED ON RESIDUE IS NO MATCH…

SOIL LEVEL TO START: HEAVY BUILDUP – T4 TRIMMER USED FOR 3 WEEKS NO CLEANING (2 YR OLD MACHINE

SOIL LEVEL AFTER ONE (30 MINUTE CYCLE): MEDIUM BUILDUP

SOIL LEVEL AFTER TWO (30 MINUTE CYCLES): CLEAN

BATH CYCLE RECOMMENDED LENGTHS

Low Buildup/Soil	One – 15 minute cycle with quick wipe down or hose
Medium Buildup/Soil	Two – 15 minute cycles with a quick wipe down or hose after each cycle
Heavy Buildup/Soil	Two to Four – 30 minute cycles with a wipe down after each cycle and final pressure wash is required

Specifications

Product Number	50-40013A
Power Options (02-10030A)	208V 3P 60Hz 60A


Heating Time 15°C – 75°C (02-10019A)	100min
Heating Time 15°C – 75°C (02-10030A)	160min
Heating Time 15°C – 75°C (-2-10031A)	100min
Overall Dimension (Width)	1,660mm
Overall Dimension (Depth)	1,080mm
Overall Dimension (Height)	1,860mm
Tank Inner Size (Width)	1,000mm
Tank Inner Size (Depth)	580mm
Tank Inner Size (Height)	760mm
Storage Tank Size (Width)	350mm
Storage Tank Size (Depth)	580mm
Storage Tank Size (Height)	600mm
Tank Capacity	125G / 470L
Effective Liquid Level	500mm
Heating Power (1P)	7.5W
Heating	12KW

What Fits

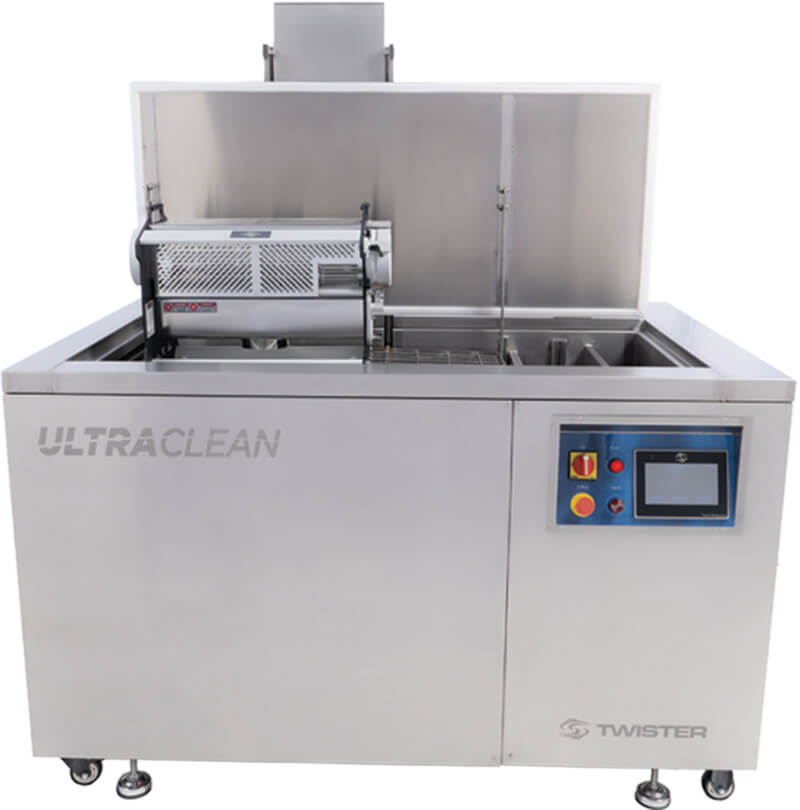

1 Full Twister T4 Trimmer

The entire T4 device can fit. We recommend removing the tumbler and shroud and placing them beside the trimmer, and flipping up the bedknife, for improved cleaning.

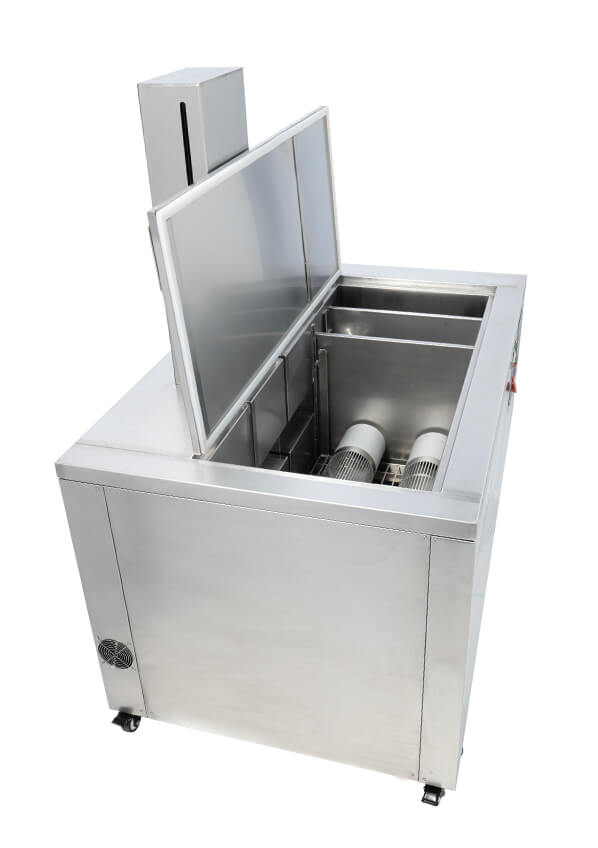

4 T2 Tumblers, Brushes & Shrouds at Once!

The removable components along with the Trim Saver can go into the UltraSonic tank. A custom T2 rack system holds 4 sets of T2 parts (tumblers, brushes, shrouds) or can be broken down into systems as shown below.

Downloads

User Manual

Warranty

Twister offers live tech support 12 hours a day, seven days a week, along with a 1 Year Warranty for the UlraClean. All sales final.
