- 1 x Expender Station 4
Ask Sage about this product
TrolMaster Hydro-X 4RS-1 4-Outlet Power Expander
starting from 0% interest financing from
/mo.
- Four-outlet expansion module adds capacity to the Hydro-X system
- Built-in 3-second delay timer protects equipment from high start-up current
- Universal voltage compatibility with both 120V and 240V AC power systems
- three-year warranty from the original date of purchase
- View More Details
Shipping calculated at checkout
Earn 144 points for shopping and get $1.44 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Over 50,000 CustomersTrust Trimleaf
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are adding high-power equipment to your setup because you keep tripping breakers when everything kicks on at once.
- You are expanding your automated control capacity because you have run out of available power outlets on your HCS-1.
- The 3-second delay between each outlet activation keeps your circuits stable by preventing high inrush current spikes.
- Growers who added this to their automated facility say they stopped blowing breakers when their dehumidifiers restart.
- Users who hardwired this unit report that their power distribution is now much cleaner and more organized.

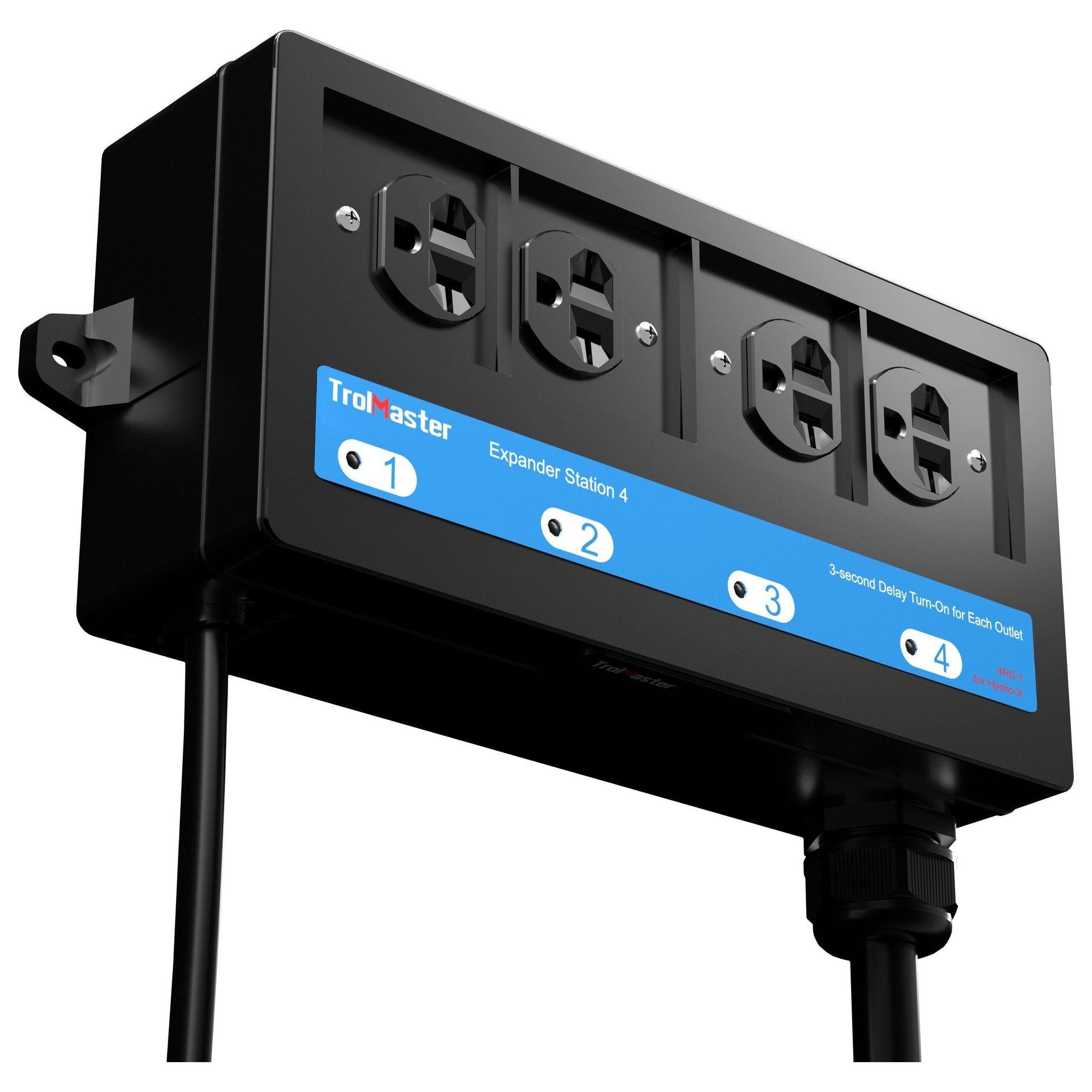

TrolMaster Hydro-X 4RS-1 4-Outlet Power Expander
Managing multiple high-power devices in a grow room can lead to circuit overloads and equipment strain. The TrolMaster Hydro-X 4RS-1 solves this by providing a robust power expansion module that integrates seamlessly with your existing TrolMaster Hydro-X HCS-1 Grow Tent Control setup, ensuring your environment remains stable and productive.
This universal expansion station adds four additional power outlets, allowing you to control more equipment without compromising safety. Whether you are using it with the TrolMaster Hydro-X 4-in-1 Sensor or various device stations, the 4RS-1 ensures your grow tent control is efficient, reliable, and scalable to your needs.
All Sales Final
What's Included
Features
🔌
Four-Outlet Expansion
Instantly adds four power outlets to your Hydro-X system for maximum device control.
⏱️
Start-Up Protection
Employs a 3-second delay timer for each outlet to protect devices from high start-up current.
🛠️
Plug and Play
Ready to use immediately with included RJ-12 cables and splitter for fast installation.
⚡
Universal Voltage
Compatible with both 120V and 240V AC power systems for ultimate flexibility.
📈
Broad Compatibility
Works seamlessly with any TrolMaster plug-in modules to expand your facility's capacity.
Specifications
| Specification | Value |
|---|---|
| Main Power Voltage | 240V |
| Receptacle Quantity | 4 |
| Max Relay Amperage | 25A |
| Operating Temperature | 41-140°F |
| Operating Humidity | 0-99% Noncondensing |
| Package Dimensions | 275mm x 255mm x 95mm |
| G.W. per pack | 1.50kgs |
Warranty
TrolMaster only uses high quality components. Under normal operating conditions, the mechanical and electronic components are covered by a three-year warranty from the original date of purchase. Components that are excluded from warranty are components that have failed due to abnormal usage.
FAQs
What is the main purpose of the 4RS-1?
The 4RS-1 is an expansion module that adds four power outlets to your Hydro-X system, allowing you to control more equipment through a single controller.
Does it protect my equipment from power surges?
It features a built-in 3-second delay timer for each outlet, which prevents high start-up currents from damaging your devices when they power on simultaneously.
Can I use this with 120V devices?
Yes, the 4RS-1 is universal and works with both 120V and 240V AC power configurations.
Is the 4RS-1 compatible with all Hydro-X controllers?
It is designed specifically to expand the capacity of the Hydro-X system and works with TrolMaster's plugin-style device modules.

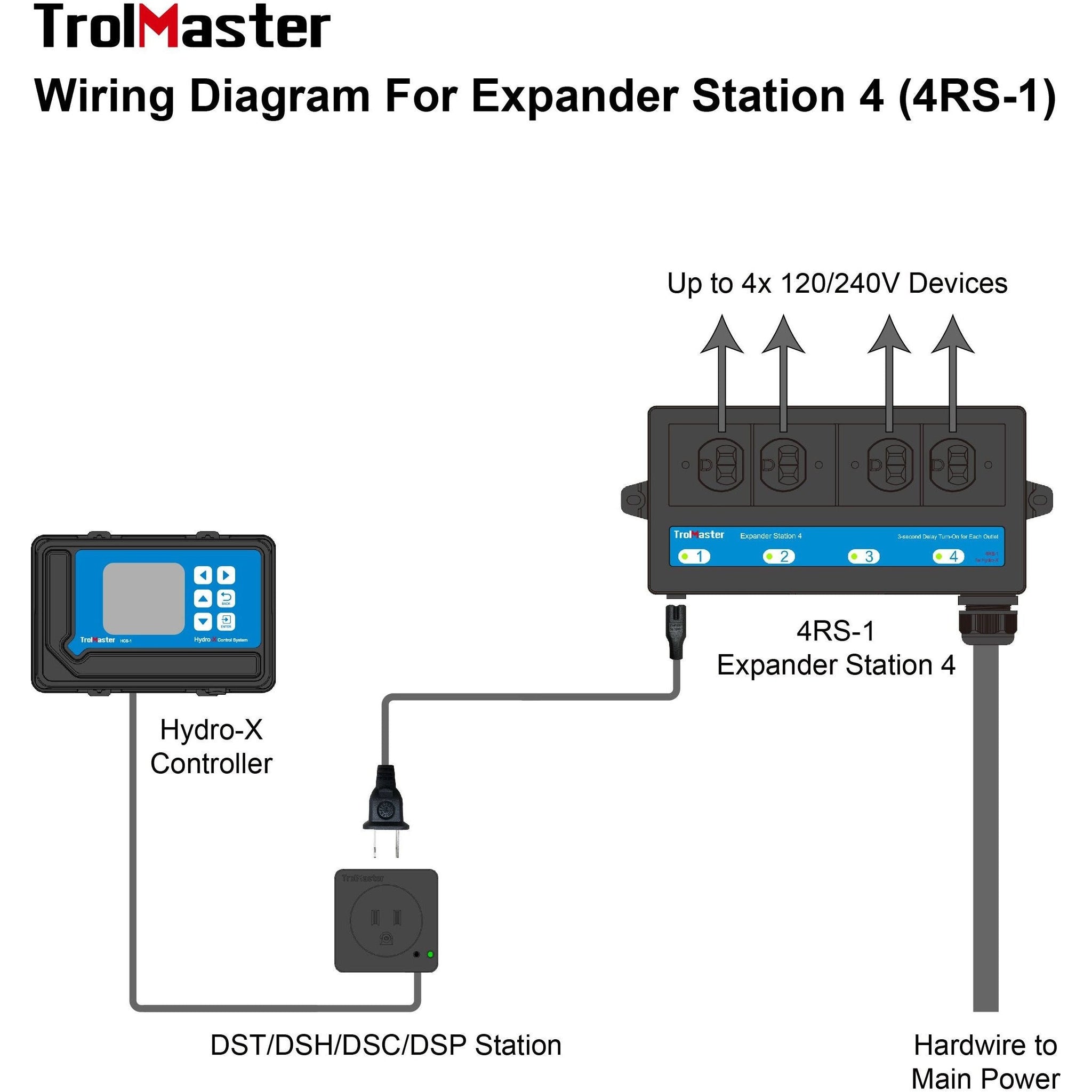

What cables are required for installation?
The unit comes with the necessary RJ-12 cables and an RJ-12 splitter, making it a plug-and-play solution right out of the box.
