TrolMaster ECS-8 32ft IR Emitter Extension Cable
- 32ft extension for IR emitters provides long-distance signal reach
- Plug-and-play connection works with ARS-1 and Beta-1 stations
- Operational in environments up to 122F and 90% humidity
- 3-year warranty on all mechanical and electronic components
- View More Details
Earn 20 points for shopping and get $0.20 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are extending your IR emitter reach because your AC unit is positioned too far from your main controller hub.
- You are adding distance to your signal path because cooling units sit in blind spots away from standard cable runs.
What We Found
- This 32-foot reach is exactly what you need to keep your cabling tucked away and tidy in larger rooms.
- We suggest these for split systems where the air handler is on the opposite wall from the controller.
What Users Say
- Users who added this extension say their AC units finally respond to every command without signal drops.
- Buyers mention they finally got their controller off the floor once they had the extra length to mount it.

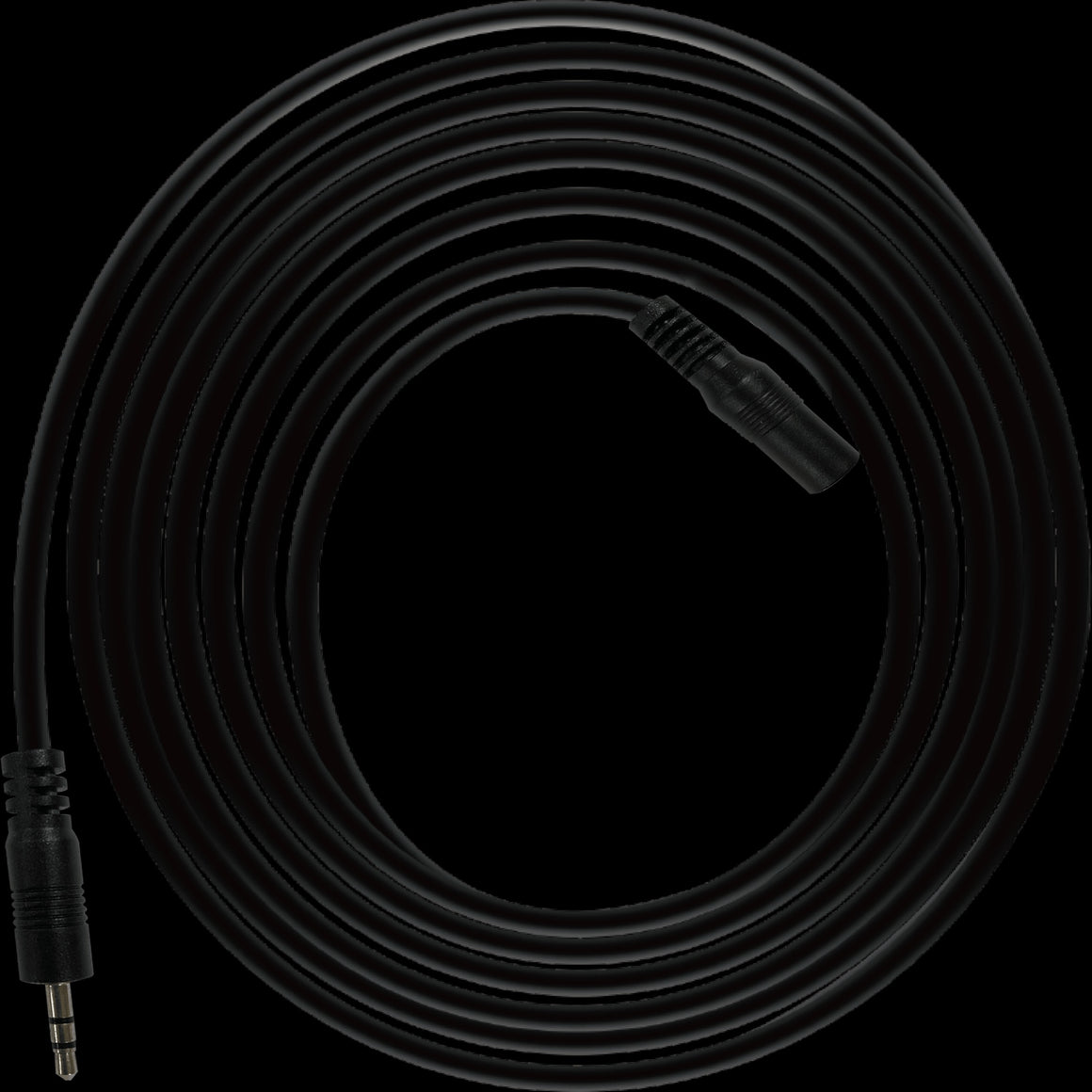

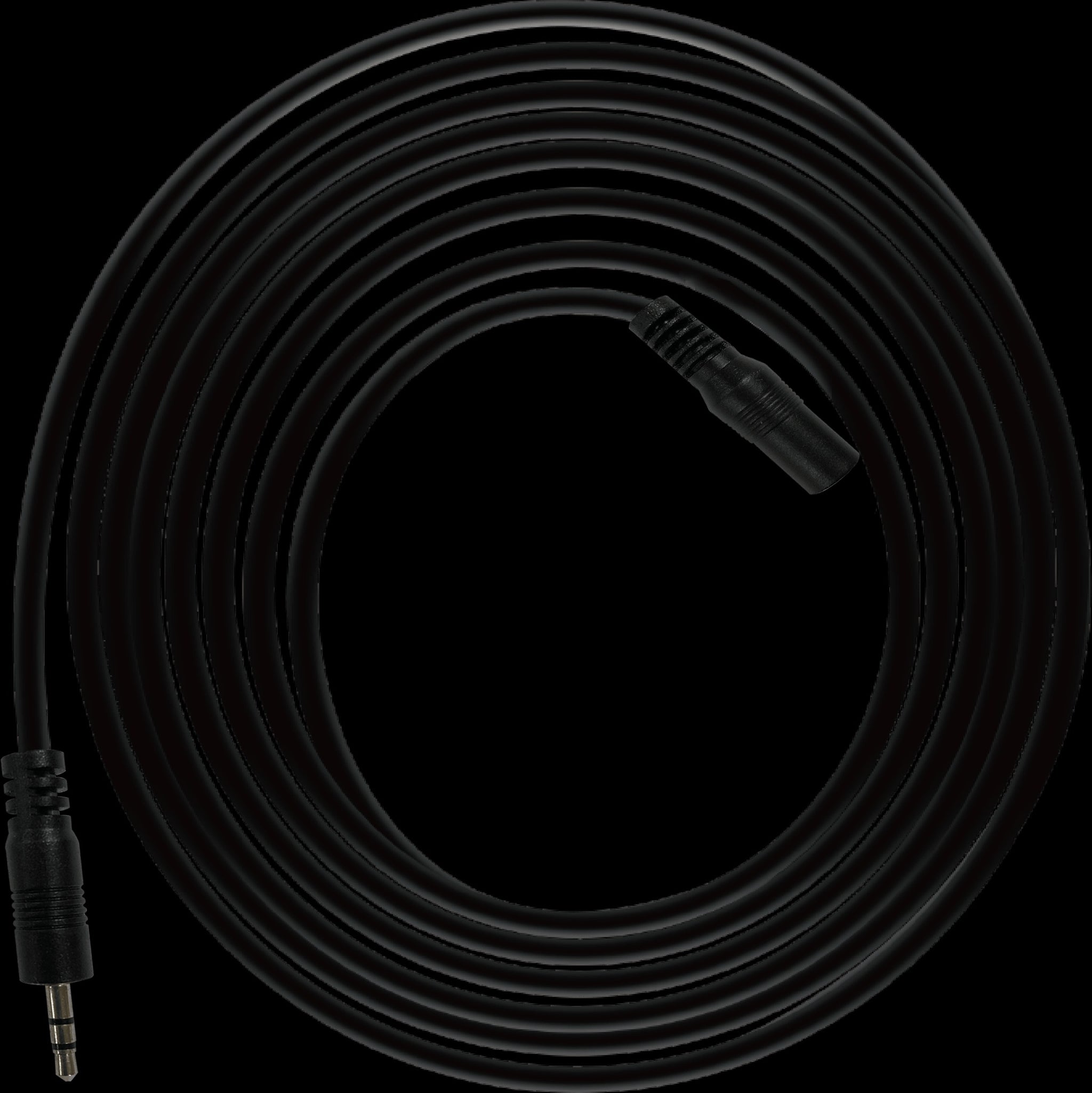

TrolMaster ECS-8 32ft IR Emitter Extension Cable
IR emitters need to be positioned where they can effectively reach the target device — and that isn't always close to where the rest of your cabling runs. The TrolMaster ECS-8 is a 32-foot extension cable for IR emitters used with the ARS-1 and Beta-1, giving you the reach to place the emitter in hard-to-access spots in your grow room for better coverage and a more stable signal. It is an essential component for those using the TrolMaster Hydro-X HCS-2 to manage environmental equipment. No assembly, no tools — connect it and it works immediately out of the box.
Compatibility: TrolMaster Hydro-X and Green-X Systems | ARS-1 and Beta-1 IR Emitters
What's Included
Features
📏
32ft IR Emitter Reach
32 feet of cable allows the IR emitter to be placed in hard-to-reach locations in the grow room for optimal coverage without being limited by standard cable length.
📡
ARS-1 & Beta-1 Compatible
Designed for use with IR emitters on the TrolMaster ARS-1 AC Remote Station and Beta-1, providing a stable extended connection for both devices. This extension complements other system cables like the TrolMaster ECS-1 used for controller connections.
🔌
Plug & Play — No Assembly
No tools, no assembly, no configuration required. Connect the ECS-8 between the IR emitter and the device loop — operational immediately out of the box.
TrolMaster ECS-8 Specifications
| Specification | Value |
|---|---|
| Cable Length | 32ft (~10m) |
| Compatible Devices | ARS-1 IR Emitter, Beta-1 IR Emitter |
| Working Environment | Temperature 32–122°F (0–50°C), Humidity ≤90% |
| Package Dimensions | 156mm (L) × 83mm (W) × 30mm (H) |
| Compatibility | TrolMaster Hydro-X, Green-X |
Support & Manuals
Warranty
TrolMaster backs the ECS-8 with a 3-year warranty from the original date of purchase, covering all mechanical and electronic components under normal operating conditions. Components that fail due to abnormal or improper usage are excluded from this coverage.
FAQs
What is the ECS-8 used for?
The ECS-8 is a 32-foot extension cable that extends the reach of IR emitters used with the TrolMaster ARS-1 AC Remote Station and Beta-1. It allows the IR emitter to be positioned in hard-to-reach areas of the grow room for better line-of-sight coverage to the target device — such as a mini-split or other IR-controlled equipment managed by your Hydro-X system — without being constrained by the standard cable length.
Which IR emitters is the ECS-8 compatible with?
The ECS-8 is specified for use with the IR emitters of the TrolMaster ARS-1 AC Remote Station and the Beta-1. For those looking to control lighting instead of climate units, the TrolMaster Hydro-X LMA-9 is the appropriate choice for adapter connections.
Does the ECS-8 require any configuration after connecting?
No — the ECS-8 is a passive extension cable with no active components or settings. Once connected between the IR emitter and the device loop, it is fully operational with no additional setup steps required.
Why is 32ft of cable important for IR emitter placement?
IR emitters work by sending an infrared signal directly at the receiver on the target device — typically a mini-split AC unit or similar IR-controlled equipment. For the signal to work reliably, the emitter needs clear line-of-sight to the receiver's IR window, which may be on the opposite side of the grow room from where the ARS-1 or Beta-1 is mounted. 32 feet of cable provides enough reach to position the emitter close to the target device regardless of where the controller is located.
Can I use multiple ECS-8 cables in series for even greater distance?
TrolMaster does not specify a maximum supported cable run for IR emitter connections. While the connector format may physically allow chaining, signal quality could degrade over very long runs. For installations requiring distances beyond 32 feet, consider using other specialized cables like the TrolMaster ECS-2 or consult support to confirm whether extended cable runs are supported for your specific setup.
