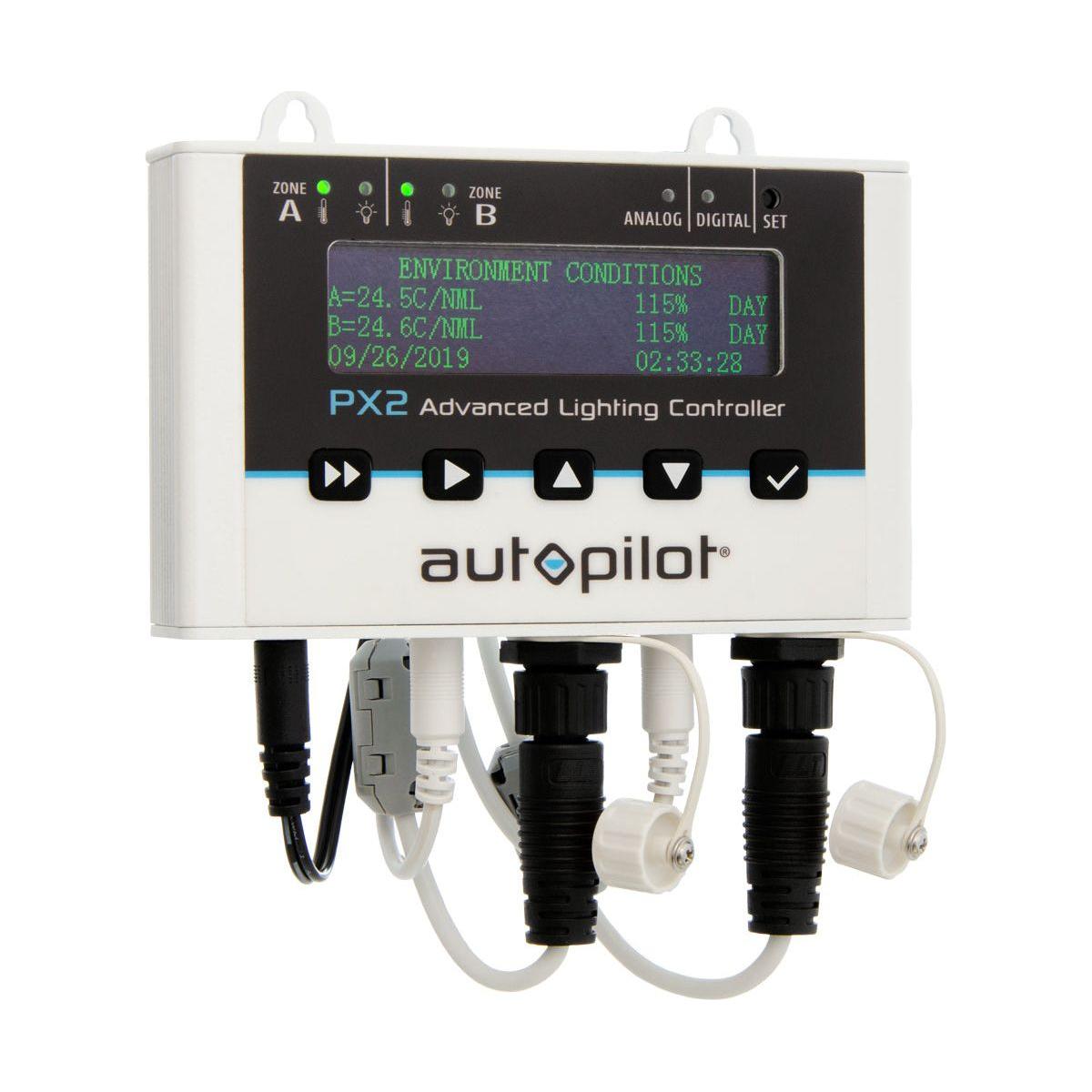

Autopilot PX2 advanced lighting controller with digital display, buttons, and cords.

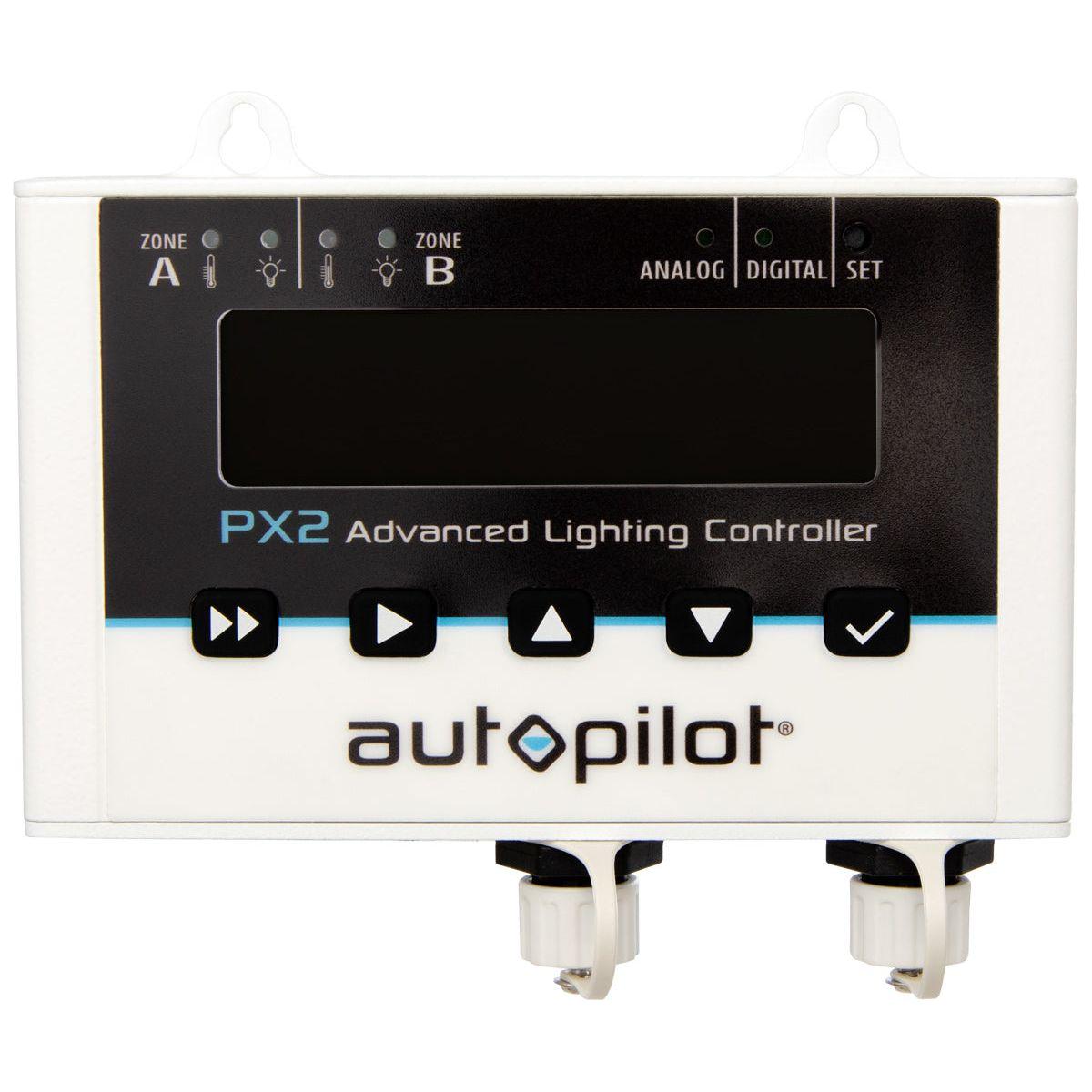

Autopilot PX2 Advanced Lighting Controller with display, buttons, and "autopilot" logo.

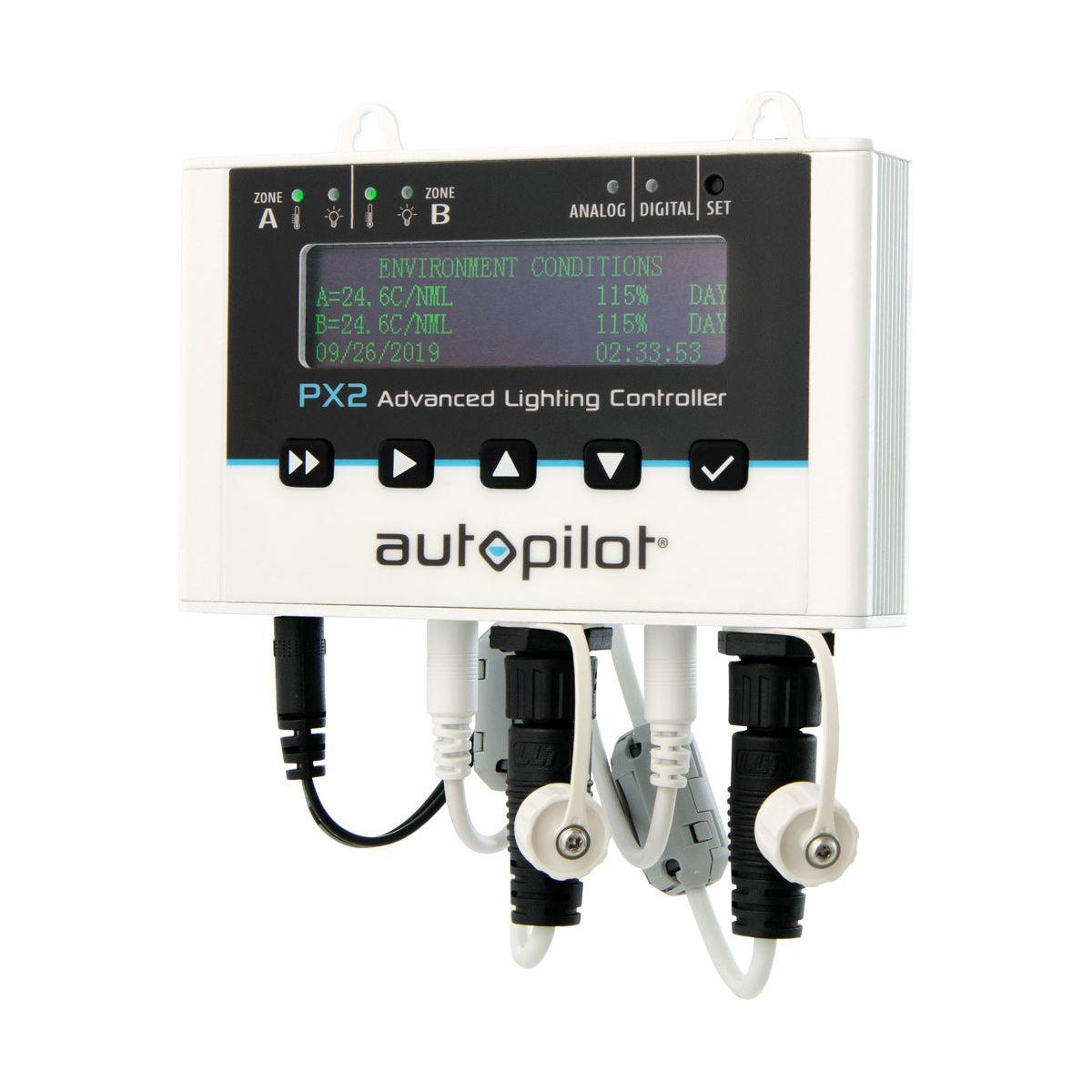

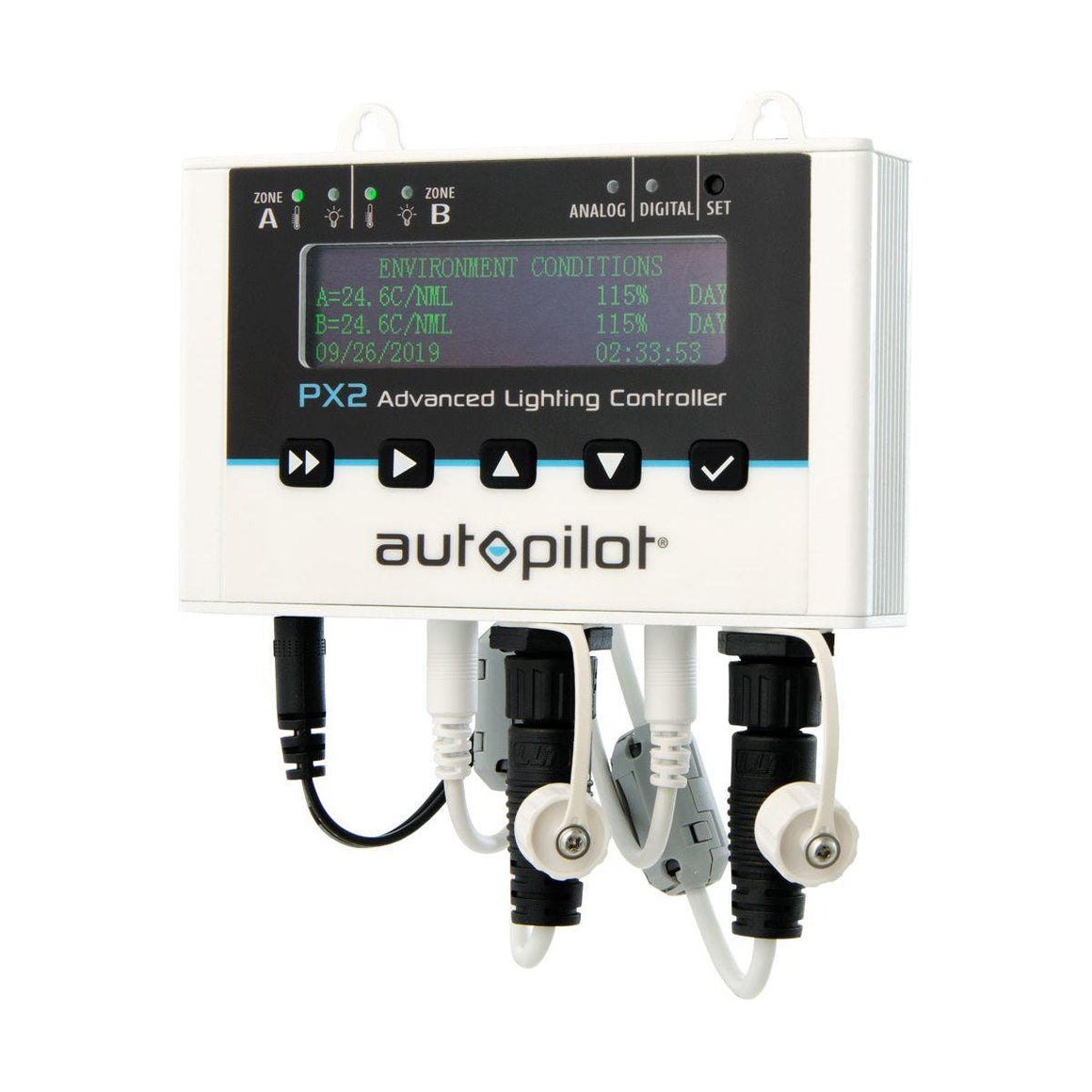

Autopilot PX2 Advanced Lighting Controller with LED display showing environment conditions, date, and time.

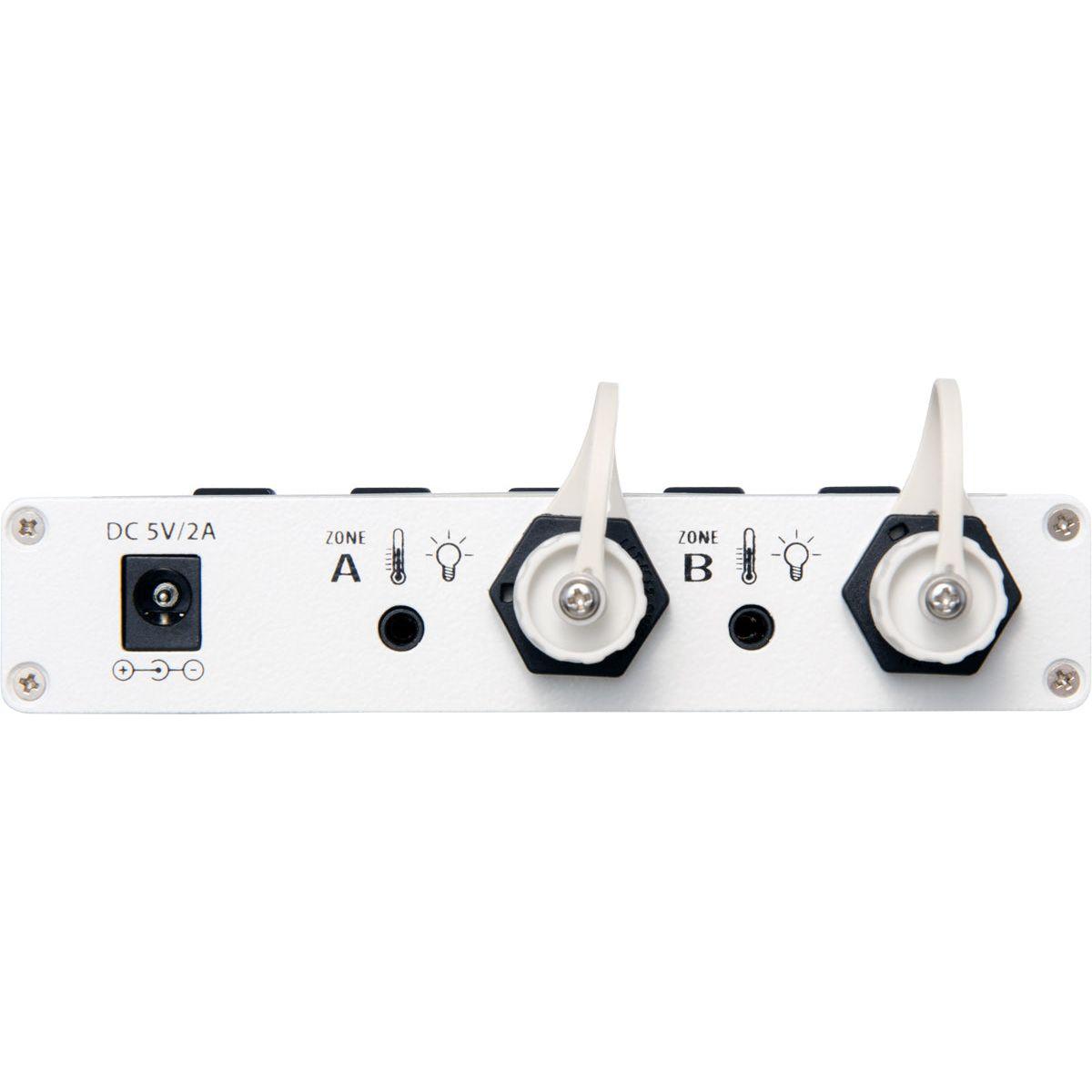

White lighting controller with two zones, DC power input, and two knobs.

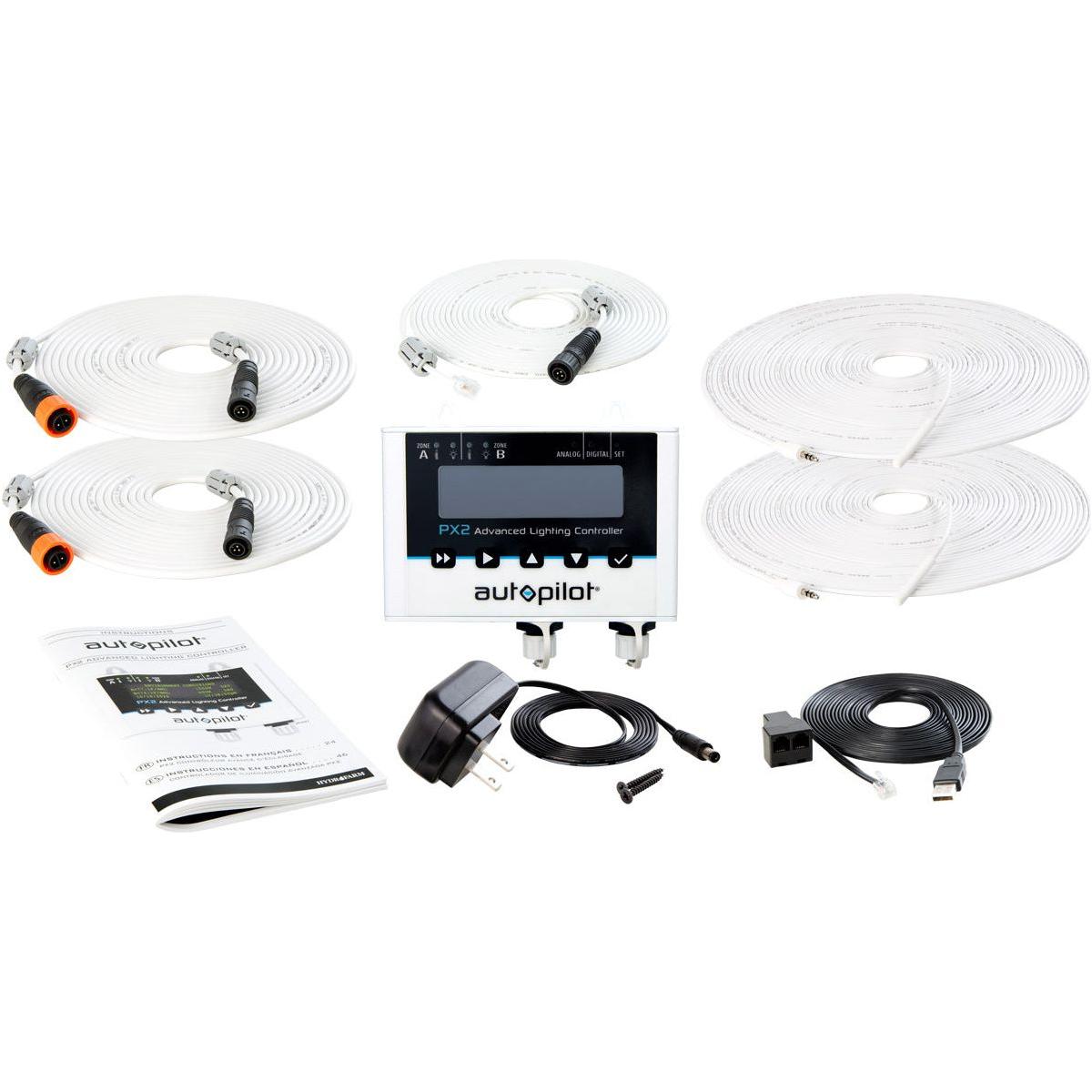

Autopilot PX2 Advanced Lighting Controller kit with LED light strips, power adapter, and instructions.
Autopilot PX2 advanced lighting controller with digital display, buttons, and cords.
Autopilot PX2 Advanced Lighting Controller with display, buttons, and
Autopilot PX2 Advanced Lighting Controller with LED display showing environment conditions, date, and time.
White lighting controller with two zones, DC power input, and two knobs.
Autopilot PX2 Advanced Lighting Controller kit with LED light strips, power adapter, and instructions.
Ask Sage about this product

Autopilot PX2 Advanced Lighting Controller

Official Autopilot Dealer Model: APDPX2
$432.59 USD$399.99 USD$432.59 USD
 $432.59 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Controls up to 512 digital HID or 100 analog LED fixtures
  • Independent dual-zone programming for mixed-technology lighting
  • Onboard battery backup protects settings during power interruptions
  • View More Details

Earn 399 points for shopping and get $3.99 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are managing complex lighting zones because manual adjustments on your current setup are prone to human error.
  • You are switching to a centralized controller because separate timers for different fixture types make large-scale scheduling a nightmare.

  • The dual-zone configuration is a lifesaver when you need to run HPS and LED fixtures on different photoperiods.
  • We recommend this for anyone struggling with heat, as the auto-dimming sensor actually kicks in before the room spikes.

  • Facility managers report they stopped worrying about light intensity drifts since the controller automates output levels.
  • Operators who switched to this system say they saved significant time by syncing sunrise simulations across multiple rooms.

Autopilot PX2 Advanced Lighting Controller

Need professional-grade lighting control that manages hundreds of fixtures with precision photoperiod control and advanced automation features?

The Autopilot PX2 Advanced Lighting Controller provides precision photoperiod control of up to 512 fixtures in two independently controlled zones, all from one centralized location for complete lighting management.

Perfect for commercial growing operations and large-scale facilities, this advanced controller offers unmatched flexibility to control 512 digital HID fixtures (256 per zone) or 100 analog LED fixtures (50 per zone) with independent zone configuration options.

Designed to work with any controllable Phantom or Core HID fixtures, as well as PHOTOBIO LED fixtures, the PX2 offers the flexibility to operate both zones analog or digital, or one zone analog and the other digital. This versatile dual-zone configuration enables advanced growing strategies and optimization techniques.

The controller enables growers to optimize spectral treatments by checkerboarding lighting technologies within the same environment (e.g., HPS with CMH, LED with CMH), save power by checkerboarding identical fixtures while reducing output, alternate rows and zones, and enhance uniformity through independent control over perimeter versus interior lighting.

Built with powerful features and precise independent controls for each zone including photoperiod timing, photosynthetic photon flux control, auto-dimming when temperature exceeds set points, emergency auto-shutdown, configurable restrike delay times, and sunrise/sunset simulation settings with built-in battery backup.

Product Highlights

  • Massive Control Capacity: Up to 512 digital HID or 100 analog LED fixtures across two independent zones
  • Dual-Zone Flexibility: Independent analog/digital operation per zone for advanced lighting strategies
  • Advanced Automation: Temperature-based auto-dimming, emergency shutdown, and sunrise/sunset simulation
  • Professional Integration: Compatible with Phantom, Core HID, and PHOTOBIO LED fixtures
  • Commercial Grade: Shielded cables, battery backup, and temperature protection for reliable operation

Autopilot PX2 Advanced Lighting Controller Features

🏭
Massive Control Capacity

Controls up to 512 digital HID fixtures or 100 analog LED fixtures across two independent zones.

🔄
Dual-Zone Independence

Each zone operates independently with analog or digital control for advanced lighting strategies.

🌡️
Temperature Protection

Dedicated sensors per zone with auto-dimming and emergency shutdown for temperature protection.

🌅
Sunrise/Sunset Simulation

Gradual ramp-up and down at photoperiod transitions for natural lighting cycles.

⚡
PPF Control

Precise photosynthetic photon flux scheduling by wattage or percentage during light cycles.

🔌
Universal Compatibility

Works with Phantom, Core HID, and PHOTOBIO LED fixtures with shielded data cables.

Advanced Dual-Zone Lighting Strategies

The PX2's versatile dual-zone configuration enables sophisticated lighting management techniques:

Spectral Treatment Optimization
  • Checkerboard Technology Mixing: Combine different lighting technologies (HPS with CMH, LED with CMH) within the same environment
  • Spectral Diversity: Leverage different light spectrums for enhanced material development and quality
  • Research Applications: Compare lighting technologies side-by-side for optimization studies
  • Seasonal Adjustments: Modify spectral output based on growing phases and environmental conditions
Power Management & Efficiency
  • Checkerboard Power Saving: Reduce output to one zone while maintaining full output in another
  • Load Balancing: Distribute electrical load across zones to optimize power consumption
  • Peak Demand Management: Reduce lighting loads during peak electricity rate periods
  • Progressive Dimming: Gradually adjust light output based on temperature or scheduling needs
Spatial Light Management
  • Perimeter vs Interior Control: Independent control over edge lighting versus center area illumination
  • Row Alternation: Alternate lighting patterns across different rows within the same environment
  • Zone Rotation: Rotate lighting schedules between zones for maintenance or experimental purposes
  • Uniformity Enhancement: Compensate for environmental variations with targeted zone adjustments

Precise Independent Zone Controls

Each of the PX2's dual zones provides comprehensive, independent control features:

Photoperiod & Timing Controls
  • Independent Light/Dark Cycles: Set different photoperiods for each zone based on material requirements
  • Configurable Restrike Delays: Eliminate lamp-damaging hot starts with customizable delay times
  • Sunrise/Sunset Simulation: Gradual ramp-up and down at photoperiod transitions
  • Flexible Scheduling: Program complex lighting schedules for different growing phases
Photosynthetic Photon Flux (PPF) Management
  • Precise PPF Scheduling: Control exact photon output during light cycles by wattage or percentage
  • Dynamic Intensity Adjustment: Modify light intensity based on environmental conditions or growth stages
  • Energy Optimization: Balance light output with energy consumption for maximum efficiency
  • DLI Management: Precisely control daily light integral delivery to each zone
Temperature-Based Protection
  • Auto-Dimming: Automatically reduce light output when temperature exceeds set points
  • Emergency Shutdown: Immediate light shutdown upon user-defined over-temperature events
  • Dedicated Sensors: Two independent temperature sensors provide real-time zone monitoring
  • Crop Protection: Prevent heat damage that could destroy valuable harvests

Control Capacity & Compatibility

The PX2 provides extensive control capacity with flexible fixture compatibility:

Digital HID Control
  • Total Capacity: Up to 512 digital HID fixtures
  • Zone Distribution: 256 fixtures per zone maximum
  • Compatible Fixtures: All controllable Phantom and Core HID fixtures
  • Communication: RF shielded data cables for reliable signal transmission
Analog LED Control
  • Total Capacity: Up to 100 analog LED fixtures
  • Zone Distribution: 50 fixtures per zone maximum
  • Compatible Fixtures: PHOTOBIO LED fixtures and other analog LED systems
  • Control Method: Precise analog dimming and scheduling
Mixed Configuration Options
  • Zone A Digital, Zone B Analog: Maximum flexibility for different fixture types
  • Both Zones Digital: Maximum HID fixture capacity
  • Both Zones Analog: LED-focused installations
  • Scalable Configuration: Start small and expand as operations grow

What's Included

  • (1) Autopilot PX2 Controller with locking mini 3P IP65 female lighting connectors
  • (2) 50-foot white temperature probes for independent zone monitoring
  • (2) 20-foot locking mini 3P M-RJ 6P white RF shielded data cables for use with controllable Phantoms
  • (2) 20-foot locking mini 3P M-2P M white RF shielded data cables for use with PHOTOBIO LEDs
  • (1) 5-foot power adapter (100–240V, 50/60Hz)
  • (2) Mounting screws for secure installation
  • (1) Comprehensive instruction manual with setup and programming guides

Autopilot PX2 Advanced Lighting Controller Specifications

Specification Value
Model PX2 Advanced Lighting Controller
Unit Dimensions 6.4" L x 13.1" W x 5.0" H
Weight 3.75 lbs
Power Requirements 100–240V, 50/60Hz, 0.3 Amps
Digital HID Capacity 512 fixtures (256 per zone)
Analog LED Capacity 100 fixtures (50 per zone)
Control Zones 2 independent zones
Compatible Fixtures Phantom, Core HID, PHOTOBIO LED
Temperature Sensors 2 dedicated sensors (50' cables)
Data Cables RF shielded, locking connectors, 20' length
Backup Power Built-in battery backup
Signal Protection EMI shielded cables for reliable communication

Autopilot PX2 Warranty

Titan Controls offers a 3-year warranty. This does not include user error or operator abuse.

Autopilot PX2 Advanced Lighting Controller FAQs

Can I mix different fixture types between the two zones? +

Yes, the PX2 offers complete flexibility to operate one zone analog and the other digital. For example, you can control PHOTOBIO LED fixtures in Zone A (analog) while controlling Phantom HID fixtures in Zone B (digital), enabling advanced lighting strategies like spectral checkerboarding within the same environment.

How does the temperature protection system work in each zone? +

Each zone has a dedicated 50-foot temperature probe providing real-time monitoring. When temperatures exceed set points, the system automatically dims lights in that specific zone. For extreme temperatures, emergency shutdown immediately turns off lights to prevent crop damage. This zone-specific protection ensures targeted response without affecting the other zone.

What is checkerboard lighting and how do I implement it? +

Checkerboard lighting involves alternating different lighting technologies or intensities across your growing space. With the PX2, you can checkerboard HPS with CMH, LED with CMH, or reduce output to one zone while maintaining full output in another. This enables spectral diversity, power savings, and enhanced uniformity through independent zone control.

How does PPF control differ from simple dimming? +

PPF (Photosynthetic Photon Flux) control precisely manages the actual photons useful for photosynthesis, not just electrical power. The PX2 allows scheduling exact PPF output by wattage or percentage during light cycles, ensuring optimal photon delivery for different growth phases and maximizing photosynthetic efficiency rather than just reducing power consumption.

Why are the data cables shielded and what does this prevent? +

The RF shielded data cables prevent electromagnetic interference (EMI) from electronic ballasts, motors, and other equipment that could disrupt communication between the PX2 and your fixtures. This ensures uncompromising signal reliability even in environments with heavy electrical equipment, preventing lighting control failures and maintaining precise operation.

What happens during a power outage with the battery backup? +

The built-in battery backup maintains all your programmed settings during power outages, including photoperiod schedules, PPF settings, temperature thresholds, and zone configurations. When power returns, the PX2 resumes operation exactly where it left off without requiring reprogramming, ensuring continuous precision control of your lighting system.

Can I expand my system if I start with fewer fixtures? +

Absolutely. The PX2 supports scalable configurations from small installations to maximum capacity. You can start with just a few fixtures per zone and expand up to the full capacity of 512 digital HID or 100 analog LED fixtures. The system grows with your operation without requiring controller replacement.

How does sunrise/sunset simulation benefit my crops? +

Sunrise/sunset simulation provides gradual ramp-up and down at photoperiod transitions, mimicking natural lighting conditions. This reduces plant stress from sudden lighting changes, promotes more natural circadian rhythms, and can improve overall plant health and productivity by providing gentle transitions rather than abrupt on/off switching.
