- ION LED XR-830W LED Grow Light Fixture
- Two (2) Rope Ratchets
- Power Cord
- Instruction Manual
Ask Sage about this product
ION LED XR-830W Full Spectrum LED Grow Light
starting from 0% interest financing from
/mo.
- Delivers 2573 μmol/s PPF at 830W power draw
- Enhanced red spectrum focused on flowering results
- IP66 rated water-resistant housing for high-humidity operation
- 5-year warranty
- View More Details
Earn 695 points for shopping and get $6.95 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Questions? Talk to a specialist.
Mon to Fri, 9am to 5pm PST
- Free Shipping On Most Items*To the lower 48
- Transparent PricingBacked w/ price match guarantee
- 4.8/5 Top Quality Store on Google
- Secure CheckoutSSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
- You are upgrading to high-intensity lighting because your current canopy penetration is uneven and you are losing yield potential in the lower flowering zones.
- You are shifting to a professional, scalable light system because your existing units lack the power to hit target output levels during the flowering phase.
- The 180 degree folding design is a major win for installations because it makes moving the fixture through tight facility hallways much easier.

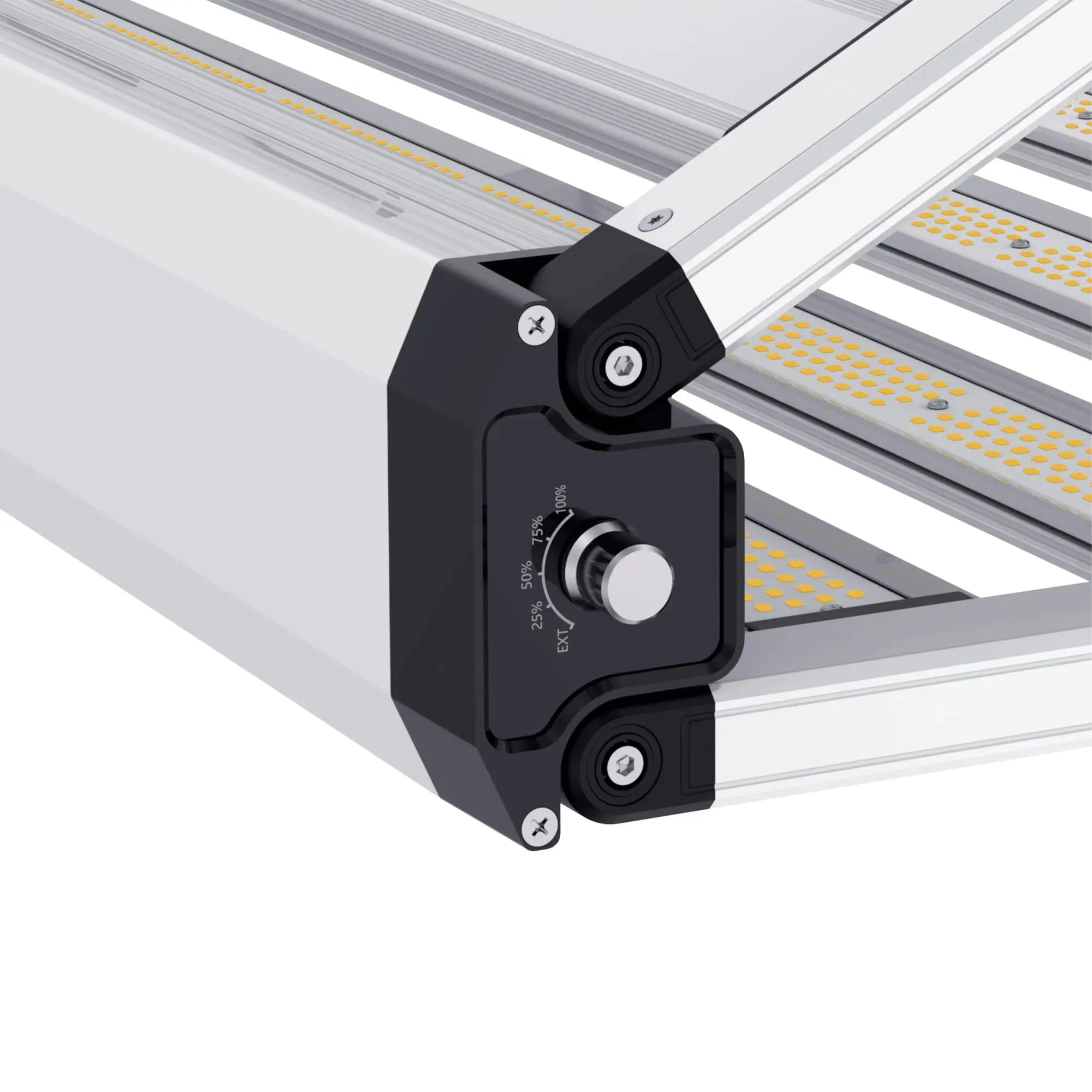

- The 0-10V dimming dial is useful for getting the light intensity just right, but you need to turn it to EXT when running it with a smart controller.
- Growers who switched to this fixture report that the increased red spectrum led to noticeably tighter structure and higher quality results in the final harvest.
- Facility managers who connected these to a centralized dimming controller say they regained hours of manual labor every week during light transition periods.
ION LED XR-830W Full Spectrum LED Grow Light
Commercial growers often struggle with inefficient lighting systems that fail to deliver the intensity required for high-yield harvests. The ION LED XR-830W Full Spectrum LED Grow Light solves this problem by providing industry-leading power and efficiency, serving as the ultimate solution for professional cultivation facilities. As a cornerstone of the ION LED collection, this fixture is engineered to maximize canopy penetration and optimize plant health from veg through flower.
This high-performance system generates an incredible 2573 μmol/s PPF with an outstanding efficacy of 3.1 μmol/J. For operations requiring different power scales, ION also offers the ION LED 720W and the ION LED 630W models. The XR-830W features an enhanced red spectrum to drive superior flowering results, ensuring your commercial crop reaches its full genetic potential with professional-grade intensity.
Built for the rigors of commercial use, the XR-830W utilizes high-quality OSRAM® LM-80 LEDs that maintain 90% output for over 50,000 hours of operation. The 180° foldable design simplifies installation, while the IP66 water-resistance rating ensures safety in humid environments. To support your plants during earlier stages, consider pairing this unit with the ION LED 400W Vegetative light or the ION LED 36W Clone bars for a comprehensive facility-wide lighting strategy.
What's Included
Features
🚀
Maximum Power
Industry-leading 2573 μmol/s output with enhanced red spectrum for superior flowering yields.
🛡️
Commercial Grade
IP66 water-resistant housing with integrated overvoltage safeguards for reliable operation.
📐
Practical Design

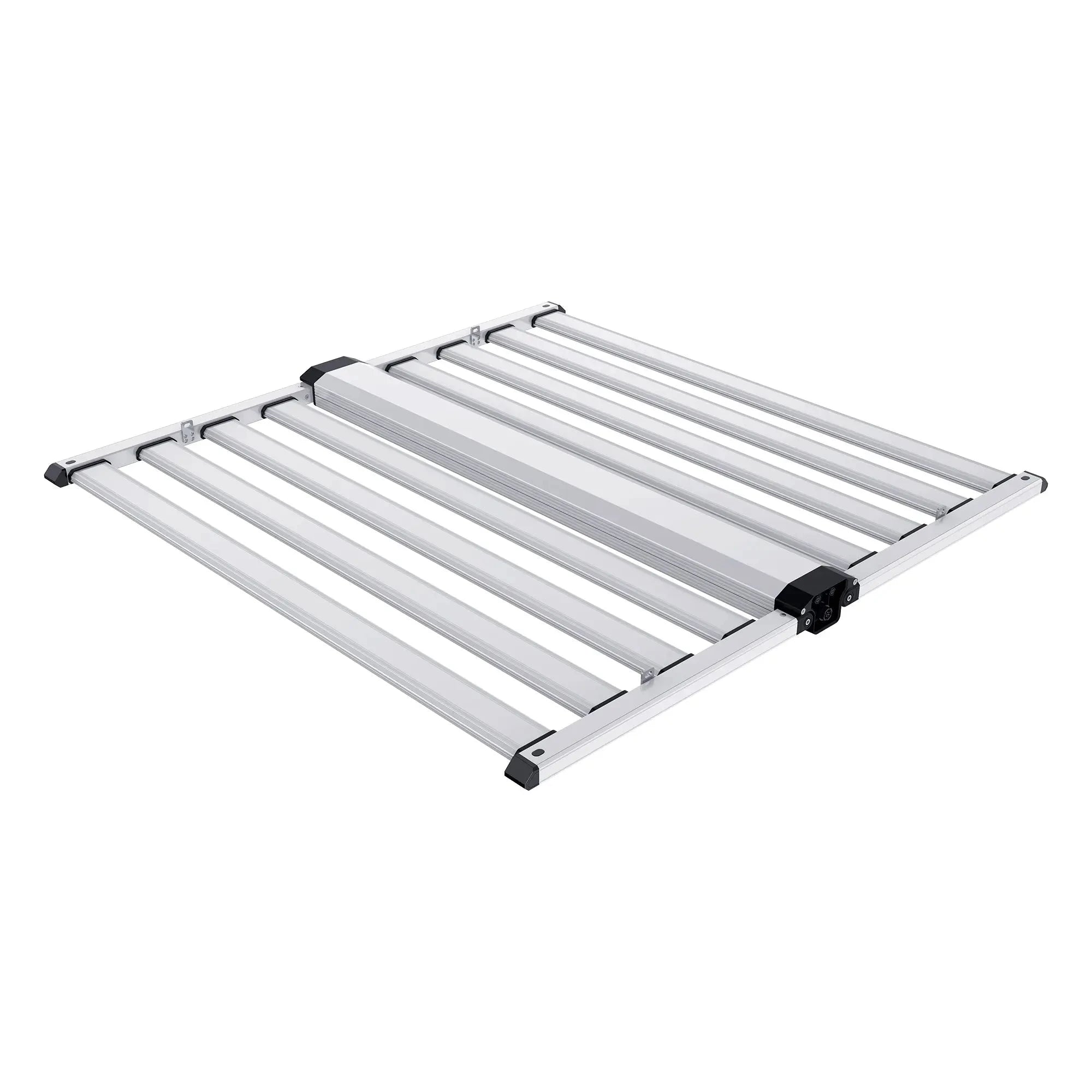

Slim 180-degree folding design for easier transportation, installation, and optimal positioning.
🎛️
Precision Control

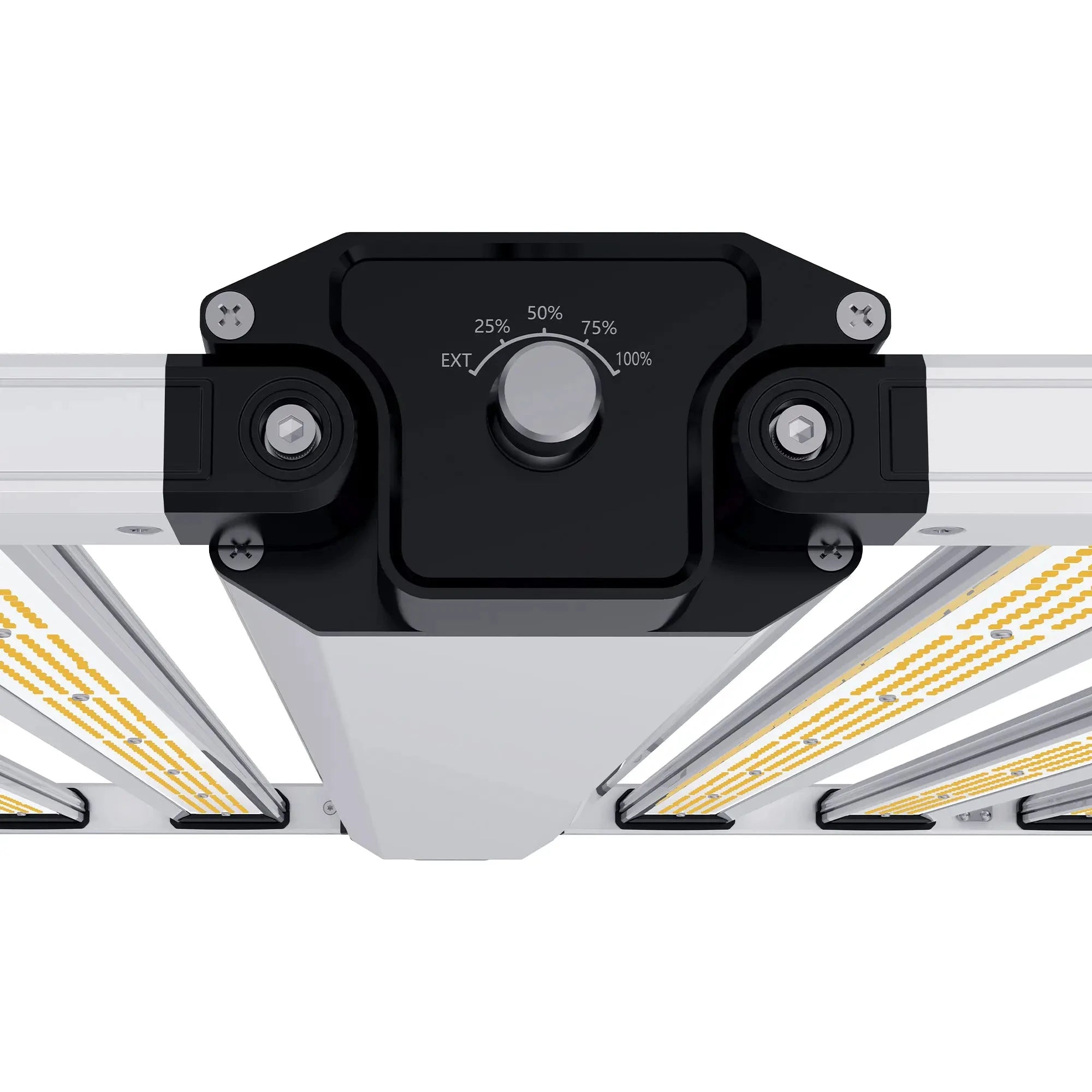

Soft-start and step-measure dimming via 0-10V protocol for customized light intensity.
ION LED XR-830W LED Grow Light Specifications
| Specification | Value |
|---|---|
| Input Power | 830W |
| Input Voltage | 120V-277V & 480V |
| Light Output | PPF 2573 μmol/s |
| Efficacy | 3.1 μmol/J |
| Lifetime | L90 > 50,000 hrs |
| Water-Resistance | IP 66 |
| Spectrum | FSG (Full Spectrum Growth) |
| LED Type | OSRAM® LM-80 |
| Mounting Height | 30-36" Above Canopy |
| Certifications | ETL, DLC Listed |

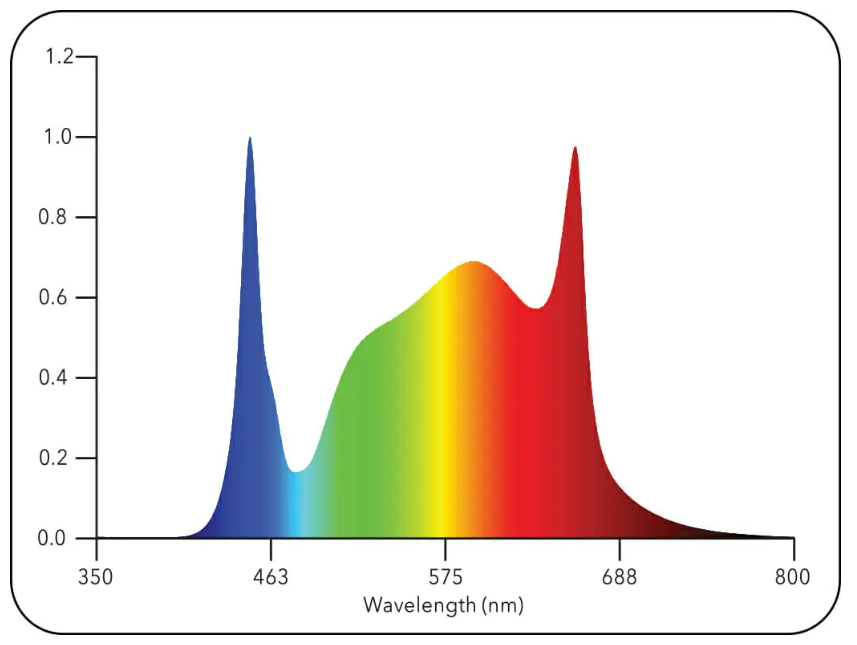

Spectrum
The XR-830W uses ION's proprietary FSG (Full Spectrum Growth) spectrum, engineered to address the photoreceptor and pigment activity that standard broad-spectrum fixtures often miss. By boosting radiant energy at the critical 660nm red wavelength within a white-light output, the FSG spectrum supports plants through every stage of their lifecycle — from vegetative development through peak flowering. Calibrated to a 4000K color temperature with a CRI of 88, the XR-830W also delivers true-to-life color rendition that makes canopy assessment and daily plant inspection significantly more accurate in commercial grow environments.
You said: the font looks different from the rest of the code like warranty sectionSupport & Manuals
Warranty
The ION LED XR-830W LED Grow Light includes a comprehensive 5-year standard warranty, providing commercial growers with long-term peace of mind. This warranty covers manufacturing defects and ensures your investment is protected throughout years of commercial cultivation cycles.
FAQs
What is the total light output of the XR-830W?
The ION LED XR-830W delivers a massive 2573 μmol/s PPF, making it one of the most powerful commercial LED fixtures on the market.
Is this light dimmable?
Yes, it features precise step-measure dimming via 0-10V protocol, allowing you to adjust intensity based on your plants' growth stage.
What is the recommended hanging height?
For optimal results and uniform coverage, we recommend mounting the fixture 30-36 inches (76-91cm) above the plant canopy.
Can I use this in a high-humidity grow room?
Absolutely. The fixture is IP66 water-resistant, specifically designed to withstand the humid conditions of commercial cultivation environments.
What kind of LEDs does this fixture use?
The XR-830W is built with high-efficiency OSRAM® LM-80 LEDs, known for their longevity and consistent light output over time.
Is the XR-830W DLC listed?
Yes, it is DLC listed, which may qualify your cultivation facility for energy efficiency rebates in many regions.
