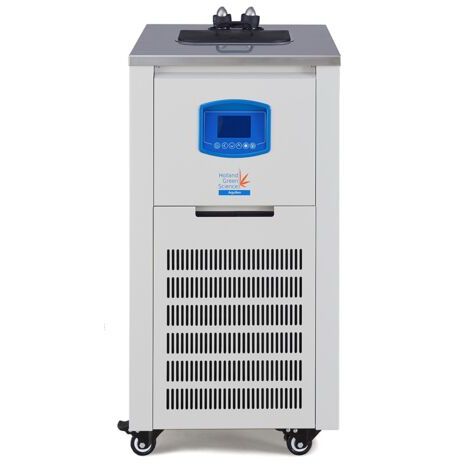

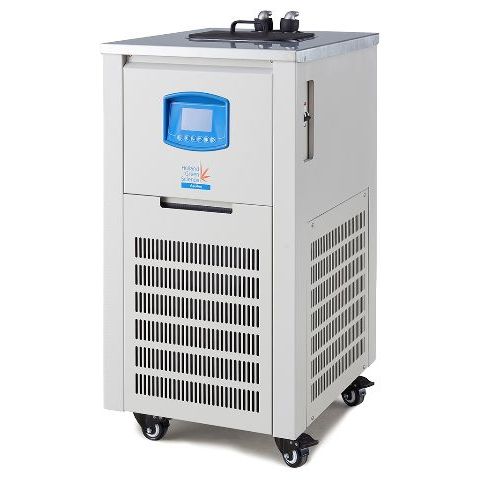

Holland Green Science Aquilon Midi 1300W Recirculating Chiller

Need reliable temperature control for mid-scale laboratory operations and extraction processes without sacrificing precision or performance?

The Holland Green Science Aquilon Midi delivers professional-grade recirculating cooling with PID temperature control that maintains stability within ±0.2°C.

Perfect for medium-sized laboratories, pilot-scale extraction setups, and research facilities requiring dependable temperature management with higher throughput capacity.

This 1300W cooling capacity unit processes up to 17L/min flow rate while operating quietly thanks to its DC-driven pump design. The system maintains consistent temperatures from -20°C to 20°C with built-in safety protections including overcurrent, overheat, and temperature deviation alarms.

Built for continuous operation with ETL and CE certifications, the Aquilon Midi features a 13L reservoir capacity and compact footprint at 400×500×795mm, making it ideal for laboratories requiring more cooling power without excessive space requirements.

Constructed with commercial-grade components and an independent circulating pump switch, this chiller ensures reliable performance for demanding applications where temperature precision and higher flow rates directly impact process outcomes and productivity.

Product Highlights

±0.2°C temperature stability with professional PID controller for precise control
1300W cooling capacity with 17L/min flow rate for rapid heat removal
DC-driven pump for ultra-quiet operation and enhanced reliability
ETL and CE certified with comprehensive safety protection systems
13L reservoir capacity perfect for medium-scale laboratory operations

Holland Green Science Aquilon Midi Features

🎯

Precision PID Control

Maintains temperature stability within ±0.2°C for consistent results

❄️

1300W Cooling Power

Delivers 1800W cooling at 10°C with 17L/min circulation rate

🔇

Ultra-Quiet Operation

DC-driven pump reduces noise while increasing reliability and lifespan

🛡️

Multi-Layer Safety

ETL certified with temperature alarm, overcurrent and overheat protection

⏱️

Built-In Timer

Programmable timer function for automated process control and efficiency

⚡

High-Flow Circulation

13L capacity with 17L/min flow rate and 21.76 psi pressure

Holland Green Science Aquilon Midi Specifications

Specification	Value
HGS SKU Number	10303002
Power Specification	120V 60Hz 1ph – 1300W
Temperature Range	-20°C to 20°C
Temperature Accuracy	±2°C
Cooling Capacity	1800W @ 10°C
Maximum Flow Rate	17L/min
Pump Pressure	21.76 psi
Reservoir Capacity	13L
Dimensions	400×500×795mm

Holland Green Science Aquilon Midi Warranty

Holland Green Science warrants the Aquilon Midi to operate substantially in conformance with published specifications and be free from defects in material and workmanship when subjected to normal, proper, and intended usage by properly trained personnel.

The warranty period is one (1) year from the date of purchase for equipment. During the warranty period, Holland Green Science will repair or replace defective products at the company's option, provided the buyer promptly notifies the company in writing upon discovery of any defect.

Holland Green Science Aquilon Midi Manual

Holland Green Science Aquilon Midi Chiller User Manual

Holland Green Science Aquilon Midi FAQs

How does the PID temperature control system maintain ±0.2°C precision? +

The Holland Green Science Aquilon Midi uses a PID (Proportional-Integral-Derivative) controller that continuously monitors and adjusts cooling output to maintain your set temperature within ±0.2°C. This advanced control system prevents temperature overshoot and undershoot, ensuring consistent conditions for sensitive processes requiring precise thermal management.

What size laboratory or operation is this chiller designed for? +

The Aquilon Midi is ideal for medium-sized laboratories, pilot-scale extraction operations, and research facilities requiring 1300W cooling capacity. With its 17L/min flow rate and 13L reservoir, it handles larger rotary evaporators, multiple reaction vessels, and mid-scale extraction systems while maintaining its compact 400×500×795mm footprint.

What maintenance does this unit require for continuous operation? +

The DC-driven pump design requires minimal maintenance compared to standard AC pumps. Regular maintenance includes monitoring coolant levels in the 13L reservoir, cleaning external condenser coils, and periodic coolant replacement. The independent pump switch allows for easy circulation system maintenance without powering down the entire cooling system.

How does the built-in timer enhance my laboratory processes? +

The integrated timer allows you to program automatic cooling cycles, reducing energy consumption and extending equipment life. This feature is particularly useful for batch processes, overnight operations, and standardizing cooling protocols across multiple runs. The timer helps optimize solvent recovery rates and ensures consistent process conditions.

What safety features protect my equipment and laboratory? +

The Aquilon Midi includes comprehensive safety protection:

ETL and CE certifications for electrical safety compliance
Temperature deviation alarm alerts you to system issues
Overcurrent protection prevents electrical damage
Overheat protection automatically shuts down if internal temperatures exceed safe limits
Independent pump switch allows isolated pump operation for troubleshooting

How quiet is the operation compared to standard chillers? +

The DC-driven pump operates significantly quieter than traditional AC pumps, making it ideal for laboratory environments where noise reduction is important. The DC motor also provides better speed control, longer lifespan, and more efficient operation at the high 17L/min flow rate and 21.76 psi pressure.

How does this compare to the smaller Aquilon Mini model? +

The Aquilon Midi offers more than double the cooling capacity (1300W vs 600W) and nearly triple the flow rate (17L/min vs 6L/min) compared to the Mini. With a larger 13L reservoir and higher pump pressure (21.76 psi vs 13 psi), it's designed for medium to large-scale operations requiring greater throughput while maintaining the same precision temperature control.

What happens if there's a problem with the unit? +

The unit features multiple diagnostic alarms including temperature deviation alerts and automatic shutdown protection for overcurrent and overheat conditions. The ETL certification ensures the unit meets North American safety standards. For technical support, contact serviceusa@hollandgreenscience.com with your serial number and issue description. The independent pump switch allows troubleshooting of circulation issues without affecting the cooling system.
