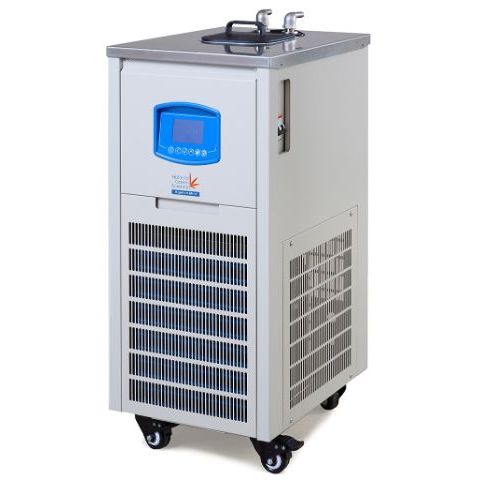

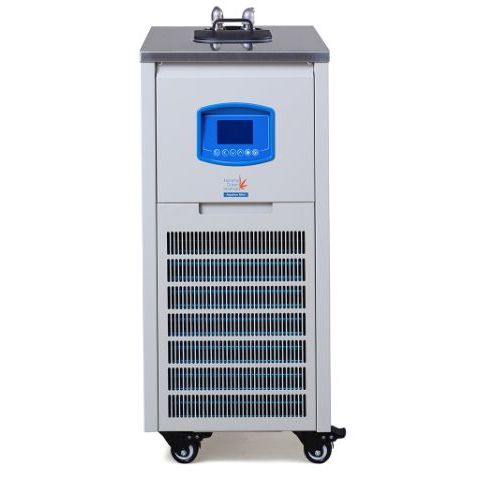

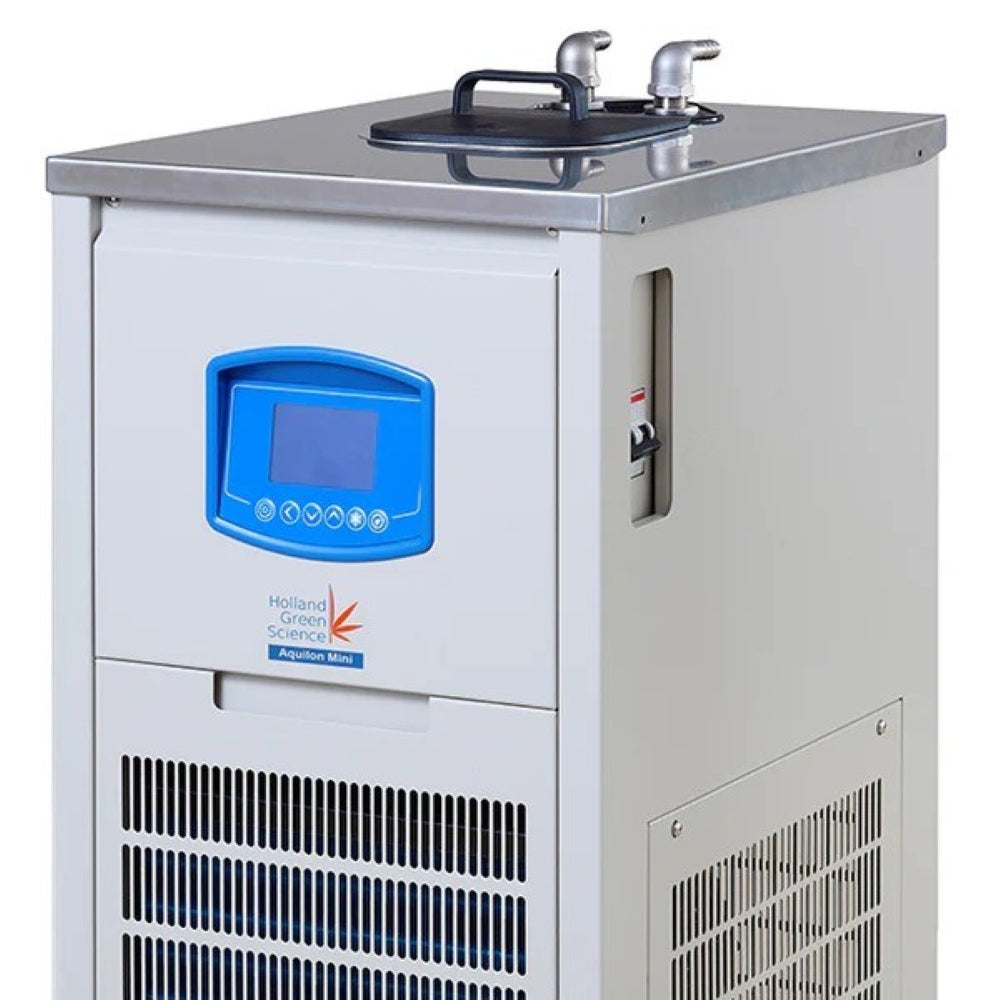

Holland Green Science Aquilon Mini 600W Recirculating Chiller

Need precise temperature control for your extraction or laboratory processes without the noise and inconsistency of standard cooling equipment?

The Holland Green Science Aquilon Mini delivers professional-grade recirculating cooling with PID temperature control that maintains stability within ±0.2°C.

Perfect for laboratories, extraction setups, and research facilities requiring reliable temperature management in compact spaces.

This 600W cooling capacity unit processes up to 6L/min flow rate while operating at whisper-quiet levels thanks to its DC-driven pump design. The system maintains consistent temperatures from -20°C to 20°C with built-in safety protections including overcurrent, overheat, and temperature deviation alarms.

Built for continuous operation with ETL and CE certifications, the Aquilon Mini features a 5.2L reservoir capacity and fits easily into standard lab configurations at just 315×455×625mm.

Constructed with commercial-grade components and an independent circulating pump switch, this chiller ensures reliable performance for demanding applications where temperature precision directly impacts process outcomes.

Product Highlights

±0.2°C temperature stability with professional PID controller
600W cooling capacity with 6L/min flow rate for rapid heat removal
DC-driven pump for ultra-quiet operation and enhanced reliability
ETL and CE certified with comprehensive safety protection systems
Compact 5.2L design perfect for benchtop and small lab installations

Holland Green Science Aquilon Mini Features

🎯

Precision PID Control

Maintains temperature stability within ±0.2°C for consistent results

❄️

600W Cooling Power

Delivers 800W cooling at 10°C with 6L/min circulation rate

🔇

Ultra-Quiet Operation

DC-driven pump reduces noise while increasing reliability and lifespan

🛡️

Multi-Layer Safety

ETL certified with temperature alarm, overcurrent and overheat protection

⏱️

Built-In Timer

Programmable timer function for automated process control and efficiency

📏

Compact Design

5.2L capacity in 315×455×625mm footprint fits standard lab benchtops

Holland Green Science Aquilon Mini Specifications

Specification	Value
HGS SKU Number	10303001
Power Specification	120V 60Hz 1ph – 600W
Temperature Range	-20°C to 20°C
Temperature Accuracy	±0.5°C
Cooling Capacity	800W @ 10°C
Maximum Flow Rate	6L/min
Pump Pressure	13 psi
Reservoir Capacity	5.2L
Dimensions	315×455×625mm

Holland Green Science Aquilon Mini Manual

Holland Green Science Aquilon Mini Chiller User Manual

Holland Green Science Aquilon Mini Warranty

Holland Green Science warrants the Aquilon Mini to operate substantially in conformance with published specifications and be free from defects in material and workmanship when subjected to normal, proper, and intended usage by properly trained personnel.

The warranty period is one (1) year from the date of purchase for equipment. During the warranty period, Holland Green Science will repair or replace defective products at the company's option, provided the buyer promptly notifies the company in writing upon discovery of any defect.

Holland Green Science Aquilon Mini FAQs

How does the PID temperature control system work? +

The Holland Green Science Aquilon Mini uses a PID (Proportional-Integral-Derivative) controller that continuously monitors and adjusts cooling output to maintain your set temperature within ±0.2°C. This advanced control system prevents temperature overshoot and undershoot, ensuring consistent conditions for sensitive processes.

What size laboratory or setup is this chiller designed for? +

The Aquilon Mini is ideal for small to medium laboratories, benchtop setups, and extraction systems requiring 600W cooling capacity. With its compact 315×455×625mm footprint and 5.2L reservoir, it fits standard lab benches while providing sufficient cooling for rotary evaporators, reaction vessels, and extraction equipment.

What maintenance does this unit require? +

The DC-driven pump design requires minimal maintenance compared to standard AC pumps. Regular maintenance includes checking coolant levels in the 5.2L reservoir, cleaning the external condenser coils, and periodic coolant replacement. The independent pump switch allows for easy circulation system maintenance without powering down the entire unit.

How does the built-in timer function enhance my processes? +

The integrated timer allows you to program automatic cooling cycles, reducing solvent waste and energy consumption. This feature is particularly useful for batch processes, overnight operations, and standardizing cooling protocols across multiple runs for consistent results.

What safety features protect my equipment and laboratory? +

The Aquilon Mini includes comprehensive safety protection:

ETL and CE certifications for electrical safety compliance
Temperature deviation alarm alerts you to system issues
Overcurrent protection prevents electrical damage
Overheat protection automatically shuts down if internal temperatures exceed safe limits

How quiet is the operation compared to standard chillers? +

The DC-driven pump operates significantly quieter than traditional AC pumps, making it ideal for laboratory environments where noise reduction is important. The DC motor also provides better speed control, longer lifespan, and more efficient operation at 6L/min flow rate.

What happens if there's a problem with the unit? +

The unit features multiple diagnostic alarms including temperature deviation alerts and automatic shutdown protection for overcurrent and overheat conditions. The ETL certification ensures the unit meets North American safety standards, and the independent pump switch allows troubleshooting of circulation issues without affecting the cooling system.
