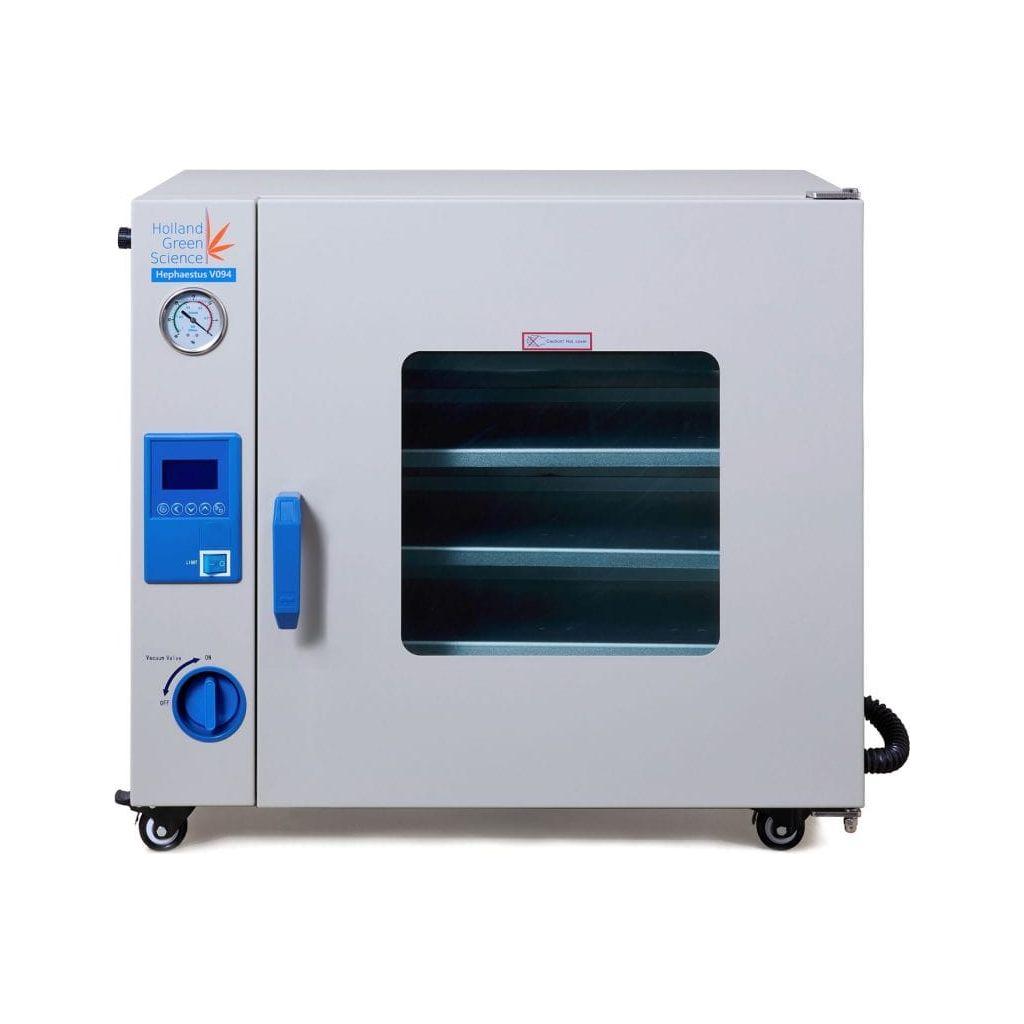

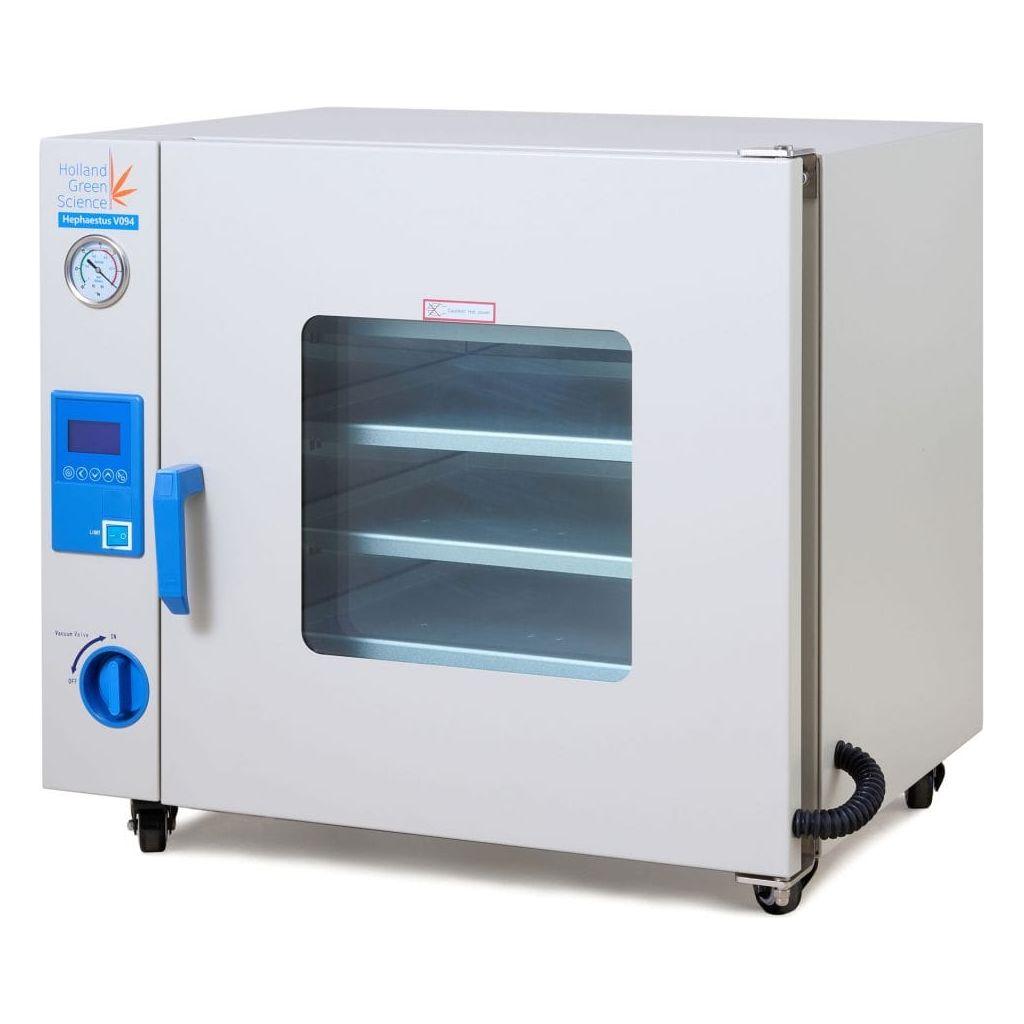

Holland Green Science Hephaestus V 094 Vacuum Oven

Processing delicate materials that degrade under standard atmospheric conditions? The Holland Green Science Hephaestus V 094 vacuum oven provides precise temperature control with vacuum environment protection for materials requiring gentle processing.

This 90L capacity vacuum oven lowers boiling points for faster evaporation at reduced temperatures, preventing thermal degradation while maintaining material integrity. The viewing window allows real-time monitoring during processing cycles.

Built with 304 stainless steel construction and featuring overtemperature protection, the Hephaestus V 094 delivers reliable performance for laboratory and small-scale production environments requiring consistent vacuum processing results.

Holland Green Science Hephaestus V 094 Features

💨

Faster Heating and Evaporation

Achieves faster heating with lower boiling points, processing materials more efficiently than standard convection ovens.

🔒

Efficient Seal

Smart door adjustment system with silicone gasket ensures optimal vacuum performance and material safety.

🎛️

PID Controller

Precise temperature and timer control system for consistent processing results and automated operation cycles.

🚫

Expels Oxygen

Vents oxygen from chamber interior to prevent oxidation buildup and maintain material quality during processing.

🚨

Overtemperature Alarm

Integrated alarm system protects materials from excessive heat exposure and prevents equipment damage.

✅

ETL and CE Rated

Meets stringent safety and quality standards with ETL and CE certifications for professional use environments.

Holland Green Science Hephaestus V 094 Highlights

Heats up to 200°C maximum temperature
304 stainless steel construction

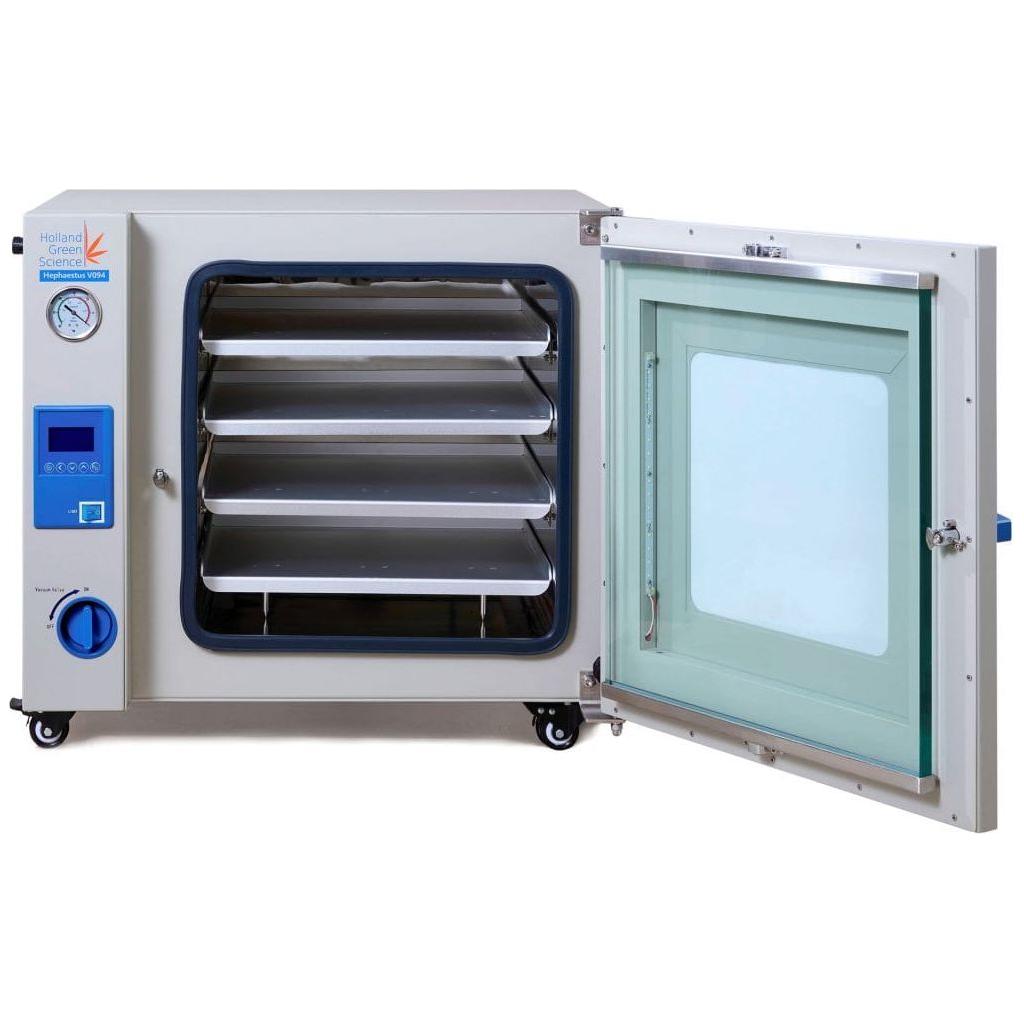

Four shelf spaces for material placement
90L chamber size capacity
Smart door adjustment system
Inert gas valve vent
Overtemperature alarm protection
Timer included for automated cycles

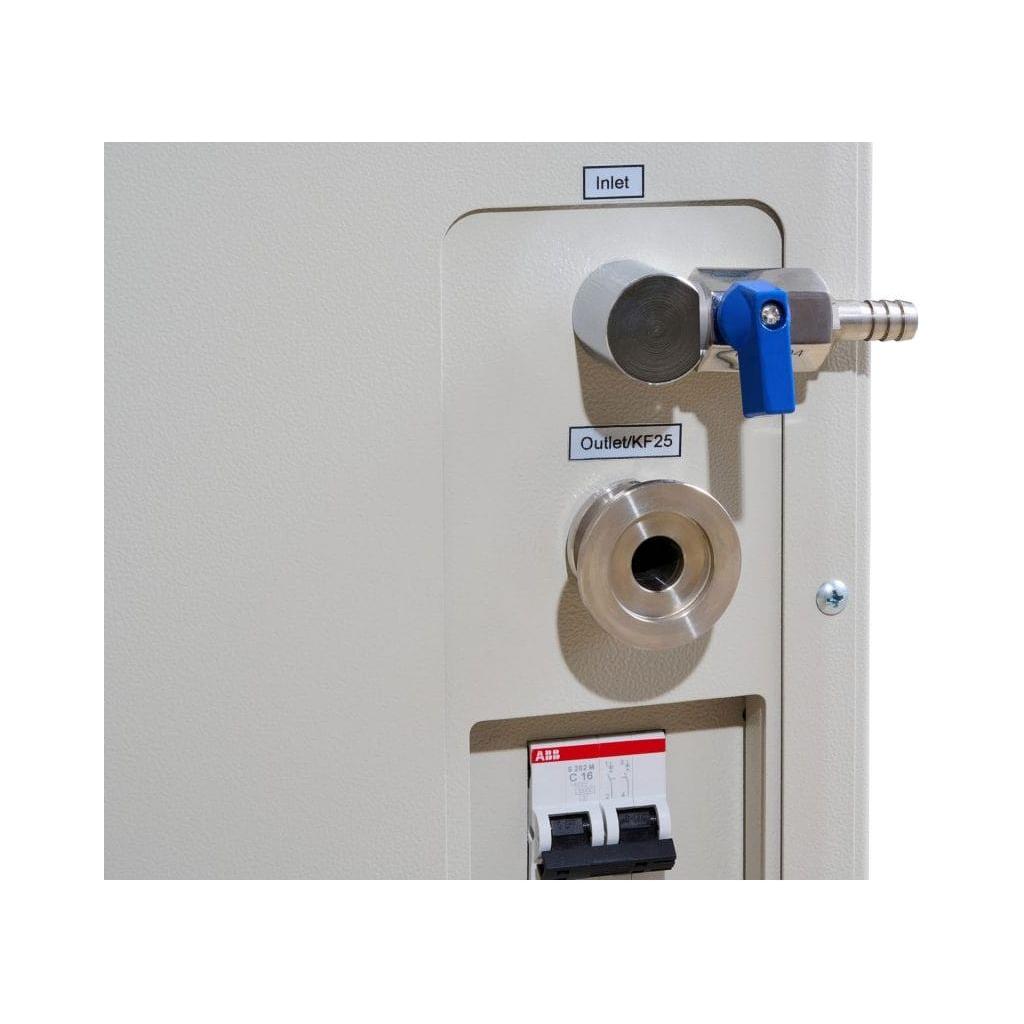

KF25 vacuum port connection
Barbed purge port
ETL and CE-rated certifications

What's Included with the Holland Green Science Hephaestus V 094

1x - Vacuum Oven
1x - Vacuum Connection Pipe
2x - Spanner
1x - Scan to download user manual

Holland Green Science Hephaestus V 094 Specifications

Power Specification	120V 60Hz 1ph – 1350W
Chamber Size W×D×H (mm)	90L (450x450x450)
Temperature Range	ambient + 10°C to 200°C
Shelves	4
Dimensions (mm)	740 x 610 x 591
General Weight	169 kg

Holland Green Science Hephaestus V 094 Manual

Holland Green Science Hephaestus V 094 user manual PDF

Holland Green Science Hephaestus V 094 Manual

Holland Green Science Hephaestus V 094 Warranty

Holland Green Science offers a limited 2-year warranty. This warranty does not cover operator error or abuse.

Holland Green Science Hephaestus V 094 FAQs

Who is the ideal user for the 90L capacity Hephaestus V 094? +

The Hephaestus V 094 is ideal for small-scale laboratory applications, research facilities, and boutique production operations requiring precise vacuum processing. The compact 740 x 610 x 591 mm footprint and 169 kg weight make it suitable for laboratory benches while providing four shelf spaces for batch processing.

How does the viewing window enhance safety and monitoring capabilities? +

The viewing window allows continuous visual monitoring of materials during processing without breaking the vacuum seal. This feature significantly reduces burning risks by enabling real-time observation of material condition, color changes, and processing progress throughout the entire drying cycle.

What are the power requirements and installation considerations? +

The unit requires standard 120V 60Hz single phase power with 1350W consumption, making it compatible with most laboratory electrical systems. The compact design and 169 kg weight allow for benchtop installation with adequate ventilation clearance and proper support structure.

How does the four-shelf configuration maximize processing efficiency? +

The four shelf spaces in the 90L chamber provide maximum material capacity within the compact footprint. Each shelf receives uniform temperature distribution and vacuum exposure, enabling simultaneous processing of multiple batches or different materials while maintaining consistent results across all levels.

What safety systems protect materials during unattended operation? +

The Hephaestus V 094 includes integrated overtemperature alarm protection and PID controller precision to prevent thermal runaway. The smart door sealing system maintains consistent vacuum levels, while ETL and CE certifications ensure compliance with laboratory safety standards for unattended operation.

How does the inert gas purging system prevent oxidation? +

The inert gas valve vent allows purging with nitrogen or argon to displace oxygen and create an inert processing environment. This prevents oxidation of sensitive compounds during processing, while the vacuum system removes both oxygen and solvents for comprehensive material protection.

What does the 2-year warranty cover and what are the limitations? +

Holland Green Science provides a limited 2-year warranty covering manufacturing defects and component failures under normal operation. The warranty does not cover operator error, abuse, or damage from improper use. Regular maintenance and proper operation are essential to maintain warranty coverage.
