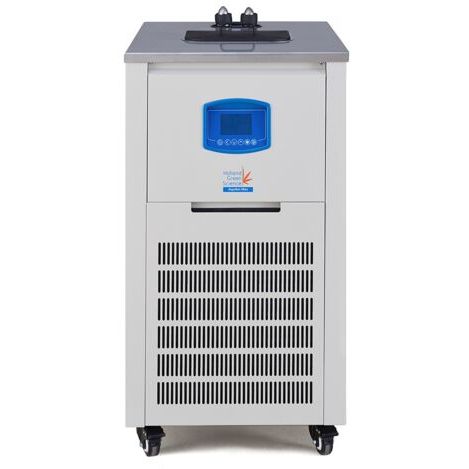

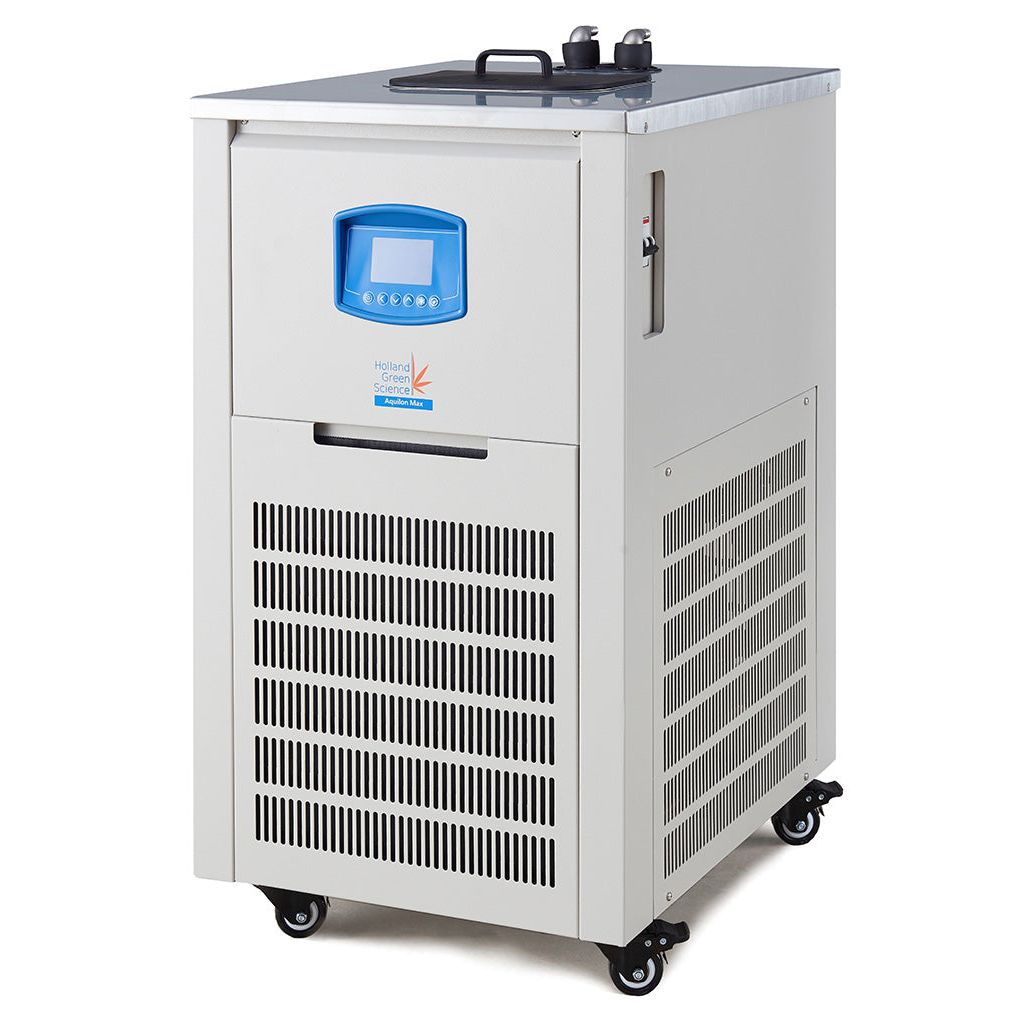

Holland Green Science Aquilon Max 1600W Recirculating Chiller

Need maximum cooling performance for large-scale laboratory operations, production facilities, and industrial extraction processes without compromising precision?

The Holland Green Science Aquilon Max delivers industrial-grade recirculating cooling with PID temperature control that maintains stability within ±0.2°C.

Perfect for large laboratories, production-scale extraction facilities, and industrial research operations requiring maximum cooling capacity with uncompromising temperature precision.

This 1600W cooling capacity powerhouse delivers 2500W cooling at 10°C with 17L/min flow rate while operating quietly thanks to its DC-driven pump design. The system maintains consistent temperatures from -20°C to 20°C with built-in safety protections including overcurrent, overheat, and temperature deviation alarms.

Built for continuous operation with ETL and CE certifications, the Aquilon Max features a massive 25L reservoir capacity in a robust 450×600×875mm footprint, making it the ultimate solution for facilities requiring maximum cooling power and extended operation times.

Constructed with industrial-grade components and an independent circulating pump switch, this chiller ensures reliable performance for the most demanding applications where temperature precision, high capacity, and continuous operation are critical to process success and productivity.

Product Highlights

±0.2°C temperature stability with professional PID controller for maximum precision
1600W power with 2500W cooling at 10°C for maximum heat removal capacity
DC-driven pump for ultra-quiet operation and industrial-grade reliability
ETL and CE certified with comprehensive multi-layer safety protection systems
25L reservoir capacity perfect for large-scale and extended operations

Holland Green Science Aquilon Max Features

🎯

Precision PID Control

Maintains temperature stability within ±0.2°C for consistent results

🚀

Maximum Cooling Power

1600W power delivers 2500W cooling at 10°C for maximum capacity

🔇

Ultra-Quiet Operation

DC-driven pump reduces noise while maximizing reliability and lifespan

🛡️

Industrial Safety

ETL certified with temperature alarm, overcurrent and overheat protection

⏱️

Programmable Timer

Advanced timer function for automated large-scale process control

🏭

Large-Scale Capacity

25L reservoir with 17L/min flow rate for extended operations

Holland Green Science Aquilon Max Specifications

Specification	Value
HGS SKU Number	10303003
Power Specification	230V 60Hz 1ph – 1600W
Temperature Range	-20°C to 20°C
Temperature Accuracy	±2°C
Cooling Capacity	2500W @ 10°C
Maximum Flow Rate	17L/min
Pump Pressure	21.76 psi
Reservoir Capacity	25L
Dimensions	450×600×875mm

Holland Green Science Aquilon Max Manual

Holland Green Science Aquilon Max Chiller User Manual

Holland Green Science Aquilon Max Warranty

Holland Green Science warrants the Aquilon Max to operate substantially in conformance with published specifications and be free from defects in material and workmanship when subjected to normal, proper, and intended usage by properly trained personnel.

The warranty period is one (1) year from the date of purchase for equipment. During the warranty period, Holland Green Science will repair or replace defective products at the company's option, provided the buyer promptly notifies the company in writing upon discovery of any defect.

Holland Green Science Aquilon Max FAQs

How does the maximum cooling capacity benefit large-scale operations? +

The Aquilon Max delivers 2500W cooling capacity at 10°C with 1600W input power, making it ideal for large-scale extraction systems, multiple rotary evaporators, and industrial processes. The massive 25L reservoir ensures extended operation times and thermal stability for continuous production environments.

What size operations and facilities is this chiller designed for? +

The Aquilon Max is engineered for large laboratories, production facilities, and industrial operations requiring maximum cooling capacity. With its 2500W cooling at 10°C and 25L reservoir, it handles large-scale extraction systems, multiple simultaneous processes, and extended continuous operations in 450×600×875mm footprint.

What maintenance is required for continuous industrial operation? +

The industrial-grade DC-driven pump requires minimal maintenance for continuous operation. Regular maintenance includes monitoring the large 25L reservoir coolant levels, cleaning external condenser coils, and scheduled coolant replacement. The independent pump switch enables circulation system maintenance without interrupting cooling operations.

How does the programmable timer optimize large-scale processes? +

The advanced timer system allows programming of complex cooling cycles for large-scale batch processes, reducing energy consumption during off-hours and optimizing solvent recovery rates. This feature is essential for production facilities running multi-shift operations and standardizing cooling protocols across extended process runs.

What industrial safety features protect large-scale operations? +

The Aquilon Max includes comprehensive industrial-grade safety protection:

ETL and CE certifications for industrial electrical safety compliance
Temperature deviation alarm with multiple alert levels
Overcurrent protection prevents electrical damage to facility systems
Overheat protection with automatic shutdown and restart capabilities
Independent pump switch allows isolated diagnostics and maintenance

How quiet is this unit for large facility environments? +

The DC-driven pump operates significantly quieter than industrial AC pumps, crucial for large facilities with multiple work areas. The DC motor provides precise speed control, extended operational life, and efficient performance at high 17L/min flow rate and 21.76 psi pressure for demanding industrial applications.

How does this compare to the Mini and Midi models? +

The Aquilon Max offers maximum cooling capacity (2500W at 10°C) with nearly double the reservoir capacity (25L vs 13L Midi, 5X the Mini's 5.2L). It requires 230V power versus 120V for smaller models, delivering industrial-grade performance for large-scale operations requiring maximum throughput and extended operation times.

What power requirements and installation considerations apply? +

The Aquilon Max requires 230V 60Hz 1ph power at 1600W, typically requiring dedicated electrical installation. The unit dimensions are 450×600×875mm and should be installed with adequate ventilation clearance. For installation and electrical requirements, contact serviceusa@hollandgreenscience.com for facility-specific guidance.
