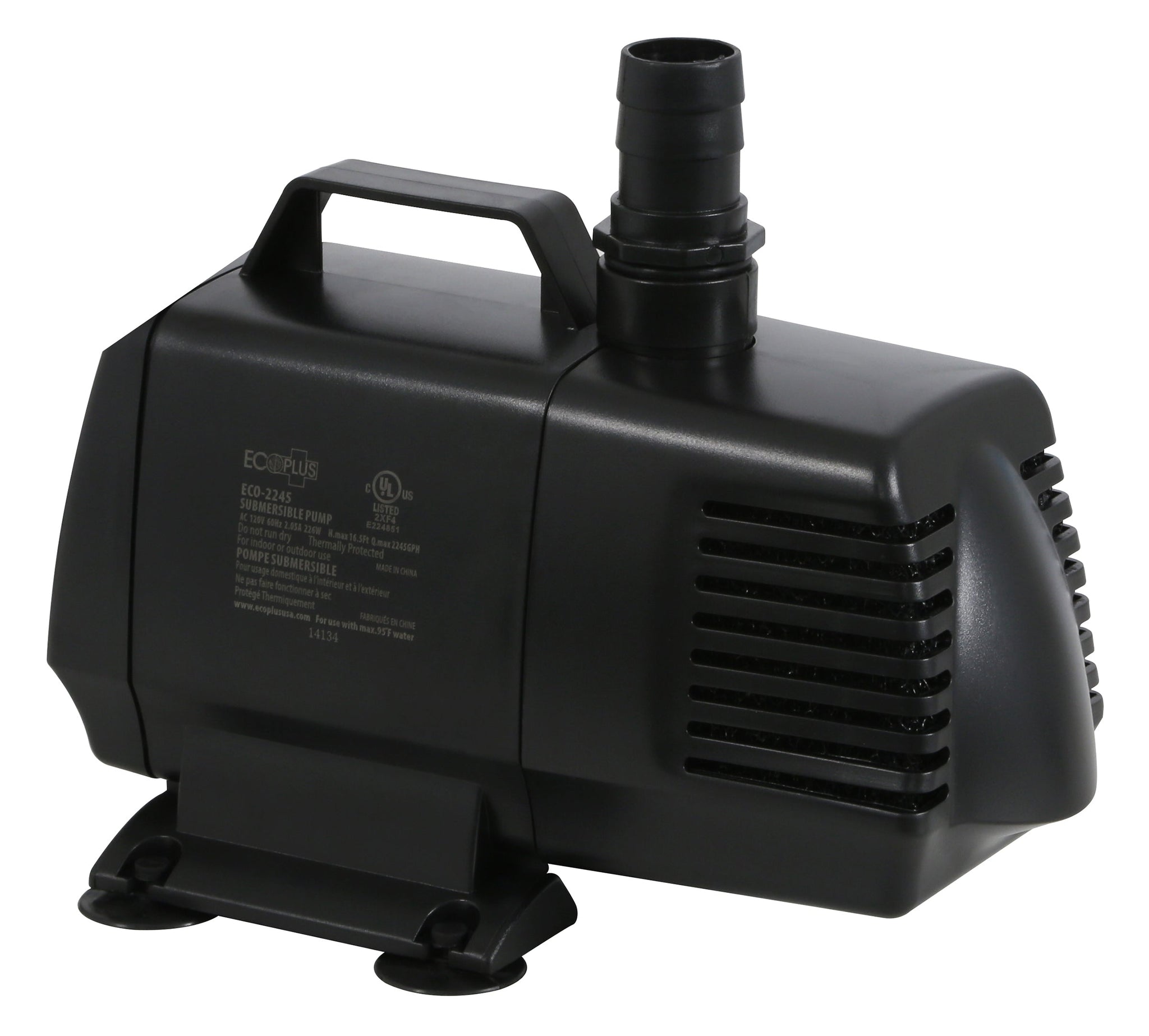

EcoPlus Eco 2245 Fixed Flow Submersible/Inline Pump (2166 GPH)

The Eco 2245 serves large-scale commercial hydroponics with reservoirs exceeding 700 gallons, major public aquariums and retail installations ranging from 550-750 gallons, and expansive architectural water features or koi ponds. This premium capacity delivers 3-4 complete system turnovers hourly, ensuring optimal dissolved oxygen saturation (often paired with high-output aeration like the EcoPlus 200W Commercial Air Pump), perfect thermal uniformity, and complete nutrient distribution essential for maximizing commercial production yields.

The Eco 2245 excels in professional RAS operations where water quality directly determines survival rates and growth performance. The 2166 GPH output maintains robust circulation through biofilters and treatment equipment even under heavy bioloads. To maintain precise temperatures in these sensitive environments, many operators integrate an EcoPlus Commercial Grade 1 HP Water Chiller. The oil-free ceramic design prevents contamination that compromises fish health, while the reliable magnetic drive minimizes downtime risk in operations where pump failure could trigger catastrophic livestock losses.

Yes, the Eco 2245 handles commercial aquaponics effectively with proper pre-filtration and diligent maintenance. The heavy-duty strainer captures larger particles, but high-solids environments demand frequent filter cleaning—potentially multiple times daily in intensive operations. Implement mechanical pre-filtration such as settling tanks or swirl filters to remove solids before they reach the pump. This reduces maintenance frequency and significantly extends pump service life in solids-heavy commercial aquaponics.

Calculate TCO by factoring purchase price, energy consumption, maintenance labor, and downtime costs. The Eco 2245's magnetic drive typically delivers 25-35% better energy efficiency than traditional pumps, saving hundreds annually in 24/7 operations. The elimination of mechanical seals dramatically reduces maintenance costs and extends service life to 5-7 years versus 2-3 years for conventional pumps. Most commercial operators achieve positive ROI within 12-24 months despite higher initial investment.

For the Eco 2245's 2166 GPH capacity, specify 2-inch or larger diameter piping for optimal performance, especially on runs exceeding 20 feet. Larger diameter dramatically reduces friction losses—the difference between 1.5-inch and 2-inch tubing can represent 20-30% flow improvement. Use sweeping bends instead of sharp elbows, minimize total fitting count, and position the pump below water source level in inline applications. Consult with hydraulic engineers for complex installations to maximize efficiency.

For mission-critical commercial operations, implement full N+1 redundancy with multiple pumps where any single failure maintains minimum system requirements. Many operators prefer running two Eco 2245 pumps at 60-70% capacity each, providing both redundancy and extended service life. For systems that can tolerate lower flow during emergency maintenance, the EcoPlus 1500 Elite Submersible Water Pump serves as an excellent secondary unit to have on hand.

The Eco 2245 integrates with BMS through standard electrical controls and monitoring devices. Install current sensing relays to detect pump operation status, add inline flow meters for performance verification, and connect to pressure transducers for system diagnostics. Modern BMS platforms can track runtime hours for predictive maintenance, generate instant failure alerts, and compile operational data for efficiency analysis. Work with automation specialists to design monitoring strategies aligned with your operational priorities.

Establish rigorous PM protocols: clean foam filters every 1-2 days in commercial use, inspect strainers every 3-4 days, and conduct monthly deep cleaning with housing examination. Quarterly, evaluate all fittings, connections, and electrical components for wear. Semi-annually, disassemble accessible components for thorough cleaning and inspection. Document all maintenance meticulously—detailed records support warranty claims and provide accountability in commercial operations where equipment reliability impacts profitability.
