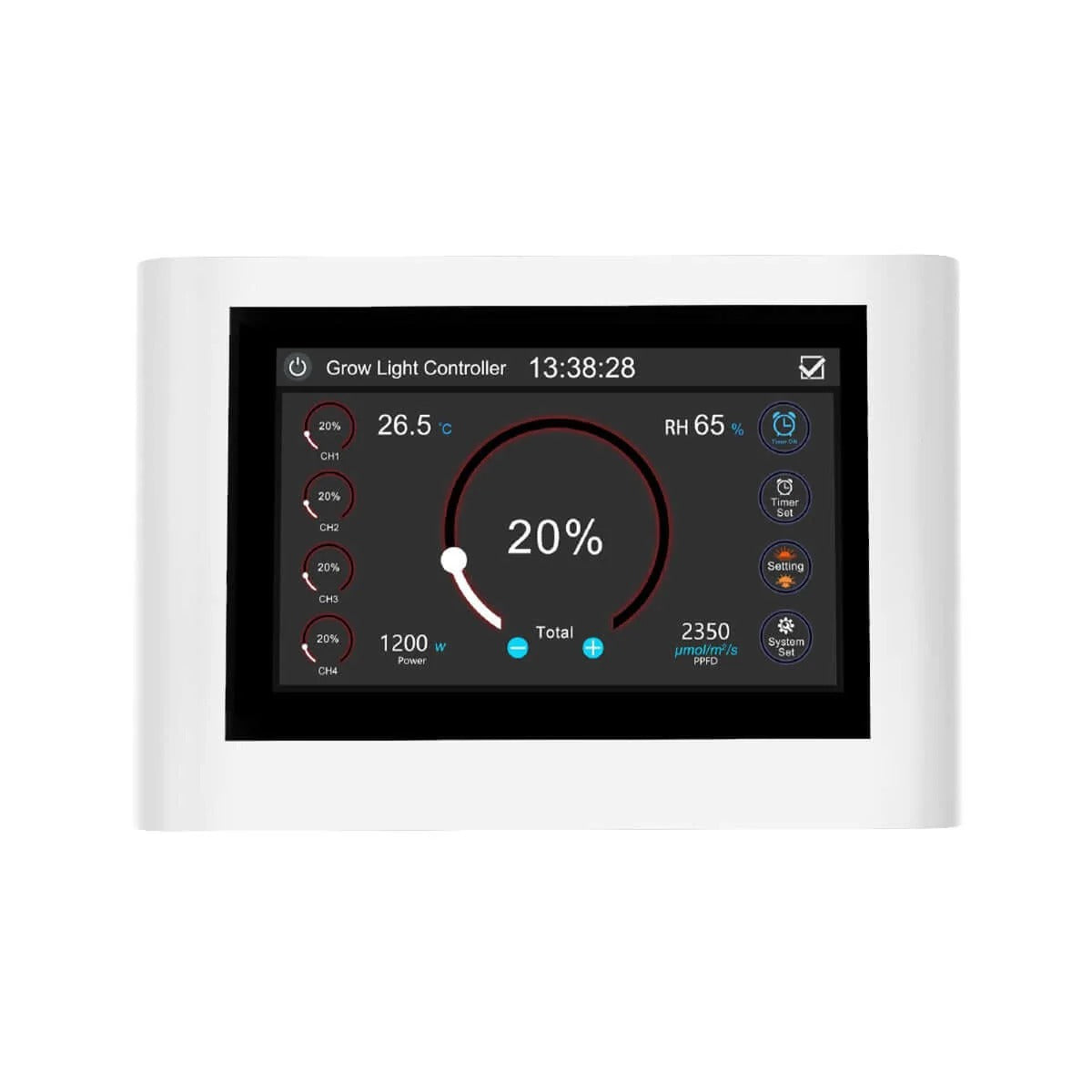

White grow light controller with a touchscreen displaying temperature, humidity, power, and PPFD.
CeresLux WB01 LED Grow Light Controller with touchscreen, displaying temperature, humidity, power, and settings.

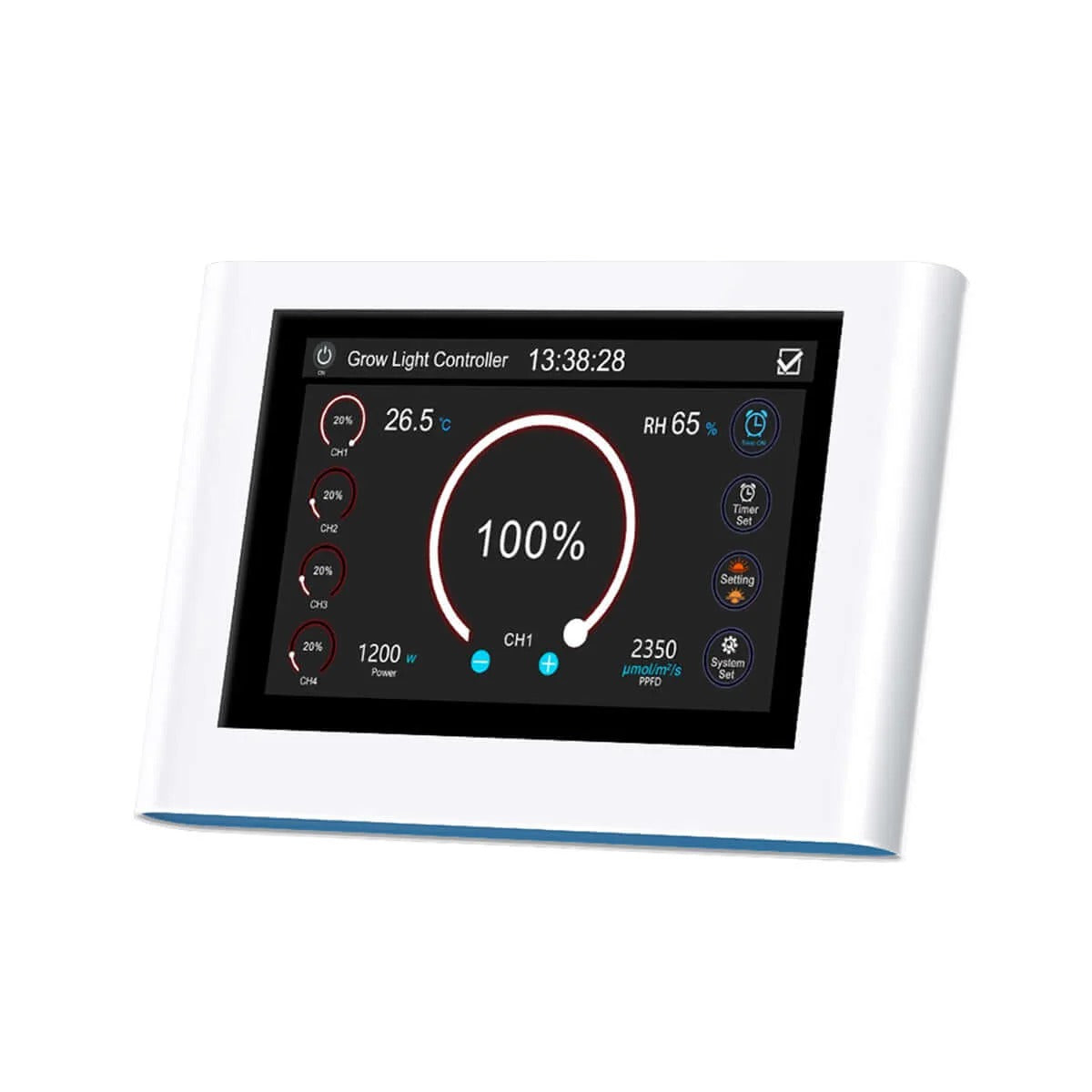

CeresLux WB01 LED Grow Light Controller with touch screen, showing 100% power, temperature, and humidity.

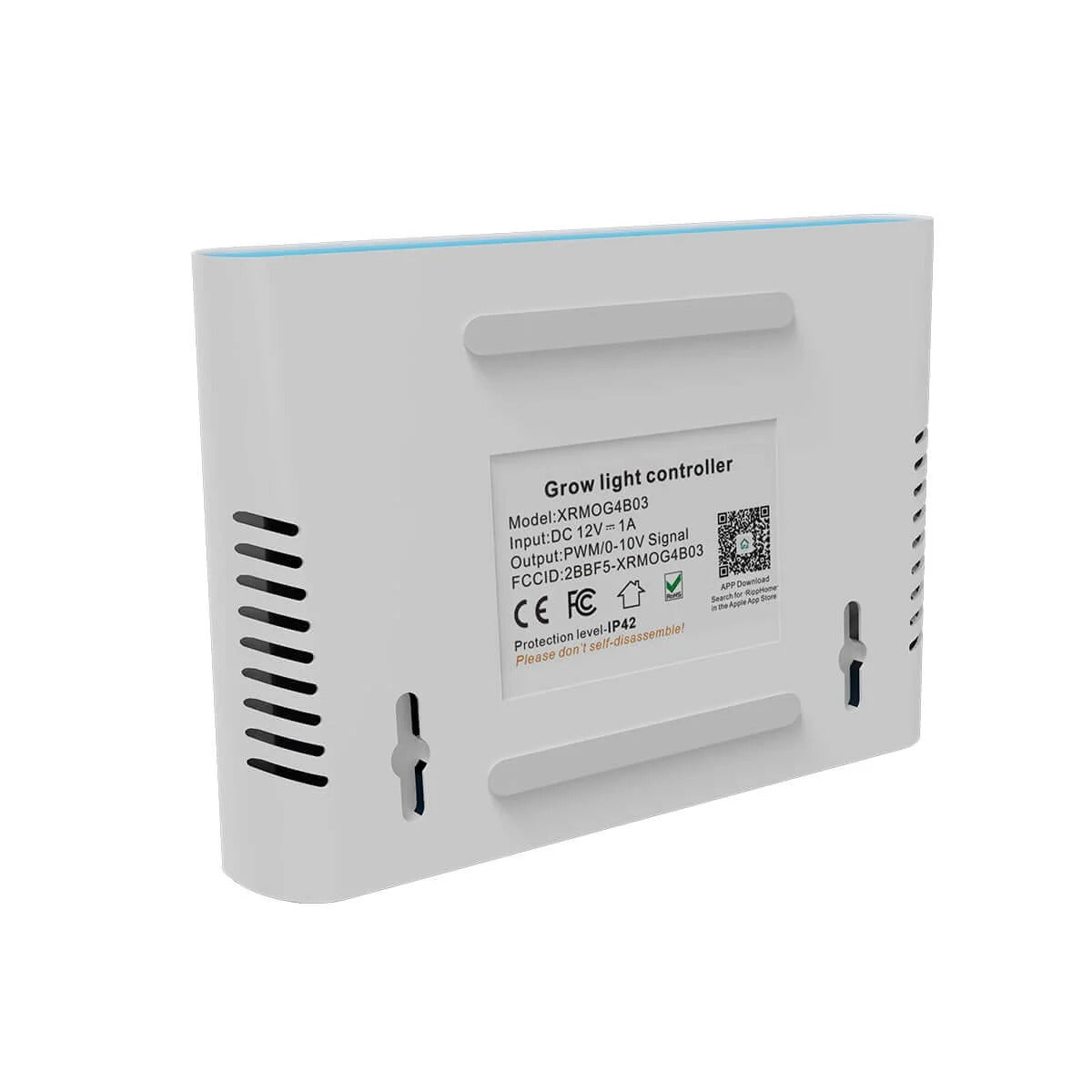

White grow light controller with "Grow light controller" label, model, input/output specs, FCC, CE, and IP42 ratings.

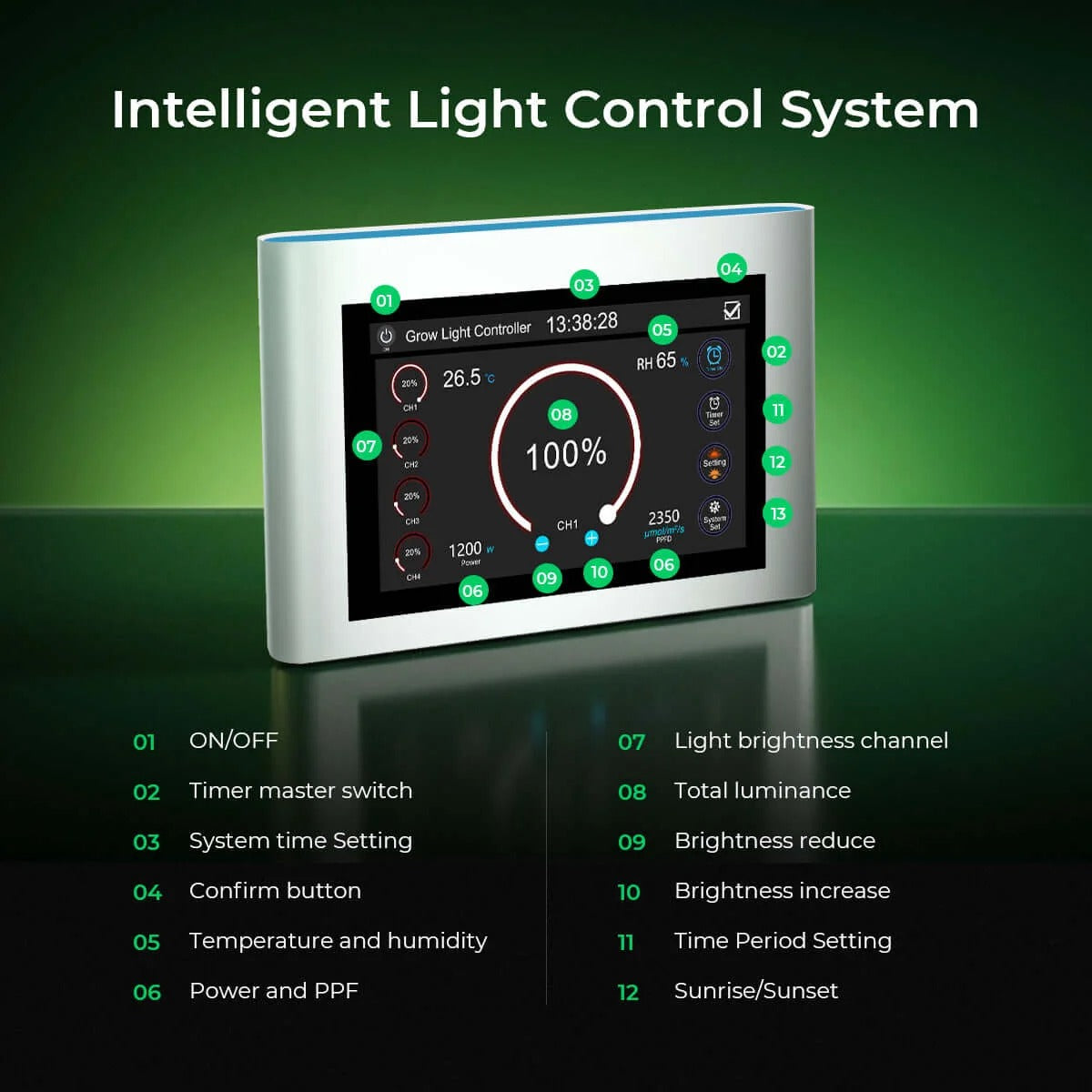

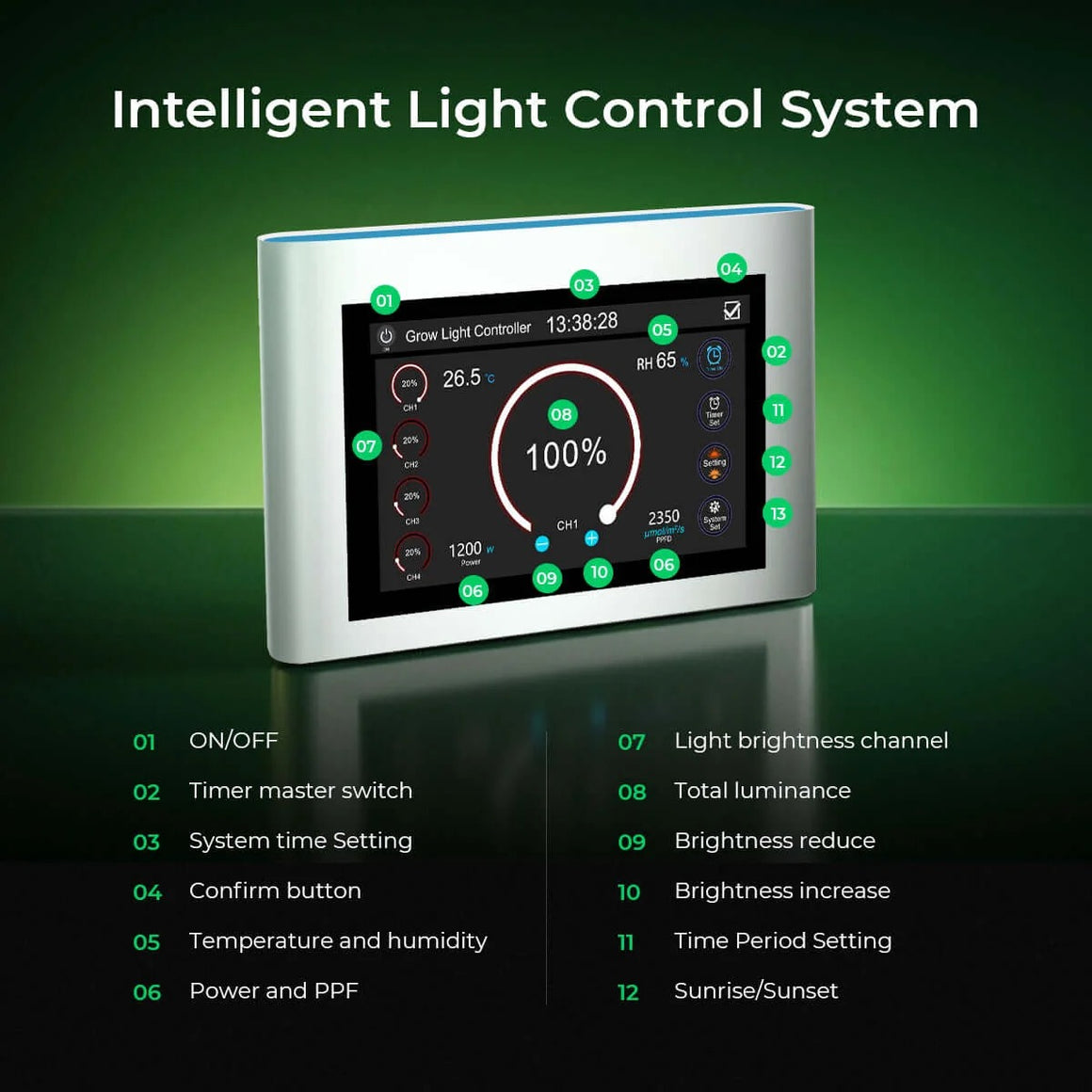

CeresLux WB01 LED Grow Light Controller with touchscreen interface, showing humidity, time, and brightness settings.

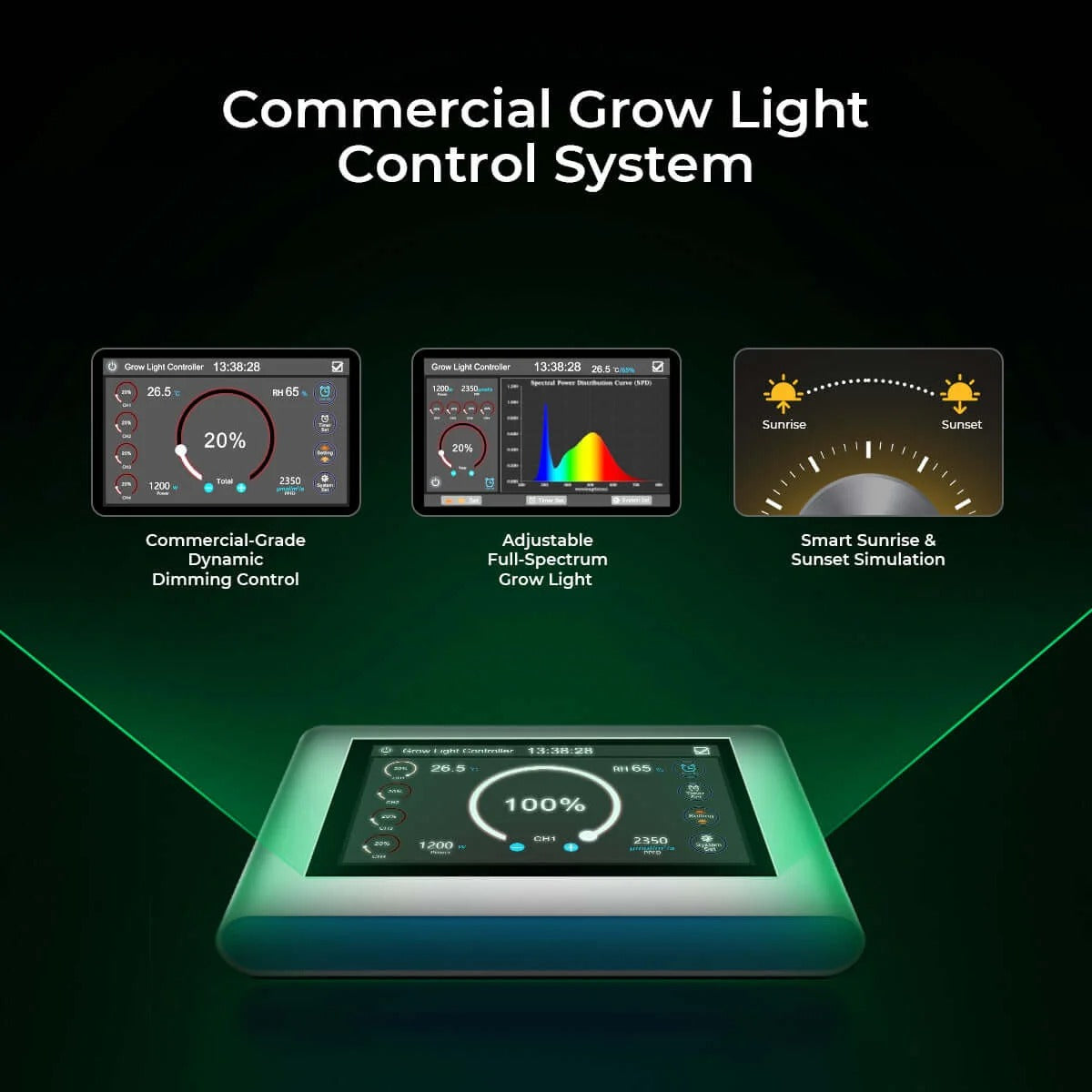

CeresLux LED grow light controller with touchscreen, showing dimming, spectrum, and sunrise/sunset simulation.

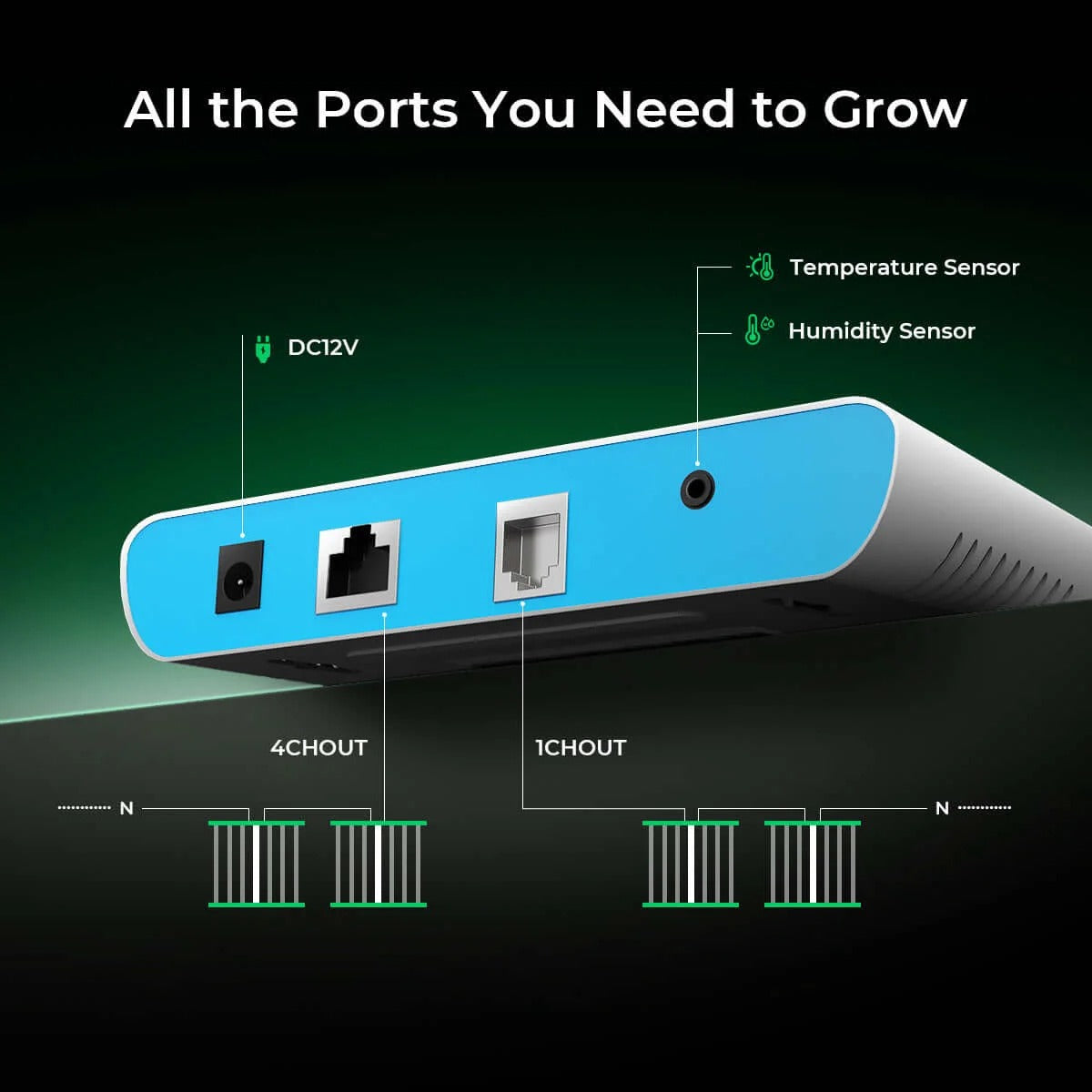

CeresLux WB01 controller with DC12V, Ethernet, and sensor ports, plus 4-channel and 1-channel outputs.

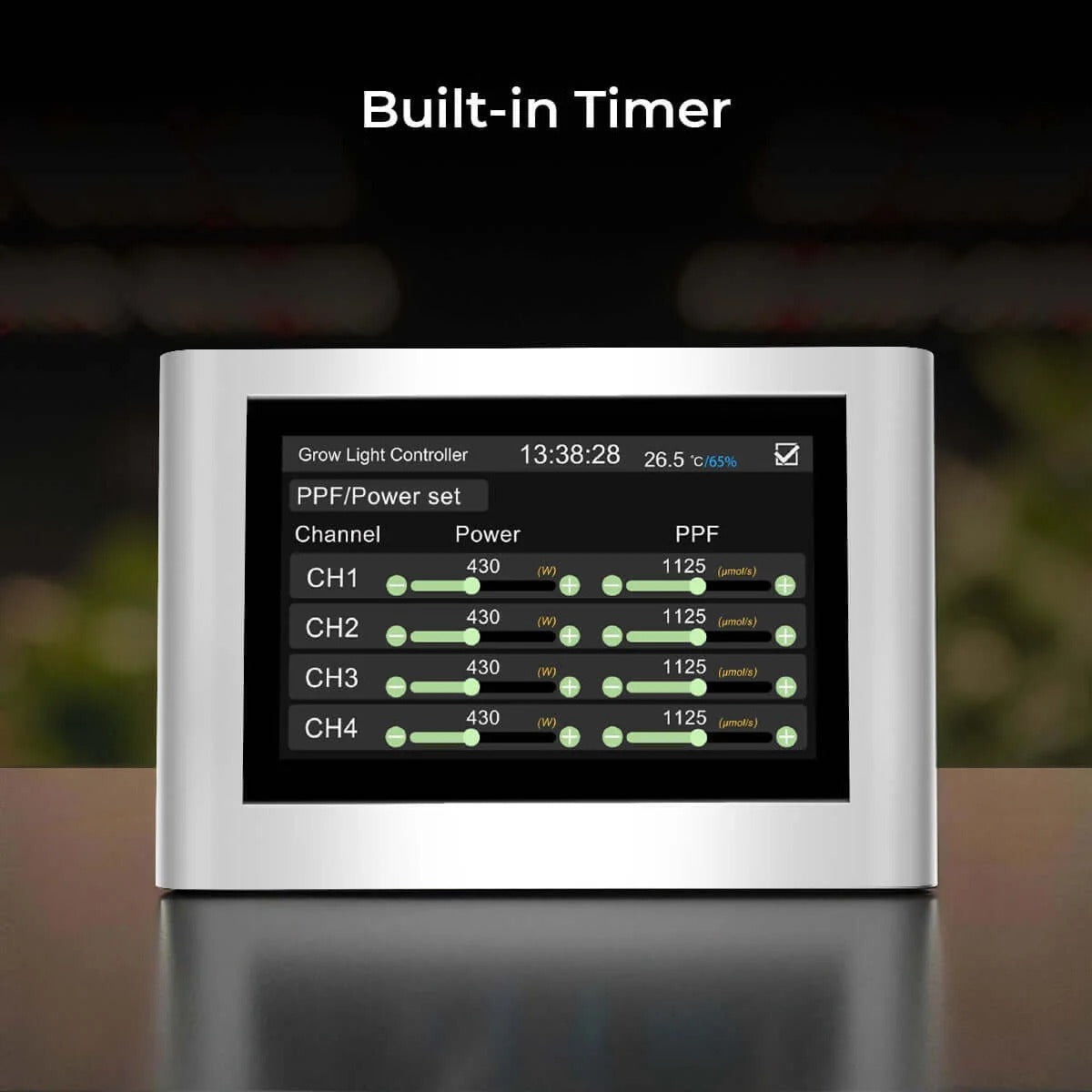

CeresLux WB01 LED Grow Light Controller with built-in timer displaying channel power and PPF settings.

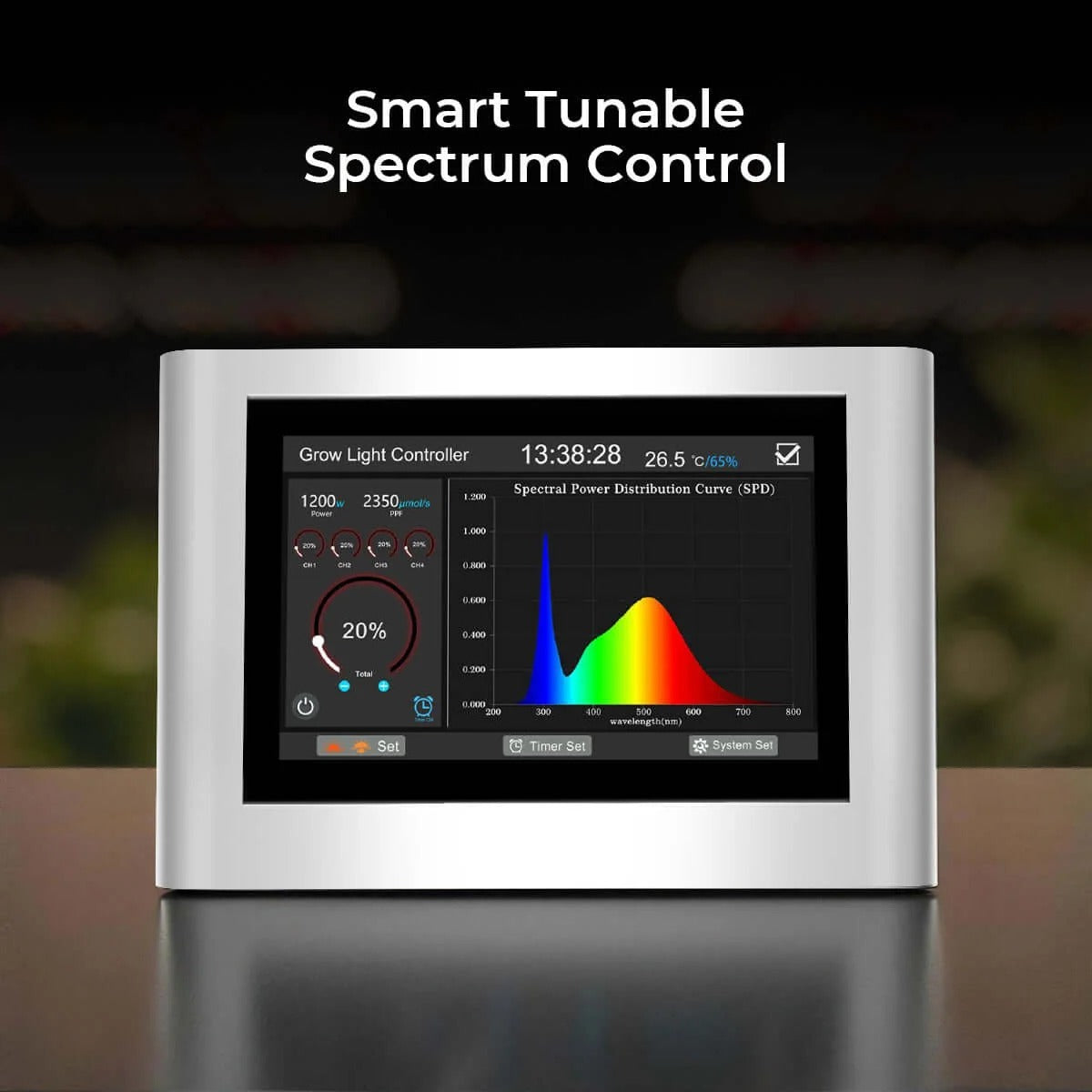

CeresLux LED grow light controller displays spectral power distribution curve, time, and temperature.

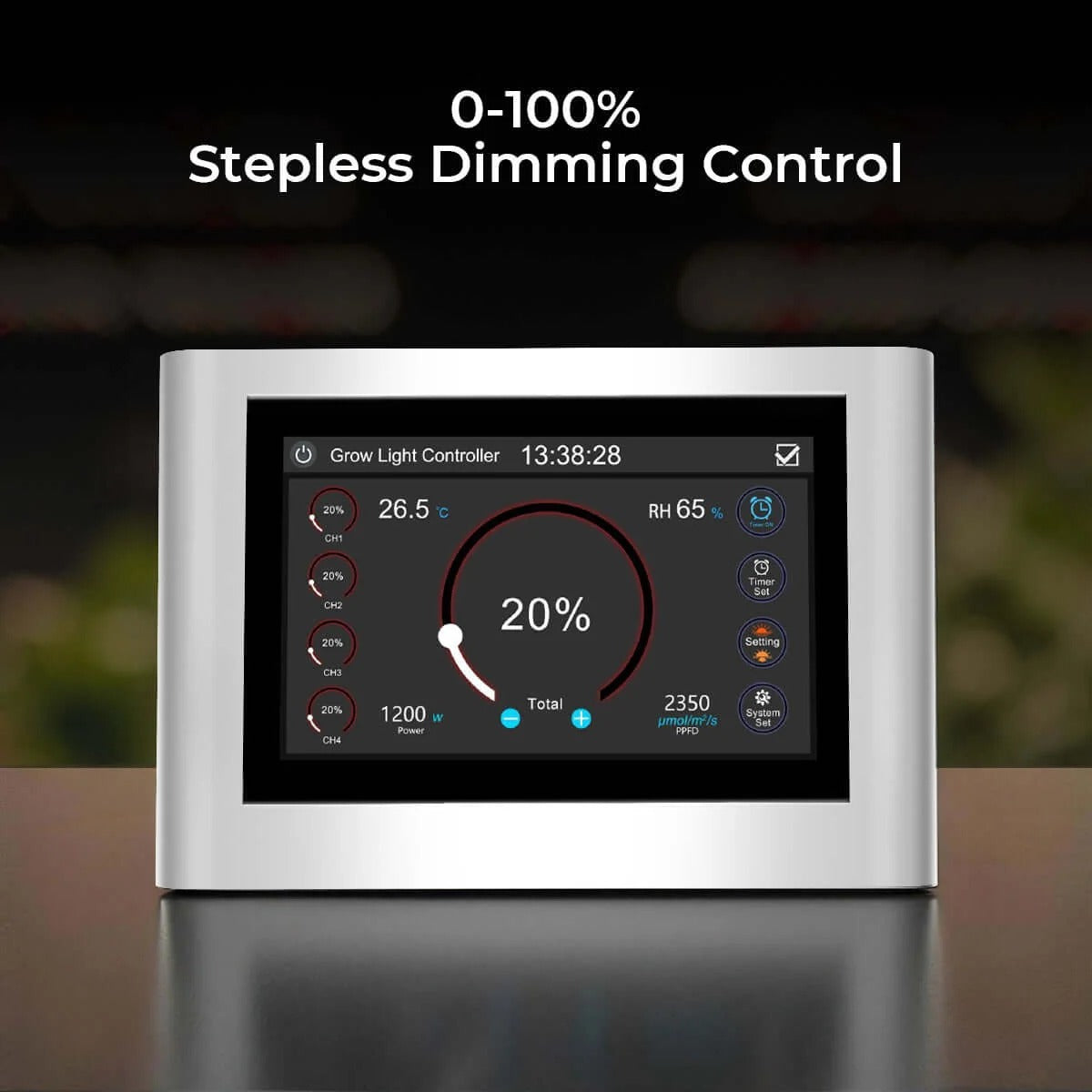

CeresLux WB01 LED Grow Light Controller with 0-100% stepless dimming control.

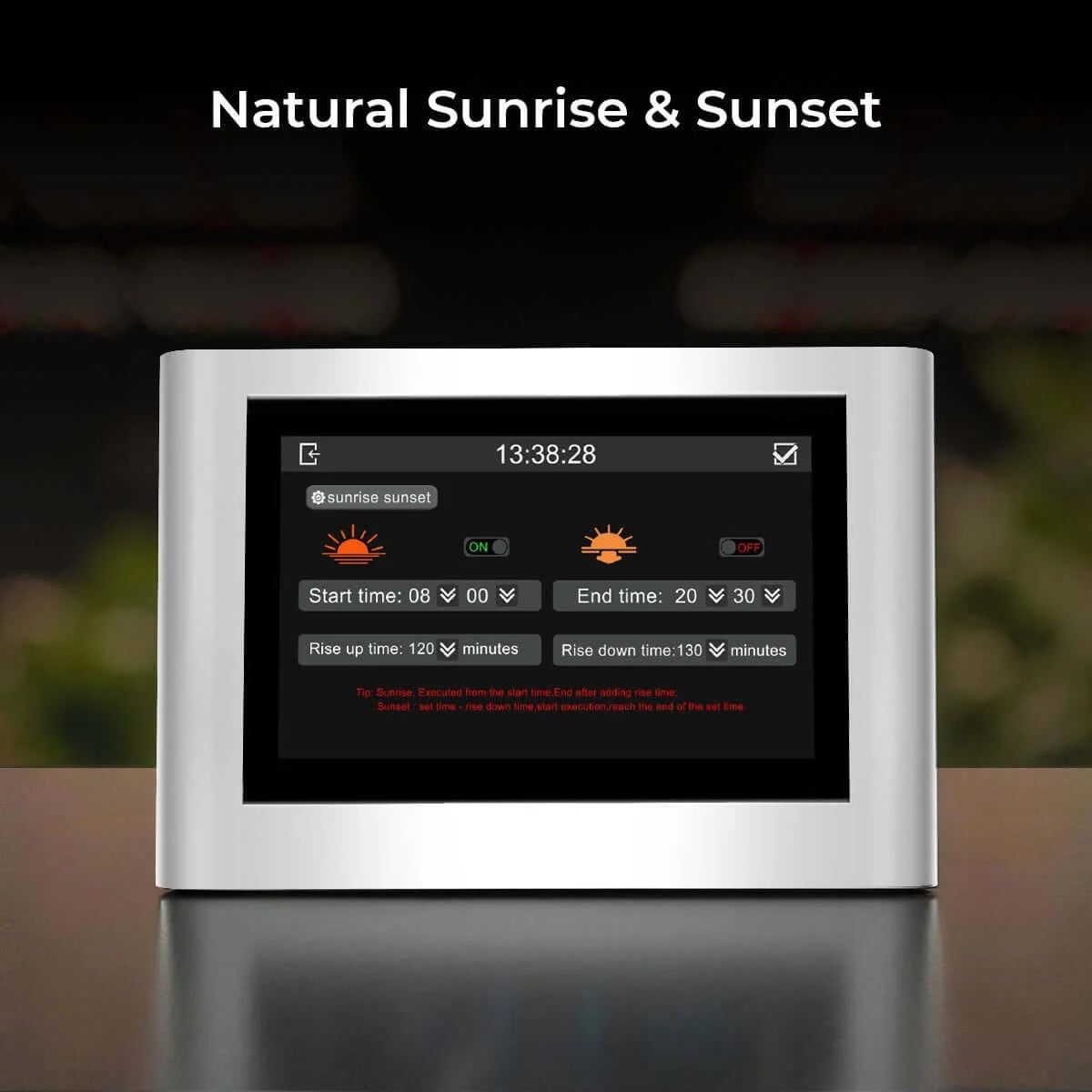

LED grow light controller displaying natural sunrise & sunset simulation settings.
White grow light controller with a touchscreen displaying temperature, humidity, power, and PPFD.
CeresLux WB01 LED Grow Light Controller with touchscreen, displaying temperature, humidity, power, and settings.
CeresLux WB01 LED Grow Light Controller with touch screen, showing 100% power, temperature, and humidity.
White grow light controller with
CeresLux WB01 LED Grow Light Controller with touchscreen interface, showing humidity, time, and brightness settings.
CeresLux LED grow light controller with touchscreen, showing dimming, spectrum, and sunrise/sunset simulation.
CeresLux WB01 controller with DC12V, Ethernet, and sensor ports, plus 4-channel and 1-channel outputs.
CeresLux WB01 LED Grow Light Controller with built-in timer displaying channel power and PPF settings.
CeresLux LED grow light controller displays spectral power distribution curve, time, and temperature.
CeresLux WB01 LED Grow Light Controller with 0-100% stepless dimming control.
LED grow light controller displaying natural sunrise & sunset simulation settings.
Ask Sage about this product

CeresLux WB01 LED Grow Light Controller

Official CeresLux Dealer Model: WB01
$199.99 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Outputs both 0-10V analog and 10V PWM signals for broad lighting compatibility.
  • Automates irrigation cycles and environmental feedback to reduce daily labor requirements.
  • Connects up to 100 linked fixtures via RJ12 for total room synchronization.
  • 5-year manufacturer warranty
  • View More Details

Earn 199 points for shopping and get $1.99 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are adding centralized control to your facility because manual dimming across multiple fixtures creates inconsistencies in canopy coverage.
  • You are switching to a unified controller because your current mix of timers and manual switches leaves you unable to track plant environmental data effectively.

  • We like how the RJ12 connectivity keeps cable runs clean when you are chaining rows of lighting together.
  • The 0-10V and 10V PWM outputs cover almost every commercial light we carry, which keeps your upgrade path flexible.

  • Growers who centralized their room control say they stopped dealing with uneven plant development caused by manual lighting errors.
  • Operators who integrated the humidity sensors report that they finally hit their target vapor pressure deficit targets consistently.

CeresLux WB01 LED Grow Light Controller

Running a commercial grow room manually means constant check-ins and inconsistent conditions. The CeresLux WB01 centralizes lighting, climate, and irrigation control into a single system, managing everything from primary fixtures to supplemental CeresLux DeepGrow-Dual under canopy lights with full remote monitoring and management through an intuitive mobile app from anywhere.

The WB01 connects to Cereslux lighting systems, including the high-power CeresLux Titan 1320W LED, and other compatible devices over RJ12 for synchronized, centralized control, outputting both 0-10V analog and 10V PWM signals. Paired with an optional 2-in-1 temperature and humidity sensor, it maintains stable environmental conditions and can drive scheduled or sensor-based irrigation cycles to minimize the risk of overwatering.

Real-time sensor feedback and smart automation streamline daily cultivation tasks and reduce labor requirements, while detailed data analytics, performance reports, and instant alerts keep growers informed the moment conditions need attention.

Features

CeresLux WB01 LED grow light controller unit

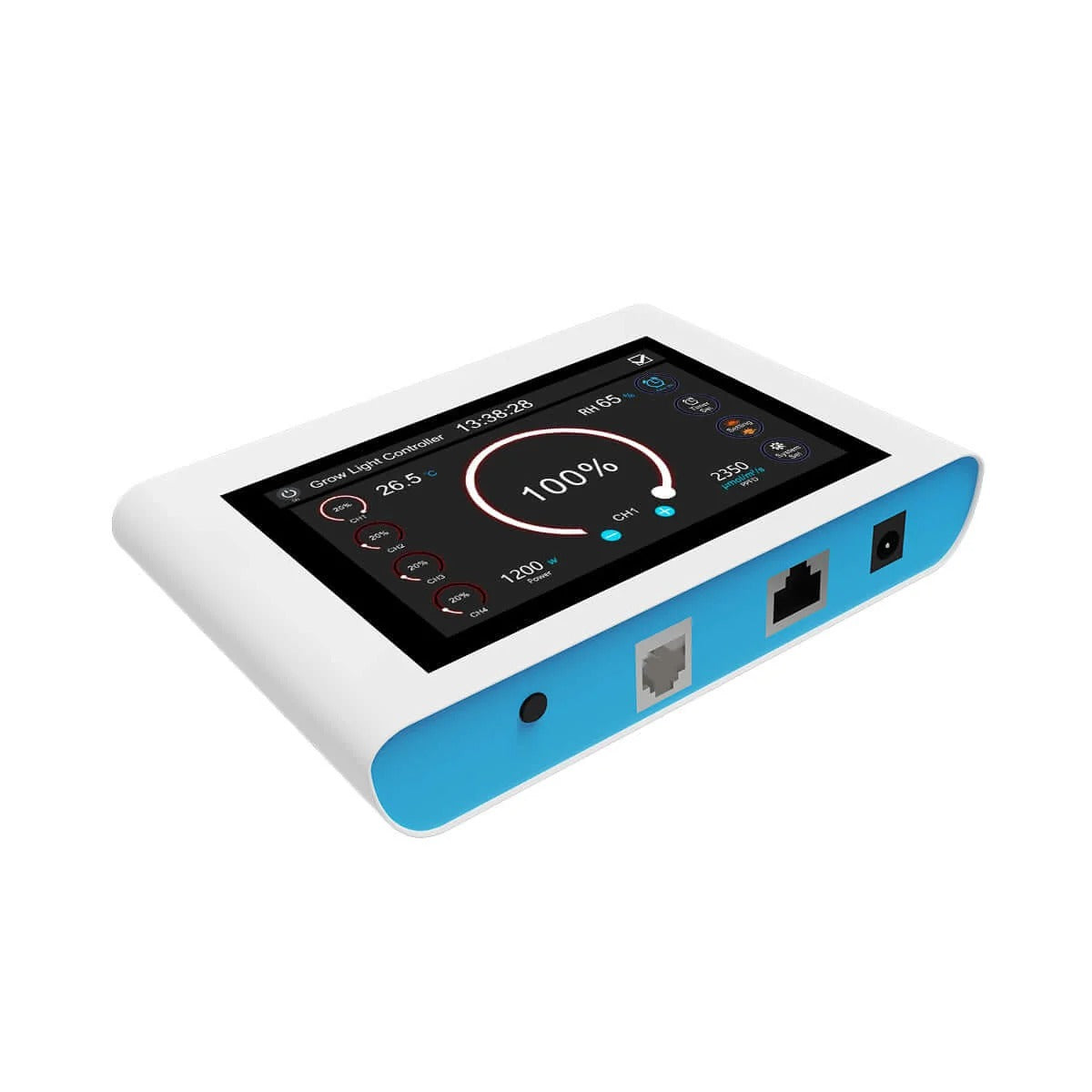

CeresLux WB01 controller RJ12 ports close-up
CeresLux WB01 controller app interface
CeresLux WB01 controller connected in grow room setup
📱
App-Based Remote Management

Monitor and control your grow environment anytime, anywhere through the mobile app.

🔌
RJ12 Device Integration

Connects with Cereslux lighting systems like the CeresLux Bar X 820W for synchronized, centralized control.

🎛️
Intuitive User Interface

Easy-to-use control panel simplifies setup for commercial growers and beginners alike.

🌡️
Advanced Climate Control

Maintains ideal temperature and humidity for a stable, productive grow environment.

💧
Automated Irrigation Management

Schedule watering cycles or use sensor-driven control to prevent overwatering.

🤖
Intelligent Grow Automation

Real-time sensor feedback streamlines daily tasks and reduces labor requirements.

📊
Real-Time Monitoring & Analytics

Access detailed data, performance reports, and instant alerts for critical conditions.

Specifications

Specification Value
Power Input 12V DC ±5%
Signal Output 0-10V Analog & 10V PWM (0-100% Duty Cycle)
Environmental Monitoring Optional 2-in-1 Temperature & Humidity Sensor
Operating Conditions 0°C–40°C, 20–85% RH
Storage Conditions 0°C–60°C, 10–95% RH
Reliability MTBF ≥ 20,000 Hours
Certifications FCC ID & CE Certified
Unit Weight 870 g
Package Size 308 × 180 × 74 mm

Frequently Asked Questions

Can I control the WB01 remotely from my phone? +

Yes, the WB01 is fully app-based, so you can monitor and control your grow environment from anywhere with complete visibility and operational flexibility.

What devices can the WB01 connect to? +

It connects via RJ12 to Cereslux lighting systems, such as the CeresLux QuadRay 1000W, and other compatible devices, enabling synchronized operation and centralized control from one hub.

Does the WB01 monitor temperature and humidity? +

Yes, with the optional 2-in-1 temperature and humidity sensor, the WB01 maintains ideal climate conditions for a stable, productive grow environment.

Can the WB01 manage irrigation automatically? +

Yes, you can schedule watering cycles or use sensor-driven irrigation control to deliver precise moisture levels while minimizing overwatering risk.

What kind of signal output does the WB01 use? +

It outputs both 0-10V analog and 10V PWM signals with 0-100% duty cycle control, compatible with a range of connected grow room equipment.

Is the WB01 easy to set up for beginners? +

Yes, its intuitive control panel is designed to simplify setup and daily operation for both first-time growers and experienced commercial operators.
