You are adding inline monitoring because your reservoir-based sensors cannot track nutrient levels accurately within a pressurized irrigation line.
You are upgrading to a remote-connected system because you need immediate alerts on your mobile device when parameters drift outside your target ranges.
The double junction design of the pH probe is essential for reliability in high pressure environments.
You can disable the Wi-Fi feature entirely if your setup requires an offline monitor.
The non-volatile memory ensures your set points remain saved even during a sudden power loss.
Users who previously struggled with inline pressure issues report that they stopped worrying about probe failure once they switched to this rated 100 psi system.
Operators who integrated the Wi-Fi connectivity say they finally stopped needing to physically check their tanks every morning to confirm everything is running.

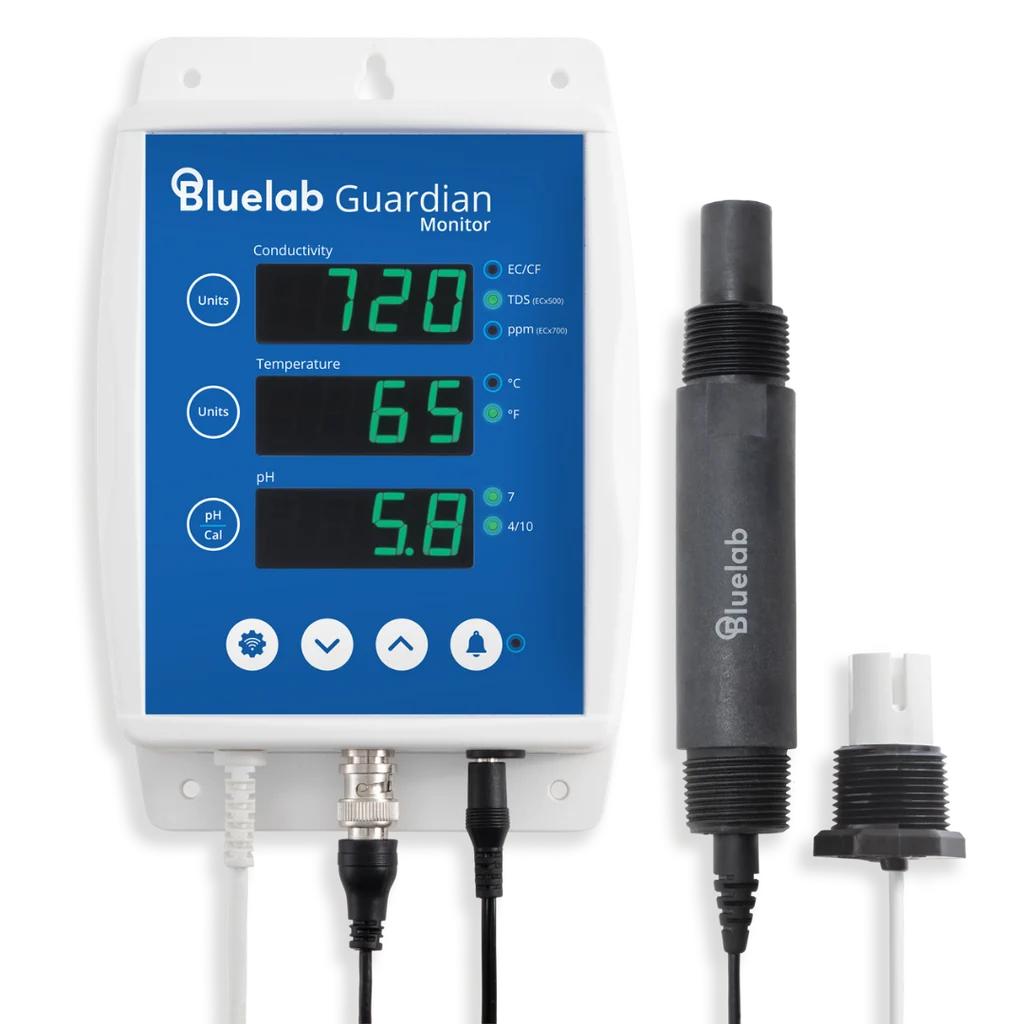

Bluelab Guardian Monitor Inline Wi-Fi
Dosing systems and inline setups need continuous monitoring that can handle line pressure — something a standard reservoir probe, like the one used with the
Bluelab Guardian Monitor Wi-Fi, was never built for. The Bluelab Guardian Monitor Inline Wi-Fi solves this with probe fittings suitable for 1" NPT inline installation, rated to withstand up to 100 psi (7 bar), giving you always-on pH, conductivity (EC), and temperature tracking directly in your dosing line or reservoir.
The
replaceable Inline pH Probe features a 3/4" thread that mounts in any direction, a standard BNC connector, a 3-metre (9.8ft) cable, and a durable double-junction design. A KCl-filled storage cap and fully waterproof construction keep it performing reliably in demanding, high-pressure environments.
Like the
standard Guardian Monitor Wi-Fi, it includes high/low alarms for pH, temperature, and conductivity, non-volatile memory that holds settings through a power loss, and plant-safe green LEDs with adjustable brightness. Built-in Wi-Fi connects to the Edenic app for instant alarm alerts, remote monitoring, and history reporting — with the option to disable Wi-Fi entirely if you'd rather run it offline.
Features
🔧
1" NPT Inline Fittings
Built for direct installation into dosing lines and inline systems.
💪
Rated to 100 psi (7 Bar)
Withstands high line pressure for reliable inline performance.
🔬
Replaceable Inline pH Probe
3/4" thread mounts in any direction, with a durable BNC connection.
🚨
High/Low Alarms
Flags out-of-range pH, temperature, and conductivity instantly.
📶
Built-In Wi-Fi
Connects to the Edenic app for remote monitoring, with the option to disable.
💾
Non-Volatile Memory
Keeps your settings intact even after a power loss.
Nutrient solution, 32–122°F (0–50°C) — do not use or store outside this range
Maximum Operating Pressure
Up to 100 psi (7 bar)
Power Supply
International power supply, input 100–240 VAC (50/60 Hz), output 5 VDC 1.5A, with interchangeable Type A (USA), C (Europe), G (UK), I (NZ) plug connectors
The Bluelab Guardian Monitor Inline Wi-Fi is covered by a 2-year limited warranty.
Frequently Asked Questions
What pressure can the Guardian Monitor Inline Wi-Fi handle?+
It's rated to withstand up to 100 psi (7 bar), making it suitable for inline dosing systems and pressurized lines.
What fittings does this monitor use?+
It comes with fittings suitable for 1" NPT installation, and the pH probe itself uses a 3/4" thread that can be mounted in any direction.
Is the pH probe replaceable?+
Yes. It uses a standard BNC connector, so a worn
Inline pH Probe can be replaced without swapping out the entire monitor.
How is this different from the standard Guardian Monitor Wi-Fi?+
This version is built for inline installation with pressure-rated fittings, while the
standard Guardian Monitor Wi-Fi is designed for direct placement in a reservoir.
Can I monitor this remotely?+
Yes. Connected to the Edenic app over built-in Wi-Fi, you'll get instant alarm alerts, remote monitoring, and history reporting from your phone.
Will this work with my region's power outlets?+
Yes. It ships with an international power supply and interchangeable plug adapters for North America, Europe, the UK, and Australia/NZ.
