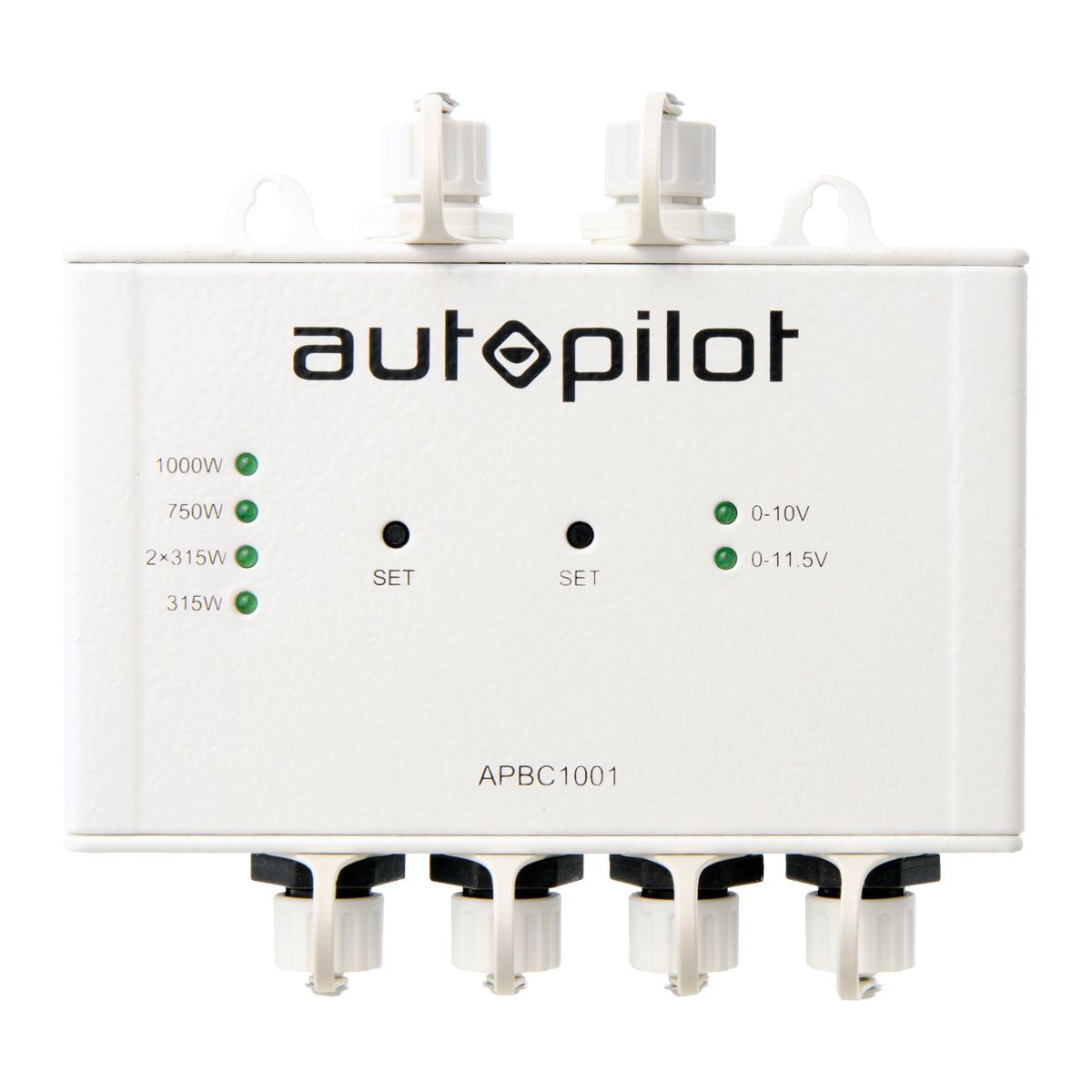

White Autopilot APBC1001 analog to digital module V2, front view, showing LED power/voltage indicators.
Ask Sage about this product

Autopilot Analog to Digital Conversion Module V2

Official Autopilot Dealer Model: APBC1001
$249.99 USD
starting from 0% interest financing from /mo.

Payment Options

Options:Pay in Four, Pay Monthly
Amount:Up to $1,500 (Pay in 4)
Up to $10,000 (Monthly)
Schedule:Bi-weekly to Monthly
Term:6 weeks, 12 or 24 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Schedule:Bi-weekly to Monthly
Term:6 weeks, 6 or 12 months
Interest:0% to 35.99% APR*
Credit Check?Soft Check Only
Finance up to:$4,000
Must apply on a desktop device.
Schedule:Flexible
Term:Up to 36 months
Interest:Processing fee + interest
Lease-to-Own?Yes
Amount:$500 to $10,000
Looking to finance equipment under your corporation? Learn more about Business Financing
  • Controls up to 512 total fixtures with 256 fixtures assigned to each independent zone.
  • Converts analog 0-10V or 0-11.5V inputs to digital RS-485 signals for lighting communication.
  • Includes EMI-shielded data link cables and IP65-rated connectors for humid environment protection.
  • View More Details

Earn 249 points for shopping and get $2.49 off your next order. Join Harvest Club for free.
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
(360) 800-5535 Live Chat Available now
Free Shipping On Most Items* To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.8/5 average Top Quality Store on Google
Secure Checkout SSL encrypted payments

Send Us a Message
Ask Sage about this product
VOLUME PRICING

Commercial & Bulk Purchasing

We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.

Commercial Inquiry

Contact Information
THROUGH THE Cultivator's LENS Hands-On Evaluation

  • You are integrating digital lights into an existing room because your current controller only outputs analog signals.
  • You are upgrading to a dual-zone control scheme because managing hundreds of fixtures individually is inefficient.

  • The shielded cables actually stop the signal flickering we see with unshielded wires in large facilities.
  • The IP65 housing holds up well in high-humidity rooms where cheaper plastic connectors start to corrode.

  • Managers who synced their whole facility to one module say they finally cleared up their cable management mess.
  • Ops leads who swapped in this bridge say they stopped seeing communication errors between their lights and controllers.

Autopilot Analog to Digital Conversion Module V2

Need to integrate digital lighting fixtures with commercial environmental controllers that only output analog signals?

The Autopilot APBC1001 Signal Conversion Module is ideal for facilities utilizing commercial environmental controllers to control lighting, converting analog 0–10V and 0–11.5V signals into digital RS-485 signals.

Perfect for commercial growing operations and large-scale facilities requiring seamless integration between different control systems, this module bridges the gap between analog environmental controllers and digital lighting fixtures.

The module features two analog inputs and four digital outputs, divided into two zones, with each zone controlling 256 fixtures for a total of 512 fixtures per module. This dual-zone configuration provides maximum flexibility for large-scale lighting installations with independent zone control capabilities.

Built with professional-grade components including shielded white data link cables that protect against electromagnetic interference, and IP65 connectors that protect against dust and liquid ingress. This robust construction ensures reliable operation in demanding commercial growing environments.

The module is compatible with 1000W, 750W, 315W dual, and 315W single fixtures, providing broad compatibility across different lighting systems. The included comprehensive cable package ensures immediate deployment with professional-grade connectivity throughout your installation.

Product Highlights

  • Signal Bridge: Converts analog 0–10V and 0–11.5V signals to digital RS-485 for seamless system integration
  • Massive Control Capacity: Controls up to 512 fixtures (256 per zone) across two independent zones
  • Professional Grade: IP65 connectors and EMI-shielded cables for reliable commercial operation
  • Broad Compatibility: Works with 1000W, 750W, 315W dual, and 315W single fixture types
  • Complete Package: Includes all necessary cables and power supply for immediate installation

Autopilot APBC1001 Conversion Module Features

🔄
Signal Conversion

Converts analog 0–10V and 0–11.5V signals to digital RS-485 for system integration.

🏭
512 Fixture Capacity

Controls up to 512 fixtures across two independent zones (256 fixtures per zone).

🔌
Dual-Zone Control

Two analog inputs and four digital outputs for independent zone management.

🛡️
IP65 Protection

IP65 connectors protect against dust and liquid ingress for reliable operation.

📡
EMI Shielded Cables

Shielded data link cables prevent electromagnetic interference for reliable signal transmission.

⚙️
Wide Fixture Compatibility

Compatible with 1000W, 750W, 315W dual, and 315W single fixture types.

Commercial Environmental Controller Integration

The APBC1001 enables seamless integration between commercial environmental control systems and digital lighting:

Environmental Controller Compatibility
  • Analog Output Systems: Integrates with commercial controllers that output 0–10V or 0–11.5V analog signals
  • Building Management Systems: Compatible with BMS controllers used in commercial growing facilities
  • Climate Control Integration: Coordinates lighting with HVAC and environmental management systems
  • Legacy System Upgrades: Allows upgrading to digital lighting without replacing existing environmental controllers
System Architecture Benefits
  • Centralized Control: Manage both environmental and lighting systems from a single commercial controller
  • Coordinated Operation: Synchronize lighting schedules with temperature, humidity, and ventilation systems
  • Scalable Infrastructure: Expand lighting capacity using multiple modules without changing environmental controllers
  • Professional Integration: Maintain existing workflows while upgrading lighting technology

Signal Conversion Technology

The APBC1001 provides professional-grade signal conversion for reliable system integration:

Analog Input Specifications
  • Input Range: Accepts 0–10V and 0–11.5V analog signals from environmental controllers
  • Dual Inputs: Two independent analog inputs for separate zone control
  • Signal Conditioning: Clean signal processing ensures accurate digital conversion
  • Input Protection: Robust input circuits protect against voltage spikes and interference
Digital Output Performance
  • RS-485 Protocol: Industry-standard digital communication protocol for reliable fixture control
  • Four Digital Outputs: Enables independent control of multiple fixture groups per zone
  • High-Speed Communication: Fast response times for precise lighting control
  • Error Detection: Built-in communication error checking ensures reliable operation

Dual-Zone Control Architecture

The module's dual-zone design provides maximum flexibility for large-scale installations:

Zone A Configuration
  • Capacity: Controls up to 256 digital fixtures
  • Analog Input A: Dedicated 0–10V/0–11.5V input for independent zone control
  • Digital Outputs: Two RS-485 outputs for distributed fixture control
  • Applications: Ideal for main growing areas, vegetative rooms, or primary lighting zones
Zone B Configuration
  • Capacity: Controls up to 256 digital fixtures
  • Analog Input B: Independent input for separate environmental controller coordination
  • Digital Outputs: Two additional RS-485 outputs for zone-specific control
  • Applications: Perfect for flowering rooms, propagation areas, or secondary lighting zones
Multi-Zone Benefits
  • Independent Scheduling: Different photoperiods and intensity schedules per zone
  • Environmental Coordination: Each zone responds to its specific environmental conditions
  • Operational Flexibility: Maintain production while servicing individual zones
  • Growth Stage Optimization: Customize lighting for different material development phases

Comprehensive Fixture Compatibility

The APBC1001 supports a wide range of professional lighting fixtures:

Supported Fixture Types
  • 1000W Fixtures: High-output fixtures for maximum intensity applications
  • 750W Fixtures: Mid-range fixtures for efficient coverage and energy management
  • 315W Dual Fixtures: Dual-lamp CMH fixtures for enhanced spectral coverage
  • 315W Single Fixtures: Single-lamp fixtures for targeted lighting applications
Digital Control Benefits
  • Precise Dimming: Accurate intensity control across the full dimming range
  • Status Monitoring: Real-time fixture status and performance feedback
  • Individual Addressing: Control specific fixtures or groups within each zone
  • Advanced Features: Access manufacturer-specific fixture features and diagnostics

What's Included

  • One Autopilot APBC1001 Signal Conversion Module with dual-zone control capability
  • One DC power supply for module operation
  • Six 20-foot white data link cables:
    • (2) Data link cables for analog input - Connect to environmental controllers
    • (4) Data link cables for digital output - Connect to digital lighting fixtures
  • IP65 connectors on all cables for dust and moisture protection
  • EMI shielding on all data cables for interference-free operation
  • Installation manual with wiring diagrams and configuration instructions

Autopilot APBC1001 Conversion Module Specifications

Specification Value
Model APBC1001
Unit Dimensions 13.1" L x 6.4" W x 3.4" H
Shipping Weight 1.83 lbs
Analog Input Range 0–10V and 0–11.5V
Digital Output Protocol RS-485
Control Capacity 512 fixtures total (256 per zone)
Number of Zones 2 independent zones
Analog Inputs 2 (one per zone)
Digital Outputs 4 (two per zone)
Compatible Fixtures 1000W, 750W, 315W dual, 315W single
Cable Protection IP65 connectors, EMI shielding
Included Cables 6 x 20-foot shielded data link cables

Autopilot APBC1001 Conversion Module FAQs

What environmental controllers are compatible with the APBC1001? +

The APBC1001 is compatible with any commercial environmental controller that outputs 0–10V or 0–11.5V analog signals. This includes most building management systems, climate controllers, and environmental automation systems used in commercial growing facilities. The module acts as a bridge between these analog systems and digital lighting fixtures.

Can I control different fixture types in each zone? +

Yes, each zone operates independently and can control different fixture types and wattages. For example, Zone A could control 1000W fixtures while Zone B controls 315W fixtures. Each zone has its own analog input and digital outputs, allowing complete flexibility in fixture selection and control per zone.

How does the IP65 protection benefit my installation? +

IP65 connectors provide protection against dust and liquid ingress, essential in growing environments with high humidity, irrigation systems, or cleaning protocols. This protection ensures reliable electrical connections and prevents corrosion that could cause communication failures or equipment damage in demanding commercial growing conditions.

Why are the data cables shielded against EMI? +

EMI shielding prevents electromagnetic interference from ballasts, motors, pumps, and other electrical equipment that could disrupt communication between the module and fixtures. This ensures reliable signal transmission and prevents lighting control failures even in electrically noisy commercial growing environments.

Can I expand beyond 512 fixtures using multiple modules? +

Yes, you can use multiple APBC1001 modules to expand beyond 512 fixtures. Each module operates independently, so you can add additional modules as your facility grows. This provides scalable expansion without replacing existing equipment, making it ideal for phased commercial facility development.

What happens if one zone fails? Does it affect the other zone? +

Each zone operates completely independently, so if one zone experiences issues, the other zone continues normal operation. This provides redundancy and operational continuity crucial for commercial operations where lighting failure could damage valuable crops or disrupt production schedules.

How do I wire the module to my existing environmental controller? +

The module includes dedicated analog input cables that connect to your environmental controller's 0–10V or 0–11.5V outputs. The installation manual provides detailed wiring diagrams and configuration instructions. For complex installations, consult with a qualified electrical technician to ensure proper integration with your existing systems.

Is this module suitable for retrofit installations? +

Absolutely. The APBC1001 is ideal for retrofit applications where you want to upgrade to digital lighting fixtures without replacing existing environmental controllers. This allows you to modernize your lighting system while maintaining your current control infrastructure, saving significant costs and minimizing operational disruption.
