- 1x RDWC Circulation Water Pump 30
- 1x RDWC Header Pot Complete
- 24x RDWC Pot 20L
- 25x Silver Lid
- 1x Header Pot Blank
- 24x Square Net Pot
- 24x Air Injection Ring
- 4x Elbow 50mm Dual Flow
- 42x 50mm Straight Dual Flow
- 3x Tee 50mm Dual Flow
- 49x Washer 50 X 64mm
- 49x Nut 50mm Dual Flow
- 2x RDWC Tee, Ball Valve and Filter
- 2x Tee 16mm Barbed
- 3x Plug - 16mm
- 2x Elbow 16mm Barbed
- 24x Tee 16mm - 6mm Blue
- 24x Pot Clip 16mm
- 1x Tee 19mm Barbed
- 17x Pipe 6mm Blue Bulk by Meter
- 18x Pipe 16mm Silver Bulk by Meter
- 7x Pipe 19mm Blue Bulk by Meter
- 2x Pipe 50mm Silver 100cm Piece
- 15x Pipe 50mm Silver 66cm Piece
- 1x Wrench 50mm
- 1x Pipe Cutter 50mm
- 1x RDWC Instructions
Ask Sage about this product
Alien Hydroponics RDWC - 24 Pot 3 Row
starting from 0% interest financing from
/mo.
- Circulates nutrients across 24 pots to maintain perfect PPM levels in every single reservoir.
- Oversized 2 inch Dual-Flow fittings eliminate the risk of root blockages and system overflows.
- Tool-free assembly uses threaded fittings and snap-on pipes for a completely glue-free installation.
- View More Details
Shipping Calculated at Checkout
Earn 2,482 points for shopping and get $24.82 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
Secure Checkout
SSL encrypted payments
Ask Sage about this product
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are moving to a 24 pot system because manual feeding and balancing individual units wastes too many labor hours.
- You are upgrading to RDWC because stagnant water in standard DWC setups is leading to uneven growth across your canopy.
- You are switching to modular pots because your floor plan needs to change between cycles without cutting or gluing pipe.
What We Found
- Those oversized two inch fittings are the reason you won't spend your Sundays clearing root clogs from the lines.
- The silver polymer actually works to keep reservoir temps down without needing to overwork your water chiller.
- Setting this up without glue or tools makes it much easier to tear down and sanitize between harvest cycles.
What Users Say
- Operators who switched to these air rings say their plants hit vegetative milestones days earlier than before.
- Users who chose the 36 liter pots report they can go longer between top-offs because of the increased water volume.
- Facilities running the remote header option say it saved them hours of labor by centralizing all nutrient checks.
Alien Hydroponics RDWC - 24 Pot 3 Row
Struggling to achieve professional hydroponic results without a complex, space-consuming setup? The Alien Hydroponics RDWC 24 Pot 3 Row system is your solution, delivering the power of commercial recirculating deep water culture (RDWC) in a streamlined, high-performance package.
Designed for serious growers and commercial cultivators, this advanced Alien Hydroponics system provides an abundance of oxygen and perfectly circulated nutrients directly to the root zone. This creates the ideal conditions for explosive growth, healthier plants, and massive yields. Its unique design masterfully avoids common issues like root clogging and oxygen deficiency that can limit plant potential in other systems. While this 24-pot system is built for large-scale operations, smaller configurations like the 12 Pot 2 Row RDWC kit are also available for different space requirements.
Choose between 5-gallon (20L) or 9.5-gallon (36L) pot sizes and configure your layout with either compact or remote headers for ultimate flexibility. The tool-free, no-glue assembly ensures a quick, hassle-free setup, making professional-grade hydroponics more accessible than ever.
What's Included
Features
🚀
Accelerated Growth
Reduces vegetative time and boosts flowering for faster, more substantial harvests.
💧
Reduced Clogging
Oversized 2" Dual-Flow™ fittings minimize root blockage for consistent nutrient flow.
🧩
Modular & Scalable
Easily adapt the system to any grow space or expand your setup as your needs change.
💰
Cost-Efficient
Requires minimal growing medium and recirculates nutrients, reducing operational costs.
💨
Superior Oxygenation
JET-STREAM A.I.R.™ rings deliver high-pressure oxygen to promote explosive root growth.
🔧
Effortless Assembly
Threaded fittings and snap-on pipes allow for a quick, glue-free setup and easy maintenance.
🛡️
Durable & Reflective
Heat-reflective silver polymer keeps the nutrient solution cool, ensuring system longevity.
⚙️
Customizable Layouts

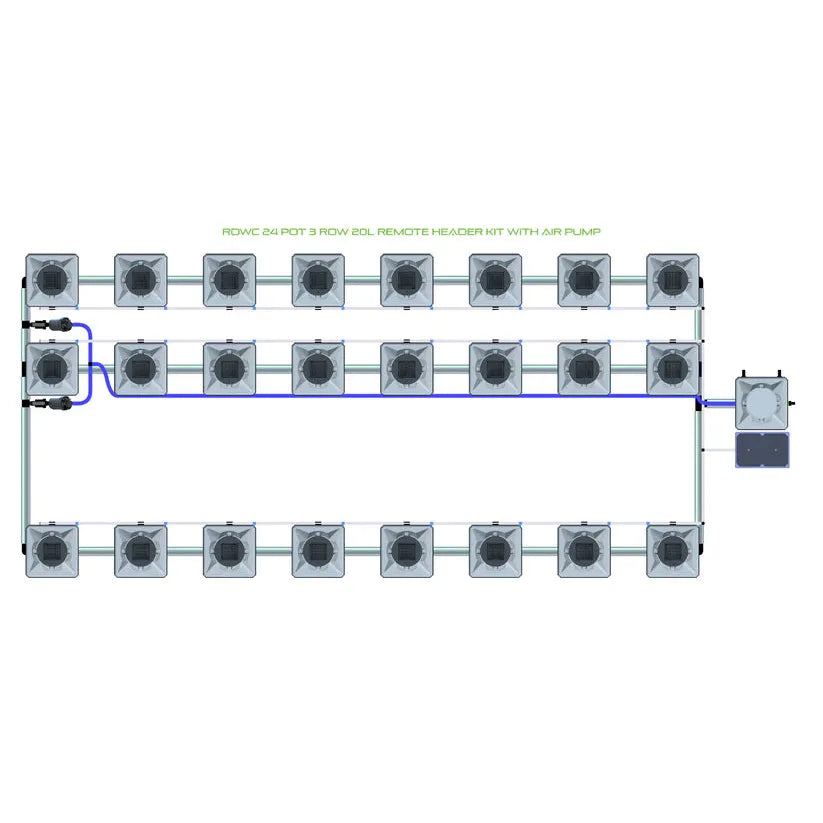

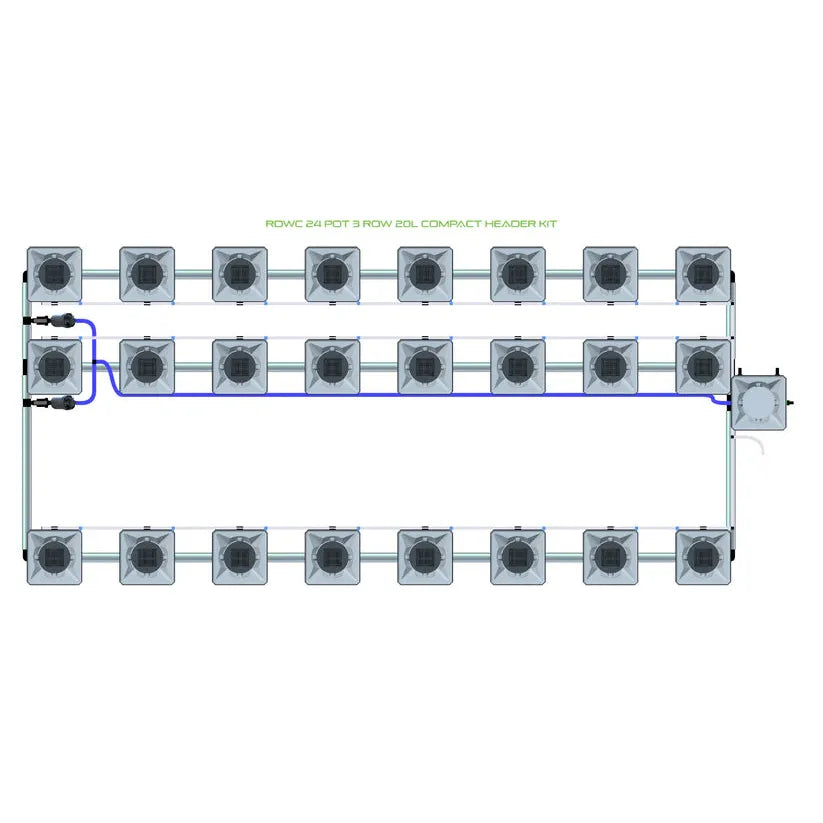

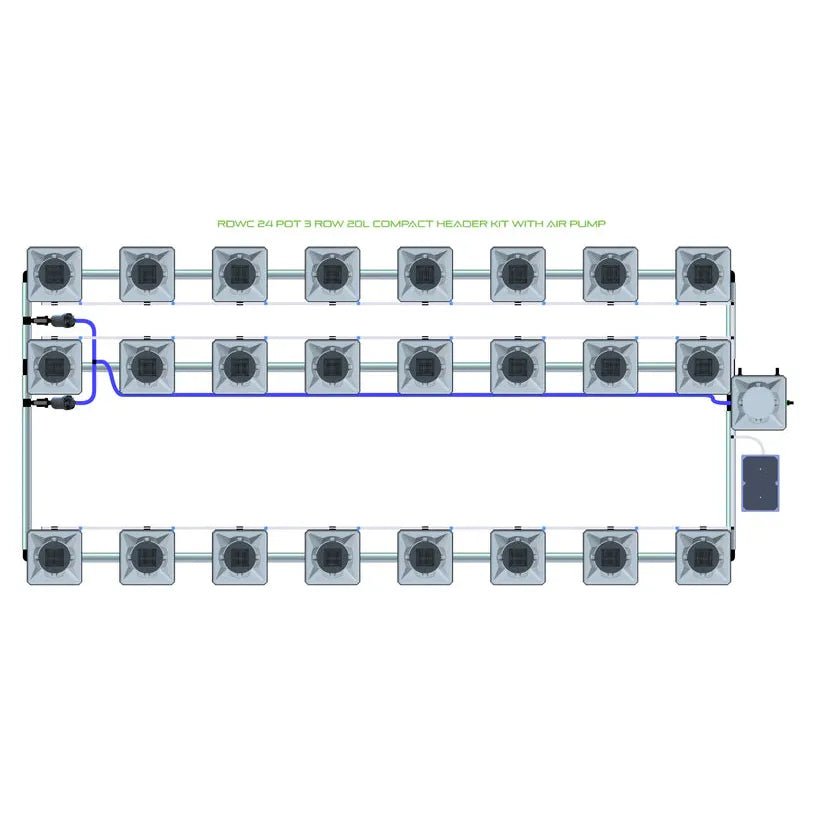

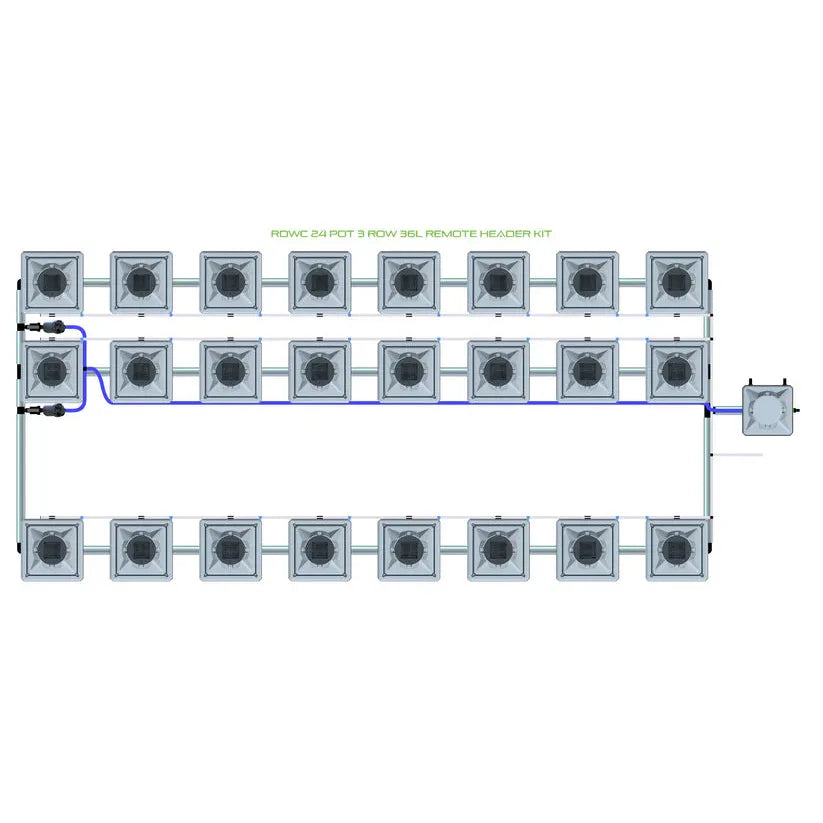

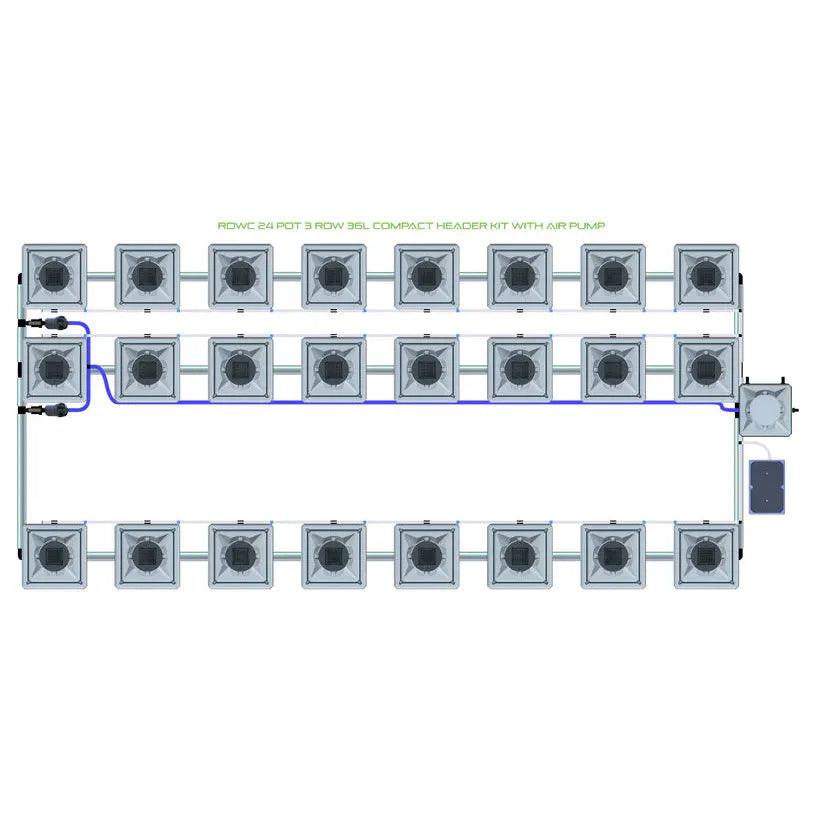

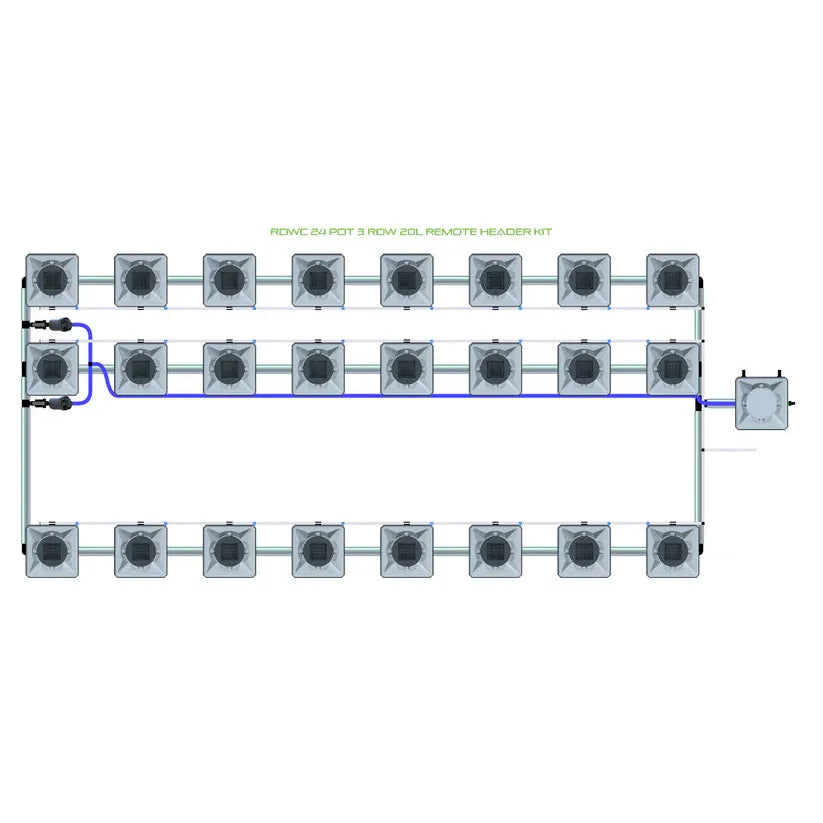

Offers numerous configurations with remote header and pot size options to fit any space.
Setup and Maintenance
System Setup Steps:
1. Prepare Pots
Attach the necessary fittings to the pots.
2. Connect the System
Use piping to connect the pots and the header pot to establish the recirculating network.
3. Install Air System
Set up the air pump and connect it to the air rings in the pots.
4. Integrate Pumps
Install the water pump(s) for recirculation.
5. Set Up Header Pot
Connect the main header pot to the system.
6. Fill the System
Add water and your desired nutrients to the system.
Maintenance Tips:
- Maintain water temperature between 18-20°C (64-68°F).
- Allow nutrients to recirculate before testing and adjusting pH/EC.
- When planting, use a substrate layer in the net pot, water the cutting, and fill the remaining space with substrate.
- Fill the system using a hose, ensuring the correct level before turning on the pump.
- Use preventative solutions to maintain root health and system cleanliness.
Specifications
| Specification | Value |
|---|---|
| Number of pots | 24 |
| Number of rows | 3 |
| Kit total fluid volume (20L version) | 105.7 gallons / 400 liters |
| Kit total fluid volume (36L version) | 19.4 gallons / 73.6 liters |
| Min. Assembled Size (Compact Header, 20L) | 127⅛" (L) x 48⅞" (W) |
| Max. Assembled Size (Compact Header, 20L) | 193¼" (L) x 100" (W) |
| Min. Assembled Size (Remote Header, 20L) | 131⅛" (L) x 48⅞" (W) |
| Max. Assembled Size (Remote Header, 20L) | 232⅝" (L) x 100" (W) |
| Min. Assembled Size (Compact Header, 36L) | 52" (L) x 18½" (W) |
| Max. Assembled Size (Compact Header, 36L) | 96⅞" (L) x 18½" (W) |
| Min. Assembled Size (Remote Header, 36L) | 159" (L) x 58¼" (W) |
| Max. Assembled Size (Remote Header, 36L) | 96⅞" (L) x 18½" (W) |
| Water Pump (20L) | RDWC Circulation Water Pump 10: 250 GPH, 24 Watts |
| Water Pump (36L) | RDWC Circulation Water Pump 20: 350 GPH, 35 Watts |
| Air Pump Option | Air Pump 30: 79.3 GPM / 300 LPM, 275 watts |
| Required Air Pump (if not included) | Must supply a pump capable of 63.4 GPM / 240 LPM |
System Comparison
| Feature | RDWC System | V-System |
|---|---|---|
| Oxygenation Method | JET-STREAM A.I.R.™ rings | Venturi |
| Pot Sizes Available | 5 gallon (20L), 9.5 gallon (36L) | 15.3 gallon (58L) |
| Pot Shape | Square | Round |
| Recirculation Line Diameter | 2" | 5" |
| Requires Air Pump | Yes (optional inclusion) | No |
| Glue-Free Setup | ✔ | ✔ |
| Dual-Flow™ Fittings | ✔ | ✔ |
| Heat-Reflective Polymer | ✔ | ✔ |
| External Pump | ✘ (internal) | ✔ |
| Complete Drainage | Almost | ✔ |
Support & Manuals
Warranty
The Alien Hydroponics RDWC system comes with a one-year manufacturer's warranty for your peace of mind.
FAQs
What is the main advantage of an RDWC system?
RDWC systems like this one from Alien Hydroponics provide a highly oxygenated nutrient solution directly to the roots, leading to faster growth rates, healthier plants, and significantly larger yields compared to traditional methods.
Is this 24-pot system difficult to assemble?
No, it's designed for easy, tool-free assembly. The system uses threaded fittings and snap-on pipes, so no glue is required, making setup and reconfiguration straightforward.
What size grow space do I need for this kit?
The footprint is flexible. The minimum assembled size is around 127" x 49" for the 20L version with a compact header, but it can be expanded. Please refer to the specifications table for detailed dimensions.
Can I use this system in a grow tent?
Yes, the modular design and option for a remote header allow for flexible placement, making it suitable for various grow environments, including large grow tents, provided you have adequate space.
Do I need to buy a separate air pump?
The system is available with or without a compatible air pump. If you choose the "Without Air Pump" option, you will need to supply your own pump capable of delivering at least 240 liters of air per minute.
How does the Dual-Flow™ fitting help my plants?
The oversized 2" Dual-Flow™ fittings are a key innovation that significantly reduces the risk of roots clogging the pipes. This ensures a consistent and uninterrupted flow of nutrients and oxygen to every plant in the system.
What other systems does Alien Hydroponics offer?
Besides their advanced RDWC kits, Alien also produces the innovative V-SYSTEM, which uses a venturi effect for oxygenation, and various other hydroponic solutions to suit different growing styles and scales.
