- 1x RDWC Circulation Water Pump 30
- 1x RDWC Header Pot Complete
- 18x RDWC Pots (20L or 36L)
- 19x Silver Lids
- 1x Header Pot Blank
- 18x Square Net Pots
- 18x Air Injection Rings
- 4x Elbow 50mm Dual Flow
- 30x 50mm Straight Dual Flow
- 3x Tee 50mm Dual Flow
- 37x Washer 50 X 64mm
- 37x Nut 50mm Dual Flow
- 2x RDWC Tee, Ball Valve and Filter
- 2x Tee 16mm Barbed
- 3x Plug - 16mm
- 2x Elbow 16mm Barbed
- 18x Tee 16mm - 6mm Blue
- 18x Pot Clip 16mm
- 1x Tee 19mm Barbed
- 13m of 6mm Blue Pipe
- 15m of 16mm Silver Pipe
- 5m of 19mm Blue Pipe
- 2x 100cm Pieces of 50mm Silver Pipe
- 12x 66cm Pieces of 50mm Silver Pipe
- 1x Wrench 50mm
- 1x Pipe Cutter 50mm
- 1x RDWC Instructions
Alien Hydroponics RDWC - 18 Pot 3 Row
starting from 0% interest financing from
/mo.
- 18 pot system with up to 36L per pot for high-capacity biomass production
- 2-inch Dual-Flow plumbing prevents clogs and ensures fast nutrient recirculation
- Threaded fittings and snap-on pipes allow for tool-free assembly and breakdown
- 1-year manufacturer's warranty
- View More Details
Shipping Calculated at Checkout
Earn 1,993 points for shopping and get $19.93 off your next order. Join Harvest Club for free.
Over 50,000 Customers
Trust Trimleaf
Transparent Pricing
Backed w/ price match guarantee
4.8/5 Rating
1938+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are upgrading to RDWC because your manual top-fed pots are causing uneven growth cycles across the room.
- You are choosing a modular setup because fixed plumbing makes cleaning and expanding your footprint a major chore.
- You are adding air injection because your roots are stalling out in standard reservoirs during peak summer heat.
What We Found
- The silver polymer reflects a lot of light, keeping nutrient temps noticeably lower than standard black buckets.
- Those 2-inch Dual-Flow fittings are massive and effectively eliminate the risk of a root-induced flood.
- While it is tool-free, we suggest using the included wrench for the initial bulkhead seal to prevent slow leaks.
What Users Say
- Users who moved from top-fed setups say the oxygenated roots shortened their vegetative cycle by over a week.
- Growers using the 36L pots report they can go longer between reservoir top-offs due to the increased water volume.
Alien Hydroponics RDWC - 18 Pot 3 Row
Tired of complicated hydroponic setups that fail to deliver professional results? The Alien Hydroponics RDWC 18 Pot 3 Row system is engineered to maximize growth and yield for serious commercial cultivators, without the usual complexity. This complete recirculating deep water culture (RDWC) kit provides an abundance of oxygen and perfectly circulated nutrients directly to the root zone, creating the ideal conditions for explosive growth and massive yields.
Designed by Alien Hydroponics, this system eliminates common issues like root clogging and oxygen deficiency that can hinder plant development in other setups. Growers can choose between 5-gallon (20L) or 9.5-gallon (36L) pot sizes and configure the layout to fit any environment. With a tool-free, no-glue assembly, you can transition to professional-grade hydroponics quickly, regardless of your experience level. Whether you need this exact size or a smaller configuration like the 15 Pot 3 Row kit, this system is built to scale.
What's Included
Features
🚀
Accelerated Growth & Higher Yields
Oxygenated nutrients reduce vegetative time and boost harvests.
🌊
Clog-Resistant Flow
Oversized 2" Dual-Flow™ fittings prevent root blockages for consistent nutrient delivery.
🧩
Modular & Scalable
Easily adapt and expand your system to fit any grow space or evolving needs.
💰
Cost-Efficient Operation
Uses minimal medium and recirculates nutrients, reducing setup and operational costs.
💨
Superior Root Oxygenation
JET-STREAM A.I.R.™ rings deliver constant, high-pressure oxygen for explosive root development.
🔧
Tool-Free Assembly
Threaded fittings and snap-on pipes allow for a quick, glue-free setup and easy maintenance.
❄️
Heat-Reflective Design
Silver polymer construction reflects heat, keeping the nutrient solution cool and stable.
⚙️

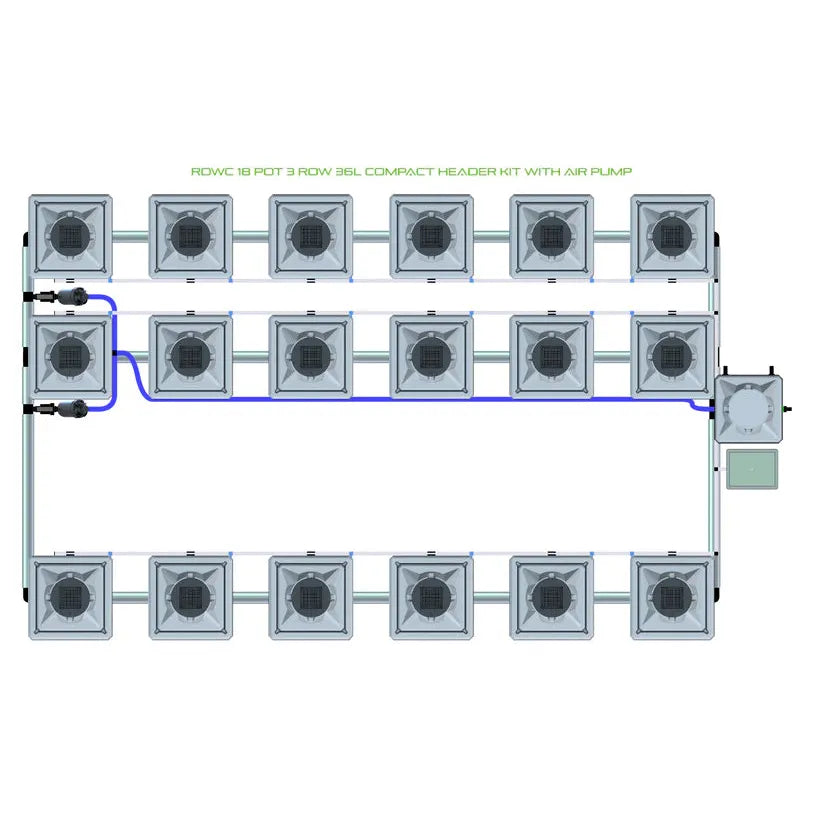

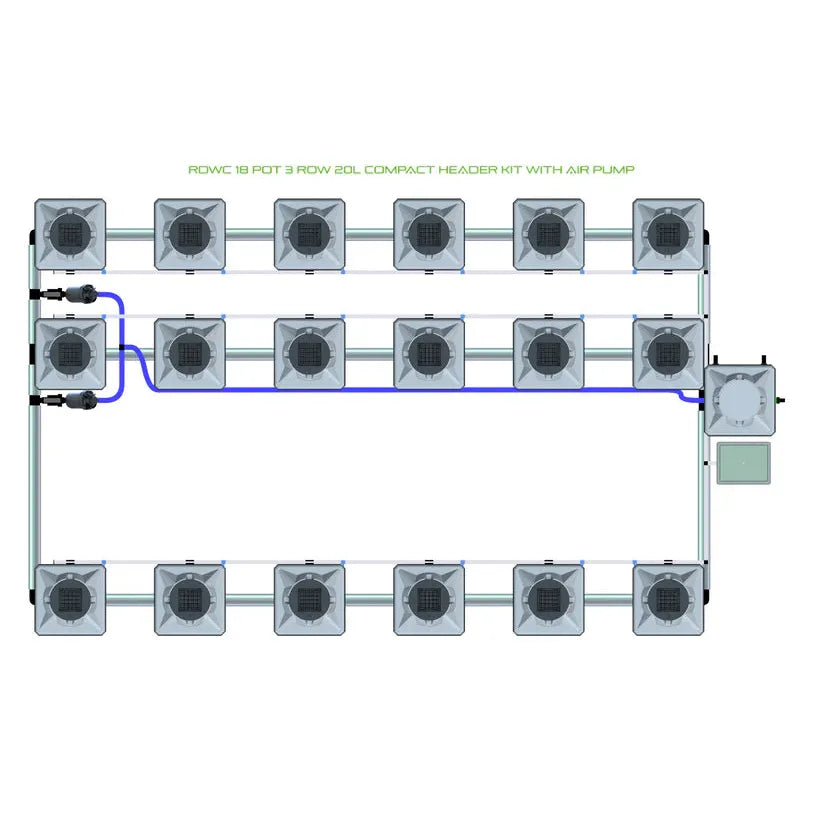

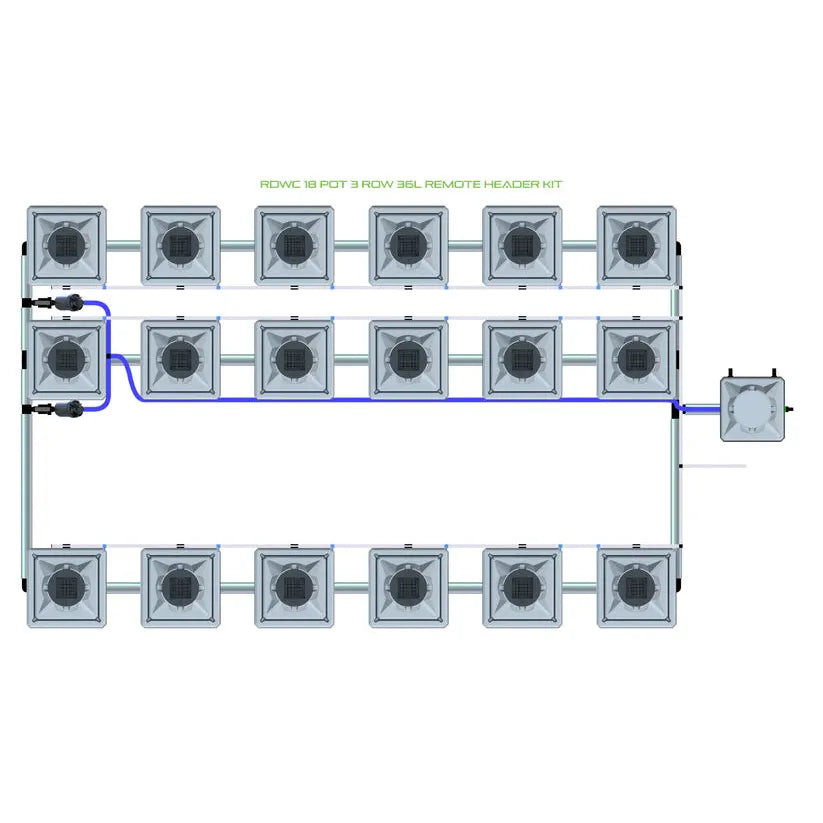

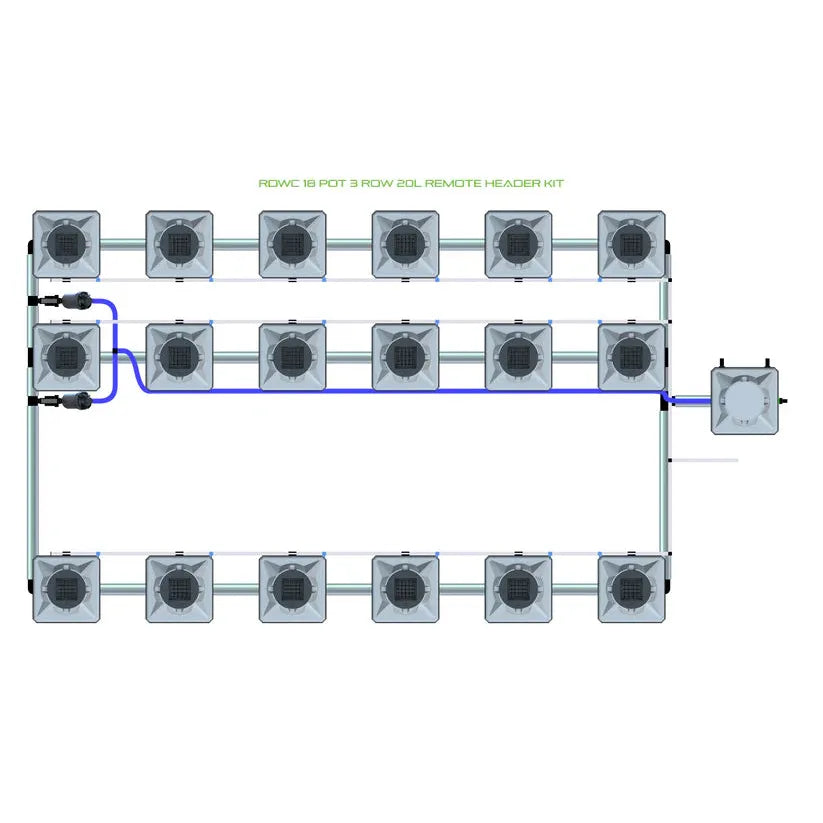

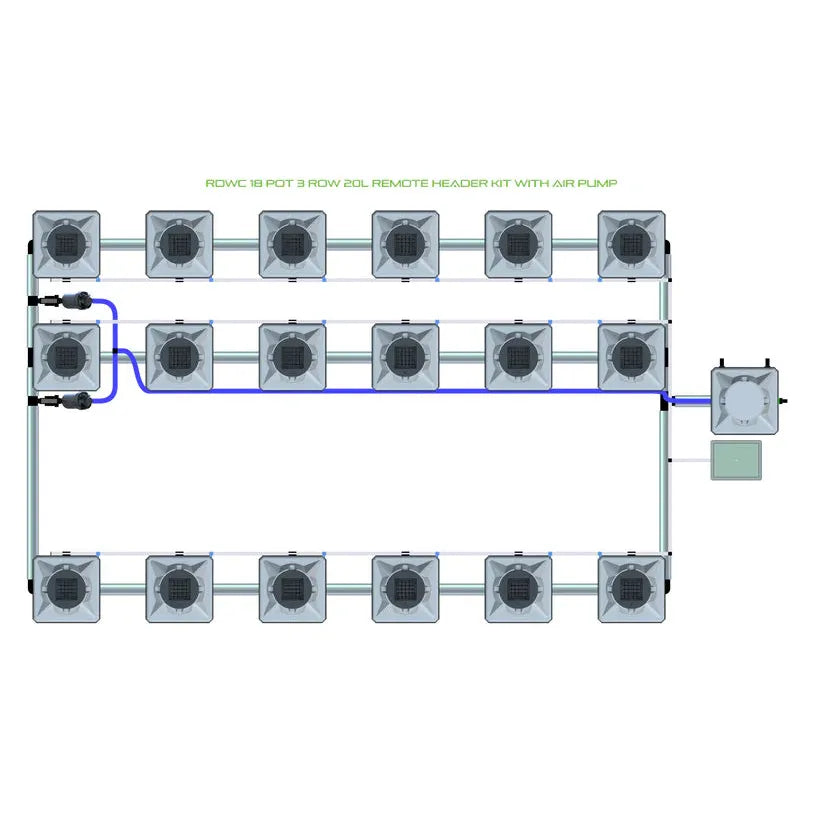

Customizable Layouts
Offers flexible configurations with remote header options to maximize your growing area.
Specifications
| Specification | Value |
|---|---|
| Number of pots | 18 |
| Number of rows | 3 |
| Kit total fluid volume (20L Pots) | 80.3 gallons / 304 liters |
| Kit total fluid volume (36L Pots) | 141.2 gallons / 534.4 liters |
| Min. Size (Compact Header, 20L Pots) | 98⅞" L x 48⅞" W |
| Max. Size (Compact Header, 20L Pots) | 146⅛" L x 100" W |
| Min. Size (Compact Header, 36L Pots) | 119⅝" L x 58¼" W |
| Max. Size (Compact Header, 36L Pots) | 178¾" L x 115" W |
| Min. Size (Remote Header, 20L Pots) | 102¾" L x 48⅞" W |
| Max. Size (Remote Header, 20L Pots) | 185⅜" L x 100" W |
| Min. Size (Remote Header, 36L Pots) | 123⅝" L x 58¼" W |
| Max. Size (Remote Header, 36L Pots) | 218⅛" L x 115" W |
| Water Pump Included | RDWC Circulation Water Pump 30: 500 GPH, 45 Watts |
| Air Pump (Optional) | Air Pump 20: 52.8 GPM / 200 LPM, 195 watts |
| Required Air Pump (Not Included) | Min. 47.6 GPM / 180 LPM (2853 GPH / 10800 LPH) |
Setup and Maintenance
System Setup Steps:
- Prepare Pots: Attach the necessary fittings to the pots.
- Connect the System: Use piping to connect the pots and the header pot to establish the recirculating network.
- Install Air System: Set up the air pump and connect it to the air rings in the pots.
- Integrate Pumps: Install the water pump for recirculation.
- Fill the System: Add water and your nutrient solution.
Maintenance Tips:
- Maintain water temperature between 64-68°F (18-20°C).
- Always add nutrients to the system and allow for recirculation before testing and adjusting pH/EC.
- When planting, use a substrate layer in the net pot, water the cutting, and fill the remaining space with substrate.
- Drain the system as needed by connecting a pipe to the designated fitting.
- Use preventative solutions to maintain root health and system cleanliness.
Support & Manuals
Warranty
The Alien Hydroponics RDWC system comes with a one-year manufacturer's warranty for your peace of mind.
FAQs
What is the main advantage of an RDWC system?
RDWC (Recirculating Deep Water Culture) systems provide constant aeration and nutrient circulation to the root zone. This results in explosive growth, healthier plants, and significantly higher yields compared to traditional methods. The Alien Hydroponics design enhances this with superior oxygenation.
Is this 18-pot system difficult to assemble?
No, the system is designed for easy, tool-free assembly. It uses threaded fittings and snap-on pipes, so no glue is required. You can set up or reconfigure the entire system quickly and easily.
What size grow area do I need for this system?
The footprint is flexible. At its most compact, the 20L pot version requires about 99" x 49". You can space the pots further apart for larger plants, extending the length up to 186". Please refer to the specifications table for detailed dimensions.
Do I need to buy a separate air pump?
The kit is available with or without an air pump. If you choose the option without, you will need to supply your own pump capable of at least 47.6 GPM (180 LPM) to ensure optimal oxygenation for all 18 pots.
Can I expand this system later?
Absolutely. The modular design is a key feature of all RDWC hydroponic systems from Alien. You can easily add more pots or rows as your operation grows. We also offer different sizes like the 12 Pot 3 Row kit if you need to start with a different configuration.
How do the Dual-Flow™ fittings help?
The patent-pending 2" Dual-Flow™ fittings are oversized and have special slots designed to prevent roots from blocking the pipes. This ensures your nutrient solution circulates freely and consistently, preventing clogs that can harm your plants.
