Alien Hydroponics AERO System 21 Pot

Alien Hydroponics AERO System - 21 Pot 3 Row

Tired of hydroponic systems that promise big but under-deliver? Unlock professional-grade results with the Alien Hydroponics AERO System - 21 Pot 3 Row Kit, an advanced aeroponic solution designed for serious growers. This system directly addresses common issues like poor oxygenation and nutrient uptake by delivering a super-oxygenated, high-pressure mist to the root zone, promoting explosive growth and significantly larger yields while using up to 95% less water than traditional methods.

Built for efficiency and scalability, this 21-pot kit is perfect for large operations and can be expanded up to 36 pots. The innovative design features patent-pending Dual-Flow™ fittings to prevent root clogging and heat-reflective pipes to keep your nutrient solution cool and stable. Unlike some RDWC systems, the AERO system offers a soil-free environment that maximizes nutrient absorption for healthier, faster-growing plants. Assembly is straightforward with a no-glue, snap-on design, making setup and maintenance easier than ever.

Please note: A nutrient reservoir is required for operation but is not included with the kit. We recommend pairing this system with a compatible reservoir, such as the 70 Gallon Alien GardenTank, to ensure optimal performance.

What's Included

1x DRAIN Pump Pipe Adapter
1x Pressure Water Pump 30
1x Cycle Timer
1x AERO/RAIN Header Pot Complete 36L
21x AERO/RAIN Pot 15L
1x Silver Lid
21x AERO Lid
1x Header Pot Blank
42x Pot Stand for 15L Pot
21x Drain Cover - Copper
21x Square Net Pot
42x Grommet - 4mm
42x Black Sprinkler
2x Elbow 50mm Barbed
1x Tee 50mm Barbed
3x Elbow 50mm Dual Flow
19x Tee 50mm Dual Flow
22x Washer 50 X 64mm
22x Nut 50mm Dual Flow
12x Clamp Size 2
38x Clamp Size 3
3x Valve 16mm Green
3x Plug - 16mm
42x Tee 16mm - 4mm
21x Pot Clip 16mm
1x Tee 25mm Barbed - 3/4" Male
2x Tee 25mm Barbed
2x Elbow 25mm Barbed - 3/4" Male
2x Elbow 19mm Barbed
2x Elbow 40mm Barbed
1x Siphon Tee 19mm Fitting
1x Siphon Tee 40mm Complete
14x Pipe 16mm Silver Bulk by Meter
4x Pipe 19mm Black Bulk by Meter
3x Pipe 25mm Blue Bulk by Meter
4x Pipe 40mm Silver Spiral Bulk by Meter
14x Pipe 4mm Pink Bulk by Meter
12x Pipe 50mm Silver 100cm Piece
1x Wrench 50mm
1x Pipe Cutter 50mm
1x AERO Instructions
1x JET-STREAM DRAIN Water Pump 1100GPH
1x JET-STREAM DRAIN Water Pump Power Adapter

Features

Alien Hydroponics AERO System - 21 Pot 3 Row fully assembled

💧

Dual-Flow™ Fittings

Patent-pending design ensures a free-flowing system and prevents root clogging for uninterrupted operation.

🛡️

Copper Drain Covers

Includes copper-plated drain covers that naturally protect against roots entering the pipe network.

🌡️

Heat-Resistant Pipes

Heat-reflective silver piping minimizes heat absorption, keeping your nutrient solution cool and stable.

🌊

Raised Drainage Grid

A sloped base and raised grid provide efficient, rapid draining to prevent waterlogging.

🧠

Rain Brain Controller

Ensures precise and consistent nutrient delivery, keeping your feeding schedule perfectly on time.

🔧

Easy Setup & Maintenance

Threaded fittings and snap-on pipes allow for a quick, glue-free setup and easy system cleaning.

🧱

Durable Construction

Made from high-quality, non-reactive materials to ensure system longevity and plant safety.

⚙️

Customizable Layouts

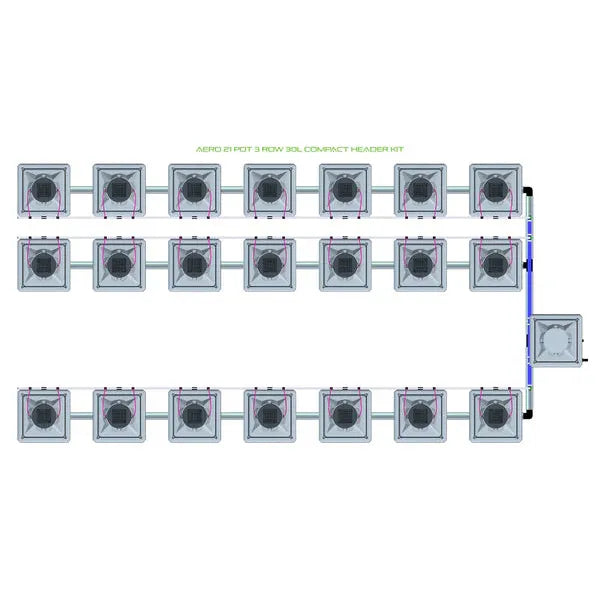

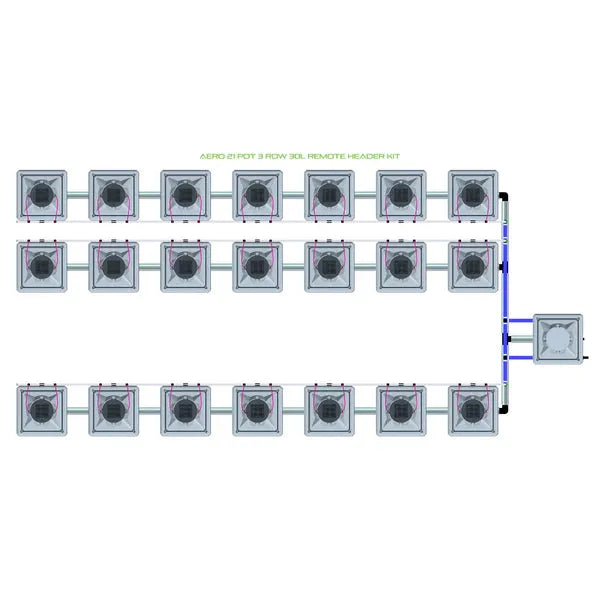

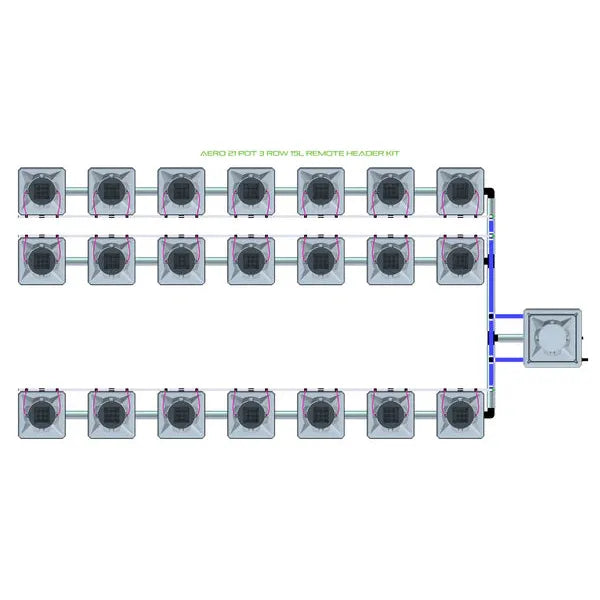

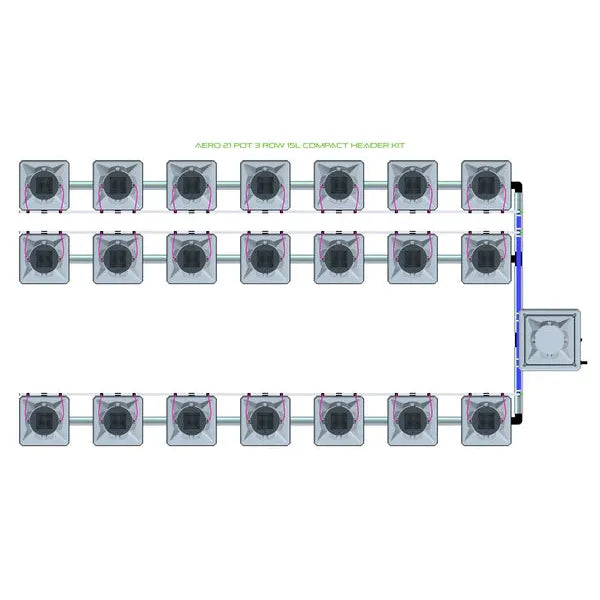

Offers multiple configurations to maximize your growing space with remote header and pot size options.

Specifications

Specification	Value
Number of Pots	21
Number of Rows	3
Pot Size Options	4 Gallon (15L) or 8 Gallon (30L)
Min. Assembled Size (15L Pots)	111⅜" (L) x 43¼" (W)
Max. Assembled Size (15L Pots)	178¾" (L) x 100" (W)
Min. Assembled Size (30L Pots)	132½" (L) x 52¾" (W)
Max. Assembled Size (30L Pots)	218⅞" (L) x 115" (W)
Included Water Pumps	JET-STREAM DRAIN 1100GPH, Pressure Water Pump 30
Recommended Reservoir (Not Included)	Minimum 70 Gallons / 280 Liters

Setup and Maintenance

System Setup Steps:

1. Prepare Pots

Attach the necessary fittings to the pots.

2. Connect the System

Use piping to connect the pots and the header pot to establish the recirculating network.

3. Install Air System

Set up the air pump and connect it to the air stones in the pots.

4. Integrate Pumps

Install the water pump(s) for recirculation and chilling (if applicable).

5. Set Up Nutrient Tank

Connect the nutrient tank to the system.

6. Fill the System

Add water to the system.

Maintenance Tips:

Maintain a 50-75cm center distance between each pot.
Alien Hydro recommends a watering frequency of one minute every hour.
Regularly check the filter for debris.
Minimal cleaning is required when using mineral-based nutrients.
Flush the system between crop cycles with clean water and disinfectant.
Inspect sprinklers to ensure proper misting and water distribution.

Support & Manuals

📄AERO System User Manual

Warranty

The ALIEN AERO System comes with a one-year manufacturer's warranty for your peace of mind.

FAQs

What is the main advantage of the AERO system over DWC?+

The primary advantage of aeroponics is the superior oxygenation of the root zone. The AERO system continuously mists roots with a highly-oxygenated nutrient solution, which can lead to faster growth rates and larger yields compared to Deep Water Culture (DWC) systems where roots are submerged. Explore our full range of Alien Hydroponics systems to see which method best suits your goals.

What size nutrient reservoir do I need for this 21-pot kit?+

For a 21-pot system, we recommend a reservoir with a minimum capacity of 70 gallons (280 liters). This ensures you have enough solution to run the system effectively without needing constant refills. The Alien GardenTank - 70 Gallon Reservoir is an excellent, purpose-built choice for this kit.

Is this system difficult to assemble?+

No, the Alien AERO system is designed for easy assembly. It features threaded fittings and snap-on pipes that do not require any glue. This makes setup, reconfiguration, and cleaning much simpler than many other large-scale hydroponic systems.

Can I use organic nutrients with the AERO system?+

While possible, it's generally recommended to use mineral-based (synthetic) nutrients with aeroponic systems. Organic nutrients can be thicker and may contain particulates that can clog the fine sprinkler heads, disrupting nutrient delivery. Using mineral-based nutrients ensures minimal cleaning and consistent operation.

How often does the system need to be cleaned?+

We recommend a full system flush and clean between each crop cycle. During the cycle, regularly check the main filter for any debris. The copper-plated drain covers and Dual-Flow™ fittings are designed to minimize blockages, reducing the need for frequent maintenance.

Can this 21-pot system be expanded later?+

Yes, the Alien AERO system is fully modular and designed for scalability. You can purchase additional pots and fittings to expand your setup as your operation grows. Alien offers many configurations, including the larger 24 Pot 3 Row AERO system.
