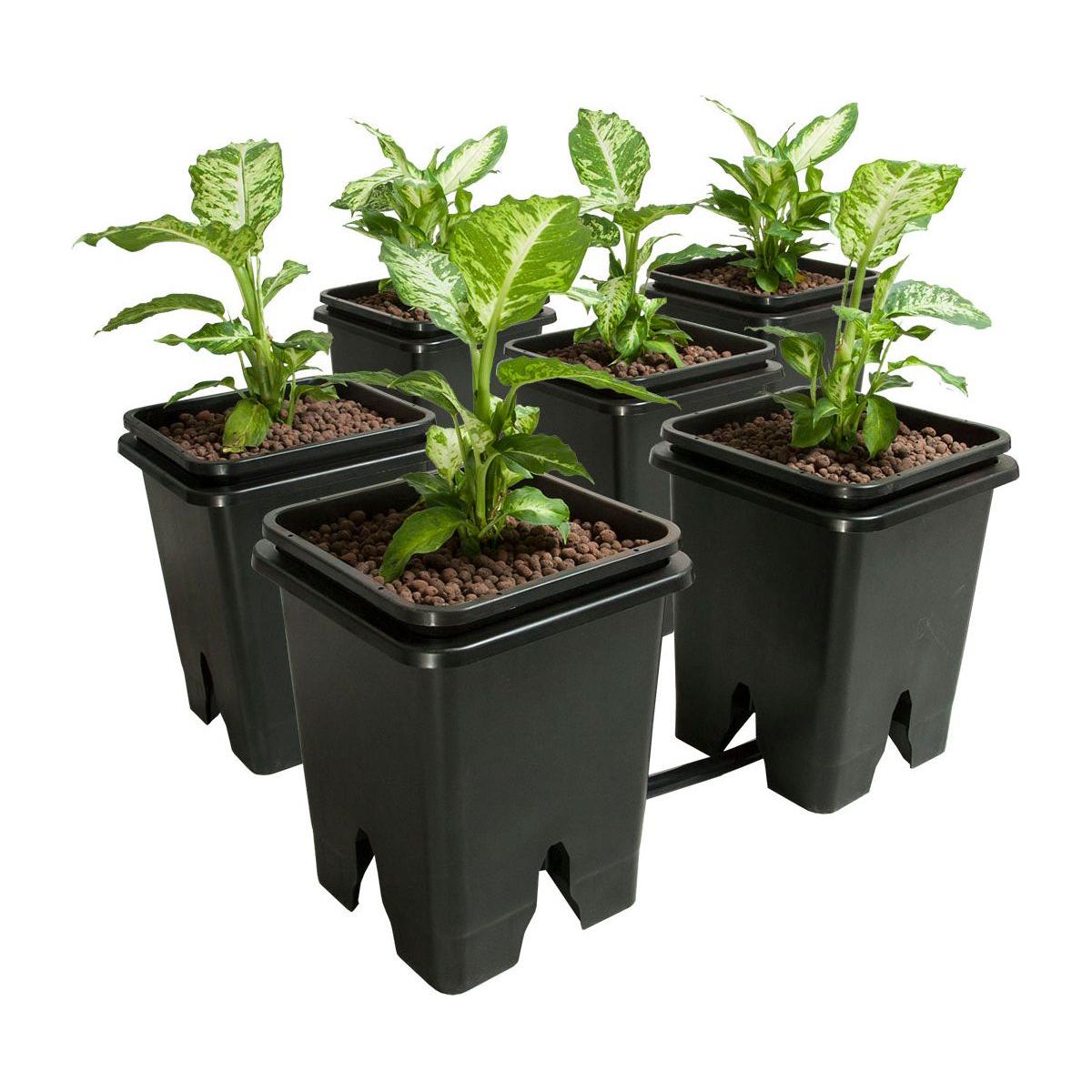

Active Aqua Grow Flow 2.0 Expansion Kit Hydroponic Grow System

Active Aqua Grow Flow 2.0 Expansion Kit Hydroponic Grow System — 5 Gallon

Running out of space in your current hydroponic setup? The Active Aqua Grow Flow 2.0 Expansion Kit solves your capacity limitations by seamlessly adding six additional grow sites to your existing Grow Flow system—no complex modifications required.

This expansion kit transforms your standard Grow Flow system into a scalable growing powerhouse. Each of the six five-gallon buckets features fail-safe overflow protection to safeguard your plants and grow area from water damage, while centered drain fittings and unique aeration channels promote healthier, more vigorous root development.

With the capacity to hold up to 13 liters of clay pebbles or similar growing medium per bucket, you'll provide your plants with the optimal environment they need to thrive. The system is fully compatible with all ebb and flow controllers, and you can expand your setup to accommodate up to 48 plant sites total.

*An Active Aqua control unit and a reservoir like the pre-drilled 55-gallon drum (sold separately) are required to use this expansion pack

Features

🛡️

Fail-Safe Overflow Protection

Built-in overflow safeguards prevent water damage to your plants and grow area, giving you peace of mind.

💧

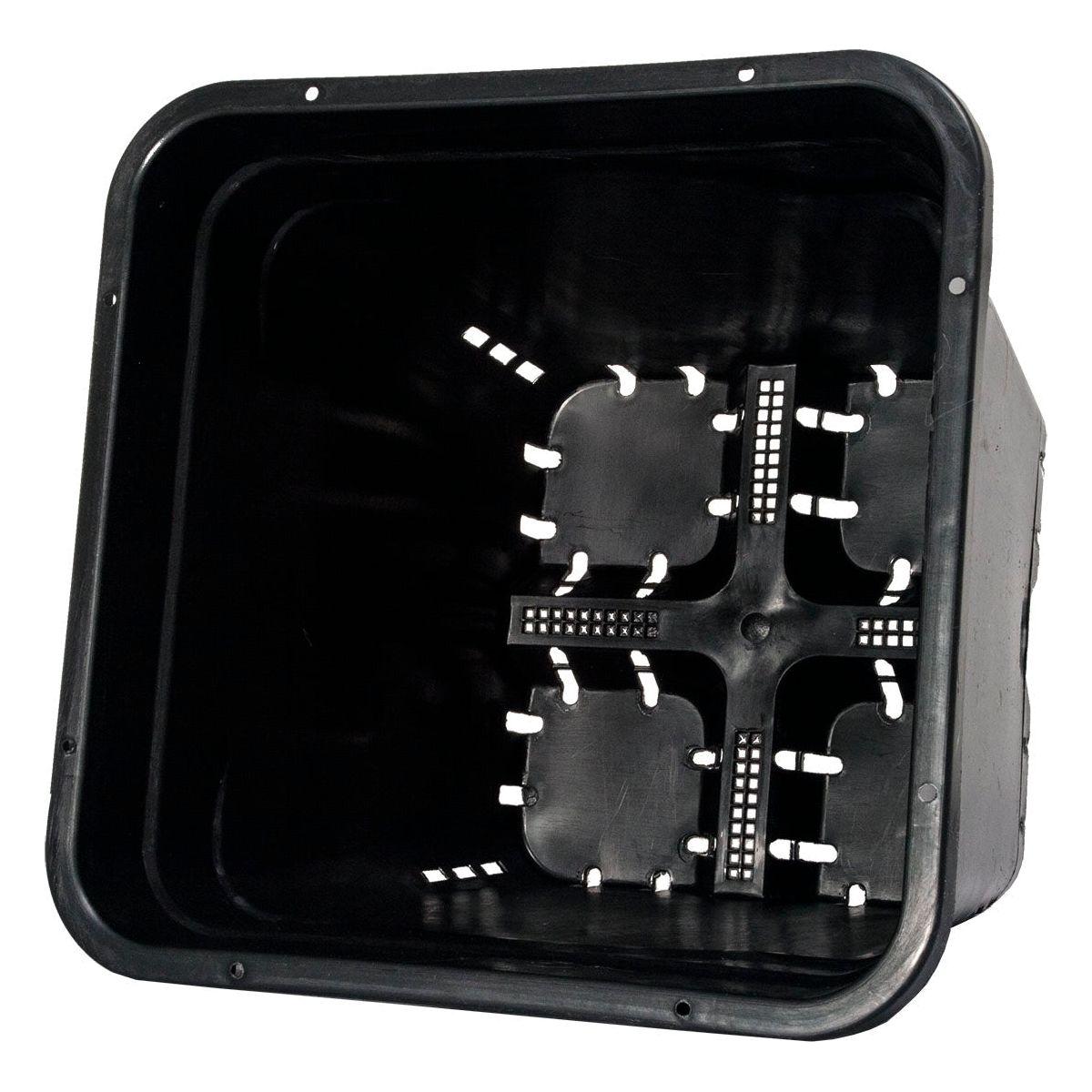

Centered Drain Fittings

Innovative centered drain design minimizes standing water and includes unique aeration channels for healthier root systems.

🌱

Optimized Growing Capacity

Each bucket holds up to 13 liters of clay pebbles or similar medium for optimal plant growth and root development.

🔧

Universal Compatibility

Works seamlessly with all ebb and flow controllers, making integration into your existing system effortless.

📈

Expandable System

Scale your operation up to 48 plant sites by adding multiple expansion kits to your Grow Flow system.

🪣

Six 5-Gallon Buckets

Complete with six durable five-gallon buckets designed specifically for hydroponic growing applications.

Specifications

Specification	Value
Bucket Size	12 x 8.5 x 11.75 inches (10.75-inch inside diameter)
Growing Medium Capacity	13 liters per bucket
Number of Buckets	6 five-gallon buckets
Dimensions (Each)	13.0L x 13.0W x 32.7H inches
Dimensions (Pallet)	48.0L x 40.0W x 70.0H inches
Shipping Weight	14 lbs
Maximum Expansion	Up to 48 plant sites
Controller Compatibility	All ebb and flow controllers

What's Included

6 Outer buckets
6 Inner buckets
6 - 3/4" barbed tee connectors
3 - 3/4" barbed elbow connectors
6 Screen fittings
12 Rubber washers
1 - 25' roll of 3/4" tubing

Support & Manuals

📄Active Aqua Grow Flow 2.0 Manual

Warranty

Active Aqua offers a 3-year warranty on the Grow Flow 2.0 Expansion Kit. This warranty does not cover user error or operator abuse.

FAQs

Do I need to purchase anything else to use this expansion kit?+

Yes, this expansion kit requires a Grow Flow control unit and reservoir, which are sold separately. The expansion kit integrates seamlessly with your existing Grow Flow system to add six additional plant sites.

How many expansion kits can I add to my system?+

You can expand your Grow Flow system up to 48 total plant sites by adding multiple expansion kits. Each kit adds six plant sites, so you can scale your operation based on your space and growing needs.

What type of growing medium should I use with these buckets?+

Each bucket is designed to hold approximately 13 liters of clay pebbles (hydroton), but you can also use other hydroponic growing media such as perlite, coco coir, or rockwool cubes. The centered drain and aeration channels work best with chunky, free-draining media.

Is this expansion kit compatible with other brands of ebb and flow systems?+

Yes, the Grow Flow 2.0 Expansion Kit is compatible with all standard ebb and flow controllers, not just Active Aqua controllers. The system uses standard 3/4" tubing connections that integrate with most hydroponic flood and drain systems.

How does the fail-safe overflow protection work?+

Each bucket features a built-in overflow mechanism that prevents water from spilling over the bucket rim if the drain becomes clogged or the fill cycle runs too long. This protects your plants, equipment, and grow area from water damage.

What are the benefits of the centered drain fittings?+

The centered drain design minimizes standing water at the bottom of each bucket, which reduces the risk of root rot and anaerobic conditions. Combined with the unique aeration channels, this design promotes better oxygen circulation around the root zone for healthier, more vigorous plant growth, a key benefit for this style of hydroponics versus deep water culture.

Does the kit include tubing and fittings for installation?+

Yes, the expansion kit includes everything you need for installation: 6 outer buckets, 6 inner buckets, 6 tee connectors, 3 elbow connectors, 6 screen fittings, 12 rubber washers, and a 25-foot roll of 3/4" tubing.

What is the bucket size and how much space will I need?+

Each bucket measures 12 x 8.5 x 11.75 inches with a 10.75-inch inside diameter. Plan for adequate spacing between buckets to allow for plant growth and airflow. A typical arrangement might require approximately 6-8 square feet for all six buckets.
