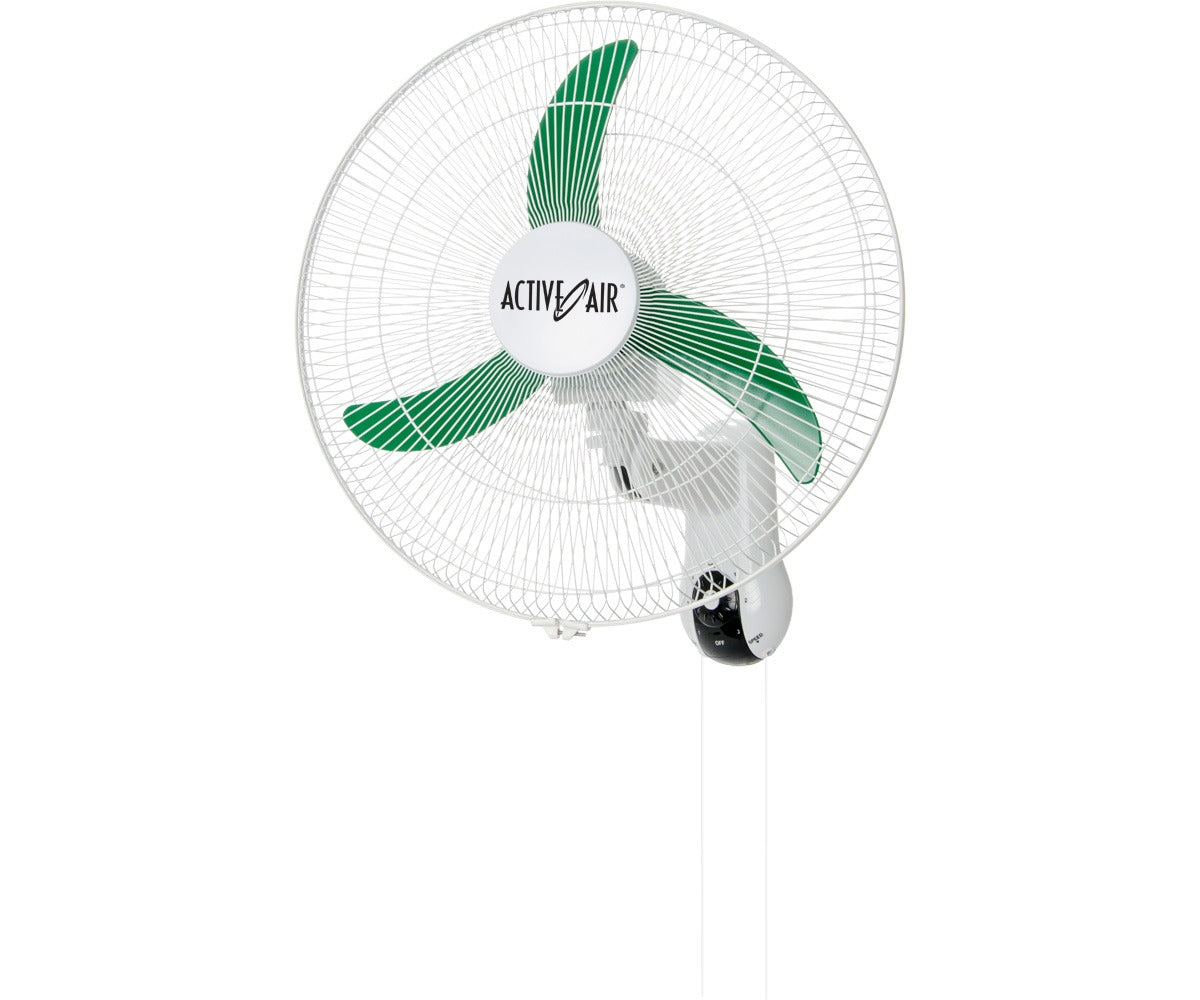

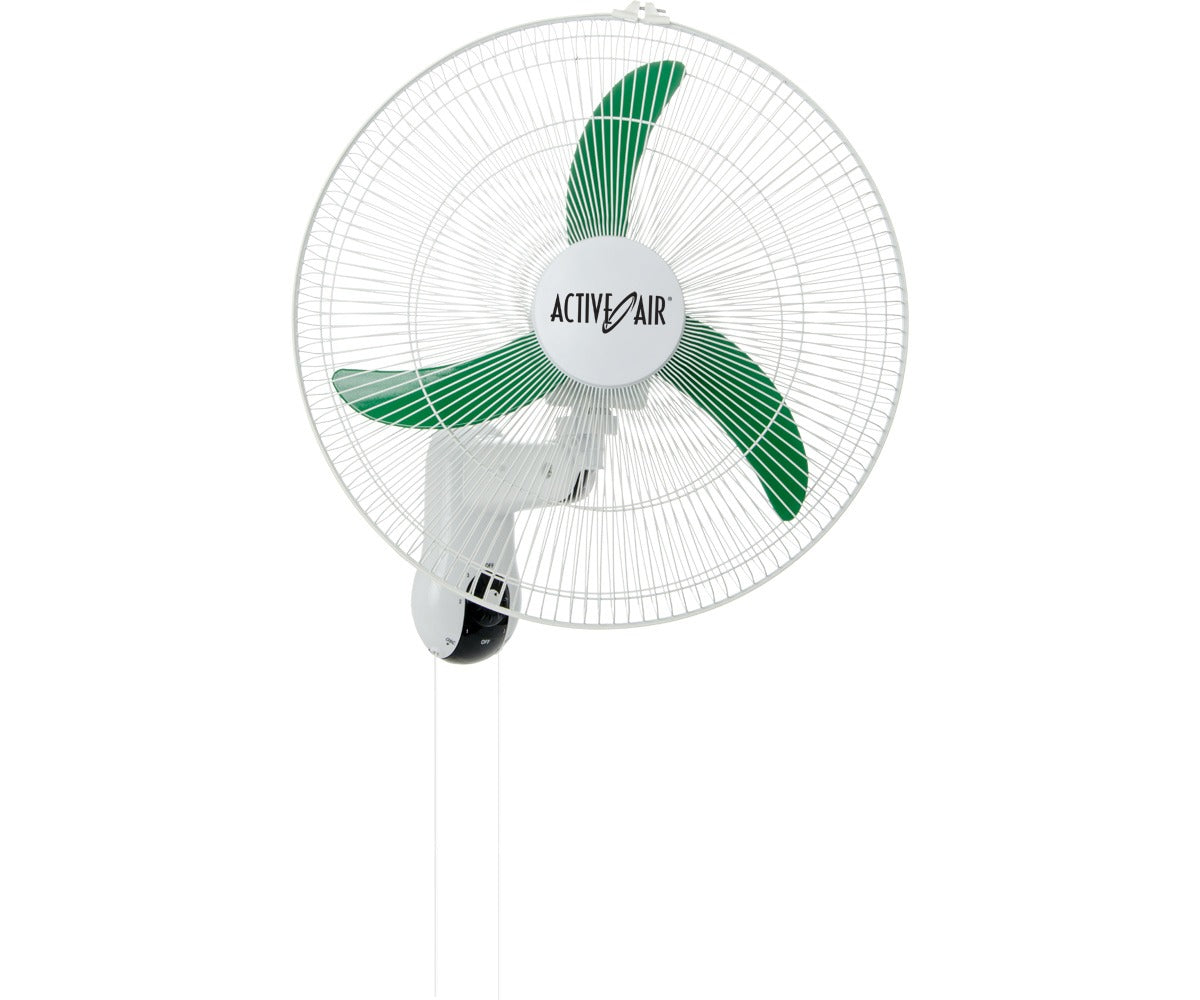

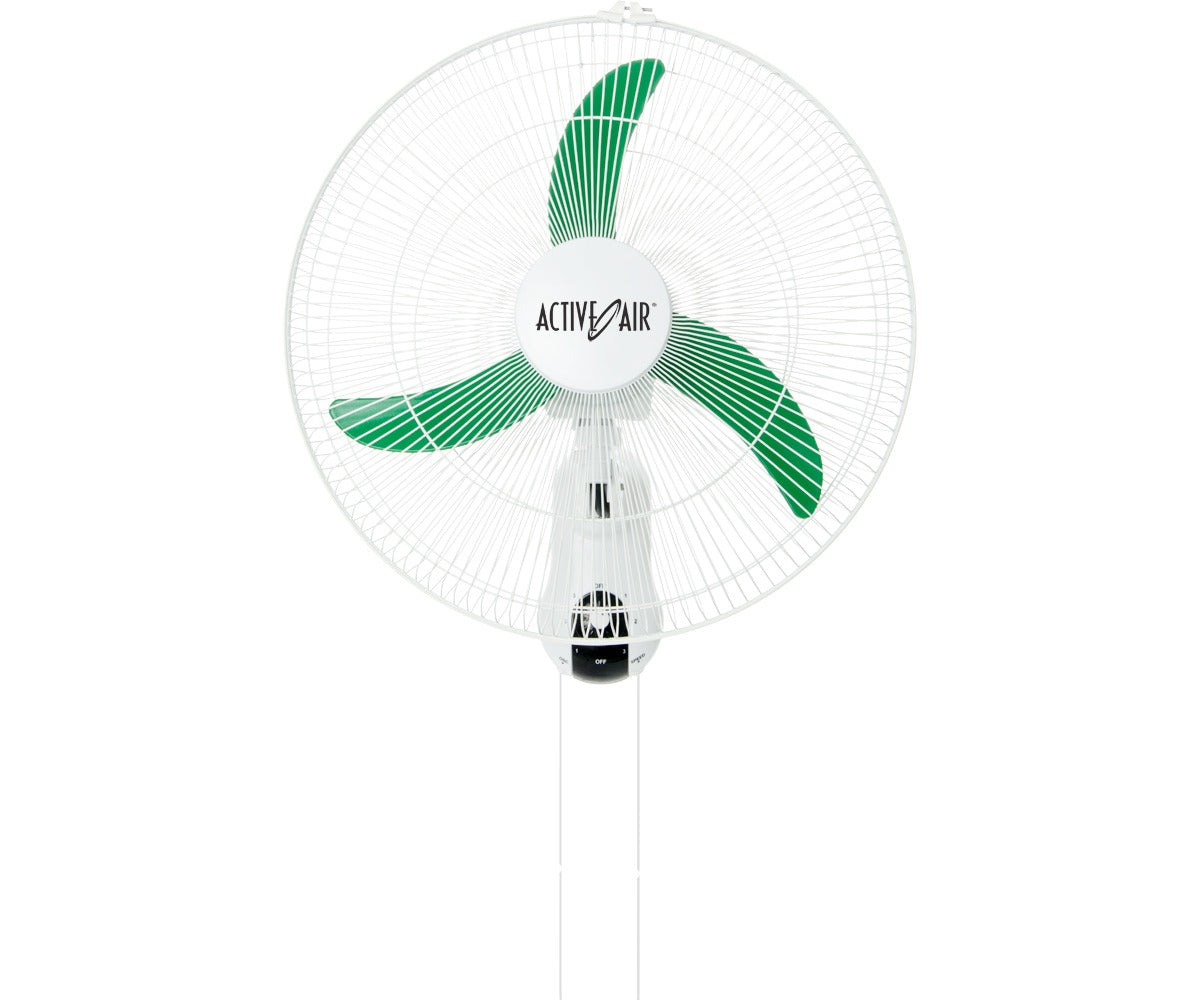

Active Air 18" Oscillating Wall Mount Fan

The ACF18 delivers 2,703 CFM versus 2,224 CFM for the Active Air 16" Wall Mount Fan — about 21% more airflow from the larger blade diameter and triple-blade design. The ACF18 also adds overheat protection, a rust-resistant coated metal guard, and more speed variance between settings. For larger rooms or growers who want the added motor safeguards, the 18" is the stronger choice; for smaller spaces where the 16" output is sufficient, either performs well.

The overheat protection is a thermal cutoff built into the motor that automatically shuts the fan down if internal temperature exceeds a safe threshold — typically caused by blocked airflow, a seized bearing, or sustained operation in a very high-temperature environment. Once the motor cools, the fan can be restarted normally. This safeguard protects both the motor and the surrounding grow room from the risks associated with a fan running in an overheated state.

Triple blades move more air per rotation at a given RPM compared to a two-blade design of the same diameter, improving volumetric efficiency. In practical terms this means higher CFM output without requiring a proportionally larger or louder motor — contributing to the ACF18's ability to deliver 2,703 CFM at just 60W with smooth, quiet operation.

The vertical tilt adjustment is typically a pivot point or locking collar on the mounting bracket that allows the fan head to be angled up or down and secured in position. Loosen the adjustment, set the angle to direct airflow at your target zone — canopy level is usually the optimal position — and lock it in place. Refer to the included instructions for the specific adjustment mechanism on the ACF18.

The snap-together design with included hardware means most installations take under 15 minutes. Mark your wall anchor points, drive the mounting screws, snap the bracket and fan body together, set your tilt angle, and plug in the 6-foot cord. No additional hardware sourcing or special tools are required beyond a standard screwdriver or drill.

The ACF18's 2,703 CFM output with 90° oscillation is well suited for rooms in the 300–500 square foot range as a single unit. For larger spaces or rooms with dense canopy that restricts airflow penetration, a second unit on an opposing wall creates a cross-circulation pattern that provides more complete coverage. Pairing the ACF18 with a floor fan like the Active Air 12" HD Floor Fan adds low-level CO2 recirculation that complements the wall fan's horizontal airflow distribution.
