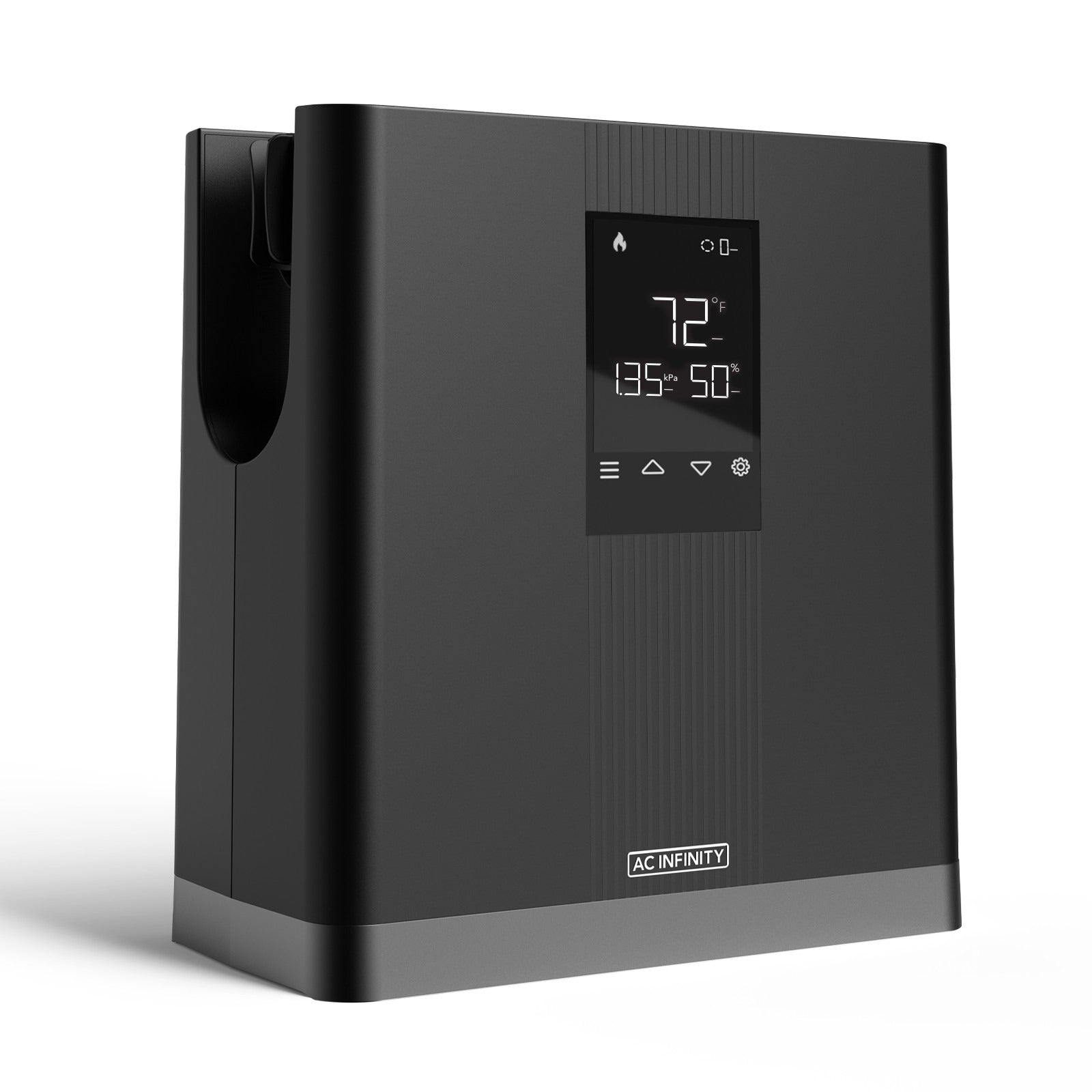

Struggling with temperature drops that stress your plants during lights-off periods or cold seasons? The AC Infinity Thermoforge T3 eliminates this problem with precision smart controls, fully compatible with the AC Infinity Smart Controller 69 Pro, to maintain optimal temperatures through VPD and temperature triggers, not crude on/off cycling. This 530W heater delivers 10 true heating levels through cutting-edge PTC plate technology with PWM control, providing the granular temperature management that simple outlet-controlled heaters can't match.

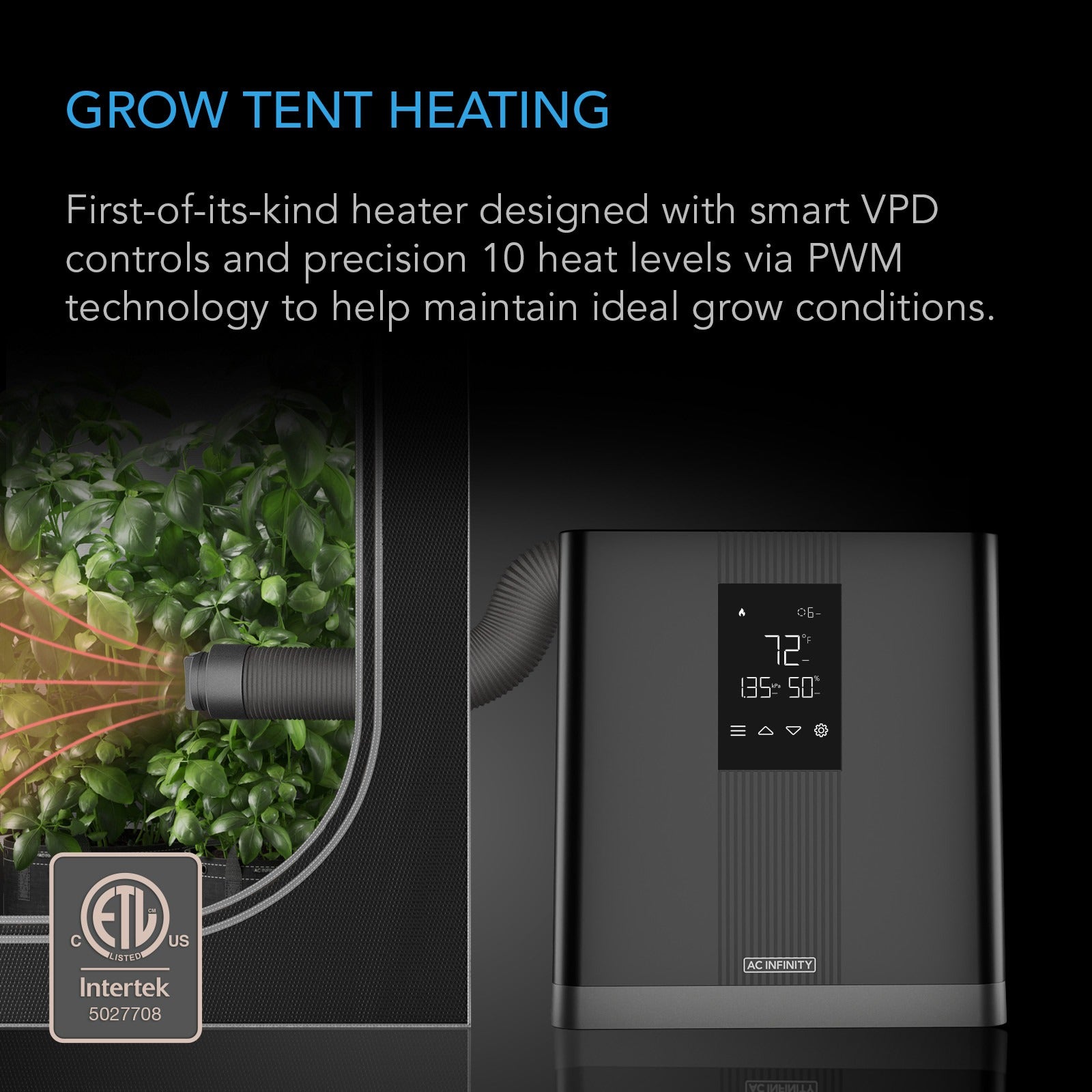

The Thermoforge T3 represents a fundamental rethinking of grow space heating, engineered from the ground up specifically for plant cultivation rather than adapting generic space heaters. Three separate PTC plates controlled via pulse-width modulation enable precise warmth output across 10 distinct levels, allowing you to gently warm an area or rapidly boost temperature as conditions demand. The corded sensor probe extends your monitoring range while flexible hosing with an additional 4 ft attachment directs heat to focused areas within your grow space, ensuring consistent temperatures where your plants need it most.
Safety and integration set the Thermoforge T3 apart from conventional heaters. UIS platform connectivity, especially when paired with an AC Infinity Smart Controller 69 Pro Plus, enables true 0-100% output control through WiFi app integration, going far beyond the simple on/off functionality of smart outlet-controlled heaters. With timer and cycle programming, 10-level fan mode for fresh air intake, and VPD triggers that account for ambient temperature, humidity levels often balanced by a CloudForge T3 humidifier, and leaf temperature simultaneously, the Thermoforge T3 delivers professional-grade climate stability year-round.

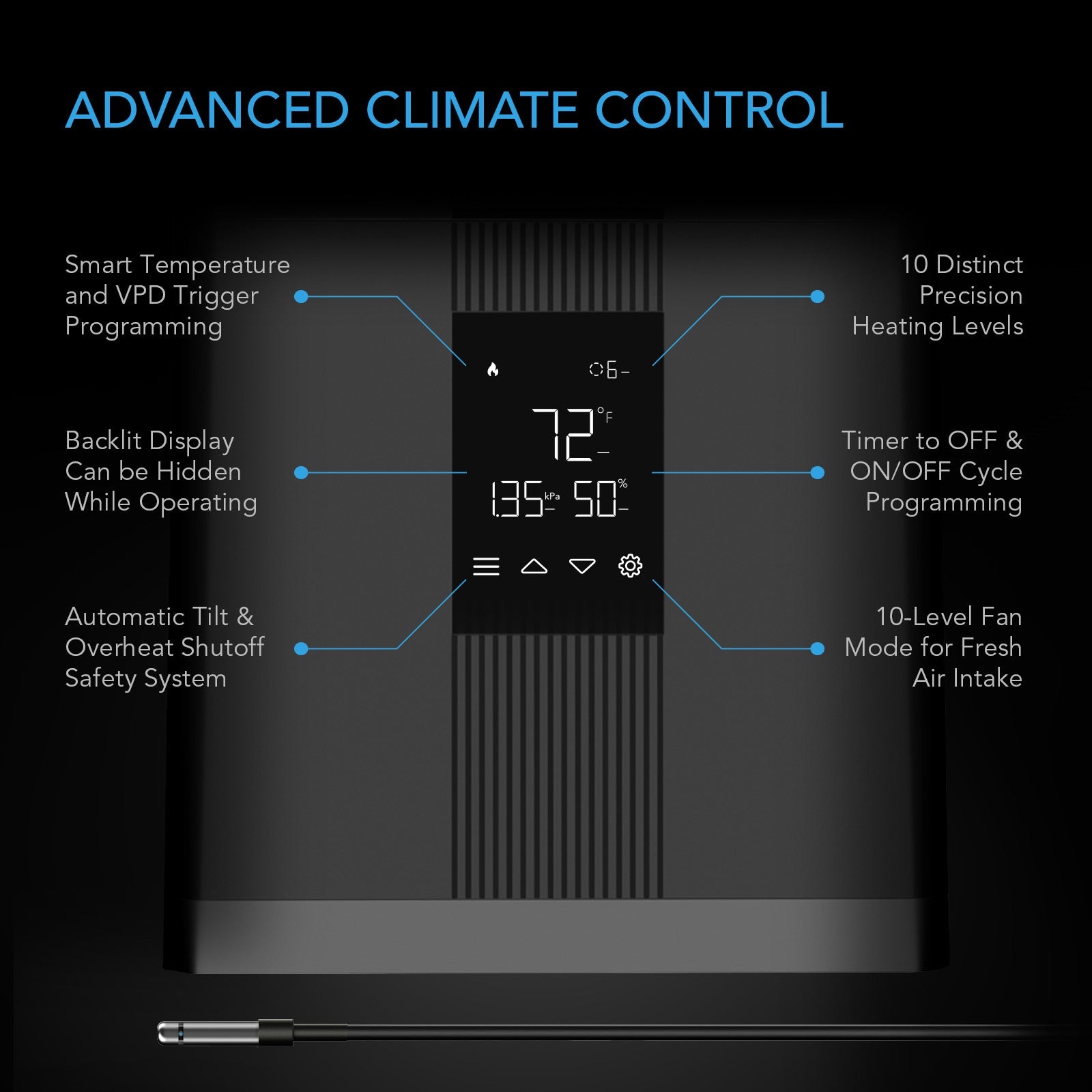

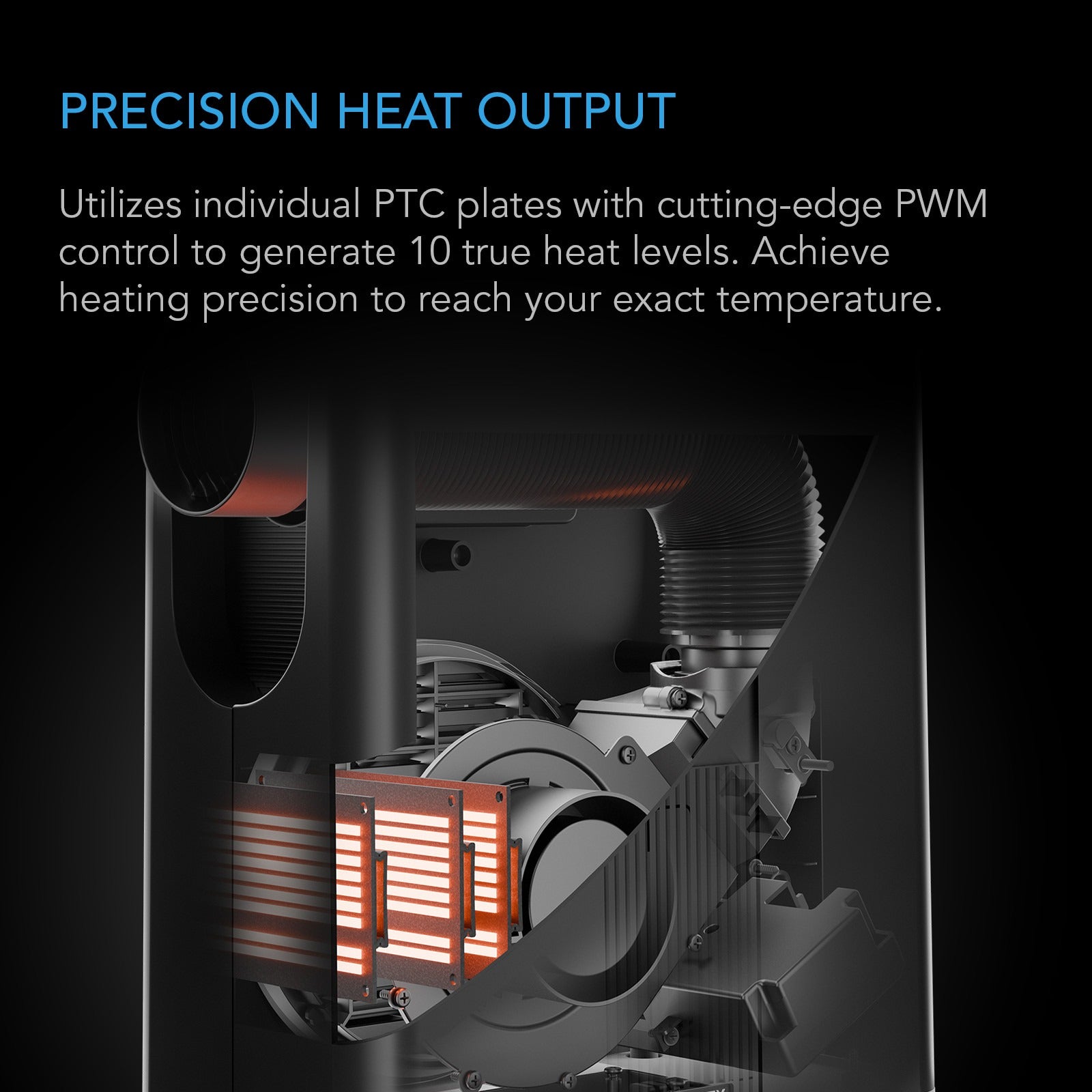

Three separate PTC plates with pulse-width modulation deliver 10 true heating levels for precise temperature control beyond simple on/off cycling.
Automatic shutoff activates when unit falls, tilts past 15°, or overheats, protecting your grow space from accidents.

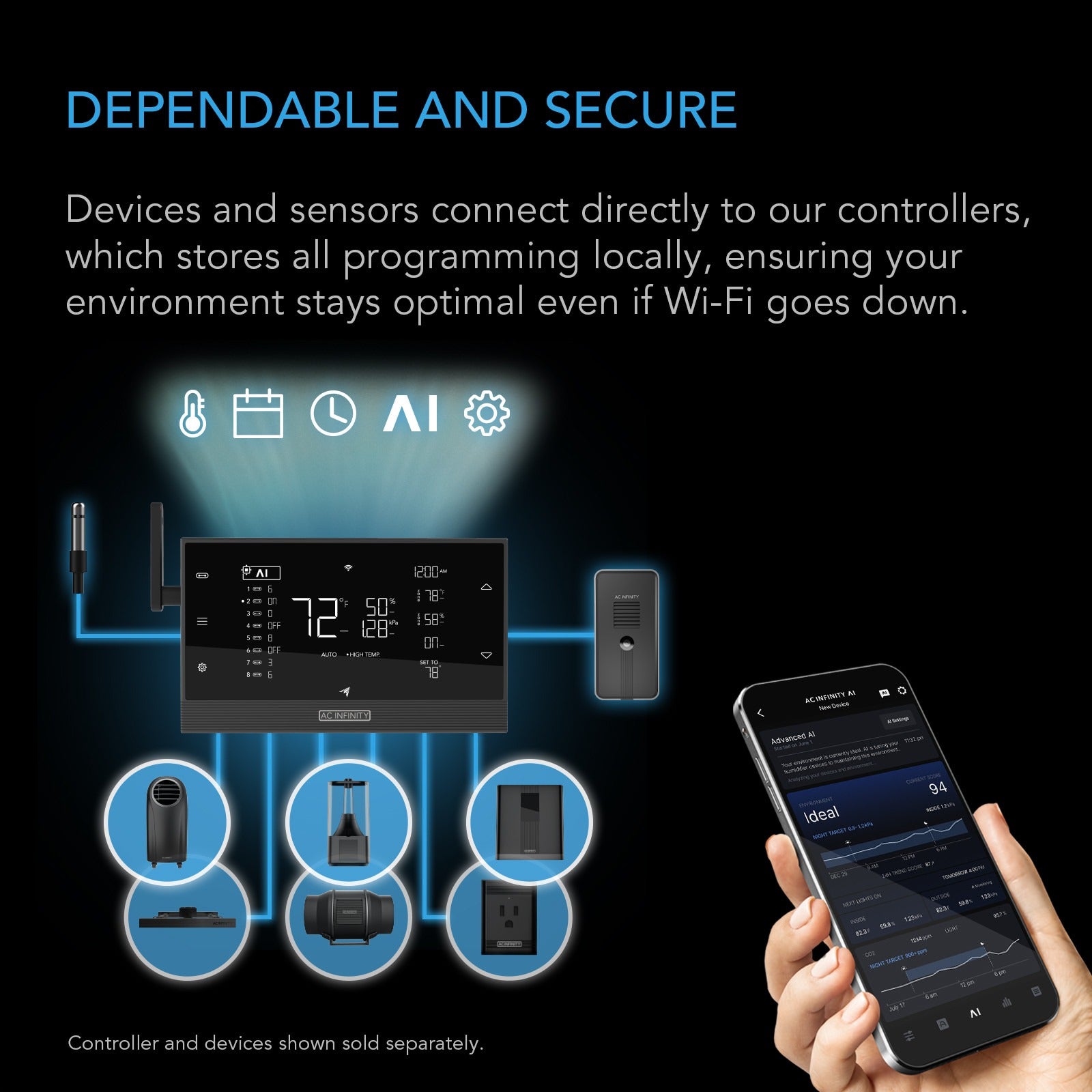

Connect to UIS controllers for genuine 0-100% output control via WiFi app, far beyond simple smart outlet on/off functionality.

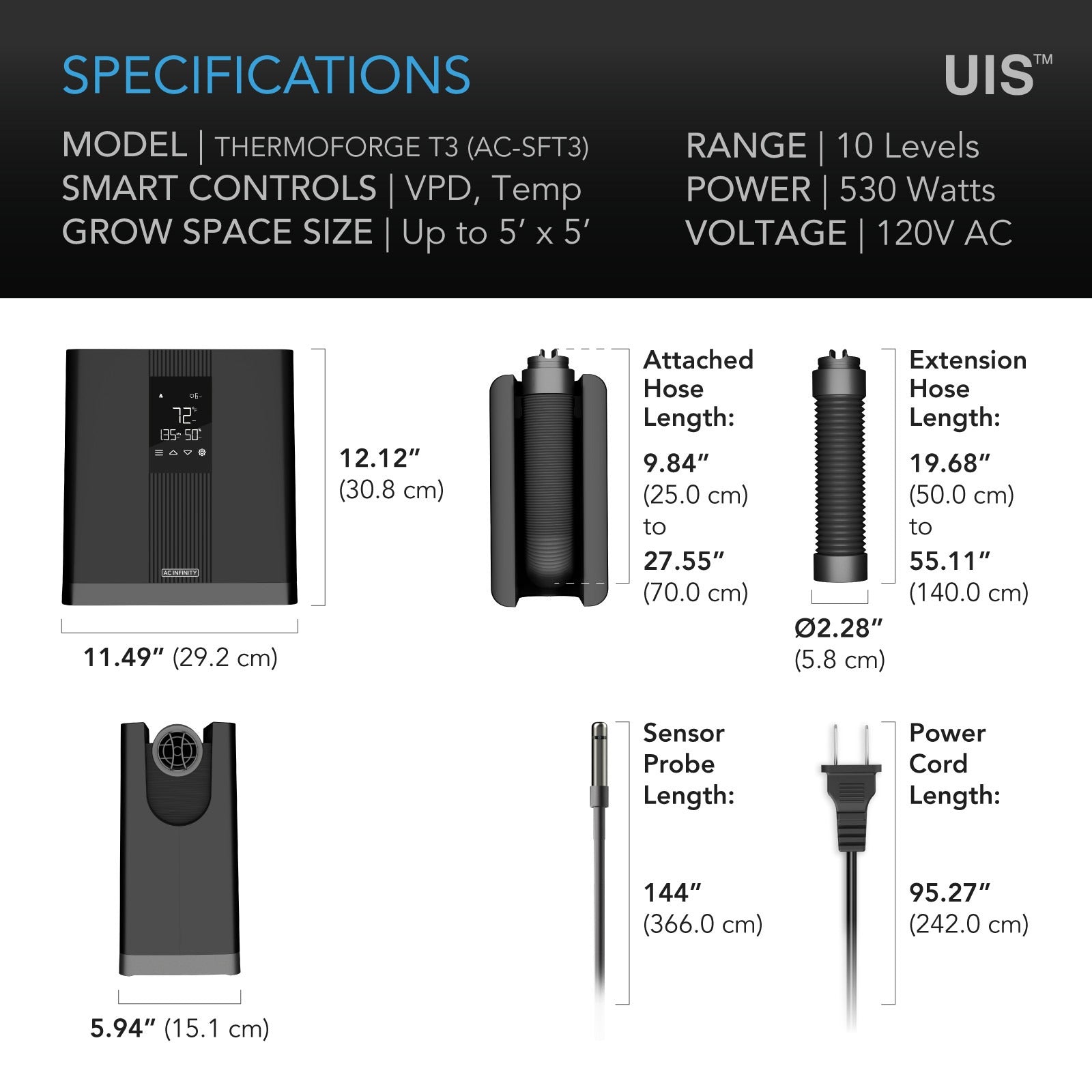

| Specification | Value |
|---|---|
| Manufacturer | AC Infinity Inc. |
| Product Model | AC-SFT3 |
| UPC Code | 819137024489 |
| Unit Dimensions | 11.49 x 5.94 x 12.12 in. (29.2 x 15.1 x 30.8 cm) |
| Hose Length | 9.84 to 27.55 in. (25.0 to 70.0 cm) |
| Extension Hose Length | 19.68 to 55.11 in. (50.0 to 140.0 cm) |
| Smart Controls | VPD, Temperature |
| Available Modes | Heating, Fan |
| Control Range | 10 Levels |
| Max Power Draw | 530 W |
| Voltage | 100-120V AC |
| Frequency | 60 Hz |
| Current | 5 A |
| Operating Temperature | 14 to 140ºF |
| Operating Humidity | 30 to 85% RH |
The Thermoforge T3 is engineered specifically for grow spaces with precision smart controls rather than being a repurposed residential heater. It features three separate PTC plates controlled via PWM (pulse-width modulation) to deliver 10 true heating levels, not just on/off cycling. The VPD and temperature triggers with corded sensor probe provide granular climate control that maintains optimal growing conditions, while UIS integration enables genuine 0-100% output control through WiFi rather than crude smart outlet functionality.
VPD (Vapor Pressure Deficit) accounts for ambient temperature, relative humidity, and leaf temperature simultaneously, providing a complete picture of your plants' transpiration environment. This allows you to optimize nutrient uptake and growth rates more precisely than relying on temperature alone. The Thermoforge T3's VPD triggers automatically adjust heating output to maintain ideal conditions throughout different growth stages, minimizing plant stress from environmental fluctuations.

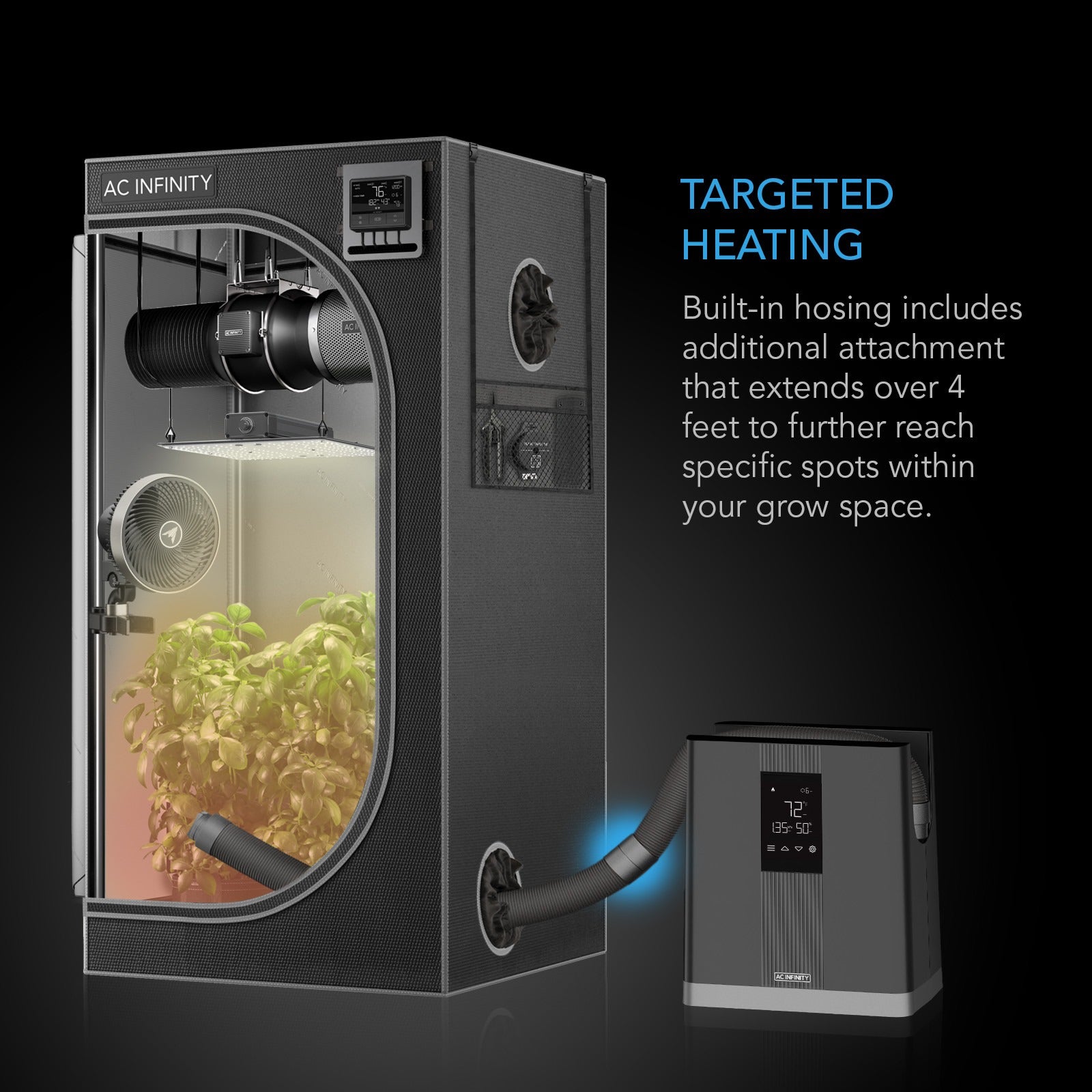

The built-in flexible hose extends from 9.84 to 27.55 inches, and the included 4 ft extension hose adds an additional 19.68 to 55.11 inches of reach. Combined, you can direct heat up to approximately 82 inches (nearly 7 feet) away from the unit, allowing you to position the heater outside your tent while still warming specific zones inside, or target particular areas that need focused heating.
The Thermoforge T3 includes comprehensive safety protection with automatic shutoff that activates in three scenarios: when the unit falls over, when it tilts past a 15° angle, or when it detects overheating. These failsafes protect your grow space from fire hazards and equipment damage, providing peace of mind during unattended operation or overnight heating cycles.
Yes, the Thermoforge T3 functions as a fully standalone unit using the onboard controller. You can set VPD and temperature triggers, program timers and cycles, and adjust across 10 heating levels without any WiFi or UIS connectivity. UIS integration is optional and unlocks advanced features like remote monitoring, multi-device coordination, historical data tracking, and true 0-100% output control through the AC Infinity app.
The 10 heating levels activate the PTC plates at different intensities using PWM control, allowing you to gently warm your space at low levels or rapidly boost temperature at high levels. Fan mode runs the internal fan at 10 adjustable speeds without activating the heating elements, providing fresh air circulation without heat—useful during warmer periods when you need airflow but not additional warmth.
Pulse-width modulation (PWM) rapidly switches the PTC heating plates on and off at varying ratios to control average power output, similar to how a dimmer switch controls light brightness. This enables smooth, precise temperature control across 10 distinct levels rather than crude full-power or off operation. The result is more stable temperatures with less overshoot and cycling, reducing plant stress from temperature fluctuations.
The effective coverage depends on ambient temperature, insulation quality, and desired temperature increase. At 530W maximum output, the Thermoforge T3 works well for small to medium setups, such as an AC Infinity 4' x 4' grow tent system, in moderately cold environments. While this model is ideal for compact spaces, larger environments may require the higher output of an AC Infinity Thermoforge T7 1000W heater for adequate climate stability.
