- 1x 12 Inch Metal Inline Duct Ventilation Fan Pro Model
- 1x ECS-7 Cable
TrolMaster Aero-Fan V-12M Ventilation Fan
starting from 0% interest financing from
/mo.
- 1,579 CFM peak airflow with 814 Pa of static pressure for large production rooms.
- Integrated EC motor accepts direct digital speed commands via the included ECS-7 cable.
- Auto-sensing 100-277VAC input allows installation in both residential and commercial facilities.
- View More Details
Earn 398 points for shopping and get $3.98 off your next order. Join Harvest Club for free.
Free Shipping On Most Items*
To the lower 48
Transparent Pricing
Backed w/ price match guarantee
4.81/5 Rating
1930+ verified reviews
Secure Checkout
SSL encrypted payments
More in this Series
VOLUME PRICING
Commercial & Bulk Purchasing
We support operations & licensed facilities with volume pricing, dedicated account managers, and custom equipment consultation.
Who This Is For
- You are upgrading to all-metal housing because plastic fans develop annoying vibrations under continuous high loads
- You are integrating with a TrolMaster hub because manual speed dials cannot respond to sudden canopy humidity spikes
What We Found
- The metal housing stops the annoying resonance you get with plastic fans when they run at full power.
- We tell people to use the ECS-7 cable immediately because digital control is smoother than any manual dimmer.
- The auto-sensing voltage makes this our go-to recommendation for growers moving into commercial warehouses.
What Users Say
- Growers who switched to the Metal Pro say they stopped hearing structural rattles after seasons of 24/7 use.
- Commercial operators using the ECS-7 link say they finally stopped micromanaging their exhaust speeds by hand.

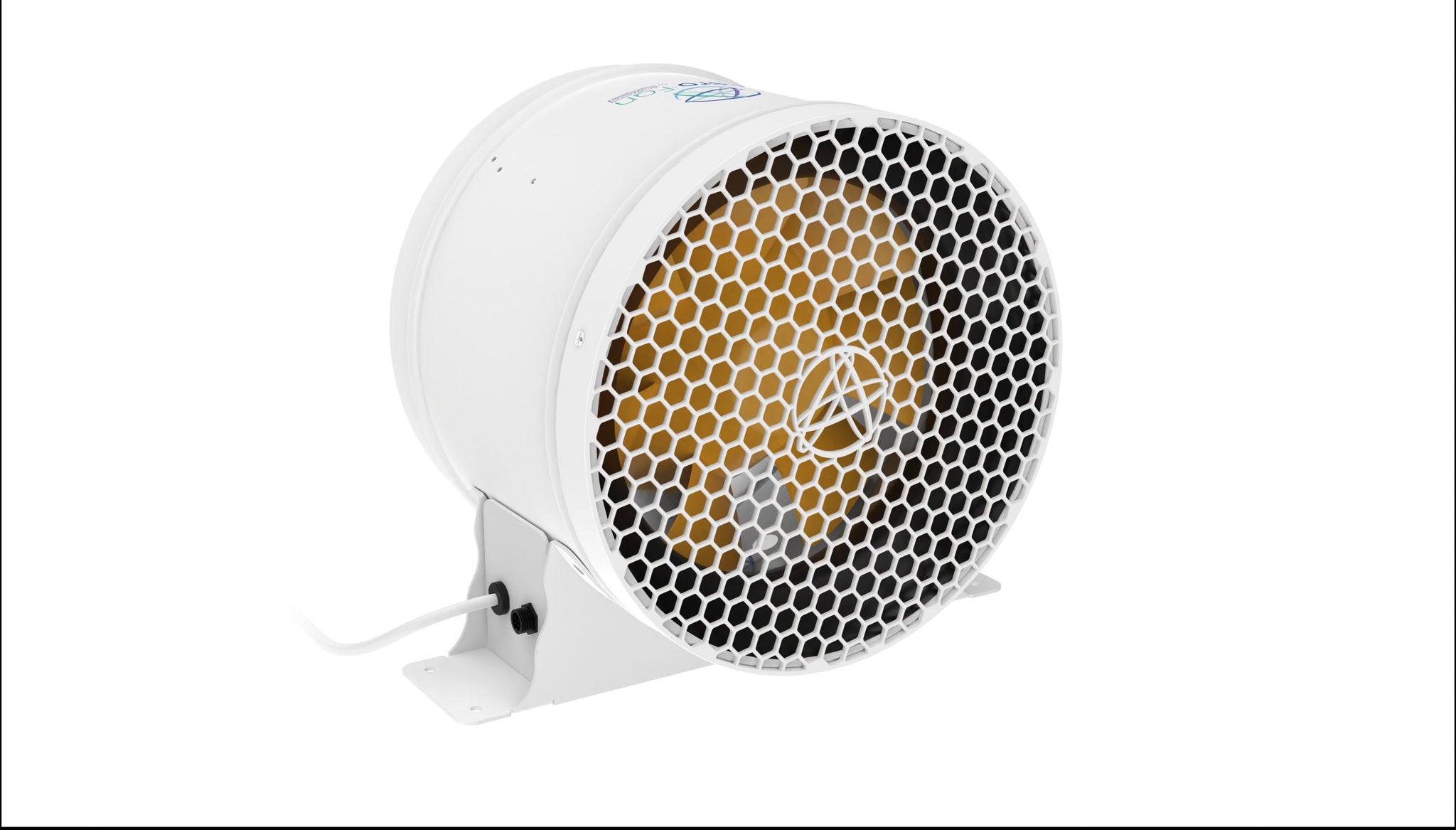

TrolMaster Aero-Fan V-12M Ventilation Fan
Maintaining the ideal environment in a large-scale commercial grow requires more than just standard hardware; it demands high-capacity airflow and rugged reliability. The TrolMaster Aero-Fan V-12M is designed specifically for these high-stakes environments, serving as the most powerful 12-inch Metal Pro model in the lineup. Built with a durable all-metal housing, it provides the structural integrity needed for permanent installations while delivering a massive 1,579 CFM of airflow to keep your canopy fresh and CO2 levels balanced.
Beyond raw power, the V-12M is engineered for seamless integration into modern environmental control systems. With its auto-sensing 100–277VAC power input and included ECS-7 cable, this fan connects directly to your existing TrolMaster ecosystem. Whether you are scaling up a facility or replacing an underperforming unit, the V-12M offers the performance and automated precision required for professional crop production through its native compatibility with TrolMaster Green-X and Hydro-X specialized controllers.
What's Included
Features
🏗️
All-Metal Pro Housing
The V-12M's metal construction delivers greater structural rigidity and long-term durability over standard plastic-housing fans, making it ideal for permanent commercial grow facility installations.
💨
1,579 CFM Peak Airflow
The highest output in the Aero-Fan lineup, delivering 814 Pa of static pressure to handle the largest grow rooms.
🔋
100–277VAC Auto-Sensing
Self-adjusts to your facility's power supply with no manual switching required, covering both residential and commercial configurations.
🎛️
Native Control
Includes an ECS-7 cable for direct integration with TrolMaster controllers, enabling automated speed control and scheduling.
🔩
Mounting Plate Included
Ships with an applicable mounting plate to simplify secure installation into existing ventilation systems.
Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 100–277VAC, 50/60 Hz |
| Rated Current | 3.8A Max |
| Rated Input Power | 357W Max |
| Number of Blades | 7 |
| Max Airflow | 1,579 CFM |
| Max Static Pressure | 814 Pa |
| Rotation Direction | CCW |
| IP Rating | IP44 |
| Operating Temperature | -4–140°F (-20–60°C) |
| MTTF | 50,000 Hours @ 25°C |
| Dimensions | 10.04 × 12.72 × 11.81 in |
| Net Weight | 14.44 lbs (6.55 kg) |
Support & Manuals
FAQs
What makes the V-12M different from the standard V-12?
The V-12M is the Pro Model variant featuring an all-metal housing in place of the standard TrolMaster Aero-Fan V-12 Ventilation Fan, built for greater rigidity and longevity in permanent commercial installations. It also delivers a significantly higher 1,579 CFM output compared to the standard V-12's 1,180 CFM.
How does the V-12M integrate with TrolMaster controllers?
Can the V-12M be used without a TrolMaster controller?
Yes. The V-12M operates as a standalone inline duct fan and can be installed in any standard 12-inch duct system independently. The ECS-7 cable enables controller integration, but it is not required for basic operation.
What voltage does the V-12M require?
The V-12M features automatic voltage sensing across 100–277VAC at 50/60 Hz, making it compatible with both standard 120V residential wiring and 208/240V commercial facility power.
How does the V-12M compare to the V-10M?
The V-12M delivers 1,579 CFM, which is the highest airflow of any fan in the series, compared to the TrolMaster Aero-Fan V-10M Ventilation Fan which outputs 1,014 CFM.
Is the V-12M suitable for humid grow environments?
Yes. The V-12M carries an IP44 ingress protection rating and its metal housing adds physical resilience, making it suitable for standard indoor grow environments within a temperature range of -4–140°F.
