Faven Lighting Chroma CX2 Controller

Need straightforward, reliable control for your Chroma lighting system without complex wireless infrastructure? The Faven CX2 Controller delivers direct manual operation for up to 100-150 Chroma fixtures, making it the ideal choice for smaller cultivators and first-time users of the Faven Lighting ecosystem. This standalone controller eliminates dependency on third-party systems while providing all essential functions: dual-channel dimming, spectrum adjustment, and far-red scheduling capabilities.

The CX2 features two independent lighting control channels, each supporting up to 100 fixtures with the capacity to scale up to 150 in certain configurations. This dual-channel architecture allows growers to manage separate zones or lighting recipes simultaneously, offering flexibility to fine-tune different areas of the grow space independently. The controller supports both manual operation for immediate adjustments and time-based scheduling for automated lighting strategies throughout your growth cycle.

Built exclusively for compatibility with Faven Chroma fixtures, the CX2 operates on standard 100-240VAC power with a compact form factor that mounts easily via wall screws or magnets. The controller handles temperature ranges from 0-50°C (32-122°F) and humidity up to 80%, ensuring reliable performance in demanding grow environments. While the CX2 is fully hand-operated without remote access capabilities, this simplicity translates to dependable control with minimal learning curve and zero connectivity concerns.

Features

🎮

Dual Independent Channels

Two separate control channels support 100-150 fixtures each for flexible zone management and lighting recipes.

⚡

Complete Manual Control

Direct dimming from 40-100%, spectrum adjustment, and far-red scheduling with no third-party systems required.

📅

Time-Based Scheduling

Program automated lighting strategies with scheduled dimming and far-red transitions throughout growth cycles.

🔧

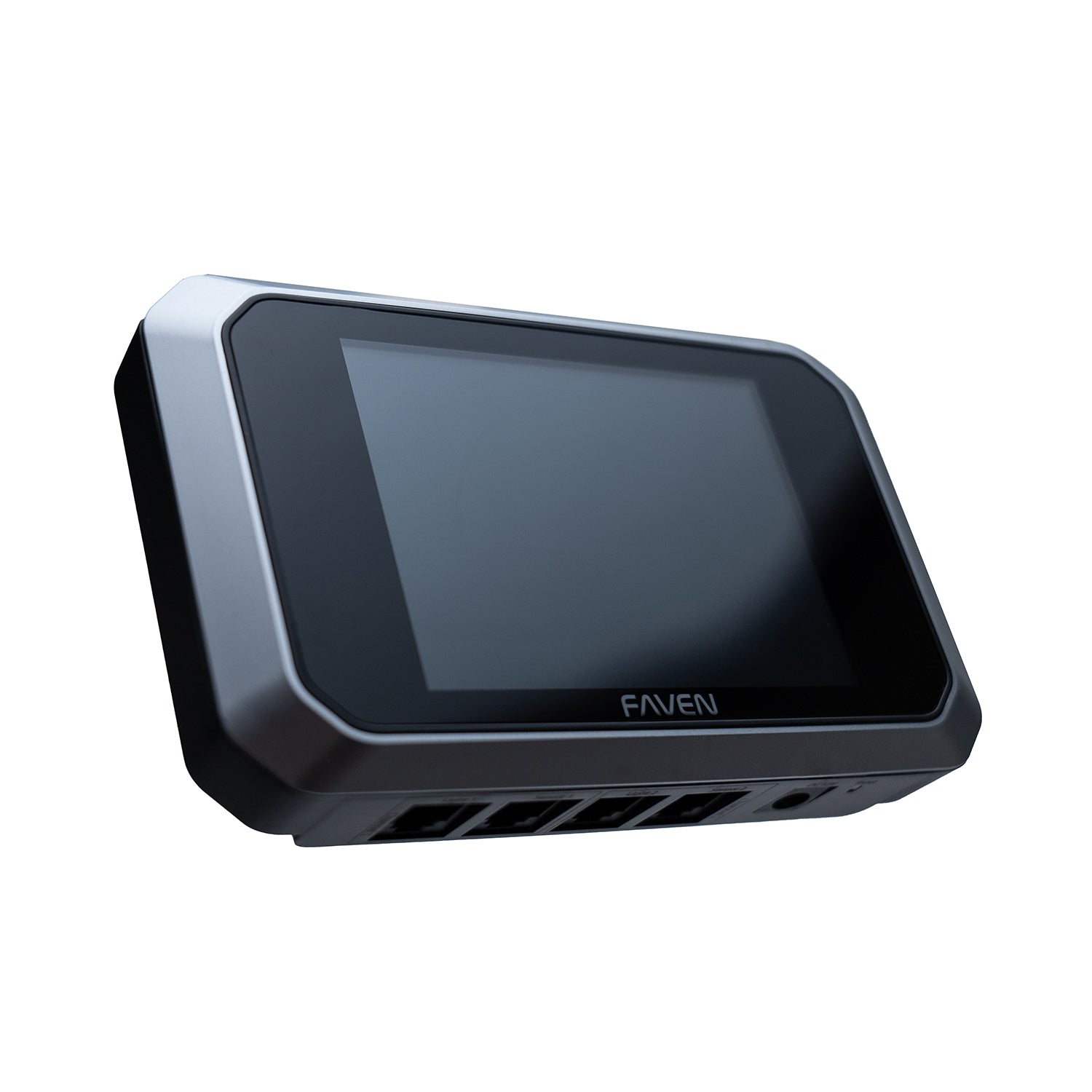

Simple Installation

Compact design with wall mount or magnet installation, 12V 1A operation, and straightforward RS485 connectivity.

What's Included

1x CX2 Controller
Power Adapter (100-240VAC, 50/60Hz)
Installation Hardware (Wall Screws & Magnet)

Specifications

Specification	Value
Compatible Fixtures	Faven Chroma Only
Adapter Input	100-240VAC, 50/60Hz, 0.2A
Controller Input	12V, 1A
Lighting Control Channels	2 Independent Channels
Lighting Control Level	MAIN: OFF/40-100% \| FAR RED: OFF/25-100%
Number of Fixtures Per Channel	100 (RS-485) \| Up to 150 in Some Configurations
Connection Type	RS-485
Working Environment	Temperature: 0-50°C (32-122°F) \| Humidity: ≤80%
Weight	0.48 lb
Dimensions	5.43"L × 3.33"W × 1.04"H
Installation	Wall Mount with Screws or Magnet
Operation Type	Manual Hand Operation (No Remote Access)
Warranty	3 Years

Support & Manuals

📄 CX2 Controller Manual

Warranty

Faven warrants all mechanical and electronic components of the CX2 Controller against defects in materials and workmanship for three (3) years from the original date of purchase when used under normal operating conditions. This warranty ensures reliable performance and long-term value for your lighting control investment.

FAQs

Is the CX2 controller compatible with other Faven lighting models? +

No, the CX2 controller is designed exclusively for Faven Chroma fixtures and is not compatible with other Faven lighting models. This dedicated compatibility ensures optimal performance and seamless integration with Chroma's adjustable spectrum and far-red capabilities.

How many Chroma lights can I control with one CX2 controller? +

Each CX2 controller features two independent channels, with each channel supporting 100 fixtures via RS-485 connection. In some configurations, you can expand to 150 fixtures per channel, allowing a single CX2 to manage between 200-300 Chroma lights across two zones, making it perfect for managing complete setups like the 4' x 4' Starter Pack or the larger 4' x 8' Starter Pack.

Can I control the CX2 remotely via smartphone or computer? +

No, the CX2 is a fully manual, hand-operated controller without remote access capabilities. This design prioritizes simplicity and reliability without requiring network connectivity. If you need remote control and app-based management, consider upgrading to Faven's GrowFlux system for wireless operation.

What's the difference between the two control channels? +

The two independent channels operate identically but allow you to control separate groups of fixtures with different settings. For example, you might run one channel for vegetative growth spectrum and another for flowering, or manage two different grow rooms with distinct lighting schedules—all from a single controller. For more on optimizing light cycles, our guide on understanding grow light schedules can be a valuable resource.

How do I set up time-based scheduling on the CX2? +

The CX2 includes built-in scheduling functionality accessible through the manual interface. You can program automated on/off times, dimming levels, and far-red transitions throughout your growth cycle. Understanding how the light spectrum influences growth can help you maximize these settings. Complete setup instructions are also available in the CX2 Controller Manual linked above.

What installation options are available for the CX2? +

The CX2 offers flexible installation with included wall mounting screws and a magnetic backing. The compact 5.43" × 3.33" × 1.04" form factor and lightweight 0.48 lb design make it easy to position wherever convenient in your grow space, and it can be paired with accessories like adjustable stands for more flexible setups.

What power requirements does the CX2 have? +

The CX2 includes a universal power adapter that accepts 100-240VAC at 50/60Hz, making it compatible with electrical systems worldwide. Should you need a replacement, a separate Faven Chroma power cord is available. The controller itself operates on 12V 1A, drawing minimal power while managing up to 200-300 fixtures across both channels.

Should I choose the CX2 or upgrade to GrowFlux? +

Choose the CX2 if you prefer straightforward manual control for your under canopy lighting, have a smaller operation (under 300 fixtures), or don't need remote access. Upgrade to GrowFlux if you require wireless app-based control, manage multiple zones remotely, need complex automated recipes, or want to scale beyond 300 fixtures with centralized management.
