CannaFreeze FC 500 Freeze Dryer & Chiller

  • Dries up to 785 lbs of fresh harvest material per 24 hour cycle
  • 549 square feet of shelf area across 23 pharmaceutical grade stainless steel shelves
  • Requires 460V 3 phase power and a 40 foot container for freight delivery
  • 12-month warranty from date of delivery, parts and labor
  • View More Details
Questions? Talk to a specialist. Mon–Fri, 9am–5pm PST
Free Shipping To the lower 48
Transparent Pricing Backed w/ price match guarantee
4.81/5 Rating 1931+ verified reviews
Secure Checkout SSL encrypted payments

Send Us a Message

Request a Quote

A Trimleaf equipment specialist will follow up with availability and shipping details.

THROUGH THE Cultivator's LENS Hands-On Evaluation

Who This Is For

  • You are transitioning to industrial freeze drying because traditional drying rooms cannot scale to meet peak demand.
  • You are moving to a 24 hour curing cycle because you need to turn over fresh harvest into liquid profit faster.
  • You are consolidating your processing floor because dedicated drying rooms take up too much expensive square footage.

What We Found

  • The included chiller is a massive separate unit, so plan your layout for both footprints before it arrives.
  • The pharmaceutical grade steel feels different than standard units and cleans up much faster between cycles.
  • Moving to a 24 hour turnaround completely changes how you schedule labor for the rest of the processing chain.

What Users Say

  • Operators say they move from harvest to market in two days, which improved cash flow during peak seasons.
  • Facilities that switched from hang drying report the color and aroma of their biomass stays much more vibrant.
  • Large scale processors say they reclaimed square footage by replacing drying rooms with this compact unit.

Description

  • Type
    Freezer Dryer
  • Drying Capability
    Up to 785 lbs per 24 hr
  • Warranty
    1 Year

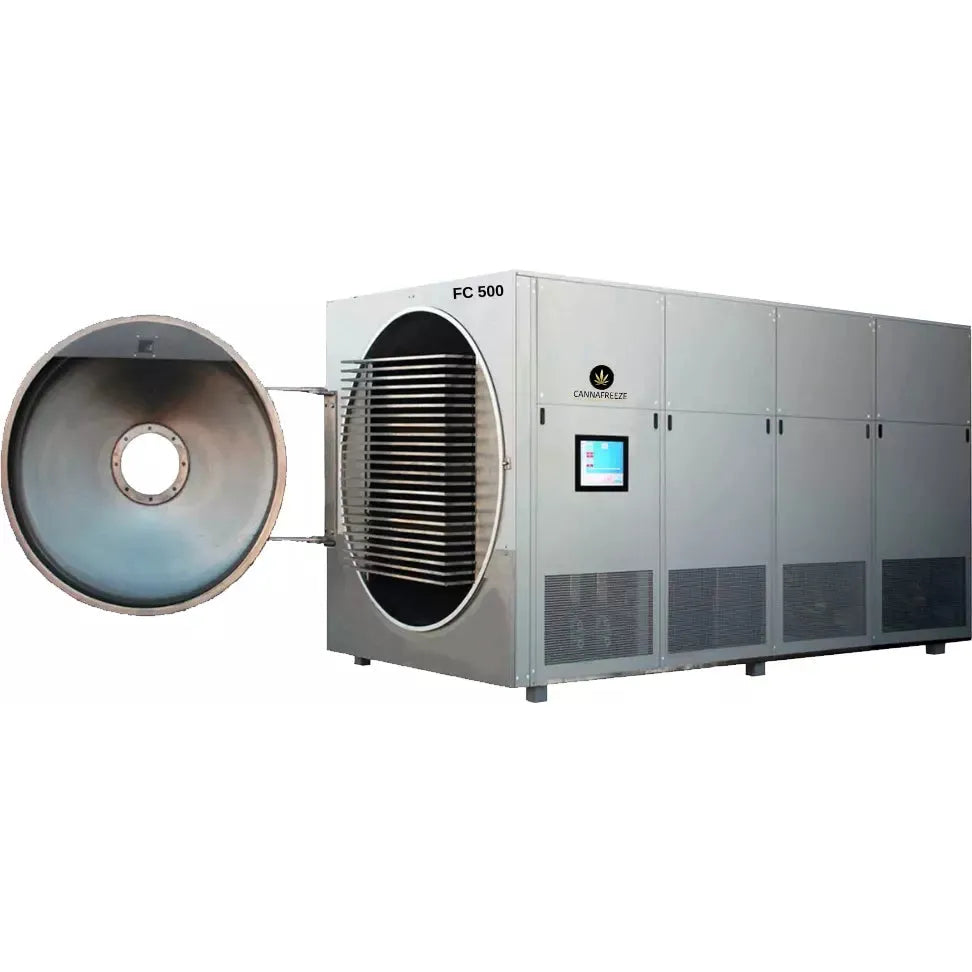

CannaFreeze FC 500 Freeze Dryer & Chiller



Need half a ton of buds cured to meet the deadline of a client?

Then it’s time you get the CannaFREEZE FC500.

The FC500 is a revolutionary Freeze Dryer designed to help you take your buds from harvest to curing in just 24 hours.

Using Freeze Drying technology focused on cannabis, the FC500 makes your buds more potent with better Terpene preservation.

The FC500 has a capacity of up to 785 lbs and a shelf area of 549 square feet, perfect for those who want to go big-time in freeze-drying.

The FC500 method is safe and sanitized, as it uses food and pharmaceutical grade stainless steel for the chambers, shelves, and trays. Your buds are safe inside, as the FC500 locks your buds in a sealed container under a vacuum.

The FC500 also eliminates common curing problems, such as molds and pest contamination.

With your buds done faster, and with better quality, you quickly meet the demands of dispensaries, and consumers.

Features



Fast Curing without the Challenges

The FC500 can cure up to 785 lbs of your favorite strains in 24 hours, without dealing with curing problems like molds and pest contamination.



Enough space for the commercial-scale grower

You get enough space to freeze dry your buds, as the FC500 gives you up to 549 square feet of space with 23 shelves and 2.36 inches of shelf spacing



Protecting you and your buds

The FC500 uses food and pharmaceutical grade stainless steel for components and protects your buds with a vacuum seal.



Save Money and get Investments back quicker

The FC500 requires less space than having a dedicated drying room. With your buds cured faster, you get an earlier return of investment.



Highlights

  • Freeze Dry up to 785 lbs in 24 hours
  • 549 square feet of shelf space
  • Pharmaceutical and food grade stainless steel
  • Vacuum seal
  • Less space needed
  • Faster ROI

      Specifications

      Ice Condenser Capacity 1,499 lbs
      Ice Condenser Performance 1,234 lbs/24 Hrs
      Ice Condenser Temperature -103 °F
      Defrost Hot Gas
      Shelf Dimensions 67 x 51 Inches
      Number of Shelves 23 + 1
      Shelf Area 549 Sq Feet
      Shelf Spacing 2.36 Inches
      Shelf Temperature 85°F to + 194°F
      Refrigeration Two Stage
      Cooling Systems Water Cooled
      Unit Dimensions 94.5 x 86.6 x 196.9 In H x W x L
      Refrigerant R-507 (NON-CFC)
      Vacuum Pfeiffer Duoline 255
      Electrical Specs 460/480 Volt 50/60 Cycle 3 Phase+ Neutral
      Amperage 250 Amp
      Weight 22,046 lbs
      Freight 40 Ft. Container

      Chiller Specifications



      MODEL FC 500 -120 KW CHILLER



      General Data



      Cooling Circuits 2
      Compressors 4 - Scroll
      Capacity Control 0-25-50-75-100%
      Power 460/3/60
      Fans 2 – Axial
      Condenser Air Flow 25,895 cfm
      Power (each) 2.5 kW
      Available Static Pressure 0 “wc
      Tank Volume 132 gal
      Length 130 in
      Width 49.4 in
      Height 85.0 in
      Weight 3,634 lb
      Amperage 84 A





      Performance
      Refrigerant R410A
      Hydraulic Kit P3
      Inlet Water Temperature 69°F
      Outlet Water Temperature 59°F
      Glycol Type 25% Propylene Glycol
      Ambient Temperature 95°F
      Cooling Capacity 34.5 Tons/414,000 Btu/Hr
      Total Absorbed Power 42.2 kW
      Evaporator Water Flow Rate 85.9 gpm
      Available Head Pressure 39 psi
      Min Ambient Temperature 23°F
      Max Ambient Temperature 109°F




      Warranty

      12 months from date of delivery, parts and labor. (Service charges for travel time not covered.)
