Alien Hydroponics AERO System - 8 Pot 4 Row
Struggling with slow plant growth and inefficient, high-maintenance setups? The Alien Hydroponics AERO System is engineered to solve these problems, delivering explosive yields with remarkable efficiency. This advanced 8-pot aeroponic system atomizes a nutrient-rich solution into a fine mist that directly envelops your plants' root systems. This method maximizes oxygen exposure and nutrient absorption, leading to significantly faster growth cycles and more robust plants compared to traditional soil or even other hydroponic techniques like DWC.
Designed for serious growers who demand professional results, this kit is both powerful and user-friendly. The modular design, part of the innovative
Alien Hydroponics family, allows for easy assembly and future expansion. While this kit provides everything for the core system, please note it requires a separate reservoir; we recommend the compatible
30 Gallon GardenTank to get started. If you're looking for a different configuration, we also offer a compact
4 Pot 2 Row AERO System.
What's Included
- 1x DRAIN Pump Pipe Adapter
- 1x Pressure Water Pump 10
- 1x Cycle Timer
- 1x AERO/RAIN Header Pot Complete 20L
- 8x AERO/RAIN Pot 15L
- 1x Silver Lid
- 8x AERO Lid
- 1x Header Pot Blank
- 16x Pot Stand for 15L Pot
- 8x Drain Cover - Copper
- 8x Square Net Pot
- 16x Grommet - 4mm
- 16x Black Sprinkler
- 2x Elbow 50mm Barbed
- 2x Tee 50mm Barbed
- 4x Elbow 50mm Dual Flow
- 5x Tee 50mm Dual Flow
- 9x Washer 50 X 64mm
- 9x Nut 50mm Dual Flow
- 14x Clamp Size 1
- 8x Clamp Size 2
- 4x Valve 16mm Green
- 4x Plug - 16mm
- 16x Tee 16mm - 4mm
- 8x Pot Clip 16mm
- 2x Elbow 20mm Barbed - 3/4" Female
- 2x Tee 19mm Barbed - 3/4" Male
- 2x Elbow 19mm Barbed - 3/4" Male
- 2x Elbow 19mm Barbed
- 2x Elbow 25mm Barbed
- 1x Siphon Tee 19mm Fitting
- 1x Siphon Tee 25mm Fitting
- 7x Pipe 16mm Silver Bulk by Meter
- 4x Pipe 19mm Black Bulk by Meter
- 3x Pipe 19mm Blue Bulk by Meter
- 4x Pipe 25mm Blue Bulk by Meter
- 6x Pipe 4mm Pink Bulk by Meter
- 5x Pipe 50mm Silver 100cm Piece
- 1x Wrench 50mm
- 1x Pipe Cutter 50mm
- 1x AERO Instructions
- 1x JET-STREAM DRAIN Water Pump 1100GPH
- 1x JET-STREAM DRAIN Water Pump Power Adapter
Features
💨Dual-Flow™ Fittings
Patented fittings ensure a free-flowing system and prevent root clogging with unique side slots.
🛡️Copper-Plated Drain Cover
Effectively stops roots from entering the pipe network, ensuring uninterrupted nutrient flow.
❄️Heat-Resistant Pipes
Heat-reflective silver piping minimizes heat absorption, keeping your nutrient solution cool.
💧Raised Drainage Grid
A sloped base and raised grid design allows for rapid and efficient water drainage from the pots.
⏱️Rain Brain Controller
Delivers consistent, perfectly timed nutrient delivery, ensuring your feeding schedule is always on point.
🔧Easy Setup & Maintenance
Threaded fittings and snap-on pipes allow for a glue-free setup and simple reconfiguration.
💪Durable Construction
Built with high-quality, non-reactive materials to ensure longevity and protect nutrient integrity.
⚙️Customizable Configurations
Offers multiple layouts and pot sizes to maximize your growing space and adapt to your needs.
Specifications
| Specification |
Value |
| Number of Pots |
8 |
| Number of Rows |
4 |
| Pot Size Options |
15L (4 gal) or 30L (8 gal) |

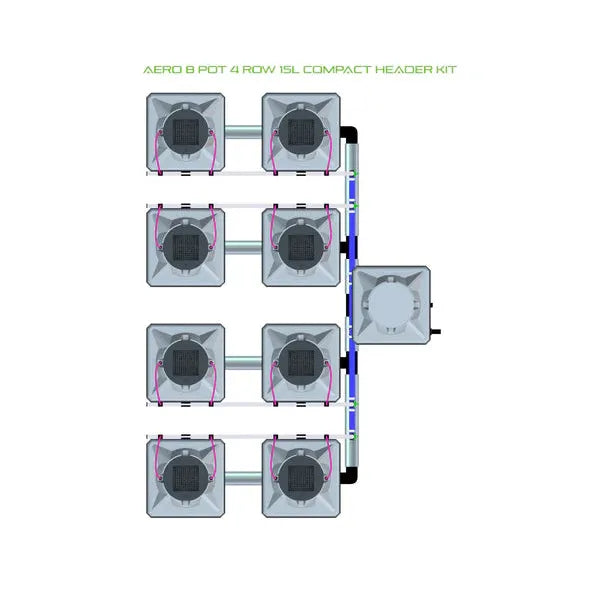

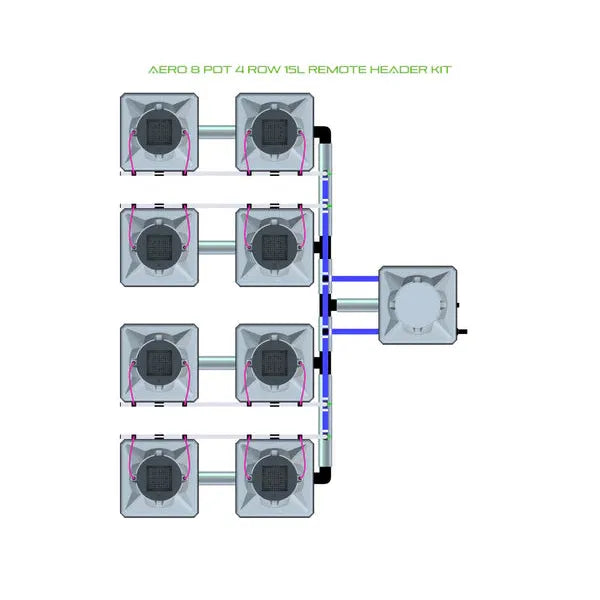

| Min. Assembled Size (15L Pot) |
41⅜" L x 58¼" W (Compact Header) / 45¼" L x 58¼" W (Remote Header) |
| Max. Assembled Size (15L Pot) |
57½" L x 84¼" W (Compact Header) / 96⅞" L x 84¼" W (Remote Header) |

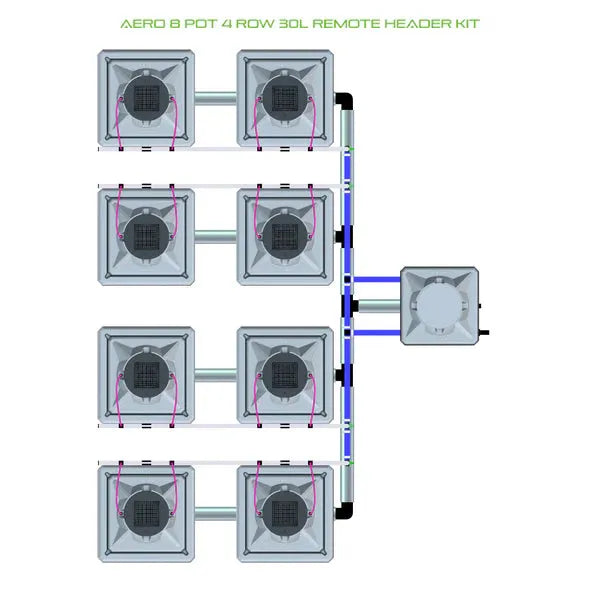

| Min. Assembled Size (30L Pot) |
46⅝" L x 70⅞" W (Compact Header) / 50⅝" L x 70⅞" W (Remote Header) |
| Max. Assembled Size (30L Pot) |
68⅛" L x 105⅛" W (Compact Header) / 107½" L x 105⅛" W (Remote Header) |
| Water Pumps Included |
JET-STREAM DRAIN Water Pump 1100GPH, Pressure Water Pump 20 |
| Recommended Reservoir |
30 Gallons / 120 Liters (minimum, not included) |
Setup and Maintenance
System Setup Steps:
1. Prepare Pots
Attach the necessary fittings to the pots.
2. Connect the System
Use piping to connect the pots and the header pot to establish the recirculating network.
3. Install Air System
Set up the air pump and connect it to the air stones in the pots.
4. Integrate Pumps
Install the water pump(s) for recirculation and chilling (if applicable).
5. Set Up Nutrient Tank
Connect the nutrient tank to the system.
6. Fill the System
Add water to the system.
Maintenance Tips:
- Maintain a 50-75cm center distance between each pot.
- Alien Hydro recommends a watering frequency of one minute every hour.
- Regularly check the filter for debris.
- Minimal cleaning is required when using mineral-based nutrients.
- Use ROOT ROT X™ to sterilize and keep roots healthy.
- Flush the system between crop cycles with clean water and disinfectant.
- Inspect sprinklers to ensure proper misting and water distribution.
Support & Manuals
Warranty
The ALIEN AERO System comes with a one-year manufacturer's warranty for your peace of mind.
FAQs
What is the main benefit of the AERO system over DWC?+
Aeroponics delivers an oxygen-rich, fine mist of nutrients directly to the roots, which can lead to faster absorption and more explosive growth compared to Deep Water Culture (DWC), where roots are submerged. This method also uses significantly less water. For those interested in DWC, Alien also offers excellent
RDWC hydroponic systems.
Is a reservoir tank included with this kit?+
No, a nutrient reservoir is required but not included. This allows you to choose a size that best fits your space and needs. We recommend a minimum capacity of 30 gallons. The
Alien Hydroponics GardenTank series is designed to integrate perfectly with this system.
How difficult is this system to assemble?+
The system is designed for easy, glue-free assembly. It uses threaded fittings and snap-on pipes, making setup straightforward even for those new to large hydroponic systems. A pipe cutter and wrench are included to simplify the process.
Can I expand this system in the future?+
Absolutely. The modular design is a key feature of the
Alien Hydroponics lineup. You can easily add more pots or reconfigure the layout as your garden grows. We offer systems ranging from a
single pot kit up to 36-pot commercial setups.
What is the recommended feeding schedule?+
Alien Hydroponics recommends a watering frequency of one minute every hour. The included cycle timer (Rain Brain) allows you to precisely control this schedule for optimal nutrient delivery and root health.
