Alien Hydroponics AERO System - 28 Pot 4 Row

Elevate your large-scale cultivation with the Alien Hydroponics AERO System - 28 Pot 4 Row, a professional solution engineered for commercial growers and research teams who demand peak efficiency. This advanced aeroponic setup solves the common struggle of resource waste by delivering a fine nutrient mist directly to the roots, promoting explosive growth while using up to 95% less water than traditional methods. For those comparing technologies, this system offers a high-performance alternative to a standard RDWC 28 Pot system by focusing on maximum oxygenation and rapid plant development.

The AERO system's innovative design eliminates poor oxygenation and nutrient stagnation, ensuring your crops have the ideal environment to thrive. Available with 15L (4-gallon) or 30L (8-gallon) pots, this kit offers the flexibility to suit your specific facility needs. By maximizing root zone oxygen, you achieve significantly higher yields and faster turnover cycles. Please note: This system requires a nutrient reservoir (not included); we recommend exploring the Alien Hydroponics range for compatible high-capacity tanks.

What's Included

1x DRAIN Pump Pipe Adapter
1x Pressure Water Pump 30
1x Cycle Timer
1x AERO/RAIN Header Pot Complete 36L
28x AERO/RAIN Pot 15L
1x Large Pot Lid Adapter
1x Silver Lid
28x AERO Lid
1x Header Pot Blank
56x Pot Stand for 15L Pot
28x Drain Cover - Copper
28x Square Net Pot
56x Grommet - 4mm
56x Black Sprinkler
2x Elbow 50mm Barbed
2x Tee 50mm Barbed
4x Elbow 50mm Dual Flow
25x Tee 50mm Dual Flow
29x Washer 50 X 64mm
29x Nut 50mm Dual Flow
14x Clamp Size 2
8x Clamp Size 3
4x Valve 16mm Green
4x Plug - 16mm
56x Tee 16mm - 4mm
28x Pot Clip 16mm
2x Tee 25mm Barbed - 3/4" Male
2x Tee 25mm Barbed
2x Elbow 25mm Barbed - 3/4" Male
2x Elbow 19mm Barbed
2x Elbow 40mm Barbed
1x Siphon Tee 19mm Fitting
1x Siphon Tee 40mm Complete
19x Pipe 16mm Silver Bulk by Meter
4x Pipe 19mm Black Bulk by Meter
4x Pipe 25mm Blue Bulk by Meter
4x Pipe 40mm Silver Spiral Bulk by Meter
19x Pipe 4mm Pink Bulk by Meter
16x Pipe 50mm Silver 100cm Piece
1x Wrench 50mm
1x Pipe Cutter 50mm
1x AERO Instructions
1x JET-STREAM DRAIN Water Pump 1100GPH
1x JET-STREAM DRAIN Water Pump Power Adapter

Features

Alien Hydroponics AERO System 28 Pot 4 Row commercial setup

💨

Maximum Oxygenation

Fine nutrient mist delivers unparalleled oxygen to the root zone, promoting explosive growth and preventing root disease.

🔧

Dual-Flow™ Fittings

Patent-pending design ensures a free-flowing system and prevents root clogging for uninterrupted operation.

🛡️

Copper-Plated Drain Cover

Effectively stops roots from entering the pipe network, safeguarding your system from blockages.

🌡️

Heat-Reflective Piping

Silver pipes reflect heat to keep your nutrient solution cool, maintaining optimal root health.

🧠

Precision Controller

Automates feeding schedules with precision, ensuring your plants receive consistent nutrient delivery on time, every time.

🧩

Easy Setup

Features a glue-free design with threaded fittings and snap-on pipes for quick, hassle-free assembly and cleaning.

💪

Durable Construction

Built with high-quality, non-reactive materials to ensure system longevity and reliable performance crop after crop.

📈

Scalable Design

Easily expand your operation or reconfigure the layout to maximize your facility's growing space.

Setup and Maintenance

System Setup Steps:

Prepare Pots: Attach the necessary fittings to the pots.
Connect the System: Use piping to connect the pots and the header pot to establish the recirculating network.
Install Air System: Set up the air pump and connect it to the air stones in the pots.
Integrate Pumps: Install the water pump(s) for recirculation and chilling.
Set Up Nutrient Tank: Connect the nutrient tank to the system.
Fill the System: Add water to the system.

Maintenance Tips:

Maintain a 50-75cm center distance between each pot.
Alien Hydro recommends a watering frequency of one minute every hour.
Regularly check the filter for debris.
Use ROOT ROT X™ to sterilize and keep roots healthy.
Flush the system between crop cycles with clean water and disinfectant.
Inspect sprinklers to ensure proper misting and water distribution.

Specifications

Specification	Value
Number of Pots	28
Number of Rows	4

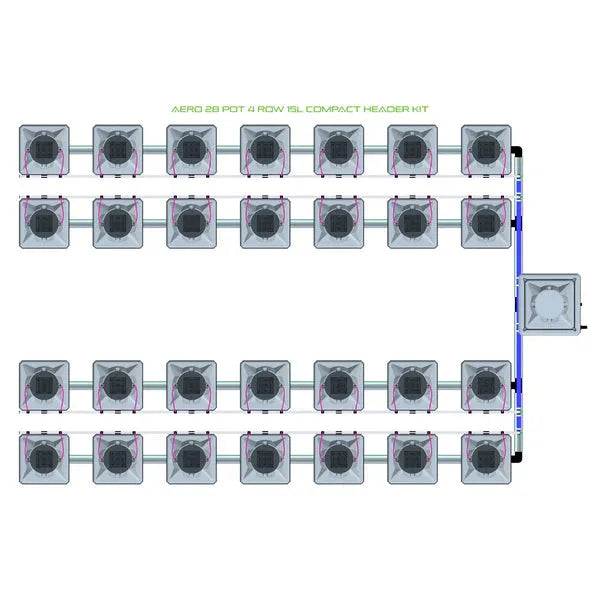

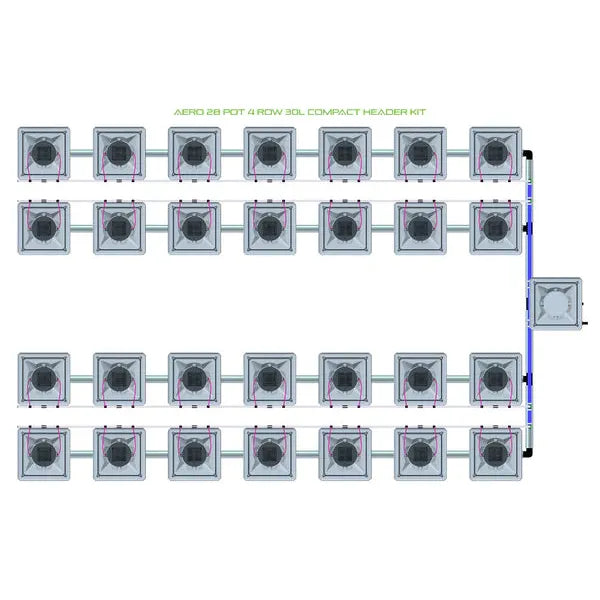

Min Assembled Size (Compact Header)	111⅜" L x 58¼" W
Max Assembled Size (Compact Header)	178¾" L x 123⅝" W

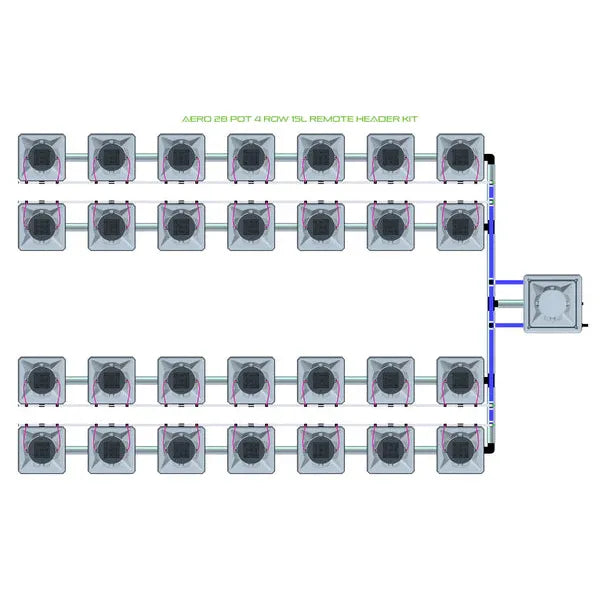

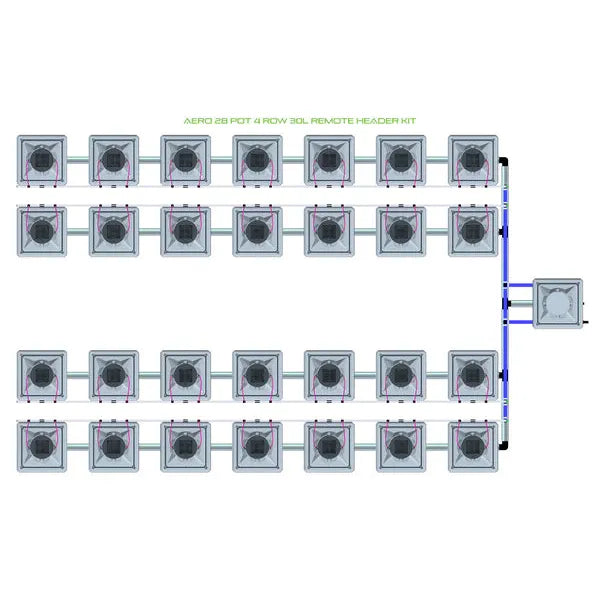

Min Assembled Size (Remote Header)	115⅜" L x 58¼" W
Max Assembled Size (Remote Header)	218⅛" L x 123⅝" W
Water Pumps Included	JET-STREAM DRAIN Water Pump 1100GPH, Pressure Water Pump 30
Recommended Reservoir (Min)	70 Gallons / 280 Liters

Support & Manuals

📄AERO Setup Instructions

Warranty

The Alien Hydroponics AERO System comes with a one-year manufacturer's warranty for your peace of mind.

FAQs

What is the main advantage of the AERO system?+

The primary advantage is superior root oxygenation. By delivering a fine mist of nutrients directly to the roots, the AERO system maximizes oxygen exposure, leading to faster growth and significantly larger yields compared to other hydroponic methods. It also uses up to 95% less water.

Is this system difficult to set up?+

No, the system is designed for easy assembly. It features a no-glue design with threaded fittings and snap-on pipes, making setup and reconfiguration straightforward for growers of any experience level.

What size reservoir tank do I need?+

A reservoir is required but not included. For the 28-pot system, we recommend a minimum capacity of 70 gallons (280 Liters) to ensure stable nutrient levels. Growers may also consider a RAIN 28 Pot system if they prefer top-feeding methods.

How does the system prevent root clogging?+

The AERO system uses two key features: patent-pending Dual-Flow™ fittings that allow free water flow while blocking roots, and copper-plated drain covers that act as a natural root deterrent, keeping the pipe network clear.

Can I expand this system later on?+

Absolutely. The entire Alien AERO line is modular and designed for expansion. You can reconfigure the layout or add more pots as your operation grows to suit your space.
