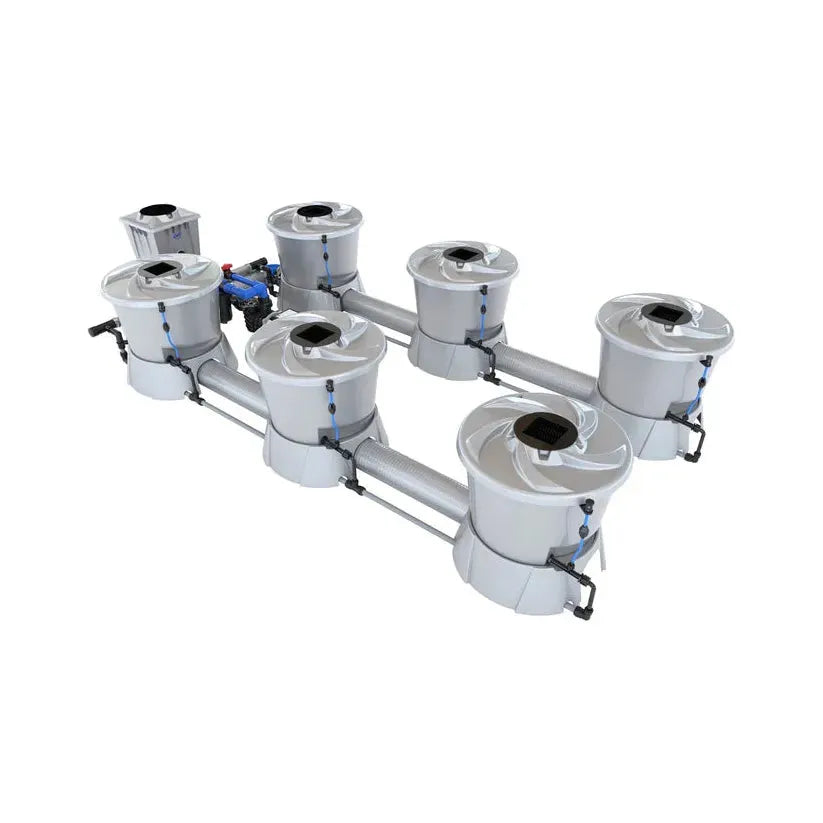

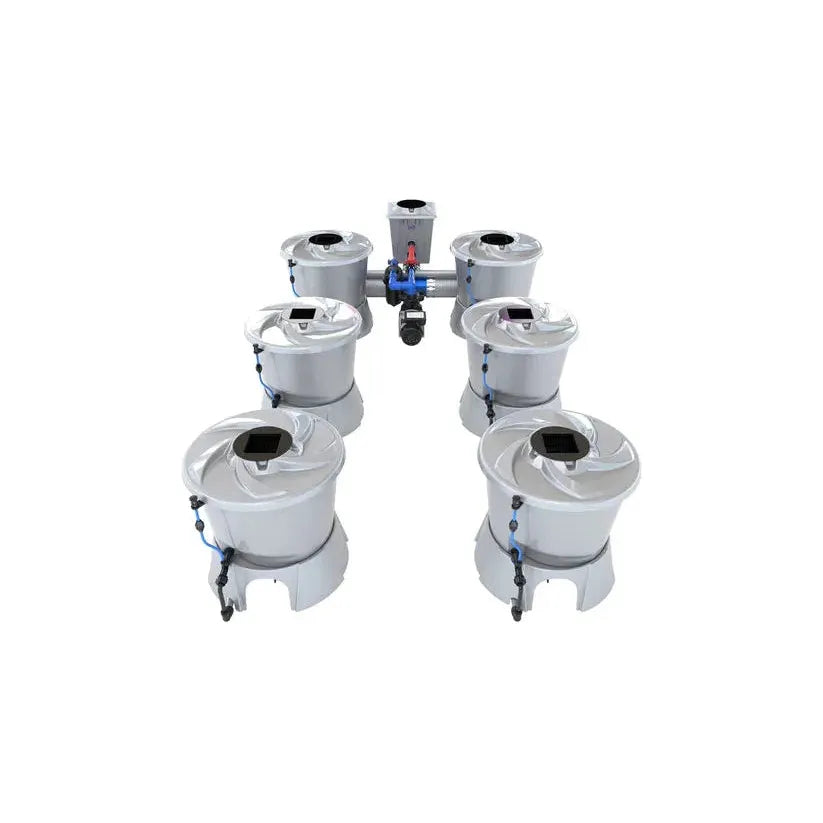

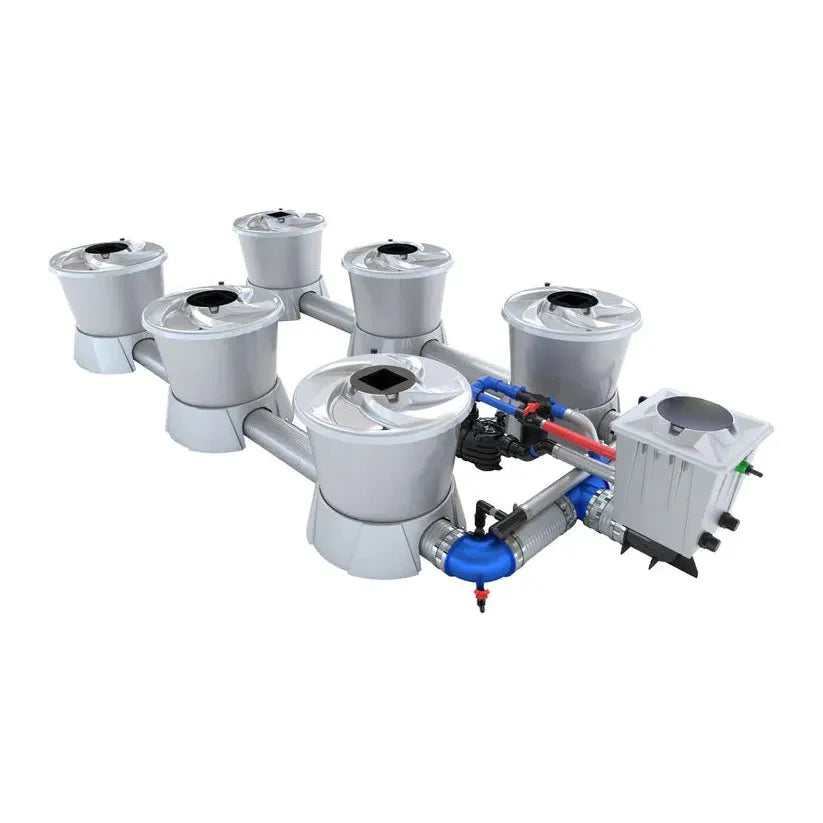

A 3D render of a grey hydroponics system with six pots connected by pipes and pumps, on a white background.
V-System 6 Pot 2 Row DWC hydroponics kit overhead view with 6 circular pots, plumbing, pump, reservoir, and dimensions.
V-System 6 Pot 2 Row kit diagram: Top-down view of 6 gray hydroponic pots, reservoir, pump, and dimensions table.

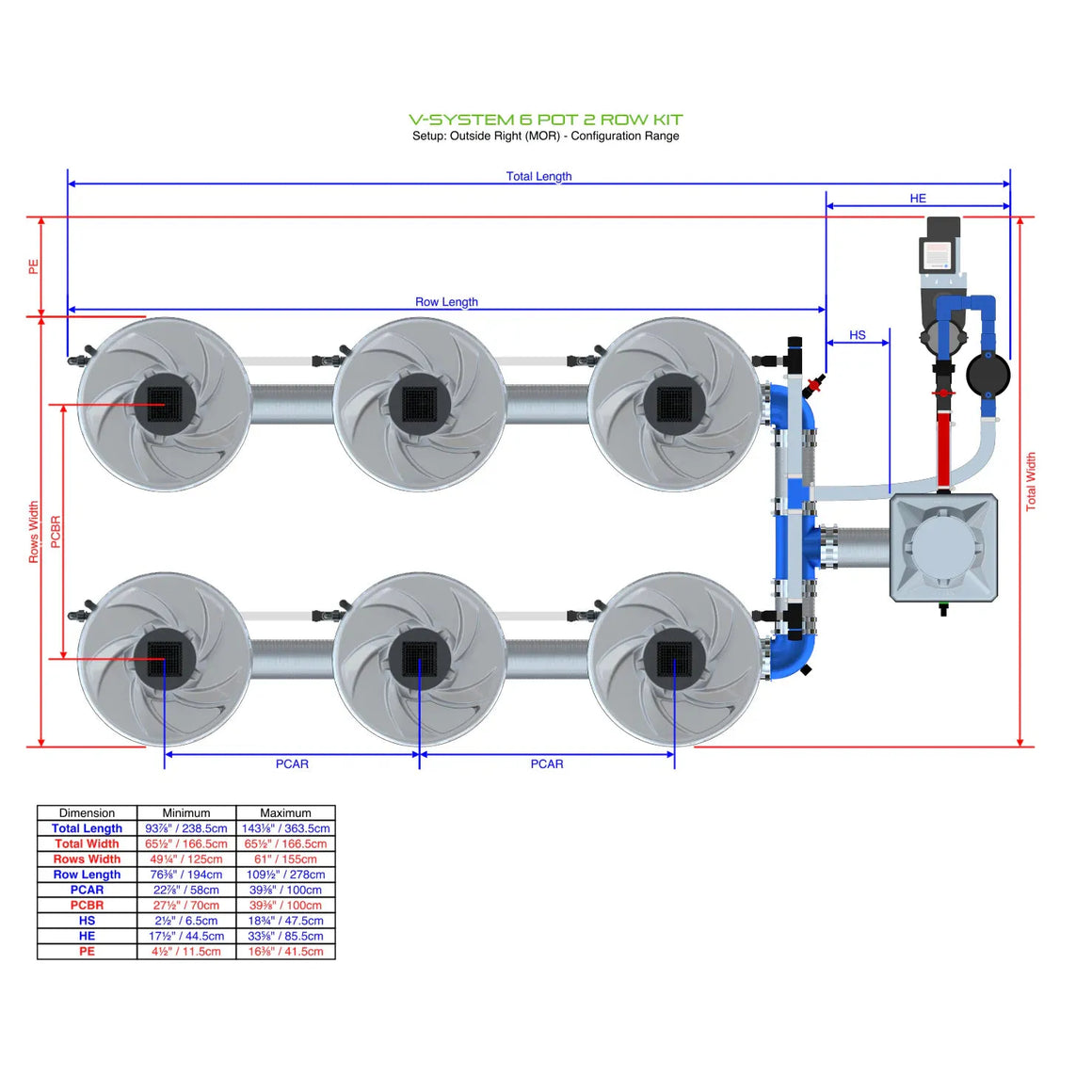

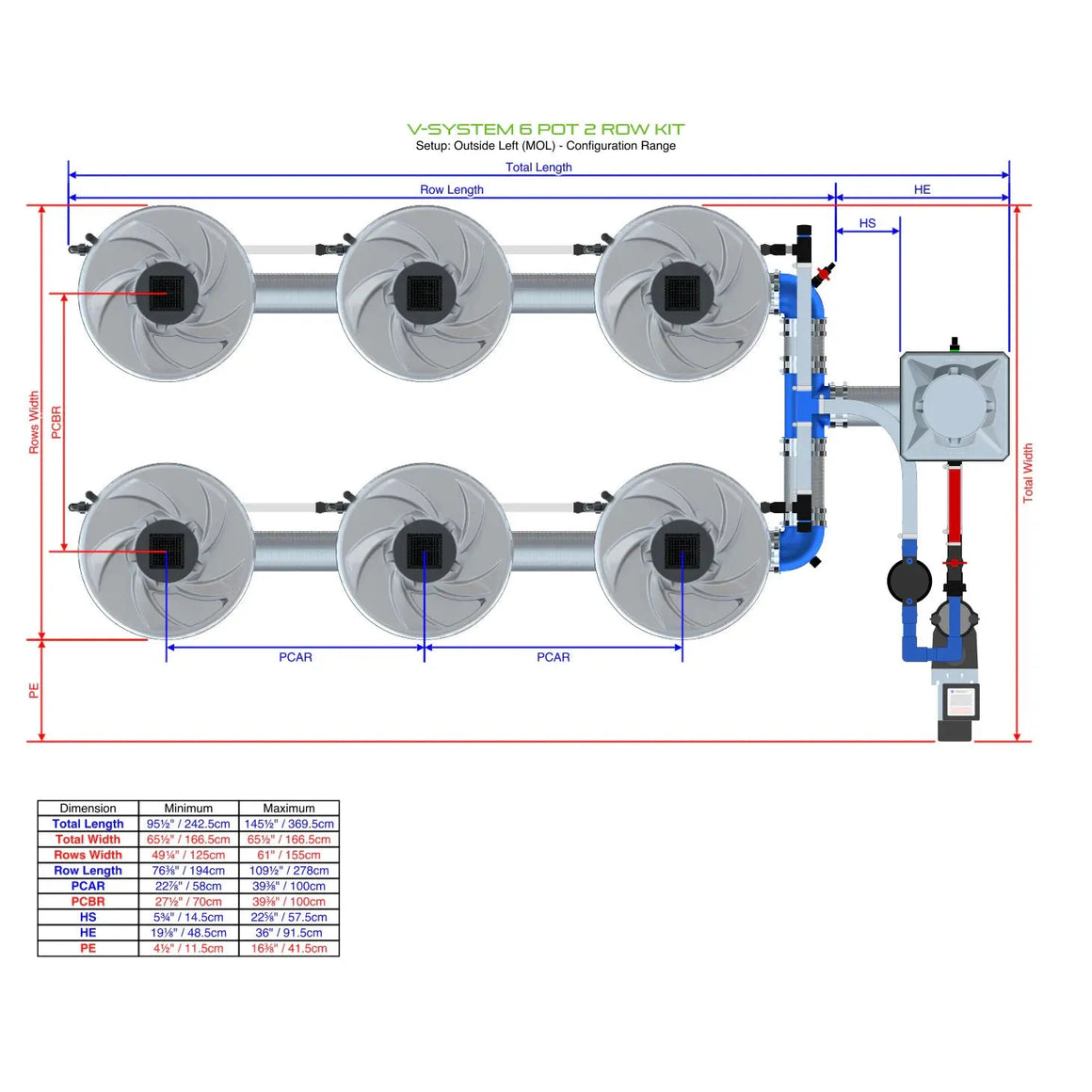

Top-down view of a V-System 6-pot 2-row DWC hydroponic kit layout with dimensions and measurement table.

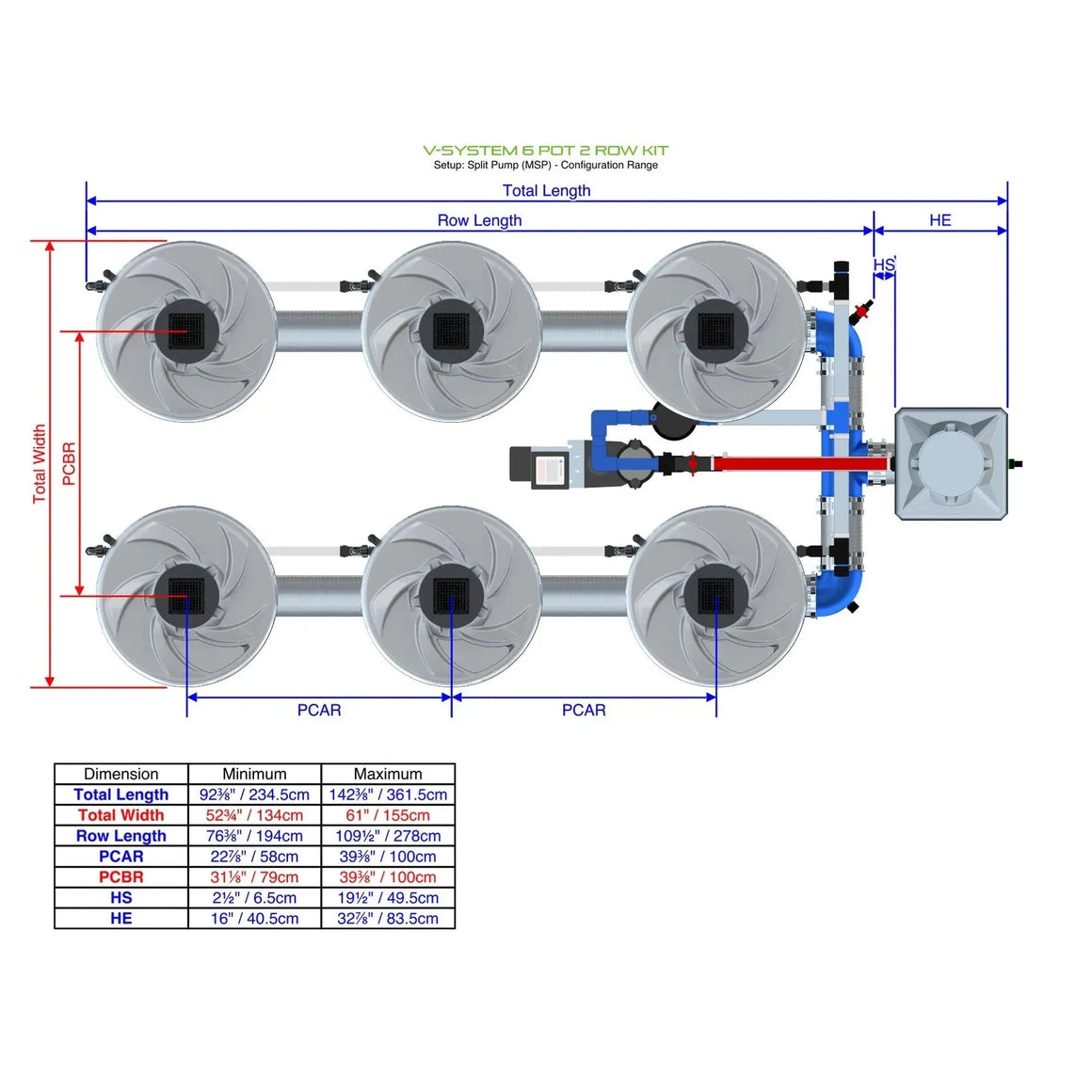

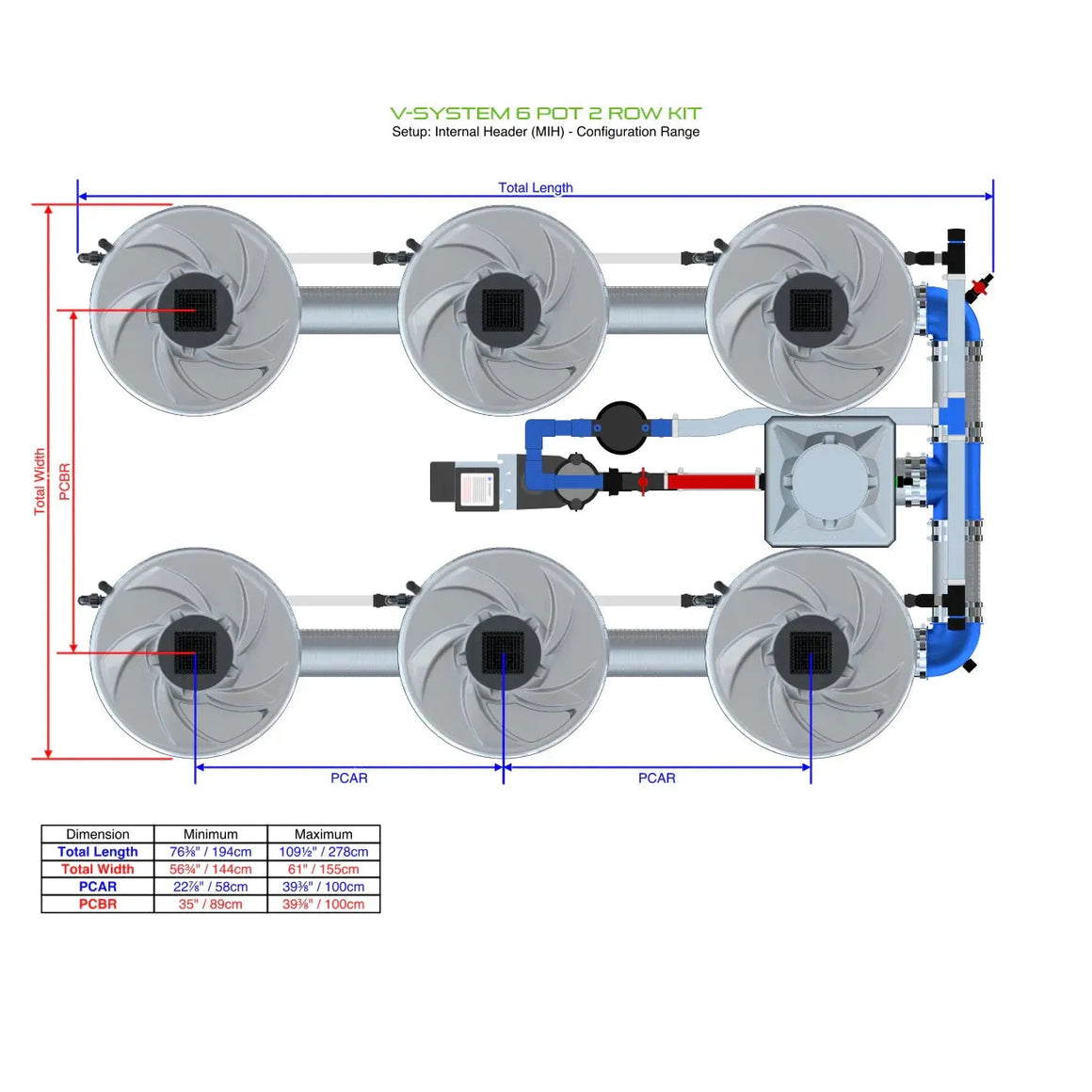

Overhead diagram of a 6-pot, 2-row V-System DWC hydroponics kit showing layout, components, and dimensions.
Alien Hydroponics V-System 6-pot kit with grey circular growing chambers and tubing on white background.
Alien Hydroponics V-System 6-pot kit with integrated plumbing and central control unit.
A 3D render of a grey hydroponics system with six pots connected by pipes and pumps, on a white background.
V-System 6 Pot 2 Row DWC hydroponics kit overhead view with 6 circular pots, plumbing, pump, reservoir, and dimensions.
V-System 6 Pot 2 Row kit diagram: Top-down view of 6 gray hydroponic pots, reservoir, pump, and dimensions table.
Top-down view of a V-System 6-pot 2-row DWC hydroponic kit layout with dimensions and measurement table.
Overhead diagram of a 6-pot, 2-row V-System DWC hydroponics kit showing layout, components, and dimensions.

Alien Hydroponics V-System DWC - 6 Pot 2 Row

Reduced Price:
$2,808.38 USD $2,527.54 USD$2,808.38 USD
Or
Pay as little as
$252754/mo
for a term that suits you, up to 36 months. Learn More
Standard shipping rates apply to this item

🍃 Earn 2,528 points for shopping and get $25.27 off your next order. Join Harvest Club for free

To calculate 10 percent of a number, simply divide it by 10 or move the decimal point one place to the left. For example, 10 percent of 230 is 230 divided by 10, or 23.
pricePoints: 2527.54
2,528
2
percentage: $25.27
rt:

🍃 Earn # points for shopping and get $25.27 off your next order. Join Harvest Club for free

MODEL: BD100-0206
Need help deciding?

Expert (human) help, just a click away!

Call an Expert Live Chat

Alien Hydroponics V-System DWC - 6 Pot 2 Row

Struggling with complex air pumps and inconsistent growth in your DWC setup? The Alien Hydroponics V-System DWC 6 Pot Kit is engineered to solve these problems, delivering professional-grade results with unparalleled simplicity. This innovative Deep Water Culture system eliminates the need for noisy air pumps and unreliable air stones by using advanced Venturi Valve Technology. This creates a powerful vortex in each pot, hyper-oxygenating the nutrient solution to fuel explosive root development and maximize yields.

Designed for serious growers, the V-System ensures every plant receives an identical, perfectly balanced mix of water, nutrients, and oxygen for uniform growth. The modular design provides flexibility for your grow space, and it's part of a larger family of systems, with smaller setups like the 4-pot V-System and larger ones like the 8-pot V-System also available to suit any scale. With superior temperature control and durable construction, this is the ultimate solution for achieving incredible harvests with less hassle.

What's Included

  • 1x V-SYSTEM Vortex Water Pump 250W 120V 11700 l/h
  • 6x V-Pot 58L
  • 6x V-Pot Base
  • 6x V-Pot Lid
  • 6x V-Pot Lid Inspection Cover
  • 6x Square Net Pot
  • 6x V-Pot Clip
  • 6x Air Filter for V-SYSTEM Venturi, 6mm
  • 6x Silencer for Venturi
  • 6x Venturi Fitting
  • 6x Venturi Air Inlet Pipe 6mm Blue (2X 4")
  • 6x Venturi Inlet Fitting for 22mm Pipe
  • 7x Nut 5"
  • 7x Washer 5" Green Silicone
  • 18x 5" Stainless Steel Clamp
  • 1x Distribution Tee 40mm
  • 2x DM Push-Fit Elbow 22-15mm V-SYSTEM
  • 2x DM Push-Fit Elbow 22mm V-SYSTEM
  • 4x DM Push-Fit Tee 22-15mm V-SYSTEM
  • 1x Drain Cap 1/2"
  • 1x Drain Tap 1/2"-16mm Barb
  • 2x Elbow 5" Barbed with Drain Point
  • 3x Elbow 5" Threaded Dual-Flow
  • 1x Filter Manifold, Complete 40mm
  • 1x Float Valve
  • 1x V-SYSTEM Header Pot 20L 40mm
  • 1x Silver Lid
  • 1x Header Pot Blank
  • 1x Hosetail 16mm-3/4" Female Green
  • 6x Pipe 22mm Rigid 1 Meter - Venturi Feed
  • 1x Pipe 32mm Red 1 Meter Spiral
  • 3x Pipe 40mm Silver 1 Meter Spiral
  • 7x Pipe 5" Spiral 80cm
  • 1x Tee 5" Barbed
  • 4x Tee Threaded 5" Dual-Flow
  • 2x Threaded Tank Connector 1"
  • 1x Vortex Pump Inlet Manifold40mm long
  • 2x 1" Cap for Chiller Connections
  • 1x T/Connector Straight 32mm
  • 1x T/Connector Straight 40mm
  • 1x Terminal Manifold Left
  • 1x Terminal Manifold Right
  • 16x 22mm Insert for 22mm Rigid Pipe
  • 2x Clamp Size 2
  • 8x Clamp Size 3
  • 1x 8mm Screwdriver for 5" Clamp
  • 1x Wrench 5"
  • 1x Wrench for Float Valve
  • 1x 8mm Socket for 5" Clamp
  • 1x Pipe Cutter 50mm
  • 2x Silicone Grease - Food Grade

Features

🌀
Venturi Valve Technology

Eliminates air pumps and stones by using a water vortex to super-oxygenate the nutrient solution for healthier roots.

❄️
Superior Temperature Control

Rapidly circulates water to maintain cooler temperatures, significantly reducing the risk of root rot and disease.

🧩
Fully Modular Design

Easily customize the pot layout and expand your system up to four rows with ten pots each as your garden grows.

⚖️
Uniform Nutrient Distribution

The powerful vortex pump ensures every plant receives an identical nutrient mixture for consistent, even growth.

💧
Large 15-Gallon V-Pots

Spacious 58L pots provide ample room for massive root systems, leading to larger plants and bigger yields.

⚡
High-Performance Pump

Includes a powerful and reliable 250W Jet-Stream Vortex pump engineered for continuous, efficient operation.

🧹
Easy Maintenance

Features total-drainage bases and integrated filtration, simplifying the process of cleaning and system resets.

Alien Hydroponics V-System 6 Pot Specifications

Specification Value
Number of pots 6
Number of rows 2
Kit total fluid volume 96.4 gallons (365 L)
Minimum assembled length 6' 4.8" (76.8 inches / 1950 mm)
Minimum assembled width 3' 11.2" (47.2 inches / 1200 mm)
Water Pump Model V-SYSTEM Vortex Water Pump 250W 120V 11700 l/h
Pump Wattage 250 watts
Pump Flow Rate 3091 gal/hr (11700 L/hr)
Recommended water chiller minimum capacity 132 gallons (500 L)

Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.

FAQs

What makes the V-System different from other DWC systems?+

The key difference is its innovative Venturi Valve Technology. Instead of relying on traditional air pumps and air stones, which can clog and fail, the V-System uses the flow of water from a powerful pump to create a vortex. This method dissolves a massive amount of oxygen into the water, promoting healthier roots and preventing issues common in other RDWC systems.

How many plants can I grow with this kit?+

This 6-pot kit is designed to comfortably accommodate six large plants. The spacious 15-gallon (58L) pots provide ample room for extensive root development, allowing your plants to reach their full genetic potential.

Is this system expandable?+

Absolutely. The V-System is fully modular and designed for growth. You can easily add more pots or rows to your setup. If you need a larger system from the start, we also offer configurations like the 12-pot V-System and beyond to accommodate commercial-scale operations.

What kind of maintenance is required?+

Maintenance is straightforward. The system features total-drainage bases, which makes it easy to empty and clean. The integrated filtration helps keep the lines clear of debris. Regular checks of pH and EC levels are recommended, just as with any hydroponic system.

Do I need to buy a separate water pump?+

No, the kit is all-inclusive. It comes with a high-performance V-SYSTEM Vortex 250W water pump that is perfectly matched to power the 6-pot system, ensuring optimal circulation and oxygenation right out of the box.

How does the V-System keep the nutrient solution cool?+

The system's constant, rapid circulation of water helps to dissipate heat and maintain a more stable, cooler temperature than static DWC buckets. This significantly reduces the risk of Pythium (root rot). For grows in hotter environments, the system includes ports for easy connection to a water chiller for precise temperature control.
