Alien Hydroponics V-System DWC 12-Pot

Alien Hydroponics V-System DWC - 12 Pot

Struggling to achieve consistent, explosive growth in your indoor garden? The Alien Hydroponics V-System DWC - 12 Pot is the solution, transforming your space into a high-yield powerhouse. This complete deep water culture system is engineered with cutting-edge features to simplify hydroponics while maximizing plant health and vigor.

At the heart of this advanced Alien Hydroponics system is the revolutionary Venturi Valve Technology. This innovative feature eliminates the need for noisy, failure-prone air pumps and airstones by creating a powerful whirlpool vortex in each pot. This process draws in massive amounts of oxygen, delivering a super-oxygenated nutrient solution directly to the root zone for unparalleled growth rates. The system also maintains cooler water temperatures to protect against root rot, ensuring your garden thrives. This 12-pot configuration provides ample space, but if your needs change, smaller setups like the 8-pot V-System or larger ones like the 15-pot V-System are also available.

Features

💨

Venturi Valve Technology

Creates a powerful vortex to hyper-oxygenate the nutrient solution without air pumps or airstones.

🌡️

Optimal Temperature Control

Maintains cooler water temperatures to significantly reduce the risk of root rot and other issues.

🧩

Fully Modular Design

Easily customize the pot layout and expand your system up to four rows as your garden grows.

🌿

Uniform Nutrient Distribution

The powerful circulation ensures every plant receives an equal and consistent supply of nutrients.

What's Included

This kit comes in three configurations to fit your space. The components for each are listed below:

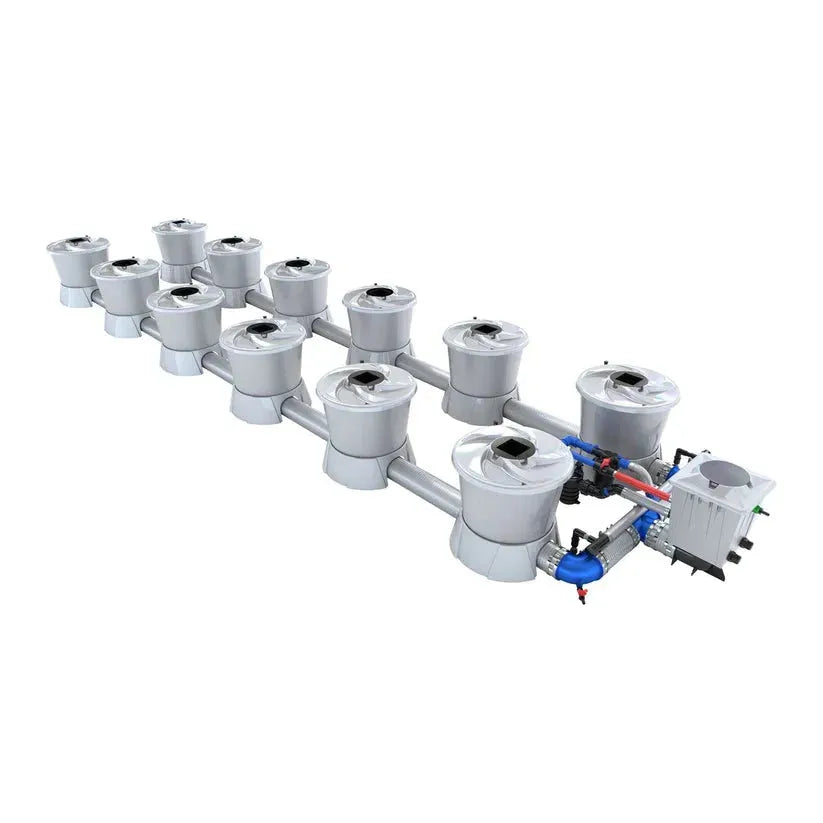

2 Row Configuration

1x V-SYSTEM Vortex Water Pump 750W
12x V-Pot (58L) with Base, Lid, and Net Pot
All necessary fittings, pipes, and clamps for assembly
1x V-SYSTEM Header Pot (20L) with Float Valve
Integrated Filtration and Venturi System Components
Tools: Pipe Cutter, Wrenches, Silicone Grease

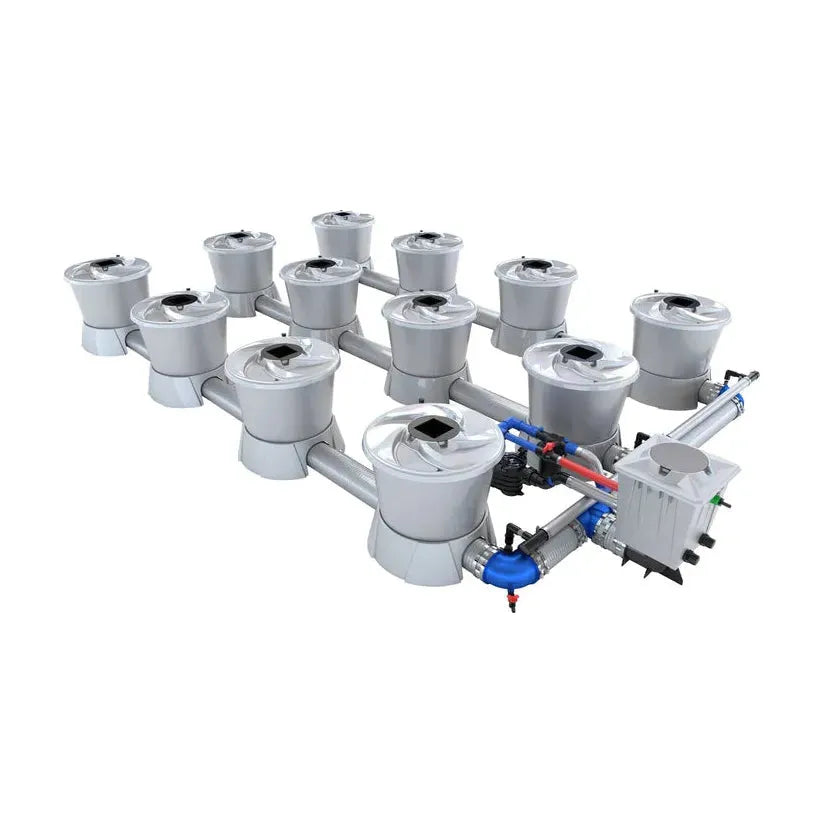

3 Row Configuration

1x V-SYSTEM Vortex Water Pump 550W
12x V-Pot (58L) with Base, Lid, and Net Pot
All necessary fittings, pipes, and clamps for assembly
1x V-SYSTEM Header Pot (20L) with Float Valve
Integrated Filtration and Venturi System Components
Tools: Pipe Cutter, Wrenches, Silicone Grease

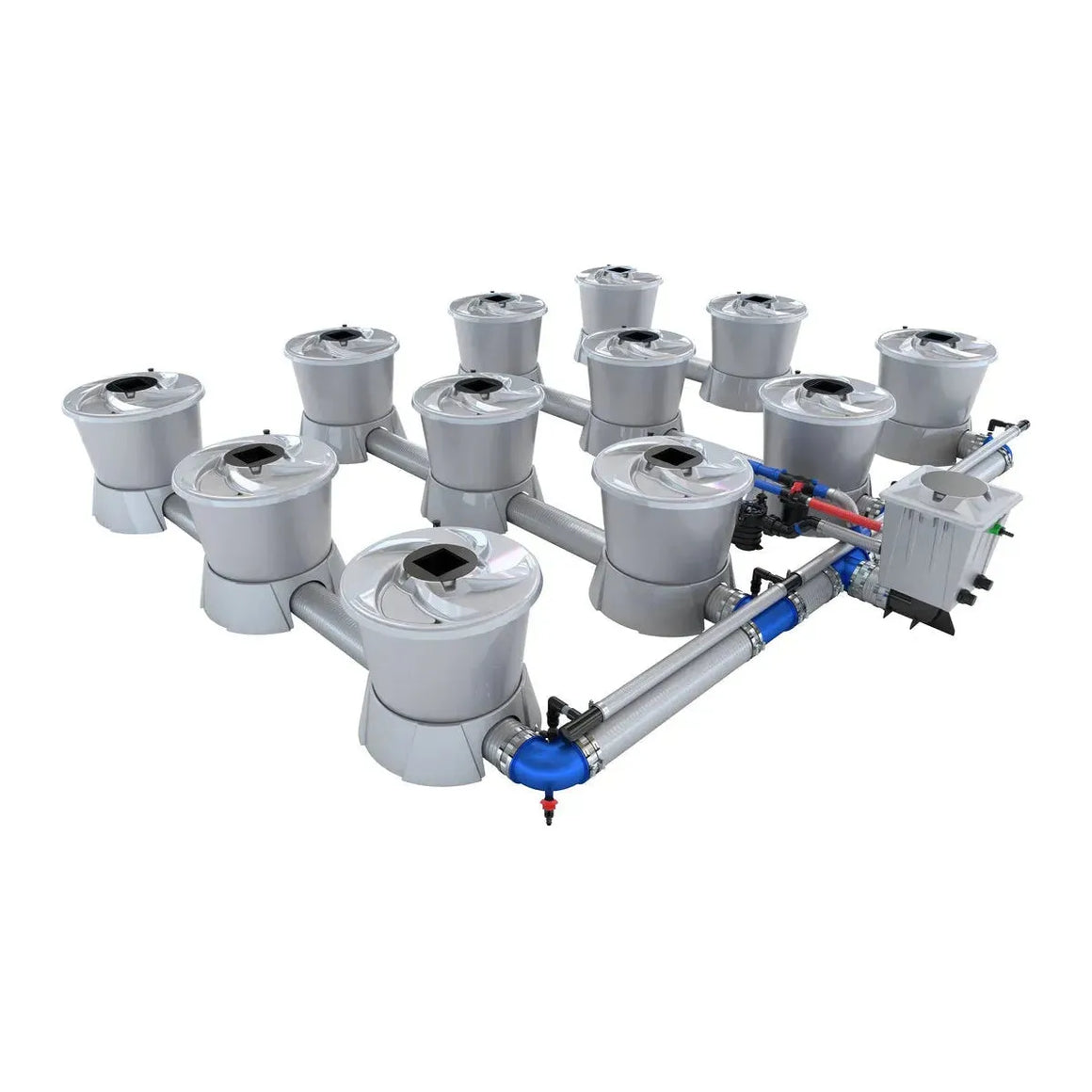

4 Row Configuration

1x V-SYSTEM Vortex Water Pump 370W
12x V-Pot (58L) with Base, Lid, and Net Pot
All necessary fittings, pipes, and clamps for assembly
1x V-SYSTEM Header Pot (20L) with Float Valve
Integrated Filtration and Venturi System Components
Tools: Pipe Cutter, Wrenches, Silicone Grease

Specifications

2 Row Configuration

Specification	Value
Number of Pots	12
Number of Rows	2
Total Fluid Volume	195.5 gal (740 L)
Minimum Length	13' 4.2" (4070 mm)
Minimum Width	3' 11.2" (1200 mm)
Pump Model	Vortex 750W
Pump Flow Rate	3963 gal/hr (15000 L/hr)
Recommended Chiller	264 gal (1000 L) min. capacity

3 Row Configuration

Specification	Value
Number of Pots	12
Number of Rows	3
Total Fluid Volume	195.5 gal (740 L)
Minimum Length	8' 3.6" (2530 mm)
Minimum Width	5' 9.3" (1760 mm)
Pump Model	Vortex 550W
Pump Flow Rate	3646 gal/hr (13800 L/hr)
Recommended Chiller	264 gal (1000 L) min. capacity

4 Row Configuration

Specification	Value
Number of Pots	12
Number of Rows	4
Total Fluid Volume	196.0 gal (742 L)
Minimum Length	6' 4.8" (1950 mm)
Minimum Width	7' 7.3" (2320 mm)
Pump Model	Vortex 370W
Pump Flow Rate	3487 gal/hr (13200 L/hr)
Recommended Chiller	264 gal (1000 L) min. capacity

Support & Manuals

📄Instruction Manual 📄Technical Drawing

Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.

FAQs

What is the main benefit of the V-System's Venturi technology?+

The key benefit is superior oxygenation without the need for a separate air pump or air stones. The Venturi valve uses water pressure from the included Jet-Stream Vortex pump to create a vacuum that sucks air into the water stream, forming a vortex that saturates the nutrient solution with dissolved oxygen. This leads to healthier roots and faster growth.

How many plants can I grow in this system?+

This kit includes 12 individual 15-gallon (58L) V-Pots, allowing you to grow 12 large plants. The modular design gives you the flexibility to space them according to your plants' needs.

Is this system difficult to set up?+

No, the system is designed for straightforward assembly. It uses push-fit feed connections and stainless steel clamps. We provide a detailed instruction manual and technical drawings to guide you through the process for each configuration.

What size grow space do I need for the 12-pot system?+

The footprint depends on your chosen layout. The 2-row configuration requires a minimum space of approximately 13.4' x 4', while the 4-row configuration is more compact at about 6.5' x 7.7'. Please refer to the specifications table above for the exact minimum dimensions of each layout.

Can I expand this system later?+

Absolutely. The V-System is fully modular and designed for expansion. You can add more pots or rows as your operation grows, up to a maximum of four rows with ten pots per row. You can explore all options within the Alien V-System series.

Do I need a separate water chiller?+

While the V-System's constant circulation helps keep water temperatures cooler than in static DWC systems, a water chiller is highly recommended for optimal results, especially in warmer environments. The specifications table lists the recommended minimum chiller capacity to maintain ideal root zone temperatures.
