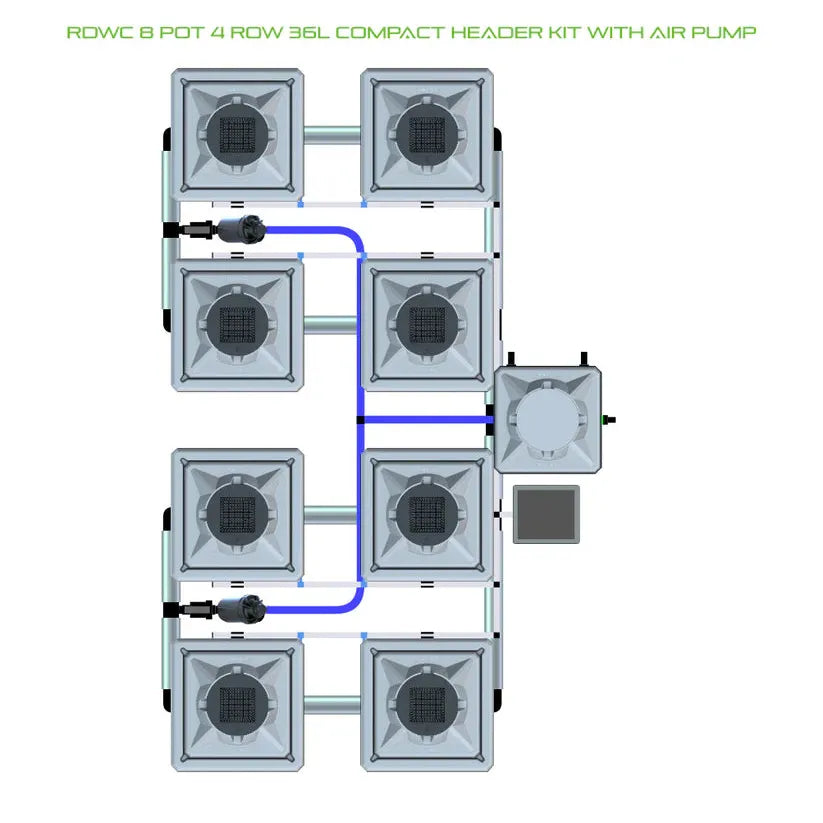

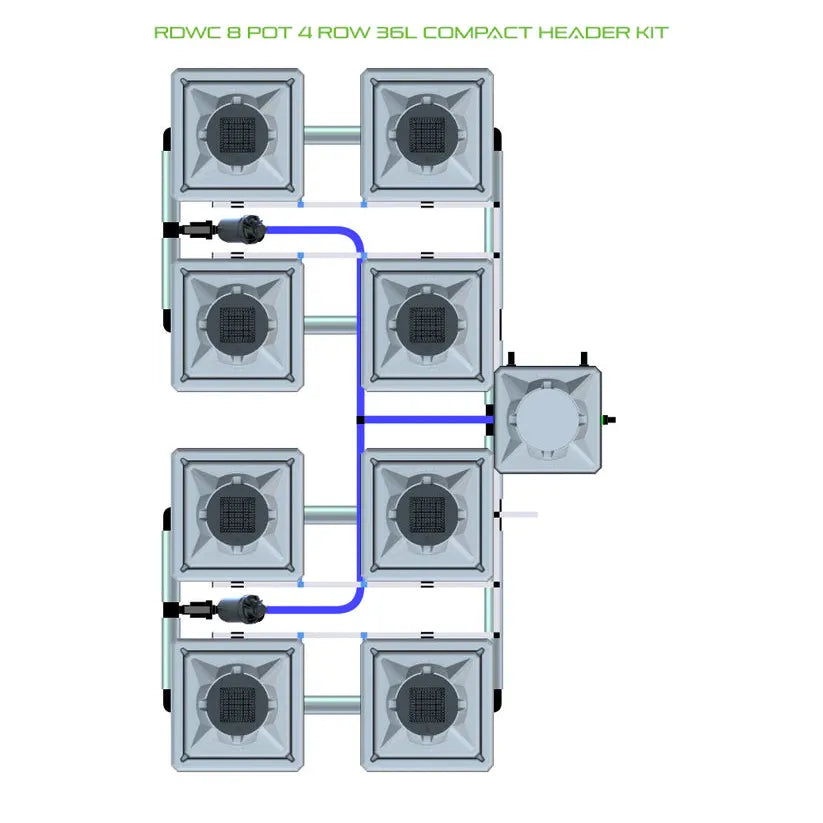

Diagram of an 8-pot 4-row RDWc 36L hydroponic system with compact header, showing square pots, pump, and tubing.

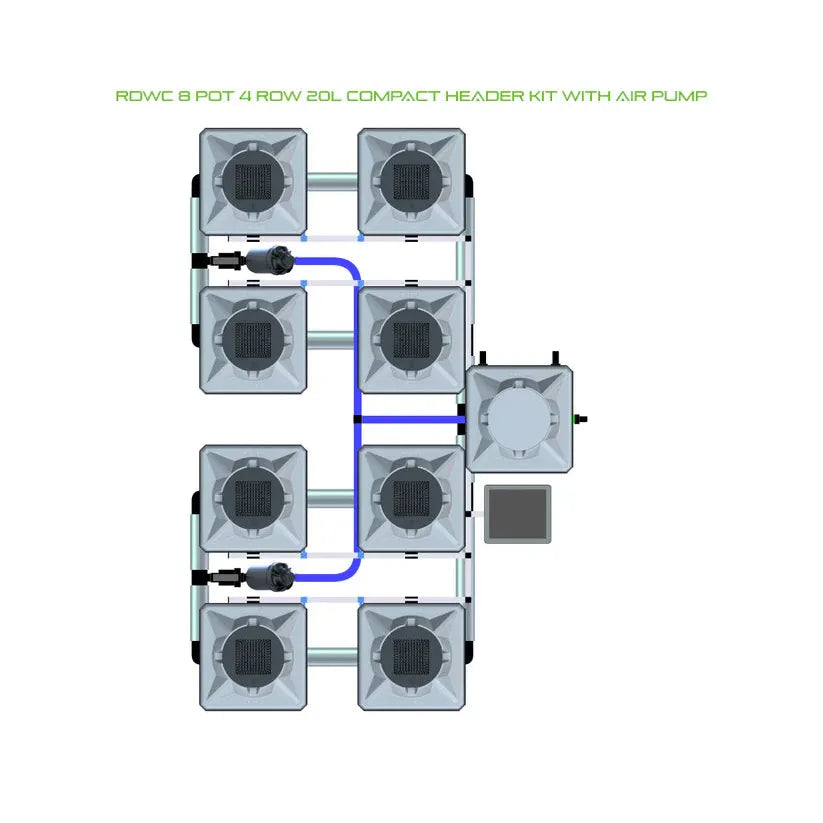

Diagram of RDWC 8-pot, 4-row, 20L compact header kit hydroponic system with grey pots, plumbing, air pump.

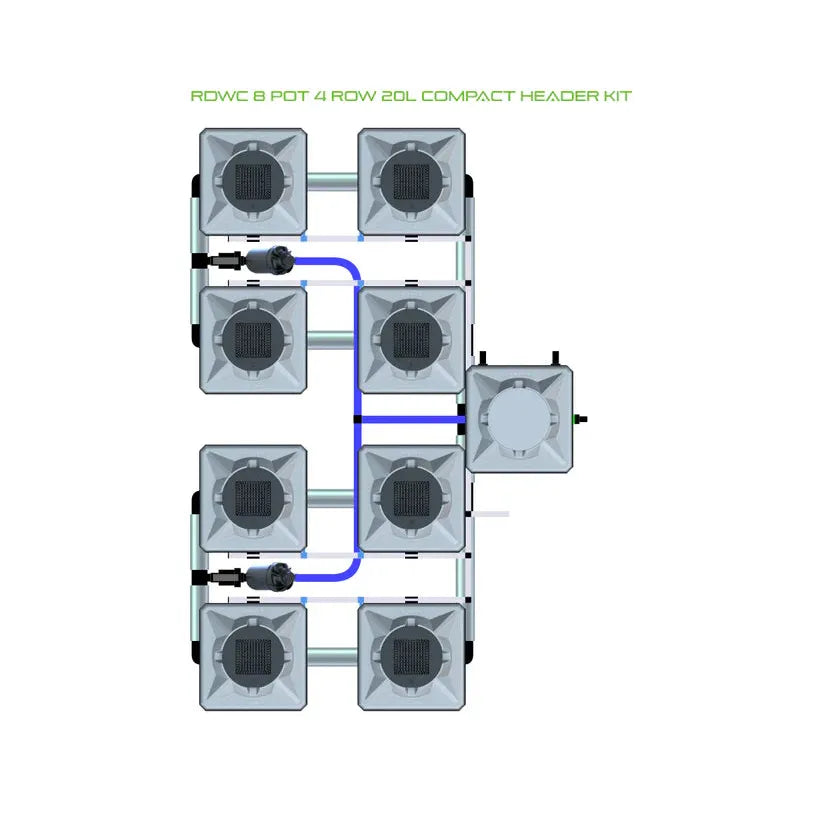

RDWC 8-pot 4-row 20L compact header kit diagram. Hydroponic system layout showing pots, reservoir, pumps, tubing.

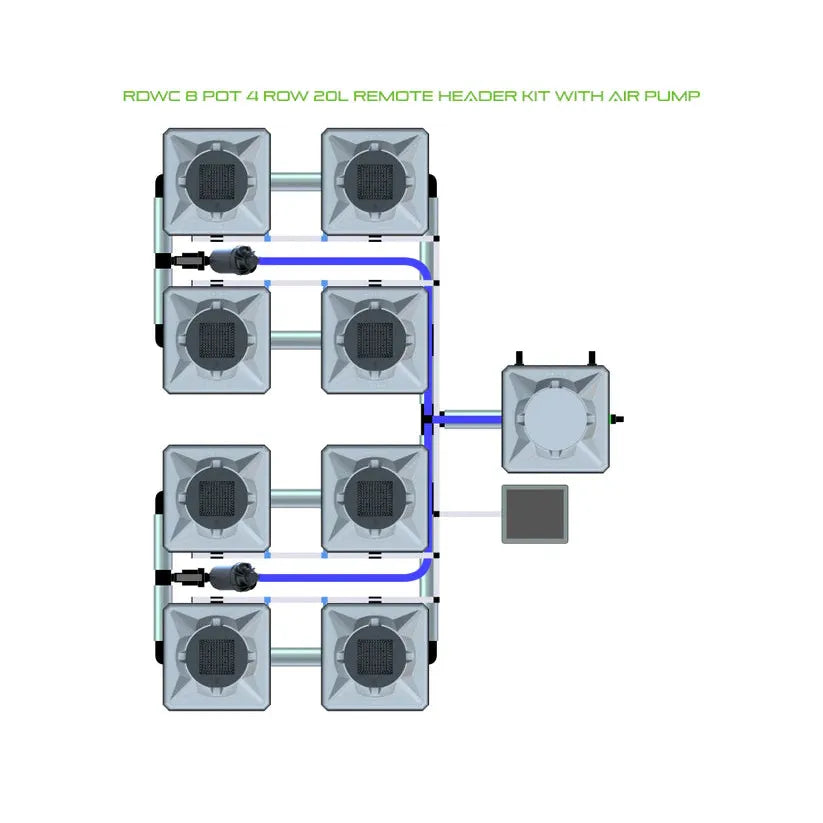

RDWC 8-pot, 4-row 20L hydroponic system with remote header kit, central reservoir, air pump, and plumbing.

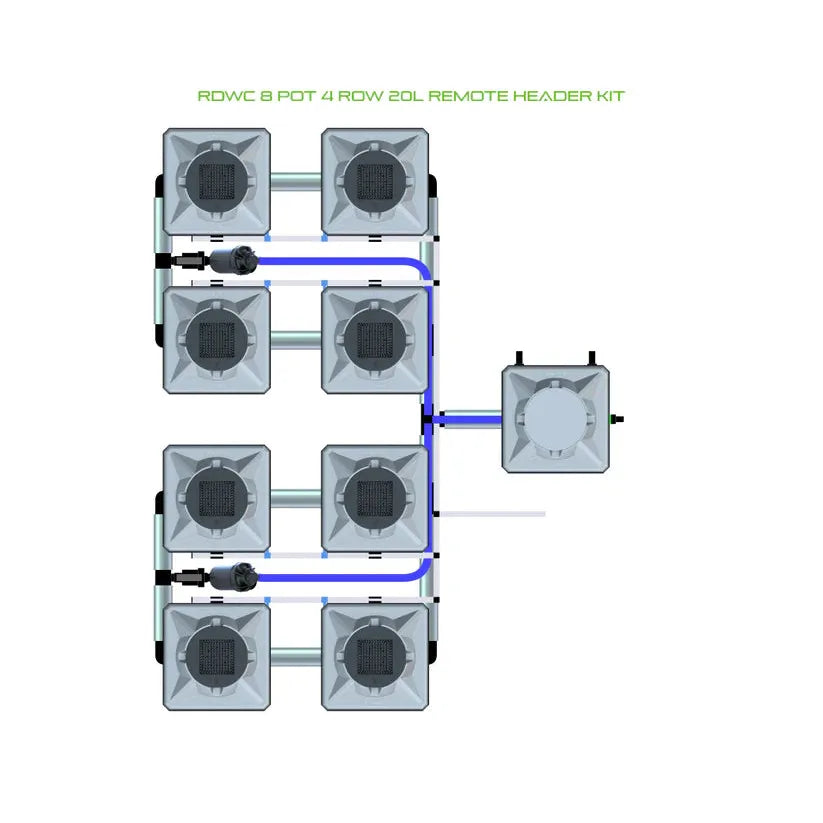

RDWC 8 Pot 4 Row 20L Remote Header Kit hydroponics system diagram with 8 pots, header tank, and tubing.
RDWC 8 Pot 4 Row 36L Compact Header Kit with Air Pump diagram. Hydroponic system layout with square pots, reservoir.

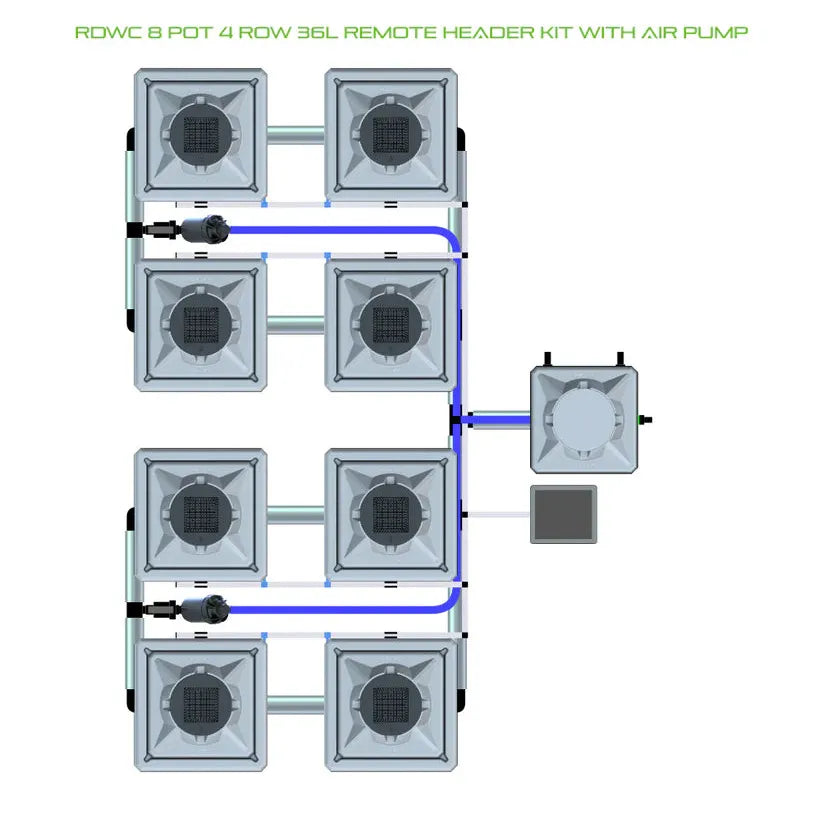

Diagram of an 8-pot RDWC hydroponic system with 4 rows, connected to a remote header tank and air pump.

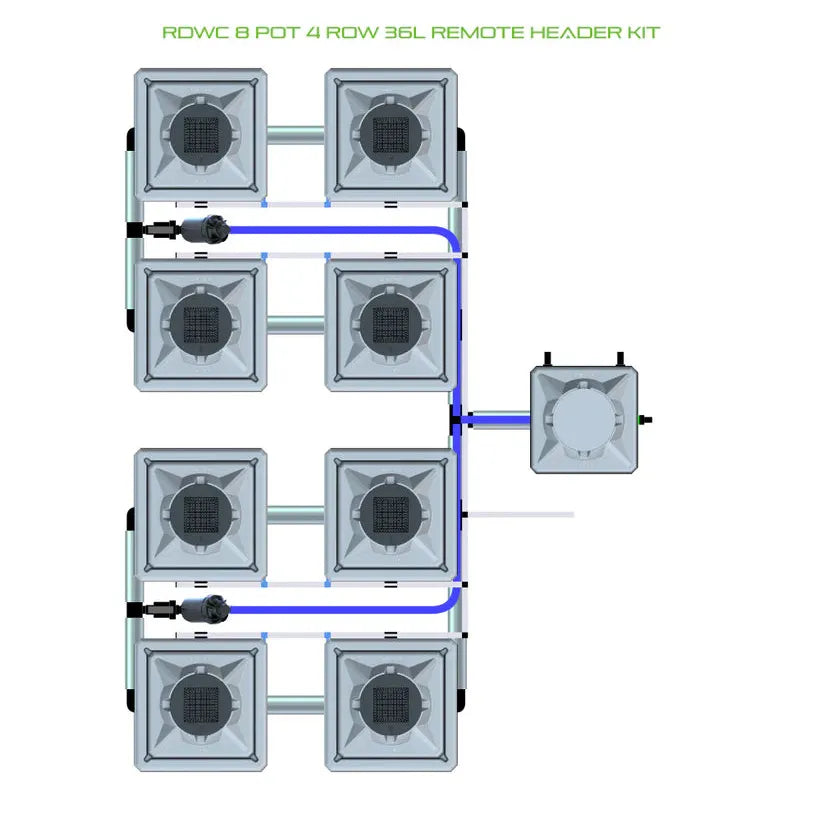

Top-down diagram of an 8-pot, 4-row RDWC hydroponic system with a remote header, pumps, and extensive piping.
Diagram of an 8-pot 4-row RDWc 36L hydroponic system with compact header, showing square pots, pump, and tubing.
Diagram of RDWC 8-pot, 4-row, 20L compact header kit hydroponic system with grey pots, plumbing, air pump.
RDWC 8-pot 4-row 20L compact header kit diagram. Hydroponic system layout showing pots, reservoir, pumps, tubing.
RDWC 8-pot, 4-row 20L hydroponic system with remote header kit, central reservoir, air pump, and plumbing.
RDWC 8 Pot 4 Row 20L Remote Header Kit hydroponics system diagram with 8 pots, header tank, and tubing.
RDWC 8 Pot 4 Row 36L Compact Header Kit with Air Pump diagram. Hydroponic system layout with square pots, reservoir.
Diagram of an 8-pot RDWC hydroponic system with 4 rows, connected to a remote header tank and air pump.
Top-down diagram of an 8-pot, 4-row RDWC hydroponic system with a remote header, pumps, and extensive piping.

Alien Hydroponics RDWC - 8 Pot 4 Row

Reduced Price:
Translation missing: en.product.price.range_html Translation missing: en.product.price.range_htmlTranslation missing: en.product.price.range_html
Or
Pay as little as
$116880/mo
for a term that suits you, up to 36 months. Learn More
Standard shipping rates apply to this item

🍃 Earn 1,169 points for shopping and get $11.68 off your next order. Join Harvest Club for free

To calculate 10 percent of a number, simply divide it by 10 or move the decimal point one place to the left. For example, 10 percent of 230 is 230 divided by 10, or 23.
pricePoints: 1168.80
1,169
2
percentage: $11.68
rt:

🍃 Earn # points for shopping and get $11.68 off your next order. Join Harvest Club for free

MODEL: BD100-1408C
Need help deciding?

Expert (human) help, just a click away!

Call an Expert Live Chat

Alien Hydroponics RDWC - 8 Pot 4 Row

Struggling to achieve professional hydroponic results without a commercial-grade setup? The Alien Hydroponics RDWC 8 Pot 4 Row kit is the solution, delivering the power of a recirculating deep water culture system in a manageable footprint. It's engineered to maximize growth potential by bathing your plant's roots in a highly-oxygenated nutrient solution, eliminating the complexity and limitations of other systems.

Ideal for dedicated home growers and small-scale commercial operations, this 8-pot system promotes explosive growth and significantly higher yields. The intelligent design prevents common issues like root clogging and poor oxygenation, ensuring your plants thrive from seed to harvest. This kit is a fantastic entry point into advanced RDWC hydroponic systems, offering scalability for future growth. For those with different space requirements, Alien Hydroponics also offers various configurations to fit any room.

Alien Hydroponics RDWC - 8 Pot 4 Row Kit full system view

What's Included

  • 1x RDWC Header Pot Complete
  • 8x RDWC Pot 20L
  • 9x Silver Lid
  • 1x Header Pot Blank
  • 8x Square Net Pot
  • 8x Air Injection Ring
  • 6x Elbow 50mm Dual Flow
  • 8x 50mm Straight Dual Flow
  • 3x Tee 50mm Dual Flow
  • 17x Nut 50mm Dual Flow
  • 2x RDWC Tee, Ball Valve and Filter
  • 3x Tee 16mm Barbed
  • 4x Plug - 16mm
  • 2x Elbow 16mm Barbed
  • 8x Tee 16mm - 6mm Blue
  • 8x Pot Clip 16mm
  • 1x Tee 19mm Barbed
  • 6m Pipe 6mm Blue Bulk
  • 9m Pipe 16mm Silver Bulk
  • 3m Pipe 19mm Blue Bulk
  • 7x Pipe 50mm Silver 66cm Piece
  • 1x Wrench 50mm
  • 1x Pipe Cutter 50mm
  • 1x RDWC Instructions

Features

🚀
Accelerated Growth

Reduces vegetative time and boosts flowering for faster, more substantial harvests.

💧
Enhanced Nutrient Flow

Oversized 2" Dual-Flow™ fittings prevent root blockages, ensuring consistent nutrient delivery.

🧩
Scalable Modular Design

Easily adapts to various grow space sizes, allowing for simple customization and expansion.

💰
Efficient Operation

Requires minimal growing medium and recirculates solution to reduce operational costs.

💨
Superior Oxygenation

JET-STREAM A.I.R.™ rings provide constant high-pressure oxygen for healthy root development.

🛠️
Easy Setup & Maintenance

Threaded fittings and snap-on pipes allow for a glue-free, tool-free setup and easy cleaning.

🛡️
Durable Construction

Heat-reflective silver polymer maintains cooler solution temperatures for optimal root health.

🌿
Customizable Layouts

Offers flexible configurations with multiple pot sizes to perfectly fit your growing space.

Specifications

Specification 20L Pot Version 36L Pot Version
Number of Pots 8 8
Number of Rows 4 4
Total Fluid Volume 38 gal / 144 L 65.1 gal / 246.4 L
Min Assembled Size (Compact Header) 43.75" L x 66.5" W 48.87" L x 79.12" W
Max Assembled Size (Compact Header) 51.62" L x 84.25" W 60.62" L x 105.12" W
Min Assembled Size (Remote Header) 46.12" L x 66.5" W 52.75" L x 79.12" W
Max Assembled Size (Remote Header) 91" L x 84.25" W 100" L x 105.12" W
Water Pump Included 350 GPH, 35 Watts 350 GPH, 35 Watts
Required Air Pump (if not included) 21.1 gal/min (80 L/min)

Setup and Maintenance

System Setup Steps:

1. Prepare Pots

Attach the necessary fittings to the pots.

2. Connect the System

Use piping to connect the pots and the header pot to establish the recirculating network.

3. Install Air System

Set up the air pump and connect it to the air stones in the pots.

4. Integrate Pumps

Install the water pump(s) for recirculation and chilling (if applicable).

5. Set Up Nutrient Tank

Connect the nutrient tank to the system.

6. Fill the System

Add water to the system.

Maintenance Tips:

  • Maintain water temperature between 64-68°F (18-20°C).
  • Add nutrients and allow them to circulate fully before testing and adjusting pH/EC.
  • When planting, use a substrate layer in the net pot, water the cutting, and fill the remaining space.
  • Use preventative solutions to maintain root health and system cleanliness.

Support & Manuals

Warranty

The Alien Hydroponics RDWC system comes with a one-year manufacturer's warranty for your peace of mind.

FAQs

What makes RDWC different from standard DWC?+

Recirculating Deep Water Culture (RDWC) constantly circulates the water and nutrient solution throughout all the pots in the system. This keeps the pH, EC, and temperature uniform everywhere, preventing inconsistencies that can stress plants. Standard DWC hydroponics systems use standalone buckets, requiring you to manage each one individually.

Is this system difficult to set up?+

No, the Alien RDWC system is designed for easy assembly. It features threaded fittings and snap-on pipes, so no glue or complex tools are required. The included instructions provide a clear, step-by-step guide to get you growing quickly.

What size grow tent is recommended for this system?+

The 8 Pot 4 Row system has a flexible footprint. At its minimum size (44" x 67"), it can fit within a 4' x 6' or 5' x 5' grow tent. However, for optimal plant spacing and access, a larger tent like an 8' x 8' is recommended, especially if you plan to space the pots further apart.

Can I expand this system later on?+

Absolutely. The modular design is one of the key benefits. You can add more pots or reconfigure the layout as your needs change. If you know you'll need more space, you might consider starting with a larger kit like the Alien Hydroponics RDWC 12 Pot 4 Row system.

What is the difference between this and the Alien V-SYSTEM?+

The main difference is the oxygenation method. The RDWC uses JET-STREAM A.I.R.™ rings powered by an air pump, while the Alien V-SYSTEM uses a venturi effect created by the water pump, which means it doesn't require a separate air pump. Both are excellent systems, but they achieve super-oxygenation in different ways.
